Haier HNSB02 User manual

Quality •Innovation •Style
Compact Refrigerator
Congélateur Compact
Congelador Compacto
User Manual
HNSB02
Guide de l’Utilisateur
HNSB02
Manual del Usuario Modelo
HNSB02

SAFETY PRECAUTIONS
When using this appliance, always exercise basic safety precautions,
including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the installa-
tion instructions before it is used. See grounding instructions in the installa-
tion section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note:If for any reason this product requires service, we strongly recommend
that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors and leave the shelves in place. This will reduce the possibility of
danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the refrigerator compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9) This refrigerator should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
10) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
English
1

Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your refrigerator.
Remember to record the model and
serial number. They are on a label
in back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
English
2
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or refrigerator, take off the doors. Leave the
shelves in place so that children may not easily climb inside.

Table Of Contents
PAGE
Safety Precautions ..........................................................................1
Parts And Features ..........................................................................4
Installing Your Refrigerator ............................................................5
Unpacking Your Refrigerator ................................................................5
Proper Air Circulation ..........................................................................5
Electrical Requirements ........................................................................5
Use of Extension Cords ........................................................................6
Install Limitations..................................................................................6
Door Alignment ..................................................................................6
Refrigerator Features And Use..........................................................7
Operating Your Refrigerator..................................................................7
General Features ................................................................................7
Defrosting And Draining ......................................................................8
Normal Operating Sounds ..................................................................8
Proper Refrigerator Care and Cleaning........................................9
Cleaning and Maintenance ..................................................................9
Power Interruptions ............................................................................10
Vacation and Moving Care ................................................................10
Troubleshooting ............................................................................11
Warranty Information....................................................................11
English
3

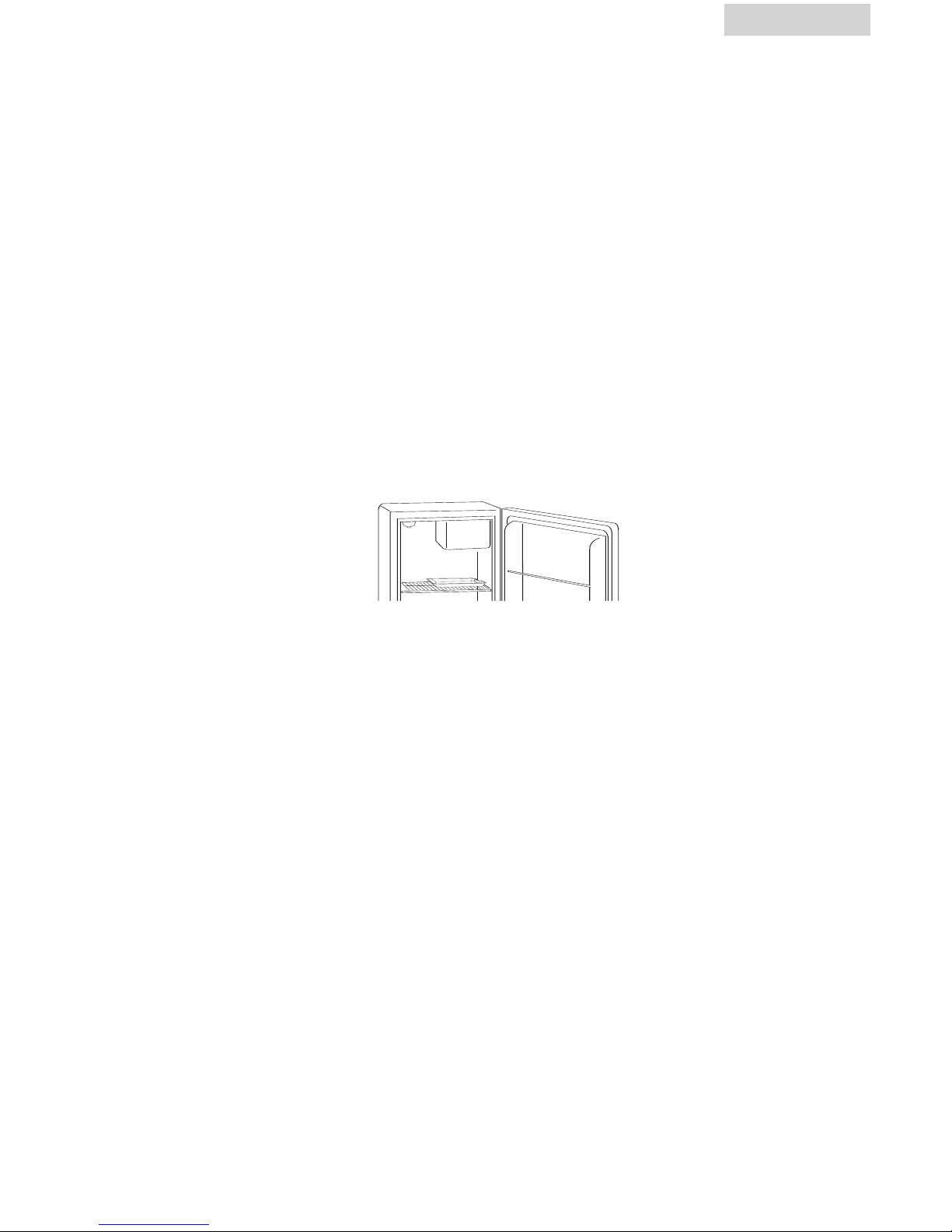

Parts And Features
English
4
2
3
4
5
6
1
1. Freezer Compartment
2. Ice Cube Tray
3. Drip Tray
4. Full Width Shelf
5. Temperature Control (not shown
rear mounted)
6. 1 Full and 1 Half Door Storage
Width Shelf

1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materi-
als before powering on the refrigerator.
• To assure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper
air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4 "(19mm)
Top ....................2" (50mm)
Back ..................2" (50mm)
• Make sure there is a suitable power Outlet (115 volts, 15 amps out-
let) with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding
in order to accommodate a two plug outlet. This is a dangerous prac-
tice since it provides no effective grounding for the refrigerator and
may result in shock hazard.
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
English
5
Electrical Requirements

•Avoid the use of an extension cord because of potential safety haz-
ards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do not install your refrigerator in any location not properly insulated
or heated e.g. garage etc. Your refrigerator was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc.
1. Remove the top hinge cover by using a flathead screwdriver.Place
the head under the front edge of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips head screw driver.
3. Adjust the door or put a spacer in between and tighten the screws.
4. Replace the top hinge cover by aligning the rear of the cover with the
rear of the hinge. Press firmly on the front of the cover until it snaps
in place.
Install Limitations
English
6
Use of Extension Cord
Door Alignment (see fig.#1)
fig. 1

Refrigerator Features And Use
General Features
Your refrigerator will automatically maintain the temperature level you select. The
temperature control dial has 7 settings plus off. 1 is the warmest. 7 is the coldest.
Turning the dial to 0 stops cooling in both the refrigeration and freezer sections.
At first, set the dial to 4 and allow 24 hours to pass before adjusting the temper-
ature to your needs.
(Note: If the refrigerator has been placed in a horizontal or tilted position for
any period of time wait 24 hours before plugging the unit in.)
Refrigerator Interior Shelves
To remove or replace a full-width slide-out shelf: (see fig. # 2)
1. Gently tilt the shelf up and slide forward until the shelf has been completely
removed.
2. To replace the shelf, gently slide the shelf back.
English
7
fig. 2

English
8
Defrosting Your Refrigerator (see fig. # 3)
•For maximum energy efficiency, defrost freezer section whenever frost
accumulates to a thickness of 1/4" or more on freezer walls. Note that
frost tends to accumulate more during the summer months.
• To defrost freezer, remove food and ice cube tray from the freezer
section. Your model requires you to place the drip tray under the
freezer section (see Fig. 3). To defrost turn the temperature control
dial to the 0 position. Defrosting may take a few hours. To speed up
defrost time, keep the door open and place a bowl of warm water in
the refrigerator.
• During the defrost cycle, water will accumulate in the drip tray. The
drip tray may also need to be emptied during the defrost process. Do
not leave unattended.
• After defrosting, empty and wipe down the drip tray, as well as the
interior of the refrigerator. You may now reset your refrigerator to the
desired temperature and return food.
Normal Operating Sounds You May Hear
•Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
fig. 3

English
9
Proper Refrigerator Care and
Cleaning
Cleaning and Maintenance
Toavoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
•Rinse with clean warm water and dry with a soft
cloth.
•Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator.
• Clean door gaskets every three months according
to general instructions. Gaskets must be kept clean
and pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
Door Gaskets:
General:
Caution:
Warning:

English
10
•Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a
power outage occurs. When power has been restored, replug power
cord to AC outlet. If outage is for a prolonged period, inspect and
discard spoiled or thawed food in freezer. Clean freezer before
reusing.
•For long vacations or absences, empty food from refrigerator, move
the temperature DIAL to the OFF position and clean the door gaskets
according to "General cleaning" section. Prop doors open, so air can
circulate inside. When moving always move the refrigerator vertically.
Do not move with the unit lying down. Possible damage to the sealed
system could occur.
Power Interruptions
Vacation and Moving Care

English
11
TroubleShooting
Refrigerator Does Not Operate
•Check if thermostat control is not in the “0” position.
•Check if refrigerator is plugged in.
•Check if there is power at the ac outlet, by checking the circuit breaker.
Food temperature appears too warm
•Frequent door openings.
•Allow time for recently added warm food to reach fresh food or freezer
temperature.
•Check gaskets for proper seal.
•Adjust temperature control to colder setting.
Food temperature is too cold
•If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
•This may be normal to maintain constant temperature during high
temperature and humid days.
•Doors may have been opened frequently or for an extended period of
time.
•Check gasket for proper seal.
•Check to see if doors are completely closed.
Moisture build up on interior or exterior of the
refrigerator:
•This is normal during high humidity periods.
• Prolonged or frequent door openings.
•Check door gaskets for proper seal.
Refrigerator has an odor:
•Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Re-align refrigerator door.
•Check for blockages e.g.food containers, crisper cover,shelves, bins
etc...

English
12
Limited Warranty
What is covered and for how long?
This warranty covers all defects in workman-
ship or materials for a period of:
12 months for labor
12 months for parts (Functional Parts
Only)
5years for sealed system
The warranty commences on the date of item
purchase. Customer shall provide Haier with
proof of the date of purchase, brand, model
and serial number for verification prior to any
warranty service being provided.
EXCEPTIONS: Commercial or Rental Use
warranty
90 days for labor
90 days for parts
No other warranty applies
What is covered/Not covered?
1. The mechanical and electrical parts of the
appliance which serve the functional pur-
pose of this appliance are covered for a
period of 12 months. This includes all parts
except finish and trim.
2. Manufacturing defects to the components of
the sealed system (e.g. hermetic compressor,
condenser and evaporator) are covered for
aperiod of 5 years from the date of pur-
chase. Any damages to such components
caused by mechanical abuse, improper
handling or shipping will not be covered.
3. The limited warranty does not cover any
credit or refund for any loss or injury caused
by the product or defects to the product
including but not limited to incidental or
consequential damages.
What will be done?
1. Any mechanical or electrical part that proves
to be defective in normal usage during the
specified warranty period will be repaired or
replaced at Haier’s discretion.
A&E factory service is the authorized service
provider for Haier.
If it is determined that repair is not appropriate
or replacement part is unavailable for repair,
Haier will exchange the product with a refur-
bished or new product the same or similar to
the original at its discretion.
2. There will be no charge to the purchaser for
functional replacement parts and labor on
any covered items during the initial 12-
month period. Beyond this period, only the
components of the sealed system are cov-
ered, labor is not provided and must be
paid for by the customer.
3. To have your product serviced, please con-
tact Haier customer service
1-877-337-3639.
THIS WARRANTY COVERS APPLIANCES
WITHIN THE CONTINENTAL UNITED
STATES, PUERTO RICO AND CANADA. IT
DOES NOT COVER THE FOLLOWING:
Damages from improper installation.
Damages incurred during shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident, alter-
ation, lack of proper care andmaintenance or
incorrect current orvoltage.
Damage from other than household use.
Damage from service by other than an autho-
rized dealer or service center.
Decorative trims or replaceable light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
Credit or Refund for products over 30 days
past date of purchase
Food loss for food spoiled as a direct result of
mechanical failure of the product or of any
delay in providing service, repair, replacement.
This limited warranty doesn’t apply to refur-
bished product or unit purchased as/like new
or second-hand.
THIS LIMITED WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES,EXPRESSED OR
INCLUDING THE WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICU-
LAR PURPOSE
The remedy provided in this warranty is exclu-
sive and is granted in lieu of all other reme-
dies.
This warranty does not cover incidental or con-
sequential damages, so the above limitations
may not apply to you. Some states do not
allow limitations on how long an implied war-
ranty lasts, so the above limitations may not
apply to you.
This warranty gives you specific legal rights,
and you may have other rights, which vary
from state to state.
Haier America
New York, NY 10018

13
PRECAUTIONS DE
SURETE
Lisez toutes les instructions avant d’utiliser cet appareil. Exercez tou-
jours les precautions de surete fondamentales avant d’utiliser cet
appareil, y compris les suivants:
1. Utilisez cet appareil uniquement pour son but prevu comme decrit
dans ce manuel d’utilisation et d’entretien.
2. Ce refrigerateur doit etre installe correctement et conformement aux
instructions d’installation avant d’etre utilise. Referez vous aux
instructions de mise a terre dans la section d’installation.
3. Ne debranchez jamais votre refrigerateur en tirant sur la corde d’ali
mentation. Saisissez toujours la fiche et tirez la tout droit hors de la
prise ecletrique.
4. Reparez ou remplacez immediatement , tous les cordons electriques
de service qui sont devenus franges ou autrement endommages.
N’utilisez pas une corde presentant des craquelures ou des abra
sions tout au long de la corde, de la fiche ou de l’extremite du con
necteur.
5. Debranchez votre refrigerateur avant de le nettoyer ou avant n’im
porte quelles reparations.
6. N’utilisez aucun dispositif electrique ou instrument pointu en degri
vant votre refrigerateur.
7. Si vous n’utilisez plus votre ancien refrigerateur, nous vous recom
man dons de retirer les portes. Cela reduira les risques d’accidents
pour les enfants.
8. Apres avoir mis votre refrigerateur en marche, ne touchez pas aux
sur faces froides des compartements du congelateur specialement si
vos mains sont mouillees ou humides. La peau peut adherer a ces
surfaces extremement froides.
9. Ce refrigerateur ne doit pas etre encastre ou place a l’interieur d’une
armoire fermee. Il est designe a etre place sans support.
10. N’operez pas votre refrigerateur dans la presence des vapeurs
explosives.
Français

14
Nous vous remercions d’avoir
achete un produit Haier. Ce manuel
facile a consulter vous guidera a
obtenir la meilleure utilisation de
votre refrigerateur.
N’oubliez pas d’enregistrer les
numeros du model et de serie. Ils
sont affiches sur une etiquette dans
le refrigerateur.
Numero du model
Numero de serie
Date d’achat
Agrafez votre recu d’achat a votre manuel.
Vous en aurez besoin pour obtenir le service de la garantie.
CONSERVEZ CES
INSTRUCTIONS POUR LE
FUTUR.
DANGER
Risque d’entrapement des enfants. Avant de disposer de votre
refrigerateur ou congelateur, enlevez les portes. Laissez les
etageres en place afin que les enfants ne puissent pas grimper
al’interieur.
Français

Français
1
Table des Matières
PAGE
Precautions de Surete ....................................................................1
Parts et Caracteristiques ................................................................2
Installion de Votre Refrigerateur ..................................................3
Deballage de Votre Refrigerateur ..........................................................3
Circulation Propre de L’air ....................................................................3
Conditions Electriques ..........................................................................3
Utilisation des Rallonges ......................................................................4
Limitations d’installation ......................................................................4
Alignment de la Porte ..........................................................................4
Caracterisiques et Utilisation de Refrigerateur ................................5
L’utilisation Generale............................................................................5
Les Etageres Interieures ........................................................................5
Degrivage de Votre Refrigerateur ..........................................................5
Les Bruits Normaux que Vous Entendrez ................................................6
Entretien et Nettoyage du Refrigerateur ......................................6
Nettoyage et Entretien ..........................................................................6
Coupure de Courant............................................................................7
Entretiens Pendant les Vacances ou Demenagement ..............................7
Depannage ......................................................................................8
Garantie Limitée..............................................................................9

Français
2
Parties et Caracteristiques
2
3
4
5
6
1
1. Compartiments du decongelateur
2. Plateau des cubes en glace
3. Plateau d’egout
4. Etageres a pleine largeur
5. Control de temperature (monté à
l'arrière non montré)
6. 1pleine et 1 demi d'étagère de
largeur de stockage de porte

Français
3
1. Retirez tous les materiaux d’emballage. Ceci inclus le socle en
mousse et tous les rubans adhesifs retenant les accessoires du refrig-
erateur a l’interieuret exterieur.
2. Inspectez et retirez le reste de l’emballage, le ruban adhesif et la
documentation avant de mettre en marche votre refrigerateur.
• Afin de vous assurez que votre refrigerateur fonctionne a maximum
efficacite vous devrez l’installer dans un endroit ou la ventilation , le
raccordement electrique et la connection de plomberie soient absolu-
ment correctes.
• On vous recommande de laisser les espaces suivantes tout autour du
refrigerateur.
Cotes.........................3/4” (19mm)
Au-dessus..................2” ( 50mm)
Derriere......................2” (50mm)
• Assurez vous qu’il y a une prise electrique adequate ( 115volts, 15
amperes prise) avec mise a terre correcte pour mettre le refrigerateur
en marche.
• Ne pas utiliser l’adaptateur a 3 broches ou ne pas couper la
troisieme broche pour obtenir un adaptateur a 2 broches . Ceci est
une pratique dangereuse car elle n’offre pas de mise a terre au
refrigerateur et peut resulter d’un shoc electrique.
Installation de Votre
Refrigerateur
Deballage de Votre Refrigerateur
Circulation Propre de L’air
Conditons Electriques

Français
4
•Evitez l’usage des rallonges car dans certains cas cela peut entrainer
des risques pour la sante. S’i c’est necessaire d’utiliser une cordon
d’extension, utilisez une rallonge a 3 conducteurs disposant d’une
fiche a 3 lames et une sortie a 3 fentes qui accepteront la prise. Le
calibre defini des rallonges doit etre egal ou superieur a celui de l’e-
quipement.
•N’installez jamais votre refrigerateur dans un endroit insuffisamment
isole ou chauffe, par exemple, le garage etc... Votre refrigerateur n’a
pas ete concu pour operer a une temperature inferieure a 55degres
Fahrenheit.
•Choisissez un endroit approprie a votre refrigerateur sur une surface
ferme et plane, loin des rayons directs du soleil ou des sources de
chaleur comme les radiateurs, les radiateurs de plinthes , les
appareils de cuisine,etc... N’importe quelle inegalite du sol doit etre
corrigee en reglant les pieds du refrigerateur, situes au bas.
1. Enlevez le couvercle du gond superieur en utilisant un tournevis plat.
Gentiment soulevez le du fond du gond et glissez le vers le devant.
2. Desserez les vis du gond superieur en utilisant un tournevis Phillips.
3. Ajustez la porte ou mettez un joint d’espacement au milieu et serrez
les vis.
4. Replacez le couvercle du gond superieur en alignant le fond du cou-
vercle au fond du gond . Pressez fermement sur le devant du couver-
cle jusqua ce que ce dernier soit en place.
Limitations d’installation
Utilisation des Rallonges
Alignement de la Porte (see fig. #1)
fig. 1

Français
5
Caracteristiques et Utilisation
du Refrigerateur
L’utilisaton Generale
fig. 2
fig. 3
Votre refrigerateur maintiendra automatiquement le niveau de la tem-
peratue que vous choisissez. Le cadran de commande de temperature a
7arrangements plus le OFF.Le numero 1 est le plus chaud et le
numero 7 est le plus refroidissant. En tournant le cadre jusqu’au 0 , le
refroidissement du refrigerateur s’arretera. Au debut, reglez le cadre au
numero 4 et permettez 24 heures avant d’ajuster la temperature
desiree.
Note: Si le refrigerateur a ete dans une position horizontale ou a ete
incline pour une periode de temps, attendez 24 heures avant de
le brancher.
Les Etageres Interieures
Pour retirer ou replacer une étagère de pleine largeur : ( voir fig #2 )
1. Inclinez gentiment l’etagere vers le haut et glissez
la au dehors jusqua ce que cette derniere est
completement retiree.
2. Pour replacer l’etagere, glissez la doucement.
Degrivage de Votre Refrigerateur (see fig. # 3)
• Pour l’efficacite d’energie maximum, degrivez la section du congela-
teur quand la gelee s’accumule a une epaisseur de 1/4” ou plus sur
les murs du congelateur.Notez que cette gelee a tendance a s’accu-
muler plus pendant les mois d’ete.
• Pour degriver, enlevez la nourriture et les plateaux de glacons de la
section du congelateur. Assurez vous que le plateau d’egout est au
dessous du congelateur et arretez le thermostat.. Le degrivage peut
prendre quelques heures.
• Durant le degrivage, de l’eau s’accumulera dans le plateau de
goutte. Ce plateau doit etre vide pendant le process de degrivage. Ne
le laissez pas sans surveillance.(voir fig 5)
• Apres le degrivage, videz et nettoyez le plateau d’egout , et l’interieur
du refrigerateur.
