Haier REFRIGERATOR / FREEZER COMBO HRF-6631RG User manual

Inspired living
Refrigerator/Freezer Combo
User's Guide
Thank you very much for choosing to purchase a Haier-brand refrigerator.
This User's Guide will help you properly install and operate your newly acquired
appliance.
For future reference, please write down the model and serial number in the spaces
provided below.
You can retrieve that information from the product label attached to the inside of
the refrigerator.
Model number:
Serial number:
Date of purchase:
HRF-663IRG

Before operation
Notes on the refrigerator compartment
Notes on the freezer compartment
Defrosting Cleaning Inoperation
Troubleshooting & Customer Service
Your refrigerator's features..............................................................1
Components.....................................................................................2
Precautions...................................................................................3-5
Preparations..................................................................................6-9
Door removal............................................................................10-11
Setting up the Refrigerator/Freezer Combo ..................................12
Start-up..........................................................................................13
Digital display operation..........................................................14-19
Refrigerator compartment........................................................20-22
Notes on refrigeration ...................................................................23
Tips on refrigeration ......................................................................24
Freezer compartment.....................................................................25
Notes on freezing ..........................................................................26
Ice maker and dispenser operation ..........................................27-28
Removing and installing the ice cube container............................29
Dispenser operation.......................................................................30
Dispenser precautions....................................................................31
Defrosting......................................................................................32
Cleaning ........................................................................................32
Inoperation ...............................................................................33-34
Troubleshooting .......................................................................35-36
Customer service ......................................................................37-39
Technical Data ...............................................................................40
Technical Data
Contents
Before start-up, be sure to read the User's Guide.
Keep the User's Guide in a safe place.

Your refrigerator's features
Your Haier-brand Refrigerator/Freezer Combo is equipped with numerous innovative,
space-saving and energy-efficient features.
(1) Ice cube maker
Automatic ice cube maker, powerful ice crusher, refrigerated water dispenser
(2) Sliding glass shelves
Sliding shelves and baskets in the refrigerator and freezer compartments make storing
foods easy. With the doors fully opened, all shelves can furthermore be removed for
convenient cleaning.
(3) Slim profile with spacious interior
This Refrigerator/Freezer Combo was developed according to our customers' wishes.
Thanks to the latest space-saving insulating materials, the freezer and refrigerator
compartments now offer even more space. The shelves and baskets are made of high-grade
safety glass.
(4) The freezer compartment is equipped with a user-friendly frost-free system and manages to
freeze foods quickly and evenly.
(5) Temperature adjustment before defrosting
(6) Automatic trouble indicator
(7) This Refrigerator/Freezer Combo is equipped with a condenser, and the cold air is
circulated by a fan in order to achieve optimum cooling.
(8) Buzzer warning when door is open
A buzzer sounds intermittently when the door is left open permanently or is not closed
properly.
(9) Intelligent mode
Optimum cooling is automatically adjusted in relation to the interior and surrounding
temperatures.
1

Components
Note
The power plug must remain accessible after setting up the appliance.
If damaged, the power cord of this appliance must be replaced by the maker, their customer
service or an equally qualified person so as to prevent any hazards.
Should the refrigerant circuit have been damaged, keep away all sources of fire or sparks and
thoroughly air the room.
Children frequently do not recognise the hazards related to handling household appliances.
Therefore, children and people with impairments should only be allowed to use the refrigerator
under the supervision of a qualified person. Do not let children play with the appliance.
Do not use any mechanical or artificial devices or any tools other than those recommended by the
maker in order to accelerate the defrosting process.
Check the appliance for damages sustained during transportation. Do not connect the appliance if
it is damaged. In case of damage, contact your supplier.
Make sure that no part of the refrigerant circuit is damaged when transporting and setting up the
appliance.
To prevent damage to the appliance, its ventilation openings must not be covered or blocked.
Do not operate any electrical devices inside the food storage area, unless instructed to do so by
the maker.
Our company continually thrives towards improving all models and versions. For that
reason, we hope that you can accept our right to change their appearance, equipment or
operation.
2
Freezer
Bottle rack
Ice maker
Light
Shelves
Drawer cover
Bottle rack
Freezer drawers
Refrigerator
compartment
Bottle cover
Shelves
Bottle rack
Veggie drawer cover
Veggie drawer

Precautions
This appliance requires a 220-240V/50Hz power
supply.
If the voltage is outside of the 187-252V range,
malfunctions and damages of the controls,
thermostat or compressor may result, unless a
regulator of at least 750W was installed.
A dedicated grounded outlet is required. The
appliance is equipped with a standard
shockproof plug, whose grounding should not be
disabled. The power plug of the appliance
should always be accessible.
Do not damage the power cord.
*Never pull the plug out by the cord; always
grab and pull the plug
*Do not place the power cord under the
appliance or walk on it.
*Be sure not to damage the power cord when
moving the appliance away from the wall.
If the power cord is damaged or the plug cracked
or worn, the power cord must be replaced with a
matching one, available from the maker or their
customer service. The power cord may only be
replaced by the maker, their customer service or
an equally qualified person.
In the case of a gas or other flammable leak:
*Close the valve.
*Open the doors and windows.
*Do not pull out or insert the power cord of the
appliance.
Pull out the power plug:
*Before cleaning or repair
*When replacing a burned-out bulb
3

Precautions
Never place flammable, explosive or corrosive
materials in the refrigerator.
This appliance is intended strictly for storing
and freezing foods. It is not suitable for storing
such things as vaccines, bacteria or chemical
samples, which have demanding temperature
requirements.
Do not store fuel and other flammable products
near this appliance.
Do not put microwave ovens, voltage
regulators or power strips on this appliance. Do
not operate electrical devices and such inside
the refrigerator (except if instructed to do so by
the maker).
To avoid injuries, do not let children climb on
or hang from the appliance door.
Once the appliance has been started up, do not
touch the inside of the freezer compartment
with wet hands, otherwise they may get stuck
on the surface.
4

Precautions
To avoid injury, keep fingers away from the
door crack when opening or closing the doors.
Keep children away from the appliance doors
being opened and closed.
Do not pour water onto the appliance or set it up
in wet areas.
Refrigerators may only be repaired or altered by
professionals. Improper repair may cause
considerable damage. Please contact your dealer
or our customer service should your appliance
require repair or modification.
Keep bottles and tins out of the freezer. They
could burst when the content freezes.
Pull out the power plug in the case of a power
outage, repair or cleaning.
When disposing of the appliance, remove the
door or door seal and shelves to prevent playing
children from locking themselves in and putting
their lives at risk.
5

Preparations
Unpacking
Remove the entire packing material,
including the foam underlay and pieces of
tape used to hold accessories in place.
Separate and count the included
accessories.
Check the items in the box against the
packing list.
In case of a mismatch, please contact your
supplier.
Set up the appliance in a suitable
area.
(Details under “Setting up”.)
6

Preparations

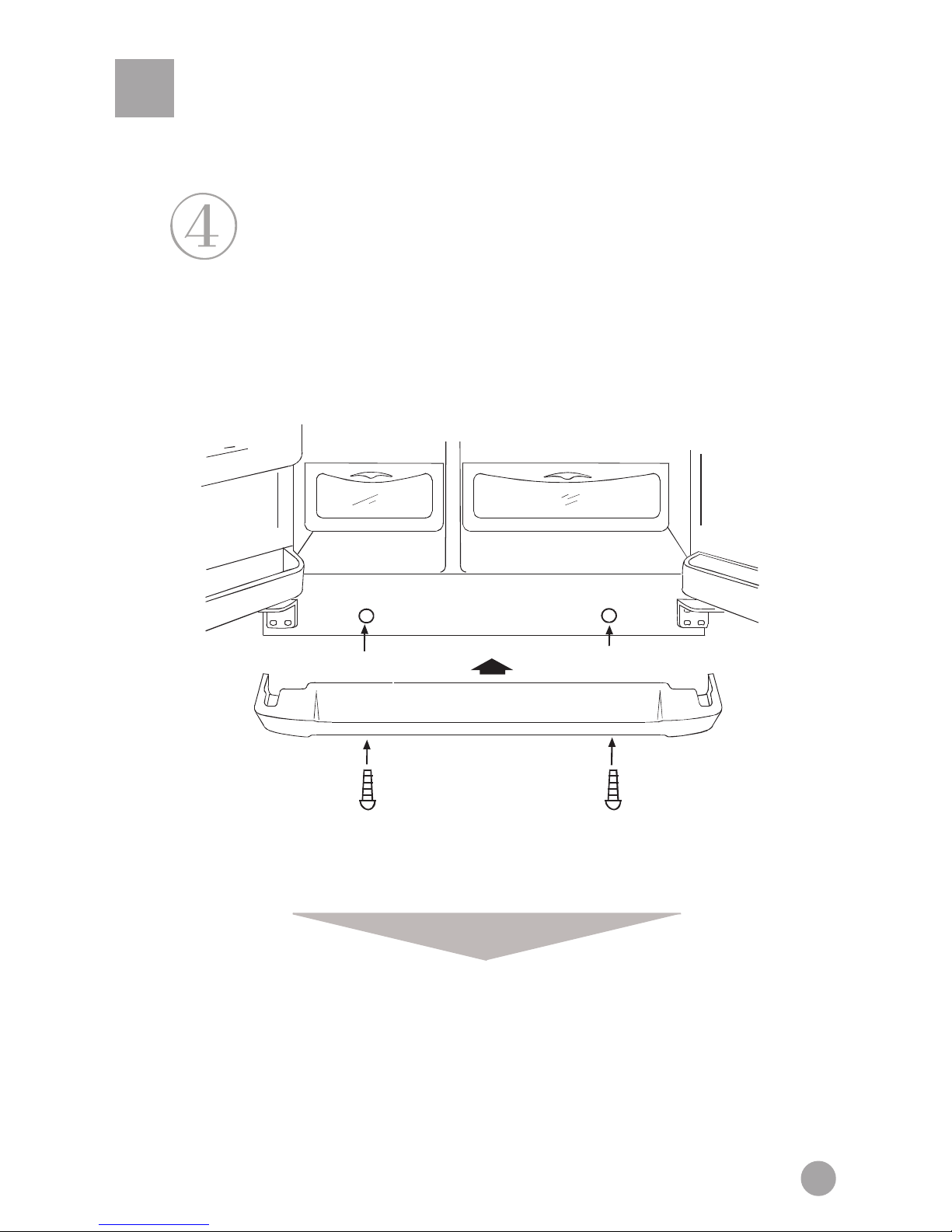

Attaching the toe moulding
Open the refrigerator and freezer doors, remove the moulding
from the refrigerator compartment, and then affix it as shown in
the illustration.
7

Preparations
8
Please following the below operations when you are
assembling the Door Handle:
1)Put the pothook of handle(1) into the connector(2), (as illustration 1); then pull
down the handle hardly while the top of handle and top of door are in the same
level(as illustration 2).
2)Put the bolt(3) into the right holes(4) with the help of screwdriver(as illustration
3).
3)When you are disassembling the door handle,please operate as the opposite
way of assembling.
Attention:
In case of no any special need,please do not disassemble the Refrigerator door handle,In case
of any need to change the handle,please get in touch with the technicians.
Handle
Connector
Handle Holder
illustration 1 illustration 2
illustration 3

Preparations
It is recommended to clean the interior before
starting up the appliance. (Details under
“Cleaning”.)
Standstill
After cleaning, let the appliance stand still for at
least six hours before turning it on to start it up.
9

Door removal
Removing the door
If your house door is too narrow, remove the refrigerator door and carry the
refrigerator in narrow side first.
Remove the toe moulding, and then
release the water coupler.
Slide the toe moulding up to remove it, and then release
the water coupler while pressing on area (1) as shown in
the illustration.
Water coupler
Toe moulding
Remove the freezer compartment door.
1) Unscrew the hinge covers. Disconnect all
wires except for the grounding wire.
2) Remove the screws from the upper hinge
following the direction as indicated by Arrow (1).
Then remove the upper hinge following the
direction as indicated by Arrow (2).
3) Lift the freezer compartment door to remove
it. Next, lift the door enough to be able fully
pull out the water line.
Hinge cover
Wires
Upper
(hinge)
Grounding wire
Upper hinge
Screw
Lift until water
line can be fully
removed.
Lower
hinge
10

Door removal
Remove the refrigerator compartment
door.
1)Loosen the hinge cover bolts, and then
remove the cover. Disconnect any wires
except for the grounding wire.
3)Lift the refrigerator compartment door to
remove it.
2) Remove the screws from the upper hinge
following the direction as indicated by Arrow (1).
Then remove the upper hinge following the
direction as indicated by Arrow (2).
Wires
Upper hinge
Screw
Lower hinge
Slide the refrigerator through the
door opening.
Slide the refrigerator through the door
opening as shown in the illustration.
Reinstall the door.
Bring the doors in the house, and then
reinstall them by reversing the removal steps.
11

Setting up the Refrigerator/Freezer Combo
Be sure to choose a flat and level setup location.
Use sturdy and fireproof supports to correct an
unevenness in the floor. Turning an appliance
foot clockwise raises the appliance, turning it
anticlockwise lowers the appliance.
Door adjustment
If the freezer compartment door is lower than
that of the refrigerator compartment, insert the
wrench in the groove of the left screw and turn it
in the direction of the arrow until both doors are
the same height. Height difference
Height
difference
Wrench Left screw
Protect the setup location against direct sunlight
or heat sources.
If the compartment door is lower
than that of the compartment, insert the
wrench in the groove of the right screw and turn
it in the direction of the arrow until both doors
are the same height.
refrigerator
freezer
Height difference
Height difference
Wrench
Right bolt
Avoid a damp setup location. Remove water
and dirt with a soft rag.
Be sure to leave at least 10 cm of space around
the appliance. When installing the appliance in
an enclosed area, leave at least 25 cm of space
on the sides and 5 cm on the top and back.
Spacing
12

Start-up
Power connection
After connecting it to the power, the appliance is automatically set to the
Intelligent and Crushed Ice modes.
This appliance has a memory function which, in the event of a power failure,
automatically stores the operating mode that was last used and restores it when
the power is turned on again.
Operating modes
Recommendation:
The Intelligent mode allows the appliance to achieve the
best and most energy-efficient cooling effect, regardless
of ambient temperature variations and without requiring
you to make any settings at all.
Choose one of the following two operating modes.
(1)Intelligent mode: If there are no special requirements, it is recommended to choose the
Intelligent operating mode. Press the Intelligent key once; the indicator lights up and the
appliance is started automatically. (Details in the “Features” section.
(2)(Manual mode: Make manual temperature settings using the temperature adjustment keys.
Loading foods
Operate the refrigerator empty for a while. Start
loading the refrigerator with foods only after it has
sufficiently cooled down.
Please note that changes in the temperature settings come into effect slowly.
This depends on variations of the ambient temperature, how frequently the
door is opened and the amount of foods loaded.
13

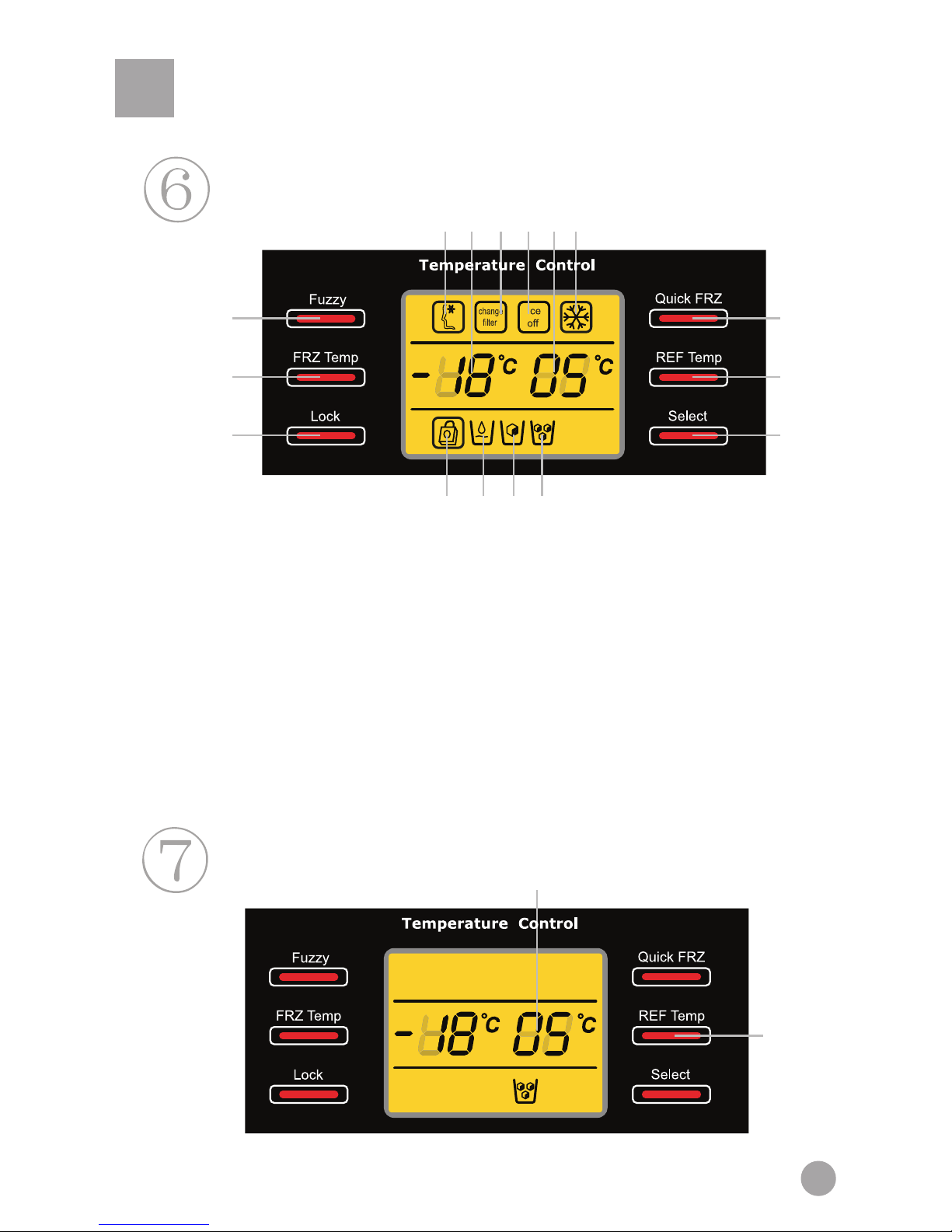

Digital display operation
Control panel
If fuzzy logic is activated, the appliance will adjust inside temperature automatically
according to ambient temperature. Fuzzy logic is activated and inactivated by consecutive
press of button A, then Fuzzy logic indicator G will turned on and off.
14
A
B
C
F
E
D
MNOP
GK I J
HL
A---Fuzzy logic
B---Freezer temperature
C---Lock function
D---Ice/Water
E--- Refrigerator temperature
F----Quick freeze
G----Fuzzy logic indicator
H----Water filter indicator
I-----Ice maker indicator
J----- Quick freeze indicator
K----- Freezer temperature indicator
L------ Refrigerator temperature
indicator
M-----Lock function indicator
N-----Water selected indicator
O-----Cubed ice selected indicator
P-----Crushed ice selected indicator
Fuzzy logic function
A
G

Using the digital display
15
Quick Freeze
F
J
Quick freeze function is designed to preserve the nutritional value of food as the food will
freeze completely in the shortest period possible. To use the 'Quick Freeze' function, press
button F. Indicator J will illuminate to show you that the function is operational,
. To switch 'Quick Freeze' off under
the 'Quick Freeze' condition, press button F again indicator J will go out.
Note: the Quick freeze can not be activated if the fuzzy logic is set.
Super
freezing function will be automatically deactivated after 14 to 42 hours. It is depending on
the actual quantity of food in the freezer compartment.
Note:Super freezing is used to freeze large quantities of fresh food and, depending on the
quantity, must be switched on up to 12 hours before the food is placed in the freezer
compartment.
A
BE
GK L
Setting and Adjusting the Temperature
The appliance is preset at fuzzy logic, which can be inactivated by a press of Fuzzy logic
button A, indicator G will go out.
Setting and adjusting temperature as follows: (Fuzzy logic must be inactivated.)
To adjust the refrigerator temperature under unlocked condition, press button E, the indicator
L will flash. Each subsequent press of button E will adjust the temperature circled as follows:
543765.
To adjust the freezer temperature under unlocked condition, press button B, the indicator K
will flash. Each subsequent press of button B will adjust the temperature circled as follows:
-1 -20 -22 - 15 - 17 -18 .

Using the digital display
16

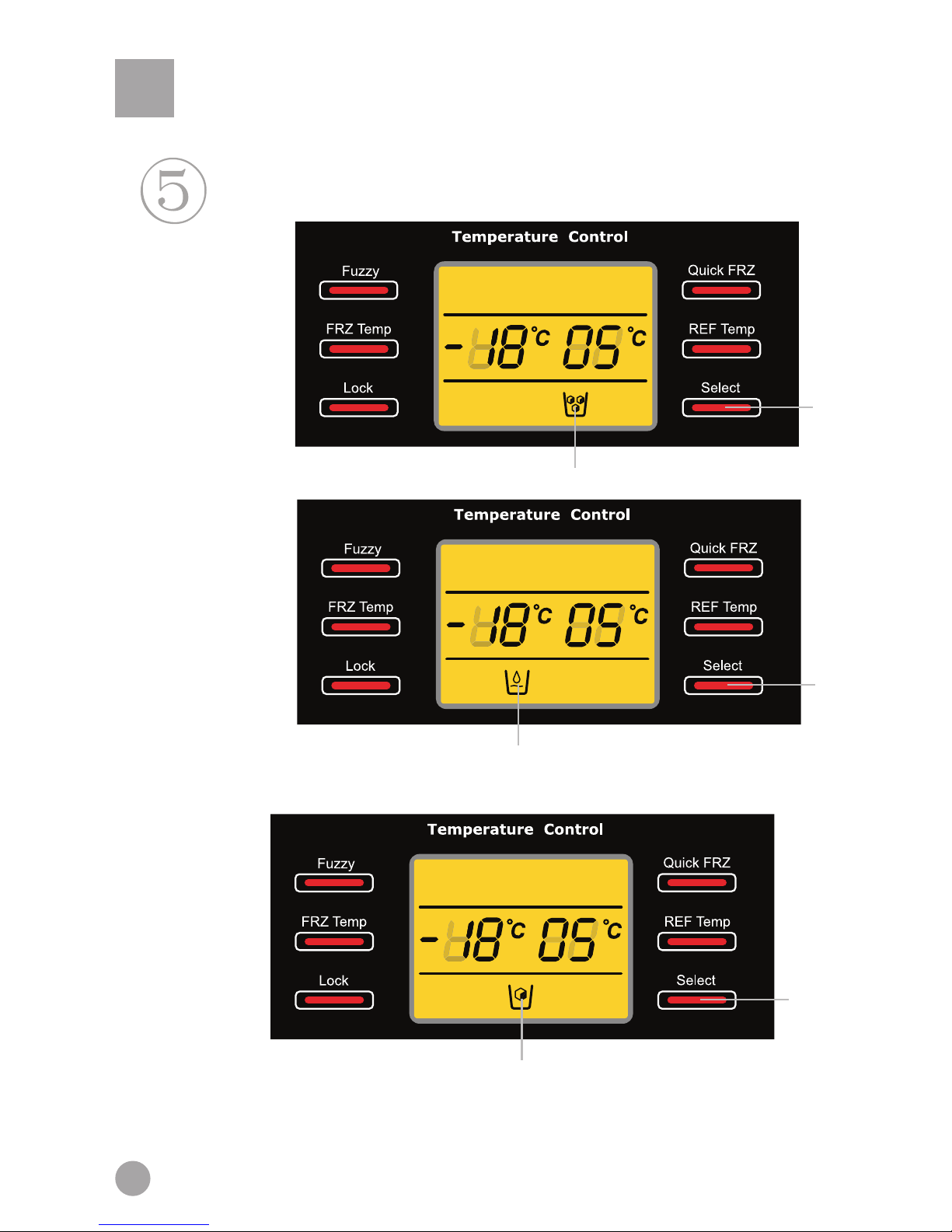

Ice cube/water select
Crushed ice
D
P
Cool water
D
N
Ice cubes
D
O
The appliance is pre-set at crushed ice condition when the power supply is connected,
indicator P illuminates. Press the button D to choose the option you want.

Using the digital display
Switching the icemaker on/off
A
B
C
F
E
D
MNOP
GK I J
HL
To close the ice maker, press and hold the button F and A for 3 seconds, indicator I and N
comes on, it is indicating that the ice maker has been turned off, this will shut off the water
supply to the ice maker, no cubed and crushed ice, Ice/Water button can not be used for
selecting between water, cubed ice and crushed ice, but it will not affect the water dispenser,
cool water is still available.
If you want to turn on the ice maker, press and hold the button F and A for 3 seconds,
indicator I turns off, ice maker restart to run as usual.
Note: 1) if indicator N, O and P can not be selected, please confirm if the ice maker has
Been turned off according to the above information.
2) the ice maker turns on when you re-connect the electricity supply.
17
Switching the refrigerator On/Off
E
L

Using the digital display
To switch off the refrigerator, press and hold button E for 3 seconds, indicator L will
disappear, but the light will continue to illuminate.
To switch the refrigerator on again, press and hold button E. indicator L will reappear and
the refrigerator will begin to run as usual.
Locking and Unlocking the appliance
C
M
To lock the appliance, press and hold button C for 3 seconds under the unlock condition,
indicator M will light;
To unlock the appliance, press and hold button C for 3 seconds, indicator M will go out.
Note : (2)-(７) functions can ｎｏｔ be used when the appliance has been locked.
18
Changing the water filter
D
H
When the water filter indicator light H comes on, it is indicating that the water filter requires
changing (approximately every 6 months). After finishing the change, press and hold button
D for 3 seconds, indicator light H will disappear.
