COLOUR TELEVISION
OPERATING
INSTRUCTIONS
◆Stage curtain for open and close effect
2
◆Digital I C bus control
◆Auto search tuning & 218 programs stored
◆Full infrared remote control
◆Multi-picture modes selection
◆Multi-function timer, appointing program

CONTENTS
Warning and cautions.............................................................................................1
Basic feature...........................................................................................................2
Technical specification...........................................................................................2
Preparing for operations.........................................................................................3
Function buttons and external sockets....................................................................4
AV connection.........................................................................................................5
Remote controller guide..........................................................................................6
Power supply...........................................................................................................7
Tuning procedure....................................................................................................7
Picture adjustment...................................................................................................9
Other functions......................................................................................................10
Multi function timer...............................................................................................14
Lock function.........................................................................................................15
Trouble shooting guide..........................................................................................17

WARNING AND CAUTIONS

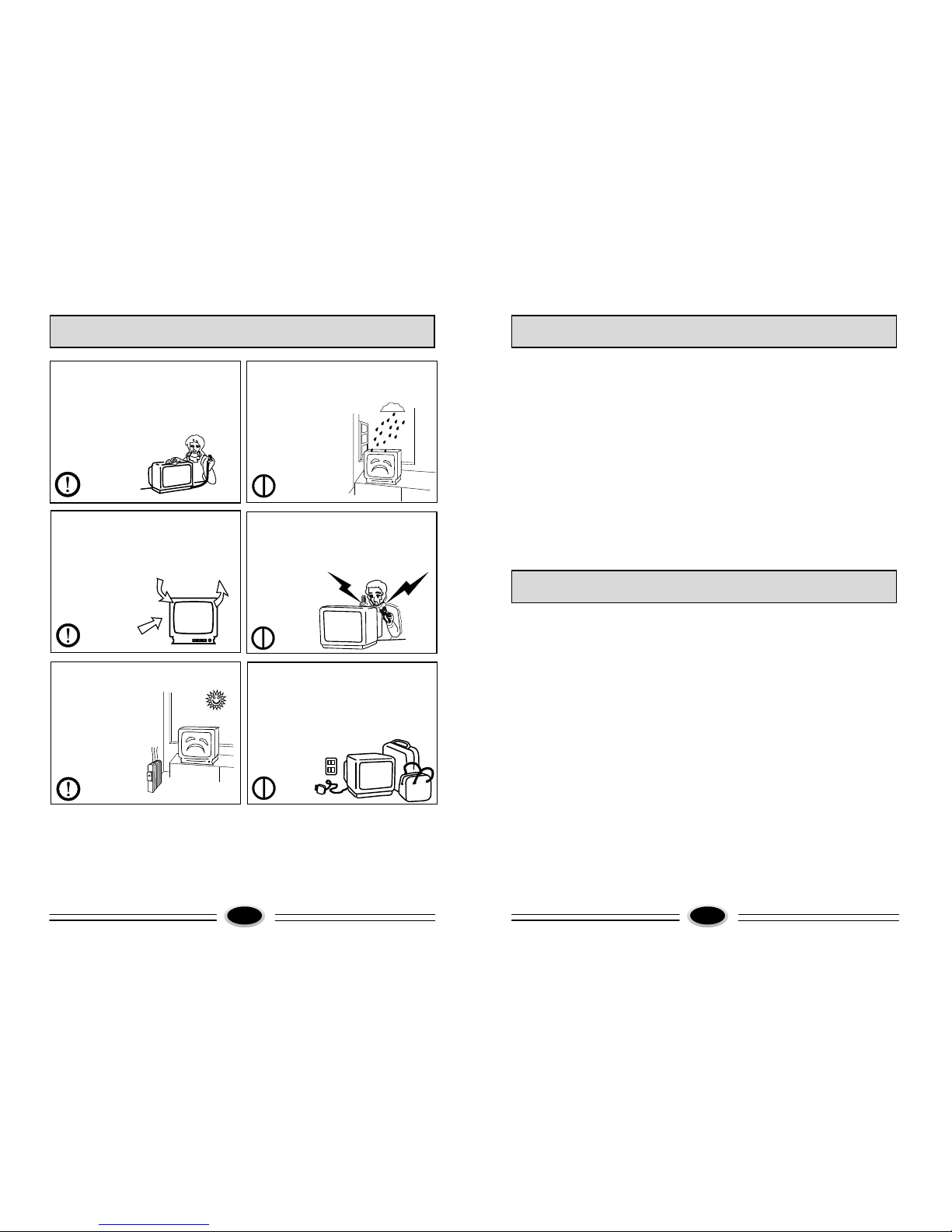

1. When you clean the TV set, please pull
out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain
or moisture as it may cause an electric
shock, or the TV set to catch fire. The TV
set must only be used
in dry indoor location.
2. In order to prolong the using life of the
TV set, please place it at a well ventilated
location.
5. The back cover must only be removed
by a registered electrical service person.
Removing the back cover may result in
electric shock, fire or damage to
the TV set.
3. Don't place the TV
set in direct sunlight
or near heat source.
6. If the TV set is not going to be used for
long time, or there is a severe thunder &
lightening storm, it is recommended that
the TV set be disconnected from the AC
power outlet and the aerial plug
removed.
Explanation on the display tube
When the picture tube requires cleaning, please disconnect the power and use a
dry soft cotton cloth. Do not use any cleaner or abrasive cloth.
1
BASIC FEATURE
●I C bus control
●218 programs stored
●Display full functions on the screen and infrared remote control
●Multi picture modes and sound modes selection
●Auto searching, function selecting and program number skipping
●Multi function timer
●Programs scanning
●Game, Multi-function lock
●Stage curtain for open and close effect
2
TECHNICAL SPECIFICATION
1.POWER SUPPLY: See rating plate
2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)
3.AUDIO SYSTEM: B/G D/K
4.CRT: 21"
5.ANTENNA INPUT : 75Ω Standard Coaxial Cable
6.SOUND OUTPUT POWER: 3W
7.POWER CONSUMPTION: See rating plate
8.NET WEIGHT(kg): 21.5（21T9B-S）
9.NET DIMENSION(mm):
24.5（21F9B-S）
638×485×458
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Operating instruction 1
Design and specifications are subject to change without notice.
2

Figure A Figure B
Antenna cable
with a plug
Figure C Figure D
Antenna feeder
Antenna adapter
75-300Ω
Coaxial cable(75Ω) twin-lead cable(300Ω)
Antenna connection
Connect an antenna to the antenna socket on
the TV set, we recommend using a Cable TV
system for better picture and audio quality.
1.If you use a coaxial cable(75Ω),insert the
antenna plug (see figure C) into 75Ωsocket
(see figure A).
2.If you use a twin-lead cable(300Ω),please
shape the cable as figure D, and connect the
leads to antenna adapter and then insert the
antenna adapter into the 75Ωsocket (see
figure B).
Power source wire connection
Insert the power plug into AC outlet.
Install and replace batteries of the
remote control unit:
1.Place the remote control unit with the face
down, then open the battery cover of the
unit.
2.Place the two"AA"size batteries, matching
the + and - signs on each battery to the +
and -signs of the battery compartment.
3.Close the cover of the battery compartment.
NOTE:
(1)Don't drop or wet or dismantle the unit.
(2)If you don't intend to use the unit for a
long period or the electricity of the
batteries is used up, remove the batteries
to prevent batteries acid from leaking
into the battery compartment.
(3)Replace the two old batteries at the
same time.
(4)Don't use charge battery (Ni-cd )and
don't mix battery type.
(5)Don't throw your batteries into a fire.
Dispose of your batteries in a required
place.
Antenna
PREPARING FOR OPERATIONS
3
1.Front Panel
①Remote sensor:Let the remote controller aim here, the set can receive remote
control signal.
②Power switch:Press the button to turn on the TV set . Press the button again to
turn off the TV set.
③Power indicator: The indicator lights when power on.
④Menu button
⑤Program up/down button
⑥Volume up/down button
⑦TV/AV
①
②
③
⑤⑥⑦
④
2.The sockets on the rear panel
①Antenna socket
②Audio/Video socket
③S-Video socket
④DVD component socket
3.The socket on the
side panel
⑤Video input socket
⑥Audio(L) input socket
⑦
Audio(R) input socket
VIDEO
IN
L AUDIO R
S-VIDEO
3
2
①
③
④
YCb Cr
OUT
⑤
⑥
⑦
AUDIO2
VIDEO2
L
R
FUNCTION BUTTONS AND EXTERNAL SOCKETS
4

VIDEO
IN
L AUDIO R
YCb Cr
OUT
W
RB
G R
DVD(with DVD component)
W
R
G
B

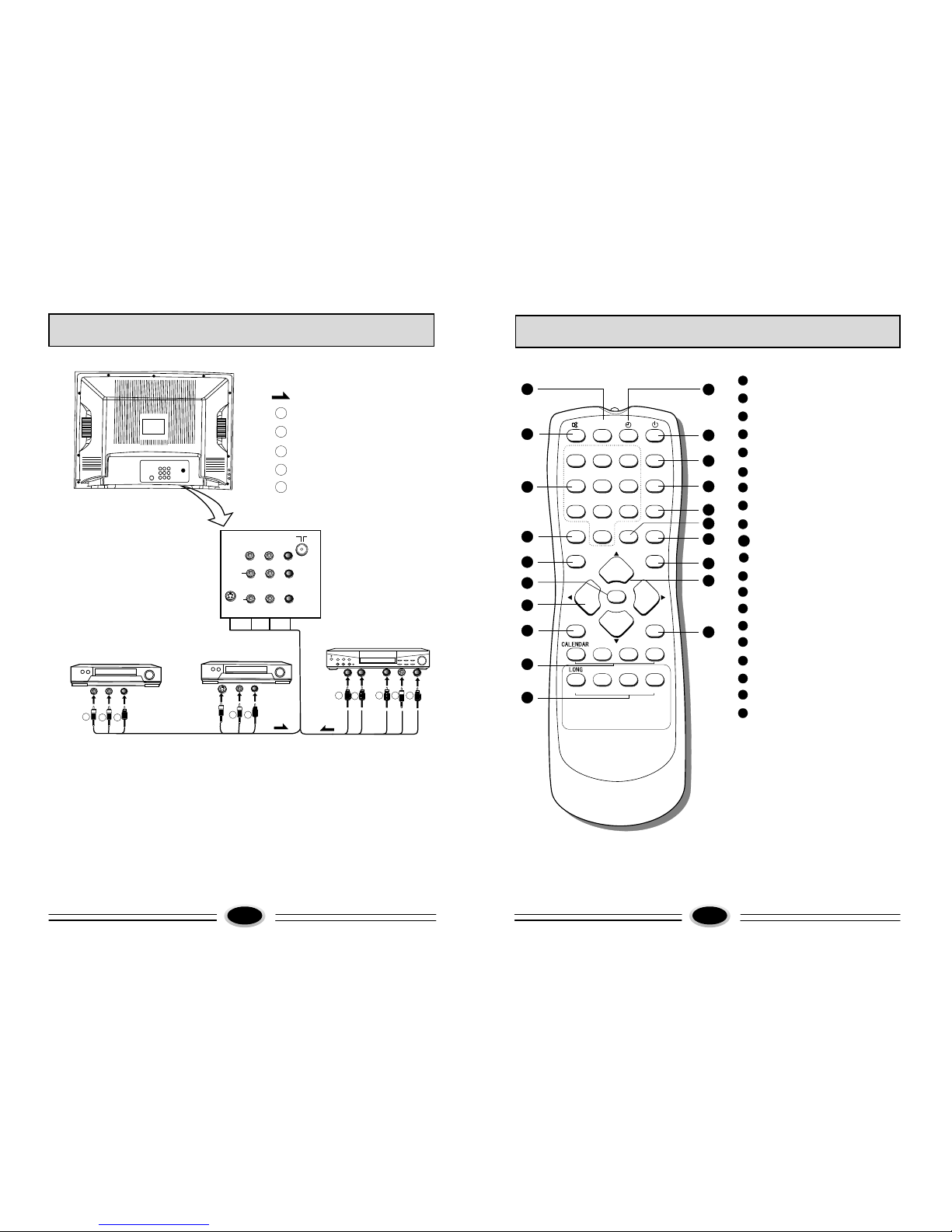

Direction of signal
white（left audio）
red（C /right audio ）
blue（C ）
green
（video）
（Y）
yellow
r
b
Y
S-VIDEO
VCR (without S-VIDEO terminal)
YW R
oo u
T audi ot
VCR (with S-VIDEO ) terminal
W R
To s-vdeo outputi
ovid o ouT e tput
To c mp e t uto on n o
Note:
1.When receive s-video signal, you must remove video signal;when receive
video signal,you must remove s-video signal.
2.When receive side video signal, you must remove back video signal; when
receive back video signal,you must remove side video signal.
AV CONNECTION
5
Remote control functions
TV/AV exchanging button
Mute button
Numeric button
One/two/three digital buttons
Picture mode selection
Volume up/dwon button
1
2
3
4
5
6
15
16
17
17
18
16
3
15
14
13
12
11
123
456
789
0
TV/AV
SCAN
LOCK
SYSTEM
DISPLAY
-/-- BAR
MENU
CH+
RESTART
WIDE
PRE
FIRE
FIRE
MIX
SHORT
SECOND
EXIT
LIGHT
NARROW
BACK
SELC.PIC SELC.VOL
CH-
VOL- VOL+
1
2
5
4
6
7
8
9
10
7Recall
8Calendar/game selection
9
11
10
Second timer button
Volume mode selection
12 Display
13 Invalid button
14 System preset button
Lock preset button
Scan button
DC standby button
18 Sleep timer
Programme promote
10
Note :Because there is no bar function in the TV,"LONG", "SHORT",
“WIDE", "NARROW" buttons are invalid.
6
20
19
19
20
Program up/down button
Menu button
REMOTE CONTROLLER GUIDE
