Haier HL40K2AFA User manual

Please READ this manual carefully before
operating your TV, and retain it for future
reference.
TFT-LCD TV
OWNER S MANUAL'
L40K1
R

Warning
RISK ELECTRIC SHOCK
DO NOT OPEN
CAUTION
!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
!
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
Important Safety Instructions
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do notblock any ventilationopenings. Install inaccordance with themanufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produceheat.
9) Do notdefeat the safetypurpose of thepolarized or grounding-typeplug. Apolarized plug hastwo blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of theobsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where theyexit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold withthe apparatus. Whena cart isused, use cautionwhen moving thecart/
Apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15)The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas vases,
shall be placedon the apparatus.
16)The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the
apparatus normal use.
Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Introduction
CONTENT

Introduction
Front panel controls

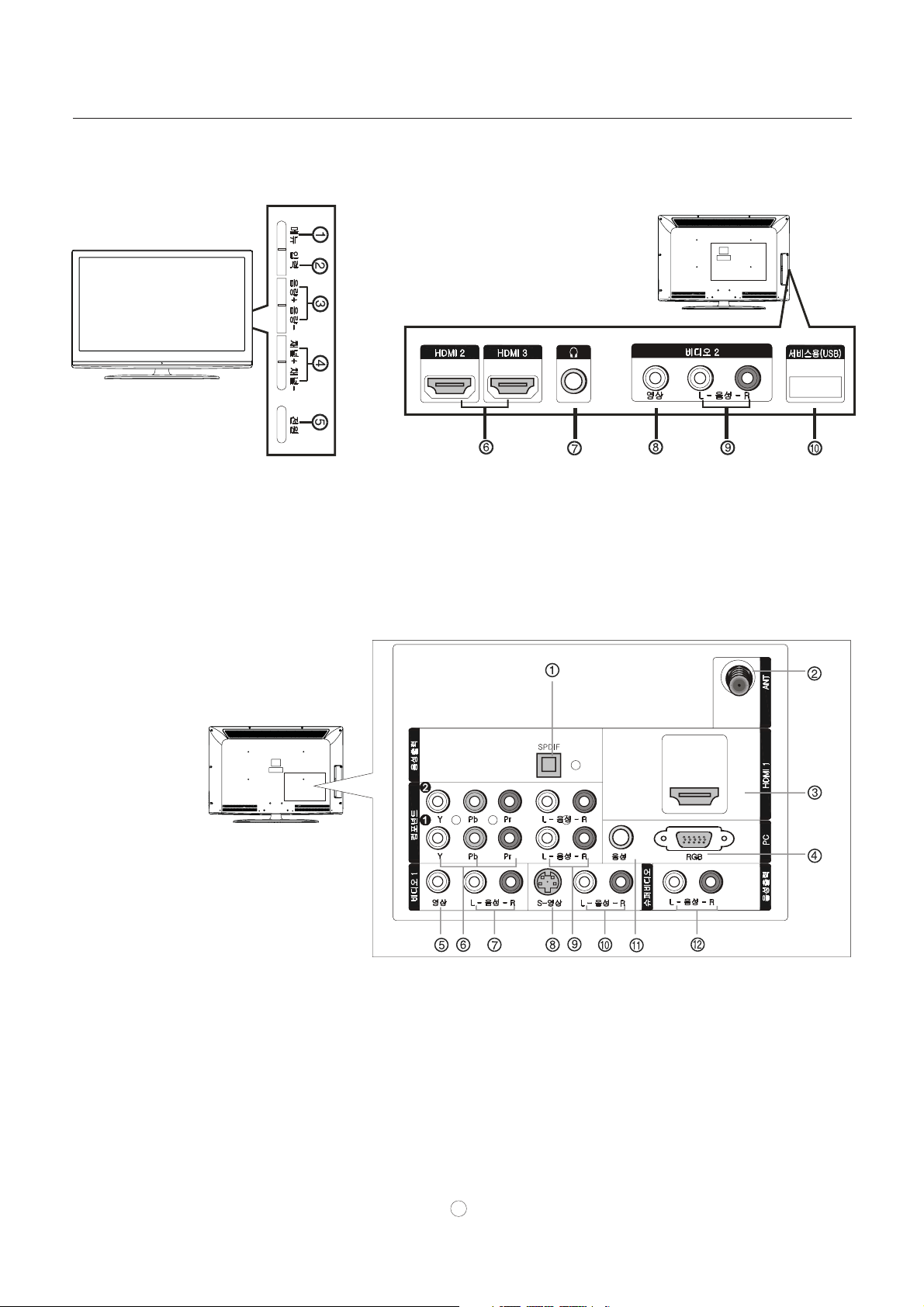

This is asimplified representation of front panel. Here shown may be somewhat different from your TV.
1.MENU: Menu display.
2.INPUT: Press to show the input source mode. In the MENU/INPUT screen, these buttons serve as OK buttons.
3.VOL -/+: Press to adjust the volume .In the MENU screen, these buttons serve as left/right buttons.
4.CH -/+: Press to scan through channels. To scan quickly through channels, press and hold down either +/- . In the
MENU screen, these buttonsserve as up/down buttons.
5.POWER: Press toturn on andoff the TV.
6.HDMI IN: Connect a signal to HDMI.
7. Headphone jack : Headphone audio output terminal.
8. AV2 VIDEO IN: Connects the videosignal from avideo device.
9. AV2AUDIO IN: connect to hear stereo sound froman external device.
10. USB:
from an externaldevice
1 Digital Audio Output: Connect digital audio to various types of equipment.
NOTE: In standby mode, these ports will not work.
2 Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.
3 HDMI: Connect a signal to HDMI.
4 PC VIDEO In: Connect the audio out from the external device, used while linking PC audio frequency output terminals.
5 VIDEO In: Connects the video signal from a video device.
6DVD/DTV In(Component ): Connect a component video device to these jacks.
7 AUDIO In: Connect to hear stereo sound from an external device.
8 S-VIDEO In: Connect S-Video out from an S-VIDEO device to the S-VIDEO input.
9 COMPONENT AUDIO In: Connect to hear stereo sound from an external device.
10 AUDIO In: Connect to hear stereo sound from an external device.
11 PC Audio In: Connect an audio cable for a computer to this jack.
12 AUDIO Out: Connect to the left and right audio input jacks of your audio or video equipment.
Back panel controls

Introduction
The remote control cannot be operated unless the batteries are properly loaded.
When using theremote control, aimit at theremote control sensoron the TV.
Function introduction
Remote Control
1.Press to turnon and off the TV
2.Press repeatedly to cycle through the available
picture modes
3.Press to change the aspect ratio
4.Select a closed caption option
5.Show the inputsource
6.Press to open the on-screen menu
7.Volume/Channel Selection
8.Exit On Screen Display
9.
10.Press to display the TV status information on the top
of the TV screen
11.Shows program schedule in TV
12.Press to cycle through different sound settings
13.Press to display the sleep timer option
14.Select MONO, STEREO, SAP in NTSC system
15.Press to change a channel
16.Press to selectdigital channels. For example, to
enter “54-3”, press“54”, “- ” and “3”.
17.Switches the TV sound on or off
18.Accesses the highlighted item in the on-screen menu
19.Open the channellist in TV
20.Open the favoritechannel list in TV
no available
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

ANT
ANT
ANT
ANT
Installation
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an
outdoor antenna .
.
Over-the-air TV reception quality will depend on your antenna type, antenna
location and antenna positioning
External Equipment Connections
Antenna Connection
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
Wall Antenna
Socket
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
VHF Antenna
UHF Antenna
Turn clockwise to tighten
RF Coaxial Wire(75 ohm)
Bronze Wire
Be careful notto bend thebronze wire
when connecting the antenna.
Bronze Wire
To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV`s, install
a 2-Way Signal Splitter in the connections.
To install theantenna properly pleasecontact a
professional in your area.
Accessories
Remote control Owner`s manual Alkaline battery(AAA) 2
Please READ this manual carefully before
operating your TV,and retain it for future
reference.
TFT-LCD TV
OWNER S MANUAL'
Connection Instructions

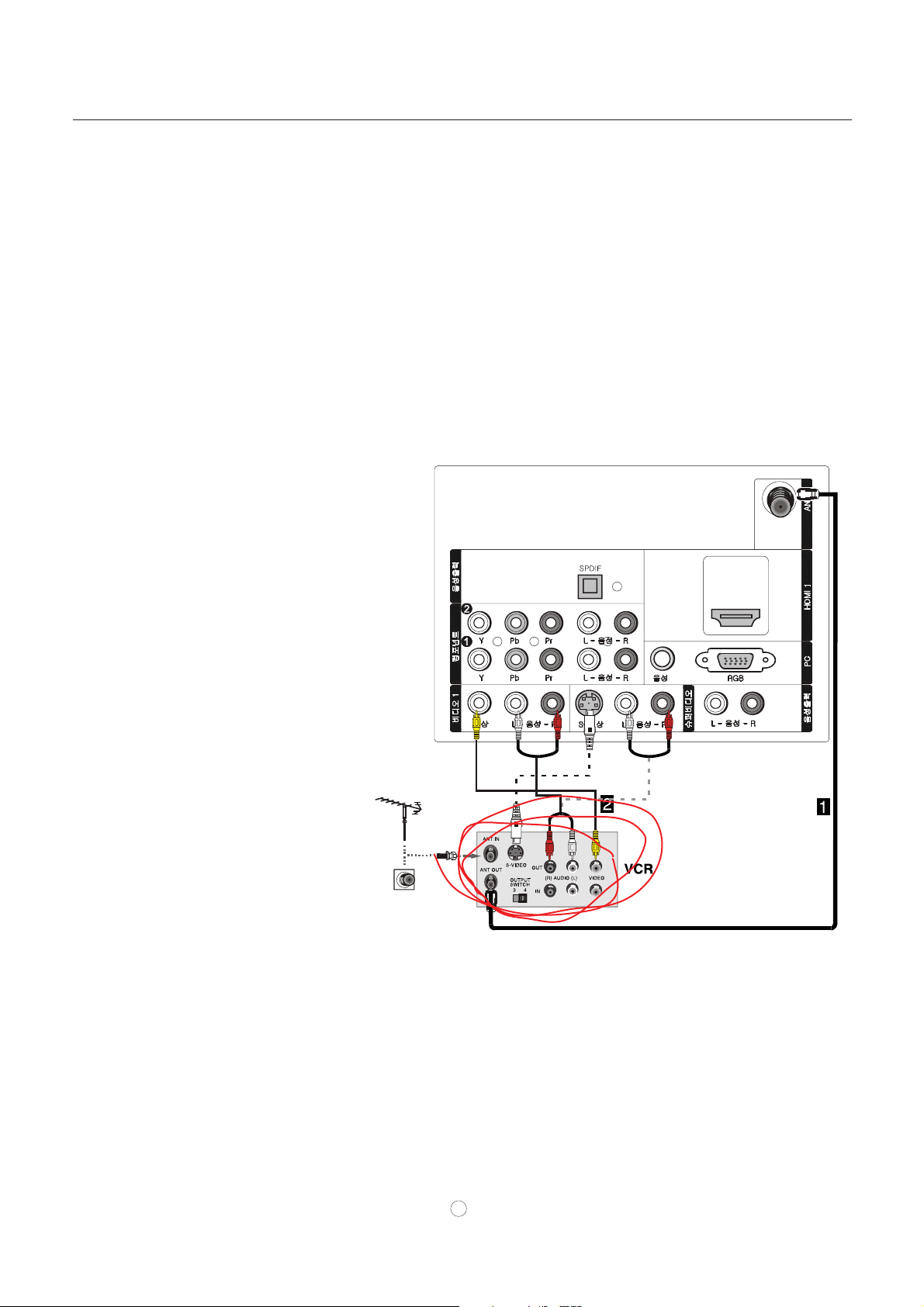

VCR connection
NOTE: All cables shownare not includedwith the TV.
There are severalways to connectyour television, dependingon the componentsyou want toconnect
and the qualityof the signalyou want toachieve. The following are examples of some different ways
to connect yourTV with different input sources.
Choose Your Connection
Toavoid picture noise(interference), leave an adequate distance between the VCR and TV.
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and AudioRight = red).
If you connectan S-VIDEO outputfrom VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to theVideo input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner`s
manual.)
3. Select the input source with using the
INPUT button on the remote control, and
then press CH+/- button to select the source,
press the OKbutton to confirm.
Installation
Connection Instructions

Installation
How to connect
1. Connect theDVD video outputs(COMPONENT) to
the Y Pb Pr jacks on the TV and connect the DVD audio
outputs to the Y Pb Pr Audio IN jacks on the TV, as
shown in the figure.
2. If your DVD onlyhas an S-VIDEOoutput jack,
connect this to the S-VIDEO inputon the TV. as shown
in the figure.
Note
If your DVD player does not have component video
output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use theINPUT button on the remotecontrol to select
Y Pb Pr mode.
3. Press Play button on external equipment for program
play.
4. Refer to the DVD player's manual for operating
instructions.
How to connect
Connect the audio and video cables from the external
equipment's output jacks to the TV input jacks, as shown
in the figure.When connecting theTV to external equipment,
match the jack colors (Video = yellow, Audio Left = white,
and AudioRight = red).
How to use
1. Select the input source with using INPUT button on
the remote control.
2. Press CH+/-button to select the desired source.
3. Press OK button to confirm.
4. Operate thecorresponding external equipment.
Video Game Set
Camcorder
Component Input ports
To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports
on the TV
Video output ports
on DVD player
Y Pb Pr
Y Pb Pr
Y B-Y R-Y
Y Cb Cr
Y P P
BR
External A/V Source Setup

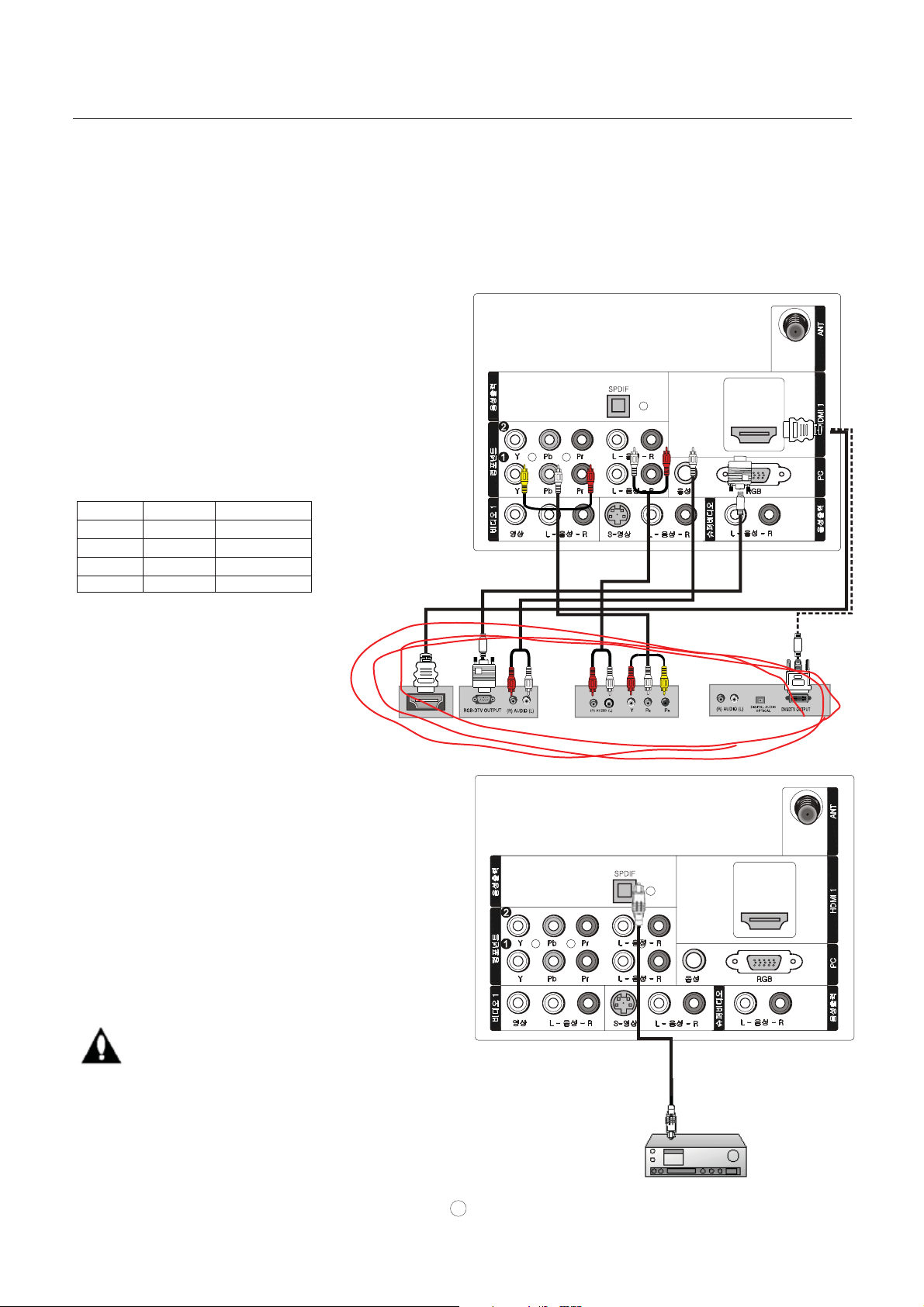

DVD connection
DVD
or
Connection Instructions

Installation
Digital Set-top Box
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480i,480p,720p,
1080i).
How to connect
Use the TV`s COMPONENT , VGA or HDMI
jack for video connections, depending on
your set-top boxconnector. Then, make
the corresponding audioconnections.
How to use
1. Turn on the digital set-top box. (Refer to the
owner`s manual forthe digital set-top box.)
2. Use INPUT on the remote control to select
COMPONENT , VGA or HDMIsource.
Send the TV`s audio to external audio equipment (stereo
system) via theDigital AudioOutput (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital
Audio(Optical) Output port.
2. Connect the other end of the optical cable to the digital
audio (optical)input onthe audio equipment.
See the external audio equipment instruction manual for
operation.
Note
When connecting withexternal audio equipments, such
as amplifers orspeakers, please turn the TV speakers off.
Digital Audio Output
Caution: Do notlook into theoptical output port.
Looking at the laser beam may damage
your vision.
DTV connection
Signal
480i
480p
720p
1080i
COMPONENT HDMI
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HDMI
Connection Instructions
8

Installation
How toconnect
1. To getthe bestpicture quality, adjustthe PCgraphics card to 1024
2. Use the TV`s VGA or DVI (Digital Visual Interface)Audio IN port for video connections, depending on your
VGA connector.
If the graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of
either VGA r HDMI/DVI INto display thePC on theTV.
If the graphiccard on thePC does outputanalog and digital RGB simultaneously, set the TV to eithe VGA
DVI; (the othermode is setto Plug andPlay automatically bythe TV.)
3. Then,make thecorresponding audioconnection. Ifusing asound card,adjust thePC soundas required.
How touse
1. Turnon the PCand the TV.
2. Turn onthe displayby pressingthe POWERbutton onthe TV'sremote control.
3. UseINPUT onthe remotecontrol toselect PCor HDMIsource.
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PCmode. If noiseis present, changethe PC modeto another resolution,change the refreshrate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the
PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic
card.
Note
1.Use aHDMI to DVI cable.
2.Avoid keeping a fixed imageon the TV's screen for a long period oftime. The fixed image maybecome
permanently imprinted on the screen.
3. Thesynchronization inputform forHorizontal andVerticalfrequencies isseparate.
x768 .
IN o
r or
HDMI/
Resolution
Frame
frequency
(Hz)
VGA
SVGA
XGA
60Hz
800x600
1024x768 60Hz
60Hz
Mode Resolution
75Hz
75Hz
VGA connection
2
1
Y
VIDEO
VIDEO
OPTICAL
OPTICAL
COMPONENT IN
COMPONENT IN
AV IN
AV IN
Pb/Cb
Pr/Cr
Pr/Cr
LR
LR
SVIDEO
SVIDEO
PC
PC AUDIO
PC AUDIO
AUDIO
AUDIO
L R
AUDIO
OUT
L
R
AUDIO
AUDIO
AUDIO
2
LR
AUDIO
AUDIO
1
AUDIO OUT
AUDIO OUT
PC IN
PC IN
HDMI/DVI IN
HDMI/DVI IN
ANT IN
ANT IN
Connection Instructions
640x480
1280x1024
1280x768
1920x1080
8

When the source device(DVD player or SetTop Box) supports HDMI
How To Connect
1. Connect thesource device toHDMI port ofthis TV with an HDMIcable(not supplied withthis product).
2. No separatedaudio connection isnecessary.
How To Use
If the source device supports Auto HDMI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Select HDMI input source in input source option of Select Main source menu.
Installation
HDMI Input
Connection Instructions

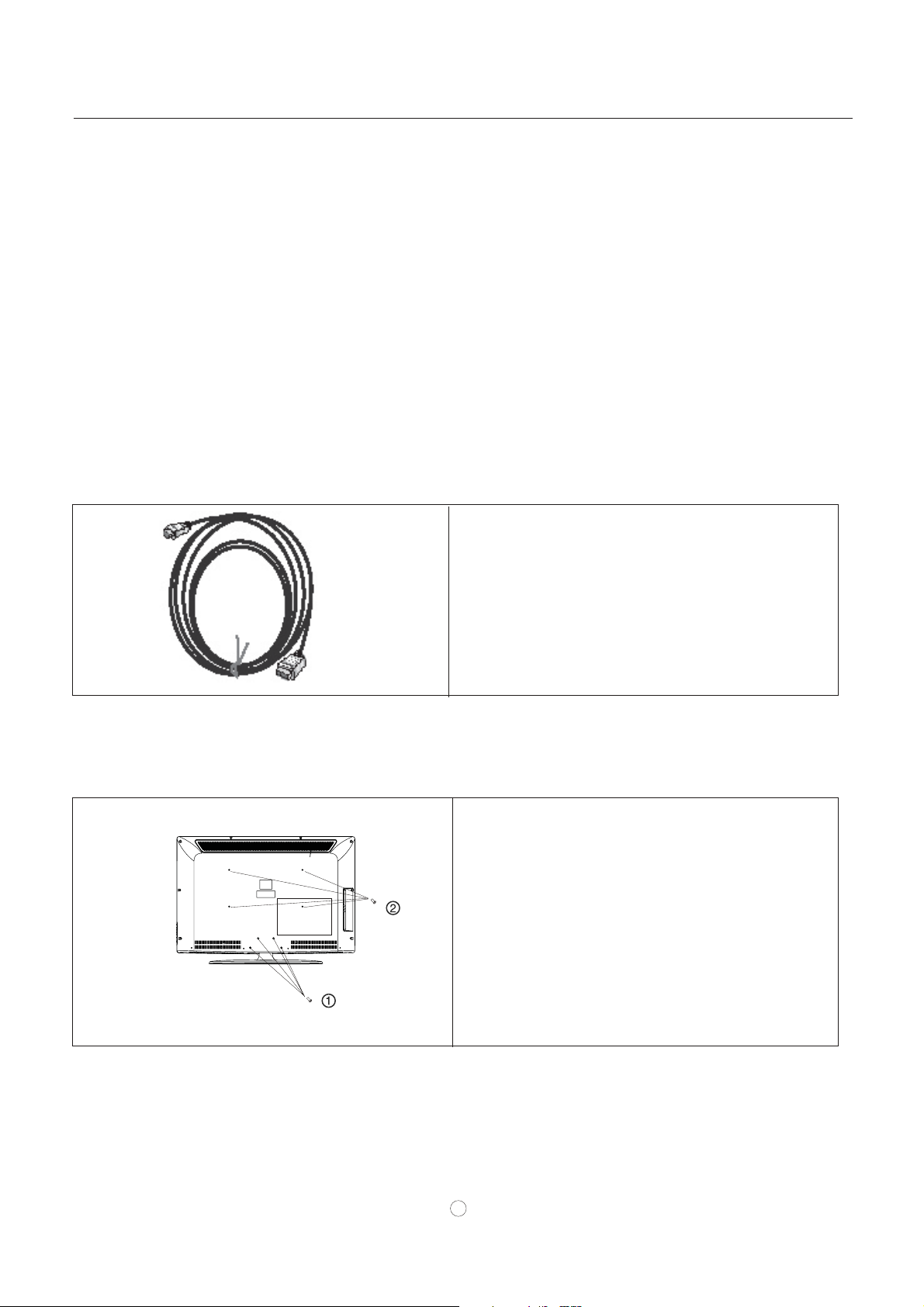

Removing the table stand and installing a
wall mount bracket
HDMI Cable
(not supplied withthe product)
Cable sample
1. Remove 4X M4 screws securing the
stand to the TV, then remove the stand.
2. Use 4X M6 screws to secure the wall
bracket (not supplied)to the backof your TV.

Installation
Power source
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for
operation onAC. Insert theAC cordplug into
a standard polarizedAC outlet.
Note
Never connect the AC line cord plug to other
than the specified voltage. Use the attached
power cord only.
If the polarized AC cord does not fit into a non-
polarized AC outlet, do not attempt to file or cut
the blade. Itis the user`sresponsibility to have
an electrician replacethe obsolete outlet.
If you cause a static discharge when touching
the unit and the unit fails to function, simply
unplug the unitfrom theAC outlet andplug it back
in. The unit should return to normal operation.
Polarized AC Cord Plug
AC Outlet
Wider Hole
and Blade
You can connect a set of headphones to yourset if you wish to watch a
TV programme withoutdisturbing the otherpeople in theroom.
Connecting Headphones
Note
Prolonged use ofheadphones at ahigh volume
may damage your hearing.
Youwill not receivesound from thespeakers
when you connectheadphones to thesystem.
Plug a setof headphones intothe 3.5mm
mini-jack socket onthe side panelof the set.
Connection Instructions

Operation
In the manual, the OSD (on screen display) may be different from your TV`s, because it is just an example to help
you with the TV operation.
There are several options you might need to set up in order for your TV to work properly. Read the instructions that
follow.
1. Choose the TV source andthen press MENU button.
2. Press VOL+/- to select SETTINGS menu.
3. Press CH-/OK, then pressCH+/- to select the
.
4. Press VOL+/OK, the opens.
5. Press CH+/- to select language youwant.
You can select
Menu
Settings
Menu Settings
Korea English
Basic Operating Instructions
MOVE SELECT PREVIOUS EXIT
OK
MENU
EXIT
PICTURE AUDIO CHANNELS SETTINGS
Settings
Closed Caption
Time
Menu Settings
Input Labels
Computer Settings
Component Settings
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Turning on your TV for the first time
Toturn on andconfigure your TV:
1Make sure thatyou have insertedthe batteries inthe remote control, connected the antenna to the TV, and
connected the AC power.
2 Press POWER, then waitseveral seconds. Thepower indicator LEDturns blue andthe TV turnson.
Note
If the TV in power on , the screen show information according the type of input signal . the information will disappear.
If there is no signal , NO SIGNAL will display on the screen.
3Select the signalsource for yourTV change the picture source so you can watch your TV, cable TV, VCR,
DVD, or anyother devices thatare connected toyour TV.
1. Press INPUT to open the signal source menu and then press CH+/- button to select the source
.
2. Press VOL+/OK button to confirm .
4Select the TVsignal source foryour TV andauto scan forchannels
TV, Composite 1,
Composite 2, S-Video1, Component1, Component2,VGA/PC,HDMI-1, HDMI-2 orHDMI-3
MOVE SELECT PREVIOUS EXIT
OK
MENU
EXIT
PICTURE AUDIO CHANNELS SETTINGS
Channels
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
1. Press MENU ,then press VOL+/- to select CHANNELS menu.
2. Press CH-/OK, the CHANNELS menu opens.
3. Press CH+/- to select the Auto Channels Search . Press
VOL+/OK the AutoChannels Search menu opens.
4. Press CH+/- to select Antenna or Cable, then pressOK.
A checkmark appears in the circle next to your choice.
Press CH+/- to select START, then press VOL+/OK. The TV
automatically scans and memorizes all the active, available
channels in your area.
5 Set the volume of your TV by pressing VOL+ or VOL-.
6 Choose theMenu Language
7 Select thechannel you wantby pressing CH+/CH-to go tothe next orprevious channel, ordirectly by
pressing the number buttons.

Switching the TV On or Off
1 First, connect power cord correctly.
2Press power button. Your TV turns on.
3Press again to turn off your TV.When you turn off your TV, it goes into standby mode.
Warning: When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the
power cord.
Note: If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.
Mute
1.Press MUTE button to mute the sound temporarily. Amute icon appears on the screen.
2.Press MUTE button or VOL+ again to restore the sound.
The mute icon disappears.
Sleep button
Press SLEEP button to set the time : Off-5 min-10 min-15 min-30 min-45min-60 min-90 min-120 min-180 min-240min.
This feature allows you to turn off the television after a pre-selected number of minutes
- Button
Press to selectadditional channels (digitaland analog) beingbroadcast by thesame station. Forexample, to select
digital channel “11-1”, press “11”, then press “ - ” and “1”.
CH.LIST button
Press to display the program list. Press CH+/- to select the item and OK button to select the channel you desired.
FAVORITE button
Adding favorite channels
Press CH.LIST. The channel list opens. Press CH+/- to select a channel.
Press FAVORITE to add thechannel to thefavorites channel list.
Toremove a favoritechannel, open thechannel list, selectthe channel youwant to remove,then press FAVORITE.
Tuning to a favorite channel
Press FAVORITE The favorite channel list opens.
Press CH+/- to select the channel.
Your LCD TV automatically tunes to the channel you selected.
SAP Broadcasts Setup
This TV can receive MTS stereo programs and SAP (Secondary Audio Program) that accompanies the stereo
program; if the station transmits an additional sound signal as well as the original one.
When having selected SAP button on the remote control, this TV can only receive the signal when the TV station
transmits the propersignals.
Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.
Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.
Stereo or SAP can be received in a Analog channel.
1. Use MTS/SAP to select yourdesired MTS modein a analogsignal. Each timeyou press MTS/SAP, Mono,
Stereo or SAP appear. If other languages are available on the digital signal, select them with the MTS/SAP button.
2. Press EXIT to save and return to TV viewing.
ARC button
Selects theAspect Ratio. You can select Zoom, Wide, Cinema or normal.
Zoom Choose Zoom when you want to view the picture without any alteration. However, the top and bottom
portions of the picture will be cropped.
Wide Choose wide when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
Cinema For letterbox pictures,bars may appearon the topand bottom onsome programs.
Normal Choose normal when you want to view the picture with original aspect ratio of the input signal.
CCD button
Basic Operating Instructions

Operation
Menu Operations
In this manual,the OSD (OnScreen Display) maybe differ fromyour TV.
These are examplesto illustrate theTV's operation.
Press INPUT toselect the inputsource. The menufor each sourcemay be different .
1Press MENU button to display the main menu, and VOL+/- to select the main menu .
2Press CH-/OK button to enter the menu and CH+/- to go up and down to select the desired option .
3Press VOL+/OK button to confirm and VOL+/- to make changes to the parameters.
4Press EXIT/MENU button to exit the menu.
Picture Menu Options
The TV menu gives you an overview of the menus you can select.
Note
Depending on the input signal, one or more menu items may not
be selectable.
1 Press MENU ,then press VOL+/- to select PICTURE menu.
2 Press CH-/OK, then press to select an option.
3Press , the m opens. then press to
adjust the option.
How to customizeyour own picturestatus
CH+/-
VOL+/OK enu VOL+/- MOVE
SELECT PREVIOUS EXIT
OK
MENU
EXIT
PICTURE AUDIO CHANNELS SETTINGS
Standard
50
50
50
0
50
Mode
Brightness
Contrast
Color
Tint
Sharpness
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Mode
Select the picturemode. You can selectVivid/Standard/Energy Savings/Theater/Sports/Custom.
You can also press PICTURE on the remote control to select the picture Mode.
Brightness
Contrast
Color
Tint
Sharpness
Reset to Default Re
Adjusts the brightness.
Adjusts the contrast.
Adjusts the color saturation.
Adjusts the imagetint.
Adjusts the sharpness.
Lets you set the following:
• Aspect Ratio Select Normal, Zoom, Wide, Cinema, or Auto Zoom.
• Overscan Turn this On to adjust the picture’s reproduction rate when receiving DVI signals in VIDEO format.
Available when the signaluses EIAtiming(480i/480p/720p/1080i/1080p).
• Color Temperature Select Warm (increased red), Normal,or Cool (increasedblue).
• Backlight Adjusts the overall brilliance of the screen.
• Noise Reduction Selects the noise reduction mode to reduce picture noise (snow). Choose High, Middle,
Low, orOff.
• Advanced Contrast Turn this On to optimize the picture display for a more vivid image.
sets all picturesettings to factorydefault.
Advanced Video
/

Menu Operations
Audio Menu Options
Equalizer Mode
Selects the soundmode. You can select :
Custom for a customized sound mode), Standard, Theater (for movies), Music (for musical programs),
News (for newsprograms).
You can also press AUDIO one or more times to cycle through the available sound modes.
Equalizer Setting
Lets you set custom audio settings when you select Custom
This will adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening
position
Digital Audio/SPDIF
The TV can output Digital audio via the optical connector to an external amplifier or receiver.
Audio Language
Korea, English, Japan.
Balance
You can select RAW or PCM.
(DTV channels only)
Selects an alternate audio language, if available. You can select
Auto Volume Equalizes the overall volume levels forall channels.
Reset Audio Setting Resets all audio settings to factory default.
How to Customize your own audio status
1 Press MENU ,then press VOL+/- to select AUDIO menu.
2 Press CH-/OK ,then press CH+/- to select the desired items.
3Press VOL+/OK, then press VOL+/- to adjust the setting.
4 When you aresatisfied with yourchoice, press MENU
button to returnto the previousmenu or pressEXIT button
to return to TV viewing.
Standard
0
RAW
Korea
Off
MOVE SELECT PREVIOUS EXIT
OK
MENU
EXIT
PICTURE AUDIO CHANNELS SETTINGS
Audio
Equalizer Mode
Equalizer Setting
Balance
Digital Audio/SPDIF
Audio Language
Audio Volume
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Operation

Operation
1 Press MENU ,then press VOL+/- to select CHANNELS menu.
2 Press CH-/OK, then pressCH+/- one or moretimes to select
the Auto Channels Search .
3 Press VOL+/OK. The Auto ChannelsSearch opens.
4Press CH+/- to select Antenna or Cable, then press OK.
A checkmark appears in the circle next to your choice.
5Press CH+/- to select START, then press VOL+/OK.
The TV automatically scans and memorizes all the active,
available channels in your area.
All available channels are automatically preset in order. After
the search is completed, the first channel number
displays on the screen. This search automatically adds only the
active channels inyour area tothe TV's memory.
It deletes any channels on which there is no broadcast or a poor
signal. The channels found are automatically saved.
6To cancel searching,press EXIT button.
Adding or skipping channels
You can delete channels from the channel list so that your TV
skips the channelswhen you pressCH+/-. You can still tune to
the hidden channelby using thenumber buttons.
the Add/Skip Channels option, your LCD TV scans for channels
starting at 21.
menu
CHANNELS
Add/Skip Channels
VOL+/OK. TAdd/Skip Channels menu opens
Notes:
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the .
3 Press he .
4 Press CH+/-or VOL+/- to highlight thechannel you wantto
skip (the defaultis to showthe channel), thenpress
ENTER to remove the check mark from the channel.
Notes:
If the list has more than one page, press CH+/- to scroll through
the pages.
To add a channel that is being skipped, repeat Steps 1 to 4 and
press ENTER to return the checkmark to the channel.
5Tocancel searching, pressEXIT button.
The Channel menu will be only operated in normal TV mode.
Menu Operations
Channels Menu Options
1 Press INPUT ,then press to select TV option.
2Press OK, to select the TV signal source.
Automatically scanning for channels
Automatically finds allchannels available throughantenna or cableinputs, and storesthem in memoryon theAll
Channel List.
CH+/-
VOL+/
To select the TV signal source:
MOVE
MOVE
MOVE
MOVE
SELECT
SELECT
SELECT
SELECT
PREVIOUS
PREVIOUS
PREVIOUS
PREVIOUS
EXIT
EXIT
EXIT
EXIT
OK
OK
OK
OK
MENU
MENU
MENU
MENU
EXIT
EXIT
EXIT
EXIT
AUDIO
AUDIO
AUDIO
AUDIO
CHANNELS
CHANNELS
CHANNELS
CHANNELS
SETTINGS
SETTINGS
SETTINGS
SETTINGS
Channels
Channels Auto Channels Search
Channels
Channels Add/Skip Channels
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
Choose your TV source
Antenna
Cable
Start
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
Ch 2.0
Ch 6.0
Ch 11.1 MBC DTV
Ch 14.1 ATSC-1
Ch 14.1 ATSC-3
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Select Cable if cable isconnected directly to the TV
Adjust settings to affect picturequality
Manually add and skipchannels in your programlist
Ch 5.1 KPIX-DT
Ch 10.1 WCAU-DT
Ch 13.1
Ch 14.2 ATSC-2
Ch 65.0
0 Analog Channels
Digital Channels0

Operation
Menu Operations
Channels Menu Options
Setting up a favorite channel list
You can create a favorite channel list so you can quickly browse
through your favorite channels by pressing FAVORITE, then
selecting a channelfrom the favoritechannel list.
MOVE
MOVE
MOVE
MOVE
SELECT
SELECT
SELECT
SELECT
PREVIOUS
PREVIOUS
PREVIOUS
PREVIOUS
EXIT
EXIT
EXIT
EXIT
OK
OK
OK
OK
MENU
MENU
MENU
MENU
EXIT
EXIT
EXIT
EXIT
AUDIO
AUDIO
AUDIO
AUDIO
CHANNELS
CHANNELS
CHANNELS
CHANNELS
SETTINGS
SETTINGS
SETTINGS
SETTINGS
Channels
Channels Favorites
Channels Channel Labels
Channels
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Add channels to createa favorites list
Add channels to createa favorites list
Adjust settings to affect picturequality
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the Favorite.
3 Press he Favorite .
4 Press CH+/- to select the channel you want to add or remove,
then press OK to add or remove the channel from the list.
5P close the menu.
6Toselect a channelin your favoriteslist, press FAVORITE on
the remote control,press CH+/- to select the channel.
CHANNELS
VOL+/OK. Tmenu opens
ress EXIT .
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the .
3 Press he .
4 Press CH+/- to select the channel you want to label,
press VOL+/- to go to the channel label field.
5Press CH+/- toselect the numberor symbol youwant,
then press VOL+ to go to the next character. Youcan use as many
as ten characters to label a channel.
6When you havefinished entering alabel, press OKto
confirm.
Notes:
To change a character, press VOL+/- to go to the character you
want to change, then press CH+/- to select a new character.
Repeat Steps 4to 6 to label additional channels.
7Press MENU to exit to the previous menu or EXIT to close the
menu.
CHANNELS
VOL+/OK. T menu opens
Channel Labels
Channel Labels
Adding or changing a channel label
If a channelis not alreadylabeled, you can label the channel to
make it easier to identify. You can also relabel a channel that is
already labeled.
Ch 2.0
Ch 6.0
Ch 11.1 MBC DTV
Ch 14.1 ATSC-1
Ch 14.1 ATSC-3
Ch 5.1 KPIX-DT
Ch 10.1 WCAU-DT
Ch 13.1
Ch 14.2 ATSC-2
Ch 65.0
2.0

Checking the DTV signal strength
You can check the DTV signal strength to determine if you need to
adjust your antenna or digital cable input. The signal strength, the
less likely you are to experience picture degradation.
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the .
3 Press he displaying the
signal strength of the channel.
4P close the menu.
Turning on Auto Zoom
Auto Zoom automatically adjusts the aspect ratio of the picture, based
on TV size and TV program.
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the Auto Zoom.
3 Press heAuto Zoom . Press CH+/- to
select On.
4P close the menu.
CHANNELS
VOL+/OK.Tmenu opens
CHANNELS
VOL+/OK. Tmenu opens
Channel Strength
Channel Strength
ress EXIT
ress EXIT
Operation
Menu Operations
Channels Menu Options
MOVE SELECT PREVIOUS EXIT
OK
MENU
EXIT
PICTURE AUDIO CHANNELS SETTINGS
Channels
Auto Channels Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Auto Zoom
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality

Operation
Menu Operations
Settings Menu Options
MOVE
MOVE
MOVE
SELECT
SELECT
SELECT
PREVIOUS
PREVIOUS
PREVIOUS
EXIT
EXIT
EXIT
OK
OK
OK
MENU
MENU
MENU
EXIT
EXIT
EXIT
AUDIO
AUDIO
AUDIO
CHANNELS
CHANNELS
CHANNELS
SETTINGS
SETTINGS
SETTINGS
Settings
Settings Closed Caption
Settings Time
Closed Caption
Time
Menu Settings
Input Labels
Computer Settings
Component Settings
Caption mode CC Off
Analog Caption English
Digital Caption CC1
Digital CC Settings
Mode Manual
Clock 04:22 AM
Off Time 04:22 AM
On Time 04:22 AM
Sleep Timer Off
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
VOL
-
VOL
+
CH+
CH-
Adjust settings to affect picturequality
Set Closed Caption Mode
If Automatic, options areautomatically set by TVsource
Closed Caption
SETTINGS
Closed Caption
VOL+/OK.TClosed Caption menu opens
VOL+/OK
Caption m
SETTINGS
VOL+/OK.Tmenu opens
VOL+/OK
VOL+/OK
Lets you turn closed captioning on or off. Also lets you set
closed caption options.
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the .
3 Press he .
Press CH+/- to select the option, press to
open the sub-menu, then press CH+/- to set up. Options include:
ode Select CC On, CC Off, or CC On Mute.
Analog Caption For analog programming. Options
include:
• Cc1 Standard CC display.
• CC2 to Cc4 For other modesof video relatedbroadcast
information.
• Text1 For a program guide or other information
displayed by broadcasters.
• Text2 to Text4 For additional modes of information
displayed by broadcasters.
• Off Turns analogcaptions off.
Digital Caption For digital programming. Select CS1,
CS2, CS3, CS4, CS5, CS6, or Off.
Digital CC Settings To change digital closed caption
settings. Options include:
• Style Select either Automatic or Custom. When you
select automatic, the others are disabled and cannot be
adjusted.
• Size To select the size of the caption displayed.
• Font To select the font of the caption displayed.
• Text Color To select the text color or the opacity of the
text box of caption display. Select a color and one of the
opacity options.
• Text Opacity To specify the opacity for the text color.
• Background Color To select a background color.
• Background Opacity To select the opacity for the
background color.
• Edge Effect To select theedge effect.
• Edge Color To select the edge color.
4 Press MENU to return tothe previous menu,or press EXIT to
close the menu.
You can also press CCD to turn closed captioning on or off.
Adjusting time settings
Lets you setthe clock.
1 Press MENU ,then press VOL+/- to select menu.
2 Press CH-/OK ,then press CH+/- one or more times to select
the Time.
3 Press he Time .
Press CH+/- to select the option, press to
open the sub-menu,then press CH+ /-to select Date/Time, then
press . The Date/Time menu opens.
