Haier HTAF21C User manual

13
1
25
HTAF21C

1
English
Before Operation
Warning and cautions...............................................................................1
Installation.................................................................................................4
..............................................................................4
The remote control.................................................................................4
MENU functions
Video set up...........................................................................................5
Audio set up...........................................................................................5
Timer set up............................................................................................6
Function
Channel
Calendar
..............................................................................11
Antenna Connection
Troubleshooting guide
set up......................................................................................6
set up......................................................................................7
.................................................................................................8
V-CHIP set up...........................................................................................8
Others.

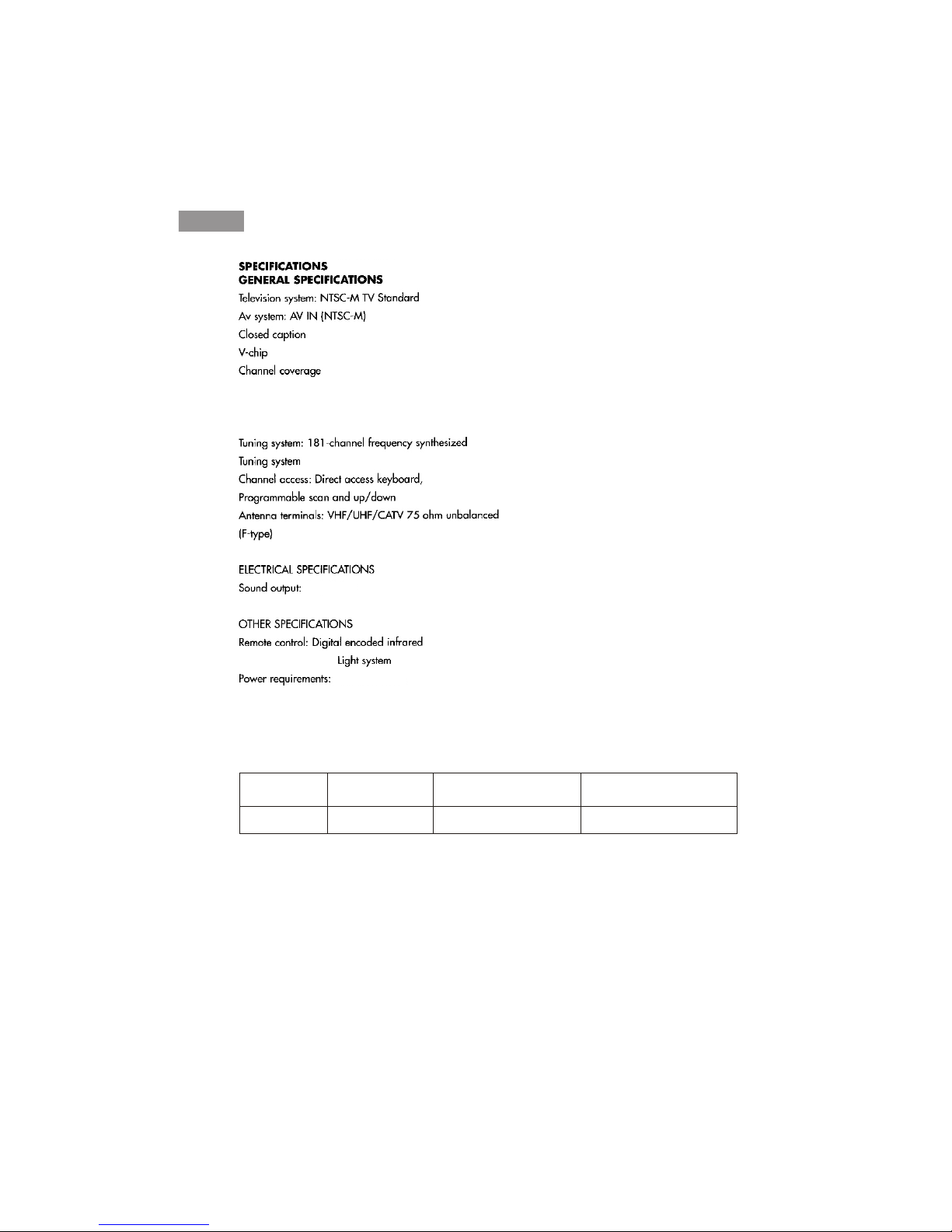

Specifications ..........................................................................................12

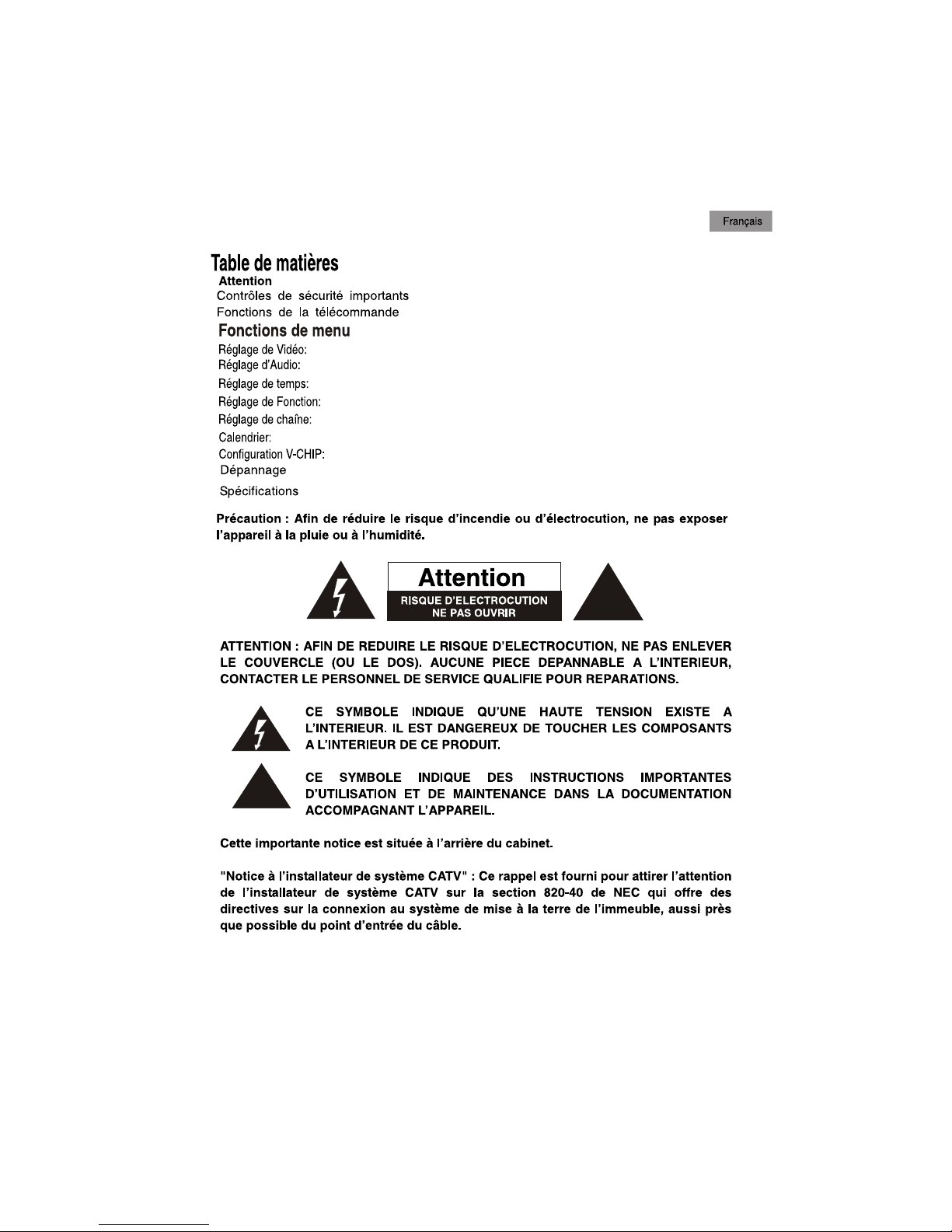

Table Of Contents
CAUTION: TO REDUCETHE RISK OFELECTRIC SHOCK. DONOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TOQUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THATHIGH VOLTAGE IS PRESENT INSIDE.IT IS
DANGEROUS TO MARK ANY KINDOF CONTACT WITH ANYINSIDE PART
OF THIS PRODUCT.
THIS SYMBOL INDICATES THATTHERE ARE IMPORTANT OPERATINGAND
MAINTENANCE INSTRUCTIONS INTHE LITERATUREACCOMPANYING
THE APPLIANCE.
This important note is located on the rear of the cabinet.
Note to CATV system installer:This reminder isprovided to callCATV system
installer s attention tosection 820-40 ofthe NEC whichprovided guidelines
for proper groundingand, in particular, specifies that the cable ground shall
be connected tothe grounding systemof the building,as close tothe point of
cable entry as practical.
Warning: To reduce the risk of fire or electric shock, Do not expose this appliance to
rain or moisture.
1
4
4
4
5
5
5
6
7
8
8
11
12

English
2
English
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read all of the instructionsbefore using thisappliance. When usingthis appliance, always
exercise basic safetyprecautions, including thefollowing:
1) Save theseinstructions- The safetyand operation instructionsshould be retainedfor future
reference.
2) All warningson the applianceand in theoperating instructions shouldbe followed.
3) Cleaning- UnplugTV from thewall outlet beforecleaning. Do notuse liquid cleanersor
aerosol cleaners.Use onlya damp clothfor cleaning.Exceptions: Someproducts are
designed for uninterruptedservice, eg. CableTV converters, Unplugging such accessories
may result inloss of authorizationcodes. In suchcases, please follow instructions or
unplugging such devicesas provided bythe accessories manufacturer.
4)Attachments-Do not useattachments not recommended by the TV manufacturer as they
may cause hazards.
5) Water and moisture-Do not place this TV near water, for example, near a bathtub, wash
bowl, kitchen sink,or laundry tub, in a wet basement, or near a swimming pool.
6)Accessories - Donot place this TV on an unstable cart, stand, tripod, bracket or table. The
TV may fallcausing serious injury to someone, and serious damage to the appliance. Use
only with acart, stand, tripod, bracket, or table recommended bythe manufacturer`s, or
sold with theTV. Any mountingof the applianceshould follow themanufacturer`s instructions
and should usea mounting accessory recommended by themanufacturer. An appliance
and cart combination should be moved with care. Quickstops, excessive force, and uneven
surface may cause the appliance and Cart combination to overturn.
7) Ventilation- Slots and openings in the cabinet and the back or bottom are provided for
ventilation and toensure overheating. These openings must not be locked in an built in
installation such abookcase or rack unless proper ventilationis provided or the
manufacturer instructions havebeen adhered to.
8)Power sources - This TV should be operated only from thetype of powersources indicated
on the electricalnameplate. If you are not sure of the type of the power supply to your home,
consult your appliancedealer or local power company. For TV`s intended to operate from
battery power or other source, refer to the operation instructions.
9)Grounding or polarization- This TV is equipped with a polarized alternating current line plug
(a plug havingone blade wider than the other is). This plug will fit into the power outletonly
one way. This is safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug.If the plugshould still fail to fit, contact your electrician to replace your
outlet. Don`t defeatthe safety purposeof the polarized plug.
10)Power cord protection - Power supply cords should be routed so that they are not likely to
be walked on or pinchedby items placed upon or against them, paying particular attention
to cords orPlugs, convenience receptacle, and the point where they exit from the
appliance.
11) Out antennagrounding - If an outside antenna
or cable systemis grounded so as to provide some
protection against voltagesurges and built up static
charges. Article 810 of the National Electrical Code,
ANSI/NEPA NO.70,provided information withrespect
to proper groundingof the mast and supporting
structure, grounding ofthe lead in wire to antenna
discharge unit, sizeof grounding conductors, location
of antenna dischargeunit, connection to grounding
electrodes, and requirementfor the grounding electrode. (Fig. A)
12)Lightning precaution -For added protection for this TV
receiver during aLightning storm or when it is left unattended
for long periodof time, unplug it from the wall outlet and
disconnect the antennaor cable system. This will prevent
damage to theTV due to lighting and Power line surges.

English
13)Object and liquidentry - Never push objects of any kind into this TV through openings
as they maytouch dangerous voltage point or short out parts that could result in a fire
or electric shock.Avoid spilling liquidof any kind on the TV.
14)Servicing - Do not attempt to service the TV by yourself, as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
15)Damage Requiring Service - Unplug this TV from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When thepower supply cord or plug is damaged or frayed.
b. If liquidhas been spilled, or objects have been fallen into the TV.
c. If theTV has been exposed to rain or water.
d. If theTV does not operate normally by following the operation instructions. Adjust only
those controls that are covered by the operation instructions,as improper adjustment
of other controlmay result in damage and will often require extensive work by aqualified
technician to restorethe TV toits normal operation.
e. If theTV has been dropped or damaged in any way.
f. Whenthe TV exhibitsa distinct change in performance; this indicates a need for service.
16) Replacement parts - When replacement parts a required, be sure the service technician
uses replacement parts specified by the manufacturer that the same characteristic as the
original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or
other hazards.
17) Safety check - Upon completion of any service of repairs to this TV, ask theservice
technician to perform routine safety checksto determine that the TV is in proper operation
condition.
18) Heat -This TV product should be situated away from heat sources such as radiators, heat
registers, stoves, orother products (Including amplifiers) that produce heat.
19) Modifications -Any changes or modifications not expressly approved by the Federal
Communications.
20)Clean only witha dry cloth.
21)Do not blockany ventilation openings. Install in accordance with the manufacturer's
instructions.
22)Do not installnear any hear sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
23)Do not defeatthe safety purposes of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade orthe third prongis provided foryour safety.
When the providedplugdoes not fitinto your outlet,consult an electrician for replacement
of the obsoleteoutlet.
24)Protect the power cord frombeing walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit fromthe apparatus.
25)Only use theattachments/accessories specified by the manufacturer.
26)Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has beendamaged in any way, such as power supply cord or plug is damaged,
liquid has beenspilled or objectshave fallen intothe apparatus, theapparatus has been
exposed to rainor moisture, does not operate normally, or hasbeen dropped.
35
3
Model number Serial number Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
For Future Reference Please
SAVE THESE INSTRUCTIONS

4
English

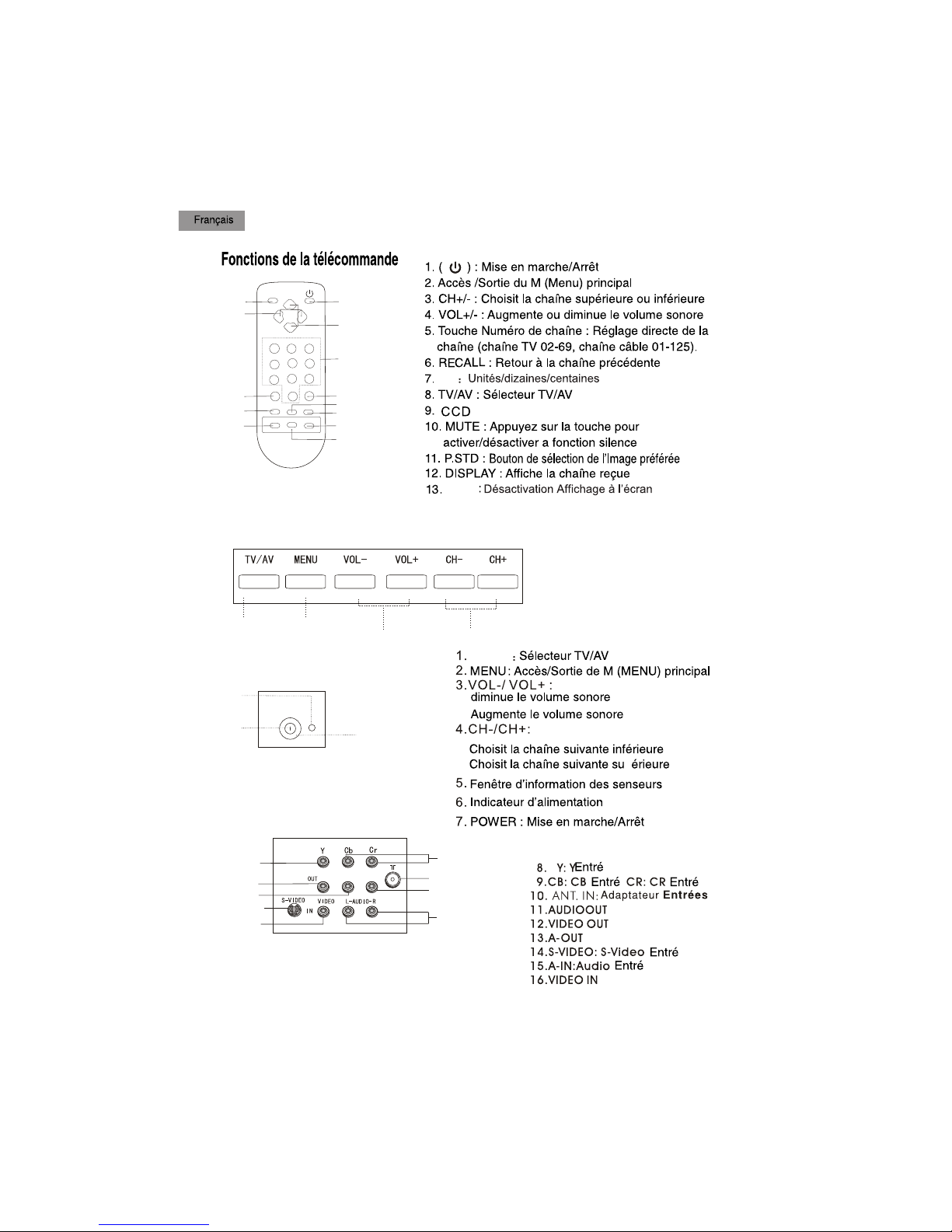

Remote Control Functions
1. : Power on/off
2. MENU: Access/Exit Main M
3. CH+/-: Select next higher or lower channel
4. VOL+/-: Increase or decrease sound
5. CHANNEL NUMBER BUTTON: Direct channel
tuning (TV channel 02-69, CATV channel 01-125.)
6. RECALL: Return to previous channel
7. -/--: Digital Selector
8. TV/AV: TV/AV selection
9. C C D: (closed caption) On/Off
10. MUTE: Press key to Activate/deactivate Mute Function
11. P.STD: Picture Preference Select Button
12. DISPLAY: Display receiving channel
13.EXIT Exit TV Menu
6
1
789
23
45
0
RECALL
TV/AV CCD
EXIT
MUTE
P.S T D DISPLAY
-/--
MENU CH+
VOL- VOL+
CH-
1
2
3
4
5
67
89
13
10
11 12
8.
9.
10.
12.
13.
Y: Yinput
CB: CB input CR: CR input
ANT.IN: Antenna In
11.AUDIOOUT()
VIDEO OUT
A-OUT:Audiooutput
14.S-VIDEO: S-Video Input
15.A-IN:Audio input
16.VIDEO IN
10
11
12
13
14 15
89
16
HTAF21C
5
76
234 1
1.TV/AV TV/AV switching
2.Menu: Access/ExitMain M (Menu)
3.VOL-/ VOL+ :
Decrease sound/Increase sound
4.CH-/CH+:
Select next lowerchannel
/ Select nexthigher channel
5.Sensor Windows
6. Power Indicator
7.Power: Power on/off

5
5
English

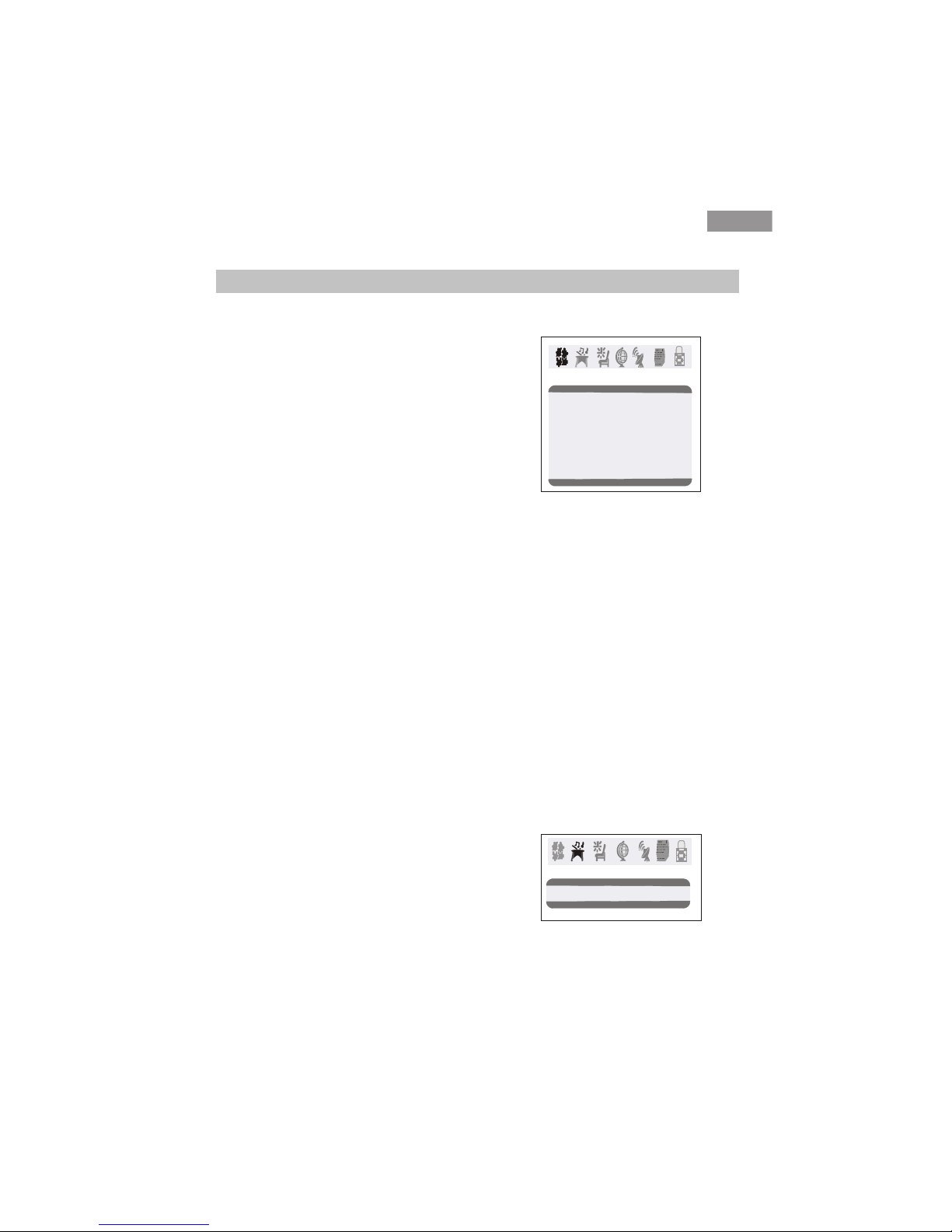

Menu Functions
Video Set Up:
Pressing MENU button once willbring the VideoSet Up menu on the TV.
The following isshown on yourTV screen:
Follow the procedure below to adjust the
picture quality ofyour choice:
1.Press the CH(+) and CH(-)button to go
up and downthe menu.
2.Press the VOL(+) and VOL(-) button to
increase and decreasethe level toyour
preference for eachitem.
Adjustment of PictureQuality:
To adjustthe picture qualityfrom the factory preset read thefollowing:
Picture: By increasingthe level,it willadjust white areasof picture andby decreasing the level ,
it will adjustblack areas of picture.
Brightness: By increasingthe level, itwill add morelight to darkparts of the picture and by
decreasing the level,itwill add moredark to light parts of the picture.
Color: By increasingthelevel,it will adjust the low and the high level of the picture.
Sharpness: By increasingthe level, itwill show cleanerand clearer imagesand by decreasing
the level, itwill make picture smoother.
Hue: Youcan adjust thetint of thepicture by goinginto picture setup menu. By decreasing the
level, it willgive red tint to skin color and by increasing the color itwill give greentint to
skin color.
Color Temp: By pressingthe VOL(+/-) buttons to selectthe three settingA)Neutral, B)Warm,
C)Cool.
Picture 70
Color 50
Sharpness 40
Hue 50
Color Temp. Neutral
Brightness 32
Video
Information to user:Thistelevision receiver is equipped with close caption decoder and
parental blocking technologyas required by the FCC.
Audio Set Up:
By pressing MENUbutton ,and then pressing VOL(-/+) button it will bring you to Audio
Set Up display. You will see the following menu on your TV screen:
Follow the procedure below to adjust the
sound quality:
Press VOL (+) button to increase and VOL (-)
button to decreasethe level to your preference.
Audio
Volume 45

6
English
Timer Set Up:
By pressing MENUbutton ,and thenpressing VOL(-/+) button it willbring you toTimer
Set Up display. You will see the following menu on your TV screen:
Clock: Press CH( +/-) buttonsto scroll toClock, then pressVOL (-/+) buttons to set
the hour. After setting the hour press CH( +/-) buttons to go to minute mode and
set by usingVOL(+/-) buttons.
Time-On: Press CH( +/-) buttons to scroll to Clock, then press VOL (-/+) buttonsto
set the hour. Aftersetting the hour press CH(+/-) buttons togo to minutemode
and set byusing VOL(+/-) buttons.
Ch. Select: Thisexclusive feature switchesyou to yourfavorite channel atthe
appropriate set time.Press VOL(+) and VOL(-) buttons to select the channel.
Time-Off : Press CH( +/-) buttons to scroll to Clock, then press VOL (-/+) buttons to
set the hour. Aftersetting the hour press CH(+/-) buttons togo to minutemode
and et byusing VOL(+/-) buttons.
Sleep Time: Thisfeature allows youto turn offtelevision in pre-selectedminutes (180,
170,160, ........,10 and0).
Remind time: Press CH( +/-) buttons toscroll to Clock,then press VOL (-/+) buttons
to set thehour. After setting the hour press CH( +/-) buttons to go to minute mode
and set byusing VOL(+/-) buttons.
Ch. Switch: Thisfeature lets youstore your favoritechannel. Once youstore the
channel number inthis function, when the settime is up,it will switchover
to the setchannel. This feature is used withthe Exchange feature. Press
VOL(+) or VOL(-) button to select thechannel.
Timer
Time-On 18:00
Ch. Select 1
Time-Off --:--
Sleep Time 0
Remind Time --:--
Ch. Switch 1
Clock 17:18
Follow the procedure below to select one of
the above options:
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press VOL (+) button or VOL (-) button to
select your preference.
Function Set Up:
By pressing theMENU button, and then pressingVOL-/+ button will bring youto
Function Set Up menu. You will see the following menu on your screen:
Setup
Language English
Background on
VNR on
Fade on
Demo Mode
Black Stretch on
AVL off
C. Caption off
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press the VOL(+) and VOL(-) button to
increase and decreasethe level to your
preference for eachitem.
Follow the procedure below to select one of
the above options:

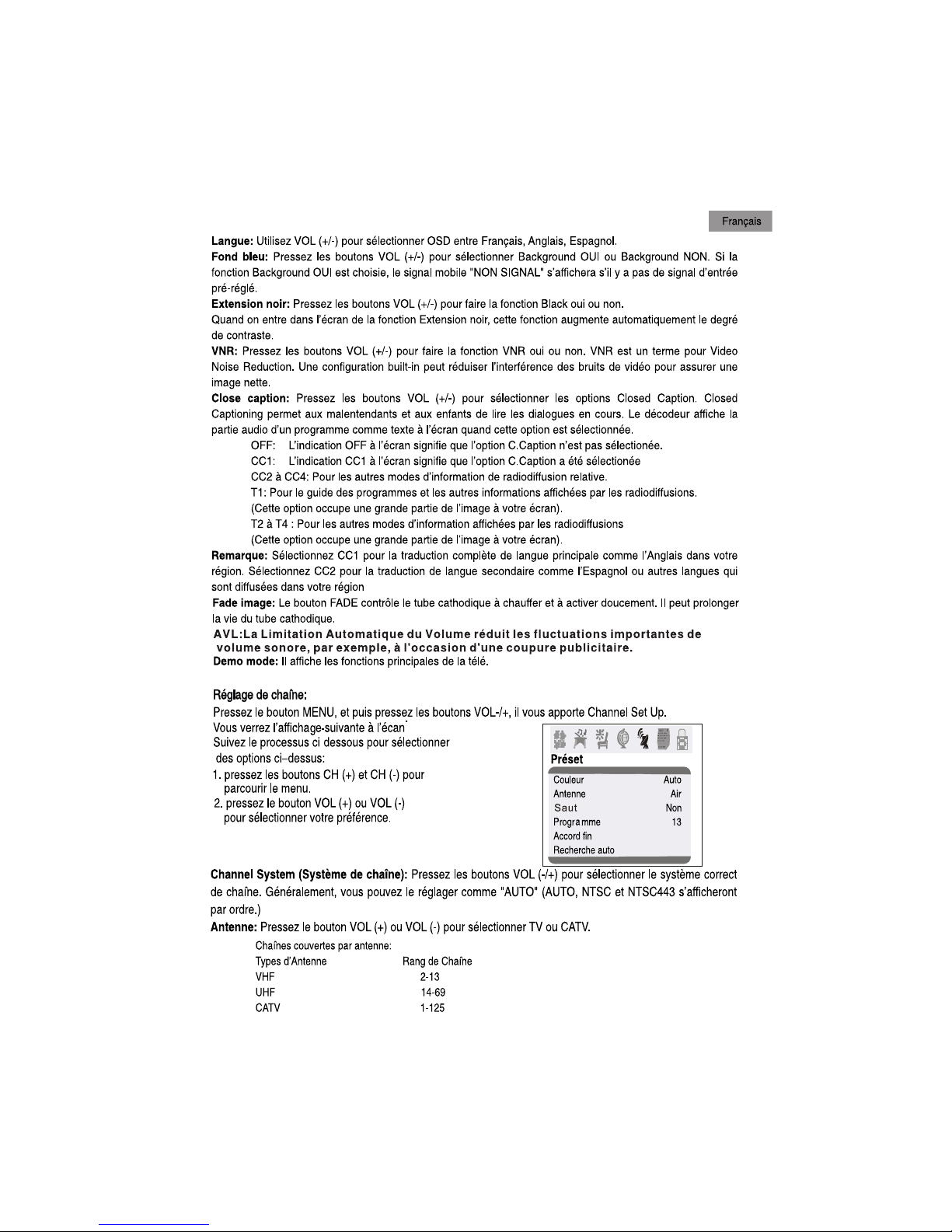

Language: Use VOL(+/-) to select the OSDin either English, French or Spanish.
Background: Press the VOL (+/-) buttons toselect between Background ON or Background
OFF. When theBackground ON function is chosen, a moving"NO SIGNAL" sign will
be displayed ifthere is no input signal to the set.
Black Stretch: Press VOL (+/-) buttons to turn the Black Stretch feature on or off. When the
Black Stretch functionis on the screen automatically increases the contrast range.
VNR: Press VOL (+/-) buttons to turn the VNR function on or off. VNR is a term for Video
Noise Reduction, a built-in device on the set that reduces video noise interference
so the vieweris assured a clear picture.
Fade: The FADE control allows for thepicture tube to warm up and gently turn on,
C.Caption: Press VOL (+/-) buttons to selectthe Closed Caption options. Closed
Captioning helps thehearing impaired with the broadcast program, as well as helping
children learn howto read. Abuilt in decoderdisplays the audio portion of a program
as text onthe screen when this option isselected.
which can helpprolong the life of the picture tube.AVL:Automatic Volume Level
control reduces theeffect of large volume changes. For instance,when advertisements
come on.
AVL:Automatic Volume Level control reduces theeffect of large volume changes. For instance,
when advertisements comeon.
OFF: When OFF is displayed on TV means C.Caption is turned off.
CC1: When CC1displays on TV means C.Caption is turned on.
CC2 to CC4:For other modes of videorelated broadcast information.
T1: For program guide and other information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
T2 to T4:For other modes of information displayed by broadcasters.
(This blocks a large portion of the picture onyour screen).
Note: Select CC1 for full translation of the primary language such as English in your
area. Select CC2 for secondary language translation such as Spanish or any other
language that may be broadcast in your area.
Demo mode: This will display the main functions of the TV set.
Channel set up:
By pressing MENUbutton ,and thenpressing VOL-/+ button it will bring you to
Channel Set Up.You willsee the followingdisplay on TVscreen.
Channel
Antenna TV
Skip off
Current Ch. 2
Fine
Auto Program
Channel System Auto
Follow the procedure below to select above
options:
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press VOL (+) button or VOL (-) button to
select your preference.
Channel System: Press the VOL(-/+) buttons to select the correctchannel system.
In general, youcan set it as "AUTO" AUTO,NTSC and NTSC443 will
display in turn
Antenna: Press VOL (+) button or VOL(-) button to select TV or CATV.
Channel Coverage byAntenna:
Antenna Type Channel Range
VHF 2-13
UHF 14-69
CATV 1-125
English
7

Skip :Press VOL(+) button or VOL(-) button to addor delete the channel from the
stored memory.
Current Ch. :Press VOL(+) button to go up and VOL (-) buttonto go downto set the
channel position. The display willshow the current playing channel.
Fine: If the picture and/or sound are poor, try using the FINE TUNE feature.
Do not usethis feature unless reception is poor. Press VOL (+/-) to start the Fine
Tune function.
Auto Program: Press VOL (+) button or VOL (-) button to auto program in channels.
This search automaticallyadds only the active channels in your area to the TV's
memory. Itdeletes any channelson which thereis no broadcastor a poor signal.
Note: The AutoSearch function will scan the channels on the selected antenna
input. If the TV is connected to cable, pleaseselect Cable underAntenna.
Calendar:
Your TV has been designed with a calendar. By pressingMENU button ,and then
pressing VOL-/+ button it will bring you to Calendar. You willsee the following
display on TVscreen.
Calendar
OCT
OCT
OCT
2001 11 14
Follow the procedure below to adjust the Calendar :
1. +/- buttonsPress the CH to select theyear
item, the monthitem or the date item.
2. Press the VOL-/+buttons to change
calendar setup (1901.1.1-2099.12.31).
3. Press EXIT button toexit the calendar mode.
V-CHIP SetUP:
Press the MENU Button onyour remote control to go to Password menu, then input
the password (0000). It will bringParental Lockset up displayon the screen. You
will see thefollowing menu on your screen:
Parental Lock
Parental Lock off
TV Rating
MPAA Rating
Lock Menu
Change Password
Passsword
Password ----
This function enablesyou to block certain TV channels in accordance tothe V-CHIP
requirement established bythe FCC.
English
8
Solar

To setthe V-CHIP function:
Select the TVRating option. You will see the TVRating menu on your TV screen:
1.Press CH(+/-) button to goup and down
the menu.
2. Press VOL(+/-) button to go into TV
Rating and Movie Rating menus.
3.Press MENU button to setthe Parent
lock ON andParent lock OFF.
When TV ratingis selected, you will see
the following ratingtable on your TV
screen.
Rating FV
TV-Y
TR-Y7
TV-G
TV-PG
TV-14
TV-MA
DLSV
UUUU
UUUU
UUU
U
U
U
U
U
U
>
U
When Movie ratingis selected, youwill see thefollowing rating tableon your TVscreen.
MPAA Rating
GU
PG U
RU
NC-17 U
XU
PG-13 U
PARENT LOCK OFF means the lock functionis turned off. If the PARENT LOCK
is in "OFF"mode then V-CHIP function will not be active to accept the V-CHIP
signal.
PARENT LOCK ON means the lock function is turned on. If the lock is inthe "ON"
mode then V-CHIP function is activated to acceptthe V-CHIP signal.
Password
The "Default Password" preset by the manufacturer is "0000" . If you want tochange
the preset passwordto your own password, just choose any four digits that can be
easily remembered andset. Once you set password for a particular channel, that
channel will beblocked. This channel can onlybe accessed withthe password.
LOCK Menu
AV LOCK:Whenit is set ON,you can not use the AV.
PROGRAM LOCK:When it is set ON,the current channel is locked,you can not see
the program ofthis channel.
English
9
Note: You can press CH(+/-) buttons to go up and down the menu, then press VOL(+)
button to select "B" or "U' .
Note: You can press CH(+/-) buttons to go up and down the menu, then press VOL(+)
button to select "B" or "U' .

V-Chip Technology:
The "V-Chip Technology" allow you to use U.S. and Canada Movies and TV
PROGRAMS Guide ratingsto block certain types of TV programs and movies.
To understandclearly about TVprograms rating codes,read the followinglist:
U.S. TV Program Ratings
NR: Not Rated-this means that programs arenot rated or rating does not apply.
TV-Y:For all children-this typeof rated programsare designed fora very young audience,
including children fromages 2-6.
TV-Y7:Directed for older children - this type of ratedprograms may include comedic violence
of mild physical,or may frighten children under the age of 7.
TV-G:General Audience-this type of rated programs contains little or no violence, no strong
language, and littleor no sexual dialogue and situations.
TV-PG:ParentalGuidance Suggested-this type of rated programs may contain limited violence,
some suggestive sexualdialogue and situations,and rare language.
TV-14:Parentsstrongly cautioned-this type of rated programs may contain sexual content,
strong language andmore intense violence.
TV-MA:Mature audienceonly-this type of rated programs may contain sexual violence,
explicit sexual contentand profane language.
FV: Thistype of ratedprograms contains Fantasy and cartoon violence.
Violence: This typeof rated programscontains violence.
S: This typeof rated programscontains sex.
L: This typeof rated programs contains offensive language.
D: This typeof rated programs contains dialogue with sexual content.
To understandclearly about moviesrating codes, readthe following list:
U.S. Movies Rating Chart
NR: This means movie isnot rated yet.It is pending government rating approval.
G:General Audience-this typeof movie ratingmeans all agesadmitted to seethe movie.
PG-13:Parents Strongly Cautioned - thistype of movierating means somematerial
may not beappropriate for children under13.
R:Restricted- This type of movie rating means children under 17 of age requires to
be with parentor guardian.
NC-17:This type of movie rating means no one 17 and under admitted.
X:This type ofmovie rating means adults only.
To understandclearly about Canadianprograms rating codes,read the followinglist:
Canadian English Rating Chart
E:Exempt - thistype of ratedprograms contain news, sports, documentaries, talk
shows, music videos,and variety ofother programs.
C:This type ofrated programs are intended for children under age 8. There is no
offensive language, nudityor sexual content.
C8+:This type ofrated programs generally considered acceptable forchildren 8
years and over. There is no profanity, nudity or sexual content.
G: This typeof rated programs generally suitable for all audiences.
PG: Parental Guidance Suggested -in this type of rated programs, some material
may not besuitable for children.
14+:In this typeof rated programs,some content maynot be suitablefor viewers
under the age of 14.Parents are strongly cautioned not to have their children
view 14+ ratedprograms by pre-teens and early teens.
18:Adults Only-this type of ratedprograms are onlyfor adult viewersonly.
English
10

11
English

14.37 X14.77 X13.58
2
English
27.6
UHF: 14-69 CATV: 1-125
VHF: 2-13
AA
lbs.
HTAR21B---21"/HTAF21B---21"/ HTAR14---14"
2x2W
~110V-220V,50/60Hz
12
HTAF21C
Included :Remote control unitwith 2Accessories "AA batteries
Owner`s manual
SPECIFICATIONS Picture Tube Dimensions Unit weight
21 50.7lbs
HTAF21C 22.7"x 19.3"x 17.8"

.....................................................................16
..................................................................16
............................................................................................17
............................................................................................17
............................................................................................18
.........................................................................23
..................................................................................................13
......................................................................................18
..... ......................................................................................19
......................................................................................................20
........................................................................................20
...........................
............................................................................................... 24
!
!
13

14

20
21
22
23
24
25
26
15

16
EXIT
-/--
6
1
789
23
45
0
RECALL
TV/AV CCD
EXIT
MUTE
P.STD DISPLAY
-/--
MENU CH+
VOL- VOL+
CH-
1
2
3
4
5
67
89
13
10
11 12
10
11
12
13
14 15
89
16
HTAF21C
5
76
234 1
TV/AV
/
/

17

18

19
