INSTALLATION AND USER’S MANUAL
CONTENT
INTRODUCTION
03
SAFETY PRECAUTION
03
ELECTRICAL INSTALLATION
05
SPECIFICATION
06
INSTALLATION (VENT OUTSIDE)
07
INSTALLATION (VENT INSIDE)
16
DESCRIPTION OF COMPONENTS
17
OPERATION 17
MAINTENANCE
18
TROBULESHOOTING
19
CONFORMITY WITH DIRECTIVES
19
ENVIRONMENTAL PROTECTION
20
2

INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood uses high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.
SAFETY PRECAUTION
�Never let the children operate the machine.
�The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
�The cooker hood and its filter should be clean regularly in order to keep in
good working condition.
�Clean the cooker hood according to the instruction manual and keep the
unit from danger of burning.
�Forbid the direct baking from the gas cooker. Please keep the kitchen
room a good convection.
�Before connecting this appliance check that the power supply cord is not
damaged. A damage supply cord must be replaced by qualified service
personnel only.
�There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels;
�The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels;
�Regulations concerning the discharge of air have to be fulfilled.
�Children should be supervised to ensure that they do not play with the
appliance.
�Do not flambé under the range hood.
�The range hood is not intended to be installed over a hob having more
than four hob elements
3

Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical
shock.
5IFTFTIBMMCFBEFRVBUFWFOUJMBUJPOPGUIFSPPNXIFOUIFSBOHF
IPPEJTVTFEBUUIFTBNF UJNFBTBQQMJBODFTCVSOJOHHBTPSPUIFS
GVFMTOPUBQQMJDBCMFUPBQQMJBODFTUIBUPOMZEJTDIBSHFUIFBJSCBDL
JOUPUIFSPPN
UIFEFUBJMTDPODFSOJOHUIFNFUIPEBOEGSFRVFODZPGDMFBOJOH
UIFSFJTBGJSFSJTLJGDMFBOJOHJTOPUDBSSJFEPVUJOBDDPSEBODFXJUIUIF
JOTUSVDUJPOT
EPOPUGMBNFVOEFSUIFSBOHFIPPE
$"65*0/"DDFTTJCMFQBSUTNBZCFDPNFIPUXIFOVTFEXJUI
DPPLJOHBQQMJBODFT
�
�
4
The lamp used in this product is not suitable for use
in the lighting of a room.
The purpose of this lamp is to provide illumination for using the product.

ElectricalInstallation
All installation must be carried out by a competent person or qualified
electrician. Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar
circuit breaker with a minimum opening of 3mm between the contacts.
The installer must ensure that the correct electrical connection has been
made and that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply
cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
WARNING: This is a Class I appliance and MUST be earthed This
appliance is supplied with a 3 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
The fuse must be rated at 3 Amps.
5

Standard Installation Accessories List
Spec.
Illustration Picture
Qty
Hood body 1
Lower chimney
(500mm) 1
Upper chimney
(500mm) 1
Upper chimney
bracket 1
Lower chimney
bracket 1
Cooker hood bracket 1
φ8 rawl plugs φ8×φ6
white color 9
Screw (ST4 * 8 mm)
9
Screw (ST4 * 30 mm)
6
Air outlet 1
Carbon filter 2
6

INSTALLATION (wall mounting)
If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible pipe
non flammabe with an interior diameter of 150mm)

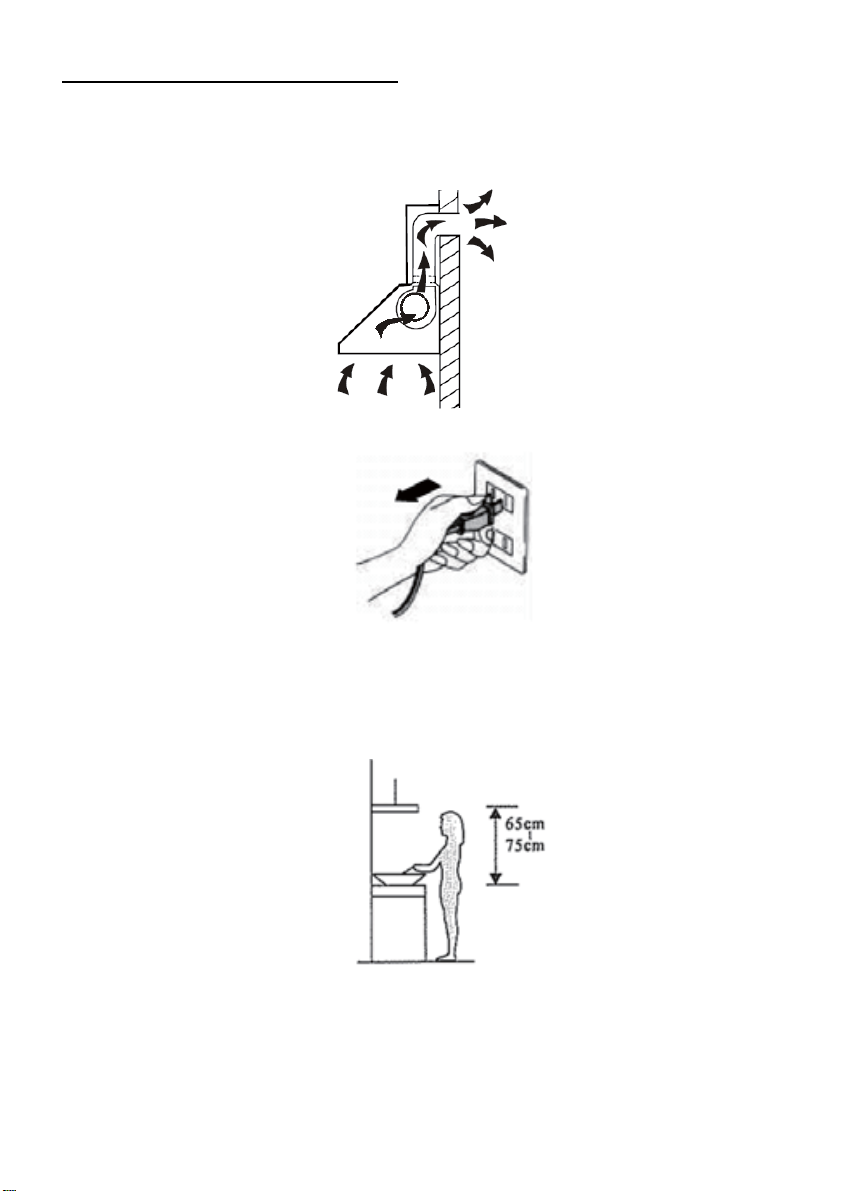

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above
thecooking plane for best effect.
7

INSTALLING THE HOOD
Position the hood at the desired height respecting the minimum height
above the hob.
Mark the location of the wall bracket.(Placed the holes between 700 and
800 mm above the worktop) Remove the hood and position the wall bracket
to mark the locations of the holes on the wall.
Drill the 3 holes in the wall to insert the appropriate fastening system (screw
ST4x30mm)..
Hang the hood in the notches of the wall
bracket.
8

INSTALLING THE HOOD

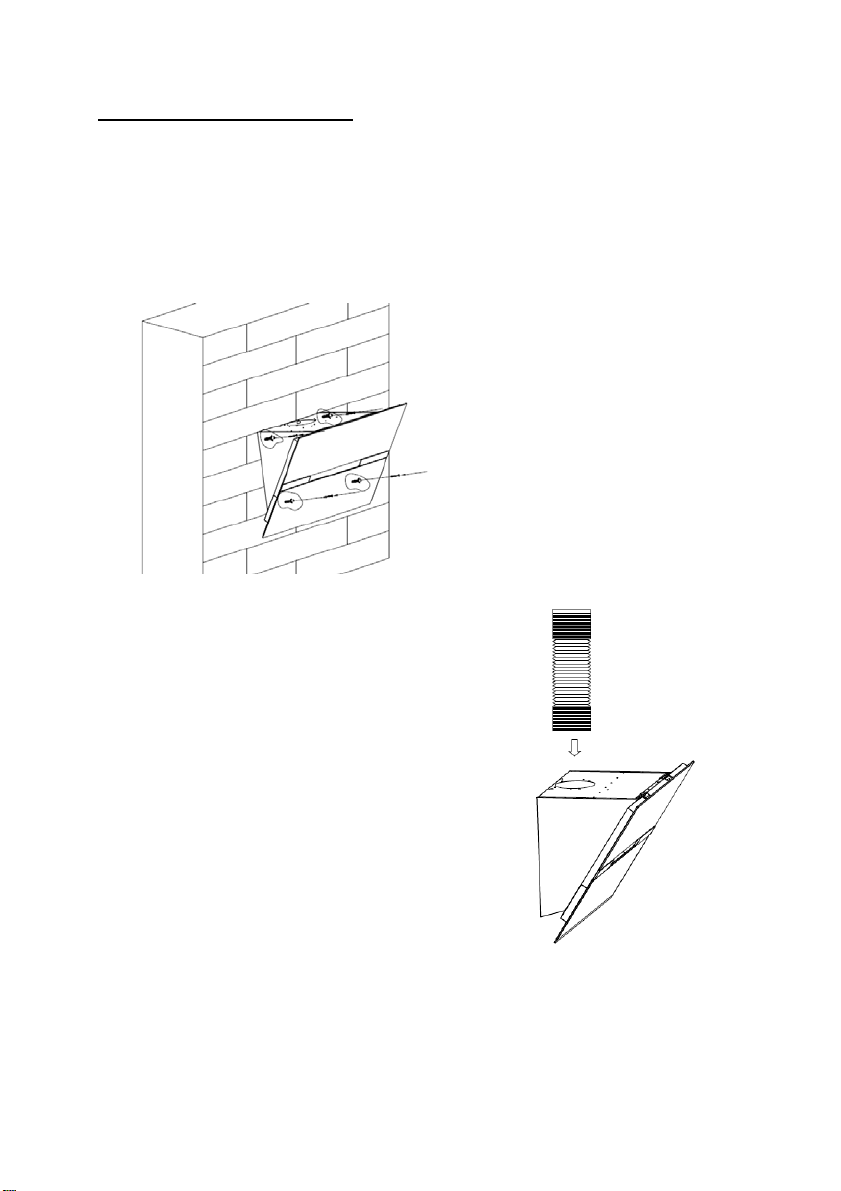

Once the hood is in place, locate the location of the 4 additional wall mount
screws as shown in the following diagram.
Remove the hood to puncture the wall and install wall plugs.
Secure the body of the hood with 4 screws of 4 mm in diameter using
dowels adapted to your wall.
If the extraction mode is selected, place the
exhaust air duct on the air outlet as shown.
9

INSTALLING THE HOOD

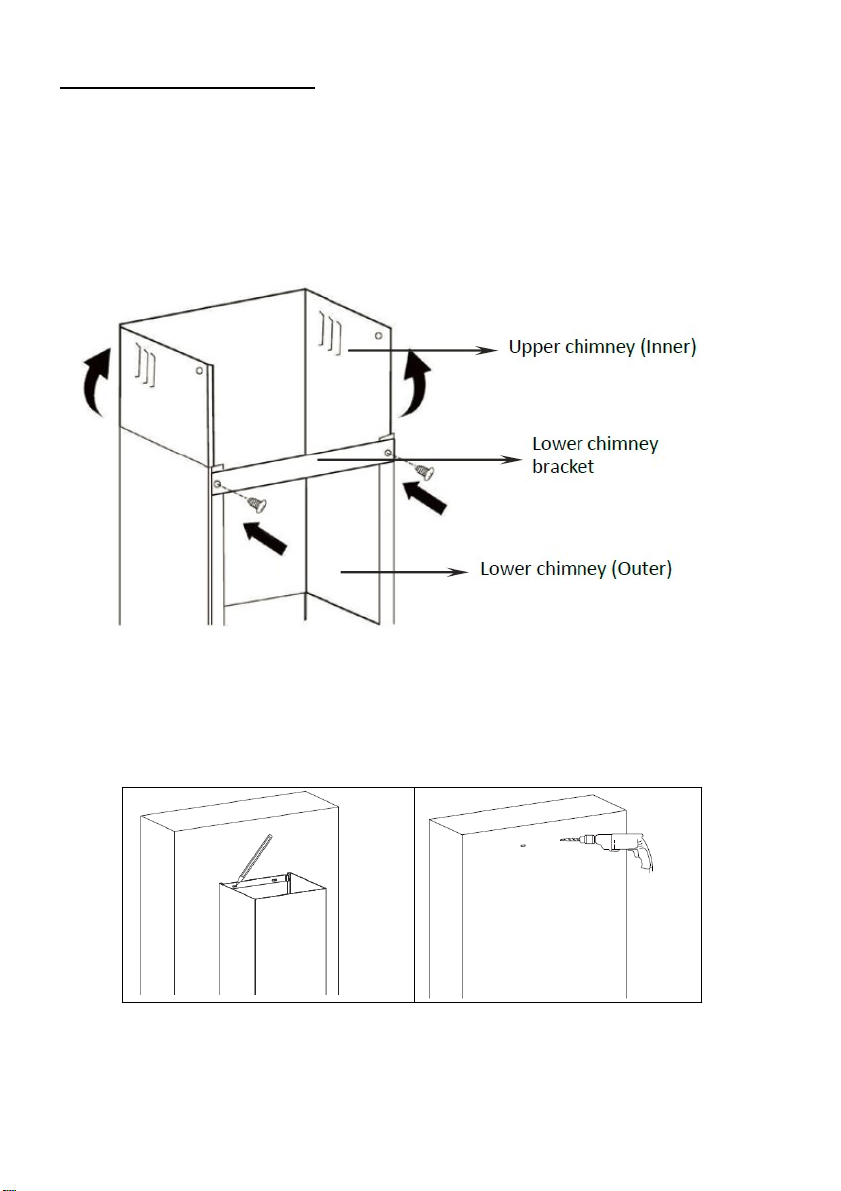

Attach the lower chimney support to the lower chimney as shown.
Use 2 screws ST4x8mm.
(Do not over tighten the screws, make sure the upper chimney can slide
easily into the lower chimney)
Insert the upper chimney into the lower chimney.
Position the bottom chimney in the appliance, then mark the holes on the
wall.
Remove the lower chimney, then drill holes in the wall: hole for screw
diameter Φ8 mm
Use the dowels adapted to your wall
10

INSTALLING THE HOOD
Install the lower chimney, then screw it to
the wall with 2 screws of diameter Φ 8 mm
Then pull the upper chimney upwards
to the desired height. Mark the
locations of the mounting holes of the
upper chimney support.
Lower the upper chimney and then drill
holes in the wall.
Insert the dowels adapted to your wall
11

INSTALLING THE HOOD

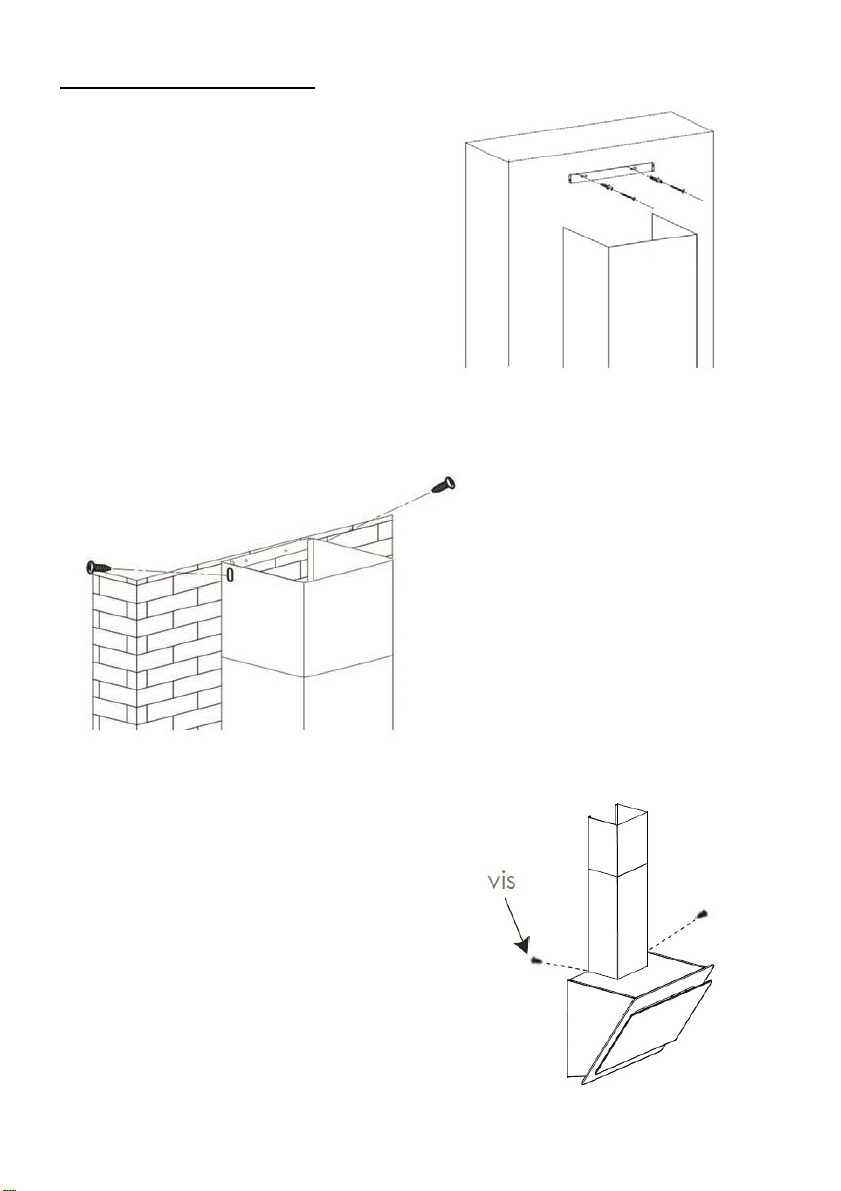

Secure the wall bracket of the upper
chimney to the wall using the selected
dowels (8 mm screws recommended).
Reassemble the upper
chimney and fix it to the wall
bracket with 2 screws
ST4x8mm
Fasten the lower chimney to the lugs of the
kitchen hood using 2 screws ST4x8mm.
12

Standard Installation Accessories List
Spec. Illustration Picture Qty
Air Deflector
1
Bracket
1
φ8 rawl plugs
φ8×φ6 white color 2
Screws ST4.0×30
2
Screws ST3.5×12
2
13

INSTALLATION(AIR DEFLECTOR FOR T-SHAPE,CURVED
GLASS,FLAT GLASS MODELS):
Air deflector is mentioned as included and not optional.
1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm
screws provided as shown below:
2. Drill 2 holes on the wall to accommodate the wall plugs,then screw and
tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.
3. Attach the exhaust pipe onto the air outlet of the cooker hood as shown
below:
14

4.Install the chimney to the unit and fix it.
o“Please kindly be noted: T-shaped plastic outlet and v-flaps can not
be use d at the same time. You can use them in two ways: 1) Add v-
flap on existing o utlet; 2) Use T-shaped plastic outlet, no add v-flap.”
o“Note: The product is provided with v-flap accessory. This accessory
is not mandatory for installation, operation and use of the product.”
15

INSTALLATION (VENT INSIDE)
If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one show in section “INSTALLATION (VENT
OUTSIDE)”.
Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securely locked. Otherwise, it would loosen and
cause dangerous.
oWhen activated carbon filter attached, the suction power will be
lowere
16

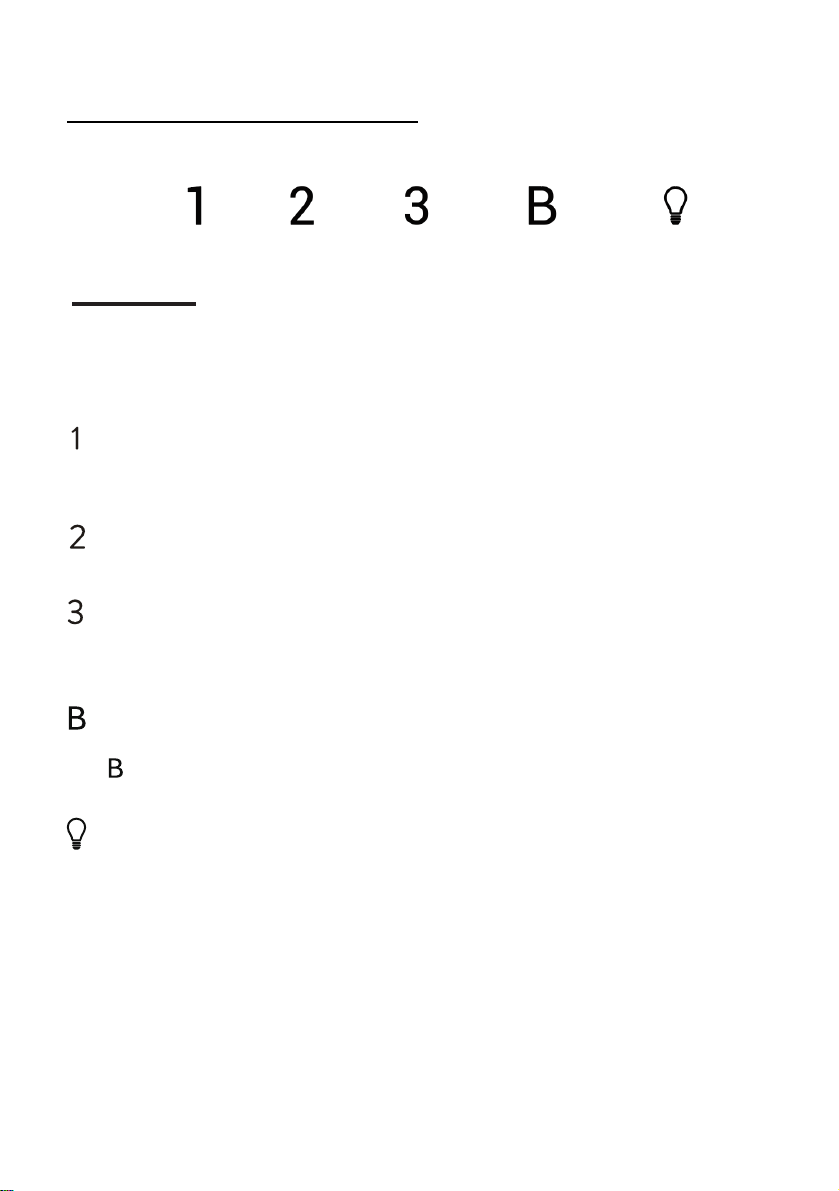

STANDBYMODE.
After plug in, all lighting, system in STANDBY MODE .
Low Speed button
It’s used for Ventilation on the kitchen. It is suitable for simmering and
cooking which do not make much steam.
MediumSpeed button
Airflowspeed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button
for high effective ventilation.
Booster function
This hood has a booster function. To activate the booster, Press
to speed 4, enter into highest speed while the hood is in use and it will
increase speed for 5 minutes, before slowing down again.
Light
Short press for lighting on & off
Quick timer: Long press the light button hold for 3 seconds, fan speed
buttons will flashing & into 5minutes count down, after 5 minutes motor &
light will turn off automatic with three Buzzer sound.
DESCRIPTION OF COMPONENTS
OPERATION
17

MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or
household cleaning detergent. Never use metal pads, chemical, abrasive
material or stiff brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…... so the filter is directly
affecting the efficiency of the cooker hood. If not cleaned, the grease
residue (potential flammable) will saturate on the filter. Clean it with
household cleaning detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed as a recirculation unit (not vented to
the outside). This filter traps odors and must be replaced at least once a
year
depending on how frequent the cooker hood used.
IV. Changing a light bulb
Remove the screws on the glass, take off the hood glass. Find the bulb
that requires replacement, you will find it located in the light fixture which
is inside the exposed section of the canopy.

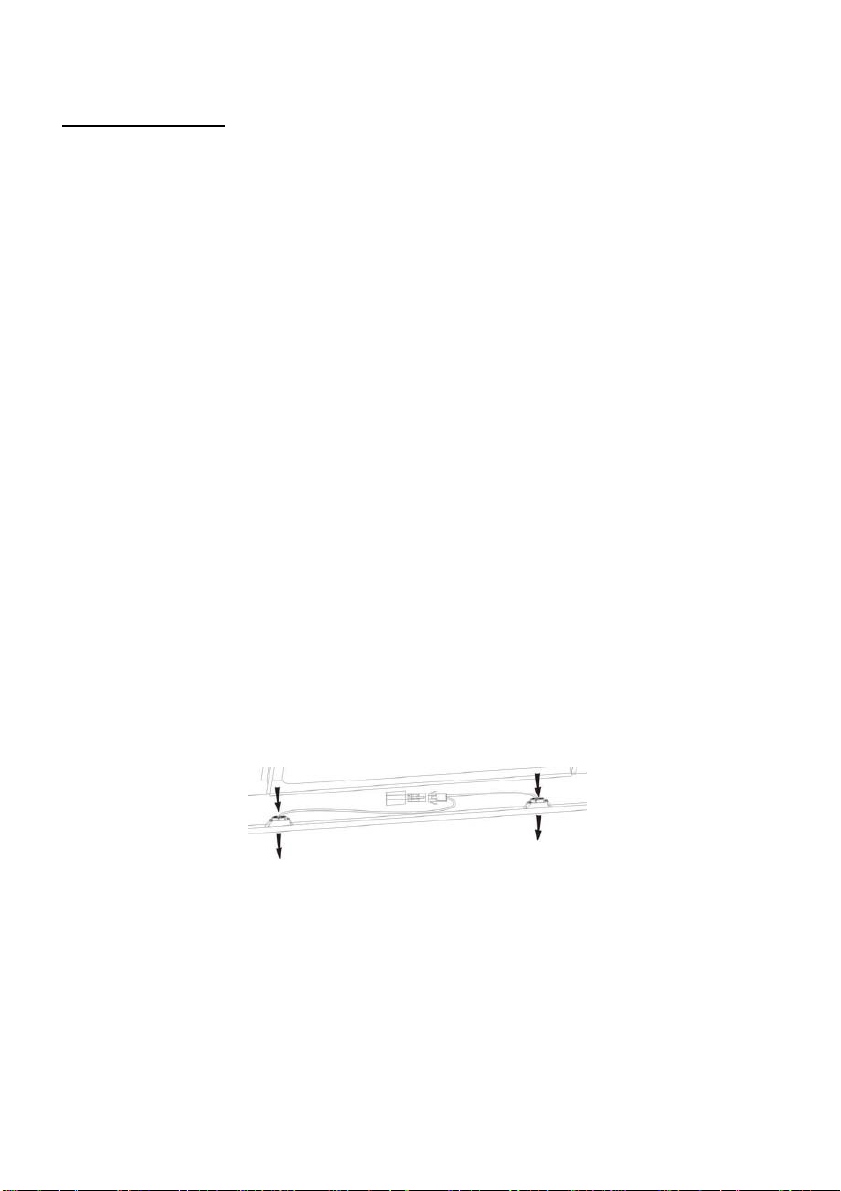

Disconnect the light wiring point and remove the bulb holders and
wiring from the hood. Important: It’s not possible to replace the
bulbs individually, it will be necessary to obtain the bulbs, bulb
holders and wiring as a complete part. (LED light: MAX 1.5W)
Fit the replacement bulbs, bulb holders and wiring in the same
manners as the originals. Then reconnect the light wiring point.
18

Refit the hood glass and fasten the glass screws. Make sure the screws
are fully tightened.
TROBULESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit and repair by
qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Halogen light bulb burn.
Replace the bulb with correct
rating.
Power cord looses.
Plug in to the power supply again.
Serious
Vibration of
the unit
The fan blade is
damaged.
Switch of the unit and repair by
qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit and repair by
qualified service personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check
whether the bracket is in proper
location.
Suction
performance
not good
Too long distance
between the unit and
the cooking plane
Readjust the distance to 65-75cm
CUSTOMER ASSISTANCE SERVICE
If you cannot identify the cause of the operating anomaly, switch off the
appliance and contact the Assistance Service.
PRODUCT SERIAL NUMBER. Where can I find it?
It is important you to inform the Assistance Service of your product code
and its serial number (a 16 character code which begins with the number 3);
this can be found on the guarantee certificate or on the data plate located
on the appliance.
It will help to avoid wasted journeys to technicians, thereby (and most
significantly) saving the corresponding callout charges.
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE).
WEEE contains both polluting substances (which can cause
negative consequences for the environment) and basic components (which
can be re-used). It is important to have WEEE subjected to specific
19
