Haier HH-DTS1 User manual

CONTENTS
1. Safety Precaution.............................................................................
2. Product overview..............................................................................
2.1 Product Parameter.......................................................................
2.2 Size & Dimension.........................................................................
3. Installation.......................................................................................
3.1 Preparation Before Installation......................................................
3.2 Installation Position.....................................................................
3.3 Packing list..................................................................................
3.4 Installation Notice........................................................................
3.5 Production Operation...................................................................
4. Disassembly guide.................................................................. .........
(HTH-DTS1)
5. Disassembly guide............................................................................
(HTH-DTB1)
6.General Troubleshooting....................................................................
7. Product decomposition diagram.........................................................
8. Circuit Diagram.................................................................................
1
4
4
4
5
5
5
6
6
7
8
14
19
19
20

1
1.Safety Precaution
Warning
The service information is provided for technicians who have experience in repair technology, not for ordinary users. It does
not included warnings for dangers fo non-technical personnel who attempt to repair a product. The service or repair of the
electrical product needs to operation of precessional technicians.
Any attempt to provide service or repair products based on this manual will result in serious consequences or death.
Range hood must be installed, disassembled or maintained by professional
person.
Stove fire shall be extinguished timely when it is not used; do not
flambe under the range hood and it's prohibited to bake food under
range hood directly to prevent range hood from damaging and causing
accidents.
Prohibit
In order to ensure safety, range hood must be installed by specific
accessory (especially expansion pipe and wooden screws, or it may
cause accidental drop of range hood). The pipe bore and hole must fit
tightly during the installation of metal expansion pipe. It is prohibited to
make excessively large hole to prevent accidental drop of loosening
expansion pipe.
The range hood must be used by specific plug and properly ground it. It’s
possible to cause electric shock, hot plug or fire because of improper
electric wire. Installation must be executed by professional person based
on local electrical regulations. Before connect electricity, power must be
turned off.
Strict
Execution
Strict
Execution
Strict
Execution
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Warning
Don’t touch bulb if it’s on or just close in short time, or it may cause scald.
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
All operation must comply with our safety guidelines as well as local
safety regulations.

2
Strict
Execution
Strict
Execution
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
This appliance just for household use only.And it’s not allowed to exhaust
dangerous or explosive matter or air. It should be put under dry and
ventilation environment without dangerous air.
Strict
Execution
Strict
Execution
The range hood and electric circuit must be installed by skilled and trained
personnel with required qualification. When installation, the related
regulation, standard or instruction on fire must be complied. It may cause
danger because of improper installation, for example, electric shock, drop or
fire accident.
The outlet must be connect with outside. In order to ensure safety and fresh
air, waste gas should be exhaust to outside. Don’t exhaust waste gas to the
wall, loft or garage.
Warning
Strict
Execution
Strict
Execution
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep
or finish operation. Replace or check gas pipe regularly, since gas alarm
device can’t completely avoid accident caused by gas leakage.
Notice
Prohibit
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels, the discharge of air must fulfill
the requirements of local regulations.
Strict
Execution
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.Children should be supervised to ensure that they do not play with the
appliance.
Strict
Execution
Before removing range hood for installation, clean or maintainance, power
must be cut off avoiding from electric shock. When installation, clean or
maintainance, protective gloove must be wear avoiding from injury.
Strict
Execution
The temperature for range hood working can’t exceed 40℃.

3
Strict
Execution
Notice
Strict
Execution
Don't break electric wire or other invisible equipment when cutting
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick mark in the oil cup, clean it in
time. Don't eat waste oil from oil cup.
When range hood is using in well sealed building, it should have air inlet
or open door to ensure good ventilation.
The wall of installing range hood needs enough strength. For hollow walls,
the thickness of solid layer of hollow wall must be more than 30mm, but for
concrete walls, it can be drill holes directly. The range hood must be fixed on
the wall firmly.
Strict
Execution
Strict
Execution
Because the installation is difficult and hood is heavy, the installation shall
be executed by professional person based on manul.
Strict
Execution
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
This product must not be disposed together with the domestic waste. This
product has to be disposed at an authorized place for recycling of electrical
and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make
sure the product is disposed in an environmental friendly and healthy way.
Strict
Execution
Accessible parts may become hot when used with cooking appliances.

44
Labeled dimensions are only
for reference
(Unit: mm)
,Size in the
bracket is the height of Drawing
panel.
350Pa
≤53dB(A)
≥23%
≤2W
400Pa ≥98%
283W
280W
≥91%
220-240V~ 50Hz
3
1200m /h
HH-DTS1/HH-DTB1
2.1 Product Parameter
2.2 Size & Dimension
Model
2.Product Overview
Turbo Airflow
Rated Main Motor Power Input
Rated Power Input
Lamp Power(max)
Grease Absorption Factor
Noise
Normal Odour Reduction Factor
Max static pressure
Total Pressure Efficiency
Nominal Wind Pressure
Power Supply
380
580-980
895
320
450
405
650-1030
898
312
505
(HH-DTB1)
(HH-DTS1)

5
3.Installation
●Surrounding environment
Range hood shall be avoided to be installed at the place where there are many doors and windows since it will cause
too large cross-ventilation so as to influence the oil fume exhaust effect.
●Tool preparation
The following tools shall be prepared when range hood installation: 1. Electric impact drill (with drill);
2.Wrench; 3.Screw driver; 4.Ruler
3.1 Preparation Before Installation
The hood shall be installed right above the hob. The minimum distance between the bearing surface of cooking
appliance and the lowest part of hood is 650mm (larger space specified in the installation instruction of gas hob shall
be considered, if any; the distance for electric cooker may be reduced appropriately, depending on the actual situations) .
Note: All data units of the following diagram are expressed in mm.
3.2 Installation Position
450/505
Ceiling
820-960
650-750
800-900
Figure 1
10

6
Figure 2
Hole size of the exhaust pipe Ø200 Wall
Ceiling hole sizes( Projection size of the hood top)
Note: When using the hood, install the cup on the filter mesh.
1
4
2
5
3
6
Please check lists if open the package.
Packing List
No.Name Quantity No.Name Quantity
Range Hood 1 piece 1 piece
1 pair
1 piece
Aluminum Foil Air Duct
Operation Manual
Oil Cup
Hook 1 piece
2 pieces
Outer outlet
3.4 Installation Notice
●Installation and circuit setting must be operated by professionals with experiences and non-professionals shall not
assemble, disassemble and repair range hood.
●Don't connect power before installation,it may cause electric shock.
●If your kitchen is in decoration state, please do not expose the range hood outside since construction material, dust,
paint, coating and the gases they volatile will corrode the surface of range hood and the surface will be tarnished.
Therefore, it's suggested to assemble the range hood after decoration.
● If gas hob needs to be removed before installing range hood, please turn off gas valve firstly.
●Don't install range hood on the wooden or other flammable wall. The wall of installation range hood shall be on
the nonflammable, enough stable, smooth and level surface.
●Range hood may have very sharp edge, please wear protective gloves while moving the range hood for
installation, cleaning or maintenance.
●When drilling holes on the wall, the electric wire buried in the wall shall be avoided to prevent from fire.
●Range hood shall not be installed too high, nor shall it be disturbed by external air flow so that the fume suction effect
will not be influenced.
●Please retain installation space for hood while fabricating cupboard so as for the care and maintenance .
●Please keep the hood body level while installing the machine.
●Please use single phase socket with earthing, which shall be well earthed.(Water pipe grounding is not reliable.The
grounding of gas piping may cause the danger of fire and explosion.)
●Use appointed accessories for installation or range hood may fall down and cause danger.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Don't stretch, change ,tie, or press supply cord, or it may cause fire
or electric shock.
●If finish installation, clean range hood firstly, then connect power and test run.
3.3 Packing List

7
3.5 Use Instruction
Note: All the LED lights are turned on after power-on, they will go out after about 2 seconds and a
beep sounds, then it will enter the shutdown state.
1. Quick (simple stir-fry): Touch this key after standby, the key lights up, and the motor enters the
fast working state.
2. Medium speed (steaming): Touch this key after standby, the key lights up, and the motor enters
the medium speed working state.
3. Slow (cooking soup): Touch this key after standby, the key lights up, and the motor enters the
slow working state.
4. On key (power): touch this key when power on, this key lights the machine into standby state.
After starting the fan, touch this again Key to enter the 60 second delay. After the delay expires, the
system enters In the off state, all functions are turned off, and the lights are turned off at the same
time. If you touch this key again, all functions are turned off.(HH-TBDS1)
5. Illumination key (illumination): touch this key in any state, this key and icon light up, the
illumination light is turned on, when you touch this key again, the illumination light Turn off (the
lighting is not restricted by the key) .
6. Explosive suction (stir-fry): touch this key after standby, the key lights up, and the motor enters
into the explosion suction working state after one minute Fast working status. (HH-TBDB1)
7. Setting key (setting): long press the setting key when the power is off, the middle speed key and
slow speed key will flash to enter the clock adjustment state. The function now is setting hour/
minute. The middle speed key is for setting time, and the slow speed key is for setting time. (HH-
TBDB1)
8. On key (power): touch this key when power on, this key lights the machine into standby state. If
you touch this key again, all functions are turned off. Delay: touch this Key to enter the 60 second
delay. If you touch this key again, it will exit the delay time function and return to the shutdown state.
After the delay expires, the system enters In the off state, all functions are turned off, and the lights
are turned off at the same time. (HH-TBDB1)
9. Somatosensory control: (HH-TBDB1)
A. Under power off state:
1. Low speed: from left to right, one time.
2. Medium speed: from left to right, twice.
3. Fast speed: from left to right, three times.
B. Under working state: from right to left, turn off.
(HH-DTB1)
(HH-DTS1)

8
Range Hood
4. Disassembly guide
HH-DTS1
4-1. Oil cup
Remove the oil cup from the slot in the horizontal direction.

4-2.Filter
Disassemble the screw,then take out the filter.
4-3.Chimneycover
Disassemble 4 screws,then take out the chimney cover.
9

4-4.Back cover of blowercase
Disassemble10 screws,then take out the Backcover of blower case.
4-5.Thenut
Remove 6 screws,take out the motor box ring,and then turn the
nut clockwise by hand to take out the nut.
10

4-6.The propellor
Take out the Propellor.
4-7.Glass panel & LED light
Push the glass panel horizontally,disconnect all the corresponding
wire connectors,and remove the LED light from the inside and out
with your handsfor replacement.
11

4-8.Butterfly valve
Disassemble the screw,then can take out the butterfly valve.
12

4-9.Motor
Disassemblethe screw (the backside of the blower case and the
exhaust position), then take out the plastic blower box,then can
arrange repair /replace the motor.
13

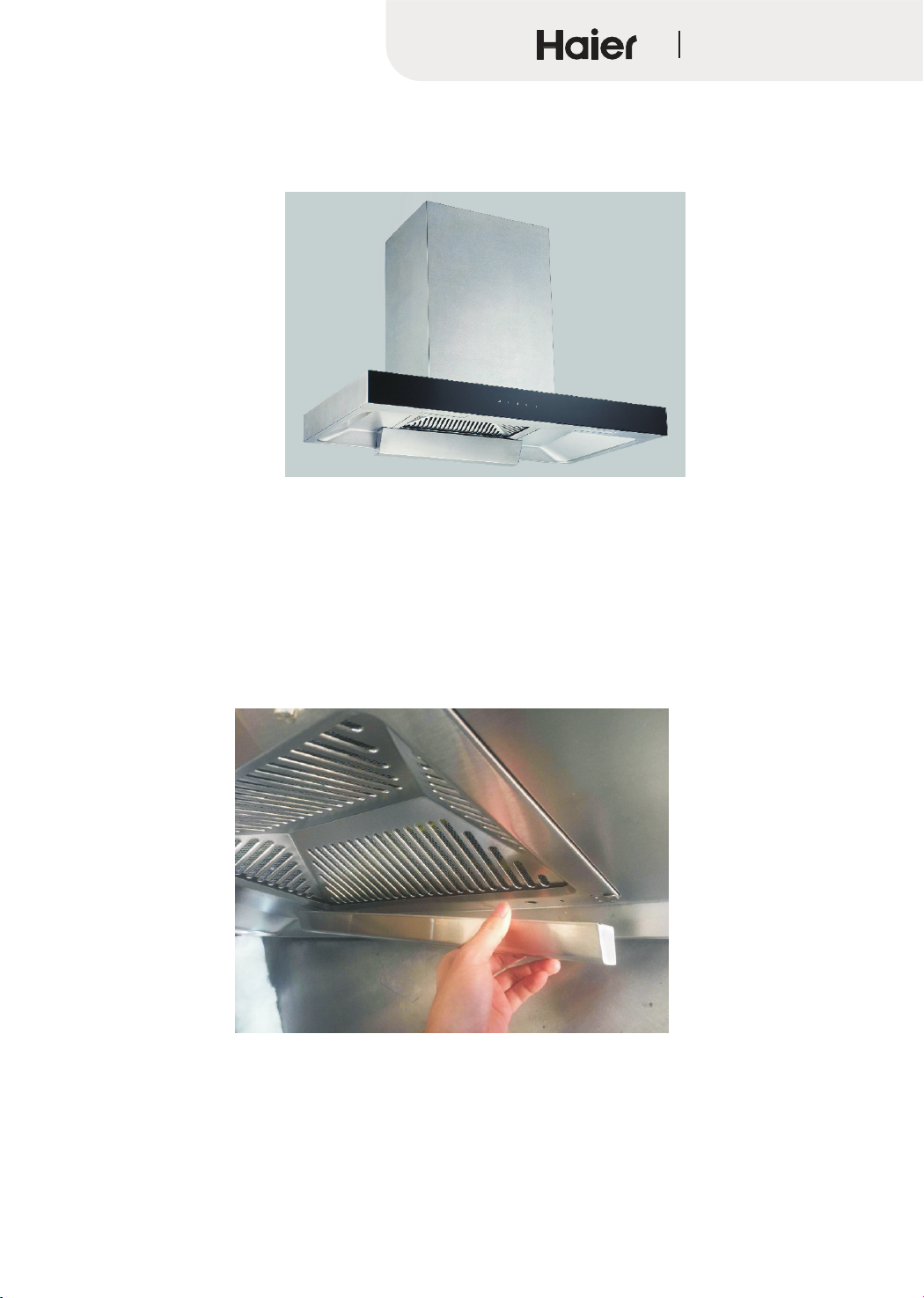

5. Disassembly guide
HH-DTB1
5-1.Oil cup
Remove the oil cup from the slot in the horizontal direction.
14

5-2. Filter
Disassemble the screw,then take out the filter.
5-3.Chimney cover
Disassemble the screw on the top,the take out the upper chimney
cover.
15

5-4.The nut
Remove 6 screws,take out the motor box ring,and then turn the
nut clockwise by hand to take out the nut.
5-5.Propellor
Takeout the Propellor.
16

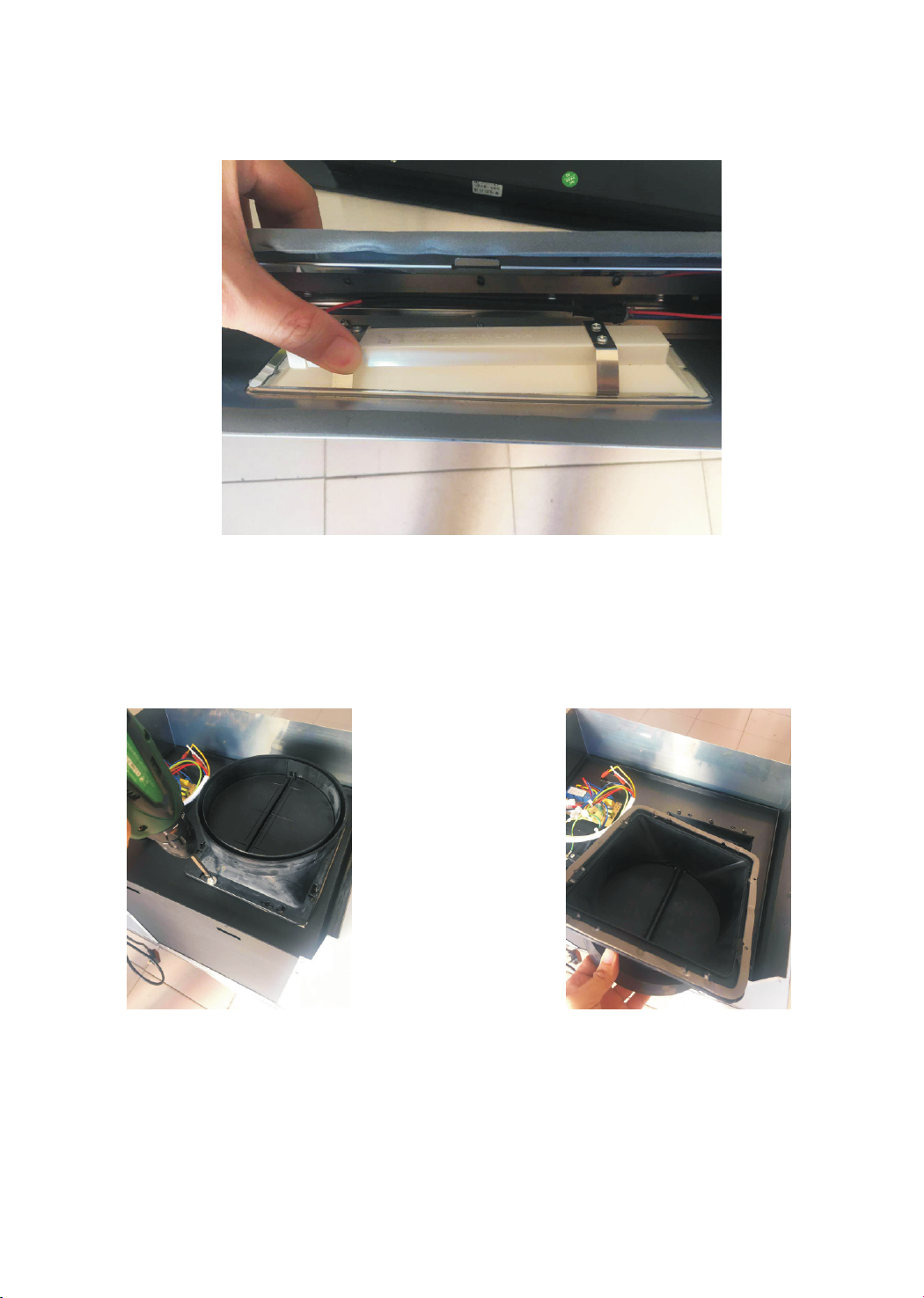

5-6. Glass plate & LED light
Two hands holding the glass plate,then pull it out forward or
backward slightly,disconnect all the correspondingwire connectors,
and remove the LED light from the inside and out with your hands
for replacement.
17

5-7.Butterfly valve
Disassemble the screw,then can take out the butterfly valve.
5-8.Motor
Disassemblethe screw (the backside of the blower case and the
exhaust position), then take out the plastic blower box,then can
arrange repair /replace the motor.
18
