Haier HHN1230DBBB User manual

User Manual Model
1000/2000 Series
Guide de l’Utilisateur
1000/2000 Series
Manual del Usuario Modelo
1000/2000 Series
Range Hood
Extractor de Aire
Hotte de Cuisinière

English
1
SAFETY PRECAUTIONS
WARNING!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact our customer service department for assistance.
Our Toll-Free number is 1-877-337-3639.
2. Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnection means to prevent power from being switched
on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s)
in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
6. To reduce the risk of fire or electric shock, do not use this range hood with an
additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
2. Always turn hood ON when cooking at high heat or when cooking flaming
foods.
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the
surface element.

English
2
Thank you for using our Haier product.
This easy-to-use manual will guide you
in getting the best performance from
your Haier Range Hood.
Remember to record the model and
serial number. They are on a label in
the range hood.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam
explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how
to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION!
Important – Observe all governing codes and ordinances.
1. For general ventilation use only. Do not use this appliance to exhaust
hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use only metal ductwork.
3. To avoid damage to motor or other components, keep drywall spray,
construction dust, etc. off the power unit.
4. Please read specification label on product for further information and
requirements.
SAVE THESE INSTRUCTIONS
for Future Use

English
3
Accessories
Range Hood Accessories Provided:
1 Range Hood
1 7” Round Duct Plate*
1 Damper/Duct Connector*
4 Damper Screws*
4 Washers
4 Range Hood Wood Screws
2 Wire Connectors
1 Charcoal Filter (not included with 1000 series models)
1 Aluminum Filter
1 User Manual
* Included with 2000 series models that allow for ducted installations.
Not included with 1000 series.
Check to make sure that all parts and accessories are present and in good
contact our customer service department for assistance.
Our Toll-Free number is 1-877-337-3639.
Table Of Contents
PAGE
Safety Precautions....................................................................................1-2
Accessories ...............................................................................................3
Installation Preparation ...............................................................................4
Preparing Hood Location ............................................................................4
Preparing Hood...................................................................................... 5-7
Preparing Electrical Connections..................................................................8
Installing Hood ..........................................................................................9
Operating the Range Hood....................................................................10-11
Use and Care..........................................................................................12
Troubleshooting .......................................................................................13
Warranty Information ...............................................................................14

English
4
Installation Preparation
To install this range hood, you will need the following tools and materials:
Note: This procedure will require 2 people for easier installation.
Tools Needed for Installation
tDrill
t1/8” Drill bit for drilling pilot holes
t1-1/4” Wood bit for drilling electrical wiring access hole
tPhillips head screwdriver
tFlat-head screwdriver
tPliers
tPencil, ruler and level for marking range hood location
tHand saw or jig saw for cutting the wall or cabinet openings
tHi-Temp duct tape
tElectrical tape
tConnector Clamp
tElectrical Conduit
Preparing Hood Location
1. If you have a 2000 series model, you must determine whether hood will
discharge vertically (3¼” x 10” or 7” Round), horizontally (3¼” x 10” only) or
non-ducted. For vertical or horizontal discharge, run ductwork between the hood
location and a roof cap or wall cap. For best results, use a minimum number of
transitions and elbows. 1000 series models can only be installed as non-ducted.
2. Use diagram, below, for proper placement of ductwork and electrical cutout in
cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole.

English
5

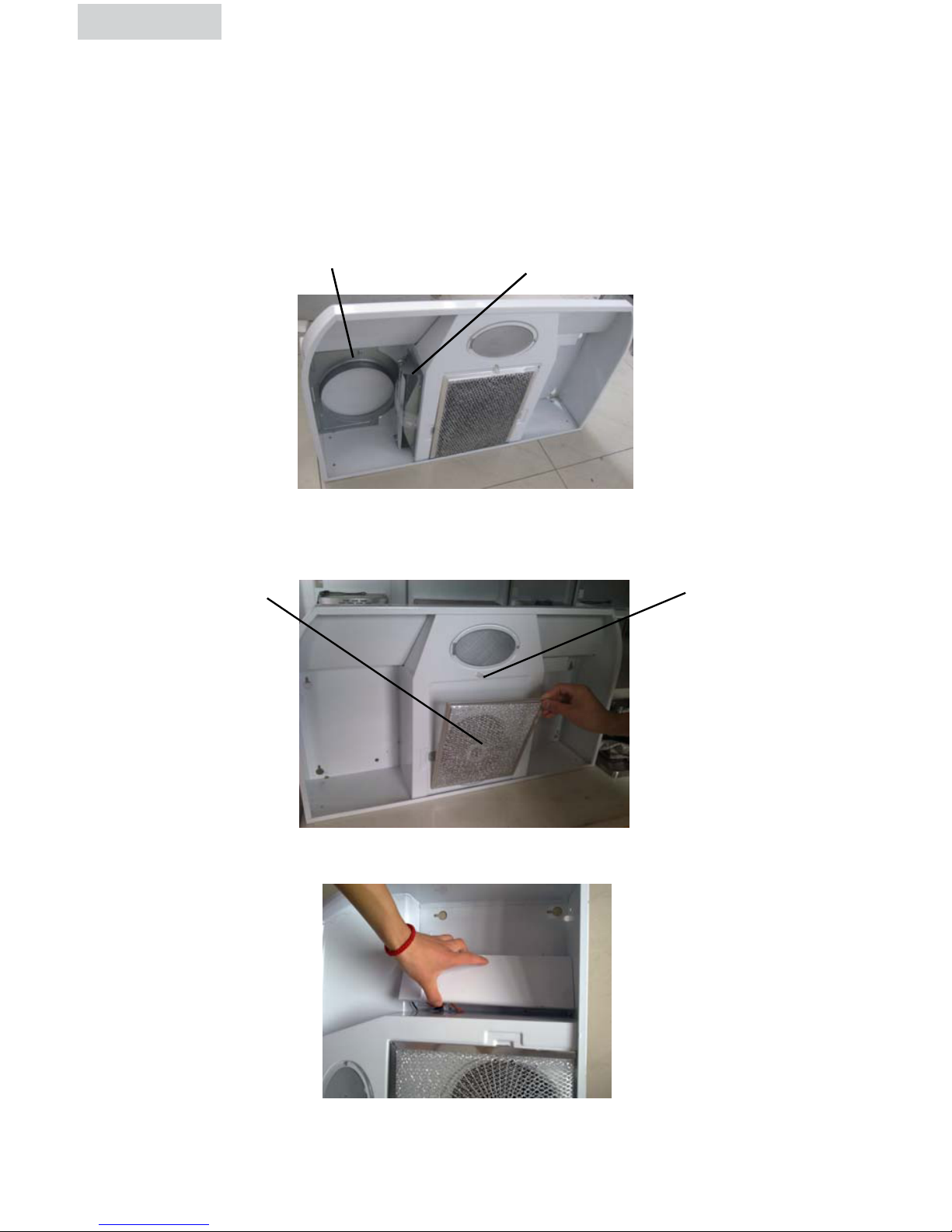

1. (Skip to step 2 if you have 1000 series model.) Remove 7” Round Duct Plate
and 3¼” x 10“ Damper from inside of the hood. Set duct plate and damper
aside - with mounting screws.
Filters
7” Round Duct Plate 3¼” x 10“ Damper
Preparing Hood
3. Remove Wiring Cover from inside the hood. Set cover and mounting screws
aside.
tab
2. Remove tab holding aluminum filter in place.Pull down on filter tab and lift filter out.
Set filter aside.

English
6

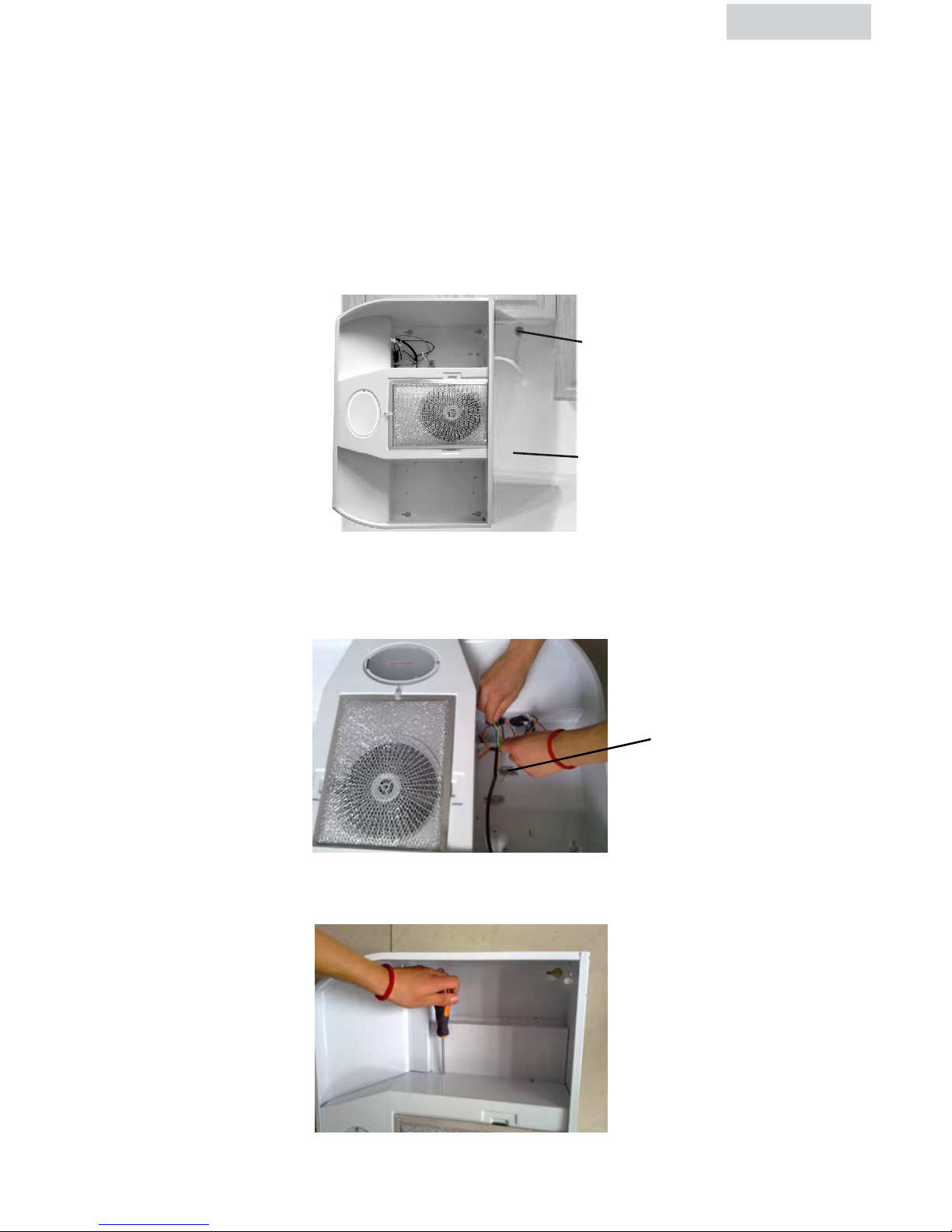

5. Remove either top or back wiring knockout and install approved electrical
6. Remove the vent cover from the accessories bag.
conduit according to national electrical code.
Non-Ducted Installation - Skip to “Preparing Electrical Connections”
section. The following steps (6 thru 9) are for DUCTED INSTALLATION
ONLY.
4. Remove the appropriate electrical knockout by inserting a screwdriver. Then
snip or break the attachment points.

English
7

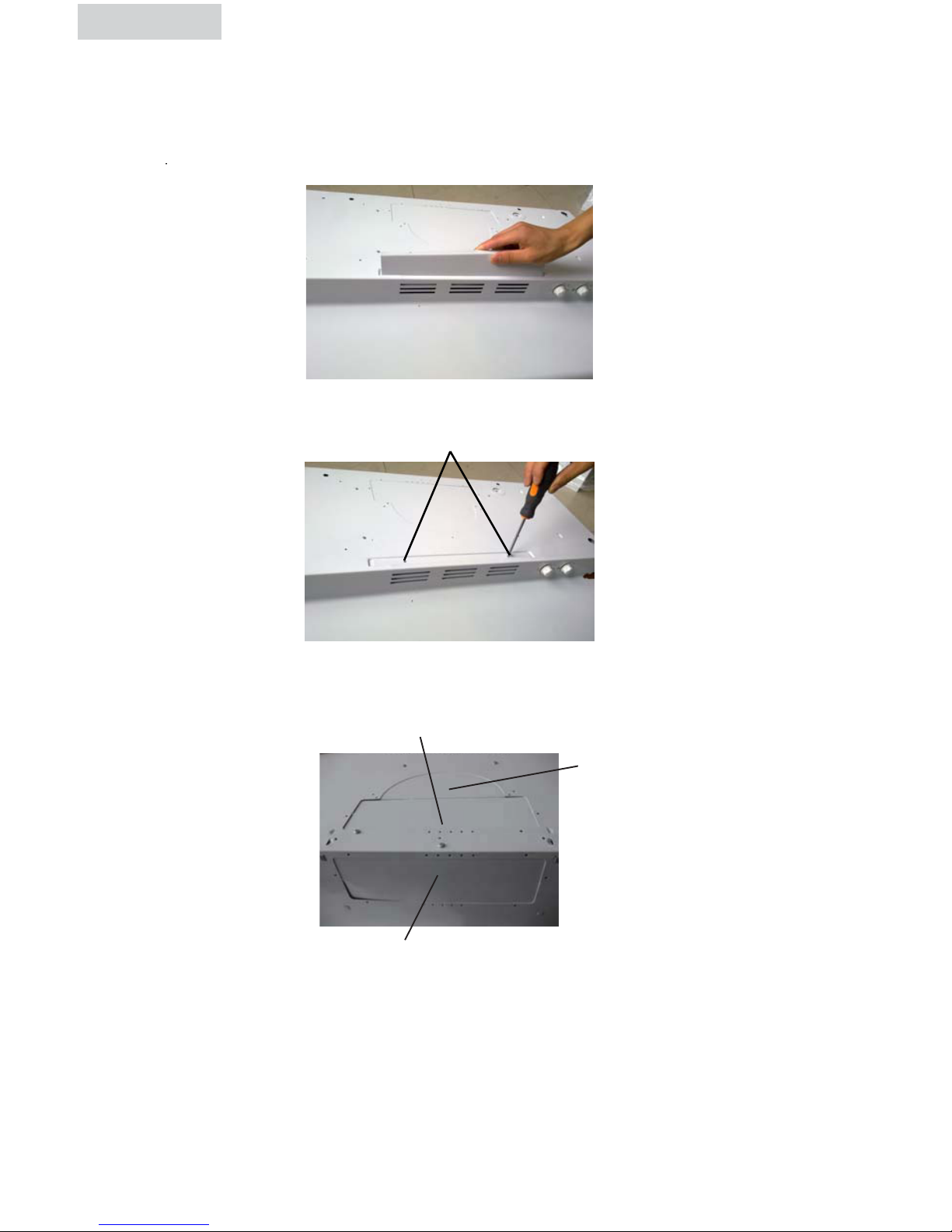

8. Fasten the vent cover with 2 screws supplied.
9. Remove appropriate Duct Knockout(s) from top or back of hood.
7Insert the vent cover into the slot on the front of the range hood.
(2) #8 Screws
SEMI-CIRCULAR DUCT KNOCKOUT
(Remove for 7”Round Discharge)
BACK RECTANGULAR DUCT KNOCKOUT
(Remove for 3 1/4" x 10" Horizontal Discharge)
TOP RECTANGULAR DUCT KNOCKOUT
(Remove for 3¼” x 10”Vertical & for 7”Round Discharge)
NOTE: To accommodate off-center ductwork, the Damper/Duct
Connector can be installed up to 1-inch on either side of hood
center or the 7” Round Duct Plate can be installed up to ½” on
either side of hood center. In extreme off-center installations, one
end of the duct connector may need to be trimmed to clear the
electrical cable clamp.

English
8
WARNING: To reduce the risk of electric shock, make sure power is switched
off at the service panel. Lock or tag service panel to prevent power from being
switched on accidentally.
Preparing Electrical Connections
1. Connect House Wiring (120 VAC) to hood. Useapiece of Cardboard to
protect the cooktop, if necessary.
(120 VA
HOUSE
WIRING
C)
CARDBOARD
(Use to protect
cooktop)
Green
Ground
Screw
2. Connect house black to hood black wire, house white to hood white wire, and
house grounder to the Green Ground Screw. Securely tighten cable clamp
onto house wiring.
3. Replace wiring cover.

English
9

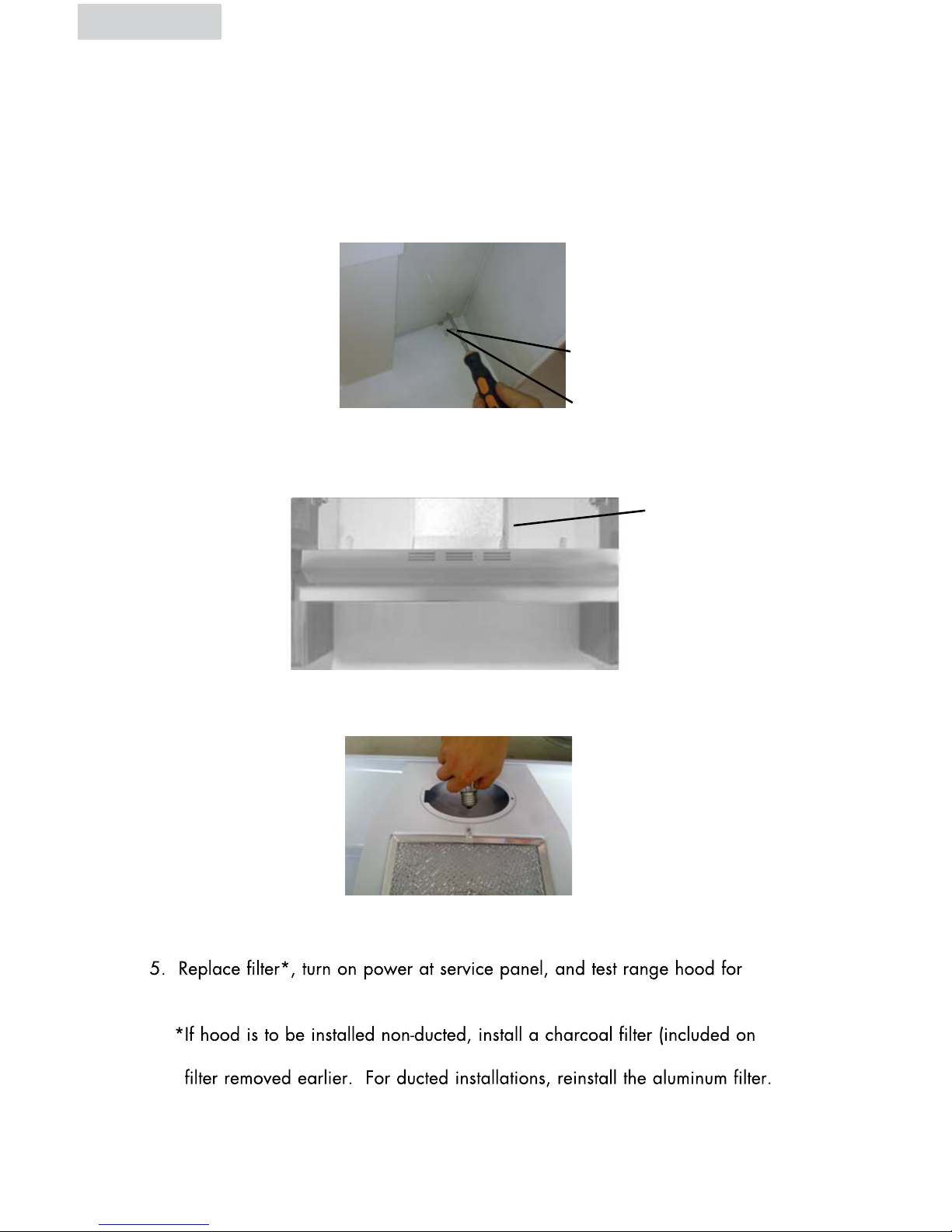

1. Hang hood from (4) Mounting Screws (from parts bag). Be sure to place
a washer (included) onto each screw before driving in the screw. Slide
hood towards wall until mounting screws are engaged in narrow end of (4)
Keyholes. Tighten mounting screws securely.
2. Replace bottom cover.
3. Connect ductwork to hood. Use Duct Tape to make joints secure and air tight.
4. Install (1)PAR 20, 75W incandescent light.
CAUTION: Bulbs may be hot! Refer to bulb packaging for further information.
proper operation.
2000 series, purchased separately on 1000 series) in place of the aluminum
Installing Hood
KEYHOLE
(4)
MOUNTING
SCREW
(4)
DUCT
TAPE

English
10
2000 series models (For 1000 series models, see next section.)
Light Settings
Simply turn the knob selector clockwise to turn on the light. Turning the knob
selector clockwise once more will increase the brightness setting of the light.
To turn off the lights, turn the knob selector counter-clockwise to return the knob
selector to it’s original position.
Fan Speed Settings
Your new Haier range hood comes equipped with 3 different fan speeds:
“low”, “med”, or “high”. To turn on the fan, simply turn the knob selector to
the position corresponding to the desired fan speed.
To turn off the fan, turn the knob selector counterclockwise to return in to its
original position.
Operating the Range Hood
o
low
high
o
low
med
high

English
11

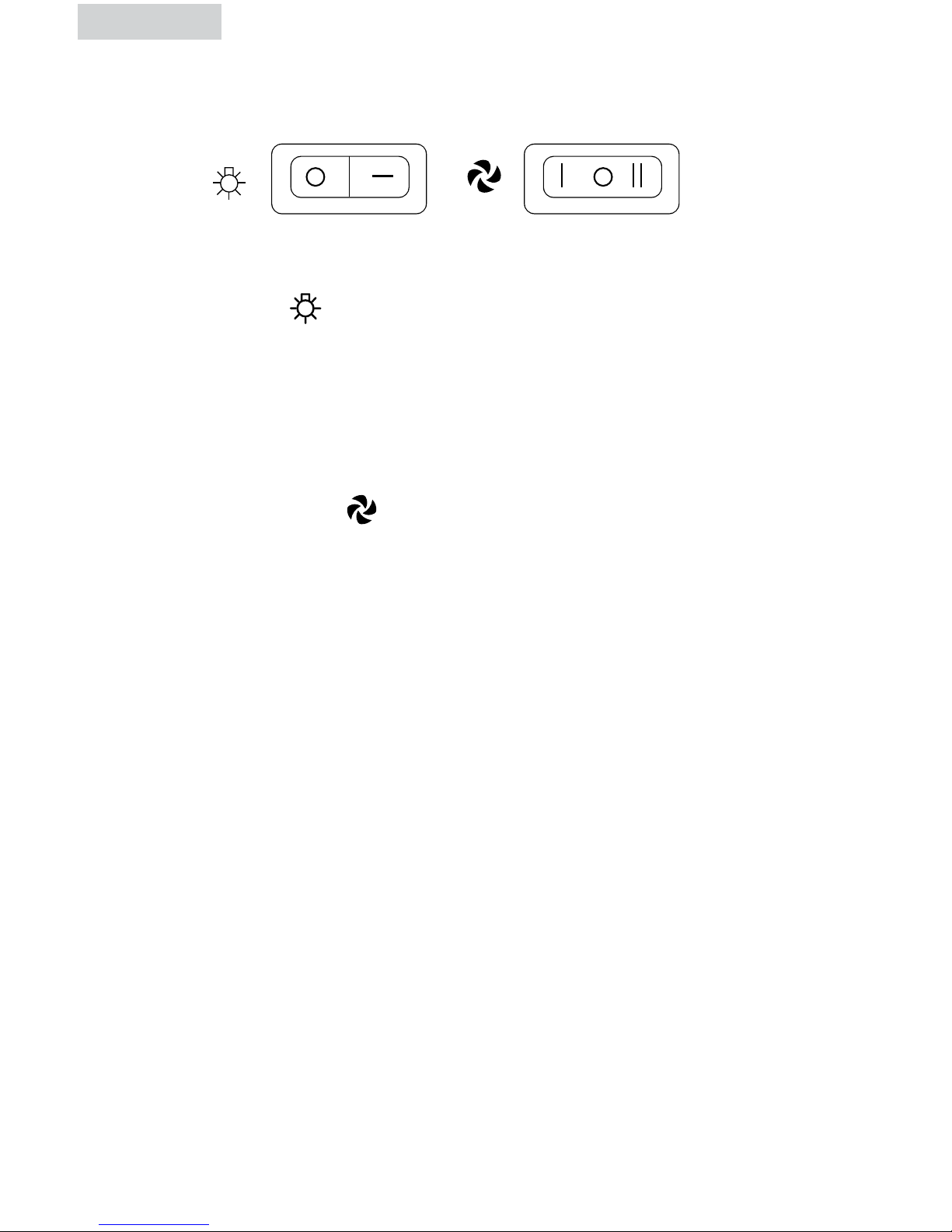

1000 series models (For 2000 series models, see previous section.)
Light Settings
There is 1 light setting available. To turn on, simply press the switch
corresponding to the light.
To turn off the light, put the switch back in the original position.
Fan Speed Settings
Your new Haier range hood comes equipped with 2 different fan speeds:
“low” or “high”. To turn on the fan, simply press the switch to place in
position of the desired fan speed.
To turn off the fan, press the switch to place back to the “off” position.
on ffoffo low high

English
12
Use and Care

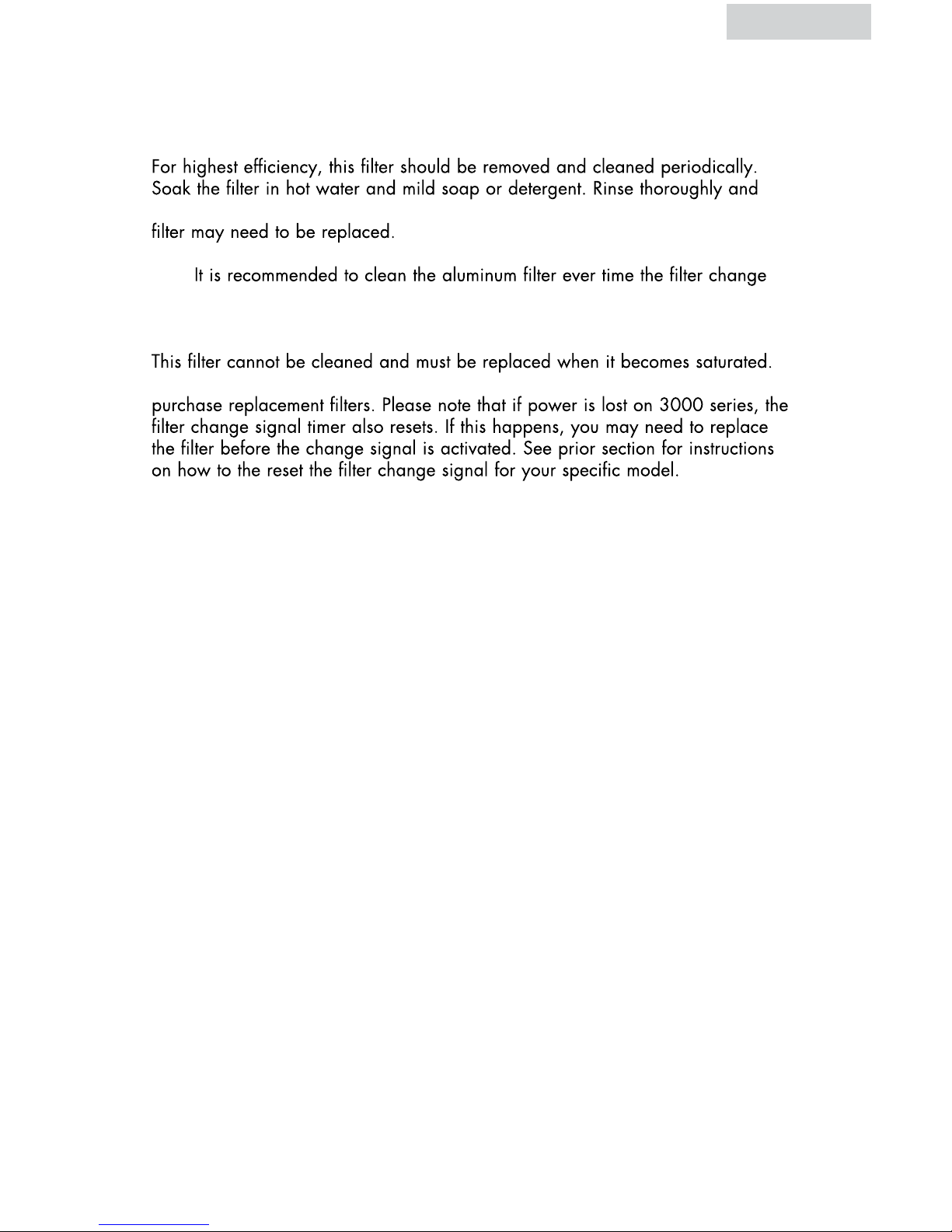

Aluminum Filter
repeat if necessary. Heavy grease buildup may not be cleaned easily, thus the
Hint:
signal is activated.
Charcoal Filter
Contact Haier at 1-877-337-3639 or check with your local retailer or dealer to
Light Bulbs
The 1000/2000 series models specify a 75W-PAR20 incandescent bulb (bulb
not included).
Exterior Surface
Wipe the range hood exterior with a soft cloth and a mild detergent suitable for
painted surfaces. Do NOT use abrasive materials such as steel wool pads or
scouring powders.
Repair or Replacement Parts
Warning! Disconnect range hood from the electrical power supply before
servicing.
All parts may be obtained from service centers authorized by Haier, or may be
ordered directly from Haier. When ordering parts, please specify the range hood
model number on the rating label, which is located on the inside of the range
hood.

Troubleshooting
Fan does not turn on, but light turns on.
This is probably due to either a defective fan switch or a burned-out fan motor.
Fan only runs at one speed.
Please see instructions above for troubleshooting when your fan does not turn on,
but lights turn on.
Fan circulates air, but does not vent outside.
(applies only to 2000 series models)
If air is blowing through the front vent openings, then your range hood has been
a technician must install metal ductwork from the range hood through either an
outside wall or the roof and ensure blower has been positioned correctly for your
If air is not blowing from the front vent openings, check inside the cabinet above
the range hood. If you see a metal duct leading away from the vent hood, then
you have a system that vents to the outdoors. If you do not see a duct, your unit
may be venting through the back wall.
Light does not turn on, but fan does.
This could be due to a burned out bulb. Try replacing the light bulb. If the light
Neither the fan nor the light turn on at all.
Check for a tripped circuit breaker or a blown fuse, since the range hood is
wired directly to your household electrical system.
NOTE:
13
English

14
English
This warranty covers all defects in
workmanship or materials for:
The mechanical and electrical parts (including
labor costs) contained in this Haier product,
for a period of 12 months, from the date of
purchase (commercial or rental applications
will be warranted for 90 days).
You must keep and be able to provide
your original sales receipt as proof of
the date of purchase.
Who is covered?
The original retail purchaser of this Haier
product.
What will be done?
Haier will repair or replace, in your home,
any mechanical or electrical part which proves
defective in normal household use for a period
of 12 months.
How can you get service?
1. Contact your nearest Haier authorized
Service Center. For the name of the Service
Center nearest you, contact Haier at
[phone].
2. All service must be performed by an
authorized Haier Service Center.
THIS WARRANTY COVERS UNITS
WITHIN THE CONTINENTAL UNITED
STATES, CANADA AND PUERTO RICO.
THIS WARRANTY DOES NOT COVER:
Damages from improper installation
Damages from shipping
Damages from misuse, abuse, accident,
alteration, lack of proper care and
maintenance
Damages from service by persons other than
an authorized dealer or service center
Labor, service, transportation and shipping
charges for the removal of defective parts
and for installation of a replacement part,
beyond the initial 12-month period.
THIS LIMITED WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is
exclusive and is granted in lieu of all other
remedies. This warranty does not cover
incidental or consequential damages. Some
states do not allow the exclusion o ncidental
or consequential damages, so this limitation
may not apply to you. Some states do not
allow limitations on how long an implied
warranty lasts, so this limitation may not apply
rights, and you may also have other rights,
which vary from state to state.
Limited Warranty

IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the
“Customer Satisfaction Center” at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs ‘Customer Satisfaction Center’ au 1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el “Centro de Servicio al
Consumidor” al 1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
110-120V~60Hz
Made in China
Fabriqué en Chine
Hecho en China
Haier
New York, NY 10018
Printed in China
1000/2000 Series
©2011 Haier America Trading, LLC. All Rights Reserved.
