Haier HVS1000 User manual

Front Load Washing Machine Model:HVS SERIES
FRONT LOADING WASHING MACHINE
Service Manual
Suited model:
HVS1000
HVS1200
Features
300mm diameter porthole, door may be open at a 180 degrees.
Class-A energy-saving; Homocentric tubs with higher energy efficiency
Multi-gear speed controller
Unique gasket design featuring no residual water hidden inside
Delay time adjustive
Large wash load capacity 5kg
Serial Number: Version: 1.00 Edition: 2007-3
SMHVS01

Front Load Washing Machine Model:HVS SERIES
Page 1
1Contents----------------------------------------------------------------------------------------1
2Product code illumination and series introduction-----------------------------------2
3Features ---------------------------------------------------------------------------------------3
4Specification ----------------------------------------------------------------------------------4
5Matters Needing Attention----------------------------------------------------------------6
6Installation ------------------------------------------------------------------------------------9
7Net dimension -------------------------------------------------------------------------------11
8Names of the parts-------------------------------------------------------------------------12
9Operational Functions --------------------------------------------------------------------13
10 Program description table---------------------------------------------------------------15

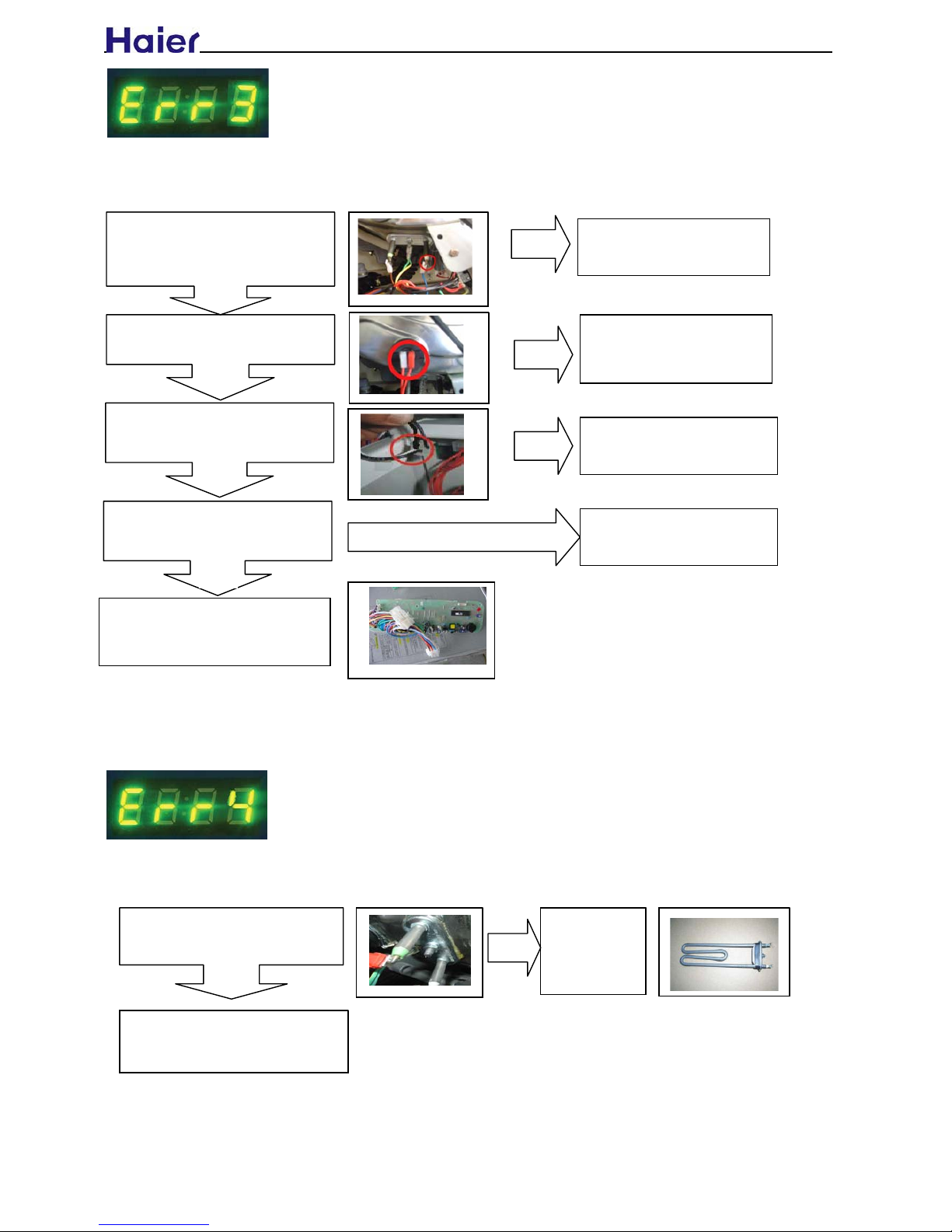

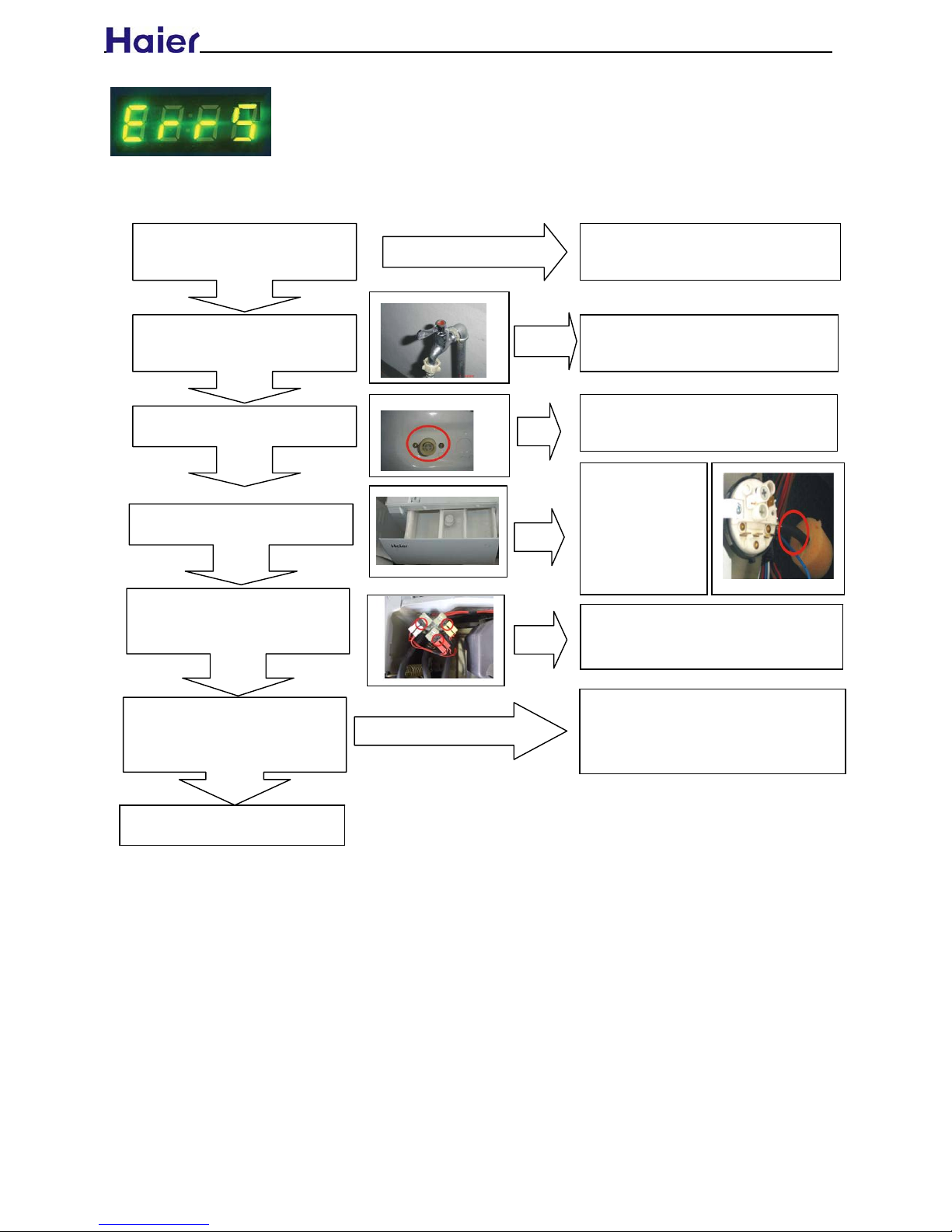

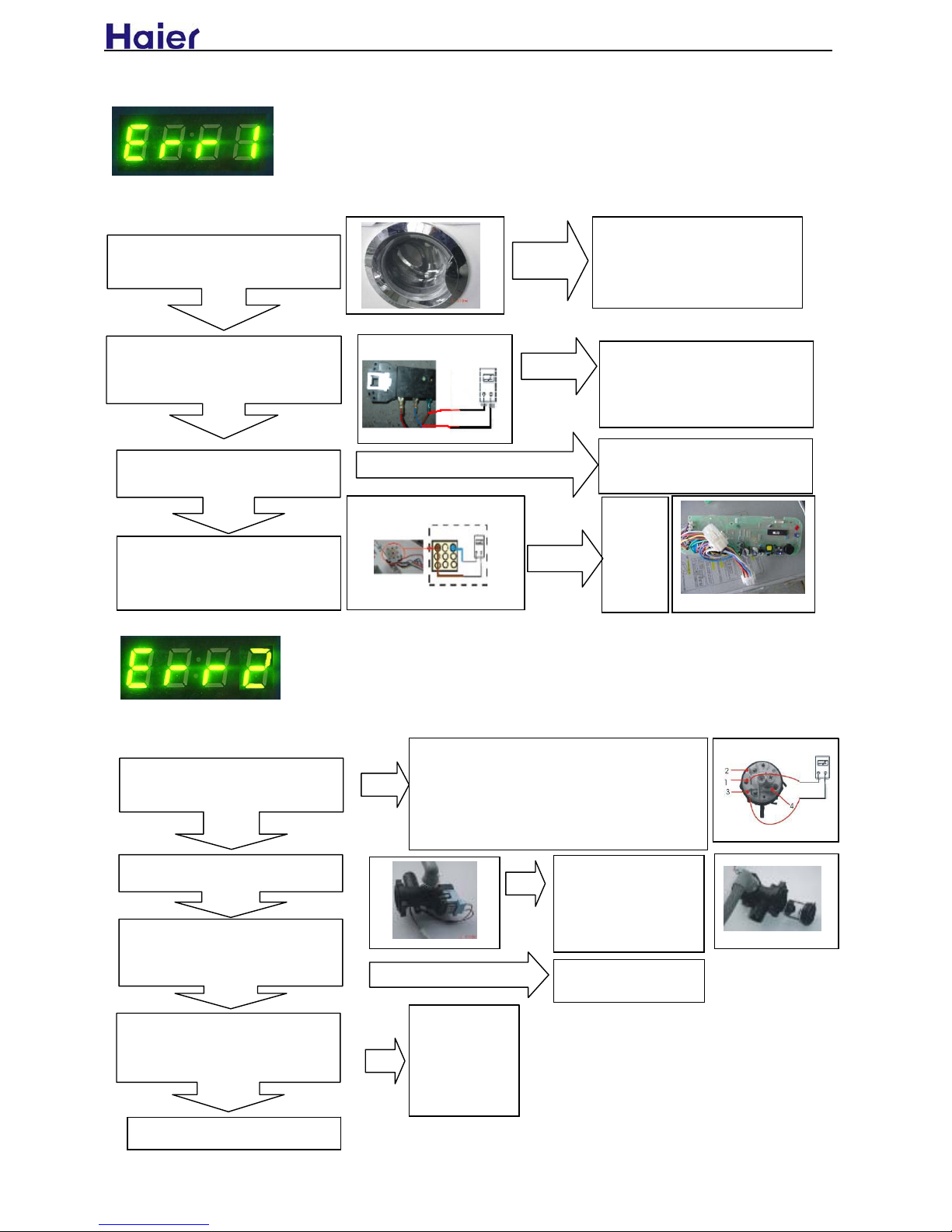

11.Error display and Trouble shooting---------------------------------------------------16
12 Wiring circuit ------------------------------------------------------------------------------24
Contents

Front Load Washing Machine Model:HVS SERIES
Page 2
PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION
Model code rule description
Model identification˖
HVS 1200
AB
Examples˖
HVS1200
It represents HVS series appearanc eˈwith big windowǃ180eopening windowǃ1200rpm spin
speed.Spin speed is adjustive from 0 to 1200rpmˈtemprature is also adjustive. it’s controlled
by computer.
A˖Serial code
B˖Max spin speed

Front Load Washing Machine Model:HVS SERIES
Page 3
FEATURES
ƽ300mm diameter porthole, door may be open at a 180 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
ƽMulti-gear speed controller
According to different costumingˈyou can slect corresponding spin speedˈfrom 0 to 1200 rpm.
ƽUnique gasket design featuring no residual water hidden inside.
By the unique gasketˈwashing machine can left no residual water hidden between outer drum and
board.
ƽDelay time adjustive.
According to different costumingˈyou can slect delay timeˈfrom 0.5h to 24h.




Page ˑ
Front Load Washing Machine Model:HVS SERIES
Removable compartment for liquid detergent 
Delay timer (from - to) h1-24 1-24
Self cleaning suds pump 
Water inlet hose cold water / hot water
Water drain hose / -support
/
/
Adjustable feet n° 4 4
4. Safety systems
Auto door lock ADL
Motor overheating protection MOP 
No heating without water NHW 
Auto water cool-down (before drain 90°C boiled wa
AWC
Water protection WRP
Acqua Stop kit
Child protection
5. Programs
1) COTTON PREWASH (90°C/60°C/40°C/Ƅ)n° 11
2) COTTON (60°C/40°C/Ć)n° 11
3) SYNTHETIC (40°C/Ć)n° 11
4)WOOL n° 11
5)CASHMERE n° 11
6)SILK n° 11
7)QUICK WASH n° 11
8)SINGEL WASH n° 11
9)SINGEL RINSE n° 11
10)Drain n° 11
11)Spin n° 11
Optional function keys (additional program settings) --
3URJUDP buttonZLWKSRZHUVZLWFK 
Start pause
Extra riQse NH\
Strong wash
Load
Delay timer
VSHHG
WHPSHUDWXUH
Packing dimensions & loadability - -
Packing dimensions (H x W x D) FP 90×64×66 90×64×66
Gross weight NJ 82 82
40' Container load SFV --
40' HC load capacity SFV 208 208
Logistic / recicling information RS
Packing weight NJ 66
Packing materials / Recycling symbols REzY REzY
Carton (weight) JU 00
Polistyren (weight) JU 1000 1000
Polyetylene foil (weight)
JU 500 500
Other packing materials (weight)
JU --
Wood (weight) NJ --
Service - -
6. User instruction (languages)
D/F/I/GB/E/P/NL D/F/I/GB/E/P/NL
Max. failure rate (12 Months after sales to end
%
//
--




--

















Front Load Washing Machine Model:HVS SERIES
Page 6



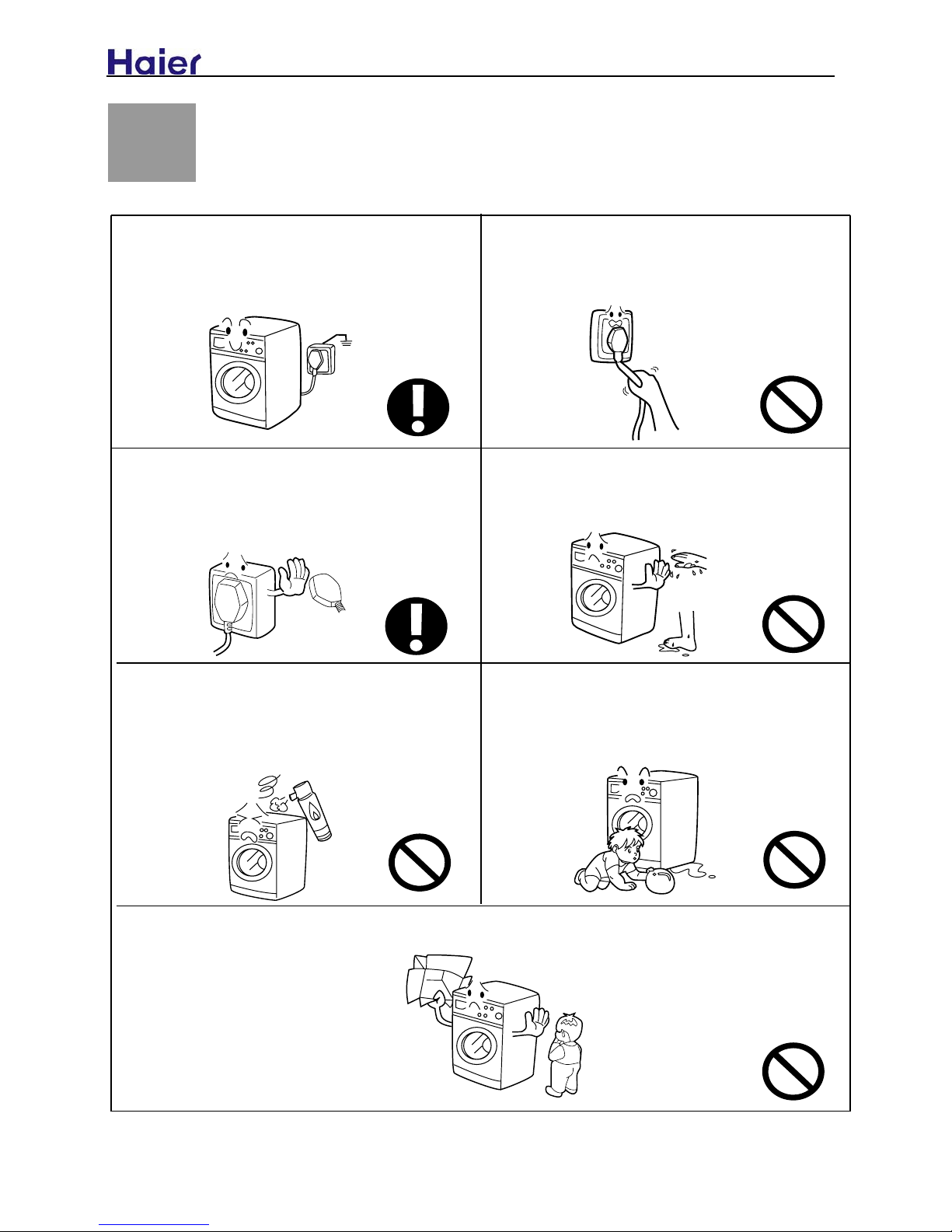

Matters Needing Attention
ƽ6DIHW\

.A separate earthed socket is required for the
power supply. The washing machine must be
positioned so that the plug is accessible.
2. Hold the plug and not the electric cable
when unplugging the washing machine.
3.Fuses in the power circuit should be rated for 15A.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
4. Do not touch or use the washing machine bare-
footed or when the hands or feet are wet.
5.Do not use flammable detergent or dry clean
ing agent; do not use flammable spray in
close vicinity to the washing machine; do not
remove or insert the plug in the presence of
flammable gas.
6. The door of the washing machine will become hot
during the heating process. Avoid contact with the
door during the heating process. For safety, keep
children away from the washing machine.
 .HHSFKLOGUHQDZD\IURPWKHSDFNLQJPDWHULDOVDIWHUXQSDFNHG

Front Load Washing Machine Model:HVS SERIES
Page 7

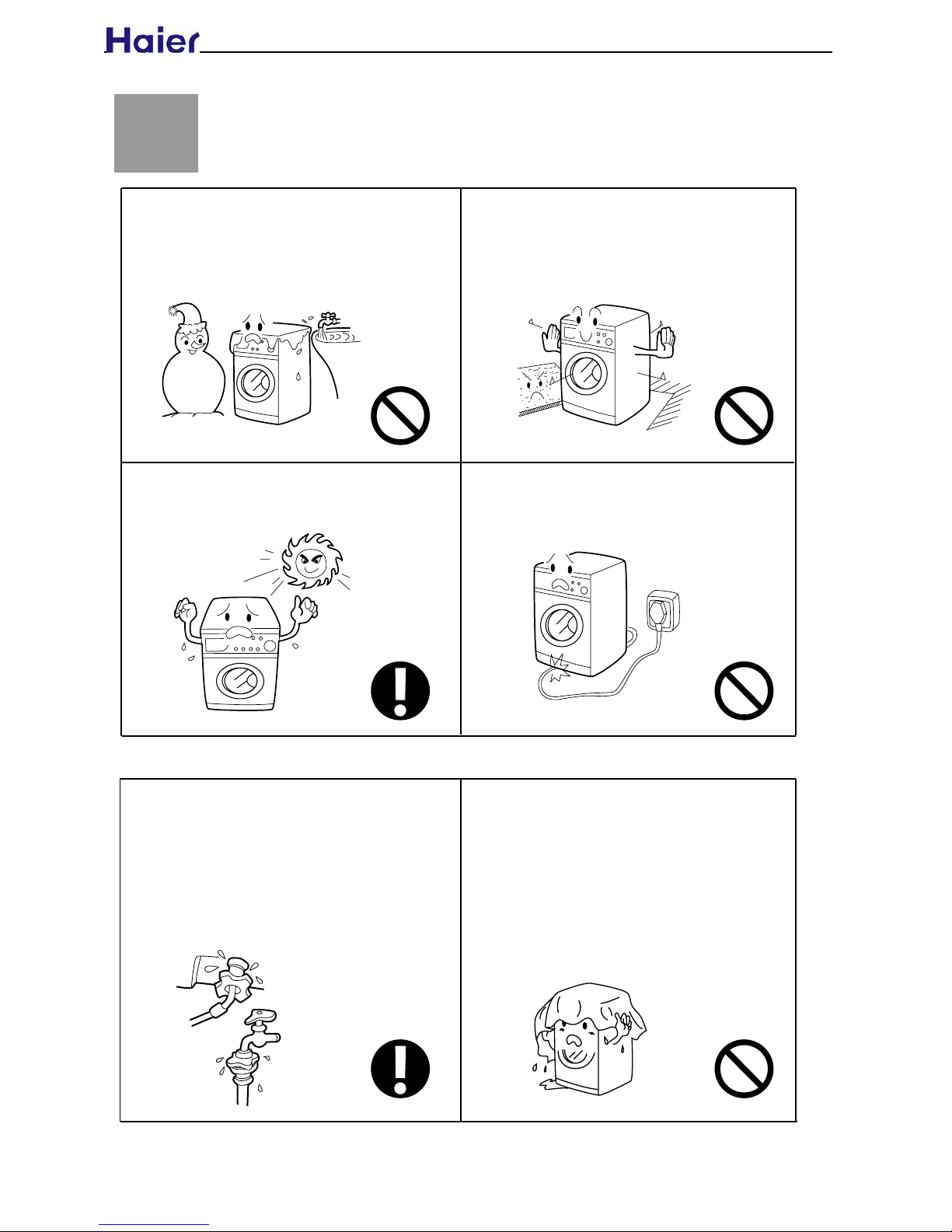

9.The carpet must not obstruct the ventilation
openings in the base of the washing machine.
.The washing machine should not be install-
ed outdoors or in a damp place. In the
event of water leakage or splashes allow
the machine to dry naturally.
10.Keep away from heat sources and direct sun-
light to prevent plastic and rubber components
from aging.
11.During installation, ensure that the electric
cable is not trapped by the washing machine
and avoid damage to the electric cable.
ƽDuring Use
1. Before use, check the joints of the filling hose, the
tap and the drainage hose for possible problems
from water pressure fluctuations. If joints are loose
or there is leakage, turn off the tap and repair. Do
not use the washing machine until the hoses are
properly fixed.
Keep the door slightly open when the washing
machine is not in use to prevent formation of
odors; do not cover the washing machine with
plastic cover so that inside dampness cannot
be kept in.
Matters Needing Attention

Front Load Washing Machine Model:HVS SERIES
Page 8
 3. Do not place heavy, heating source or wet
articles on the top of the washing machine.
4. Do not hot wash foam rubber or sponge-like
materials.
6. Do not open the detergent distribution drawer
during the wash cycle..

7. The door is fitted with a self-lock device and will not open until
2~3 minutes after the washing machine stops. Do not force
the door open. Do not open the door if water level can reach
the porthole.
8.After each wash program, turn off the tap to
prevent leakage; and unplug the washing
machine and wipe clean the lower part of
the porthole.
Steel wires in bras will pop
out during washing; never
wash bras containing steel
wires.
5. Before washing, do up zippers, buttons and
clothes straps and put small articles, such as
socks, laces or bras, into a washing bag or a
pillow.
Matters Needing Attention

Front Load Washing Machine Model:HVS SERIES
Page 9
ƽ
5HPRYHDOOWKHSDFNLQJPDWHULDOVLQFOXGLQJWKHIRDPEDVH
WRSUHYHQWYLEUDWLRQGXULQJXVHDVVKRZQLQ)LJ
8SRQRSHQLQJRIWKHSDFNDJHZDWHUGURSVPD\EHVHHQRQWKH
SODVWLFEDJDQGWKHSRUWKROH7KLVLVQRUPDOSKHQRPHQRQ
UHVXOWLQJIURPZDWHUWHVWLQWKHIDFWRU\
Fig .1
ƽ
Check attachments and materials with reference to the following
ƽ
Dismantle the packing bolts as shown in Fig. 2.
The packing bolts are designed for clamping anti-vibration components
inside of the washing machine during the transportation process.
Beforeuse:
1. Remove the back plate;
2. Remove the three packing bolts on the back plate and take out the
rubber hose;
3. Replace the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: The packing bolts and rubber hose should be kept in a safe
place for later use)
Fig
ƽ
Adjusting the washing machine
There are adjustable feet under the bottom of the washing machine.
Before use, the washing machine should be adjusted, as shown in
Fig. 3, so that it is level.
Fig.

4XW\
1DPH 2SHUDWLRQ
PDQXDO



4XDOLW\
FHUWLILFDWH
:DWHU
KRVH
'UDLQDJH
KROGHU
3ODVWLF
SOXJV
Installation

Front Load Washing Machine Model:HVS SERIES
Page 10
FP
FP
 The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off,
fix it to the drainage hose clip at the back of the washing machine.
Before connecting to the power supply, check: 
Joining the Inlet Hose to the Washing Machine
Connect of water inlet valve
:DWHULQOHWKRVHRXW
 1. Connect the nut on the inlet hose to the connector on the water valve.
7LJKWHQWKHQXWWRVHFXUHWKHKRVH
Installation
'UDLQDJH+RVH
Use the drainage holder to keep the end of the drainage hose retained and to prevent the outflow
of water. It is recommended that drainage hose extensions not be used; if an extension is needed,
please consult a serviceman. The additional hose should be no more than 250cm (overextended
hoses could lead to siphonage). Note: The drainage hose should not be submerged in water and
should be securely fixed and leak-free.The appliance is to be connected to the waster mains using
new hose-sets and that old hose-sets should not be reused.
Connecting to the Power Supply
The socket is adequate for the maximum power of the washing machine (For safety, fuses in the power circuit should be rated
for no less than 15A).
The power outlet should be capable of accepting the washing machine plug. The washing machine must be earthed before
use.
Supplementary earth cable should not be necessary if the socket is connected to the earth
Supplementary earth cable shoulde be installed on the upper back of the washing machine andconnected to an earth if the
power supply socket has no earth connection
The voltage should meet the requirement.

Front Load Washing Machine Model:HVS SERIES
Page 11
height: 850mm / width: 595mm / depth:400mm
595
850
400
NET DIMENSION

Front Load Washing Machine Model:HVS SERIES
Page 12

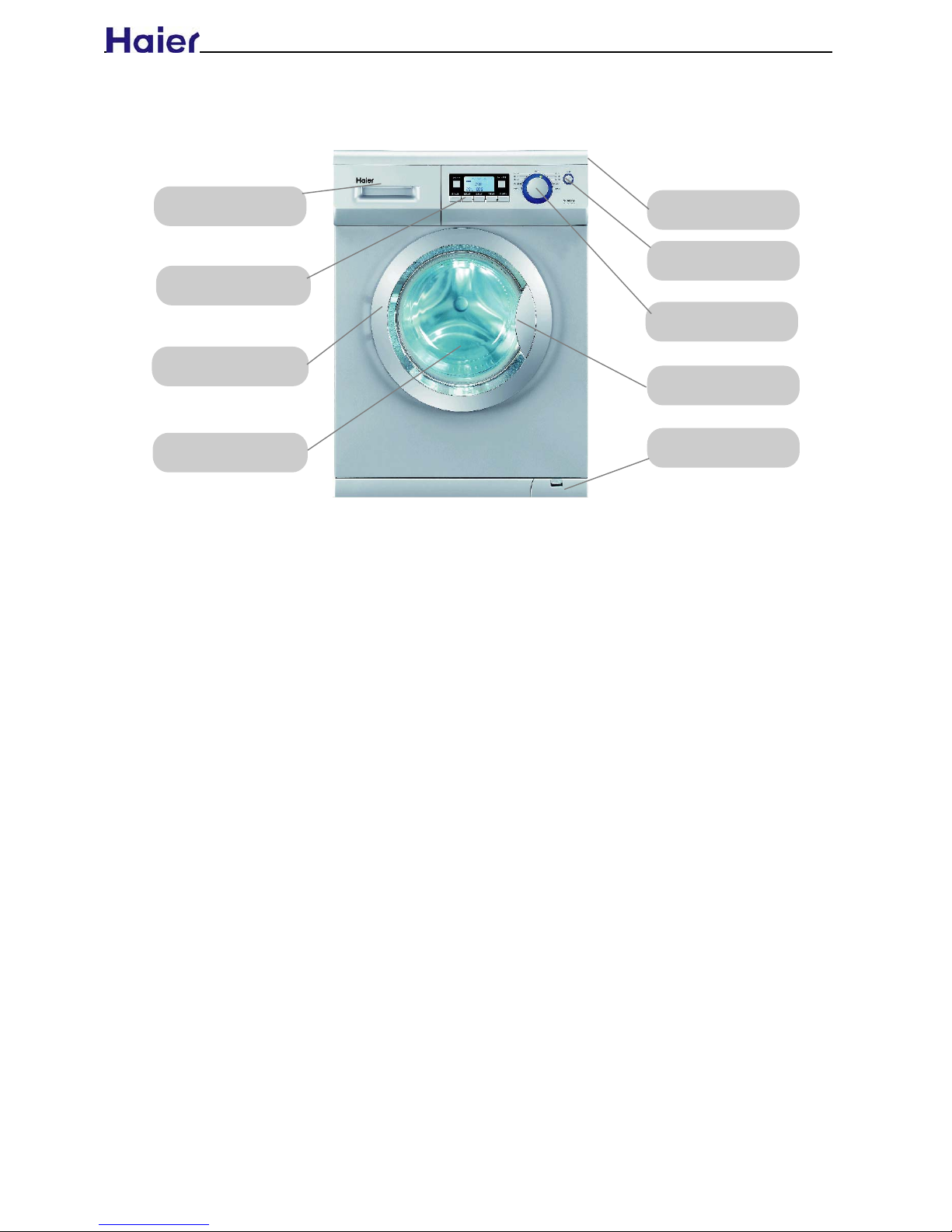

Names of the parts
Top
Handle
Program selector
Detergent dispenser
Door
Porthole
Function selector
Bottom planel
ON/OFF button

Front Load Washing Machine Model:HVS SERIES
Page 13
Spin-dry
Pre-wash
y
Display Information Introduction
A. Power On/Off Key
Press the key and the washer will be automatically ene
rgized, release the key and power
is disconnected.
B. Program Selection Knob
Turn the knob clockwise/counterclockwise to select the desired program. (please refer to
Program Setting Guidance Table for details)
C. Detergent Distribution Box-See Figure a for the drawer- type Detergent Dispenser
Open the dispenser box and you will see four detergent compartment of 1, 2, 3:
Compartment 1: Pre-wash Detergent
Compartment 2: Washing Detergent
Compartment 3:Softener , Conditioner and Perfume
D. Reservation Selection Key
Press the key to select the desired time when the washing progress completes. When
setting this feature, the indicator lamp on the upper left corner of the key will illuminate.
Time reservation range is from 1 to 24 hours. The reserved ti me will increase by one
hour at each press of the key. When the feature is set, press Start/Pause key and the
reservetimewillbedisplayedandcountdownwillstart.Atthesametime,reservation
indicator lamp will start blinking and will go off after th e washer enters into normal
washing progress.
Figure a
Control Panel Function Description
23

Baby care
ⳳ㑪
Slik
Quick wash
Single wash
Rinse
Drain
Spin
Power
Slim5
HVS1000
Cotton prewash
Cotton
Synthetic
Wool
Cashmere
㕞㑪
㕞↯
࣪㑪
ẝ咏
ẝ㑪⋫
䗳⋫
ⓖ
ᥦ∈㒛
㑪∈
㑪㑪
Tim e
Delay time
Rinse hold Temp. Speed
Start/Pause
.
1

Front Load Washing Machine Model:HVS SERIES
Page 15
Default Program Detergent Usage MethodProgram
Setting
Mode
Recommended
Laundry Capacity Temperature Total
Time
Temperature
Adjustment
Range
Rinse
Hold
Load
Selection
Baby
Care Reserve Compartment
1
Compartment
2
Compartment
3
Cotton
Pre-wash
Heavily-soiled
Cotton Fabrics 560
1200
1000
900
800
3:12
__ -40-50-
60-90
__ -40-50-
60-90
__ -40-50-
60
__ -40
__ -40
__ -40
__ -40
__ -40-50-
60
YES YES YES YES ƾƾ 嗟
Cotton Cotton Fabrics 5 60 2:58 YES YES YES YES Xƾ嗟
Synthetic Fsat-colour-
Fiber 3 60 800 1:42 YES YES YES YES Xƾ嗟
Cashmere Cashmere
/40 600 1:10 YES NO YES YES Xƾ嗟
/40 400 1:10 YES NO YES YES Xƾ嗟
Slik Silk /40 400 1:05 YES NO YES YES XƾX
/_ _ 800 0:29 YES NO NO YES Xƾ嗟
Rinse
54001:33 NO YES NO YES XƾX
5 800 0:25 /YES YES YES YES XX
嗟
Drain ////0:03 /NO NO NO YES XXX
Spin ///
1200
1000
900
800
0:09 /NO NO NO YES XXX
Note: 嗟 means that it needs to add perfume such as softener ƾmeans that it needs to add
detergent otherwise the desired washing result will not be achieved. X means it must not add
detergent. The data in Speed column is default spin speed of corresponding model (whe n
speed is not selected.)
Note: 1. Washing temperature refers to the highest temperature allowable during the whole
washing process. The washing time varies according to the type of clothes, selected
temperature and feature. The total operation time provid ed in the above table is for
reference only (There will be a slight difference due to different water temperature.)
2. For clothes made of special materials such as woolens, cashmere and wool, please check if the
clothes has a machine
- washing tag and the requests to the temperature.
Quick wash Slightly-soiled
Textiles
Slightly-soiled
Textiles
Slightly-soiled
Textiles
Single
wash
Wool Wool
__
1200
1000
900
800

Front Load Washing Machine Model:HVS SERIES
Page 16
HVS SERIES Error Display and Troubleshooting
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
N
Pushing the door to Check Whether Door
is properly shut or not
Y
Error message:Drainage error, water not emptied within 4 min.
Troubleshooting:
Y
Cutoffthepowerandthenturnonagain.
Check the voltage between brown wire and
blue wire of door lock, is it between AC
220-240V?
N
Door lock is broken and need
replacing, then make sure wire is
connected properly.
N
Check the voltage between brown wire
and blue wire of PCB, is it between AC
220-240V?
Check if drain pump acts by touching
pump position Y
Check if drain pump or
drain pipe is jammed, and
open the filter and clean
N
Cut off the power and choose spin program to
start, then check the import voltage of drain
pump, is it between AC 220-240V?
Replace drain pump
N
Cut off power and pull out water level
pressure switch wire connection. Set spin
program to start. Check the export voltage to
drain pump, is it between AC 220-240V?
Replace PCB
Y
Replace
PCB
Connect the wire properly
Check if the wire connecting door lock
and PCB is loose .
N
Check if water is emptied Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 1 and 3 pin, is it
infinite? If not, it is water level pressure switch failure
andreplaceit.Ifitis,thenrepairandcheckPCBand
wire as followed.
N
N
Y
Y
The wire between
PCB and drain
pump is not
connected
properly.
Replace the wire.
220-240v
Shut the door properly.
220-240v
PCB

Front Load Washing Machine Model:HVS SERIES
Page 17
Error message:Temperature sensor is not properly connected or damaged (display at the end of a
program).
Troubleshooting:
Error message:The heater may be broken
Troubleshooting:
NTC exist open circuit .Replace it
Y
Cut off power, check the resistance of
two pins of heater element by multimeter,
is it between 32-35
¡ ?
Heater element
must be broken,
please replace it
Y
Check if NTC is connected properly
Cut off power and measure the resistance
of temperature sensor by multimeter, is
it between 5-14k
¡ ?
Y
N
Connect NTC well
N
N
Check the black wires of NTC,
are they connected well?
Y
Disconnect from PCB,
and measure if the resistance between
of PCB is it infinite?
N
Replace PCB
Connect all wires well
N
Replace wire
Y
PCB
two
the two black wires
the two black wires
The control wire may be broken,
otherwise PCB must be broken.
Please replace the broken one.

Front Load Washing Machine Model:HVS SERIES
Page 18
Error message:The required water level is not reached within 8 min
Troubleshooting:
N
Check if inlet valve is jammed
Clean inlet valve
N
Draw out the dispenser and check if water is
entering
Observe if the height of
drain pipe not reach 80
cm. If water level
pressuresswitchand
the hose is leaking gas
N
Turn on power, and set pre-wash mode, then
start. Check the import voltage of
electromagnetic valve by multimeter,
is it between AC 220-240V?
Electromagnetic valve must be broken, please replace
it.
N
Check if tap is closed or water pressure is too
low (usual between0.2 -1 MPa)
Open the tap or wait for normal water pressure to use
The wire connected PCB and inlet valve is not
properly. Please reconnect it or replace it.
Y
Y
Y
Y
Y
Check if water is leaking from washer
bottom. inlet pipe. drain pipe or other
pipe connection
YReadjust or replace the broken parts
Replace PCB
N
N
Check if export voltage from PCB to
electromagnetic valve, is it between AC
220-240V?
220-240V

Page 19
