Haier HW-B1060 User manual

Table of Contents
Before using the appliance
Matters needing attention......1-3
Installation.............................4-5
Function ...............................6-7
How to operate the wasing machine
Program description table........8
Preparation .............................9
Washing Procedure ..........10-11
Maintenance ..........................12
Technical Specifications ........14
Wiring Circuit .........................15
Maintenance
Troubleshooting Guide ..........13
Operation Manual
Automatic Drum Washing Machine
Name of parts...inside front cover
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact you local government for information regarding
the collection systems available.
If electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your
health and well-being.
When replacing old appliances with new ones, the
retailer is legally obligated to take back your old
a
pp
liance for dis
p
osals at least free of char
g
e.

Top
Handle
Program selector
Detergent dispenser

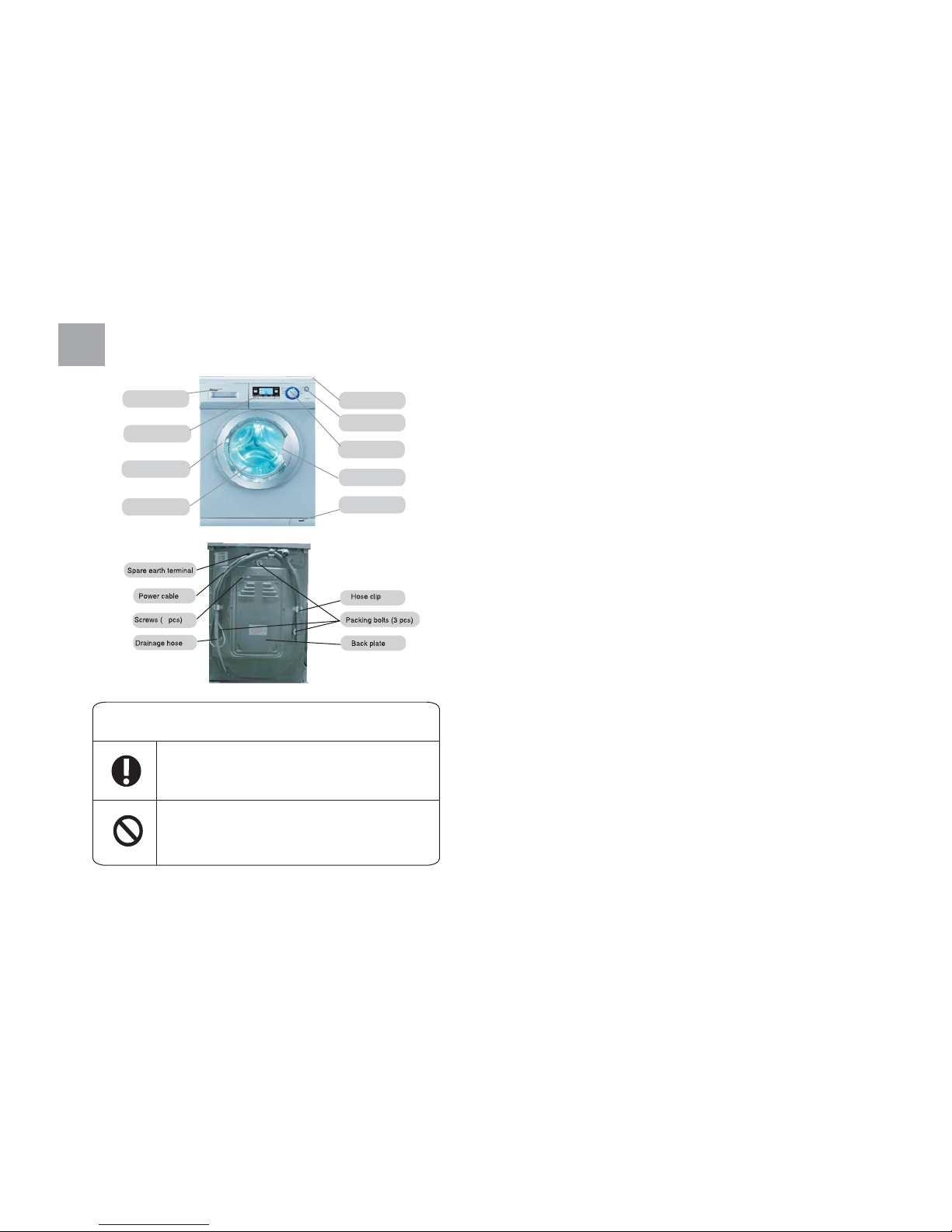

Name of Parts
Door
Porthole
Function selector
Caution and Warning symbols
Bottom planel
This diagram may be slightly different from the layout of the washing
machine you have just purchased due to techincal improvements
For you safely,any instructions in this manual with this
"Warning"sign must be followed strictly.
For your safety and to prevent damage to the washing
machine,any instructions in this manual with this "Stop"
sign must be followed strictly.
ON/OFF button

3

Matters Needing Attention
ƽSafety

.A separate earthed socket is required for the
power supply. The washing machine must be
positioned so that the plug is accessible.
2. Hold the plug and not the electric cable when
unplugging the washing machine.
3.Fuses in the power circuit should be rated for 15A.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
4. Do not touch or use the washing machine bare-
footed or when the hands or feet are wet.
5.Do not use flammable detergent or dry clean
ing agent; do not use flammable spray in close
vicinity to the washing machine; do not remove
or insert the plug in the presence of flammable
gas.
6. The door of the washing machine will become hot
during the heating process. Avoid contact with the
door during the heating process. For safety, keep
children away from the washing machine.

Keep children away from the packing materials after unpacked.


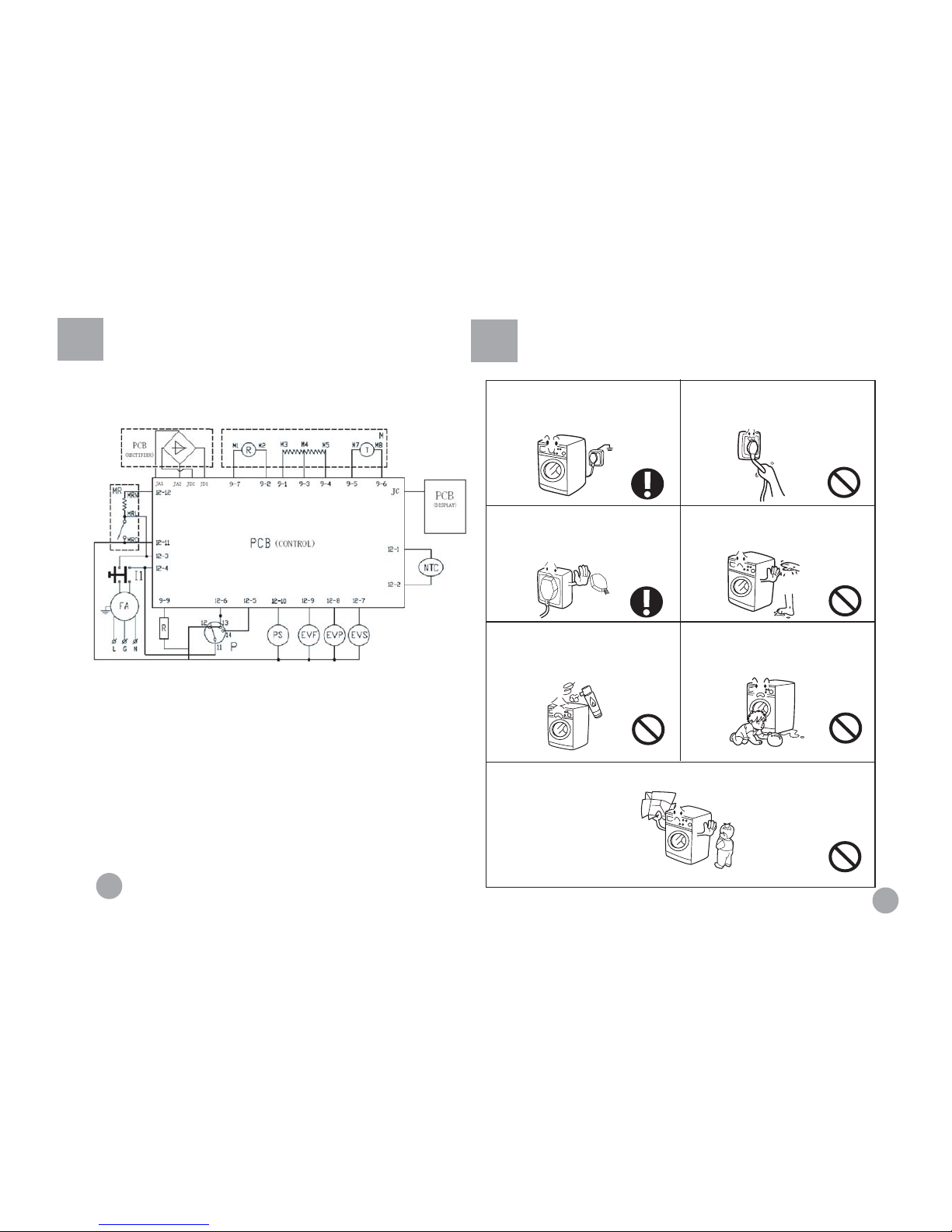

Wiring Circuit
HW-B1460/ME HW-B1260/ME HW-B1060/ME HW-B860/ME


15
2
8.The washing machine should not be installed
outdoors or in a damp place. In the event of water
leakage or splashes allow the machine to dry
naturally.
10.Keep away from heat sources and direct sunlight
to prevent plastic and rubber components from
aging.
11.During installation, ensure that the electric
cable is not trapped by the washing machine
and avoid damage to the electric cable.
During Use
1. Before use, check the joints of the filling hose,
the tap and the drainage hose for possible
problems from water pressure fluctuations.
If joints are loose or there is leakage, turn
off the tap and repair. Do not use the washing
machine until the hoses are properly fixed.
The appliance is to be connected to the water
mains using new hose-sets and that old hose
-sets should not be reused
2.
Keep the door slightly open when the washing
machine is not in use to prevent formation of
odors; do not cover the washing machine with
plastic cover so that inside dampness cannot
be kept in.
Matters Needing Attention
9. The carpet must not obstruct the ventilation
openings in the base of the washing machine.

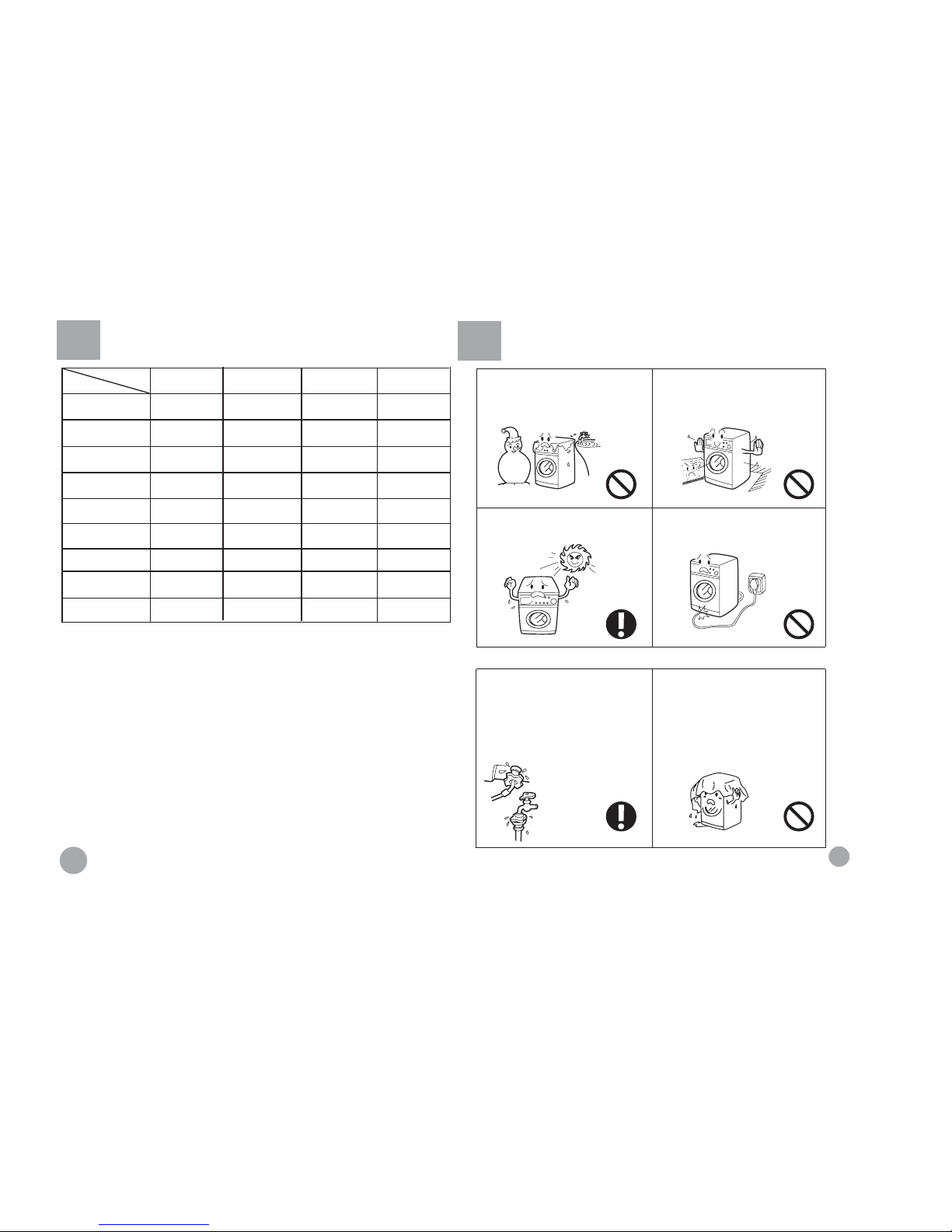

Technical Specifications
Model
Power supply
Power(Max)
Water pressure (MPa)
Max. wash load (kg)
Spinning speed (MAX) (r/min)
Wash program
Weight (kg)
Anti-Electric shock
Anti-Water class
HW-B1460/ME
220V-240V~/(50Hz)
1950
6
1400
11
69
I
IPX4
HW-B1260/ME
220V-240V~/(50Hz)
1950
6
1200
11
69
I
IPX4
220V-240V~/(50Hz)
1950
6
1000
11
69
HW-B1060/ME
I
IPX4
HW-B860/ME
220V-240V~/(50Hz)
1950
6
800
11
69
I
IPX4
0.03p10.03p10.03p1 0.03p1




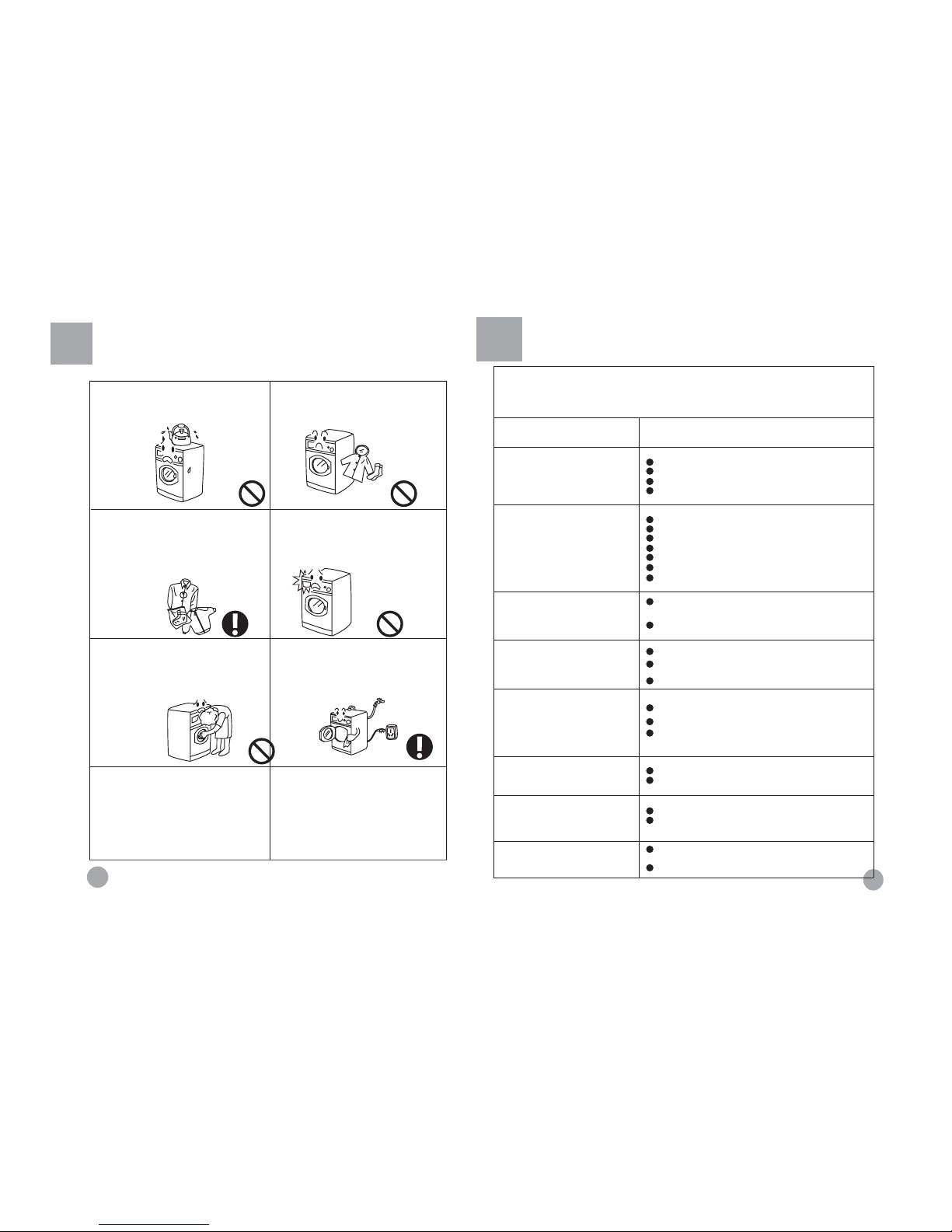

Troubleshooting
The following circumstances do not constitute problems. Do not contact the maintenance service
until the problem has been confirmed.
Problem Possible cause
The washing machine fails to operate
Poor connection to power supply
Power failure
Door is not properly closed (It will show E1)
Machine has not been switched on
Washing machine cannot be filled
with water
Water tap is not turned on(It will show E4)
Water pressure is less than 0.03Mpa
The inlet hose is kinked
Water supply failure
The program dial is not properly set
The door is not properly closed
The inlet hose filter is blocked
The machine is draining while is
being filled
The height of the drainage hose is below 80cm (it
should be within 80-100cm)
The drainage hose end is in water
Drainage failure
Drainage hose is blocked (It will show E2)
Drainage hose end is exceed 100cm above the floor
level
The filter is blocked
Strong vibration during spin drying
Not all packing bolts have been removed
Washing machine is located on an uneven surface
Machine load is over 5kg.
Operation stops before completion
of a wash cycle
Water or electricity failure
Washing machine is in soak cycle
Operation stops for a period of time
Washing machine is in soak cycle
Washing machine gives an error message.
Excessive foam in the drum, which
is spilled to the distribution drawer
The detergent is not a low-foaming type or for manual
wash
Excessive use of detergent
3.Do not place heavy objects or container
with water on the washing machine,so as to
prevent deformation of the flat surface and
plastic parts.
4. Do not wash articles containing
polystyrene or similar elastic materials.
5. Before washing, do up zippers and ensure
that buttons are securely fastened. Place
small items, such as socks,belts,etc. in a
small washing bag or a pillow-case . To
protect the washing machine, do not wash
garments containing wire parts.
7. The door is fitted with a self-lock device
and can not be opened until 2-3 minutes
after the end of the programme.You are not
recommended not to force the door open
before the programme end. Do not open the
door if the water level is above the lower
part of the door.
8. At the end of the wash cycle, turn off the
water supply to prevent water leakage, un-
plug the washing machine and thoroughly
clean the trim so as not to dirty the laundry
in the next wash cycle.
Precautions
6.Do not open the detergent drawing
during the wash cycle.
9.For appliances with type Y attachment,the
intructions shall contain the substance of the
following.
If the supply cord is damaged,it must be
replaced by the manufacturer,its service
agent or similarly qualifled persons in order
to avoid a hazard.
10.The installation instructions shall state
that the appliance is to be connected to the
water mains using new hose-sets and that
the old should not be used.
For washing machines with ventilation
openings in the base,that a carpet must not
obstruct the openings.

13
4
ƽ
Remove all the packing materials (including the
EPE base)to prevent vibration during use, as
shown in Fig.1.Upon opening of the package,
water drops may be seen on the plastic bag and
the porthole. This is normal phenomenon resulting
from water test in the factory.
Fig .1
ƽ
Check attachments and materials with reference to the following
ƽ
Dismantle the packing bolts as shown in Fig. 2.
The packing bolts are designed for clamping anti-vibration components
inside of the washing machine during the transportation process.
Before use:
1. Remove the back plate;
2. Remove the three packing bolts on the back plate and take out the
rubber hose;
3. Replace the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: The packing bolts and rubber hose should be kept in a safe
place for later use)
Fig.3
ƽ
Adjusting the washing machine
There are adjustable feet under the bottom of the washing machine. Before
use, the washing machine should be adjusted, as shown in Fig. 3, so that it
is level.
Fig.2
Model
HW-B1460/ME
HW-B1260/ME
HW-B1060/ME
HW-B860/ME
Qty Name Operation
manual
Quality
certificate
Water
hose
Drainage
holder
Plastic
plugs
Installation
1
11
1
3

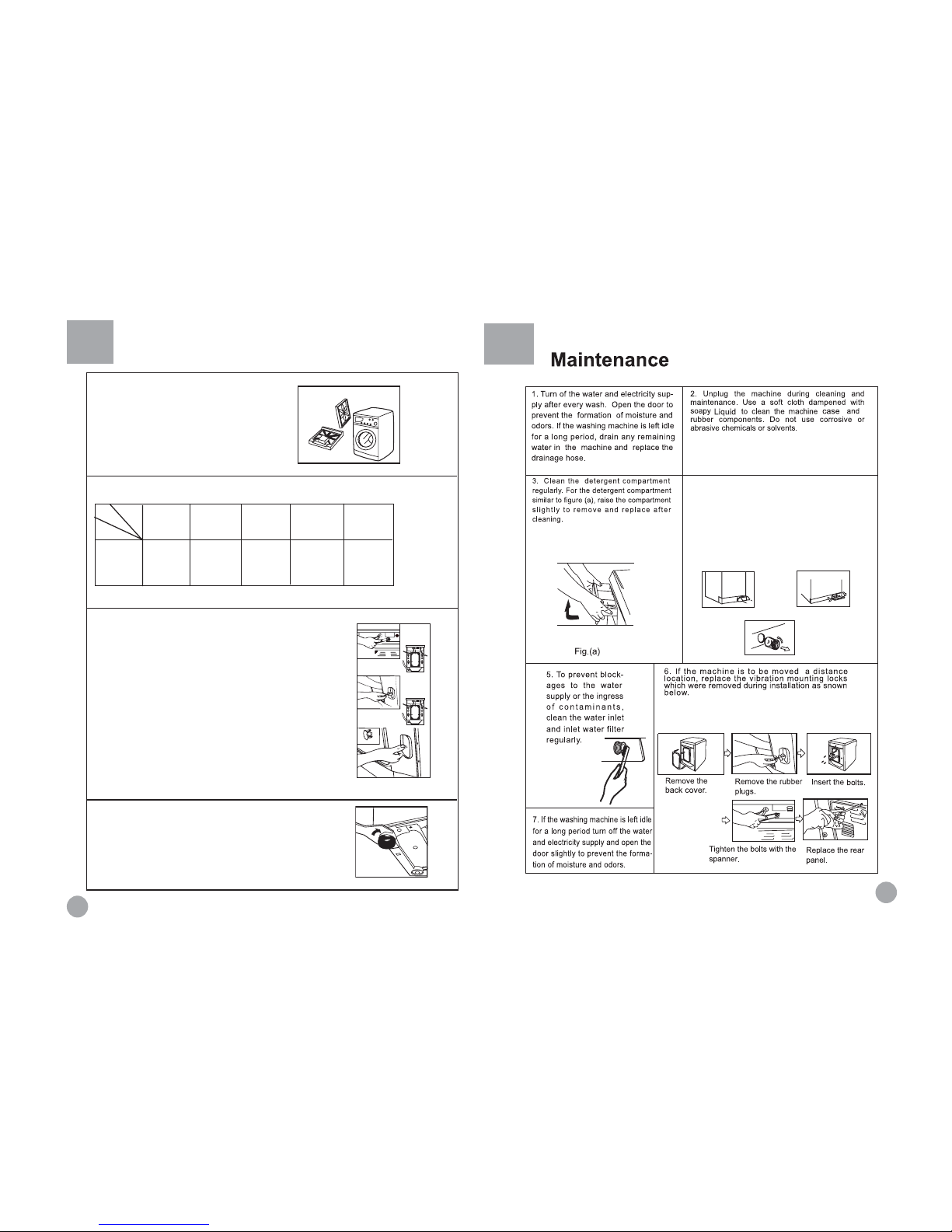

4. Clean the filter Cleaning methods (once a month)
1) Pick up the bottom cover lightly (Fig. 1);
2) Screw out filter by turning counterclockwise (Fig. 2);
3) Flash clean with running water;
4) Replace the filter by turning clockwise and remount the
cover.
Caution: The filter must be in place, or it may lead to
leakage. (
Fig3 )
Fig1
Fig2
Fig3

5
12
F
Hints for Saving Energy
5. Function selecting button
Select functions as required (refer to the "Operational Functions" section).
Hints for saving energy
During operation
1. Collect clothes for one full wash load.
2. Do not overload the washing machine.
3. Pre-wash heavily soiled clothes.
4. Reduce the amount of detergent or choose standard or delicate wash
programs for slightly soiled clothes.
5. Choose a proper washing temperature. Only exceed 60
ć for heavily
soiled clothes.
6. Do not use more detergent than required.
7. Softening agent makes clothes feel softer and easier to iron.
7. Finish
The washing machine will stop operation automatically when a wash cycle ends. The "End" sign will
appear. Open the door and take out the laundry. Then turn off the tap and unplug the power cable.
4. Setting washing temperature
Press the temperature button until " 20 C" is displayed if heating is not needed; otherwise, select
an appropriate temperature as required (refer to the "Guide to Operational Program Selection").
6. Washing
Press Start/Pause key and the LCD will display "", which means the washer has started
operation. The LCD will display program remaining time.
T
he following functions cannot be re-selected.
1).
2)
3).
.
Temperature Selection Key
Reserve Time Key
Power Clean Key
4). All the functions already completed.
ƽ
O

Spin Speed Display
Safety Child Lock Indicator
LoadSelectionDisplay
Super Clean Rinse
Power Clean
Start/Pause
Spin-dry
Rinse
Was h
Pre- wash
Remaining Time Displa
y


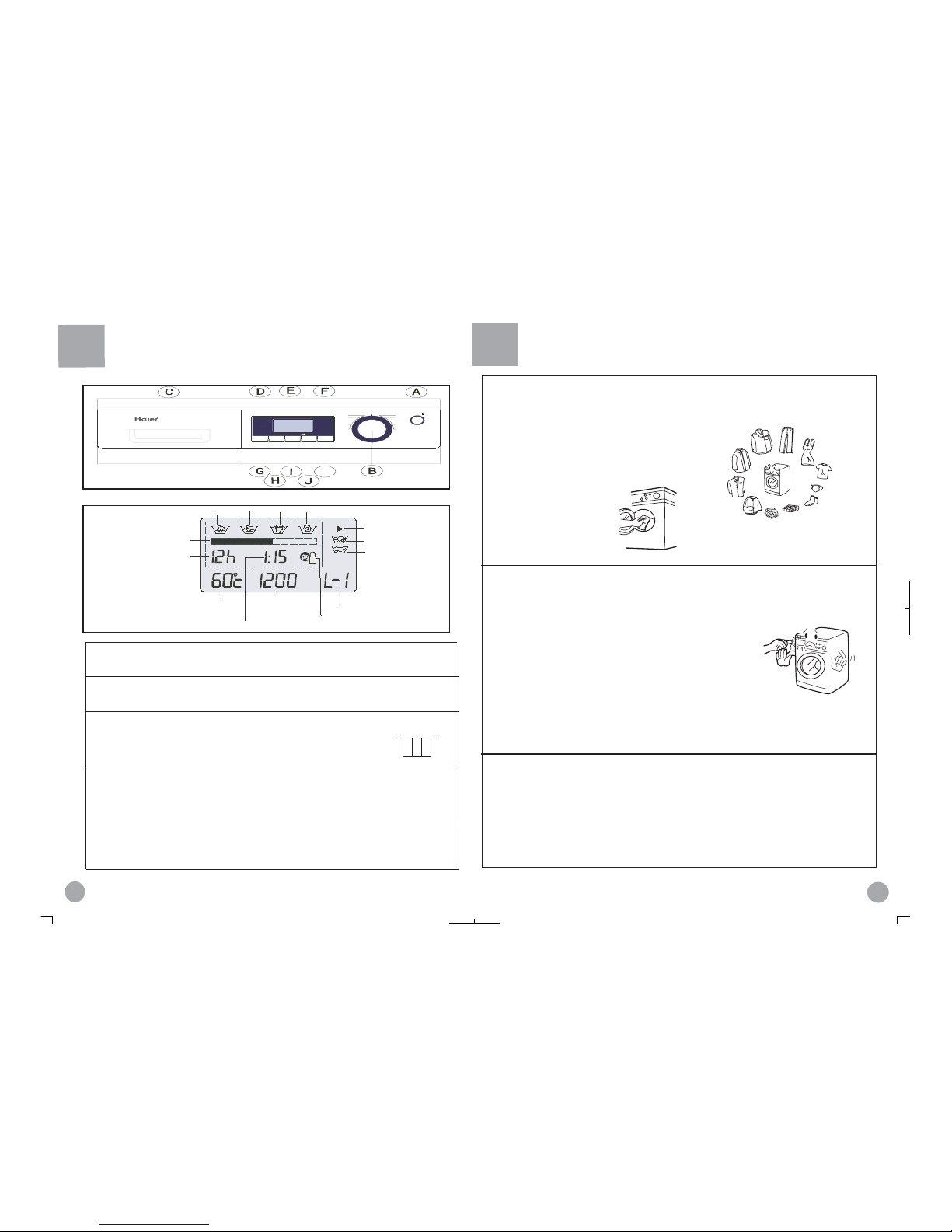

Operational Functions

Progress Indication Bar
Servation Time Display
Temperature Display
Display Information Introduction
A. Power On/Off Key
Press the key and the washer will be automatically energized, release the key and powe
is disconnected.
B. Program Selection Knob
Turn the knob clockwise/counterclockwise to select the desired program. (please refer to
Program Setting Guidance Table for details)
C. Detergent Distribution Box-See Figure a for the drawer- type Detergent Dispenser
Open the dispenser box and you will see four detergent compartment of 1, 2, 3:
Compartment 1: Pre-wash Detergent
Compartment 2: Washing Detergent
Compartment 3:Softener , Conditioner and Perfume
D. Reservation Selection Key
Press the key to select the desired time when the washing progress completes. When
setting this feature, the indicator lamp on the upper left corner of the key will illuminate.
Time reservation range is from 1 to 24 hours. The reserved ti me will increase by one
hour at each press of the key. When the feature is set, press Start/Pause key and th
e
reserve time will be displayed and countdown will start. At the same time, reservation
indicator lamp will start blinking and will go off after th e washer enters into normal
washing progress.
Figure a
Delaytime
Rinse hold Temp. Speed
Time
Extrarins e
Start/Pause
Cotton
prewash
Cotton
Synthetic
Wool
Cashmere
Hand wash
Quickwash
Singlewas h
Duvet
Drain
Spin
Power
HW-B1460/M E
.
Control Panel Function Description
Washing Procedure
Notes: 1) When first using the washing
machine,let it run unloaded for one program
to prevent the laundry from being tainted by
oil or dirty water from the washing machine.
2) Do not overload the washing
machine.
To get the best washing effect, an appropriate washing program should be selected
according to the laundry type.
Note: The above operations refer to conditions without power-off memory. Or the washing
machine will continue operation from where the program was broken. To clear memory,
press the Start/Pause button. Turn off the power for a few seconds and turn on again, all
the settings will be renewed.
1. Loading
Slide out the detergent drawer and put the required detergent and
softening agent into the corresponding boxes. Push back the drawer gently.
Caution:
1) For pre-washing program, detergent should be added to both
compartments 1 and 2. Compartment 2 allows only solid detergents.
For other programs, do not add detergent to compartment 1.
2) Do not overuse softener; otherwise, it will damage the artificial
fibers. Refer to the instructions during use.
2. Adding detergent
3. Selecting washing program
Load Reference
ƽOveralls
(cotton appr 950g)
ƽBlended fabric
clothes
(appr 800g)
ƽT-shirt
(cotton
appr 300g)
ƽJackets (cotton
appr 800g)
ƽWoolen
blankets
(appr 3000)
ƽSingle bed sheets
(cotton appr 800g)
ƽSocks (blended
fabrics appr 50g)
ƽ
Underwear
(blended fabrics appr 70g)
ƽ-HDQV
J
ƽPajamas
(appr 200g)
ƽShirts
(appr 300g)
Open the door, put in the laundry piece by piece.
Close the door tightly.
213
Time


Functions

Preparation
1.Power supply
Plug in the power supply 220-230V~/50HZ
2.Water supply
Turn on the tap ensure that the water in clear.
Caution:Before staring the washing machine turn on the water
faucet to ensure the water faucet and the water inlet hose are
connected correctly and do not leak.
4.Detergent selection
Only special low foam detergent should
be used in automatic drum washing
mashine,form blended or wool fabrics
special deter-gent should ne used.dry
clearning solvent should not be used
such as trichhloroethy-lene or alike
(caution :load the required amount of
detergent only).
3.Laundry treatment
Sort out clothes according to type and extent of dirt.There are
three types of clothes:cotton,synthetical and woolen (silk) fabrics.
Separate white clothes from colored.If whites and coloreds
are combimed for one load,make sure the coloreds are colorfast.
-Clothing with frayed edges or yams should be put in a wash
bag or special bag before washing.
-repair damged clothing,lose buttons or damaged zips
and hooks before washing.
-Bed sheets and table ware should be loosely loaded and not
folded.
This washing mashine is for househould use and designed
for mechanically washable clothes.When washing,separate
unwashable clothes with reference to clothes labels.
Note.
If Program key is turned after reservation time is set and before program starts, the
reservation will be automatically cancelled.
When reservation feature is activated, the washing start time is fixed. There will be some
difference between the reserved time and the actual program completion time due to differen
t
water inlet time and load distribution condition during spin - dry process.
E. LCD
LCD is a window to display information including washing status, washing progress,
reservation time, remaining time, heating temperature, spin
- dry speed, load selection and error etc.
as well as to display additional features such as power clean, super clean rinse and foaming
auto
- check etc.
F. Start/Pause Key
When the washer is energized, select the desired washing program and press the Start/Pau
s
key. The indicator lamp on the upper left corner of the key will illuminate to indicate that the
washer has started operation. If it needs to pause the washing process, simply press the Start/
Pause key and the indicator lamp and remining time display will blink and the washer enters into
condition. Press the Start/Pause key again to resume washing process.
(Note: Press the Start/Pause key only after the desired program and feature are set.
G. Power Clean Key
Press the key to increasewashing time of current program selected. This feature is appropriate
for washing heavily
- soiled clothes. The Power Clean icon in the LCD will illuminate after the
feature is selected. (This feature is not available in certain programs .Please refer to Program
Setting Guidance Table for details.)
H. Temperature Selection Key
Press the key and LCD will display the selected heating temperature, which is adjustable as
needed. Note: 20
o
C means cold water washing and no heating is involved. .
I. Spin Speed Selection Key
Press the key and LCD will display the selected spin - dry revolution speed, which is adjustable
as needed. (When No Spin
-
dry feature is selected, the time will decrease correspondingly .)
J. Load Selection key
Turn the Program Knob to select the desired program (see Program Setting Guidance Table)
Press the key and manually select different programs and power-saving and water-seaving fea-
ture based on the volume of load. LCD will display L-1(2,3,4,5), indicating the washing load is 1
(2,3,4,5) kg and program time will change accordingly. (The feature is not
available in Wool,
Cashmere, Silk, Speedy, Drainage Only and Spin Only Program. Only L – 1, 2, 3 are available for
Chemical Fiber program. )


Default Program Detergent Usage MethodProgram
Setting
Mode
Recommended
Laundry Capacity Temperature Speed Total
Time
Temperature
Adjustment
Range
Power
Clean
Load
Selection
Super
Clean
Rinse
Reserve Compartment
1
Compartment
2
Compartment
3
Cotton
Pre-wash
Heavily-soiled
Cotton Fabrics 640
800/
1000/
1200/
1400
2:17 _ _ -30-40-50
-60-70-80-90
_
_ -30-40-50
-60-70-80-90
_ _-30-40
-50-60
_ _-30-40
_ _-30-40
_ _-30-40
_ _-30-40
__-30
_ _-30-40
YES YES YES YES ƾƾ 嗟
Cotton Cotton Fabrics 6 40
800/
1000/
1200/
1400
2:03 YES YES YES YES Xƾ嗟
Synthetic Fsat-colour-
Fiber 3 60 800 1:41 YES YES YES YES Xƾ嗟
Cashmere Cashmere
/40 600 1:09 YES NO YES YES Xƾ嗟
/40 400 1:09 YES NO YES YES Xƾ嗟
嗟
Hand wash Slightly-soiled
Textiles /40 600 1:50 YES NO YES YES Xƾ
/- - 800 0:28 YES NO NO YES Xƾ嗟
嗟
Duvet
/30800 0:44 YES NO NO YES Xƾ
ƾ
/40 1000 1:12 YES NO NO YES X嗟
Drain ////0:03 /NO NO NO YES XXX
Spin ///
800/
1000/
1200/
1400
0:09 /NO NO NO YES XXX
Note:
嗟
means that it needs to add perfume such as softener ƾmeans that it needs to add
detergent otherwise the desired washing result will not be achieved. X means it must not add
detergent. The data in Speed column is default spin speed of corresponding model (whe n
speed is not selected.)
Note: 1. Washing temperature refers to the highest temperature allowable during the whole
washing process. The washing time varies according to the type of clothes, selected
temperature and feature. The total operation time provid ed in the above table is for
reference only (There will be a slight difference due to different water temperature.)
Pro
g
ram Settin
g
Guidance Table
A
.
Power-off Memory Function:Thewasher has power-off memory function.In case of
abrupt power failure or the power must be cut off during a program cycle, the present
settings will be saved and the preset operation will resume when the power is rezum-
ed.If it needs to cancel this feature, pr ess Start/Pause key so that the washer will
will stop temporarily. Turn off the power key and restart the washer after a few
seconds and the feature will be cancelled.
B.
Safety Child Lock Function: During the operation of the program, press down
Temperature key and Load Selection key concurrently and hold for 3 seconds." "
will be displayed indicating that the program is locked. Repeat the above
procedures to unlock.
C.
Foaming Auto - check Function: The washer offers foaming auto- check function, which is
is a solution to incomplete rinse due to over
-
dispensing of detergent. The washer can
sense the volume of foam formed automatically. When foaming is detected, the
Introduction of Other Functions
2. For clothes made of special materials such as woolens, cashmere and wool, please check if the
clothes has a machine
- washing tag and the requests to the temperature.

K. Super-clean Rinse Key
Press the key and super -clean icon in the LCD will illuminate. When the program comes to
softening process, the washer will add an extra rinse process. ( This feature is not available in some
programs. Please see Program Setting Guidance Table for details.)
Functions
Foaming icon in the LCD will illuminate and an extra rinse cycle will be
added before the program completes. Program time duration will increase automatically.
Quick wash Slightly-soiled
Textiles
Slightly-soiled
Textiles
Duvet
Sport wash
Wool Wool
D . Auto-shower function:
E
