Haier XPB90-99VGS User manual

Twin-tub Washing Machine With Pump
Please read this manual carefully before using.
Retain it for reference
please check if the power receptacle is earthed
reliably before usage to guarantee your safety
The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.
User's manual
Names of the parts.............the 2nd cover
Safety precautions ...............................1
Installation and adjustment ..................3
Introduction of the major functions .......5
Preparation before washing ................6
The musts in washing .........................7
Usage of the detergent .......................8
Washing sequence ..............................9

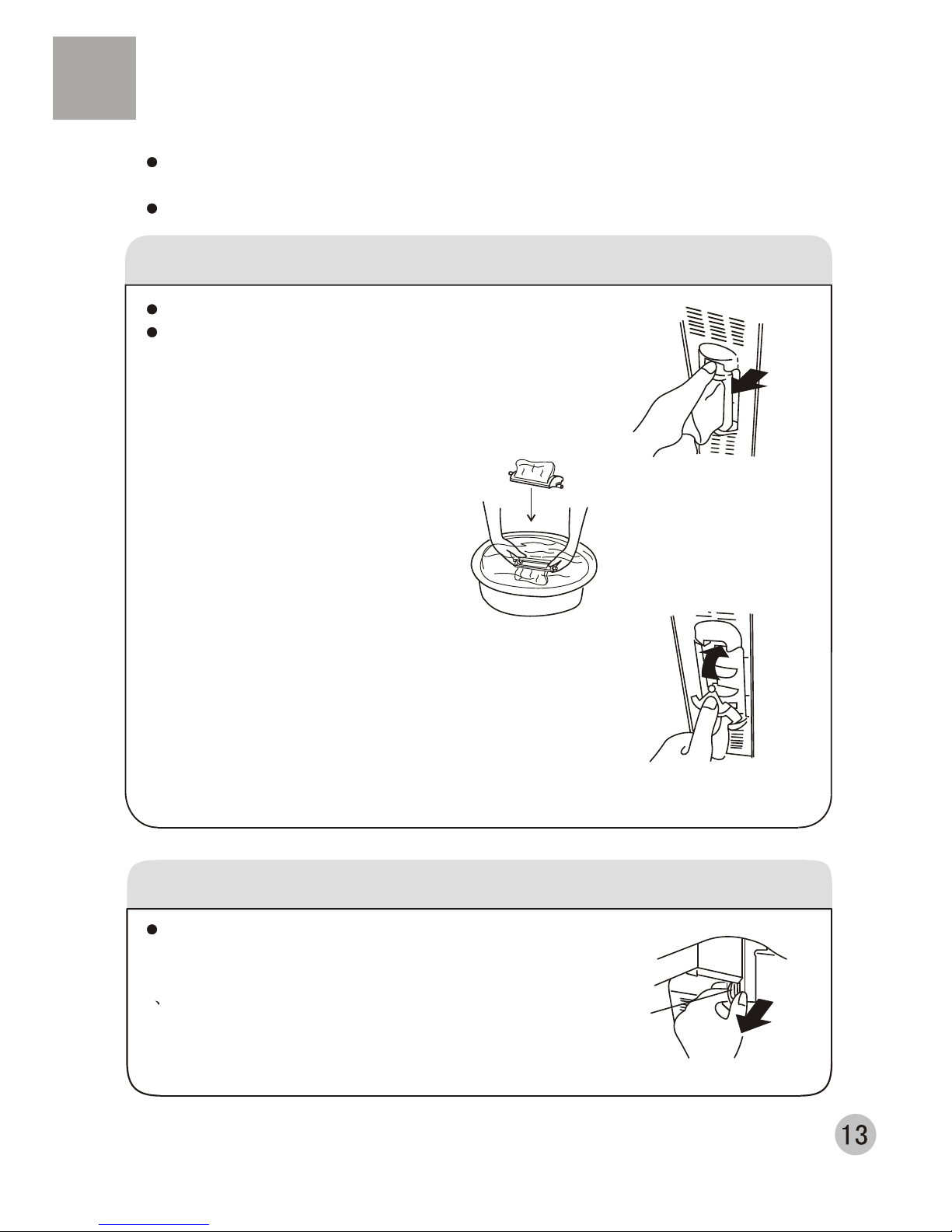

Disposal after washing .......................13
Contents
Before using
Using process
Trouble-shooting*
Answers to question.....................15
Specification*
Circuit diagram...........the back cover
Packing list ......................................16
XPB90-99VGS

Before Using
Before Using

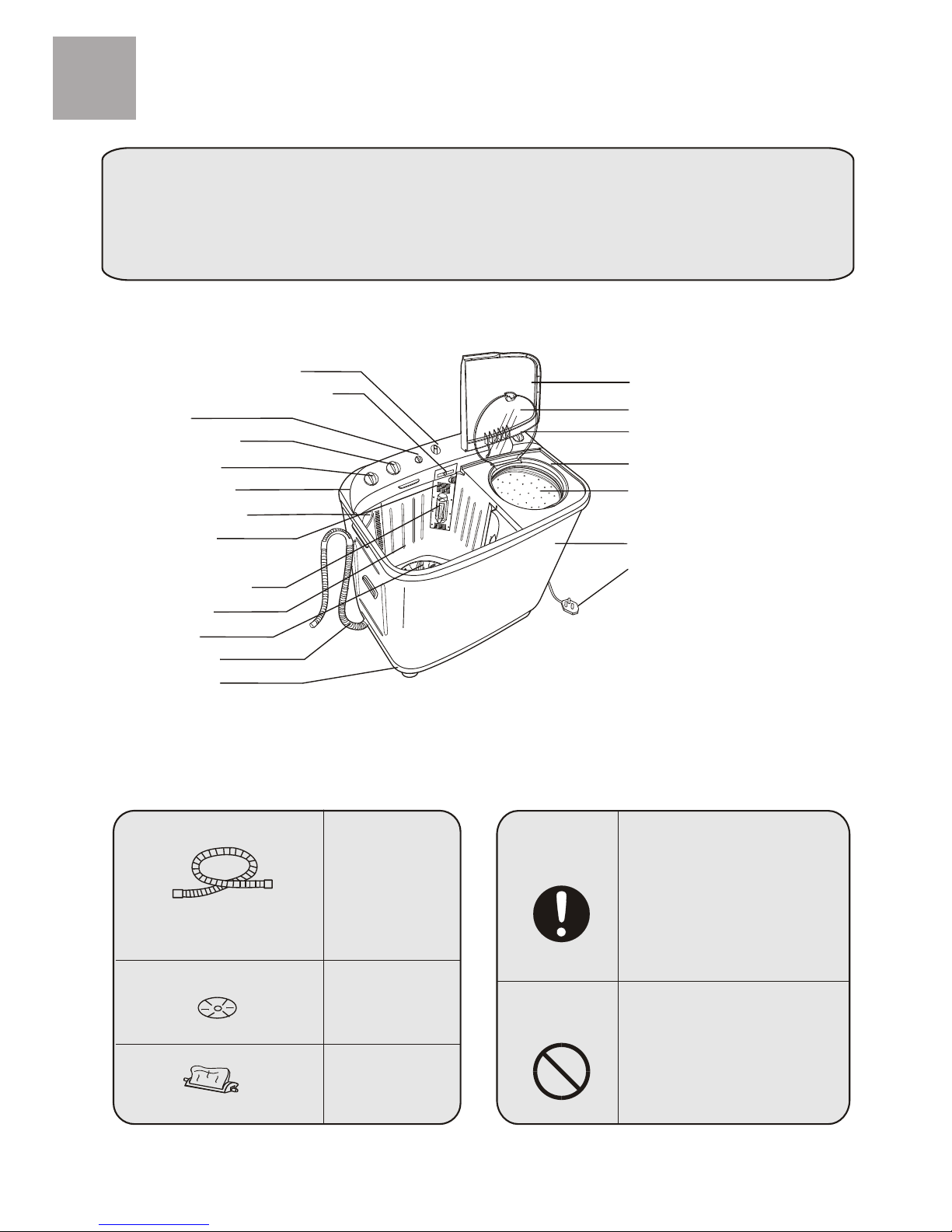

Names of the parts
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Power cord
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Water-filling entrance
Water inlet selector handle
Buzzer
Wash selector
Wash timer
Control panel
Cascade outlet
filter frame
Inner tub
Pulsator
Drain hose
Base frame
Honourable users,
Thank you for choosing our products.
Our products integrate high-tech, precision, frontier science .To facilitate using it, please read this manual
carefully and operate this machine according to it.
Accessories
Water inlet hose
(one piece)
Gland
(one piece)
Lint filter
(one piece)
Lint filter(installed by user)

Before Using
Before Using

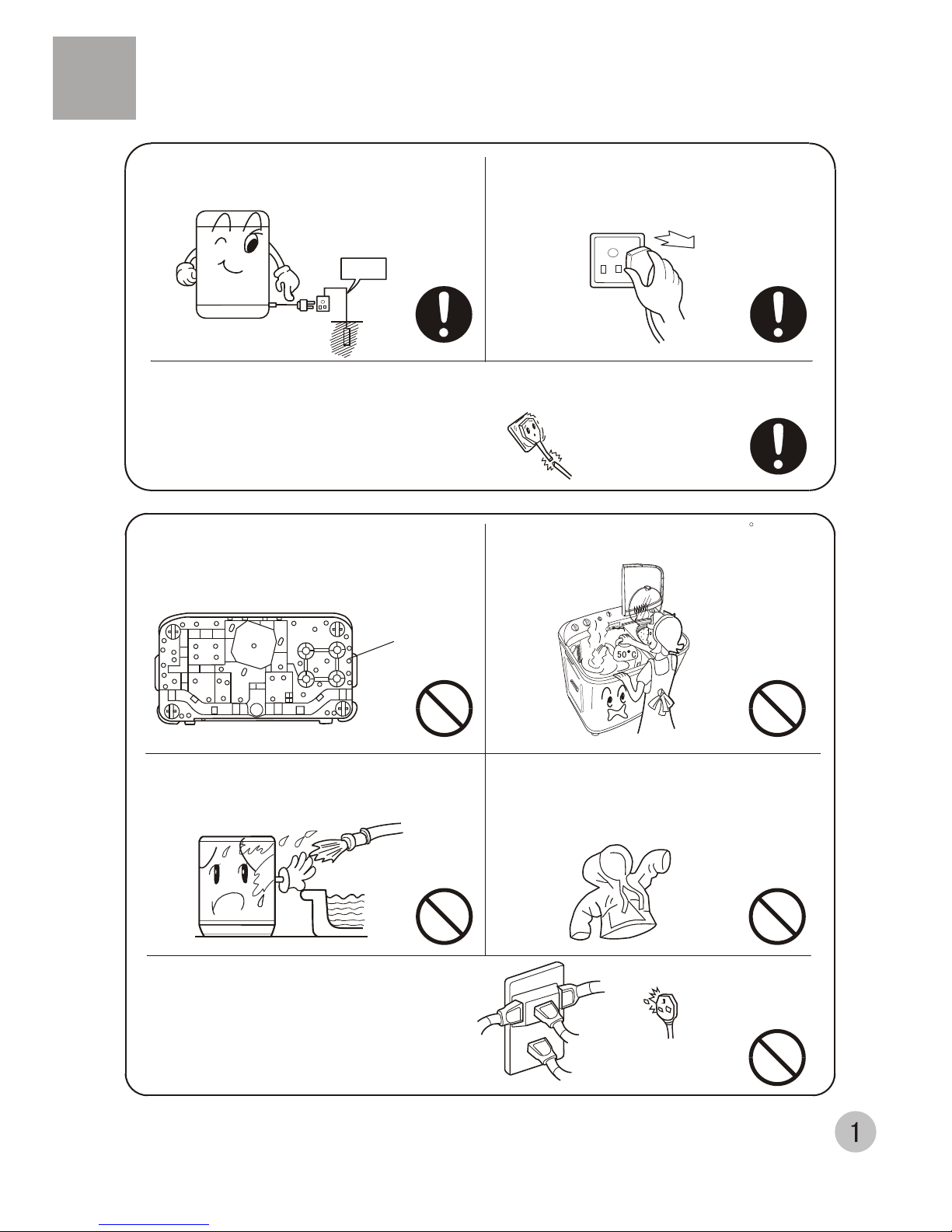

Safety precautions
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to use three-phase receptacle.
Earth the earthing terminal of the
receptacle reliably.
Do not put the machine at damp place
like the bathroom . Never wash it with
water.
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Be sure to pull the plug off when there's
power failure, or the machine is being
moved, cleaned or when it is idle.
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.

Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Handicapped or children without care
shall not use the machine.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
Safety precautions
To prevent your laundries and washing
machine from damage , be sure to take
out of the foreign materials from your
pocket , such as coins, buttons, sand
or hair pins etc.
Before washing, please check if the
water tap is open, and if the water inlet
pipe is connected properly.
It is suggested to use low-foaming
washing powder

Before Using
Before Using

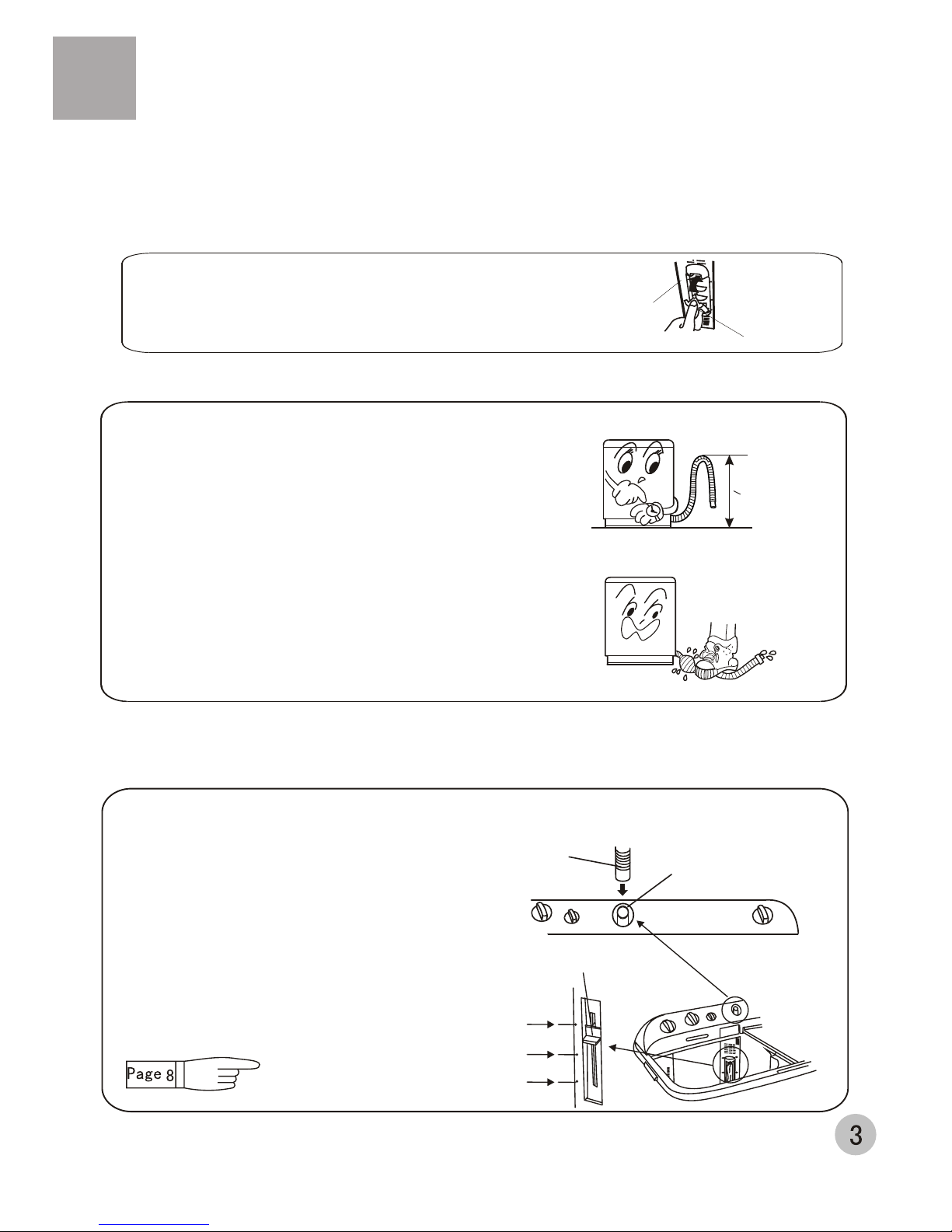

Installation and adjustment
Install the water inlet hose; Select the water level
(about 68L)
Maximum Max
(about 83L)
Minimum Min
(about 49L)
Medium Med
Insert the water inlet hose into the water-filling
entrance on the control panel directly. (pull it
out to dismantle it)
Select water level according to the
quantity of the laundries.
Attention:
In water filling, do not exceed
the"Max" water level. Otherwise
the water may overflow out of the
washing machine.
Water inlet hose Water-filling
entrance
Water level
adjusting lever
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Usage of the drain hose
<1.2m
The drainage shall be smooth with the drain hose
1.Put the drain hose up to suitable position
2.Do not step on or press the drain hose
Install the lint filter
After opening the package, please take out the
lint filter from the document bag and install it
into the Filter frame of the inner tub. See to the right Figure.
Lint filter
Filter frame

Extend the drain hose from the rear side
How to change the direction of the drain hose
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 1
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Back
Before Using
Before Using
Extend the drain hose from the side of spin tub
Soft item
Soft item
Extend to the
spin tub side
Dismantle the drain hose fixing clamp.
Take out the drain hose from the fixing groove.
Extend it from the rear side as per the direction
of the arrow. (When the drain hose is extended
from the rear side, it can be hung on the point
for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Front
Drain hose fixing clamp

Using process
Using process

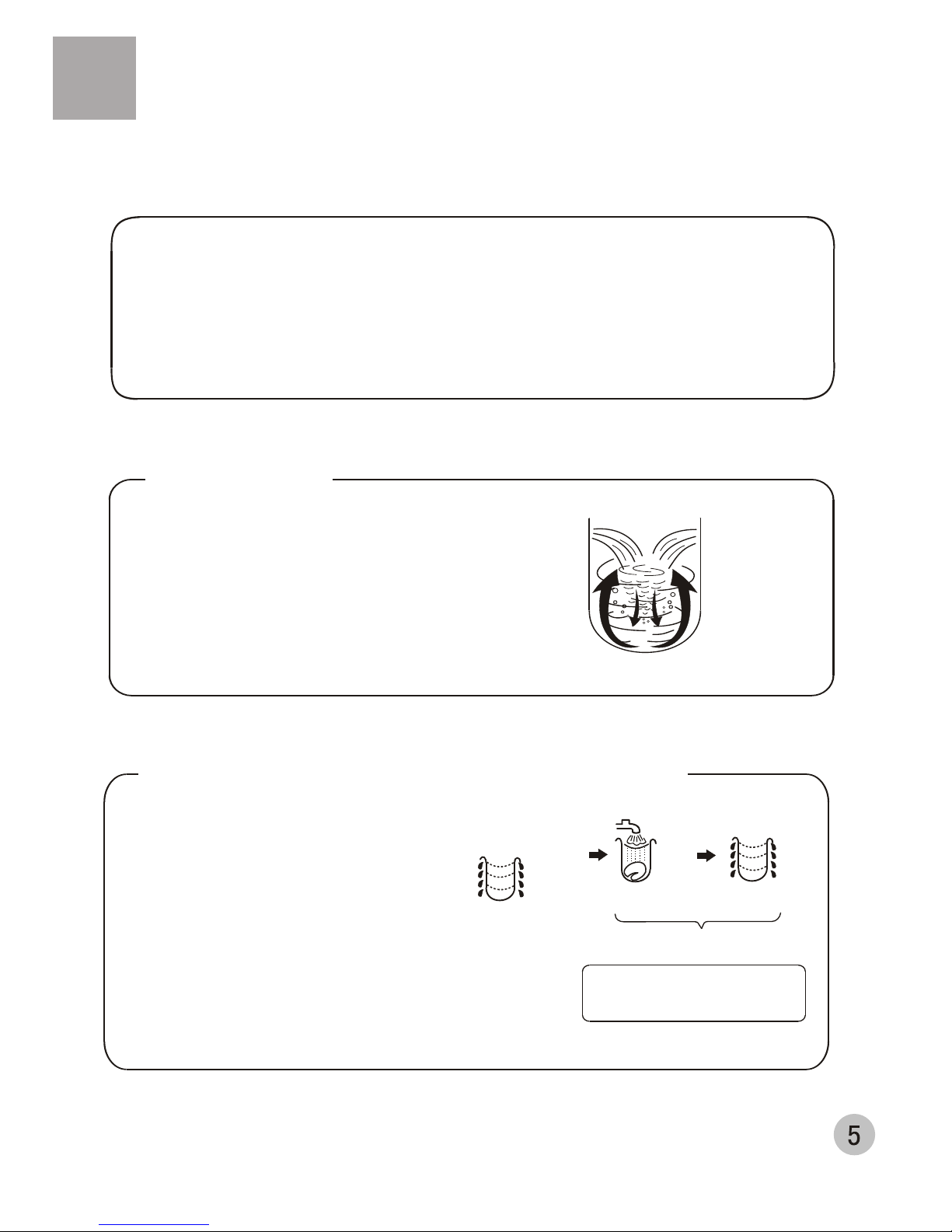

Introduction of the major function
Use the foam-removing spinning to
remove the extra detergent liquid. It
can both shorten the washing time
and save the water consumption.
Foam-removing
spinning
Remove most of
the foam extra
detergent liquid.
Remove the detergent
liquid remained
The effect is best when the
laundries quantity is below
80% of the rated value.
Spin
Fill water for
about 1 minutes Spin for about 1~2 minutes
The machine has good comprehensive performance, and nice appearance.
For the design on mute ,It adopts complete enclosed base frame and low-noise
motor, and thus reduces the working noise significantly. We can guarantee that the
purchase of this machine will bring you a clean world without disturbing your quiet life.
Foam-removing spinning during high-efficiency rinsing
The cascade washing it adopts can enhance
the strength of the water current, and dissolve
the detergent quickly and completely. At the
same time it can produce flushing effect, and
improve the washing effect.
Cascade washing

Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
Preparation before washing
Pay attention to followings before washing the laundries
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put the drain hose up to the suitable position .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
<1.2m

Reference weight of the laundries
Working suit up,down
Jeans about 800g
The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The largest capacity of this machine is
9.0 kg.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " Max " water level for
laundries less than 4.0kg, so as to avoid
splashing of water.
Blending coat
about 800g
Shirt Jacket
Single bed sheet
Socking
Underpants
Undershirt
Pajamas
Blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
The musts in washing
cotton,about 1120g

Selection of the quantity of the washing powder list 1
Selection of the current , water level and washing time list 2
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.
Laundries
quantity
Laundries
quantity
Water level
Water level
Current
Standard dosage
Concentrated washing
powder
Laundries
Common washing
powder
Washing time
(minutes)
Water quantity
Water quantity
About About
About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10
About About
About About
6.4kg~9.0kg
4.8kg~9.0kg
4.0kg~6.4kg
Below4.0kg
Below4.8kg
Maximum (about83L)
Maximum(about83L)
Strong
Minimum(about49L)
Minimum(about49L)
~
Standard
Medium (about68L)
Medium (about68L)
~
Medium (about68L)
75g
61g
43g
83g
68g
49g
Usage of the detergent Using process
Using process
Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen

OFF OFF
MAX
OFF
OFF
Washing sequence
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
WOOL
WOOL
WOOL
Spin timer
SPIN TIMER
SPIN
WASH
Wash timer
WASH TIMER
WASH TIMER
DRAIN
STRONG
STANDARD
WASH SELECTOR
Wash selector Buzzer Water-filling entrance
(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).
LINEN
LINEN
Using process
Using process
(standard current,
strong current) (The buzzer will ring when
the washing finishes) (to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
Water-filling selector
Wash
SILK
SILK
SILK
COTTON
COTTON
DRAIN
DRAIN
STRONG
STRONG
STANDARD
STANDARD
WASH SELECTOR
WASH SELECTOR
1.Water-filling selector
Set the water inlet selector at the "WASH" side.
(Figure 1)
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.
3.Put in the laundries. If the water quantity is
insufficient, please add water.
4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)
5.Select the washing time
Select the washing time according to the laundries.
(Figure 4)
6.After washing, the buzzer will ring. Set the "WASH
SELECTOR" at "DRAIN". (Figure 5).
BUZZER
XPB90-99VGS

Midway spinning
1.
2.
3.

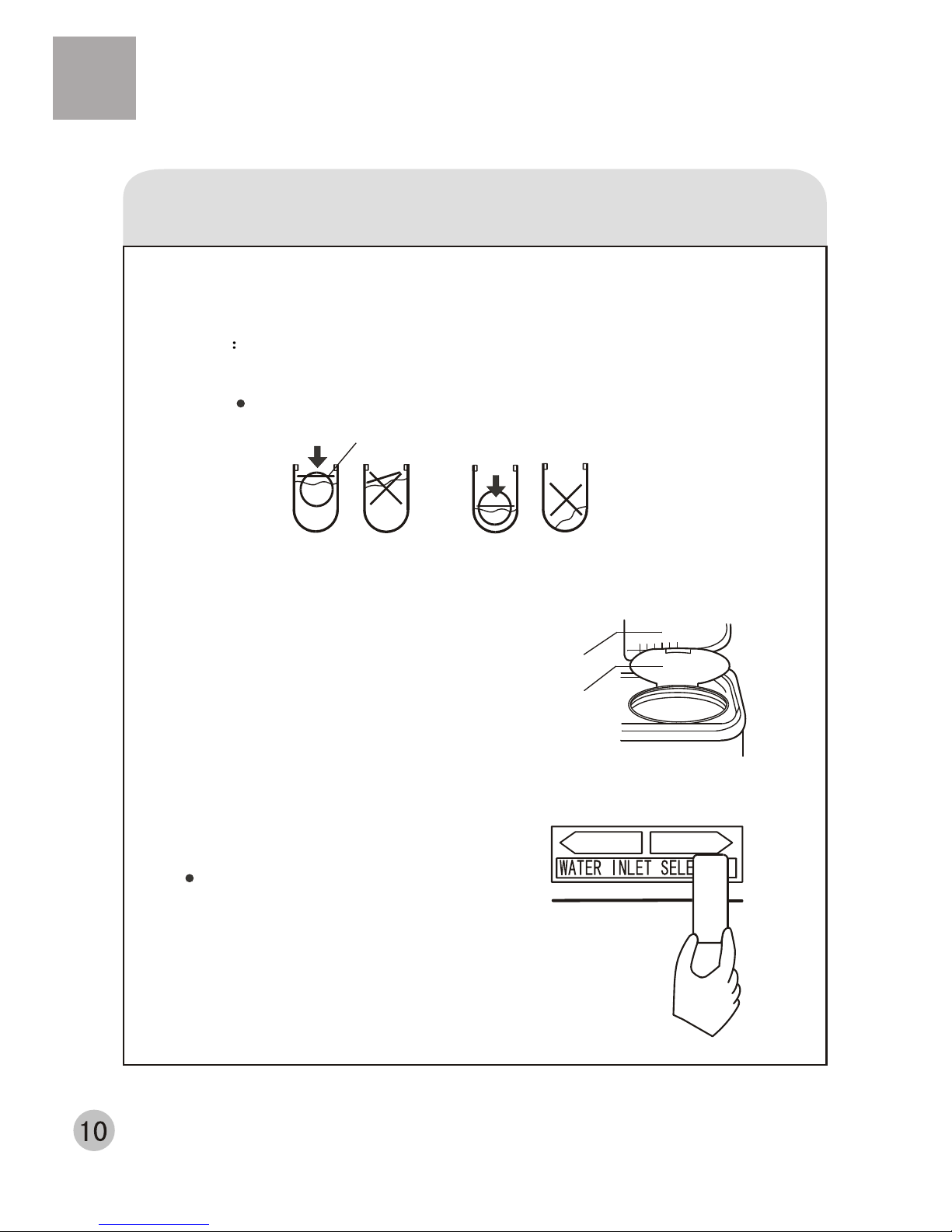

Put the laundries into the spin tub evenly and smoothly.
Spin
Run the foam-removing spinning.
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
Using process
Using process
(1) Put the gland in properly.
Please put in the gland properly even if the laundries quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
(1) Open the outer cover of the spin tub.
(2) Set the water-filling selector control
rod at the "SPIN" side. Fill water for
about 1 minute.
If the water quantity filled is too large,
the water may flow out from the wash
tub side. Please twist the water tap to
limit the water filling.
(3) Close the outer cover of the spin tub.
Spin for 1-2 minutes.
SPIN
WASH

Rinse with stored water
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is below 4.0 kg, please use "STANDARD" current.
If you use "STRONG" current, it may splash.
If the water flows out from the overflow holes, it means that water filling
quantity is too much.
Rinsing
Using process
Using process
(Repeat the midway spinning and
rinsing with stored water for 2-3 times)
OVERFLOW
If the water flows out of the
overflow holes,that is
overflowing,please twist the
water filling,to avoid influencing
the life of the machine

Selection of the spin time list 3
Laundries Spin time
(minutes)
About 4~5
Bed sheet or
blanket
About 2~4
Underwear
(knitwear)
Swear
(chemical fiber) About 1~2
Within 1 minute
Blending thin
laundries
Using process
Using process
1. Put the laundries into the spin tub
evenly and smoothly.
2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.
3. Spin
Select suitable spin time according
to the laundries, and do spinning.
During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.
In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.
Spinning
To do spinning and draining together,
please first do spinning for around 1
minute, then do draining. Otherwise
the spinning will stop owing to too much
water stored in the spin tub.

1 Take off the filter frame.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Cleaning the filter frame
Too much lint on the filter frame will influence
the normal usage of the machine. Please
clean it every two months.
Elastic fixing
claw
Figure 2
Figure 3
Figure 1
1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. ( See to
Figure 1)
2. Clean the lint
Put it in water and clean while it is
still wet.(See to Figure 2)
3. Install the lint filter
After cleaning, insert the bottom
of the lint filter ( marked with
"down side") into the filter frame ,
then push the upper part of the
filter in ( marked with " up side ").
(See to Figure 3)
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Using process
Using process
Disposal after washing
After using, please clean the lint and foreign materials of the lint filter and lint frame
in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.

Wipe the complete unit with soft cloth
twisted dry.
Wipe with neutral detergent if too dirty
Do not wash it directly by water
Using process
Using process
Hook
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
Disposal of the complete unit
Thinner
Alcohol
Petrol
2. Cleaning the filter frame
Clean the lint around the frame
and flush with tap water.
3. Install the filter frame.
(1).Insert the mounting plate at
the bottom of the frame into
the valve cover.
(2).Hang up the hook at the left
upper side.
(3).Push the upper part in as
indicated in Figure 2.
Cleaning the filter frame

Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
When the remained water is frozen
Prevent the freezing (be sure to discharge the water completely after using)
After complete draining, set the "WASH SELECTOR" at "STRONG" or "STANDARD".
If it is set at "DRAIN", it will be rather difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.
Phenomena The reason
The machine does not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
The draining does not work
Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
There's abnormal sound
during washing Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some water
flowing out of the drain
hose in the first use of
the machine.
There's abnormal sound
and violent vibration
during spinning
The pump is working, but
no water to be drained out
Turn the wash selector to the other position
except DRAIN the spinning timer does
not work, and then return to the DRAIN .
The water will be drained out .

User's manual One
One
One
One
Water inlet hose
Gland
Twin-tub washing machine
Packing list
One
One
One
Water inlet hose
Gland
Twin-tub washing machine
User's manual
Lint filter One

Type
Model
Power source
Water level Water quantity about
Rated washing capacity kg
Rated input power W
Dimension(mm)
Wash pattern
Weight kg
Injection pressure
Rated spinning capacity kg
Twin-tub washing machine with pump
XPB90-99VGS
Maximum/83L Medium/68L Minimum/49L
9.0
7.8
Wash 560 Spin 325
L876 W500 H986
New current + cascade
45
0.02MPa~0.2MPa
Rated voltage 120V~,Rated frequency 60Hz
Specification
