Haier slim3 User manual

Front Load Washing Machine Model:slim3
1
1.Contents---------------------------------------------------------------------------------------1
2.Features --------------------------------------------------------------------------------------3
3.Sale points------------------------------------------------------------------------------------4
4.Specification ---------------------------------------------------------------------------------5
5.Safety------------------------------------------------------------------------------------------7
6.Installation ------------------------------------------------------------------------------------9
7.Maintenance---------------------------------------------------------------------------------11
8.Net dimension ------------------------------------------------------------------------------13
9.Names of the parts-------------------------------------------------------------------------14

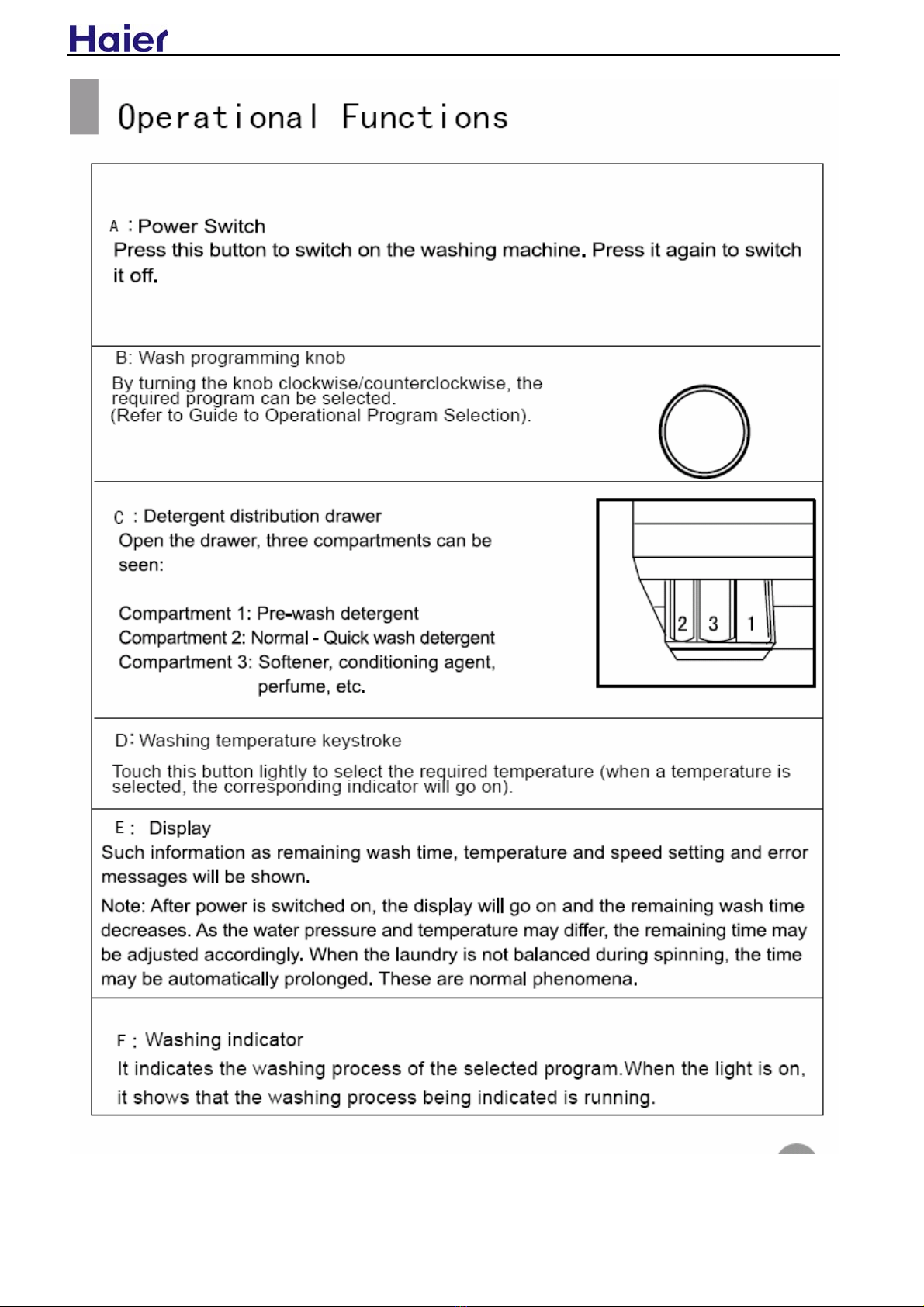

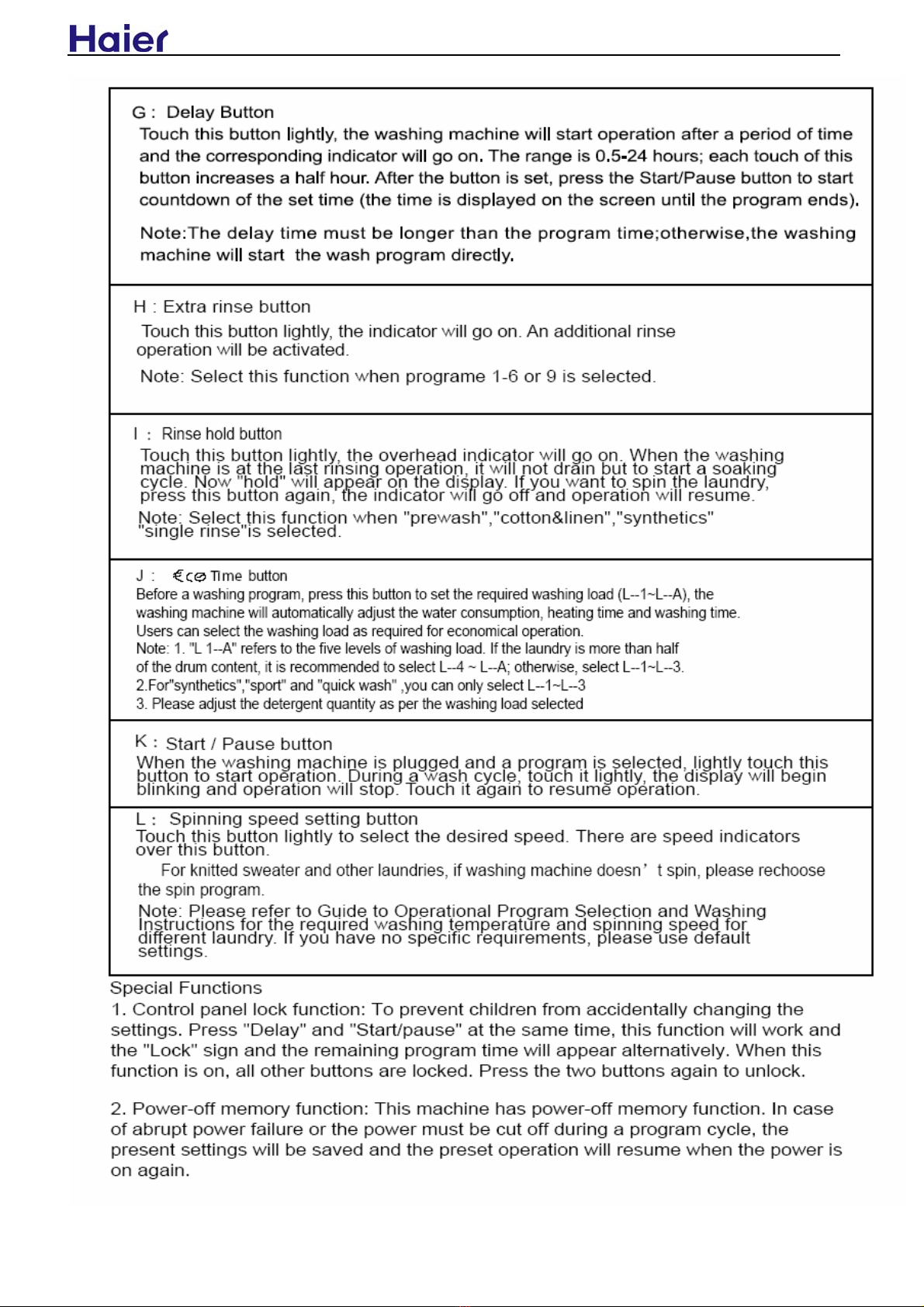

10.Operational Functions------------------------------------------------------------------ 15
11.Trouble shooting---------------------------------------------------------------------------17
12.Wiring circuit ------------------------------------------------------------------------------- 24

Front Load Washing Machine Model:slim3
３
FRONT LOAD WASHING MACHINE
Service Manual
Suited model:
Slim3
Features：
●300mm diameter porthole, door may be open at a 180 degrees.
●Class-A energy-saving; Homocentric tubs with higher energy efficiency
●Multi-gear speed controller
●Unique gasket design featuring no residual water hidden inside
●Delay time adjustive
●Large wash load capacity 5kg
●With AQUA STOP inlet hose,further improve the grade of safety
Serial Number: SM HW-DS50TVE SERIES-01 Version:00.00 Edition: 2006-7-10

Front Load Washing Machine Model:slim3
４
FEATURES
●300mm diameter porthole, door may be open at a 180 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
●Class A energy-saving,Class B washing performance
Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the energy
efficiency class to A,also use scientific washing in order to getting class B washing performance.
●Multi-gear speed controller
According to different costuming，you can select corresponding spin speed，from 400 to 1000 rpm.
●Unique gasket design featuring no residual water hidden inside.
By the unique gasket，washing machine can left no residual water hidden between outer drum and front board.
●Delay time adjustive.
According to different costuming，you can select delay time，from 0.5h to 24h.
●AQUA STOP
Using AQUA STOP inlet hose, you will never be worried about water overflow.
Sale points
One sentence for simplicity：
Tight machine body without any wasting places
Three sentences for convenience:
I. Choose from 11 programs, convenient uses to provide you much benefit
II. Front-Load structured to ensure placing clothes much more facility
III. Humanistic design for control panel to help expedient operation
Five sentences for tech-support:
I. No need to be worried because of the function of intelligent-memory
II. Satisfied to encourage children’s curiosity because of the child-lock
III. Perish your trouble because of the alarm to the fault
IV. Make you happy because of quick-wash in 29 mins
V. Reassure for you because of the 24hours pre-wash which may offer you washing anywhere and
anytime.

Front Load Washing Machine Model:slim3
５
SPECIFICATION
Proposal 2006 New Sensor
Front load washing machines Slim3
1. Product identification
Description of appliance Washing machine
Type of appliance (FS = standing, BI = built-in) FS
Supplier own brand
Supplier bar code EAN TBC
Mares computer code -
Commercial Brand / Model
Commercial bar code EAN
2. Key-Features
Energy efficiency class A
Washing performance class B
Spin efficiency class C
Programs n° 11
Capacity kg 5
Spinspeed (max. / optional) rpm 1000-400/800-400
Noise level dB(A) 62
Energy consumption per wash circle * kWh 0.94
Water consumption* l 59
Residualdampness (spin result) % 63%
Spin speed selector switch (steps) rpm

Spin speed variator (stepless) rpm 
Adjustablethermostat (water temp. adjust from - to)°C 90/60/50/40
Drum capacity dry laundry / water kg / l 5/ 59
Auto water level adjust (depending on volume of filled in laundry) AWL 
Washing time (max.) min 152(TBC)
Certification's (CE / ISO 9001 / ISO 9002) CE / ISO 9001
Approvals (VDE/GS / TÜV/GS / IMQ) TÜV/GS (Rhl.)
* EN 60456 (60°C cycle, full load without pre-wash)
 = COLD 
3. Basics data
Unitdimensions (HxWxD) cm 85 x 59,5 x 40
Net weight kg 63
Voltage/frequency V/Hz 220-240V~50Hz
Input power / main fuse (intensity) W / A 2000/10
Work top / removable /
Control M= electromechanical, E= electronic, F= fuzzy E
Inner cylinder S = stainless steel / Z = zinc coated S
Outercylinder P = Plastic / S = stainless steel P
Door:
aesthetic (R= round, Y= big eye, Q= square) Y
Diameter cm 30
Outer door frame S= stainless steel / M= metal / P= plastic P
Inner door G= glass / P= plastic G
Detergent compartments n° 3
Removable compartment for liquid detergent -
Delay timer (from - to) h 0.5-24
Self cleaning suds pump 
Water inlet hose cold water / hot water 
Water drain hose / -support /
Adjustable feet n° 4
4. Safety systems
Auto door lock ADL 
Motor overheating protection MOP 
No heating without water NHW 
Auto water cool-down (before drain 90°C boiled water) AWC 
Water return protection WRP 
ACQUA Stop kit -
Child protection 

Front Load Washing Machine Model:slim3
６
5. Programs
1) Strong action /cotton cycles n° 1
2) Normal action / synthetics n° 1
3) Delicate action / wool cycles n° 1
Pre-wash / wash /
Quick wash / super quick wash /-
Rinse / soften /
Delicate / hand wash -/
Wool / cashmere /-
Soak / spin /
Drain 
Easy ironing 
Optional function keys (additional program settings)
ON/OFF button 
Delay 
Extra rinse button 
Spin exclusion 
Spin reduction rpm -
High water level 
Rinse hold 
Child lock 
Delicate -
Cold wash  
Load selection 
Stand for having the function
- Stand for not having the function

Front Load Washing Machine Model:slim3
７

Front Load Washing Machine Model:slim3
7

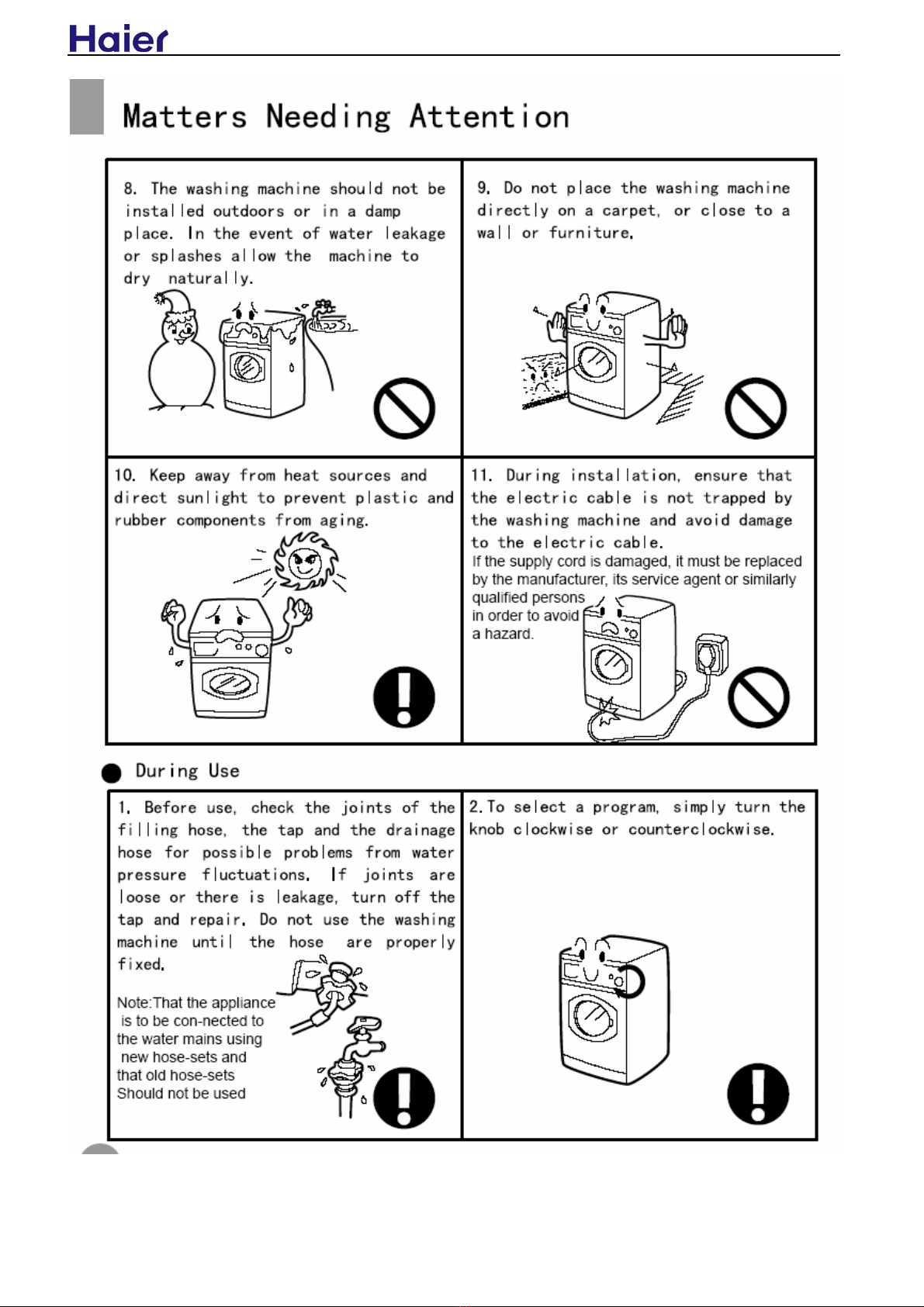

Front Load Washing Machine Model:slim3
8

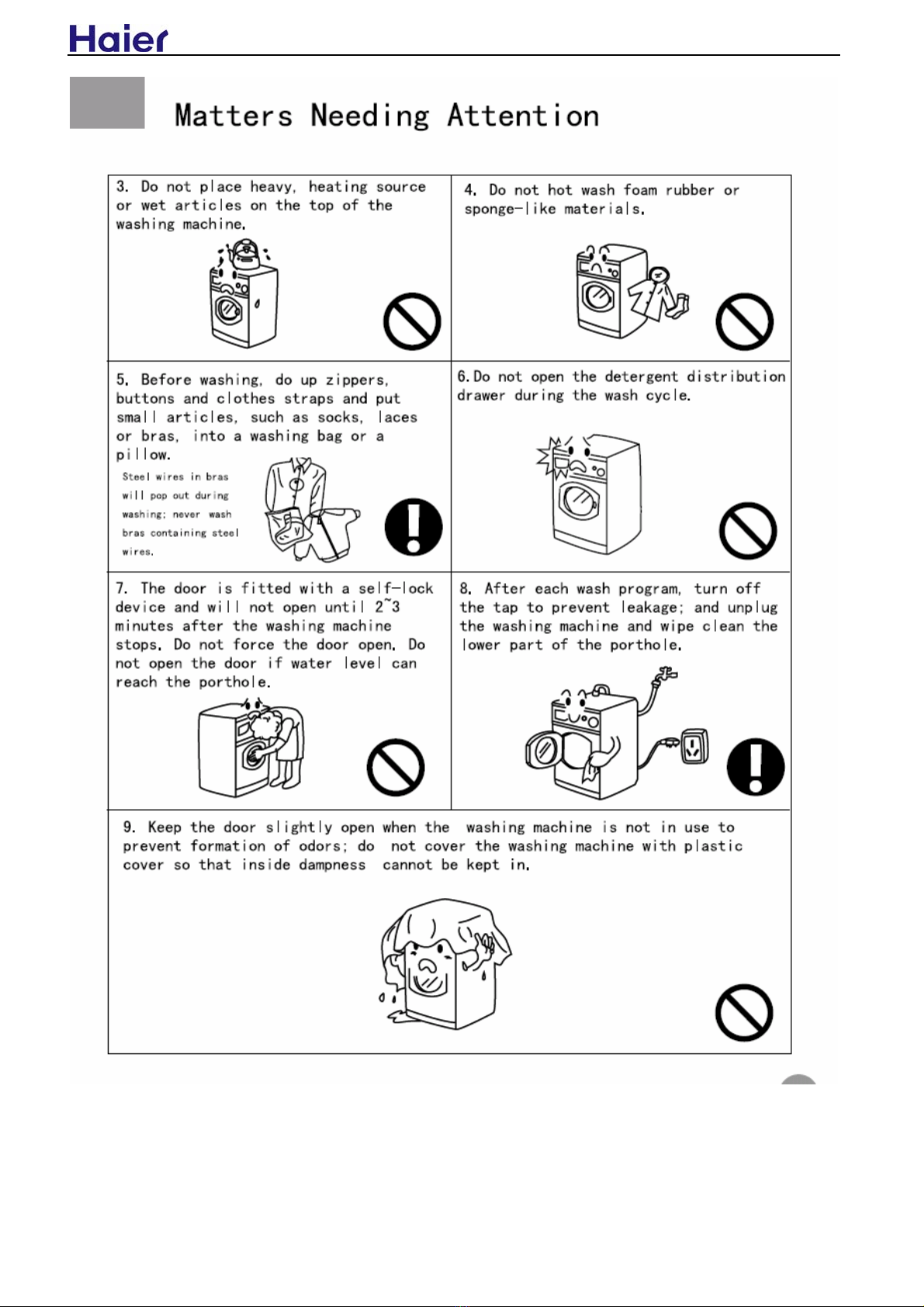

Front Load Washing Machine Model:slim3
9

Front Load Washing Machine Model:slim3
10

Front Load Washing Machine Model:slim3
11
Maintenance

Front Load Washing Machine Model:slim3
12

Front Load Washing Machine Model:slim3
13

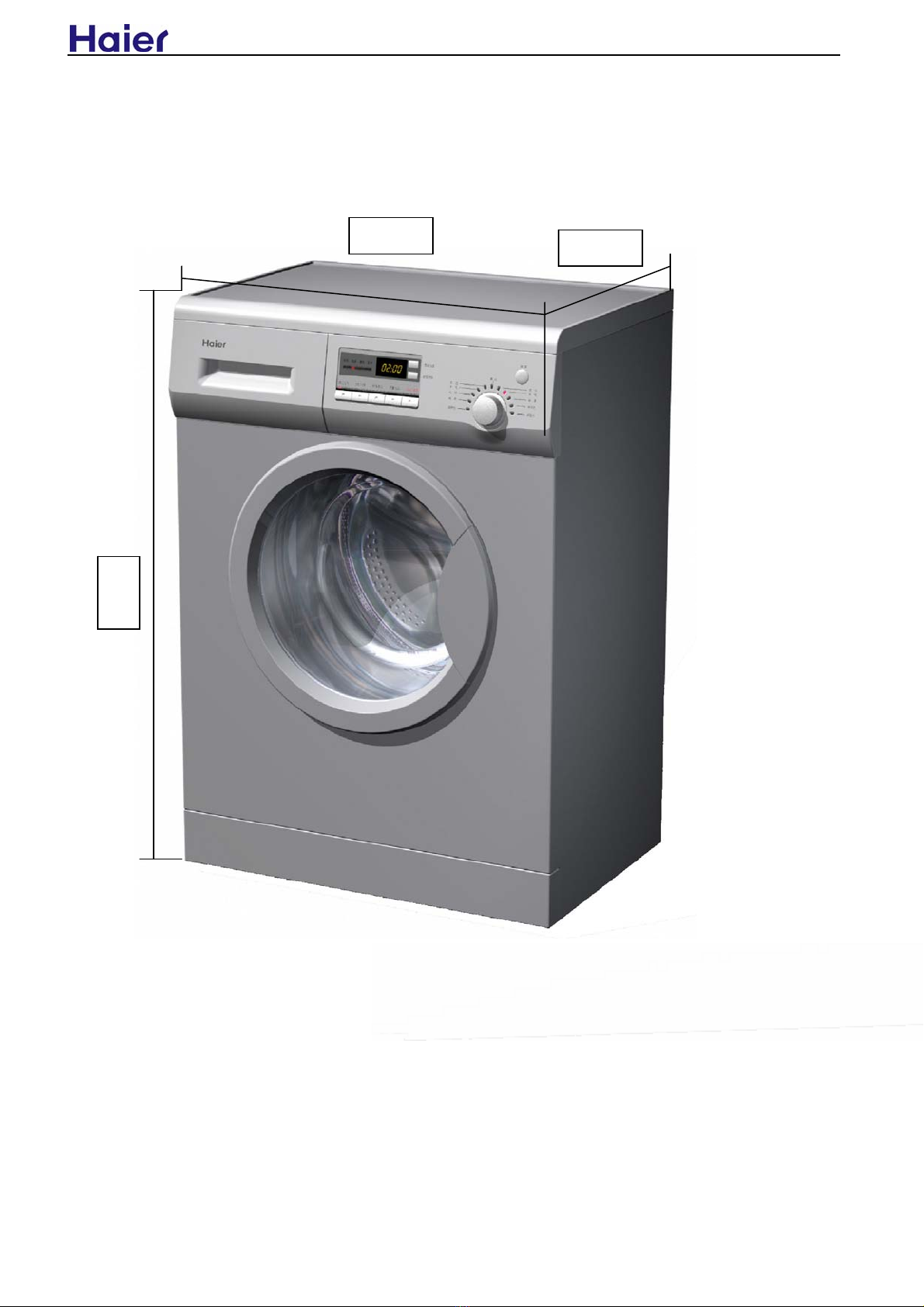

Net dimension
595CM 398CM
850CM

Front Load Washing Machine Model:slim3
14
Names of the part
Detergent
distribution
drawer
Display
door
prothole
Selection knob
Operating
buttons
Door handle
Top panel

Front Load Washing Machine Model:slim3
15

Front Load Washing Machine Model:slim3
16

Front Load Washing Machine Model:slim3
14

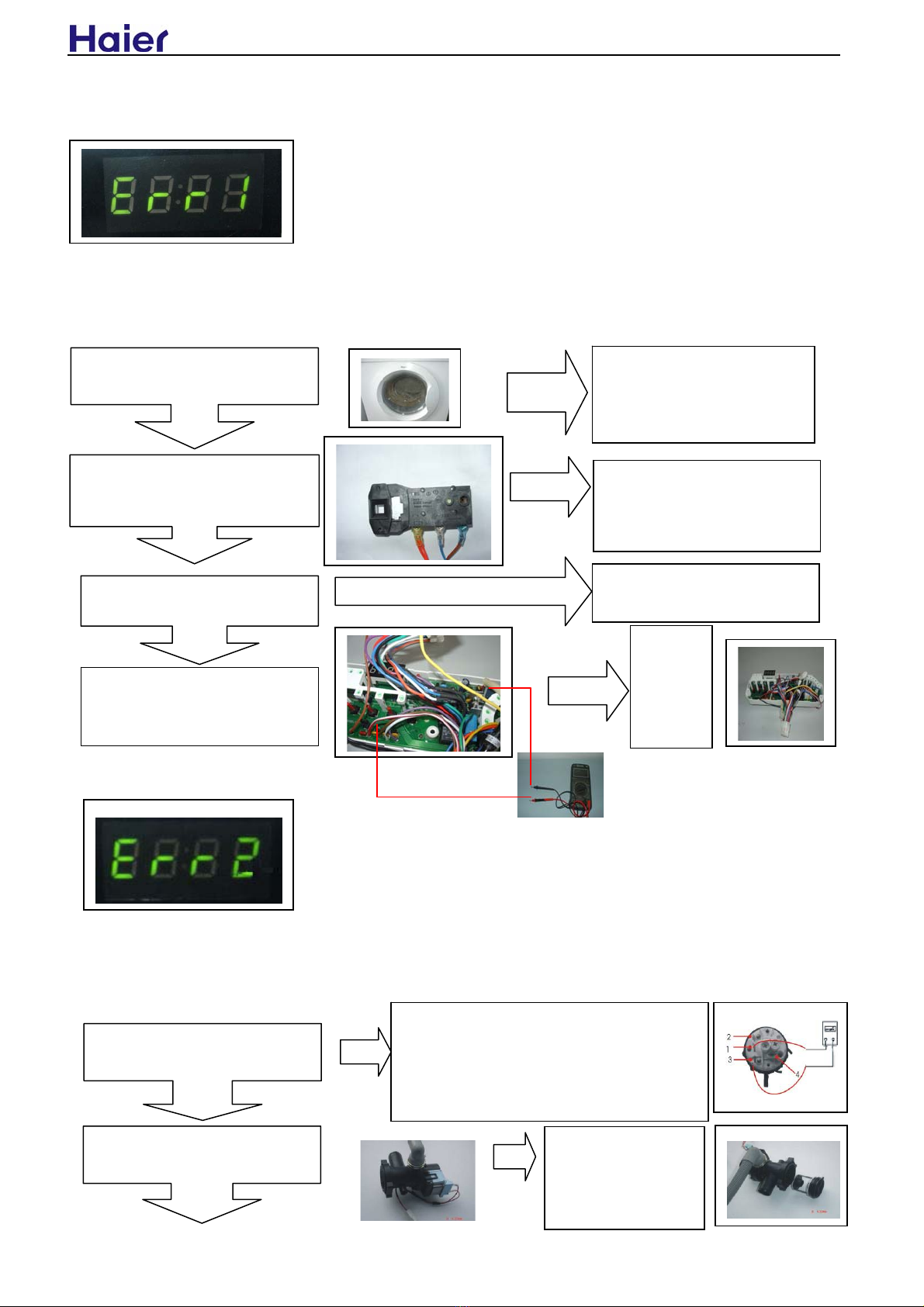

Slim3 Error Display and Troubleshooting
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
N
Pushing the door to Check Whether Door
is properly shut or not Shut the door properly
Y
Error message:Drainage error, water not emptied within 4 min.
Troubleshooting:
Door lock is broken and need
replacing, then make sure wire is
connected properly.
N
Check the voltage between grey wire and
white wire of PCB, is it between AC
220-240V?
Check if drain pump acts by touching
pump position Y
Check if drain pump or
drain pipe is jammed, and
open the filter and clean
Cut off the power and then turn on again.
Check the voltage between brown wire and
red wire of door lock, is it between AC
220-240V?
N
Replace
PCB
Connect the wire properly
Y
Y
N
Check if the wire connecting door lock
and PCB is loose
N
Check if water is emptied Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 1 and 3 pin, is it
infinite? If not, it is water level pressure switch failure
and replace it. If it is, then repair and check PCB and
wire as followed.
N

Front Load Washing Machine Model:slim3
15
(Fig1)

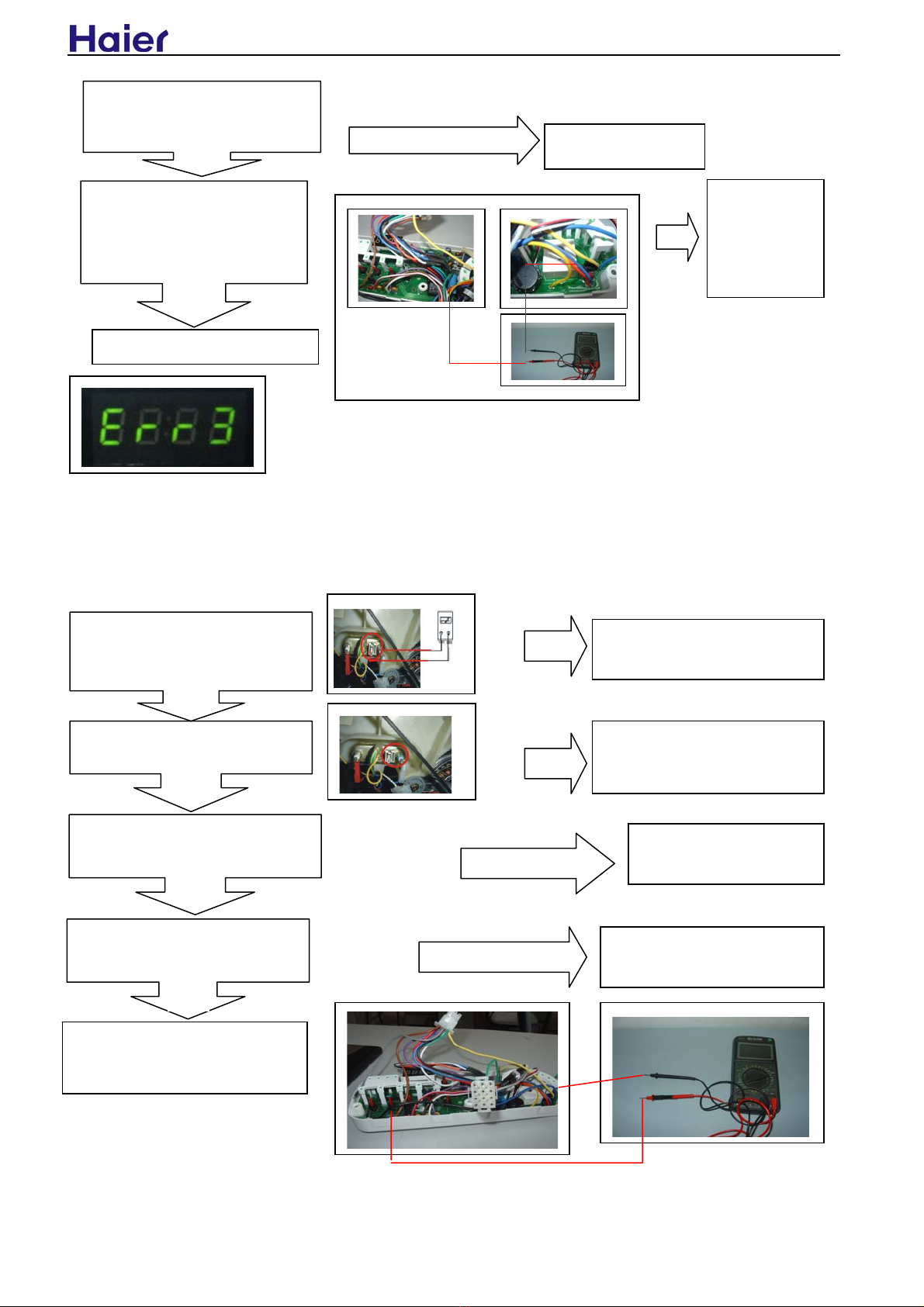

Error message:Temperature sensor is not properly connected or damaged (display at the end of a
program).
Troubleshooting:
N
Cut off the power and choose spin program to
start, then check the import voltage of drain
pump, is it between AC 220-240 V?
YReplace drain pump
The wire between
PCB and drain
pump is not
connected
properly.
Replace the wire.
N
Cut off power and pull out water level
pressure switch wire connection. Set spin
program to start. Check the export voltage
to drain pump, is it between AC
220-240V?between blue wire and green
wire
Y
Replace PCB
Cut off power and measure the resistance
of temperature sensor by multimeter, is
it between 5-14kΩ?
Y
NTC exist open circuit .Replace it
N
Y
Check if NTC is connected properly Connect NTC well
N
N
Disconnect the white wire and black wire
from PCB, and measure if the resistance
between blue wire and black wire of PCB is it
infinite?
N
Check the blue wire and black wire of NTC, are
they connected well?
Connect all wires well
Y
Replace PCB
Replace wire
Y

Front Load Washing Machine Model:slim3
16
Error message :The heater may be broken
Troubleshooting:
N
Y
Y
Cut off power ,check the resistance
Of two pins of heater element by
multimenter is it between 32-35Ω?
Turn on power ,and set wash
mode,then start ,check the export
voltage of heater element between
12-6 and J9-9 ,is it between AC
220-240V?
Heater element
must be broken
please replace
it
PCB must be
broken, please
replace it
Error message:The required water level is not reached within 8 min.
Troubleshooting:
N
Check if inlet valve is jammed Clean inlet valve
N
Y
N
N
Check if water is leaking from washer
bottom. inlet pipe. drain pipe or other
pipe connection
Check if tap is closed or water pressure is too
low (usual between0.2 -1 MPa)
Observe if the height of
drain pipe not reach 80
cm. If water level
pressures switch and
the hose is leaking gas
Y
Draw out the dispenser and check if water is
entering
Readjust or replace the broken parts
Y
Open the tap or wait for normal water pressure to use
Y

Front Load Washing Machine Model:slim3
17
N
Turn on power, and set pre-wash mode, then
start. Check the import voltage of
electromagnetic valve by multimeter
Y Electromagnetic valve must be broken, please replace
it.
, is it between AC 220-240V?if the hot water
can also come into dispensor..check the
voltage between the white wire and blue
wire that they are not connected
The wire connected PCB and inlet valve is not
properly. Please reconnect it or replace it.
Y
(Fig 2)
Error message:Motor speed error .it may be not properly connected or damaged.
Troubleshooting :
Y
Y
Y
Replace PCB
Check if export voltage from PCB to
electromagnetic valve, is it between AC
220-240V that voltage between grown wire
and white wire of PCB ?
N
Connect them well and test.
Cut off power, and check if motor wire is
connected well N
Connect them properly and test.
Check if the wire of motor is connected well
with computer board. N
Replace the motor.
Replace computer board
N
N
Pull out the motor insert string, and check the
resistance of motor speed measurer and the
winding of the motor, is it as followed?
1-3：180Ω4-5：5Ω
5-6：5Ω4-6：5Ω
Check the import voltage between M1 wind
and M2 wind, is it between AC 220-240V?
