Haier HW80-BP12929 User manual

User manual
Washing machine
HW80-BP12929

Thank You

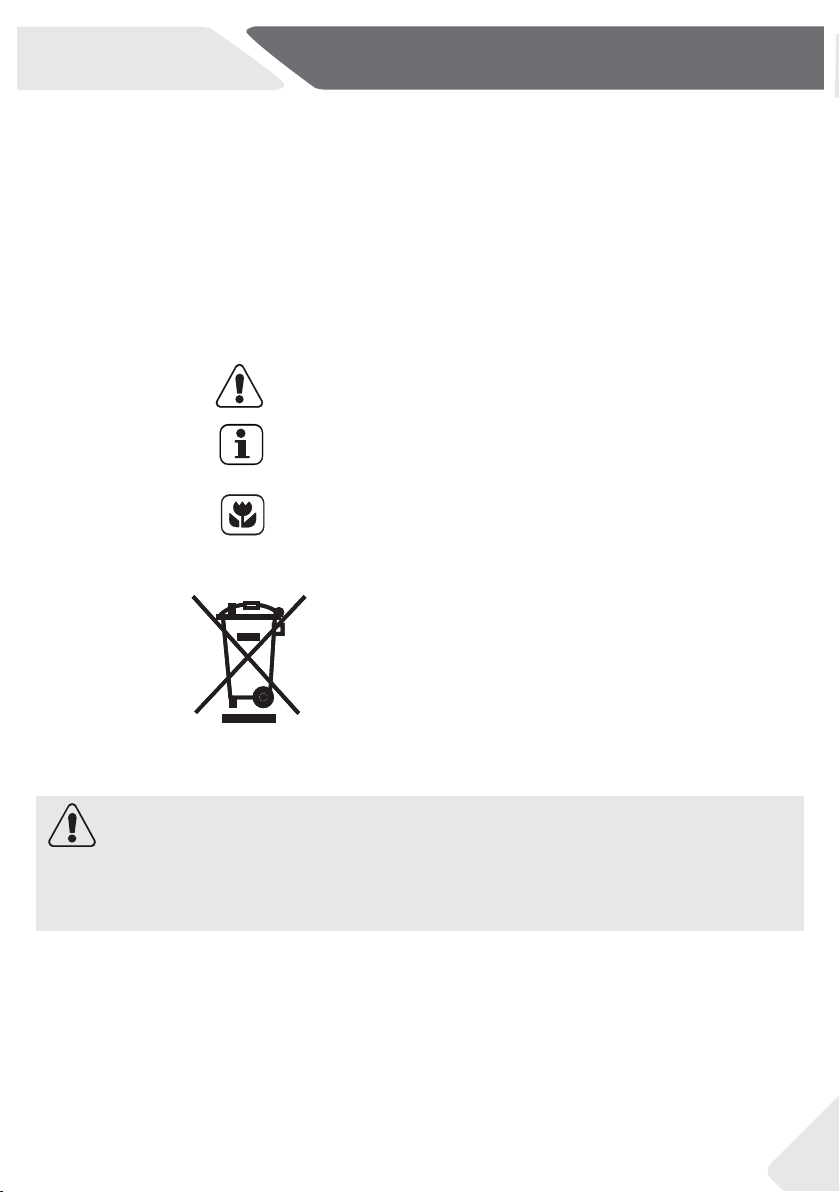

Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your munici-
pal office.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make
sure you also pass this manual so that the new owner can become familiar with the
appliance and safety warnings.
o
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
f it. Remove the door catch to prevent childrenandpets to get closed in the appliance.
Risk of injury or suffocation!
WARNING!
2

Content
1-Safety information................................................................................................ 4
2-Product description.............................................................................................. 7
3-Control panel....................................................................................................... 8
4-Programmes.......................................................................................................11
5-Daily use.............................................................................................................12
6-Eco-friendly washing..........................................................................................17
7-Care and cleaning..............................................................................................18
8-Troubleshooting..................................................................................................21
9-Installation..........................................................................................................24
10-Technical data................................................................................................. 28
3

1-Safety information
WARNING!
Make sure these is not transport damage.
Make sure all transport bolts are removed.
Remove all packing and keep out of children’s reach.
Handle the appliance always with at least two persons because it is hea-
vy.
Daily use
Before first use
This appliance can be used by children aged from 8 years and above a-
nd persons with reduced physical, sensory or mental capabilities or lack
of experience and konwledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way and understand
the hazards involved.
Before switching on the appliance for the first time read the following safety
hints!
Keep away children under 3 years of age from the appliance unless they
are constantly supersised.
Children shall not play with the appliance.
Pull up zips, fix loose threads and take care for small items to prevent l-
aundry from being entangled. If necessary, use an appropriate bag or n-
et.
Do not let children or pets come close to the appliance when the door is
open. Store washing agents out of reach of children.
Do not press or use the appliance when barefoot or with wet or damp h-
ands or feet.
Do not cover or encase the appliance during operation or afterwards to
allow any moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp on top of the ap-
pliance.
Do not use or store flammable detergent or dry cleaning agent in close
vicinity to the appliance.
Do not use any lammable sprays in close vicinity to appliance.
Do not wash any garments treated with solvents in the appliance without
having dried them previously in the air.
4

1-Safety information
WARNING!
Daily use
Do not remove or inset the plug in the presence of flammable gas.
Do not hot wash foam rubber or sponge-like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any wash cycle.
Do not press the door during the washing precess, it gets hot.
Do not open the door if the water level is visibly over the port hole.
Do not force the door to open. The door is fitted with a self-lock device and
will open shortly after the washing procedure is ended.
Switch off the appliance after each wash programme and before under tak-
ing any routine maintenance and disconnect the appliance from the electri-
cal supply to save electriaity and for safety.
Hold the plug, not the cable, when unplugging the appliance.
Maintenance/cleaning
Make sure children are supervised if they carry out cleaning and maintena-
nce.
Disconnect the appliance from the electrical supply before undertaking any
routine maintenance.
Keep the lower part of the porthole clean and open door and detergent dr-
awer if appliance is not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only be the manufacturer, its service age-
nt or simiarly qualified persons in order to avoid a hazard.
Do not try to repair the appliance by yourself. In case of repair please cont-
act our customer service.
Installation
The appliance should be placed in a well-ventilated place. Ensure a locati-
on which allows opening the door fully.
Never install the appliance out doors in a damp place, or in an area which
may be prone to water leaks such as under or near a sink unit. In the event
of a water leak cut power supply and allow the machine to dry naturally.
5

1-Safety information
Intended use
This appliance is intended for washing machine-washable laundry only. Any-
time follow the instructions given on the label of each garment label. It is not
intended for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use may
cause hazards and loss of all warranty and liability claims.
WARNING!
Installation
Installor use the appliance only where the temperature is above 5 °C.
Do not place the appliance directly on a carpet, or close to a wall or furn-
iture.
Do not install the appliance in direct sunlightor in the near of heat sourc-
es (e.g. stoves, heaters).
Make sure that the electrical information on the rating plate agrees with
the power supply. If it does not, contact an electrician.
Do not ude multi-plug adapters and extension cables.
Make sure only the delivered electric cableand hose set are used.
Make sure not to damage the electric cable and the plug. If damaged ha-
ve it replaced by an electrician.
Use a separate earthed socket for the power supply which is easy acce-
ssible after installation. The appliance must be earthed.
Make sure the hose joints and connections are firm and there is no leak-
age.
6

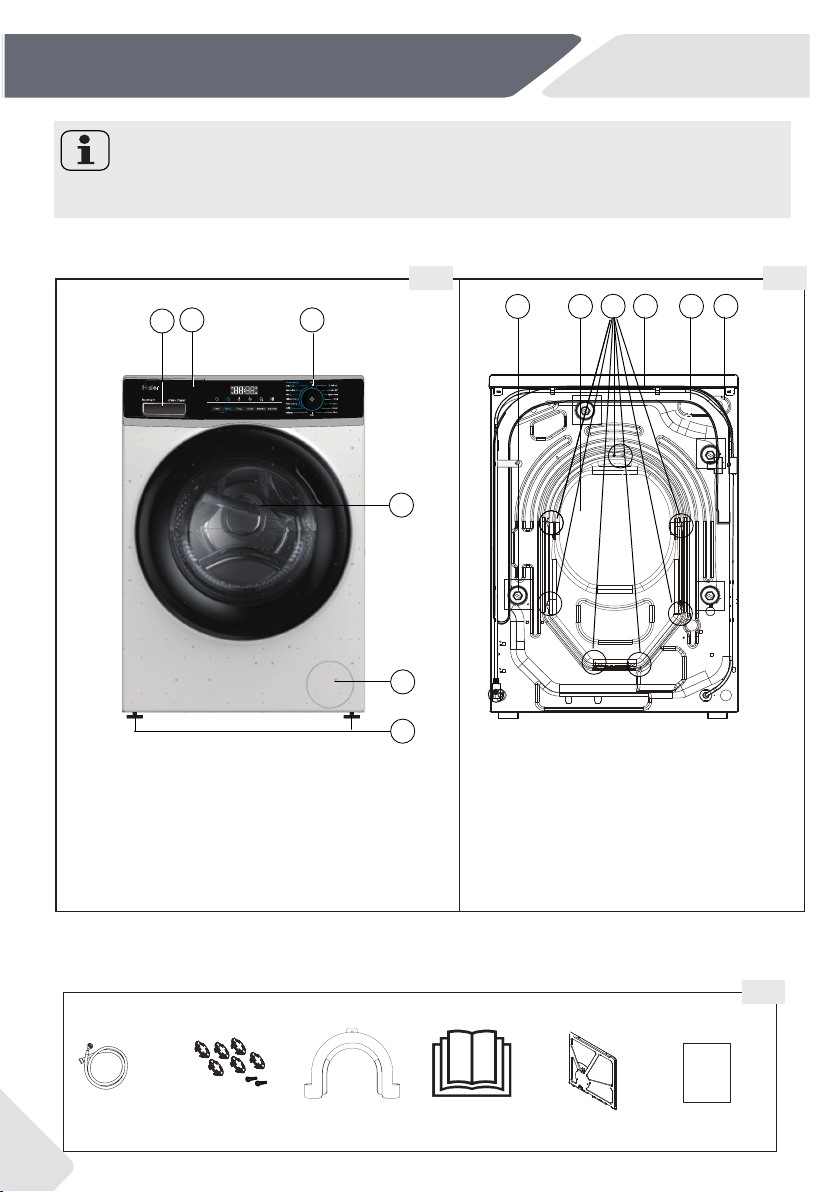

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.2-3):
Note:
1 Detergent/Softener drawer
2
Control panel
3
Worktop
4 Door
5 Filter cover
6 Adjustable feet
1 Transportation bolts (T1-T4)
2 Backcover
Backcover screws (7 EA)
3
4 Power cord
5 Water inlet valve
6 Drain hose
2-1 2-2
2-3
2-Product description
Inlet hose
assembly
6 Blanking
plugs+2 Screws Drain hose
bracket User manual Warranty Card
Warranty Card
Bottom plate
Due to technical changes and different models,the illustrations in the following ch-
apters may differ from your model.
7
13
2
6
4
5
123 4 5 6
T1
T2
T3
T4

3-Control panel
Note : Acoustic signal
Infollowing cases an acoustic signal sounds:
▶when pressing a button
▶at the end of programme
▶in case of failures
The acoustic signal can be deselected if necessary; see DAILY USE.
8
1
2 Programme selector
3 Display
4 Detergent / Softener drawer
5 Function buttons
6
“Start/Pause” button
OFF
3.2 Programme selector
By turning the knob (Fig. 3-3), one of 15 programmes
(the On/OFF knob is not included) can be selected.
3.3 Display
The display (Fig. 3-4) shows following information:
▶Washing time
▶End time delay
▶Steam washing
Locking the door
Child lock
▶
▶
3.1 OFF
.
Turn the knob to any position (except OFF) to start the
machine. Turn the knob to the OFF position to shut d-
own the machine (Fig.3-2).
OFF
3-1
3-2
3-3
3-4
4 2
65
3 1

3-Control panel
9

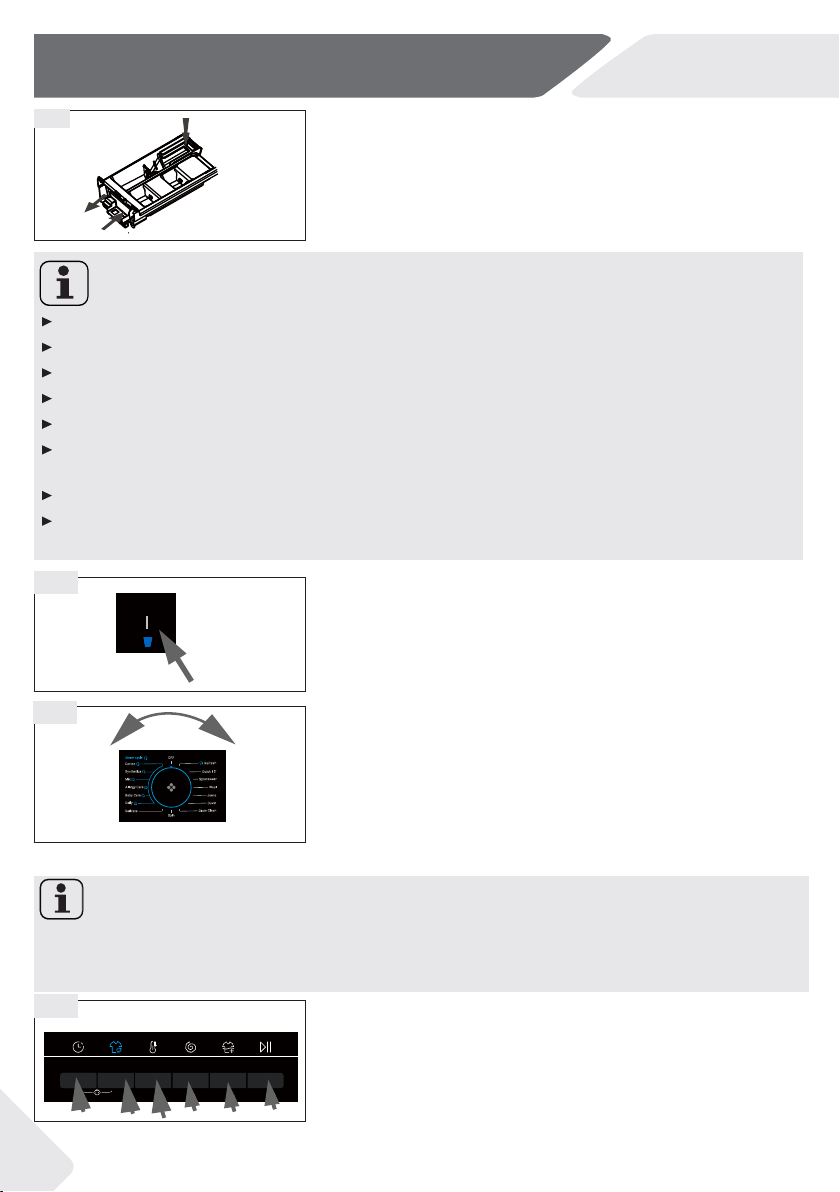

3.5 Function buttons
The function buttons(Fig. 3-6) enable additional op-
tions in the selected programme before programme
starts. The related indicators are displayed.
If a button has multiple options, the desired option
can be selected by touching the button sequentially.
3.5.1-Function button “Delay”
Note: Factory settings
To get best results in each programme Haier has well defined specific default set-
tings. If there is no special requirement dafault settings are recommended.

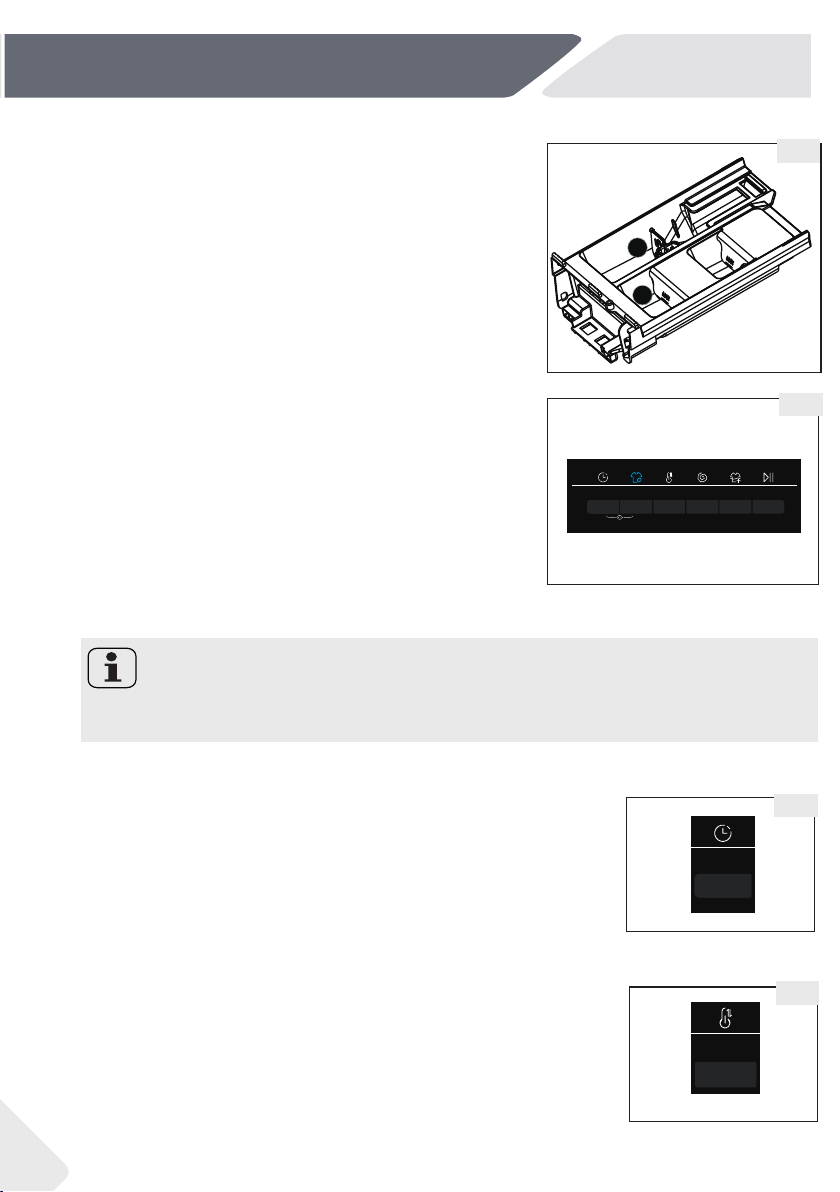

3.4 Detergent drawer
Open the drawer, two compartments can be seen
The recommendation on the type of detergents is s-
uitable for the various washing temperatures, please
refer to the manual of detergent.
3.5.2-Function button “Temp.”
2 Compartment 2: Softener, Conditioning agent etc.
1 Compartment 1:Power or Liquid detergent for
programme.
Press this button (Fig.3-7) to start the programme with a
delay. End time delay could be increase in steps of 30
minutes from 0.5-24h. When you select the delay, the to-
tal time will default to longer than the programme run time.
For example, display off 6:30 means end of programme
cycle will be in 6 hours and 30 minutes. Press “Start/Pause”
button to activate the time delay.
1
2
Press this button (Fig. 3-8) to change the washing temp-
erature of the programme. If no value is illuminated the
water will not be heated.
(Fig. 3-5):
Extra Rinse Start/Pause
Steam Temp. Speed Delay
Delay
Temp.
3-6
3-5
3-8
3-7

3-Control panel
10
SteamDelay
3.5.3 Function button “Speed”
Press this button (Fig. 3-9) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spin.

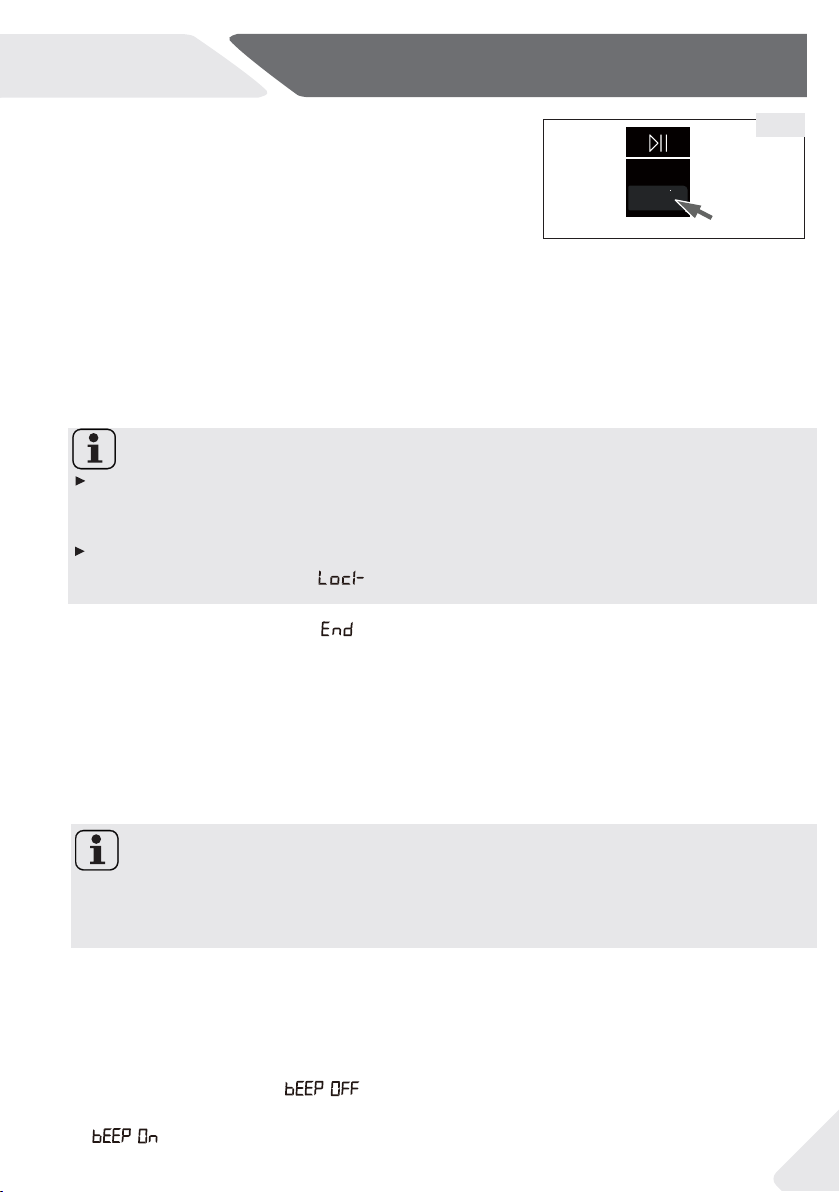

3.6 “Start/Pause” button
3.5.4 “Extra Rinse” button
By touching the button several times zero to two addi-
tional cycles can be selected. They appear in the display
with P--0/P--1/P--2. And the number of additional rinses
that can be selected for different programs is different.
Note:Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.7 Child lock
3.5.5 “Steam” button
The display shows clol- (Fig. 3-14) if a button will be
pressed that means the child lock is activated. The
change is not running.
Press this button (Fig. 3-10) to rinse the laundry more
intense with clean water. This is recommended for pe-
ople with sensitive skin.
Press this button (Fig 3-11) to select the steam program,
Press this button (Fig. 3-12) gently to start or interrupt
the currently displayed programme.
Press button “Delay” and “Steam” (Fig.3-13) for 3 se-
conds simultaneously to all panel elements against
activation. For unlocking please touch again the two
buttons. The child lock indicator lights up when the
child lock works. This feature is optional when the
machine is running.
then the current program temperature value will be cha-
nged to the maximum allowed value. The maximum te-
mperature value can be viewed on the page of the par-
ameters table in the manual. You can select if you requ-
ire this funtion when programmes “Cotton, Synthetics,
Mix, Baby care, Daily ” are used. The icon will light up
when using the steam wash function.
Speed
Extra Rinse
Start/Pause
3-14
3-9
3-10
3-12
3-13
3-11

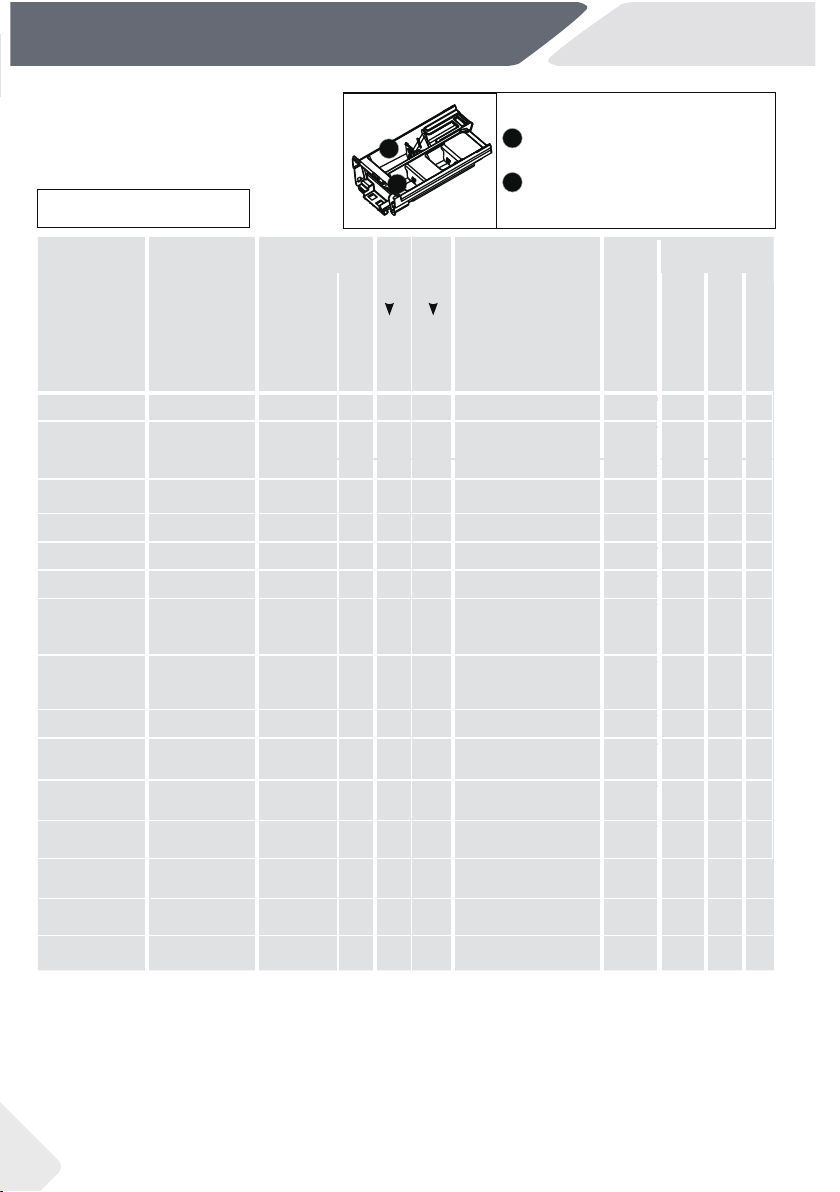

4-Programmes
11
1)
*: Water is not heated up.
2) Only one piece of adult or bulky clothing can be washed, and up to three pieces of children’s clothing；
Choose 90°C wash tempe rat ure only for special hygienic requirements；
3)
4)
Max. load Temperature Preset
spin
speed
in rpm
Function
in kg in °C
1)
4)
Preset
Steam Additional Rinse Delay
Programme
selectable
1 2 Fabric type
Cotton 8
8
4
4
4
4
4
1
2
1
2
2
* to 90 30 º º º º º
º º º
º º º
º º º
º º º
Cotton 1000
S
Allergy Care
ynthetics
* to 60 30 º º
Synthetic or maxed
fabric 1000
Mix
* to 60
* to 40
30 º º
Lightly soiled mixed-
laundry of cotton and
synthetic 1000
Baby Care * t
o 90 40
30
º º Cotton/ synthetics
Cotton/ synthetics
Cotton/ synthetics
Cotton/ synthetics
1000
*
to
60 º º
º º
Cotton
1000
1000
/
/
* to 60 º º 1000
Refresh /
1
20
/
///
* to 40
* to 40
* to 40
º º
º º
º º
º º
1000
Jeans
Daily
30
Machine-washable
fabric made of wool
or with wool content /
/
º
Drum Clean
Wool Wool
Duvet Duvet
Sportswear Sport
*90 90 /
/
Detergent compartment for:
1
2
Detergent
Softener or care product
º
Optional,
/ No
Delicate * to 30 30
*
30
º º
Delicate laundry and
silk 600 /º
Quick 15 ’
3)
2)
*/º
Spin / / 1000 / / /
800 /
800 /
/
/ /
/ /
/ /
//
Non-fragile fabric
º
800 /ºº
º
º
º º
1
2
ºº
ºº
/
range
Reduce detergent amount because programme duration is short;
Do not use detergent instead of use a special machine cleaner.
5) Energy Consumption Testing Program: Open the machine and select Cotton program, then press
button Speed for seconds, once you will hear the beep, press the Start/Pause button and screen will
show 3:22 and program started.
//

5-Daily use
5.3 Preparing laundry
Sort out clothes according to fabric (cotton, sy-
nthetics, wool or etc.) and how dirty they are
(Fig.5-3). Pay attention to the care labelling
of washig labels.
Separate white clothes from coloured ones.
Wash coloured textiles first by hand to check if
they fade or run.
Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
a
ven textile such as fine curtains are to be put into
wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
Close zippers, velco fastenerand hooks, make
sure the buttons are sewn on tightly.
Garments without hems, delicates and finely wo-
Place sensitive items like laundry without firm
hem, delicate underwear and small items su-
ch as socks, belts, bras, etc. in a wash bag.
Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash sepatately.
5-3
5.1 Power supply
(220-240V/50Hz：Fig.5-1). Please refer also to se-
ction INSTALLATION.
5.2 Water connection
Before connecting check the cleanliness and clar-
ity of the water inlet.
Tun on the tap (Fig.5-2).
Note: Tightness
Before usecheckfor leakagein the joints between the tap and the inlet hose by turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may causemalfunctions and
damage of clothes and appliance.
12
5-1 5-2
Connect the washing machine to a power supply

5-Daily use
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non-chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dryer
Line drying Flat drying
Ironing
I
ron at a maximum
temperature up to
200°C
I
Don’t overload. Note the different maximum load according to programmes! Rule of
ron at a medial tem-
perature up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
5.4 Loading the appliance
Put in the laundry piece by piece.
thumb for maximum load: Check if you can put a hand upright on top of load.
Close the door carefully. Make sure that no pieces of laundry are pinched.
13

5-Daily use
5.5 Selecting detergent
Use only machine wash approved detergent.
Mind always detergent manufacturer recommendations.
D
If needed use specific detergents, e.g. synthetic and woolen fabric.
Washing efficiency and performance is determined by used detergent quality.
o not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton √√√ - -
√
√L
√
√ √
√
√
√
√
√
√L
√
√√
√
√
√
√
√
√
Wool
Baby Care - -
-
- -
Duvet
Drum Clean
- -
√√
√√
√
√√√
√
- -
- -
Synthetics
Delicate
-
- -
- -
o
o
Jeans L
√
√L
√L
- -
Mix - -
Quick 15’ -
-
S
Refresh
portswear
Spin
Allergy Care
Daily
-
L
√ = Recommended
= gel-/liquid detergent P =powder detergent O = optional _ =no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder: 20°C to 90°C* (best use: 40-60°C).
20°C to 60°C* (best use: 30-60°C).
20°C to 30°C* (best use: 20-30°C).
Color detergent:
Wool/delicate detergent:
* Choose 90°C wash temperature only for special hygienic requirements.
-
-
-
-- -
- -
-
- -
It is better to use less or free suds detergent powder.
14
√L
-

5-Daily use
5.7 Switch on the appliance
(Fig. 5-5).
5-5
5.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 5-4).
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Pl
Always fill the detergent just before the beginning of the wash cycle.
ease follow the instruction on the detergent package.
Concentrated liquid detergent should be diluted before adding into compartment 2.
The best use of liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
Do not use liquid detergent if “end time delay” is selected.
Carefully choose the programme settings according to the care symbolson all laun-
dry labels and according to the programme table.
5.8 Select a programme
To
which fits the degree of soiling and sort of laundry
get the best washing results, select a programme
type.
5-6
5.9 Add individual selections
Select required options and settings
(Fig.5-7); refer to
CONTROL PANEL.
5-7
Note: Odour removal
amount of detergent in washing agent compartment (2)or special machine cleaner to
remove possibly corruptive residues.
5-4
Before first use we recommended to run programme Drum Clean with no load and small
15
OFF
Turn the knob to any position (except OFF) to start the
machine. Turn the knob to the OFF position to shut down
the machine
Turn the programme knob (Fig. 5-6) to select the right
programme.
Extra Rinse Start/Pause
Steam Temp. Speed Delay
1
3
2

5-Daily use
1. A
The appliance switches off automatically.
t programme cycle end is displayed.
2.
3. R
Turn off the water supply.
emove laundry as soon as possibleto go easy on it and to prevent more wrinkl-
4.
5. Unplug the power cord.
6. O
ing.
pen the door to prevent formation of moisture and odours.Let it open while not used
minutes before starting the programme or at the end of programme.The display
switches off.
.
To interrupt a running programme press gently “Start/Pause”. The LED in the button is
flashing. Press it again to resume operation.
To cancel a running programme and all its individual settings:
1. Press “Start/Pause” button to interrupt the
running programme.
2.
5.12 After washing
Note: Door lock
For safety reasons the door is locked partially during the washing cycle. It is only
possible to open the door at the end of the programme or after the programme w-
as cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not
posible to open the door, is displayed.
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby mode if it will not be activated within
2 minutes before starting the programme or at the end of programme. The display
switches off. The saves energy.
5.10 Start wash programme
Press “Start/Pause” button (Fig.5-8) to start. Applia-
nce operates according to present settings. Changes
are only possible by cancelling the programme.
5.11 Interrupt / cancel wash programme
5-8
5.13 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the Drum Clean programme.
3. Press the “Extra rinse” button “Temp.” button and “Steam” button at the same time
for about 3 seconds. “ ” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these three buttons at the same time again, then “
” will be displayed.
se
16
Start/Pause
Turn the knob to select a new programme and start it.

6-Eco-friendly washing
Environmentally responsible use
To achievebest useof energy, water, detergent andtime you shoulduse the recom
mended maximum load size.
Do not overload (hand width clearance above laundry).
For slightly solid laundry select the Quick 15’ programme.
Apply exact dosages of each washing agent.
Choose the lowest adequate washing temperature - modern detergents are ef
Ra
ficiently cleaning below 60 °C.
ise default settings only due to heavy staining.
Select max. spinning speed if a domestic dryer is used.
17

7-Care and cleaning

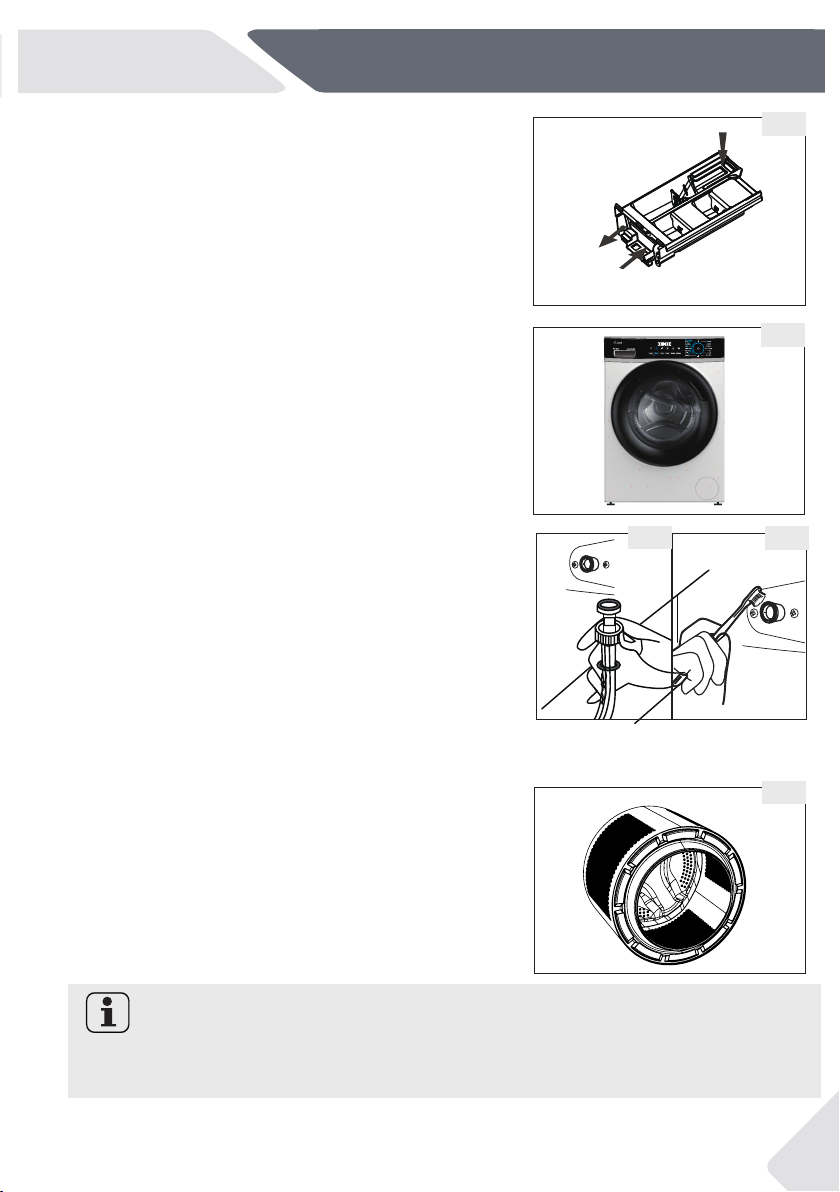

7.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 7-1):
1. Pull out the drawer until it stops.
2. Press there lease button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
7.2 Cleaning the machine
▶Unplug the machine during cleaning and mainte-
nance.
▶Use a soft cloth with soap liquid to clean the ma-
chine case (Fig. 7-2) and rubber components.
▶Do not use organic chemicalsor corrosive sol-
vents.
7-1
7-2
Note: Hygiene
For regular maintenance we recommend to run programme with no load in
order to removepossiblecorruptive residues quarterly. Add a smallamount of deterg-
ent in washing agent compartment (2) - or use a special machine cleaner.
7.4 Cleaning the drum
▶Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig.7-4) because
they cause rust stains and damage.
▶Use a non-chloride cleaner for removing rust
stains. Observe the warning hints of the cleaning
agent manufacturer.
▶Do not use any hard objects or steel wool for clea-
ning.
7-4
Drum Clean
To prevent blockage of water supply by solid subst-
▶
supply.
▶Unscrew the water inlet hose at the back of the
appliance as well as on the tap (Fig.7-3.1).
▶
▶
7.3 Water inlet valve and inlet valve filter
ances like lime clean regularly the inlet valve filter.
Unplug the power cord and turn offthe water
Remove the filters and flush them with water and
a brush (Fig.7-3.2).
Insert the filter and install the inlet hose.
18
1
3
2
7-3.1 7-3.2

7-Care and cleaning
1. Turn of and unplug the machine (Fig. 7-6.1).
2. Open service flap. You can either use a coin or a
screw driver (Fig. 7-6.2).
3. Provide a flat container to catch leach water
(Fig. 7-6.3). There could be bigger amounts!
4. Pull the drain hose out and hold its end abovethe
container (Fig. 7-6.3).
5. Take the sealingplug out of the drainhose (Fig.
7-6.3).
6. After complete drainage close drainhose (Fig.
7-6.4). and push it back into the machine.
7. Unscrew and removecounter clock wise the pump
8. Remove contaminants and dirt (Fig. 7-6.6).
filter (Fig. 7-6.5).
7-6.3 7-6.4
7-6.5 7-6.6
7
7.6 Pump filter
.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig. 7-5.1).
2. Turn of water supply (Fig. 7-5.2).
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and without leakage.
7-5.1 7-5.2
WARNING!
Scalding Risk! Water in the pump filter can be very
hot! Before any action please ensure water has co-
oled down.
Note: Hygiene
After long periods of disuse we recommended to run programme Drum Clean with no
load and small amount of detergent in washing agent compartment (2) or special m-
achine cleaner to remove possibly corruptive residues.
f
Clean the filter once a month and check the pump
or instanvce if the appliance:
Doesn´t drain the water.
Doesn´t spin.
Cause unusual noise while running.
7-6.27-6.1
filter
19
