Haier HWMP50F User manual

Fully Automatic Washing Machine User's manual
This manual is for
HWMP50F
Please read this manual
carefully before using.
Retain it for future
reference.

CONTENTS
CONTENTS the 2nd cover
Names of the parts 1
Safety precautions 2
Installation and adjustment 4
Install the water inlet hose 5
Preparation before washing 6
Put in the laundries 7
Usage of the detergent

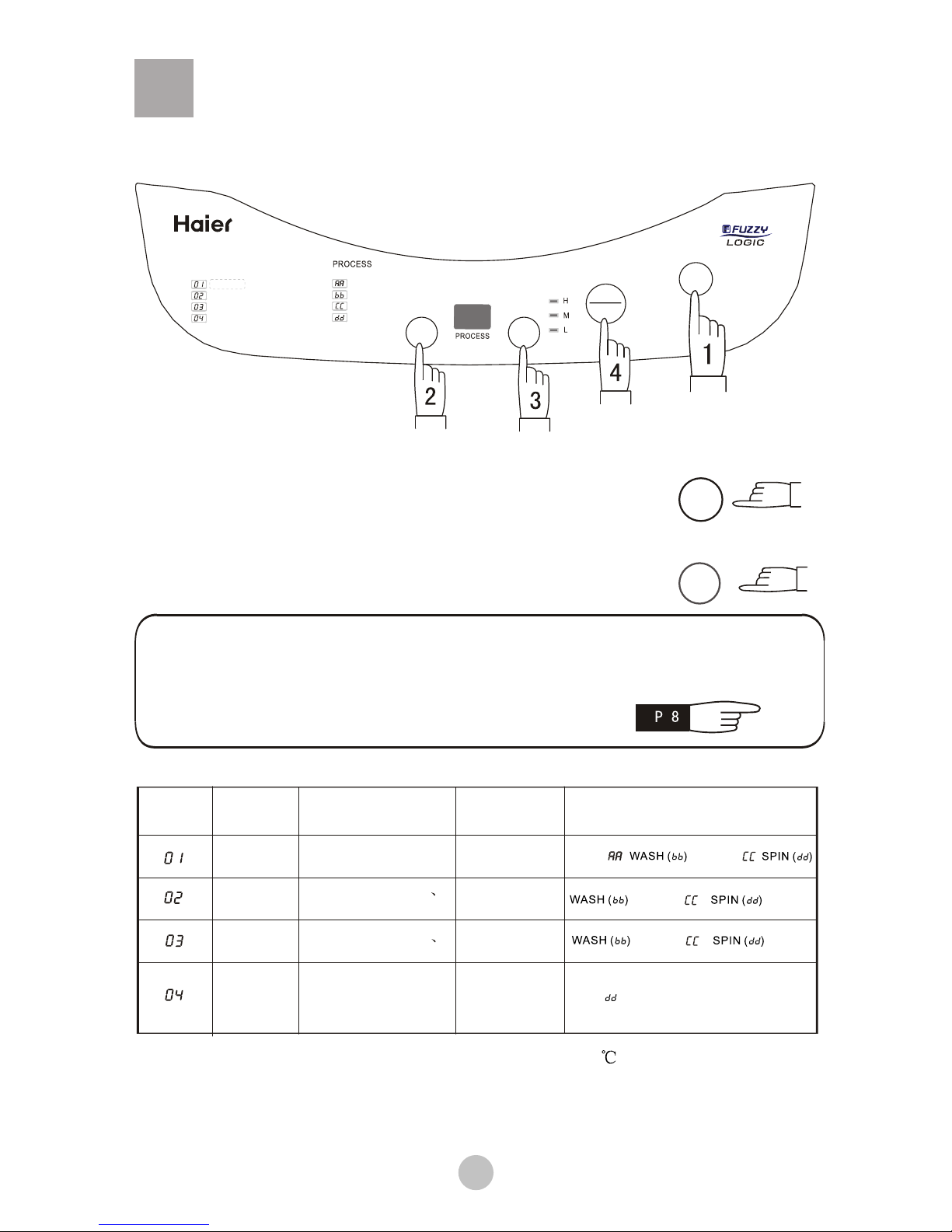

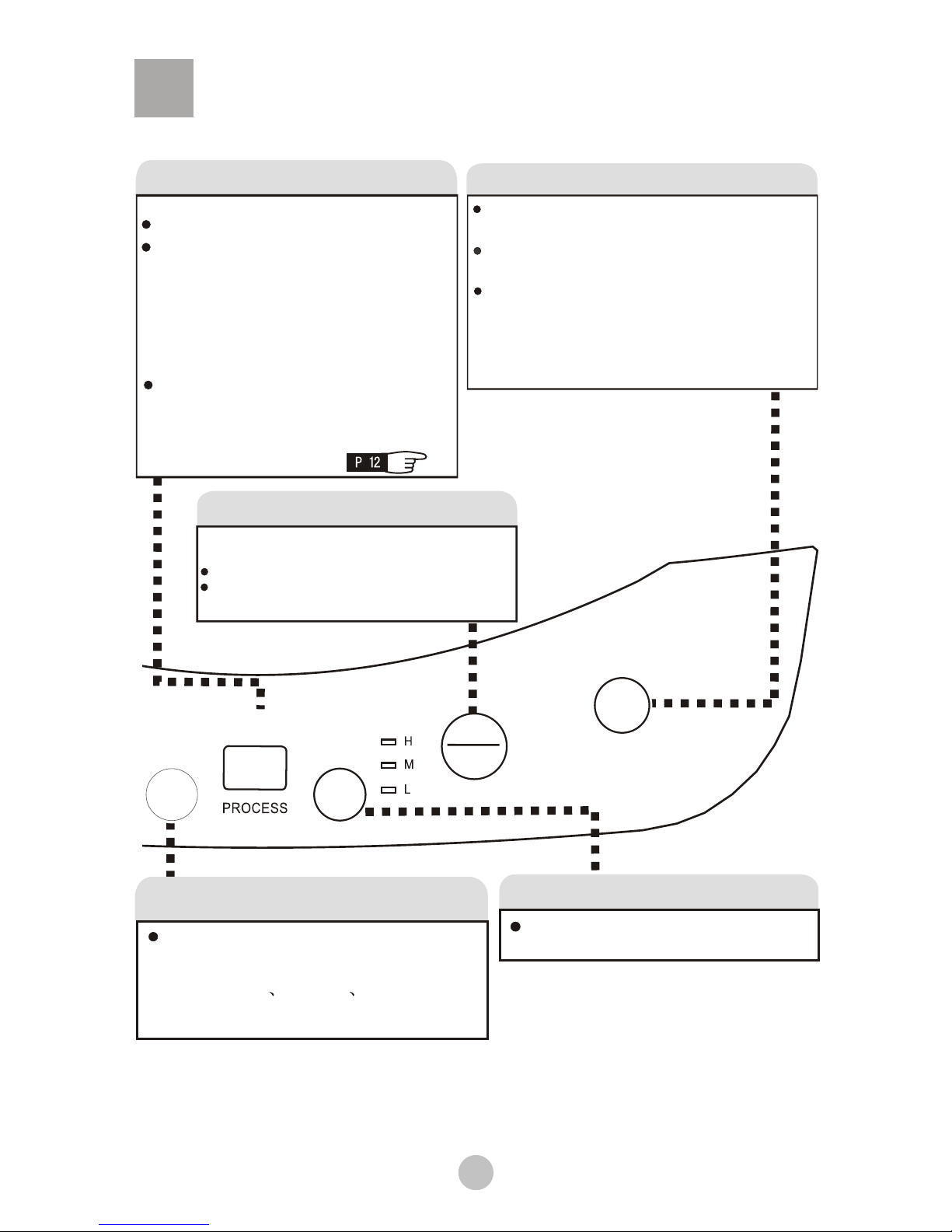

Use the operation buttons 8
Finish washing 10
Disposal after washing 11
Trouble-shooting Answer to question 12

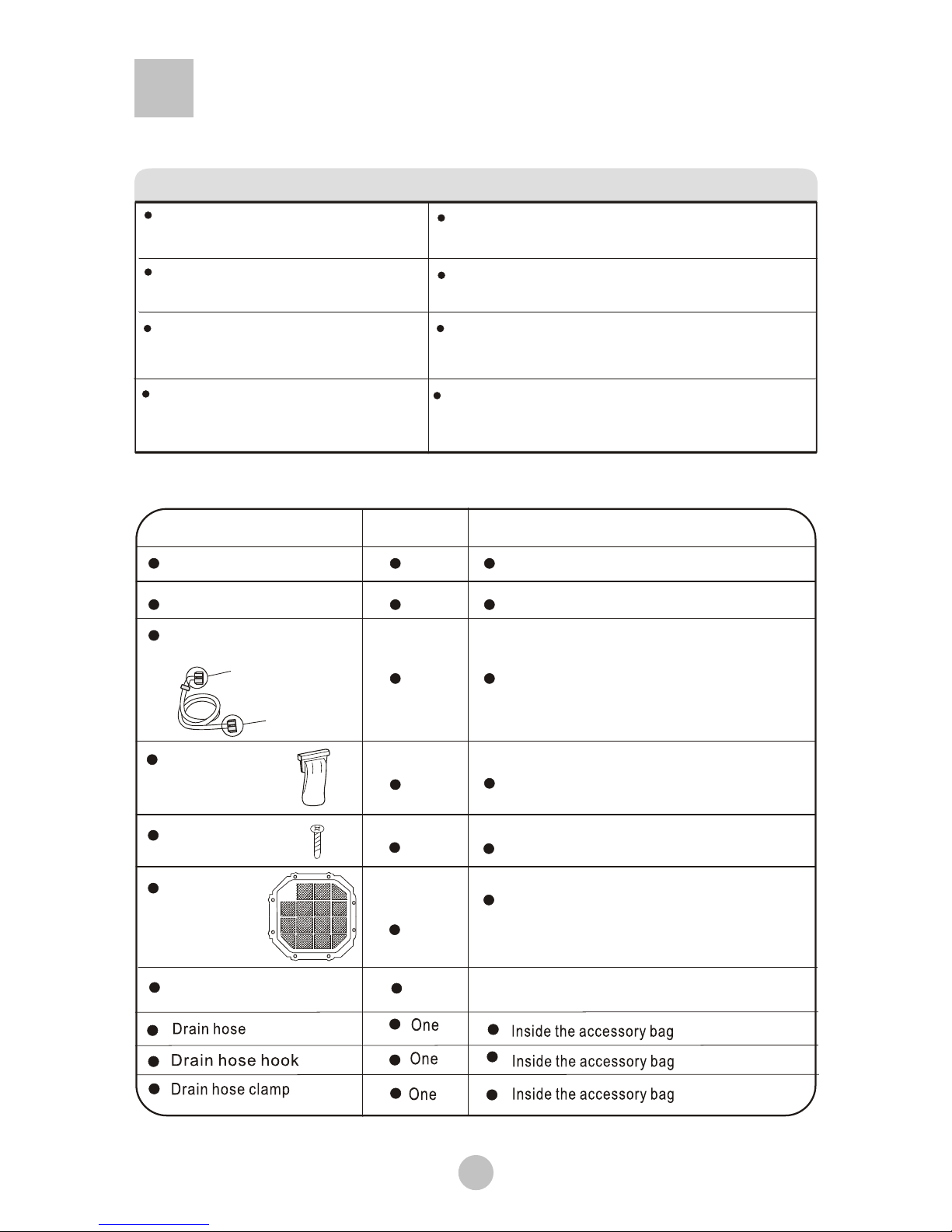

Packing list 13
Specification table The back cover
7
Close the top lid 7

1

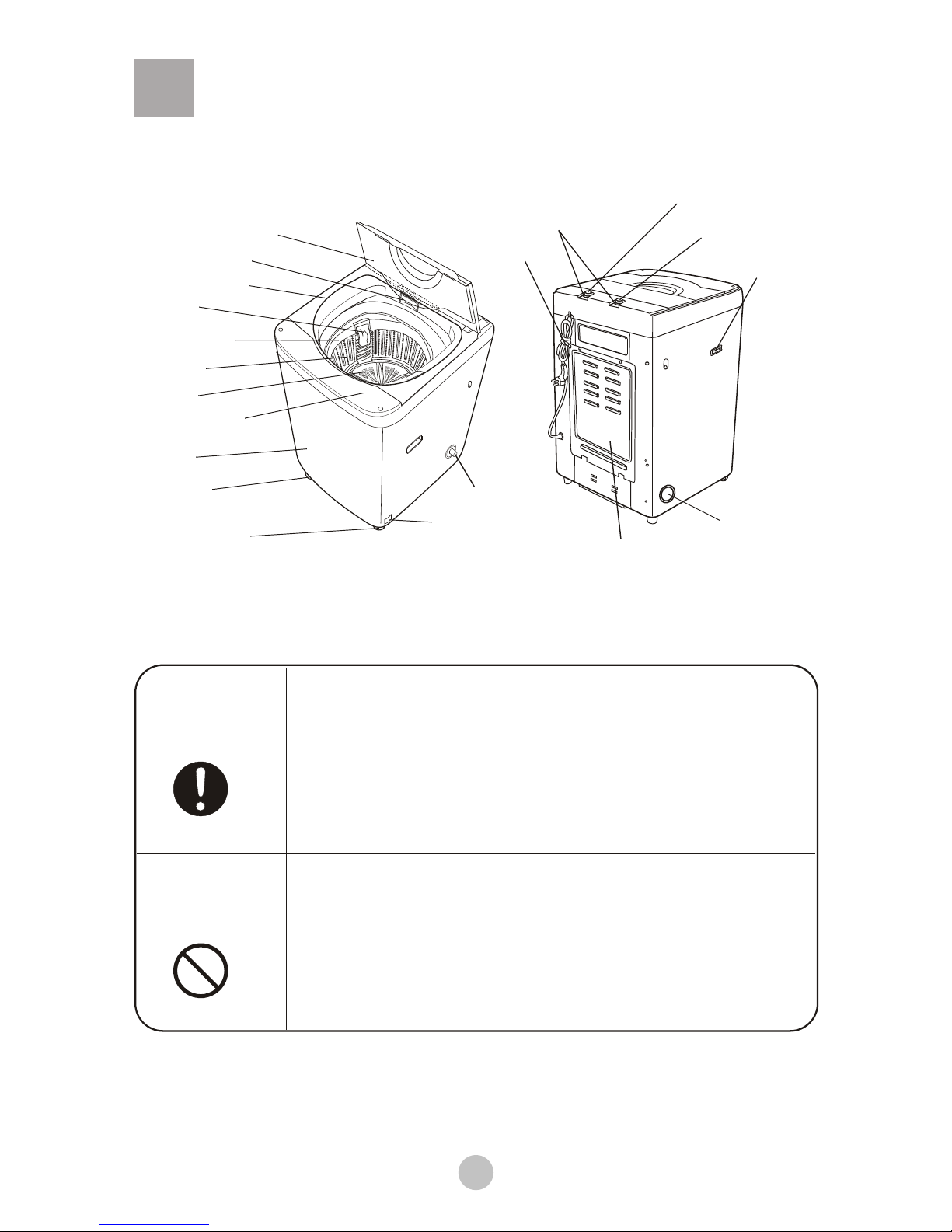

Names of the parts
Contents marked with that symbol are related to the
safety of the product and the personal safety of the
users. Please operate in strict conformity to the
contents, otherwise it may cause damage of the
machine or injure the personal safety of the user.
Contents marked with that symbol are actions forbidden
to perform. Performing of those actions may result in
damage of the machine or injure the personal safety of
the user.
Meaning and description of the symbols
Warning sign
Forbidden sign
Drain bushing
Control pannel
Inner tub
Detergent box
Top lid component
Balance ring
Lint filter
Pulsater
Front control
board
Cabinet
Adjustable leg
Fixed leg
(3 pieces)
Adjustable
leg film
Handle
Drain
protective lid
Water absorption
cushion Hot water valve
Cold water valve
Power cord
Back cover

2
Safety precautions
The ventilation
holes at the bottom
Soft object
Do not let the machine share one receptacle with
other electric appliances. If the plugging into the
receptacleis loose, do not use the plug any more.
If washing machine is supplied from a cord
extension set or electrical portable outlet device,
no cord extension set or electric portable outlet
device should be positioned so it is not subject to
splashing or ingress of moisture.
Do not wash water-proof
laundries like the raincoat, bike
covers etc. to avoid abnormal
vibrations in spinning.
Do not put the machine at damp place
like the bathroom. Never wash it with
water. Do not put wet laundries on the
control panel.
Do not use water hotter than 60 .
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
Ensure carpet does not
obstruct the
opening in
the bases.
Please plug the power plug on special
receptacle. Be sure to use three-pins
power receptacle. Ensure that the earthing
prong of the power receptacle is earthed
reliably. Use leakage protector if possible.
Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.
Keep the pin of the power plug clean,if the power plug is polluted with dust,
please wipe with dry cloth carefully.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
The washing machine must be positioned
so that the plug is accessible. Be sure to pull
the plug off and close the water faucet in
following cases: power failure, delivering
the machine, setting the machine idle or
cleaning the machine.
Do not plug or pull the
power plug with wet
hand.
Earth
Back
Front

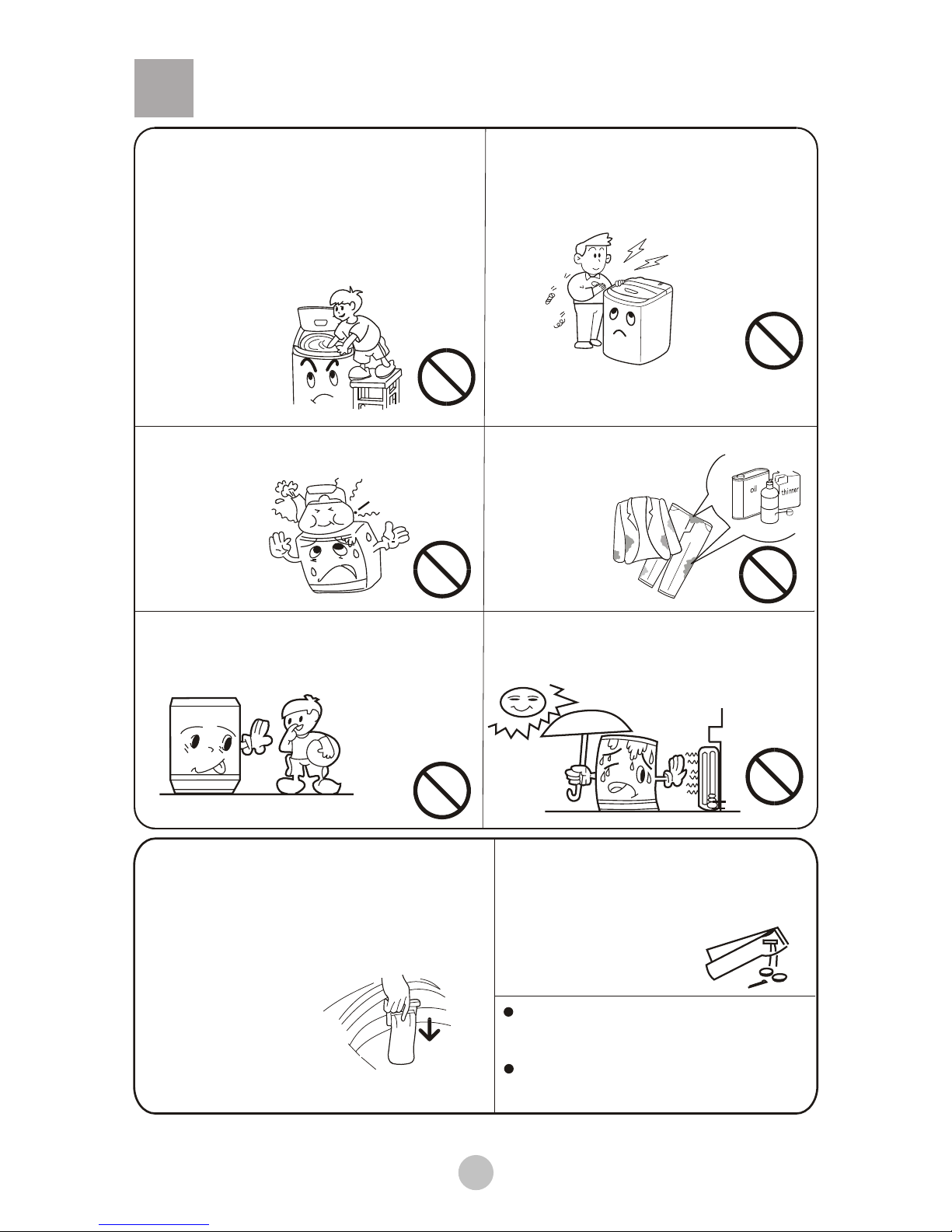

Do not put hand into the rotating tub.
It is dangerous even if the rotation
speed is slow. Take special care of the
children. Keep children away from the
washing machine to avoid them climbing
on it.
The appliance is not instruct for use of
young children of infirm persons without
supervision.
Young children
should be
supervised to
ensure that they
do not play with
the appliance.
Do not decompose, repair or alter
the machine byyourself.
Do not putany hot orheavy items
(such as the kettle with hot water) on
the washing
machine.
Do not wash laundries with volatile
materials (such as
thinner,
petrol etc.).
Keep the machine away from
direct sunlight andheat source
like the heater.
The handicapped or children shall
not use the machine without care.
Benzene
Safety precautions
Please check if the water faucet is
open, and if the connection of the
water inlet pipe is proper.
It is suggested to use formless
washing powder.
To prevent the lint in the tub from
blocking the cascade outlet and
influencing the cascadeeffect, please
keep the lint filter in good condition,
and install it to proper position during
washing. If the lint filter is lost or
damaged, please
contact the local
after-sales service
department of our
company.
Toprotect your laundries and
washing machine, please take
out all of the coins, buttons, sand,
hairpin and other
foreign materials
before washing.
3

Install the bottom plate
After you open the package, please lean
the washing machine gently down on Soft
object ( like the towel cloth,blanket, etc. ).
Install the bottom plate to the bottom of the
machine with the eight screws by a cross
screwdriver, then lift the machine up gently.
See to the figure:
4
Please install and adjust the machine according to the requirement of
the mannual. It is very important to your security and correct
operating the machine.
Installation and adjustment
The largest allowable slope of the shank base of the machine is 2 .The
slanting or rough ground will result in unstable running or stoppage of the
machine. Please adjust it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is
horizontal.
Adjust the adjustable leg:
2
Adjust the Installation position
Fasten
Loosen
High Low
the adjustable nut
the adjustable feet
1 .To twist the adjustable leg, please first
lift up the side of the leg slightly, loosen
the adjustable nut, and twist the leg.
2 .After adjustment, fasten the nut.
After opening thepackage, please take out the lint
filter from thedocument bag, install it tothe inner
tub. See tothe figure.
Install the lint filter
Inner tub
Lint filter
Drain hose
Ensure the drainhose si mounted at a suitableheight.
( above the floor).
Do not poke it too far down the drain pipe or silphoning will occur.
Between 800-1200mm
Back
Front
Soft object Screw
Bottom plate

5
Install the water inlet hose
1. Insert a new flat washer into each end of the inlet hoses. Firmly put the
washers in the coupling.
2. Connect the water inlet hoses to the water faucet.
Use the new hose sets supplied with the washer.
Any other old hose sets should not be used.
You may have to use pliers to tighten the coupling.
Do not over tighten because you may cause
damage to the valve.
Note:
3. Connect the other ends to their respective cold and hot water inlet valve
located at the rear of the washer
Check the connection between the
water inlet hose and the water tap
1.Close the water tap.
2. Pull off the water inlet hose from the water tap and washer.
Take down the water inlet hose
Install the water inlet hose
4.Fasten the nut. Swing it gently to confirm if it's suitable.
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, openthe tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the water inlet hose and the water tap, and
the connection between the water inlet hose and
washer are firm, so as to prevent dropping from
improve Installation position.
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
Use the new hose and the old hose should not be reused.

6
1.Preparation before washing
Preparation before washing
1.Connect the water inlet hose
2.Confirm that the washing machine is earthed reliably.Then
insert the power plug into the receptacle.Do not connect
the earth terminal to the gas pipe and tap water pipe.
3.Do not put down the drain hose.
4.Slanting or uneven
ground may result
in unstable working
or abnormal noise.
Please make the
machine stand horizontally.
Pay attention to followings before washing the laundries
Confirm if
there's
special
requirement
for the
laundries.
Clear the
pocket.
Take out the
coins ,
sand, hairpins
etc.
Fasten the
buttons and
zippers.
When the pulsator
is running ,the
buttons of the
laundries may
cause noise. For
the sake of discretion,
please put the
laundries with
buttons into other
laundries.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries with unfast color from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent in advance, which can make it
easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals directly into the washing machine.
For those small laundries and those may get twisting or worn, and woolen/fur
laundries, please put them into mesh bag for washing.
0.8m H 1.2m

2.Put in the laundries
The capacity of washing of the machine refer to the
largest weight of the standard laundries under dry
condition that can be washed in one time. Laundries
quantity in one washing cycle shall be lower than the
rated capacity.
The thickness ,size , type of the cloth will influence the
actual washing capacity. It is suitable to put inreasonable
amount of laundries and the laundries can be turned
round in washing for one time washing.
Do not select more than "L" water level for laundries
less than 1.0kg ,so as to avoid splashing of water.
3. Usage of the detergent
If you open the top lid,the machine will stop working
and alarm in spinning process.
4. Close the top lid
How to use washing powder
Washing powder with poor quality or long-time
storage may get caked. Please clean the detergent
box duly in usage.
Dissolve directly inside the washing machine: (not
applicable for fuzzy and reserve program)
1.Add some water(select the
2.Add washing powder. Run for about 30s to fully
dissolve
the powder. Then push the"start/pause"
button.
3.Put in laundries. Select suitable water level. Push
the "start/pause"button again.
" L " water level)
Quick dissolving of washing powder:
1.Prepare warm water of 30 C and container.
2. Add washing powder while stirring to dissolve it
completely.
It is not recommended to use rich-foam washing
powder.
If you select save program, it is suggested to use
liquid detergent instead of washing powder to
guarantee the washing effect.
Please add suitable washing powder as per the
laundries quantity, the set water level and water quantity.
It is suggested to add washing powder into the box
directly under fuzzy program and reserve program.
7
How to use the whitener
Fill water to decided level.
Dilute the whitener with
container. Pour it slowly
into the washing tub.
Avoid using whitener on
laundries with color or
pattern as they are prone
to lose color.
The whitener shall not
touch the laundries
directly.
Refer to the user's
manual for the usage and
quantity of the whitener.
For powder whitener,
please dissolve it before
use.

Process,remain time digitron
It displays "--" during detecting.
It displays total remained time
(min). If the total time exceeds 99
minutes, it uses "A" on tens digit
to represent100 minutes, and uses
"b" to represent 110 minutes.
E.g. A3" represents 103 minutes.
It displays abnormal symbol in
abnormal situation.
(See to Page12)
"
5 Use the operation buttons
a Description of operation button
"POWER ON/OFF" button
Push the " POWER ON/OFF" button to
switch on the power.
Under power-on mode, push it to switch
off the power.
Push the " POWER ON/OFF" button to
switch on the power. If the " POWER
ON/OFF" button is not pushed, the
machine will switch off the power
automatically after 5 minutes.
Remarks: After pressing "Power On/Off" to connect power supply, if the washing
machine lasts idle more than 5 min, it would automatically shut off the supply.
WATER
LEVEL
POWER
ON/OFF
START
PAUSE
"START/PAUSE"button
After the power is switched on,
press it to start the machine.
During working,push it to pause.
During pause,push this button to
restart and go on working
The user selects a suitable water
level depending on the load.
" WATER LEVEL"button
"" button
you
can select one or several
of
Press
programs
" WASH CYCLE " button
NORMAL HEAVY QUICK WASH
and SPIN ONLY.
8
WASH
CYCLE
WASH CYCLE
TIME
REMAINING

WATER
LEVEL
POWER
ON/OFF
START
PAUSE
HWMP50F
WARM
HOT
COLD
NORMAL
HEAVY
QUICK WASH
SPIN ONLY
SOAK
WASH
RINSE
SPIN
TEMP SELECT
TIME
REMAINING
WASH
CYCLE
WASH CYCLE
FUZZY
WASH
CYCLE
POWER
ON/OFF
Program select
12
1.Push "POWER ON/OFF"button to switch on the power
2.Push " WASH CYCLE " button to select suitable
automatic program
After the power is switched on, " NORMAL " is automatically set. To select other
fully-auto program, please push the " WASH CYCLE " button till the corresponding
indicator is on. Refer to the " WASH CYCLE " button on Page 8.
b Steps of using the operation buttons and description
of the steps
9
NORMAL
HEAVY
QUICK WASH
SPIN
ONLY
Washing for coverlet
bigger laundries
Application
Wash
temperature
The running process(the digitron
displays the running process)
The display
of digitron
Program
RINSE ( )
RINSE ( )
RINSE ( )
SOAK ( )
SPIN( )
Only spinning the
cloth wet or washed
by hand (first draining,
then spinning)
Washing the woollen
silk textiles
Washing for normal
laundries
Warm
Hot
Cold
Note that the water temperature shall not exceed 60 .

10
3 Push the " WATER LEVEL "button,select suitable water level
After switching on the power, the washing machine will execute fuzzy program
automatically to detect the cloth.
After defection, it can set the water level automatically. To select other water level, first
push the " START/PAUSE " button, then push the "WATER LEVER" button to set the
water level.
4 Push the "START/PAUSE " button
6 Finish washing
After finishing wash it will switch off power automatically.
When "NORMAL" program is selected, the washing machine will perform
fully-automatically controlled fuzzy program to set water level, water flow
and wash duration according to the cloth nature and weight.
WATER
LEVEL
START
PAUSE

Clean
Clean the detergent box and set it on
the control panel seat.
The lint filter must be used during
washing.
It must be cleaned in time after each
using.
Lint filter:
1.Pull it up to dismantle.
2.Push it down to install.
3.Clean the filter screen after
washing.
Dismantle Install
Dismantle Install
The filter screen of the water inlet valve
is likely to be blocked by foreign
materials and influence the water inlet.
Please clean it with brush every two
months.
7 Disposal after washing
After using, please clean the lint and foreign materials of the lint filter
etc. in time. Otherwise it may influence your using the machine.
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol,
alcohol etc.
1.After washing, close the water faucet. ( If needed, you can dismantle the water
inlet hose).
Thinner
Petrol
Alcohol
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open
the top lid for some time (about 1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water
completely after each using.
11

12
Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The
following phenomena are not breakdowns sometimes. Please confirm again
before sending it to repair. If there are real breakdowns, please come to the special
maintenance department or after-sale service department of our company. Do not
repair it by yourself.
The digitron displays E0.
The safety switch acts,
and the spinning cannot
work. The digitron
displays E3.
The water filling does
not work, or is slow. After
about 30 minutes later,
the digital displays E4.
The drainage cannot work,
or is too slow.
The digitron displays E1.
It stops running in midway.
The digitron displays E2.
The top lid is not closed.
The top lid is opened
during reserve procedure.
Close the top lid.
Close the top lid.
Is the drain hose
blocked?
Clean the foreign material. Open
and close the top Lid Once.
Are the laundries put
slantingly?
Is the machine slanting?
Reorder the laundries.
Close the top lid.
The machine will start
running after 10 seconds
of being placed horizontally.
Is the water tap opened, or
is there water supply failure?
Is the water inlet valve
blocked?
Is the water pressure too
low?
Open the water tap. Push
the start/Pause button once.
Clean the water inlet valve
then push the start/Pause
button once.
Push the sStart/Pause
button once.
The water level sensor is
bad.
Please contact the
after-sales service
department.
Is the machine slanting?
Are the laundries put slantingly
in spinning?
Are there any foreign materials?
Is the screw of the jointer of
water inlet hose loose or awry?
Adjust the machine to be even
Reorder the laundries and
close the top lid.
Remove the foreign materials.
Fasten the screw of the
jointer properly.
The water tap leaks
The digitron displays E6.
There's abnormal sound
inside the machine
Phenomenan The reason How to settle
The machine
does not act
Not wash
Not spin
Is there power failure?
Is the power plug inserted
tightly?
Is the water level reached
preset position?
Please use it when there's
power supply.
Insert the power plug
tightly.
Fill water to the preset
position.
Is the power plug inserted
tightly?
Is the top lid closed reliably?
Are the laundries set flat?
Insert the power plug
tightly.
Close the top lid.
Set the laundries flat.

Packing list
Lint filter
Automatic washing
machine
Between the upper cushion of the
washing machine package and the
upper seal of the package carton.
Bottom plate
One
Inside the accessory bag
Eight
Tapping screws
Two Inside the accessory bag
Inside the document bag
One
One
Components of the
water inlet hose
User's manual
Inside the document bag
One
Warranty card
Inside the document bag
One
There may be some water
flowing out of the drain hose in
the first use of the machine.
It is the water remained performance
inspection by the factory.
Common phenomena
Phenomena Explanation
The spinning is intermittent
when it starts.
The wash procedure pauses.
Select spin program, but it does
not work.
Balance the laundries to avoid slanting.
The cloth sensor is detecting , it will add
water after about 48 senconds.
The program is setting the drain time ,
certain period is needed before it starts
spinning.
Name Quantity Storage position
Connect to the
washing machine
Connect this end
to the tap
13

Specification table
Model
Rated voltage/frequency
Rated washing power
Rated spinning power
Weight
Dimensions (mm)
HWMP50F
220-240V 50Hz
380W
300W
About 35kg
L 520 W 530 H 890
Water inlet pressure 0.03Mpa-1.0MPa (when water temperature is
70 ~90 , the water inlet pressure of hot water
shall not exceed 0.4MPa)
Type Fully Automatic Washing Machine
