Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
Legend
Warning–ImportantSafetyinformation
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it. Help
to recycle waste of electrical and electronic appliances.
Do not dispose appliances marked with this symbol
with the household waste. Return the product to your
!"# $%&"'" ()*$+#"( (,'$!%$"!),#",$'!-%$.-)("(/# $!0"&1$
WARNING!
!"#$%&$!'()*+$%*$"),%-./!%'0
2(3"!))&",$,4&$#// (#)"&$+%!.$,4&$.#()3$3-// '1$5-,$!6$,4&$.#()3$"#7 &$#)8$8(3/!3&$
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN
3
1-Safety information......................................................................................................................... 4
2-Product description ...................................................................................................................... 7
3-Control panel .................................................................................................................................. 8
4-Programmes.................................................................................................................................11
5-Consumption................................................................................................................................12
6-Daily use.........................................................................................................................................13
7-Eco-friendly washing ..................................................................................................................18
8-Care and cleaning ........................................................................................................................19
9-Troubleshooting ...........................................................................................................................22
10-Installation...................................................................................................................................25
11-Technical data.............................................................................................................................29
12-Customer service .....................................................................................................................30

1-Safety information EN
4
!"#$!%&'()*+(,-%#,%)+!%.//0(.,*!%"#$%)+!%1$&)%)(2!%$!.3%)+!%"#00#'-
ing safety hints!
WARNING!
!"#$!%1$&)%4&!
▶Make sure there is no transport damage.
▶Make sure all transport bolts are removed.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶Do not let children or pets come close to the appliance when the
door is open.
▶Store washing agents out of reach of children.
▶9- $-/$:(/3;$<=$ !!3&$,4%&#83$#)8$,#>&$"#%&$+!%$3.# $(,&.3$,!$/%&-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
▶Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶2!$)!,$-3&$!%$3,!%&$?#..#7 &$8&,&%*&),$!%$8%'$" &#)()*$#*&),$()$
close vicinity to the appliance.
▶2!$)!,$-3&$#)'$?#..#7 &$3/%#'3$()$" !3&$@("()(,'$,!$,4&$#// (#)"&1
▶Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.

EN 1-Safety information
5
WARNING!
Daily use
▶2!$)!,$%&.!@&$!%$()3&%,$,4&$/ -*$()$,4&$/%&3&)"&$!+$?#..#7 &$*#3
▶Do not hot wash foam rubber or sponge-like materials.
▶2!$)!,$A#34$#)'$ #-)8%'$A4("4$(3$/! -,&8$A(,4$?!-%1
▶Do not open detergent drawer during any wash cycle.
▶Do not touch the door during the washing process, it gets hot.
▶Do not open the door if the water level is visibly over the porthole.
▶2!$)!,$+!%"&$,4&$8!!%$,!$!/&)1$B4&$8!!%$(3$<,,&8$A(,4$#$3& +C
lock device and will open shortly after the washing procedure is
ended.
▶DA(,"4$!6$,4&$#// (#)"&$#+,&%$&#"4$A#34$/%!*%#..&$#)8$7&+!%&$
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶Keep the lower part of the porthole clean and open door and
detergent drawer if appliance is not in use to prevent odours.
▶Do not use water spray or steam to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its
3&%@("&$#*&),$!%$3(.( #% '$E-# (<&8$/&%3!)3$()$!%8&%$,!$#@!(8$#$
hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶Never install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak cut power supply and allow
the machine to dry naturally.

1-Safety information EN
6
Intended use
This appliance is intended for washing machine-washable laundry
only. Anytime follow the instructions given on the label of each gar-
ment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
54#)*&3$!%$.!8(<"#,(!)3$,!$,4&$8&@("&$#%&$)!,$# !A&81$F)(),&)8&8$
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not install the appliance in direct sunlight or in the near of
heat sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electrician.
▶Do not use multi-plug adapters and extension cables.
▶Make sure only the delivered electric cable and hose set are used.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶F3&$#$3&/#%#,&$&#%,4&8$3!">&,$+!%$,4&$/!A&%$3-// '$A4("4$
is easy accessible after installation. The appliance must be
earthed.
▶G#>&$3-%&$,4&$4!3&$H!(),3$#)8$"!))&",(!)3$#%&$<%.$#)8$,4&%&$(3$
no leakage.

EN 2-Product description
7
Note:
-

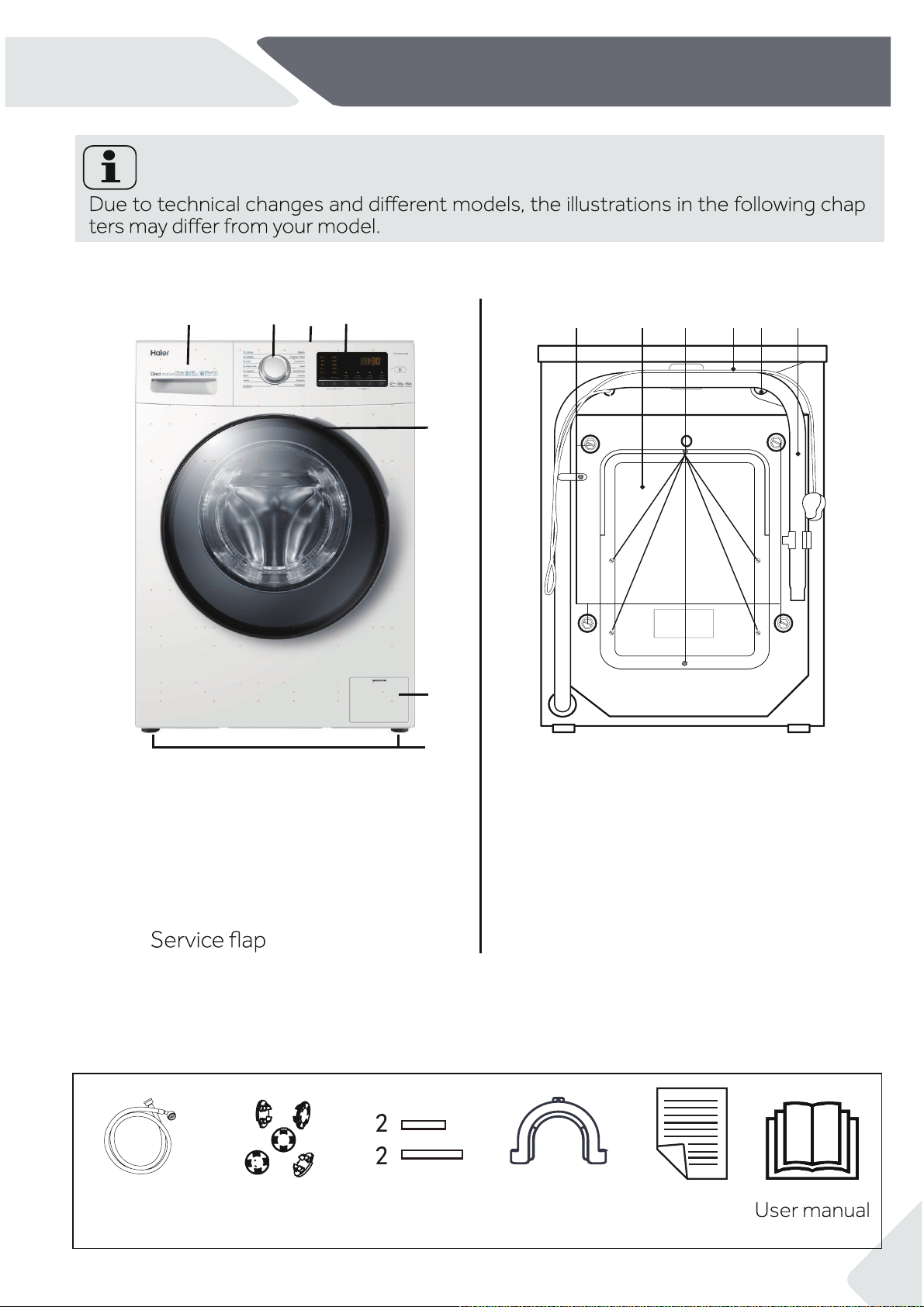

2.1 Picture of appliance
1. Detergent / Softener drawer
2. Programme selector
3. Worktop
4. Display
5. Rating plate
6.
7. Adjustable feet
1. Transportation bolts (T1-T4)
2. Back cover
3. Back cover screws (S1-S6)
4. Power cord
5. Water inlet valve
6. Drain hose
2.2 Accessories
Check the accessories and literature in occordance with this list (Fig.: 2-3).
Inlet hose-
assembly 5 Blanking
plugs Drain hose
bracket Warranty
card
2-3
1400
rpm Capacity
7kg
+++
A
Energy
Speed up
HW70-BP1439
Temp.Speed Start/pauseExtra rinse DelaySteam
Cotton
Synthetics
Mix
Sportwear
Jeans
Baby clothes
Cotton+
Hygienic
Fast wash
Spin
Bedding
Handwash
Delicate
Daily Wash
Quick 15”
Wool
2 3
5
6
7
41
T1 T2
T3 S1
S2 S6
S4
T4
12 3 4 5 6
S3 S5
Noise red-
uction pads

3-Control panel
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶when pressing a button
▶when turning the programme selector
▶at the end of programme
▶in case of failures
Press this button (Fig. 3-1) gently to switch on, the dis-
play is shining, the indicator of the “Start/Pause” button
a while machine will shut down automatically.
3.2 Programme selector
By turning the knob (Fig. 3-2) one of 16 programmes
can be selected .
3.3 Display
The display (Fig. 3-3) shows following information:
▶Washing time
▶End time delay
▶Error codes and service information
3-1
3-2
3
10kg
Capacityrpm
Speed up
Temp.Speed Start/pauseExtra rinse DelaySteam
Cotton
Synthetic
Mix
Underwear
Cotton 20°C
Baby Care
Eco 40-60
Hygiene
Fast
Spin
Duvet
Jeans
Delicate/silk
Sport
Express 15min
Wool
HW100-B1439N
1400
2
EN
8
3-3
“ ”
“ ”
“ ”

EN 3-Controlpanel
9

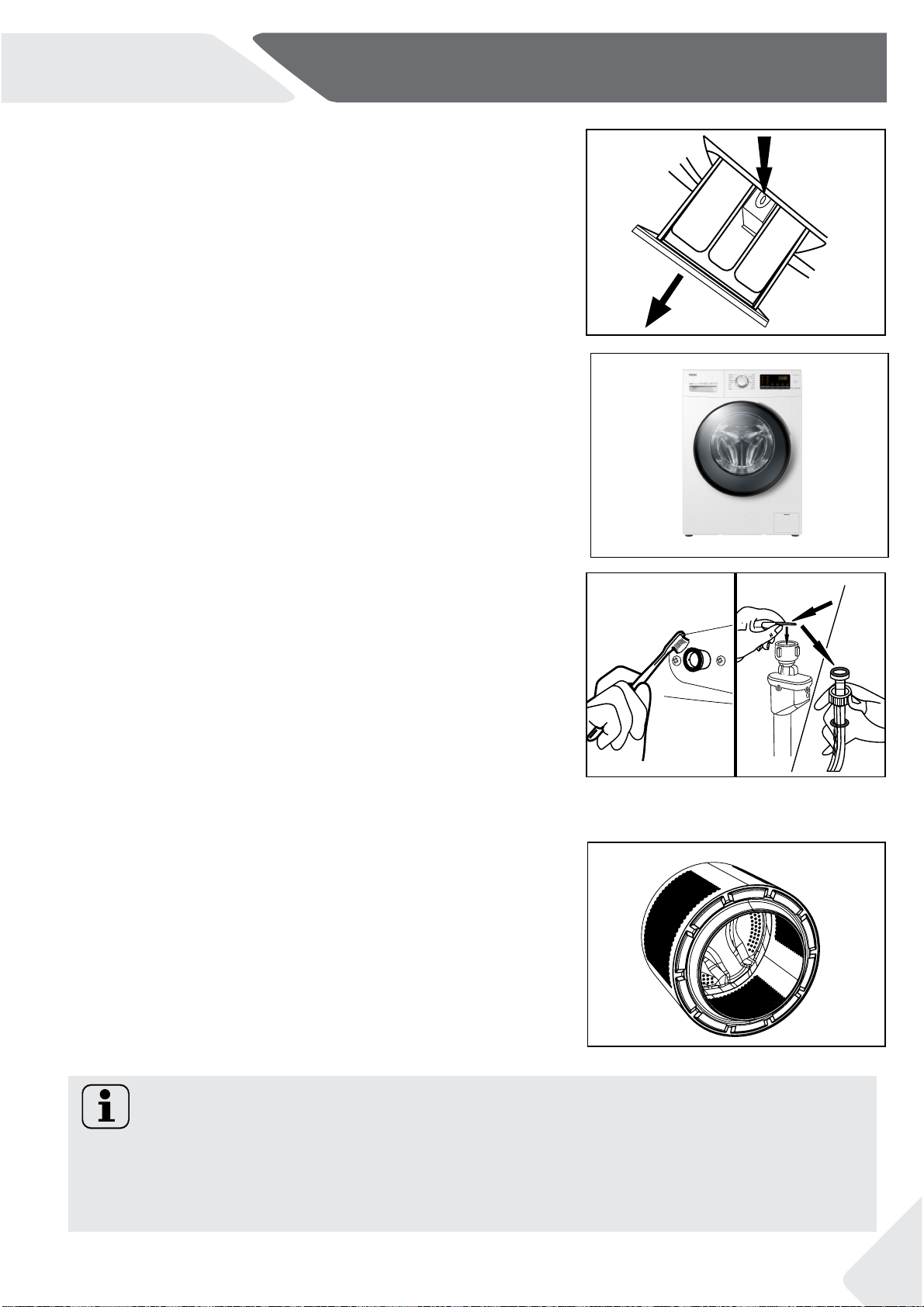

3.4 Detergent / Softener drawer

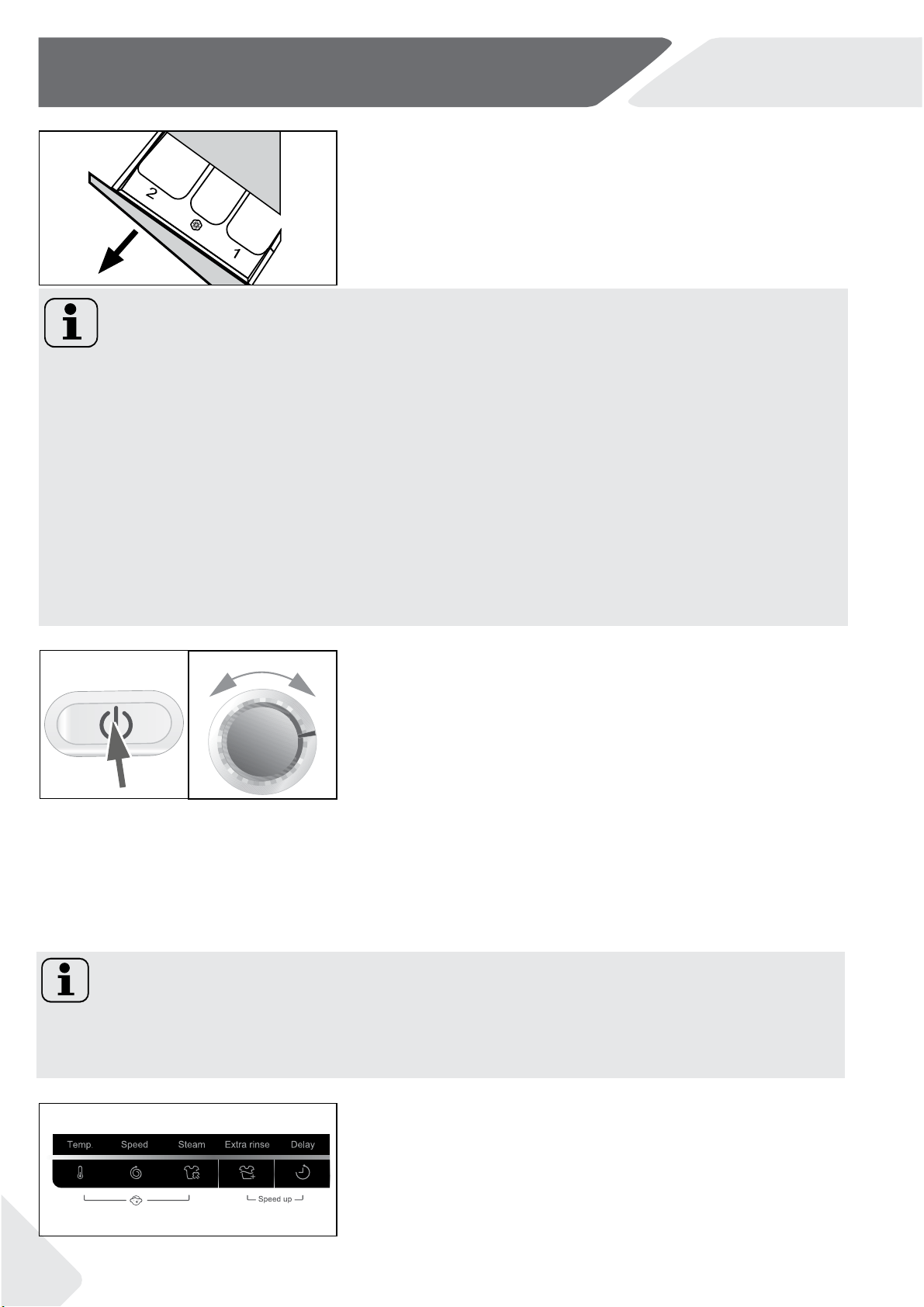

Open the drawer, three compartments can be seen
(Fig. 3-4):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment : Softener, Conditioning agent etc.
The recommendation on the type of detergents is suit-
able for the various washing temperatures, please refer
to the manual of detergent.
3.5Function buttons
The function buttons (Fig. 3-5 ) enables additional op-
tions in the selected programme before programme
start. The related indicators are displayed.
-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights or
Note: Factory settings
If there is no special requirement default settings are recommended.
3.5.1-Function button “Temp.“
Press this button (Fig. 3-5-1) to change the washing
temperature of the programme. If no value is illuminat-
ed the water will not be heated.
In conjunction with the “Steam” button, the child lock
3.5.2-Function button “Speed”
Press this button (Fig. 3-5-2) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
3.5.3-Function button “Steam“
Press this button (Fig. 3-5-3) to activate the steam function.
When this function is activated the default temperature is the maxi-
mum temperature of the programme selected.
This function can be activated only with the following programmes:
Hygiene, Baby Care , Mix, Synthetic, Cotton.
When the function is activated the led above the button will light up.
Pushing again this button the function can be deactivated and the led above the button
3-4
3-5-1 3-5-2
3-5
3-5-3

3-Control panel EN
10
When the function is activated the temperature of the programme cannot be changed.
If“Temp.”button is pushedthe “Steam” function will be deactivated. You can activate
“Steam” function only before to start any programme. You cannot activate “Steam” func-
tion while the appliance is already executinga programme.
3.5.4 Function button“Extra rinse“
Press this button (Fig. 3-5-4) to rinse the laundry more
intense with fresh water. This is recommended forpeo-
ple with sensitive skin.
By pressing the button several times one to three addi-
tional cycles can be selected. They appear in the display
with P--1/P--2/P--3.
3.5.5 Function “Speed up“
This function saves time and energy. Preferable if laun-
dry is slightly soiled. Press simultaneously button “Extra
rinse.“ and ”Delay” (Fig. 3-5-5) for about 3 seconds to
activate the “Speed up” function; is displayed.
This function is notavailable in all programmes (see
PROGRAMMES).
Press this button (Fig. 3-6) to start the programmewith
a delay. End time delay could be increased in steps of
means end of programme cycle will be in 6 hours and
30 minutes. Press“Start/Pause”button to activate the
time delay. It isnot applicable to programme SPIN.
Note: Liquid detergent
If using liquid detergent, it is not recommendedto activate the end time delay.

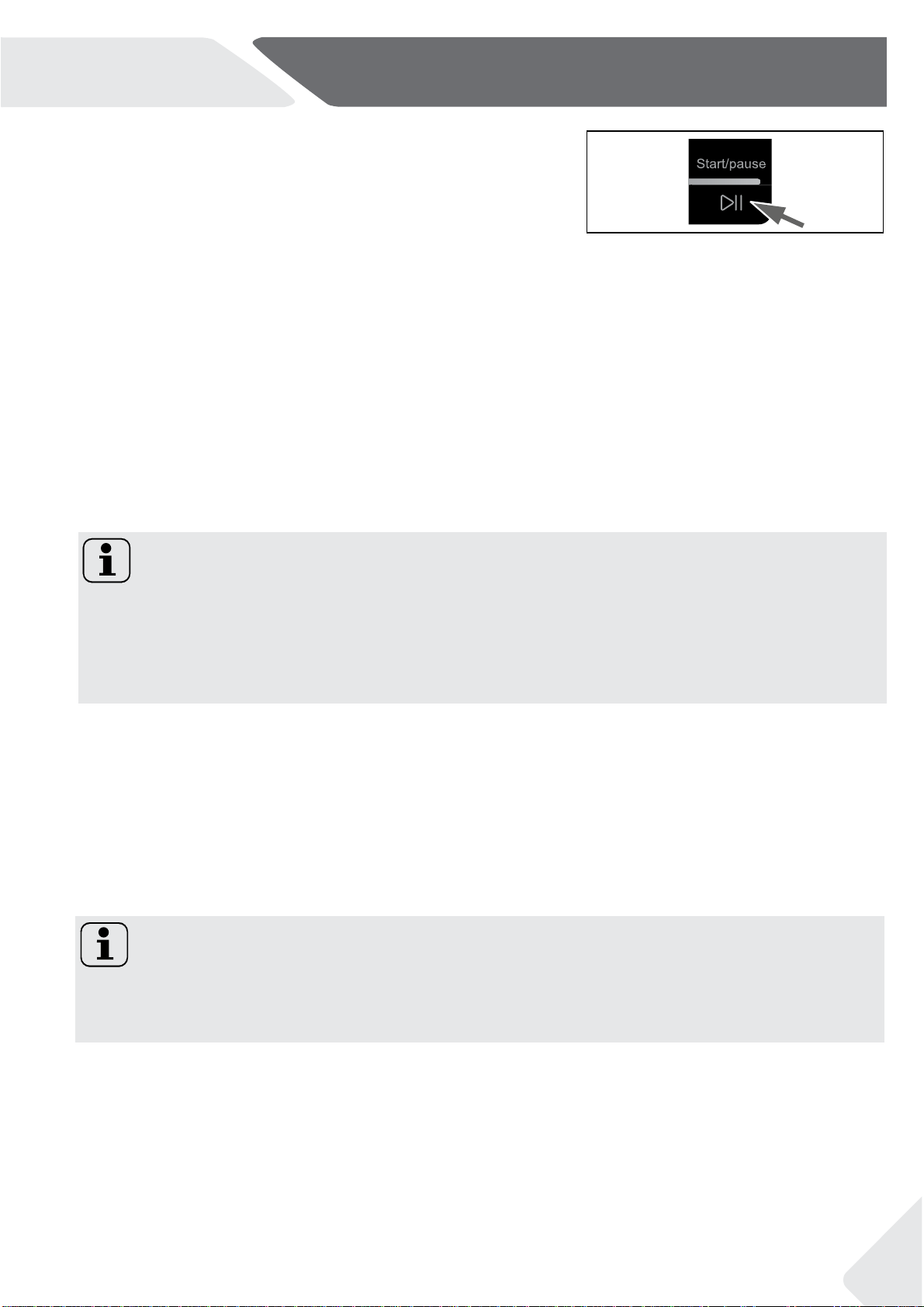

3.7 “Start/Pause“ button
Press this button (Fig. 3-7) gently to start or interrupt
the currently displayed programme. During programme
setting and during programme run the LED above the
button is shining, or if interrupted blinking.
3.8 Child lock
Press button “Temp.“ and ”Steam” (Fig. 3-8-1) for 3
seconds simultaneously to block all panel elements
against activation. For unlocking please press again the
two buttons.
The display shows (Fig. 3-8-2) if a button will be
pressed, when the child lock is activated. The change is
not running.
3-5-4
3-7
3-6
3-5-5
3-8-1
3-8-2
The default delay setting time is greater than the running
time of the program.
3.6 Function button “Delay”
