Haier HWF5300AW User manual

Front Load Washer
Rondelle avant de chargementl
Lavadora delantera de la carga
User Manual
Guide de l’Utilisateur
Manual del Usuario
HWF5300AW
Designed to use only HE
(High Efficiency) Detergent

English
READ ALL INSTRUCTIONS BEFORE USE.
WARNING - To reduce the risk of fire, electric shock, or injury to persons
when using your appliance, follow the basic precautions, including the
following:
1. Read all of the instructions before using this appliance.
2. Use this appliance only for its intended purpose as described in this user manual.
3. This washer must be properly installed in accordance with the installation instructions
before it is used.
4. Unplug your washer before cleaning.
5. Never unplug your washer by pulling on the power cord. Always grasp the plug firmly
and pull straight out from the outlet.
6. Do not operate your washer in the presence of explosive flames.
7. Do not use the washer for commercial clothes washing.
8. Do not tamper with controls.
9. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
10. Washer must be grounded, see grounding instructions on page 2.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that
has not been used for 2 weeks or more HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a period, before using a washing machine,
turn on all hot-water faucets and let the water flow from each for several minutes. This
will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or
use an open flame during this time.
12. Do not wash articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents or other flammable or explosive substances
to the wash water. These substances give off vapors that could ignite or explode.
13. Do not add gasoline, dry-cleaning solvent, or other flammable or explosive substances
to wash water. These substances give off vapors that could ignite or explode.
14. Before the appliance is removed from service or discarded, remove the door.
15. Do not reach into the appliance if the tub or agitator is moving.
16. Do not install or store this appliance where it will be exposed to the weather.
17. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user
repair instructions that you understand and have the skills to carry out.
18. ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
WARNING! For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. Always
read and obey all safety messages. All safety messages will tell you what the potential hazard is,
tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not
followed.
1
IMPORTANT SAFETY INSTRUCTIONS

English
DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the door so that children may
not easily get trapped inside.
Thank you for purchasing our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your washer.
Remember to record the model and
serial number. They are on a label
in back of the washer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Warning – Improper connections of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or service-
man if you are in doubt as to whether the appliance is properly grounded. Do
not modify the plug provided with the washer - if it does not fit the outlet, have a
proper outlet installed by a qualified electrician.
GROUNDING INSTRUCTIONS
19. Do not place items exposed to cooking oil in your washer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
20. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
21. This appliance is not intended for use by persons (including children) with reduce
physical, sensory or mental capabilities, of lack of experience and knowledge, unless
they have been supervision or instructions concerning use of the appliance by a person
responsible for their safety.
22. If the supply cord is damaged, it must be replaced by the us, ours service agent or
similarly qualified persons in order to avoid a hazard.
SAVE THESE INSTRUCTIONS
2

3
English
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for
the electric current. This appliance is equipped with a cord having a grounding
wire with a grounded plug. The plug must be inserted into an outlet that is
properly installed and grounded.
• Improper use of the plug can result in a risk of electric shock.
• Consult a qualified electrician or service person if the grounding
instructions are not completely understood or if doubt exists as to
whether the appliance is properly grounded.
Wiring Requirements:
• This appliance must be plugged into at least 15 AMP 120 VOLT, 60 HZ
GROUNDED OUTLET.
Note: Where a standard two-prong outlet is encountered,
it is the personal responsibility and obligation of the
consumer to have it replaced with a properly grounded
three-prong outlet.
Extension Cords:
We do not recommend that you use an extension cord.
Power Interruptions
Occasionally there may be power interruptions due to thunderstorms or other
causes. Remove the power cord from AC outlet when a power outage occurs.
When power has been restored re-plug power cord to AC outlet. If outage is for
a prolonged period, clean washer before using it again.
ELECTRICAL CONNECTIONS

English
TABLE OF CONTENTS
4
IMPORTANT SAFETY INSTRUCTIONS............................................ 1
GROUNDING INSTRUCTIONS....................................................... 2
ELECTRICAL CONNECTING............................................................. 3
PARTS AND FEATURES................................................................... 5
Front................................................................................................. 5
Back................................................................................................. 6
INSTALLATION INSTRUCTIONS..................................................... 7
Tools and Materials Required .............................................................. 7
Unpacking Your Washer .................................................................... 8
Installation....................................................................................... 10
OPERATIONAL INSTRUCTIONS ................................................... 12
Touch Sensitive Control Panel ............................................................ 12
Washer Operating Procedure............................................................ 14
Features.......................................................................................... 15
Cycles ........................................................................................... 15
Normal Washing Sounds.................................................................. 16
CYCLE SELECTION ........................................................................ 17
WASHING METHODS................................................................... 18
Using the Dispenser ......................................................................... 19
CARE AND CLEANING GUIDE ..................................................... 21
Cleaning and Maintenance............................................................... 21
Moving and Vacationing and Storage................................................ 23
TROUBLESHOOTING.................................................................... 24
TECHNICAL SPECIFICATION......................................................... 27
LIMITED WARRANTY ................................................................... 28

English

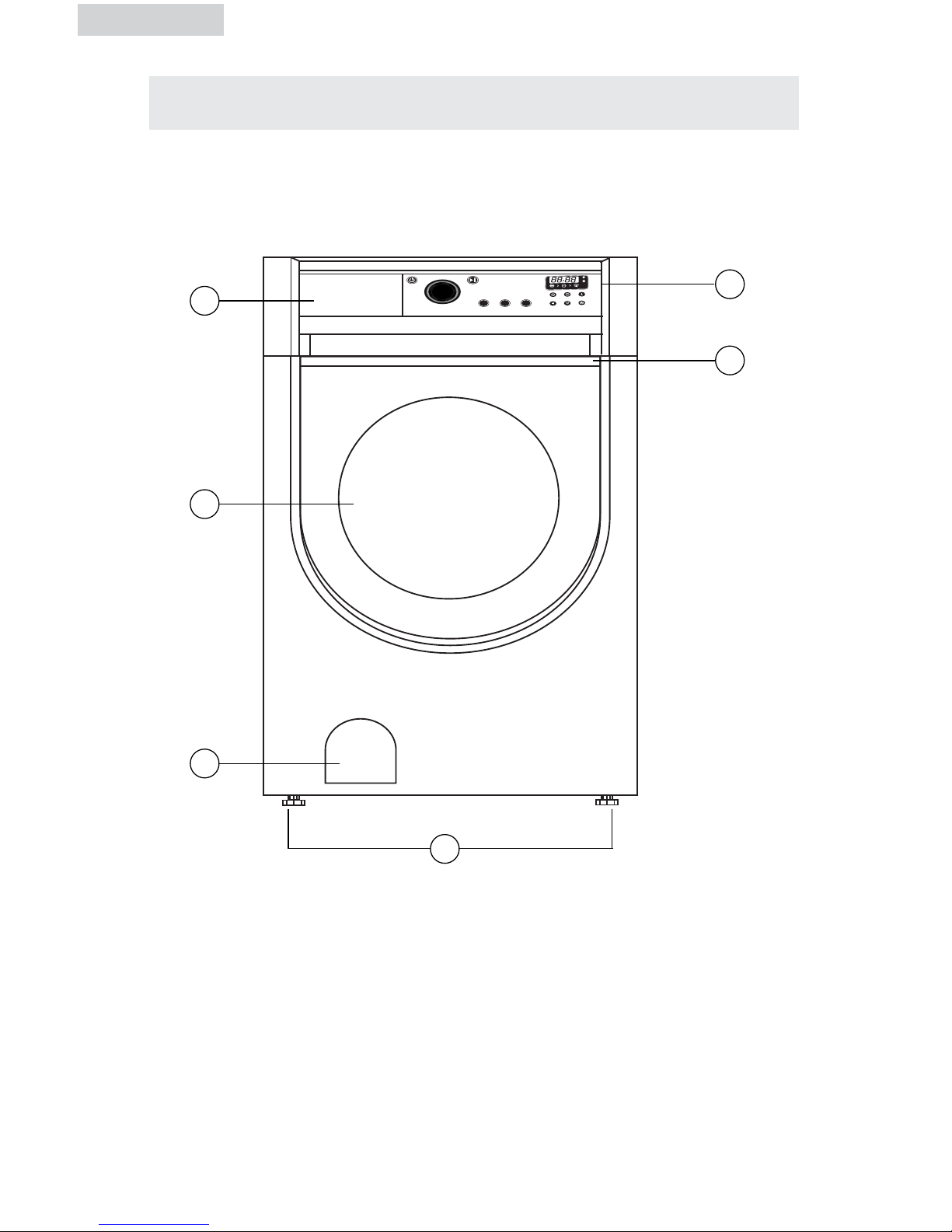

1. Detergent / Bleach / Softener
Dispenser
2. See-through Glass Door
3. Button / Coin Trap Cover
4. Control Panel
5. Door Handle
6. Adjustable Leveling Legs (2)
PARTS AND FEATURES
5
1
4
5
2
3
6
FRONT

English
PARTS AND FEATURES
1. Top Cover
2. Brace
3. Power Cord
4. Transportation Bolt (2 Per Brace)
5. Air Vent for Safety
6. Water Inlet Valve (C & H)
7. Drain Hose Connection
8. Transportation Bolt (2 Per Brace)
9. Back Cover
10. Hose Clip (3)
11. Adjustable Leveling Legs (2)
12. Cap (4)
6
1
2
3
4
5
6
7
8
9
10
12
11
BACK

English
7
USER MANUAL
Energy Guide
INSTALLATION INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED
You will need to have the following tools to help you in the
installation of your washer:
• Scissors
• Standard Screwdriver
• Pliers
• Wrench
• Tape Measure
• Gloves
• Level
Accessories Supplied Quantity
1
3
4
5
6 7 8
9 10
11
2
1. Hot & Cold Water Inlet Hoses
2. Flat Water Inlet Hose Washers
(Already Installed in each end of
water inlet hoses)
3. User Manual
4. Energy Label
5. Drain Hose Holder
6. Tie Strap1
7. Clamp for drain hose 1
8. Drain Hose 1
9. Bottom Cover 1
10. Bolts to Install Bottom Cover 8
11. Wrench 1
2
4
1
1
1
1
1
1
1
8
1

English
8
UNPACKING YOUR APPLIANCE
WARNING: Two or more people may be needed to install and move the appliance.
Follow the procedure below to unpack your washer remove packing materials.
As shown in the figure, remove all the packing materials. Upon opening of the package,
water drops may be seen on the plastic bag and the porthole. This is a normal phenomenon
resulting from water tests in the factory.
NOTE: 1. A bottom cover is wrapped in the stepper.
2. Be careful while handling the bottom cover.
3. Remove all anti-scratch film from the washer.
WARNING: To avoid danger of suffocation, please keep the package bag and
the accessories bag away from children.
1-Base (1)
2-Front post (2)
3-Sleeve (1)
4-Stepper (1)
5-Back pad (2)
6-Spacer Pad (2)
7-Back Post (2)
8-Package carton(1)
9-Adhesive tape (2)
10-Package bag (1)

9
Install the bottom cover
1. Lay the package carton on the ground.
2. Lay the washer slowly down on the package carton on the back panel side.
3. Install the bottom cover on the bottom panel by screwing 8 bolts provided in the
accessories bag.
4. Lift and straighten the washer to the upright position.
NOTE: 1. At least two people are needed to complete the above work.
2. Install the bottom cover before removing transport bolts.
3. While laying down the washer be sure the front side is upward.
4. The direction of the bottom cover must be installed according to the following
figure indicated.
Transportation Bolts

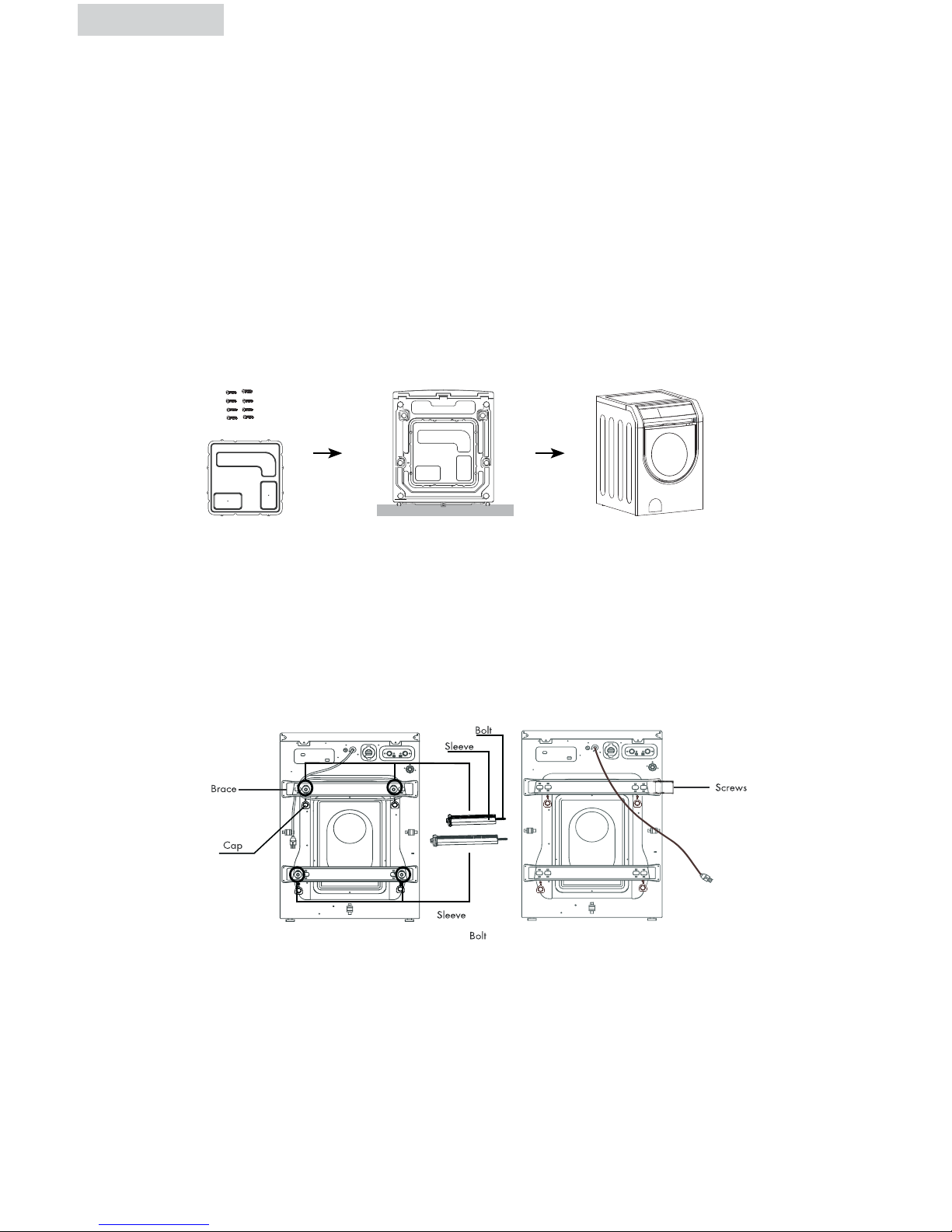

The washer is fitted with transportation bolts to prevent internal damage during
transportation. Transportation bolts must be removed before using the washer.
Removing Transportation Bolts
1. Unscrew the 4 bolts with a wrench. At first undo the lower side to remove easily. One
of the bolts retains the power cord of the washer to prevent operating with out removing
bolts.
2. Remove the bolts and the sleeves to release the power cord. Keep the 4 bolts and sleeves
for future use.
NOTE: If transportation bolts and sleeves are not removed, it may cause severe vibration,
noise and malfunction.
NOTE: When the washer is transported the transportation bolts and the sleeves must be
reinstalled.
3. Close the 4 holes with the caps supplied.
English
Package Carton
Front Side

English
INSTALLATION
Location Requirements
1. The proper location for your washer should have a flat and even floor. This will improve
performance, minimize noise and decrease washer movement.
2. The unit can be installed under a custom counter, in basement, laundry room, closet, or
other recessed area.
Additional Requirements
1. A grounded electrical outlet. Recommended less than 6 feet
from washer.
2. Hot and cold water faucets located less than 4 feet from
water fill valves with a water pressure of 4.4-145 psi.
3. It is not recommended to use washer on soft flooring such
as carpets or foam.
4. Do not operate washer if ambient room temperature is less
than freezing, may cause damage to unit.
Installation clearances
1. The optimal location for your
washer should be big enough to
open the washer door completely
for easy installation and servicing.
2. Allow some additional space
on the sides and rear for easy
installation, service and reduced
noise.
Water Connection
First, connect the elbow coupling end of the water inlet hose to the valve on the washer.
Then, connect the straight coupling end of the inlet hose to the water tap.
NOTE: 1.Do not crossthread when connecting inlet hose to the valve. Connect the cold
water tap to cold inlet on the washer and hot to hot.
2. Water supply pressure must be between 4.4 and 145 psi (30~1000kPa).
3. Over tightening may cause damage to the valve.
4. Check for leakage of washing machine connections by turning the tap completely
on.
5. Make sure that there is no kink in the hose and that it is not crushed.
6. Be sure that the two water inlet hoses are connected to the correct
water faucets.
7. Make sure that a flat washer is present in each end of the water inlet hose
before use.
10

11
NOTE: This washer is to be connected to the water mains using new hoses. Old hoses
should not be used. Do not install your
washing machine in a room where
temperatures may be below freezing.
Frozen hoses may burst under pressure.
If the washer is delivered in the winter
months and temperatures are below
freezing, store the washing machine at
room temperature for a few hours before
putting it into operation.
Drain System
• To prevent water leakage, do not place the drain hose
higher than 96 inches from the bottom of the washer and
secure drain hose tightly and securely.
Using the provided clamp connect the drain hose to the
washer.
NOTE: 1) Drain hose, clamp, drain hose holder and tie
strap are placed in the accessory bag in the
drum.
2) Use tie strap to secure the drain hose to a stand
pipe, inlet hose or laundry tub.
3) Care should be taken so the drain hose
is not immersed in water.
Level the Washer
• Leveling the washing machine properly prevents excessive
noise and vibration. Install your washer on a solid and level floor
surface.
• If the floor is uneven, adjust the adjustable legs as required. The legs
can be extended to level the washer. The more the legs are extended,
the more the washer will vibrate.
• Use a level to make sure that the washer is perfectly level.
• Leveling of your washer must be done while the washer is spinning
with a load. Use a wrench to adjust the legs until there is no vibration. Once done,
tighten the lock nuts to level the washer.
NOTE: Do not lift the washer using the dispenser drawer or door as a handle.
Steps to Level the washer (As shown in the figure)
1. Loosen the lock nut using a wrench.
2. Level the washer by turning the adjustable legs.
3. Turn the lock nut on each leg towards the base of the
washer with a wrench.
4. Once leveled tighten lock nut against the housing.
English
Cold
Hot
Elbow
Coupling End
Straight
Coupling End

TOUCH SENSITIVE CONTROL PANEL
WARNING: To reduce risk of fire, electric shock or injury to persons, read
"Important Safety Instructions" before operating this appliance.
1) Power ON/OFF Pad
• Touch pad to power ON or turn OFF the washer. In off status touch power pad for 1
second washer will turn on in default program status (Normal/Casual Cycle). To turn off
washer touch pad for at least 2 seconds during running or just one second during the
pause and stand by status. To change or cancel a running cycle touch this pad to power
off and then reprogram.
2) Cycle Select
• Gently move your fingers along the pad to select your wash cycle. Each cycle has preset
water temperature, soil level spin speed and options. In certain cycles the settings can
manually be programmed to suit your needs.
3) Start/Pause Pad
• Touch this pad once to start the wash cycle. Touch this pad once again to pause the
activity during the wash cycle. If you don't touch the start/pause pad within 5 minutes of
selecting a cycle, the washer will automatically shut off. You could pause the running cycle
to change the options by pressing the "Start / Pause" pad.
4) Soil Level
• Select clothes soil level. There are 3 levels to choose from: Heavy, Medium and Light.
• Wash cycle increases in time for each level increased. Selection should be based on the
soil level in clothes. The dirtier the clothes the heavier the level.
5) Rinse Level
• There are 4 selections to choose from Baby Care which gives you the maximum rinse time
to Eco which gives you the least.
Baby Care rinse level gives extra rinse time to remove any soap and detergent left on
clothes after wash. While Eco. rinse would be used on the cycle where extra rinse time may
not be needed.
6) Spin Speed
• Enables the selection of spin speed during the wash cycle. Touch this pad if you want
to change the preprogrammed selection. Selections may vary per the cycle chosen. All
selections are not available in all cycles. Certain clothes are not recommended to be spun
at high speeds. Please see clothes manufacturer recommendation for best results.
English
12
OPERATIONAL INSTRUCTIONS
1 2 3 4 5 6 7
98
16 15 17
10 11
12 13 14

7) Water Temperature (Wash / Rinse)
• To select inlet water temperature for wash and rinse. Selection may vary per the cycle
chosen. All selections are not available in all cycles. Follow fabric care labels for best
results.
8) Beeper (Signal)
• Signal volume can be adjusted soft–loud or off. As adjusted, signal will sound during
selection of cycles or options and when wash cycle is completed. At the end of washing
cycle the unit will sound 3 long beeps. When choosing an option, if signal beeps twice
it means that the option is not available. A signal will sound if the washer goes in error
status.
9) Extended Spin
• To increase spin time activate this option. This helps to remove extra water and saves
drying time. Once the wash load is in the spin cycle this pad can not be activated.
10) Stain Treat
• This function increases the wash time in different cycles. Use this for very heavily soiled
clothes.
11) Rinse & / Spin
• This option is used for clothes that do not need to be washed. Clothes sitting in a drawer
or hanging in the closet for a long time may not only need to be rinsed and spun to make
them feel fresh again.
Touch pad to select this option. The washer will now switch off the wash mode and will be
in the rinse and spin cycle. Touching the pad for a second time will set the washer to spin
only.
The rinse and spin speeds could be changed by touching their respective pad (5 & 6).
The "Wash" "Rinse" & "Spin" icons by the Time Display Zone (16) will be lit to indicate the
selected function.
12) Delay
• With the machine in standby, you can chose a delay start time from 1-30 hours. To do so,
touch the delay pad. Each touch of this pad advances the delay in one hour increments. To
activate the delay function touch the Start / Pause (3) pad. Doing so will cause the delay
(12) pad to ash. When set at 24:00, push the delay pad again and the delay time is
cancelled. After setting if wash program is change delay time is cancelled.
13) Prewash
• Use this option for heavily soiled clothes. By activating this it will add wash time before
the main wash to the wash cycle. The RINSE &/ SPIN option can not be selected if this
function is activated.
Note: Remember to add detergent to the Prewash compartment of the dispenser drawer.
14) Custom Program
• To customize your favorite wash programs simply choose your cycle, wash settings and
options and touch the "Custom Program" pad (Approximately 3 Seconds) until a beep
confirms the settings. Time display will show “rb”. A maximum of 10 programs can be
stored, one for each cycle. To use your saved setting, go to the desired cycle and touch the
"Custom Program" pad. The washer will automatically go to the saved setting.
15) Child Lock
• When the machine is running, in pause or in delay cycle, press the RINSE &/ SPIN pad
for more than 3 seconds, child lock will activate. Touch again to cancel the child lock. You
can unlock the child lock function only by touching this pad. Power off, program finish, or
unplugging the power will not unlock the child lock! If the child lock function is activated,
the child lock LED is on; if not, the child lock LED is off.
English
13

English
16) Time Display Zone
• Time display zone will show time as following: If time is less than 1 hour, display as 0:XX
(such as 0:45), more than 1 hour but less than 9 hours display as X: YY (such as 3:28),
more than 10 hours, display as XX: YY (such as 13:20).
17) Door Lock LED
• If the door lock is secured the door lock LED will be on. If door lock is not locked, and the
door can open, door lock LED is off. To add a garment touch the Start / Pause pad (3). The
door lock icon will be Off. Once the garment is added, close the door and touch the Start
/ Pause pad again. The washer will resume its operations.
WASHER OPERATING PROCEDURE
1. Lightly touch the On/Off pad to power on the washer.
2. Select wash cycle by touching the pad by the cycle. A light will illuminate the cycle
chosen.
3. Once selection is made, the soil level, rinse level, spin speed and the wash/rinse water
temperatures are pre-set. At this point, if you choose not to have any other options, lightly
touch the start/pause pad to start the wash cycle.
If you want to change the preset settings before you touch the Start / Pause pad.
1. Lightly touch the soil level, rinse level, spin speed and water temperature to select.
2. Any of the supplied options: Delay Start, Prewash, Beeper setting, Extended Spin, Stain
treatment, Rinse & Spin or Custom Program can be now chosen.
3. After option selection, lightly touch the start/pause pad to start the wash cycle. (All
options not available in all cycles).
4. To customize your settings, once your favorite settings are selected touch the Custom
Program pad and hold for 3 seconds.
5. To child lock the control panel touch the Rinse&/Spin pad and hold for 3 seconds. To
unlock the child lock function only touch the Rinse&/Spin pad. Power off pad cannot
unlock the child lock function. During activation of the child lock function, the child lock
LED is on.
6. You could pause the washer and if the door lock light on the control panel will be Off
during this time the door of the washer can be opened to Add a Garment.
7. With the machine in standby, you can chose a delay start time from 1-24 hours. To
do so, touch the delay pad. Each touch of this pad advances the delay in 30 minutes
increments. To set the delay function touch the Start / Pause (3) pad. Doing so will cause
the delay (12) pad to ash. When set at 24:00, push the delay pad again and the delay
time is cancelled. After setting wash program is change, delay time is cancelled. Program
changes, delay time is also cancelled.
FEATURES
Electronic Touch Pad Controls: Allows you to use the washer at the touch of your fingertips.
5 Compartment Dispenser: Use liquid or powdered detergent for prewash, powdered
detergent for main wash, liquid detergent for main wash, liquid bleach and liquid fabric
softener for optimum wash.
Designed specially to use only HE (High Efficiency) detergent
Energy Star unit saves you water and energy
Sanitary Cycle: An additional internal water heater automatically heats the water to ideal
levels to clean those hard to remove stains.
14

15
Custom Cycle: You do not have to remember your favorite setting. Simply program and set it.
Automatic Setting: Once you choose your required wash cycle, the soil level, rinse level,
spin speed, water temperature and signal will set automatically making the unit automatic
operation. If desired in certain cycles you could change these settings and choose options to
personalize your needs.
Capacity: The absence of an agitator gives you additional space to wash large and bulky
items like bed sheets, comforters and large loads.
Drum: The stainless steel drum keeps the unit looking clean and avoids rust.
Add a Garment: When the lock sign is Off on the panel, during this period an additional
garment can be added to the wash cycle.
AMT door Seal: Reduces the collection of mildew and bacteria that is harmful to the wash.
Heavy Duty Suspension System: The washtub uses shock absorbers in suspension system that
maintains an equal balance when heavier loads are being washed. This system can control
tension softly and tenderly so the machine will balance quietly without shutting down. Thus
helping in reduction of noise and vibration.
Control Panel Display: Will display the remaining wash time or error message during a wash
cycle. If the delay start function is chosen, it will display the remaining time for wash cycle to
begin.
CYCLES
Sanitary - This cycle is intended for heavily soiled garments. An internal water heater raises
the Extra Hot wash water temperature to 154°F (68°C) to help tackle those hard to remove
stains.
Heavy Duty - This cycle is preset to use hot water to deep clean heavily soiled durable
colorfast fabrics.
White - This cycle is preset to use hot water to deep clean white garments.
Normal / Casual - This cycle is for normally soiled cottons, linens, and mixed garment loads.
Green Wash - This cycle provides a convenient way to select an eco-friendly cold water
wash. An easy cycle selection automatically determines the best options for an effective
energy saving wash program.
Perm Press - This cycle is preset for a low spin speed to help maintain wrinkle-free clothing
and reduce creases in synthetic fabrics.
Active Wear - This cycle is intended for spandex, stretch fabrics, and high performance knits
often found in athletic clothing.
Quick Wash - This cycle is intended for lightly soiled garments that are needed in a hurry.
Delicate / Silk - This cycle is intended to gently wash delicate garments and lingerie with
sheer fabrics with lace trim.
Hand Wash - This cycle is intended to gently clean garments labeled “Hand Wash”.
NOTE: All functions may not be available in all cycles.
NOTE: It is important to check instructions on clothes label to select the ideal wash cycle.
Wrong cycle selection could damage and discolor the clothing. Certain clothes
should only be dry cleaned.
English

NORMAL WASHING SOUNDS
The following sounds are normally heard during the operation of the washer:
• Tumbling sounds: This is normal as the heavy wet clothes in the washer are continuously
being tossed around
• Air rushing noise: This happens when the washer tub spins at a very high RPM.
• Wash and rinse cycles going on and off will also make clicking sounds as well as spraying
and water splashing sound.
• Drain pump operational sound, when dirty water is being drained.
English
Preset Cycle
Cycles Cycle
Time
Wash
Speed Spin Speed Wash / Rinse Temperature Soil Level
Sanitary 1:35 45rpm Max 1300 Extra Hot / Cold Medium
Heavy Duty 1:18 45rpm Max 1300 Hot / Cold Medium
White 1:10 45rpm Max 1300 Hot / Cold Medium
Normal / Casual 0:54 45rpm Max 1300 Warm / Cold Medium
Green Wash 0:54 45rpm Max 1300 Cold / Cold Medium
Perm Press 0:49 40rpm Max 900 Warm / Cold Medium
Active Wear 0:43 45rpm Max 1200 Warm / Cold Medium
Quick Wash 0:31 45rpm Max 1200 Warm / Cold Light
Delicate / Silk 0:44 40rpm Max 900 Warm / Cold Medium
Hand W ash 0:37 40rpm Max 900 Cold / Cold Medium
16
NOTE: The cycle time may vary in different environments. The temperature of water and
water pressure will specially affect the timing.

17
English
Cycle Fabric type Soil Level Rinse Level Spin Speed Water
Temperature
Delay
Time
Pre-
wash
Extended
Spin
Stain-
Treat
Rinse &
Spin
Normal /
Casual
Clothes of cot-
tons, linens and
synthetic fabrics,
work clothes,
jeans, shirts
Medium Normal Extra High Warm / Cold
• • • • •
Heavy
Light
Baby Care
Extra
Eco.
High
Medium
Low
Extra Low
No Spin
Hot / Cold
Cold / Cold
Tap Cold / Cold
Perm
Press
Dress shirt /
pants wrinkle
free clothing,
poly / cotton
blend clothing,
table cloths
Medium Normal Low Warm / Cold
• • • •
Heavy
Light
Extra
Eco.
Medium
Extra low
No Spin
Hot / Cold
Warm / Warm
Cold / Cold
Tap Cold / Cold
Quick
Wash
Lightly soiled
clothing and
small loads
Light Normal High Warm / Cold
•
Heavy
Medium
Extra
Eco.
Medium
Low
Extra Low
No Spin
Hot / Cold
Warm / Warm
Cold / Cold
Tap Cold / Cold
Active
Wear
Active sports
and some casual
ware clothes
Medium Normal High Warm / Cold
• •
Heavy
Light
Baby Care
Extra
Eco.
Medium
Low
Extra Low
No Spin
Warm / Warm
Cold / Cold
Tap Cold / Cold
Hand
Wash
Items labeled
"hand
washable"
Medium Normal Low Cold / Cold
•
Light Extra
Eco.
Extra Low
No Spin
Warm / Warm
Warm / Cold
Tap Cold / Cold
Delicate /
Silk
Dress shirts /
blouses nylons,
sheer or lacy
garment
Medium Normal Low Warm / Cold
•
Light Extra
Eco.
Extra Low
No Spin
Warm / Warm
Cold / Cold
Tap Cold / Cold
Green
Wash
Clothes of cot-
tons, linens and
synthetic fabrics,
work clothes,
jeans, shirts
Medium Normal Extra High Cold / Cold
• • • • •
Heavy
Light
Baby Care
Extra
Eco.
High
Medium
Low
Extra Low
No Spin
/
Whitest
Cotton
Cotton, linen.
towels, shirts,
sheets, jeans,
mixed loads
Medium Extra Exrta High Hot / Cold
• • • • •
Heavy
Light
Baby Care
Normal
Eco.
High
Medium
Low
Extra Low
No Spin
Extra Hot
Warm / Warm
Warm / Cold
Cold /Cold
Tap Cold / Cold
Heavy
Duty
Large item such
as blankets and
comforters
Medium Normal Extra High Hot / Cold
• • • • •
Heavy
Light
Baby Care
Exra
Eco.
High
Medium
Low
Extra Low
No Spin
Extra Hot
Warm / Warm
Warm / Cold
Cold /Cold
Tap Cold / Cold
Sanitary
Heavily soiled
work clothes,
etc.
Medium Normal Extra High Extra Hot /Cold
• • • • •
Heavy
Light
Baby Care
Exra
Eco.
High
Medium /
NOTE: To protect your wash load, all settings may not be available with all cycles, the shaded levels represent the preset
setting.
Select Cycles Desired According To Fabric Types And Soil Level
CYCLE SELECTION

CAUTION: When first using the washing machine, choose the SANITARY cycle and
run it without clothes. Use only HE High Efficiency detergent. Use 1/2 the
manufacturer’s recommended amount for a medium sized load. This initial cycle
serves to ensure the interior is clean before washing clothes.
Sorting Of Clothes
• Soil (Heavy, Medium, Light) - Separate clothes according to the amount of soil content.
• Colors (Whites, Lights, Dark) - Separate dark colors from the whites as colors can transfer
causing discoloration.
• Lint (Produce & Collectors) - Separately wash the lint producer's and collectors.
Loading The Washer
• Load each item loosely.
• Separate the white and colored clothes. Separate heavy clothes from light clothes.
• Carefully check all pockets and cuffs for small items. They may damage the drum.
• Pre-treat all stains and heavily soiled areas for best results.
• Do not overload the washer.
• Close the door properly after loading the clothes.
• Combine larger & small items in a load.
• Single items may cause unit to go off balance. Single bulky items such as blankets,
comforters or bedsheets can be washed separately.
NOTE: Do not wash water proof clothing. Do not overload the drum with items. The door
should close easily. When unloading check under door seal for small items.
Laundry loading
A) Open the washer door.
B) Unfold the sorted items of clothing and place them loosely into the drum. Mix up large and
small items so they distribute evenly during the spin cycle.
NOTE: Do not exceed the maximum load. Overloading will cause poor wash results and
encourage creasing.
C) Close the door watching for trapped items of clothing between the door and door seal.
Door must close easily and not by force.
D) Filling laundry detergent additive. Open the dispenser drawer and add laundry products
to the detergent, bleach, or fabric softener compartments. Close drawer slowly to avoid
spills. See “Using the Dispenser.”
NOTE: 1) Keep detergent and additives out of the reach of children.
2) If too little detergent is used the laundry will not clean properly and will eventually
become gray and stiff.
3) If too much detergent is used excessive suds reduce wash movement producing
poor washing and rinsing results.
English
18
WASHING METHODS
