Haier XQBM30-22 User manual

Mini magical child
Names of the parts.............the 2nd cover
Safety precautions .......................1
Introduction of the special functions.........3
Installation and adjustment ..................3
Install the water inlet hose............5
Preparation before washing .............7
Put in the laundries .........................8

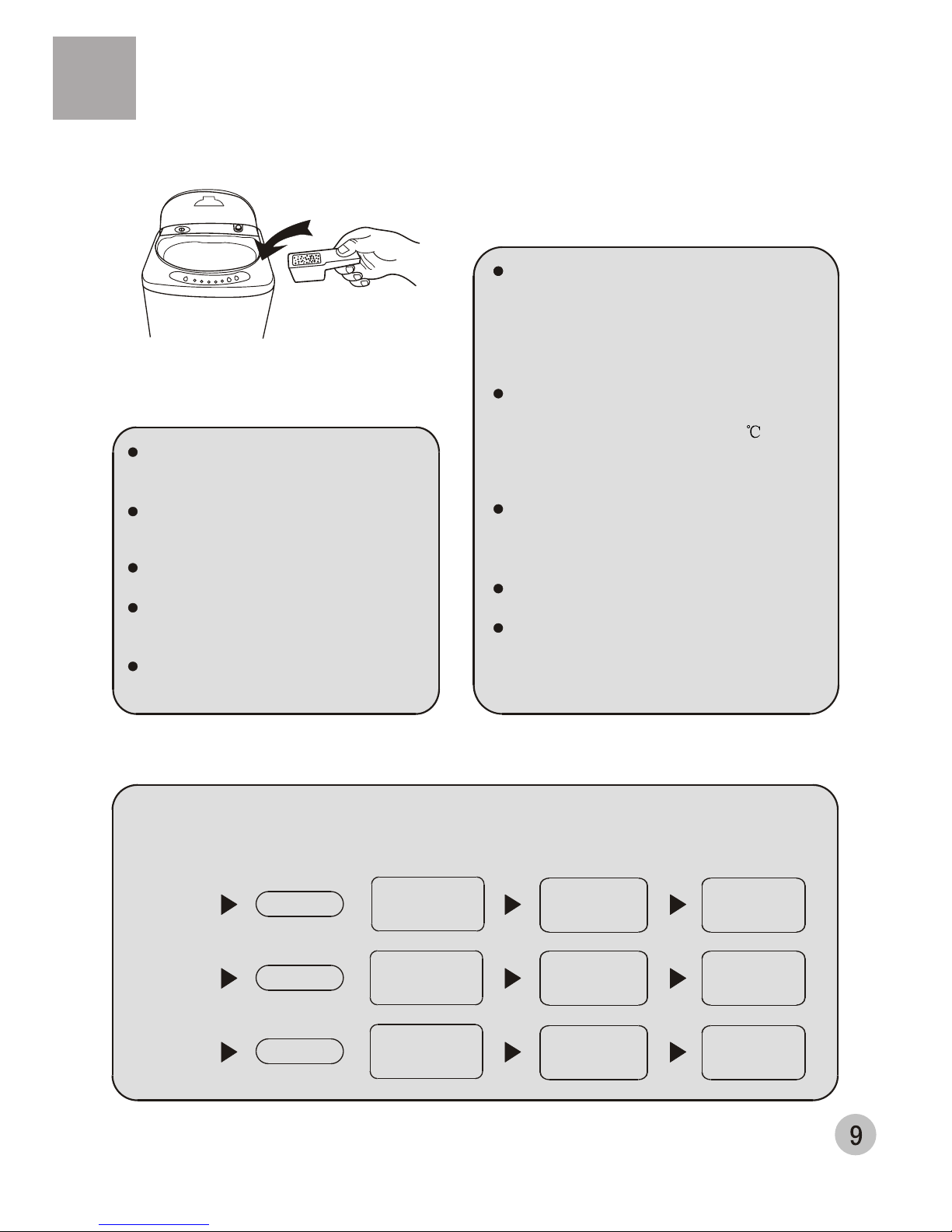

Add the detergent .......................9

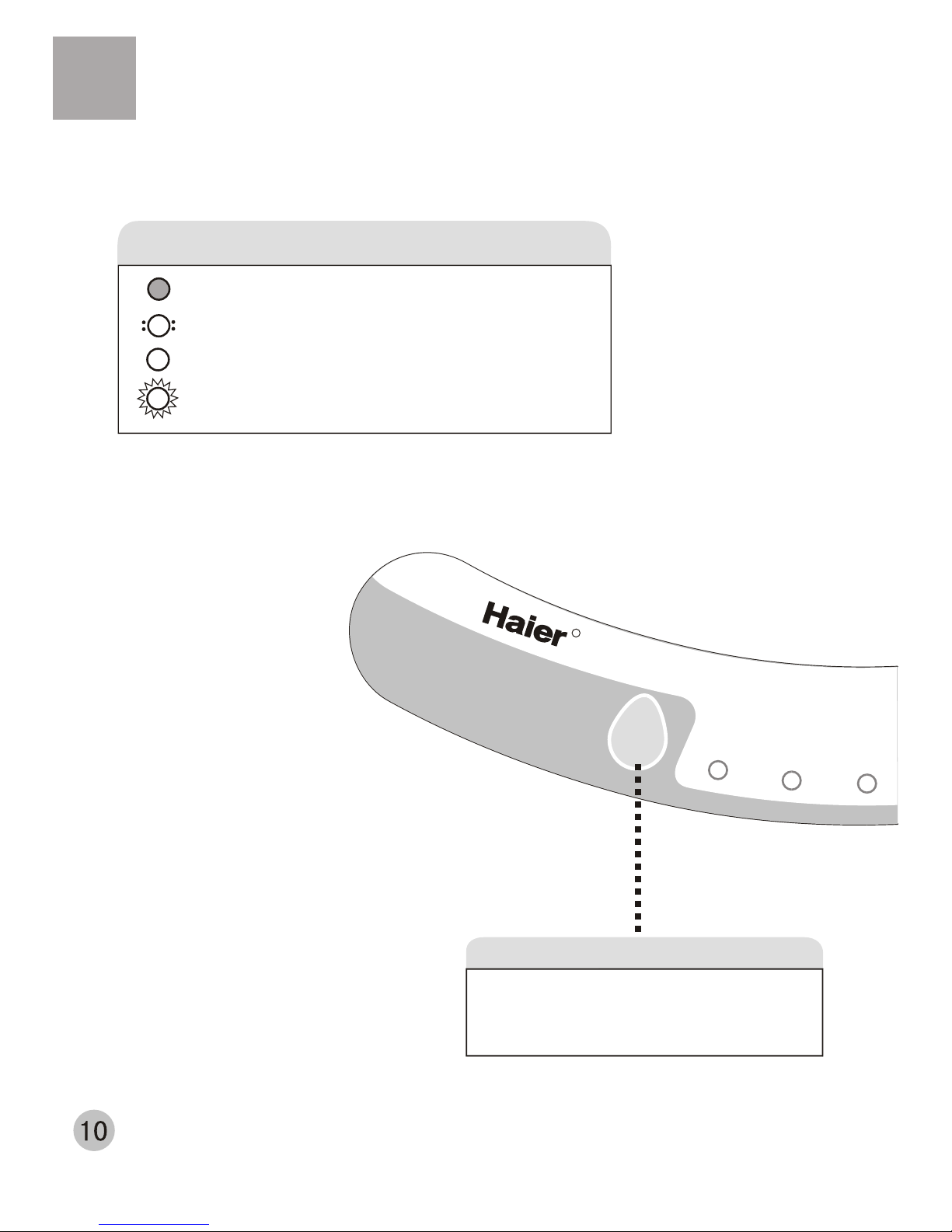

Use the operation buttons ................10
Close the top lid .....................14
Washing finished ............................14

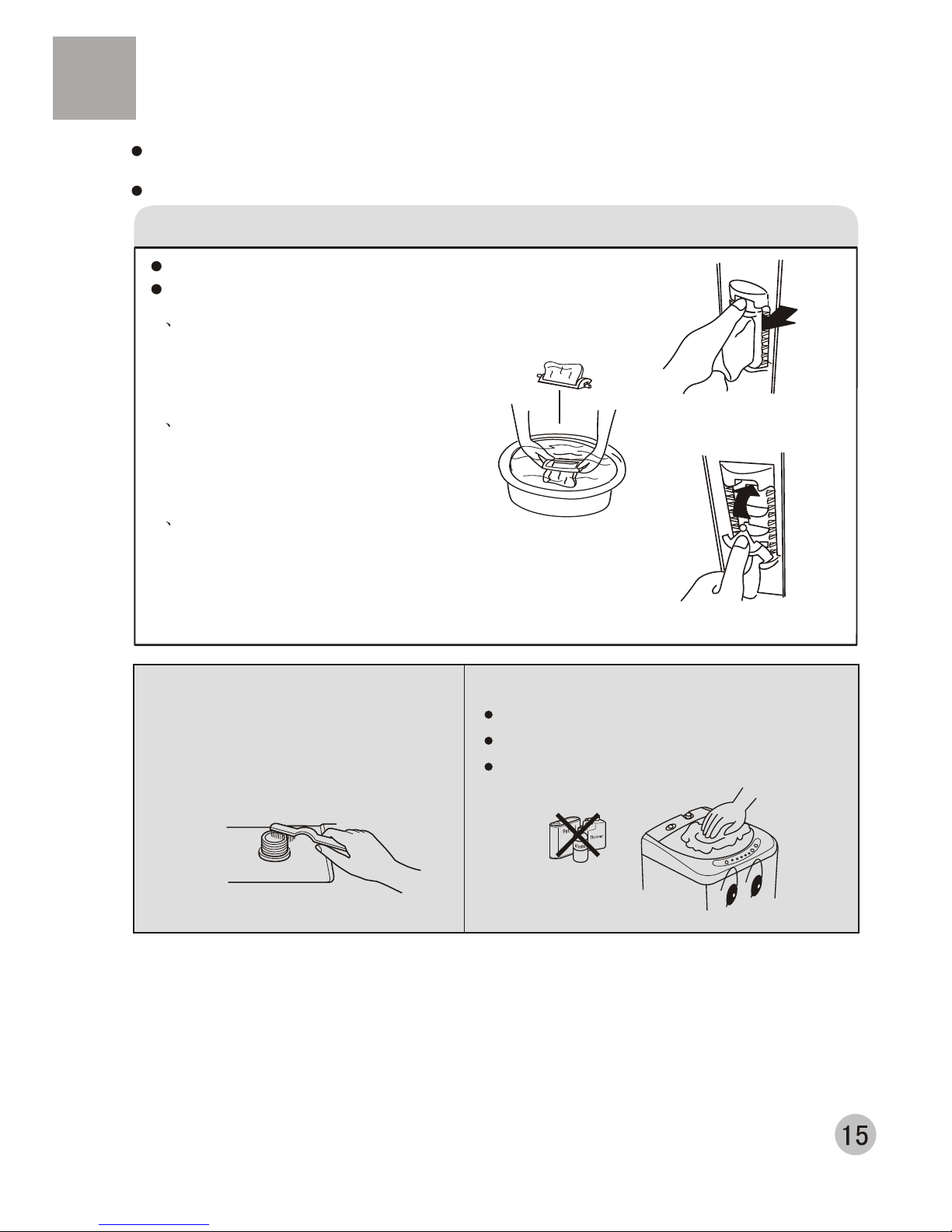

Disposal after washing ....................15
Trouble shooting Answer to question.....16
Packing list After-sales service .......................17

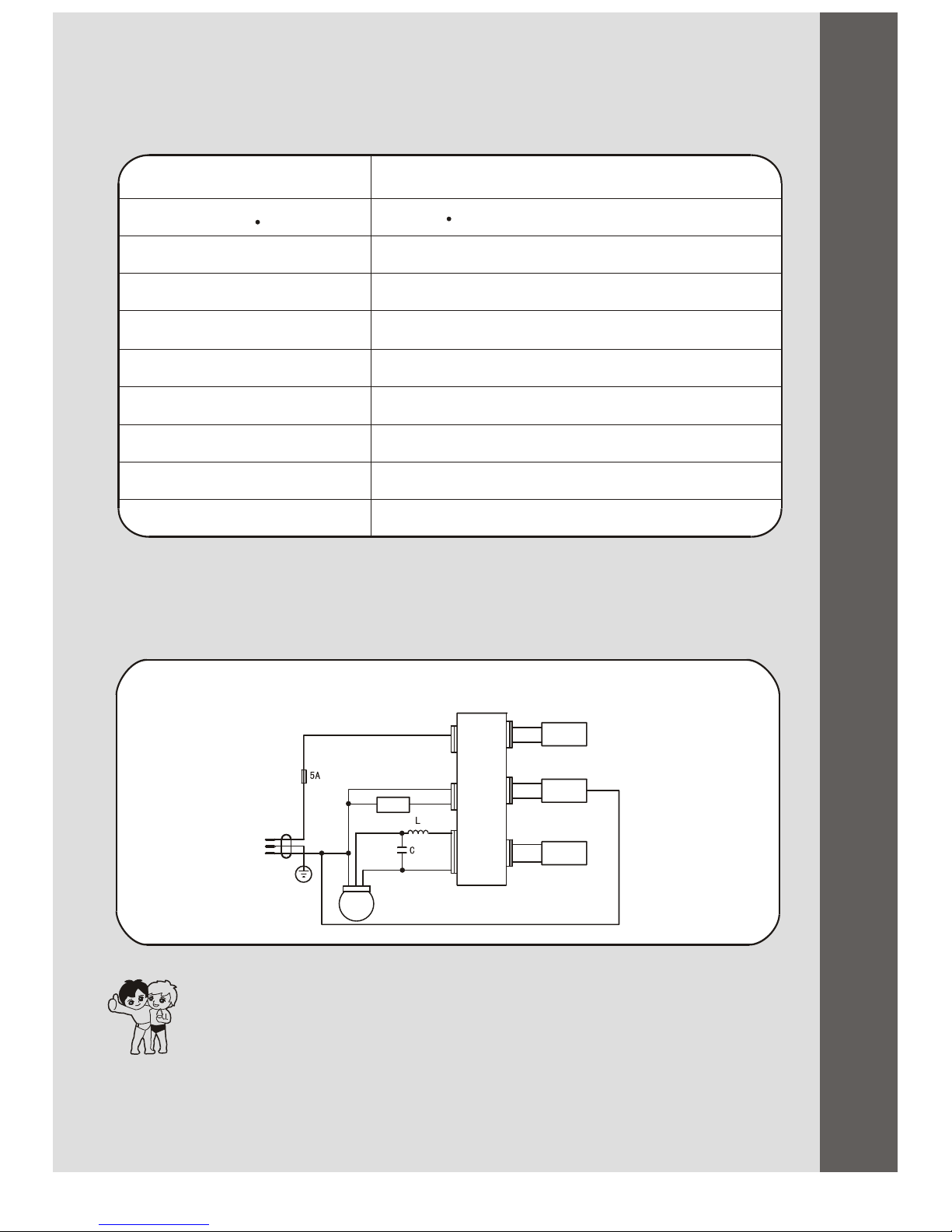

Specification Circuit diagram.....the back cover
Contents
Before using
Using process
Please read this manual carefully before use.
Please retain it attentively for future reference.
User's manual
Computerized Automatic
Washing Machine
Mini magical child,having
large capacity,can wash
two towel quilt
XQBM30-22

Meaning and description of the symbols
Honorable users,
Thanks for your choosing Haier products.
Haier products integrate high-tech, precision frontier science and possess the best quality
among simila r products. To facilitate your operation, please read the manual carefully and
operate this machine according to it.
Haier's star-level service is always accompanying you. No matter what problems you meet
in use please do not hesitate to contact us by the telephone number and address on the
certificate of warranty. We are at your service all the time.
Thanks again for your choosing and introducing Haier products.
Haier-sincere forever!
Before Using
Before Using
Names of the parts
the end connecting to
the water inlet hose jointer
the end connecting to
the washing machine
jointer connecting the
water inlet hose and
the water faucet
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strictconformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
bottom plate
(one)
water inlet hose
(one)
Water inlet
hose jointer
(one)
ST4X16
tapping screws
(8 purchase)
Top lid
Control panel
seat
lint filter
Inner tub
Pulsator
Control panel
film
Cabinet
Cabinet,lower Adjustable foot
Power cord
Hook
Drain
hose
Handle
Back cover Fixed foot(3 pcs)
Water level knob
Water inlet valve
Adjustable foot
seam
Water-absorption
gasket

Before Using
Before Using
Safety precautions
Be sure to use three-phase power receptacle.
Ensure that the earth terminal of the power
receptacle is earthed reliably.
If the power line is bad, to avoid risk it is required to have it replaced by the technicians
of our special shop or our agent or the after-sale service department. Keep the pin of
the power plug clean.
Be sure to pull the plug off when the
machine is idle or when cleaning the
machine.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not use water hotter than 50
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
soft items
The ventilation holes
at the bottom
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Petrol
Thinner
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department of
our company.

The largest allowed slope of the shank base of the machine is 2 . The slanting or
rough ground will result in unstable running or stoppage of the machine. Please
adjust it with following methods:
Confirm it's horizontal:
Adjust the adjustable foot:
Hang the lead line to confirm if it is horizontal.
Install the bottom plate
After you open the package, please lean
the washing machine gently down on soft
items ( like the towel cloth, blanket, etc. ).
Install the bottom plate to the bottom of
the machine with the eight screws by
a cross screwdriver, then lift the machine
up gently. See to the figure:
Adjust the installation position
soft items
Bottom plate Screw
Loosen Fasten
High Low
adjustable nut
adjustable foot
Before Using
Before Using

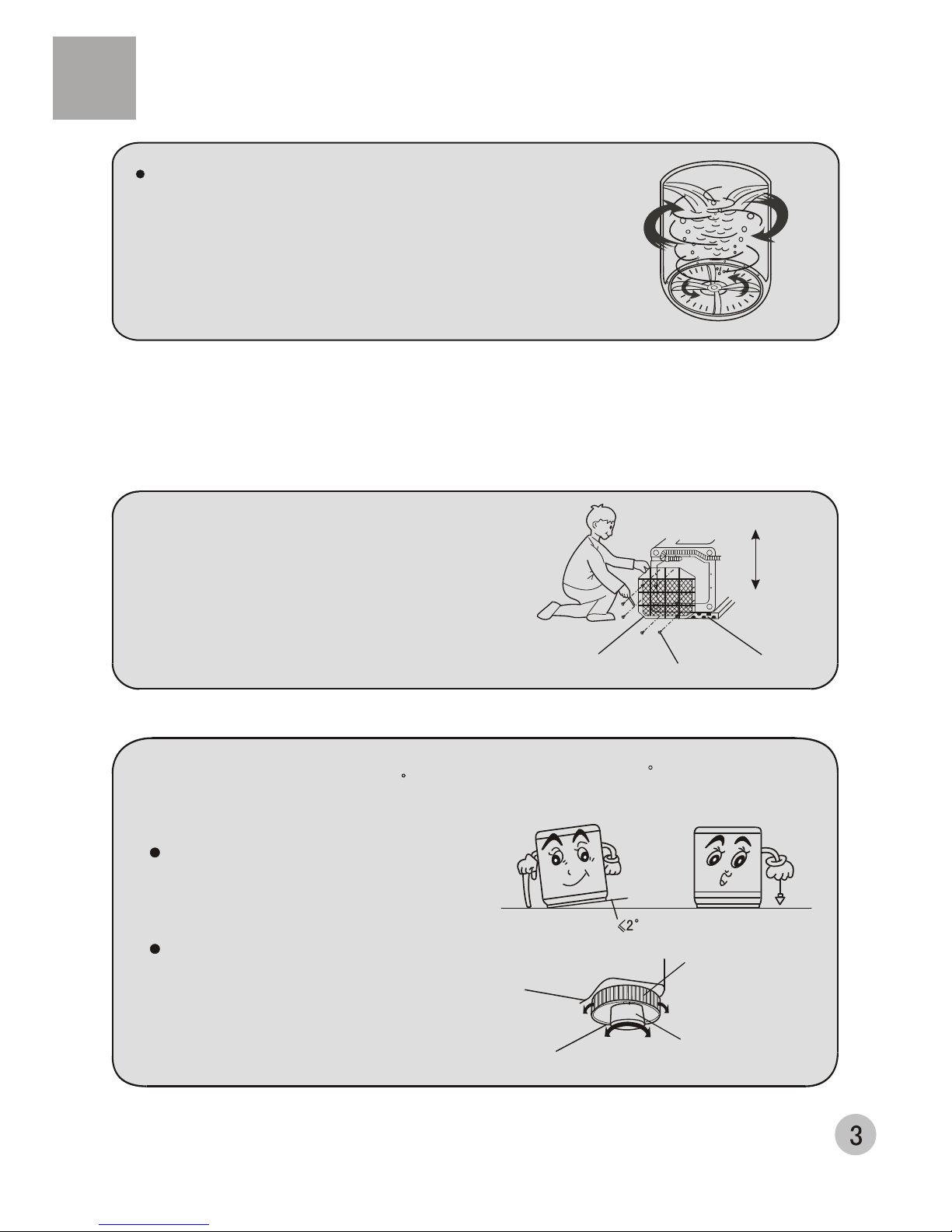

Introduction of the special functions
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Back
Front
1.To twist the adjustable foot, please first
lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.
2.Fasten the nut after adjustment.
Hand-wash type wash:
The inner tub and pulsator rotate to opposite
directions during washing to form current like the
hand-wash moving. At the same time the washing
effect is improved significantly because the wall of the
inner tub also acts in washing.

1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not ramp or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
If the extra hose is too long, cut it
either at Aor at B point.
1.Lean the machine down gently with the front
surface facing the ground. Loosen the eight
screws by a cross screwdriver.
3.Extend the drain hose from the left side. Push the
drain hose into the groove with hands.
4.Install the bottom plate (as per indicated before),
then lift the machine up gently.
2.Pull out the drain hose from the groove at the
right side.
Back
Front
Bottom plate
Soft item
Use groove at
this side after
direction changing
Page 3
Push the drain hose
into the groove with
hands at this point
Before Using
Before Using
How to change the direction of the drain hose
Usage of the drain hose
The drain hose shall drain smoothly

Water faucet,suitable Water faucet,not suitable
It is required that the front end shall be longer than 10cm.
The outlet end surface of the faucet shall be flat and smooth. If not please file it
to avoid leakage.
2.Loosen the screw till the water faucet can be accessed. Put the jointer of the water
inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can
not be set on the water faucet, please loosen the four screws and take out the
bushing in the jointer. See to the figure.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet
hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before installation, the threading is 4mm above the upper surface of
the nut. After installation, the threading is 2mm above the upper surface of the
nut. See to Figure 6.
4.Take off the nameplate. Twist the fastening nut as per the indication of the figure to
seal up the outlet end surface of the faucet. See to Figure 5.
3.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label
Liner
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Before Using
Before Using

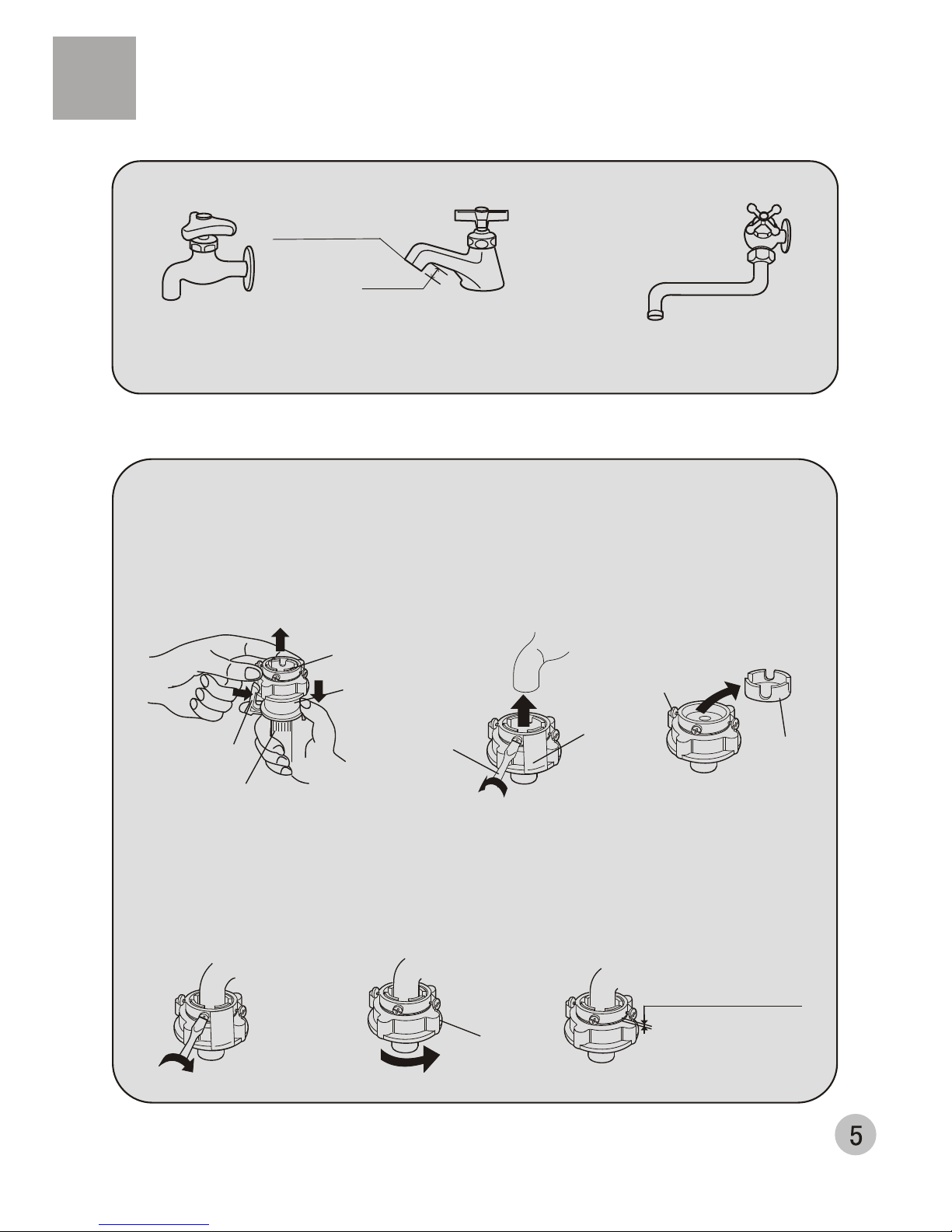

Install the water inlet hose
Confirm the water faucet
Connection between the water inlet hose jointer and
the water faucet

1.Do not take off the water absorption
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swing it gently to
confirm if it's suitable.
1.Close the water faucet.
2.Press the locking lever. Push down the slider. Then
pull of the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the faucet to prevent
damaging the fixing screw.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
faucet, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper
Installation position.
1.Push down the slider. Insert the
water inlet hose into the jointer.
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
Slider
Jointer of the
water inlet hose
Locking lever
Before Using
Before Using

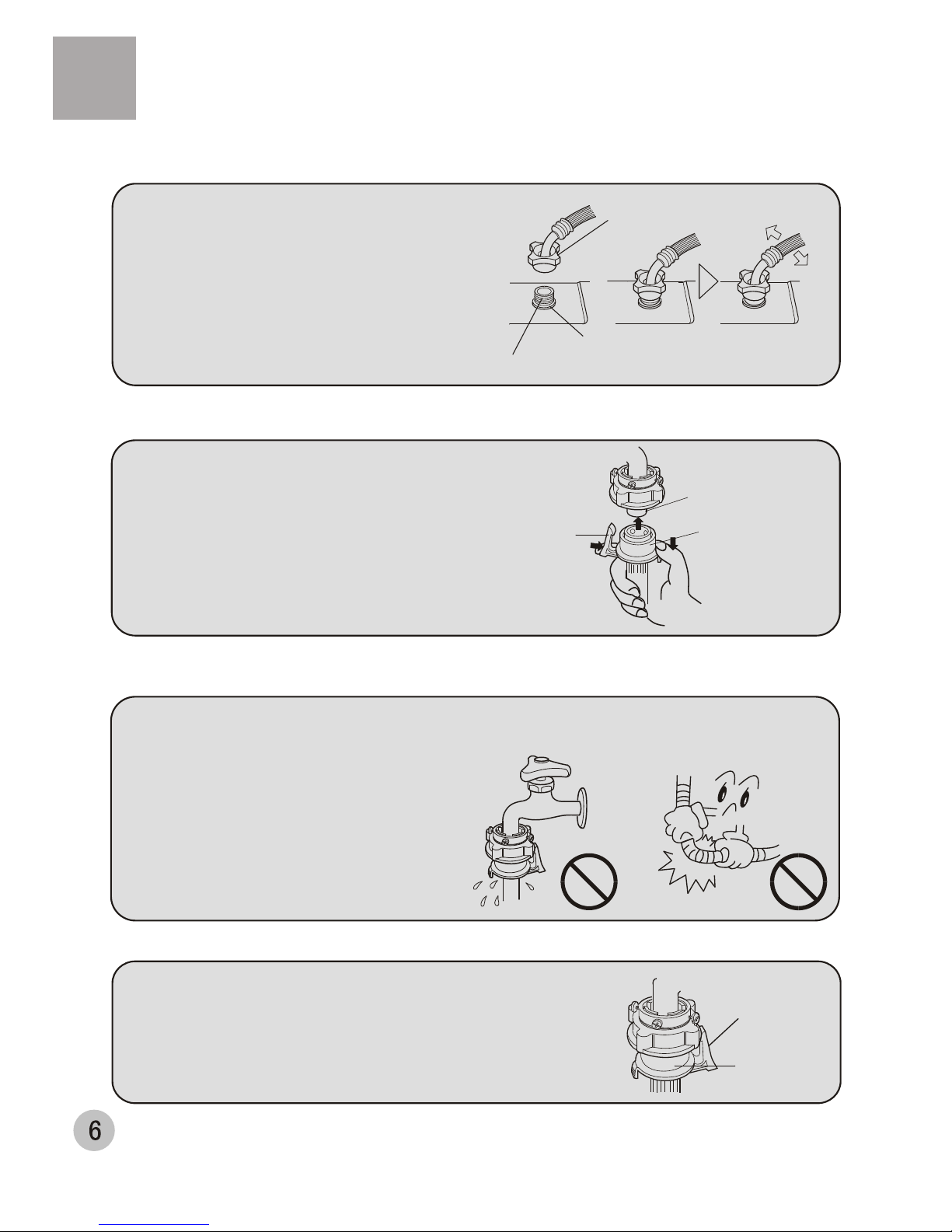

Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water faucet
Dismantle the water inlet hose

Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Put down the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries

Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing and spinning of the
machine refer to the largest weight of the standard
laundries under dry condition (as per the laundries
stipulated in the A2 Attachment of GB4288-1992
standard) that can be washed or spinned in one
time. One time washing quantity shall be lower than
the rated capacity. The largest capacity of this
machine is 3.0kg.
The thickness, size, type of the cloth will influence
the actual washing capacity. It is suitable for one
time washing to put in reasonable amount of
laundries and the laundries can be turned round in
washing.
Do not select "High" water level for laundries small
than 0.8kg, so as to avoid splashing of water.
To wash thin laundries like the stocking, silk etc.,
please first put them into washing bag (which can
be purchased separately) before wash.
blending coat
about 800g
shirt jacket
single bed sheet
socking
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g
