MODEL:
TOP LOAD FULLY AUTOMATIC WASHING MACHINE
OWNER’S MANUAL
Please read this manual carefully before
operating your washing machine and retain
it for future reference.
HWM180-M1990DD
HWM200-M1990DD

Drainage hose
Confirm the water faucet
10-13
9

Outer tub cover
Detergent box
Top lid component
Inner tub
Pulsator
Cabinet
Base frame
Power cord
Back cover
Fixed foot (2 pieces)
Hook
Screw cover
Adjustable foot (2 pieces)
Back panel
Water inlet valve
Names of the parts
Control panel film
Water absorption gasket
an injury to the
Handle
Drain hose

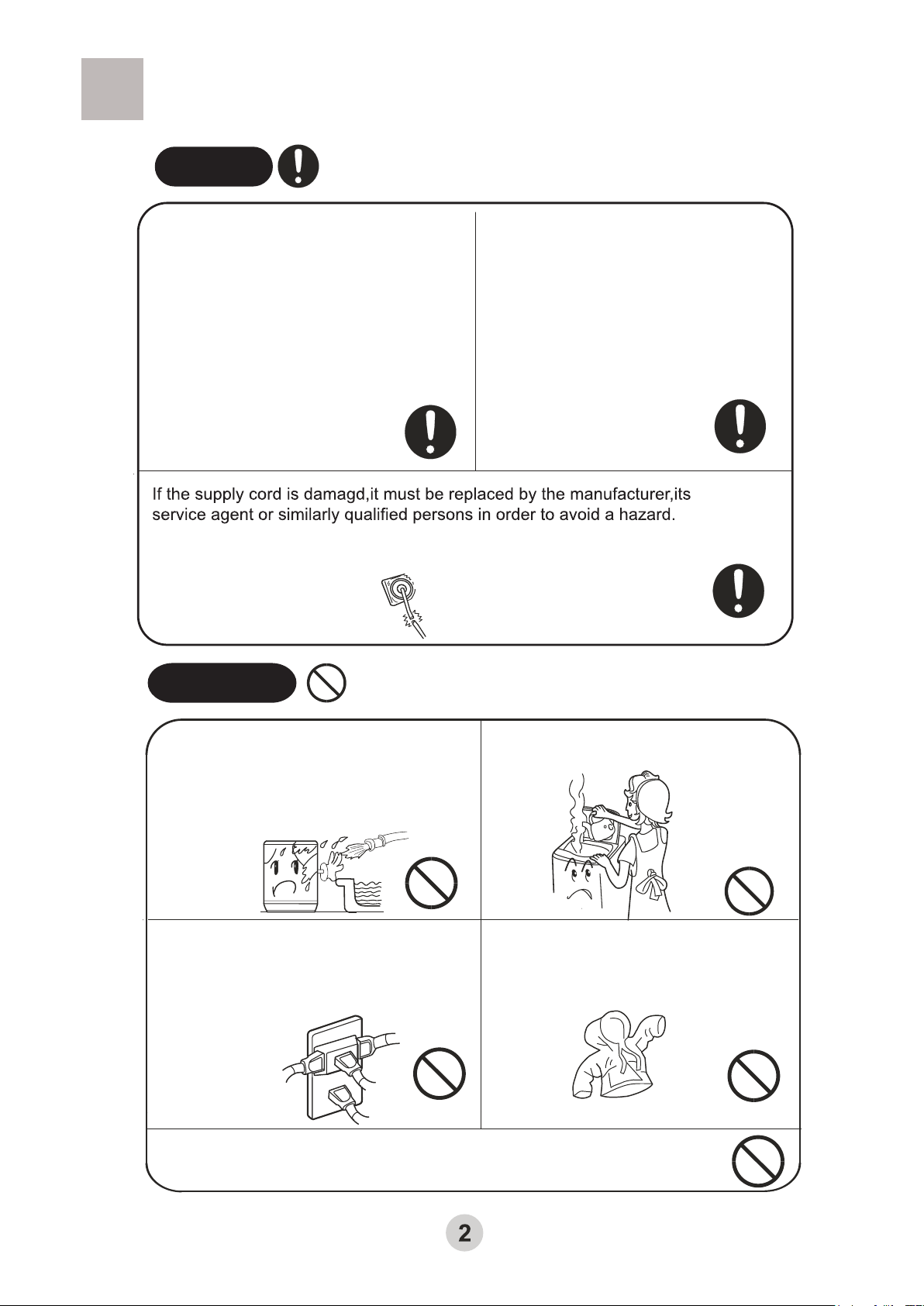

Safety precautions
Warning
Forbidden
50
If you are using an extension cord or a
portable electrical outlet device (not
recommended), ensure that it is
positioned so that it does not come into
contact with water
or moisture
The openings must not be obstructed by a carpet
A separate, earthed power socket is
required for the power supply. Hold the
plug-NOT the electric cable-when
unplugging the washing machine. Do not
insert or remove the power plug with
wet hands. The power plug should be
accessible after the machine installation.
Ensure the plug is removed and the
taps turned off in the followng cases:
Power failure, cleaning, moving,
installation and when not in use.
Do not install this appliance in a damp
or wet environment. Do not leave wet
laundry on the Control Panel or spray
water directly on to this appliance,as
this may cause the washer to
malfunction
or cause an
electrical
fault.
Do not wash water-proof clothing as
this may affect load balance
during spin cycle(s).
Do not connect to hot water higer than
50°C temperature.

This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible
for their safety. Children should be supervised to
ensure that
they do not
play with the
appliance.
If power cord or other parts of this machine become damaged or faulty, please contact a
technician to have it repaired. DO NOT attempt repairs by yourself as this may cause
personal harm or void warranty.
Do not take apart, repair or alter the
machine by yourself.
Smart hinge
Smart hinge

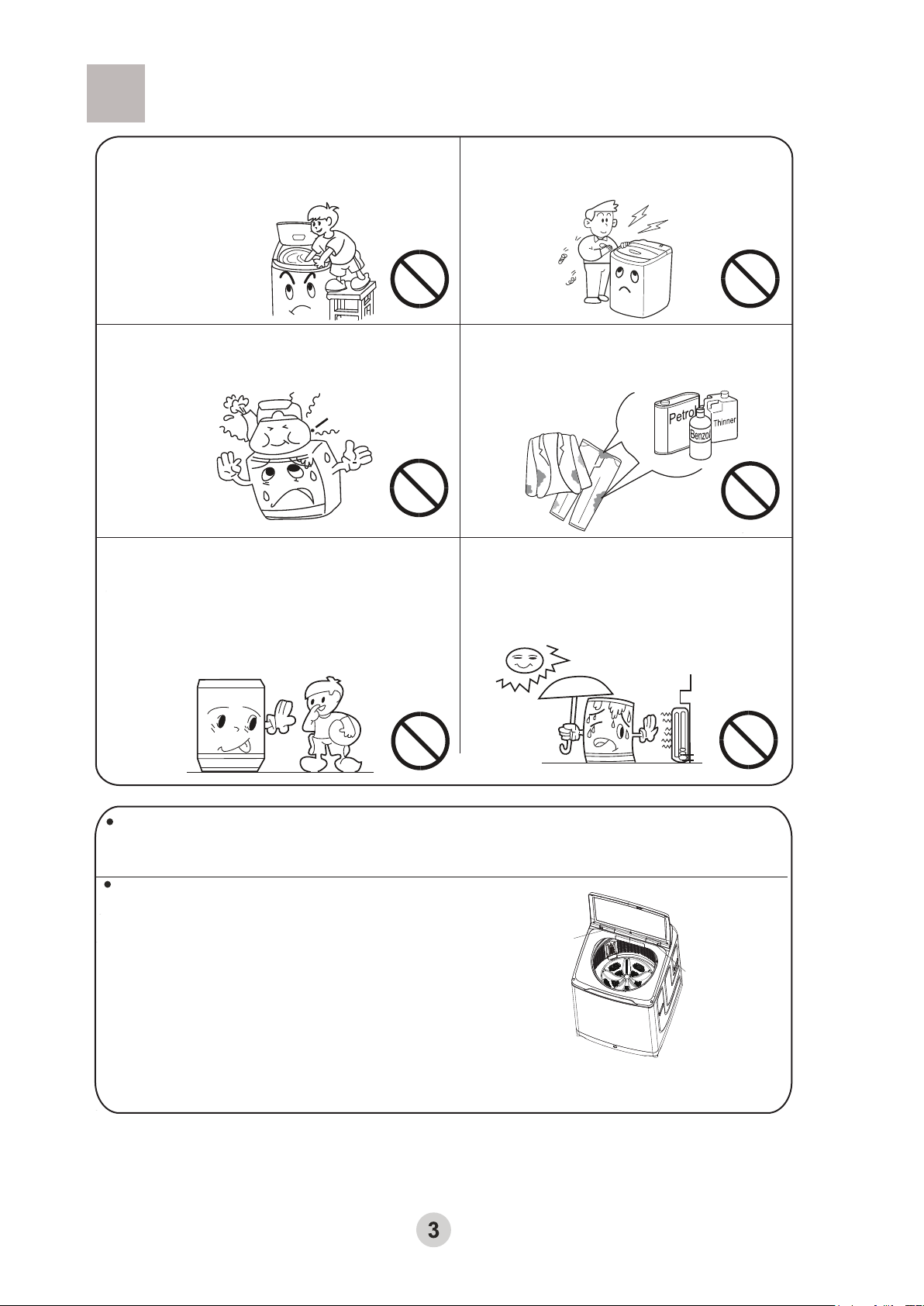

Do not attempt to move washing or place hands
inside washing machine while in operation.
Please ensure children are supervised around
machine to avoid harm.
Do not leave hot or heavy items on lid or control
panel as this may cause damage to the washer
or make the washer unsafe to operate.
Do not wash laundry with chemcals or other
volatile materials(such as petrol, solvents or
thinners) as this may cause damage to the
machine.
Keep washer away from heat sources such
as heater, stoves or direct sunlight.
Smart hinge prevents sudden closing of the door.
Door is heavy, be careful while closing of the door.
Do not let your hands or any other material to
caught below door. It might cause injury or damage.
Door closing time is dependent on ambient
temperature. Higher the ambient temperature,
lower the door closing time and
vice versa.
Smart Closing Door performs best when lid is closed
from full open condition.
Safety precautions

Do not install this machine on an incline greater than 2°. Installing machine on an
angle or on rough ground will result in unstable running or stoppage of the
machine. Please adjust it by the following method:
1.Confirm it is level;
2.Lift up the side of the machine slightly and twist the adjustable leg.
Note: The distance between the washing machine
and wall should be at least 20mm.
2°

Usage the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be less than
10cm, or the drainage will not be smooth, and
cost such long time that the machine may stop
at mid way.
2.Do not trample or press the drain hose
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage,cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase.The inner
diameter of the extra hose shall not
less than 30mm,and the length shall
not exceed 1.5m.
5.If the extra hose is too long, cut it
either at A or at B point.
Note:The instructions for appliances connected to the water mains by detachable hose-sets
shall state that the new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.
AB
Drainage hose

1.Prepare warm water of 30°C and container.
2. Add washing powder while stirring to dissolve it completely.
Usage of the detergent
Control panel seat
Dissolve directly inside the washing machine: (not
applicable for fuzzy and reserve program)
1.Add some water (select " low " water level).
2.Add washing powder. Run for about 30s to fully dissolve
the Powder. Then push the "Start/Pause" button.
3.Put in laundries. Select suitable water level. Push the
“ Start/Paunse” button again.
Quick dissolving of washing powder:
It is not recommended to use rich-foam washing powder.
If you select “Quick Wash” program, it is suggested to use
liquid detergent instead of washing powder to guarantee
the washing effect.
Please add suitable washing powder as per the laundries
quantity, the set water level and water quantity.
It is suggested to add washing powder into the box.
directly under fuzzy program and reserve program.
Washing powder with poor quality or long-time storage may
get caked. Please clean the detergent box duly in usage.
Detergent box
Softener inlet Liquid detergent box
How to use liquid detergent
Before washing put the liquid detergent into the
liquid detergent box directly as indicated the above
figure. The usage and dose of the liquid detergent
as per the specifications of liquid detergent.
Put the liquid detergent box on the right of the
detergent box. See the above figure.
The usage and dose of the softener as per
the specifications of softener.
Before washing put the softener into the
detergent box directly. See the above figure.
The softener will put into the washer when the
last rinsing.
After that,please close the detergent box refer to
the following list for the usage of the detergent:
selection of the water level,water quantity and
dosage of detergent
After the softener is put in,please don't place for
a long time otherwise softener may solidify and
cause flowing not smooth.
How to use softener
The rated washing capacity refers to the largest dry
weight of a load that can be washed.
The thickness, size and type of clothes will influence
the actual capacity.
Do not select more than water level “Max” for
clothes less than 2.0kg, to avoid splashing of water.
It is recommended that low suds/high efficiency
washing powder is used.
Loading your laundry
Washing powder inlet
How to use washing powder

Preparation before washing
1.Connect the water inlet hose. Open the water faucet.
2.Confirm that the washing machine is earthed reliably.
Then insert the power plug into the receptacle. The
earth terminal shall not link to gas pipeline and faucet
water pipeline.
3.Put down the drain hose.

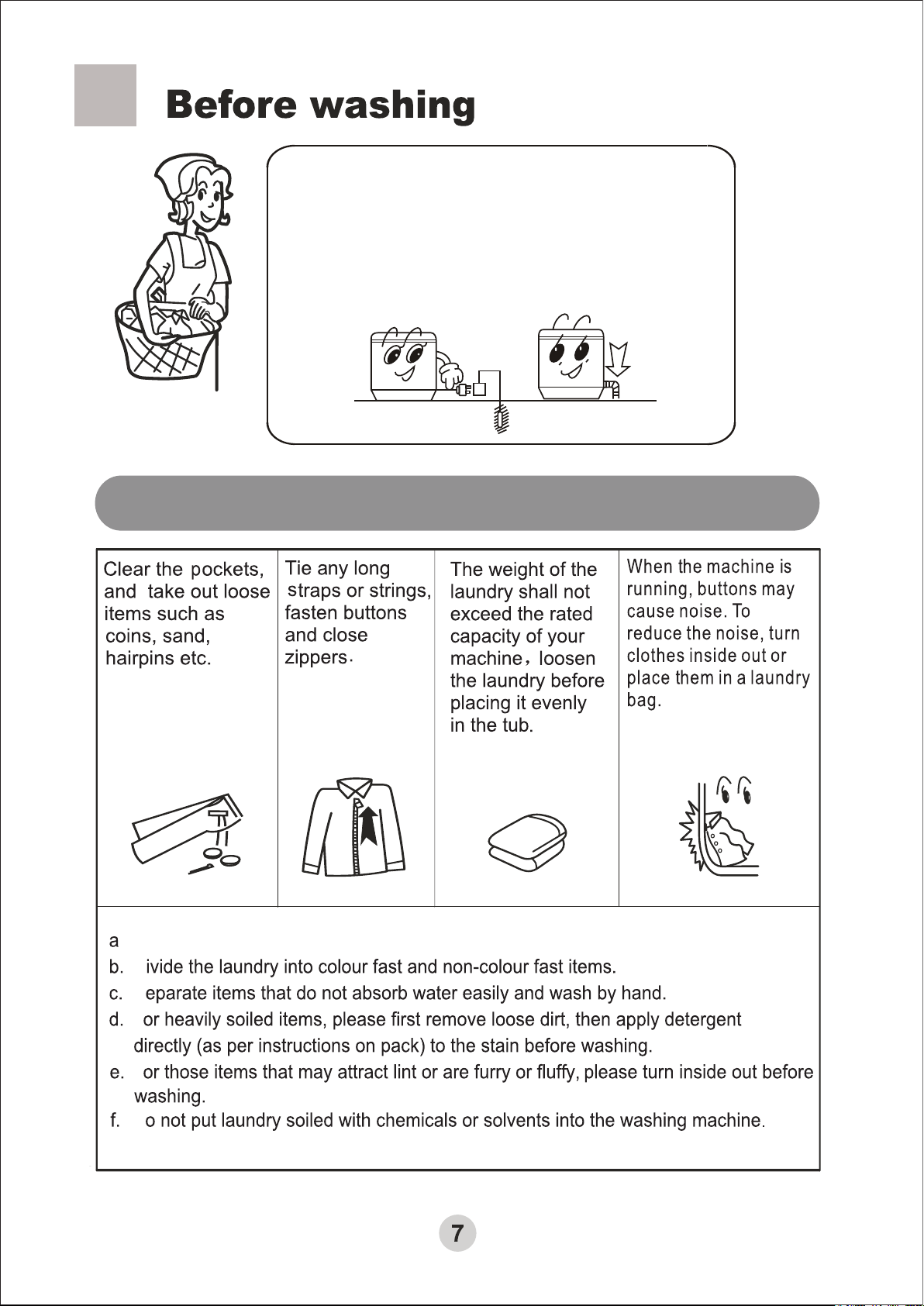

Check if the laundry has any special washing instructions.
Check the following before washing
D
S
F
F
D

Confirm the water faucet
The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused
water faucet,suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not
please file it to avoid leakage.
The exit end face of the faucet
Connection between the water inlet hose jointer and the water faucet
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer
from the water inlet hose component. See to Figure 1.
2.Take off the nameplate. Make sure the threading is 4mm above the upper surface of the nut. See to
Figure 6. If the threading is less than 4mm above the upper surface of the nut. please loosen the
screws.
3.Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the
faucet. See to Figure 2.(If the faucet is too large and the jointer can not be set on the water faucet,
please loosen the four screws and take out the bushing in the jointer. The front end of the faucet must
be smooth, otherwise it may leak water. See to Figure 3.)
4.Fasten the four screws evenly. See to Figure 4.
5.Twist the fastening nut, See to Figure 5. After installation, the threading is less than 2mm above the
upper surface of the nut. See to Figure 6.
Figure 4 Figure 5 Figure 6
Screw nut
About 4mm before twisting
About less than 2mm after twisting
Figure 1 Figure 2 Figure 3
Lock level
Slider
Water inlet hose jointer
Screw knife
Nameplate
Screw
Bushing

Connection between the water inlet hose
and the washer
1.Do not take off the water absorption cushion. Please check if
the cushion is dropped or damaged before each usage.
If it happens please contact our after-sale department
immediately.
2. Put the nut of the water inlet hose on the valve jointer.
3. Fasten the nut. Swing it gently to confirm if it＇s
suitable.
nut of the water inlet hose
jointer of the water inlet valve water absorption cushion
Connection between the jointer of the water inlet hose and the water inlet hose
1.Push down the slider. Insert the water inlet hose into the
jointer.
2.Hang the lock lever to the jointer. Release the slider till a
click sound is heard.
Locking level Slider
the jointer of the water
inlet hose
Check the connection between the jointer of the water inlet hose and the water faucet
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the jointer of the water inlet hose and the
water faucet, and the installation of the water inlet
hose are firm, so as to prevent dropping from
improper installation position.
Dismantle the water inlet hose
1.Close the water faucet.
2.Press the locking lever. Push down the slider.Then pull off the water inlet
hose.If the machine is used frequently, the jointer of the water inlet hose
can be kept on the faucet to prevent damaging the fixing screw.
Locking level
Slider

Push the " Power " button 3s to switch on the power.
Under power-on mode, push it 3s to switch off the power.
If the "Start/Pause" button is not pushed, the machine will switch off the power
automatically after 5 minutes.
" Power " button
After the power is switched on, press it to start the machine.
During working, push it to pause.
Page 15
During working , it displays the remained reserve time (minute).In case of
trouble, it displays the abnormal symbol (see to page 15)
During reserve, it displays the remained reserve time (hour).
"Start/Pause" button
Digital tube
During pause, push this button to restart and go on working.
Push down the Power button, set the desired washing program,after setting, push down the “Start/Pause”
button, then hold the “Soil Level” button and “Spin Speed” button, The digitron displays “CL”, the child lock
function is activated. All of the buttons are locked, and can not make selection.
Child Lock function
Release the child lock function: push down “Soil Level” button and “Spin Speed” button at the same time
for more than 3 seconds. After three beep sound, the child lock function is release.
The function is intended for children safety and preventing the washing program from accidental changes
by children.
ACDEFHI

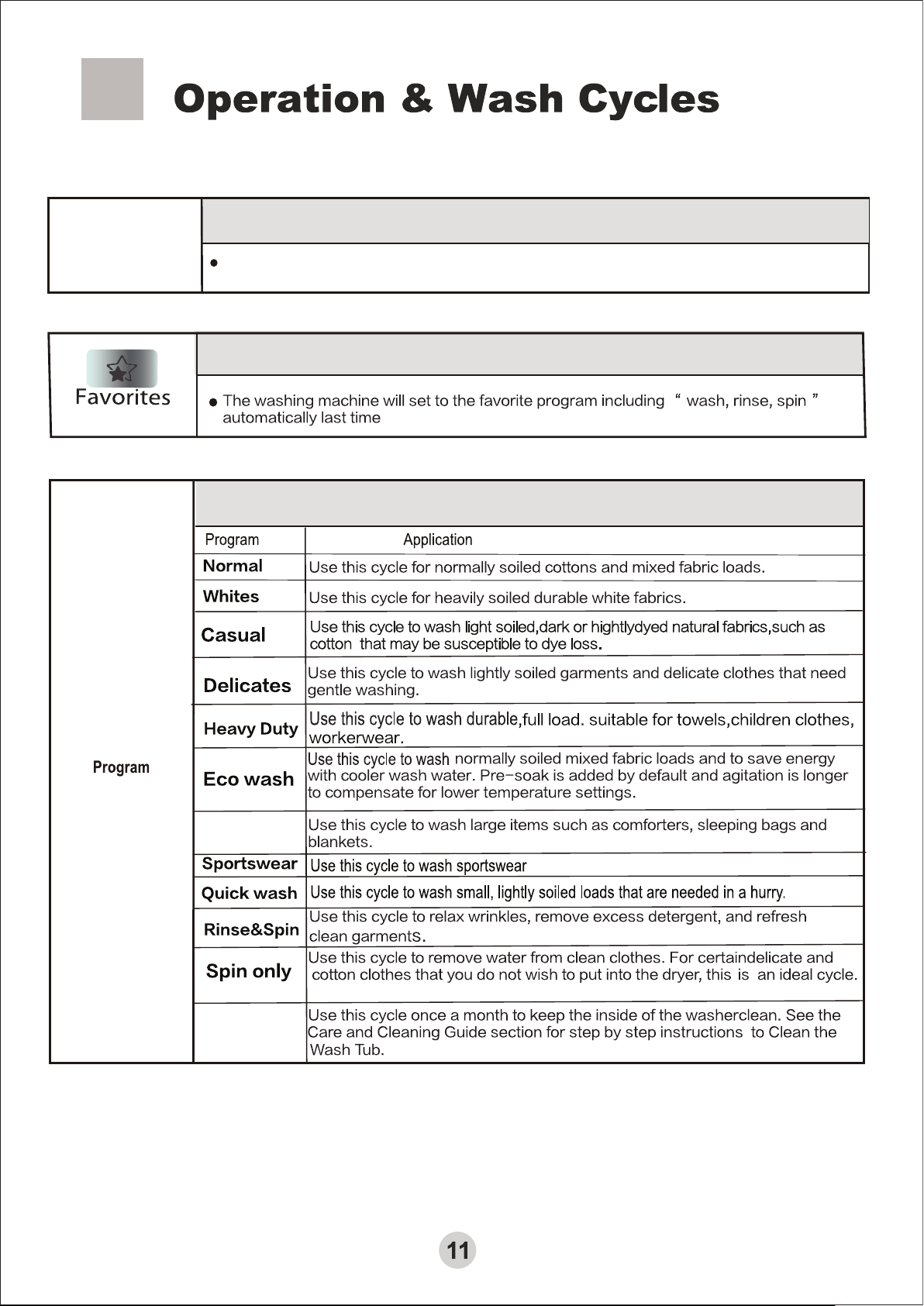

A ”Program” Select
”Favorites” button
Blanket
Baby care
I”Cycle Signle” button
Use this button to adjust the volume of control panel beeps and the end-of setting.
Cycle
Signal

D”Spin Speed” button
A spin speed setting will autoamtically be selected with the wash cycle.
Use this button to change the default setting.
Spin
Speed
Function
Water
Level
E Function button
NOTE:
Air Dry
Extra Rinse
Pre Soak
" "
The pre-soak indicator will light when pre-soak is selected,and it will add from 8 to 20
minutes depending on the soil level selection.
F Water Level button
" "
Reserve Water
"AIR DRY"program can not be reserved
The max drying capacity of the fibre is 2.5kg.
Push the button procedure The
The purpose is drying
laundries , at the sametime can dry the outer tub and the
inner tub , which can avoid growing mildewon the outer tub and the inner tub.
"AIR DRY" to select air dry . program is chosen(30min,60min,
120min).
press the “start/pause”,the water will drain in container that more lower.
It will reserve 4 hours if the procedure involved function of “Rinse”and alarm evry 15 minutes.
If the time beyond 4 hours,the procedure will go on and do not drain water.
Like the button of”wool””spin”, it has no the function.
C”Soil Level” button
l
Soil
Level
Not all selections are available for all cycles.
laundries
12

H ”Delay Wash” button
Delay
Wash
13
Use this button to select a delayed start of the washer.The number of hours will
be shown in the Estimed Time Remaining Display.Each press of the Delay Wash
Button will increase the time by 1 hour.
One button press after 24 will cancle the delay wash feature .You can also cancel
the Delay Wash feature by turning off power to the washer with the Power Button.
The LED above the button indicates that the Delay Wash feature has been
selected.The Start/Pause must be selected to begin the countdown .The LED
indicator will blink signaling that the delay function is operating.

Remove
The lint filter must be used during washing.
It must be cleaned in time after each using.
Clean the detergent box and set it on the
control panel seat.
1.The method of dismantle: Push it up aslant
and gently.
2.The method of clean: Use a brush and duster
cloth to clean it, then flush it with water.
3.The method of install : Install it upwards and
aslant and push it in.
1.Push down the spring piece of the top lint filter to
make the claws out of the filter cover, and then pull
out the lint filter to get it down.(figure 1)
2.Pull the back of the lint filter, and then you can get
down it off the front cover of the lint filter.(figure 2)
3.Sweep the lint in the lint filter.
4.Put the back of the lint filter into the front cover.
5.Put the lint filter into filter cover, and make it tight.
6.Make sure the lint filter well installed, or it can
influence your use.
Figure 1 Figure 2
Down
Install
Dismantle
Down
Up
Up
The front cover of the lint filter
The back cover of the lint filter
Dismantle
Install
The mehods of dismantle and install lint filter as follows:
Remove the power plug before carrying out any cleaning or maintenance.
Clean the lint filter(s) and detergent box after each wash, otherwise it may
influence you using the machine.
14

Is the door lock broken?
by yourself.
if the machine
Communication failure
between display board
and motor driver.
The display shows E9. Communication failure between
show board and power board.
The display shows FC.
The display shows E8.
The machine does not
drain or drain slowly.
The display shows E1. Is the drain hose blocked?
Remove the blockage.
Push the Start/Pause button
once.
The machine stops running.
The display shows E2. The top lid is not closed. Close the top lid. Push the
Start/Pause button once.
The machine does not
spin.The display shows E3.
Has the laundry been placed
unevenly in the machine?
Is the machine level?
Redistribute the load evenly.
Push the Start/Pause button
once.
Level the machine.
The display shows E4.
The display shows FA.
Is the water tap closed or
has the water supply been
interrupted?
Is the water inlet valve
blocked?
Is the water pressure too low?
Open the water tap. Push
the Start/Pause button once.
Clean the water inlet valve
then push the Start/Pause
button once.
Use after the water pressure
is normal.
The water level sensor has
failed.
Please contact Customer Care.
The machine
does not work.
Will not
wash
Will not
spin
The water tap leaks.
There are abnormal
sounds inside the machine.
Is the water inlet hose loose? Fasten the inlet hose.
Is the machine level? Level the machine.
Has the laundry been placed
unevenly in the machine?
Are there any foreign objects
inside the bowl?
Redistribute the load evenly.
Close the top lid.
Remove the foreign object.
Redistribute the laundry.
Close the top lid.
Is the top lid closed?
Is the power plug inserted
tightly?
Is the laundry distributed
unevenly in the machine?
Insert the power plug tightly.
Is there a power failure?
Is the power plug inserted
tightly? Insert the power plug tightly.
Wait for the power supply to
be restored.
Wait for the water to fill to the
preset level.
Has the water level reached
preset position?
Please contact Customer Care.
The display shows F2. Over flow Error Please contact Customer Care.
Please contact Customer Care.
Please contact Customer Care.
Trouble-shooting
15

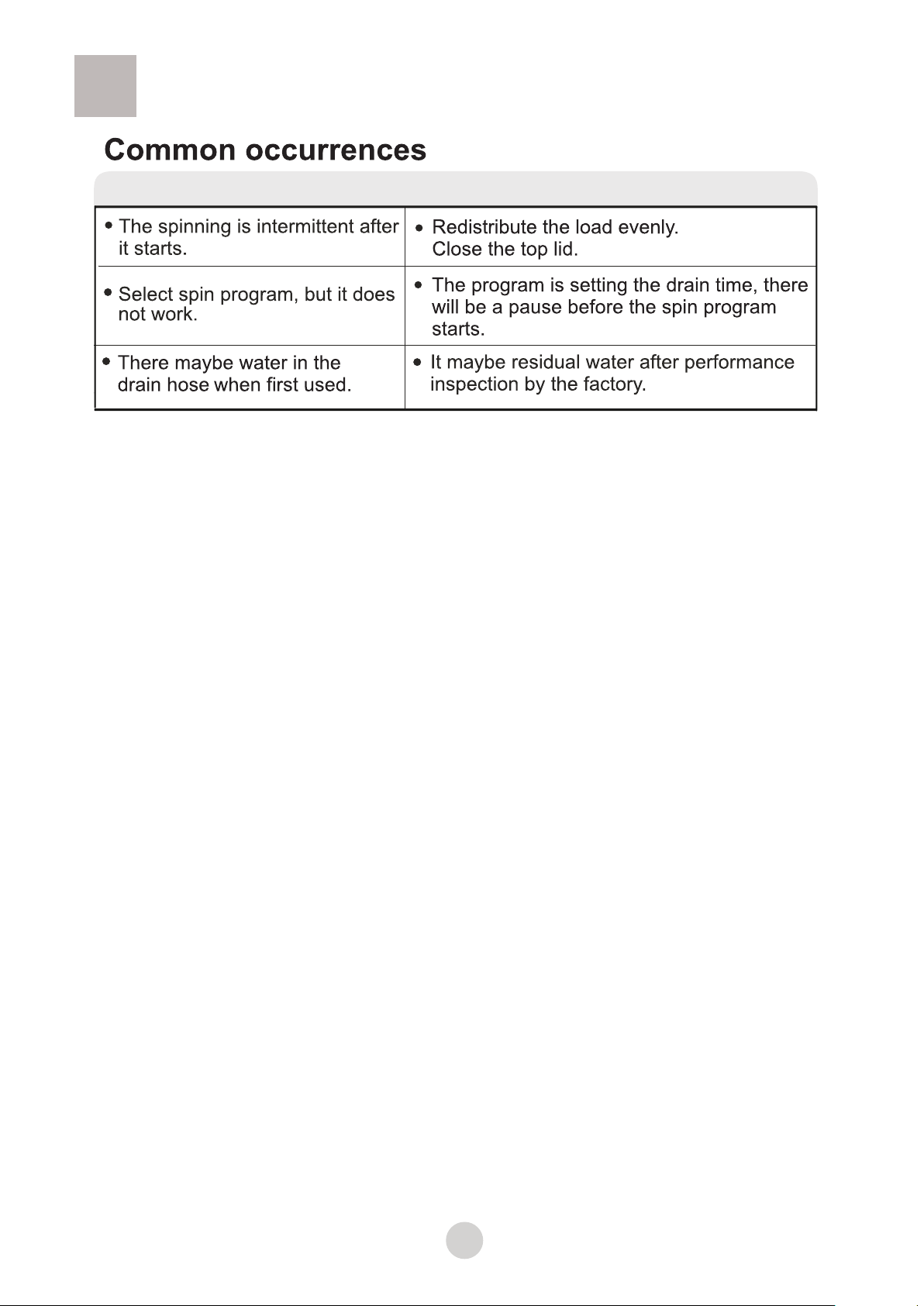

16
Cause
Situation

Location
Warranty Card One
17

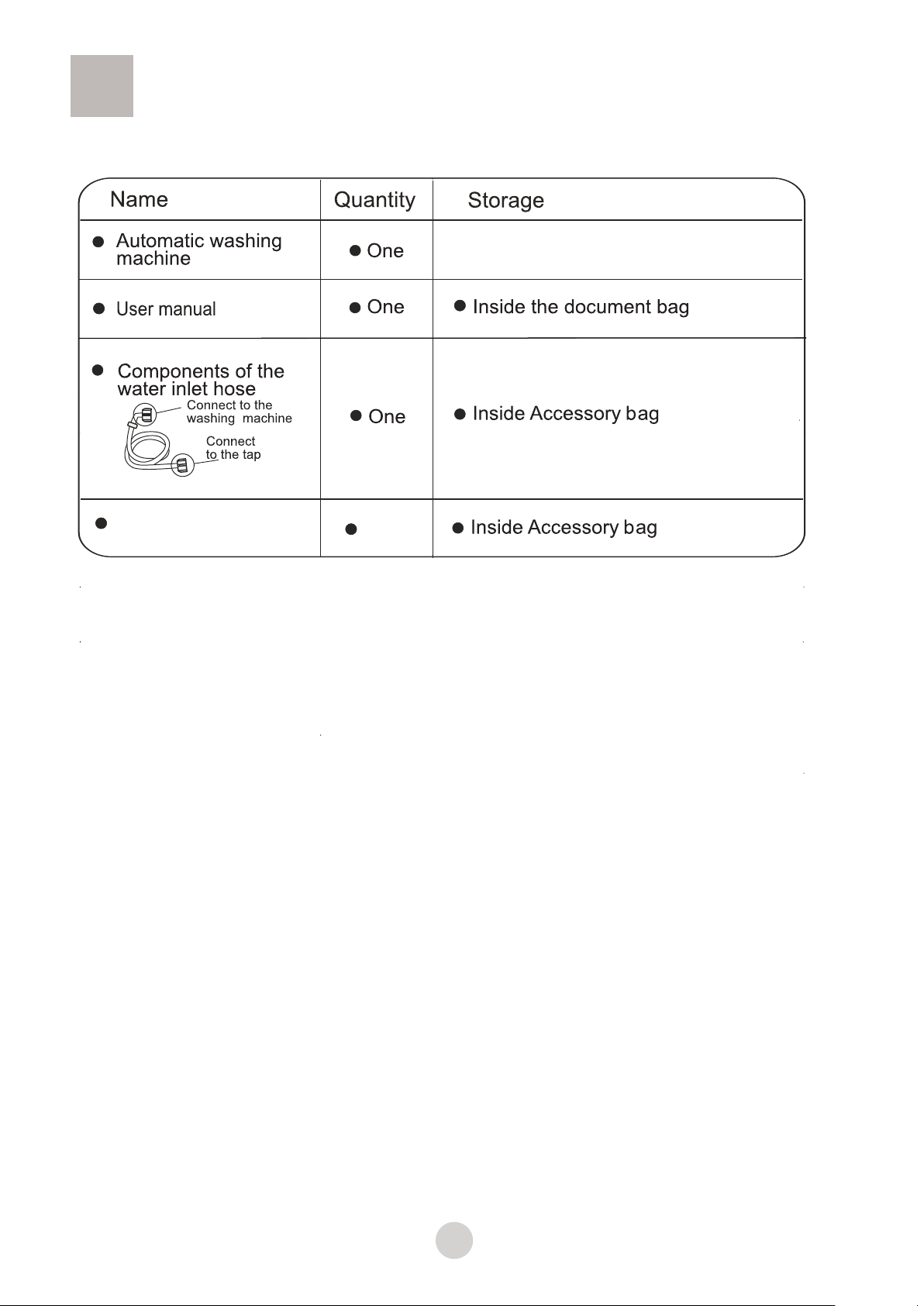

Packing list

HWM180-M1990DD
W 701 D 720 H 1095
Rated Washing capacity 18kg
500W
700W
84kg
93kg

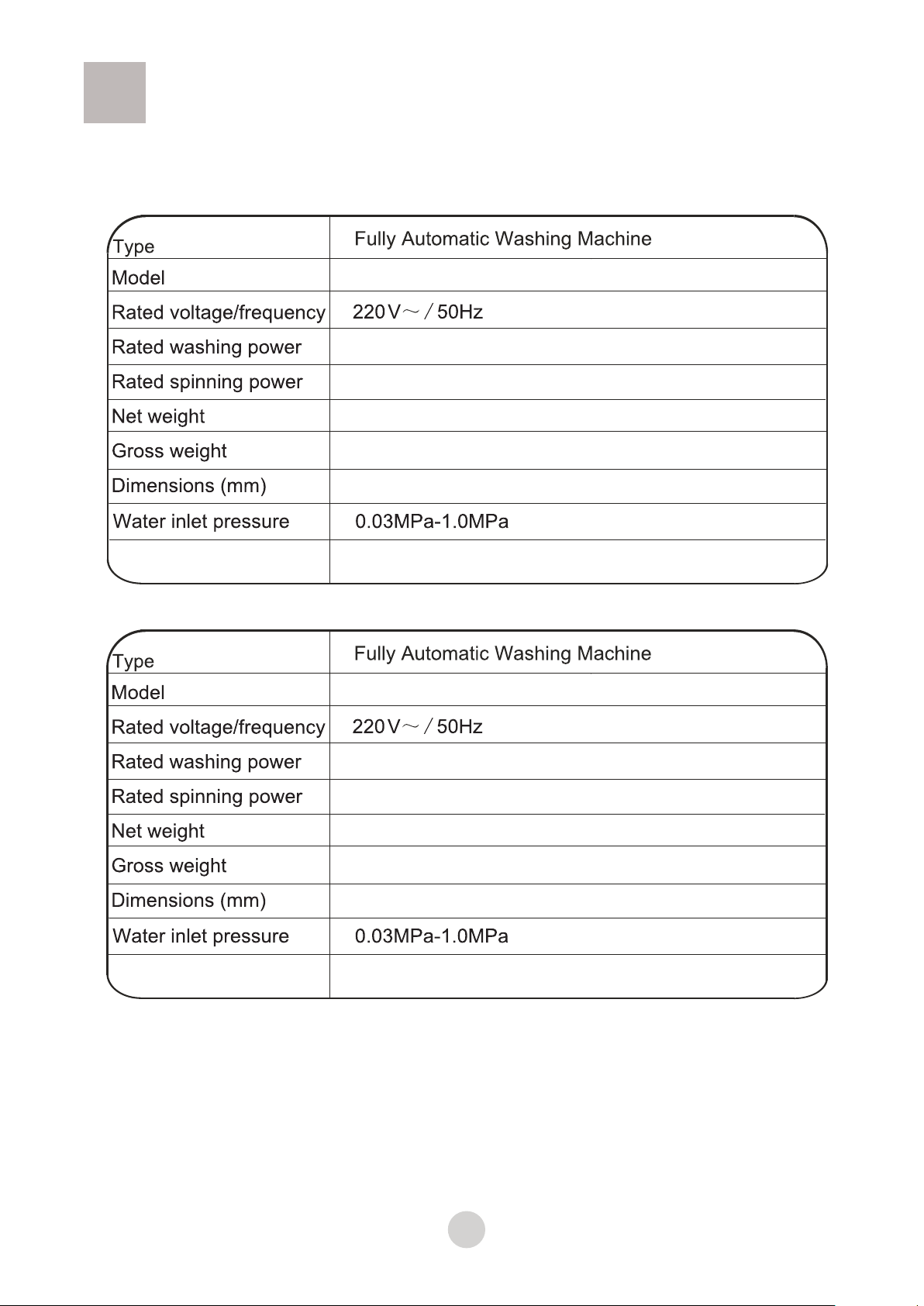

Specification
18
HWM200-M1990DD
W 701 D 720 H 1095
Rated Washing capacity 20kg
500W
700W
84kg
93kg
