Haier HWM140-826S5 User manual

Please read this manual carefully before
operating your washing machine and retain
it for future reference.
0030517751
TOP LOAD FULLY AUTOMATIC
WASHING MACHINE
USER MANUAL
MODEL
HWM140-826S5

CONTENTS
Product overview
Safety precautions
Installation & adjustment
Before washing
Operation
Control Panel
Packing list
Specification
Troubleshooting
1
2
2
2
5
5
5
6
6
9
10
10
18
9
10
11
16
18
Description of symbols
Safety warning
Install the bottom plate
Balance washing machine
Inlet pipe connection
Laundry Guidelines
Adding Detergent
Loading the appliance
Cleaning and Maintenance
15
Warning
2
Forbidden
3
Position the drain hose
17
Common occurrence
11
13
14
Operation steps
Explanation of buttons
Explanation of program

Please understand the shapes of the washing machine and accessories may be
different from the sketch figures in this manual due to product improvement.

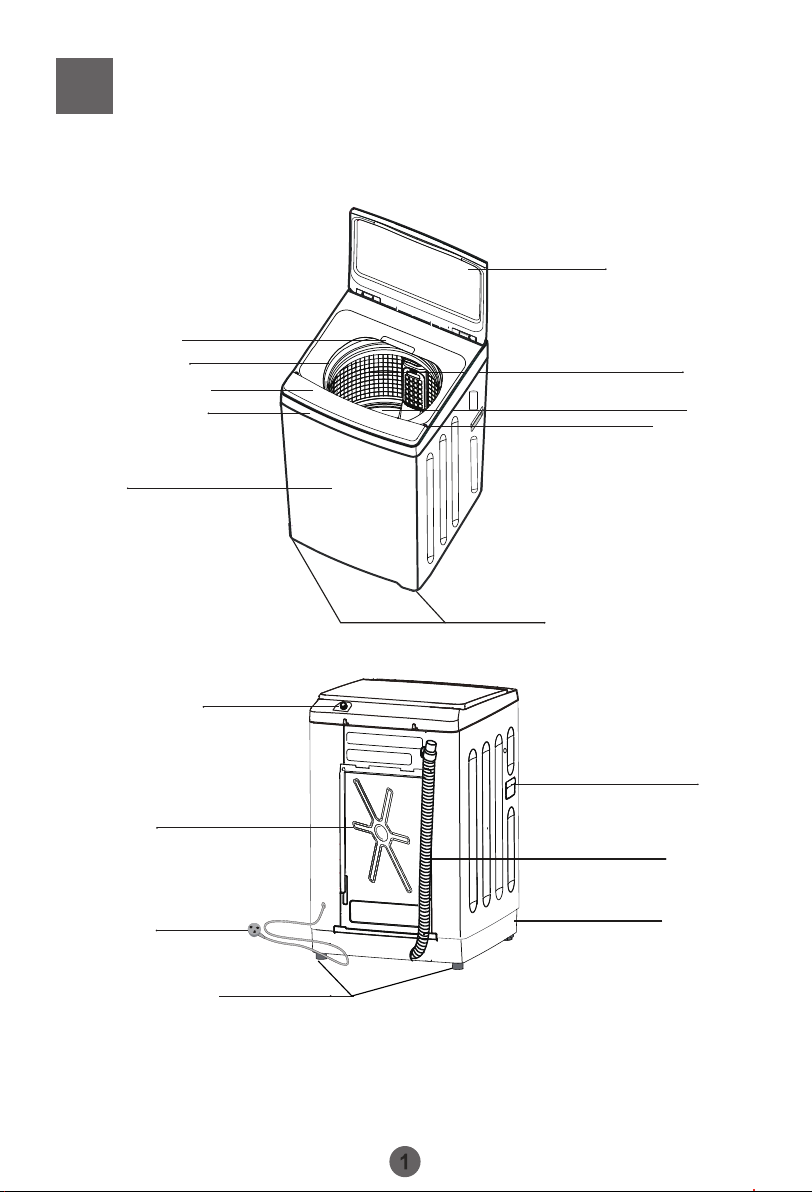

Product overview
Outer tub cover
Top lid component
Inner tub
Pulsator
Detergent box
Screw cover
Adjustable foot (2 pieces)
Control panel film
Cabinet
Front control panel
Base frame
Fixed
foot (2 pieces )
Handle
Drain hose
Power cord
Back cover
Water inlet valve

Description of symbols
Warning sign
Forbidden sign
Safety warning
Contents marked with this symbol are related to the safety
information of the products.
Please operate in accordance to the contents of this manual,
to prevent personal injury or property damage.
Contents marked with this symbol indicate operations or actions
that should not be undertaken by the user.
Performing of such actions may result personal injury and/or
property damage ,and void warranty.
Please check power socket condition to ensure it has been earthed correctly prior to
installation to ensure your safety
Safety precautions
Warning
A separate, earthed power socket is
required for the power supply.
Hold the plug-not the electric cable-when
unplugging the washing machine.
Do not insert or remove the power plug with
wet hands.
The power plug should be accessible after
the machine installation.
Ensure the plug is removed and the taps
turned off in the following cases.Power
failure, cleaning, moving,installation
and when not in use.
If the supply cord is damaged,it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
2

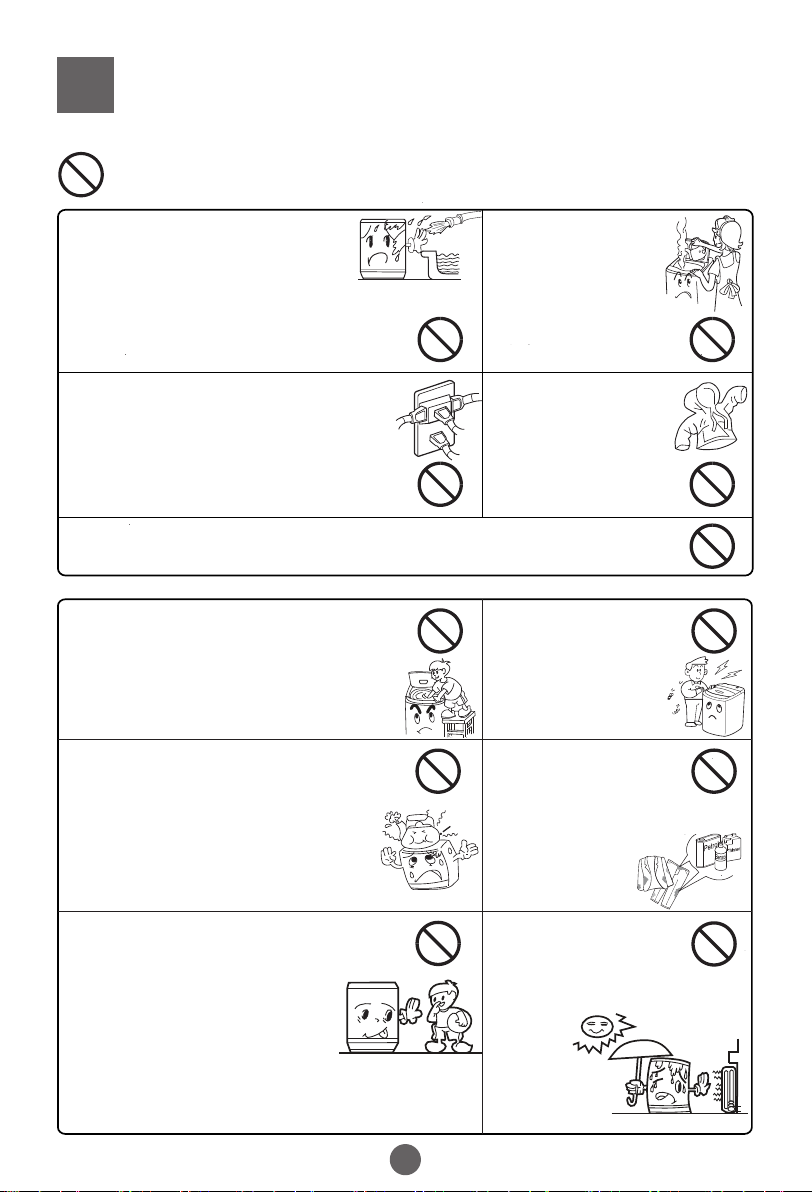

Safety precautions
Forbidden
50
Do not use multi-plug adapters and
extension cables. Do not touch the
power cord with wet hands.
The washing machine has ventilation opening in the base, the opening
must not be obstructed by a carpet.
Do not install this appliance in a
damp or wet environment. Do not
leave wet laundry on the Control
Panel or spray water directly on to
this appliance as this may cause the
washer to malfunction or cause an
electrical fault.
Do not wash
water-proof clothing
as this may affect
load balance during
spin cycle(s).
Do not contact to
water exceed 50°C
in temperature.
This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or
instruction by a person responsible
for their safety.Children should be supervised to
ensure that they do not play with the appliance.
Do not attempt to repair,
disassemble or modify
the appliance yourself.
Do not attempt to put your hand into the
washing machine while the operation is
in progress. Children should be supervised
to ensure they do not play with the
appliance.
Do not leave hot or heavy items on lid
or control panel as this may cause
damage to the washer or make the
washer unsafe to operate.
Do not wash laundry
with chemicals or other
volatile materials(such as
petrol,solvents or thinners)
as this may cause
damage to the
machine.
Keep washer away
from heat sources
such as heater,
stoves or direct sunlight.
3

Safety precautions
4
If the power cord or others parts of this appliance become damaged or faulty, please
contact technician to repair or replace it. Do not attempt to fix it by yourself as this may
cause personal injury or void warranty.
You may open the lid when the water is filling in the tub. The new water inlet hose
supplied with the appliance is to be used and the old water inlet hose should not be
reused.
Please remove item such as coins,
button, sand and other solid materials
from clothing before washing.
Check that water faucets are open
after connection to machine, prior
to operation and that pipes are
connected correctly.

Please install and position the machine according to the directions in this manual. It is
very important to follow these directions for the safe operation of the machine, and to
ensure your machine operates correctly.

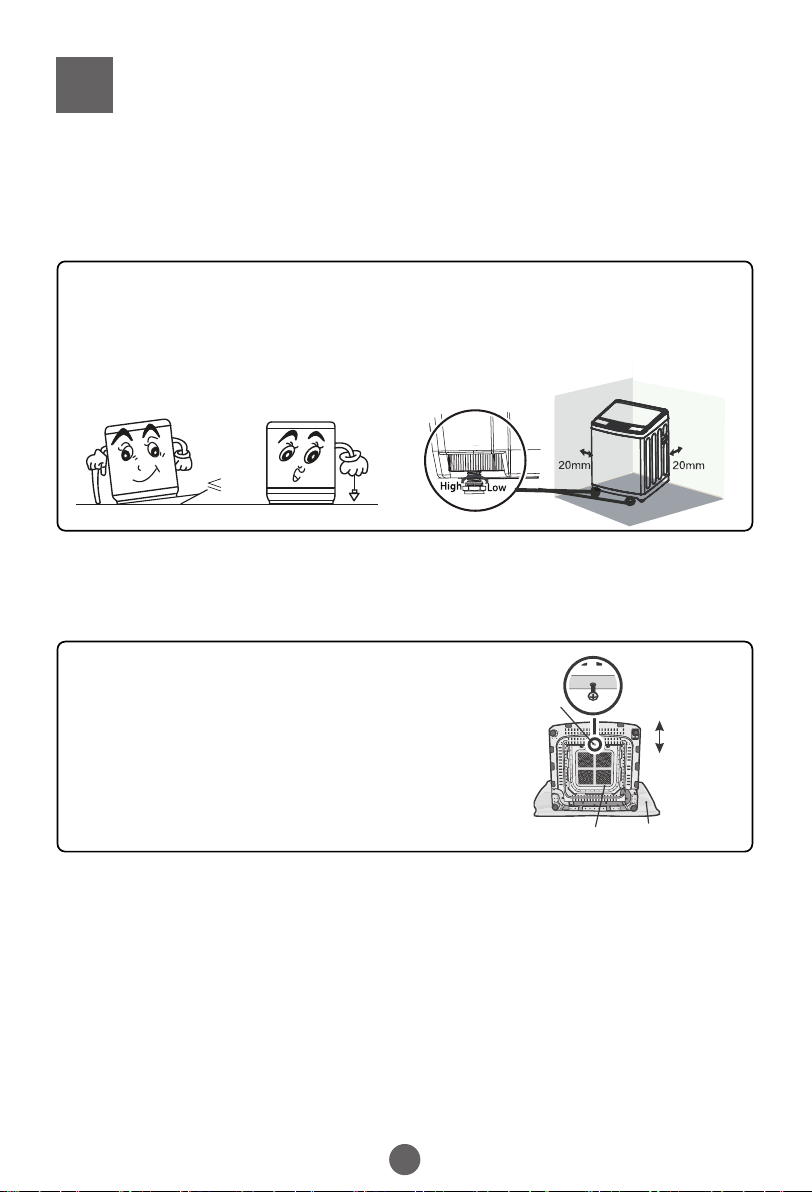

Installation & Adjustment
Install the bottom plate
Do not install the machine on a tilted floor. Pleas install the machine on a level floor.
If the floor is not level, use the adjustable feet to adjust it. Keep the machine at 20mm
from each adjacent wall.
Balance washing machine
2°
5
Back
Front
Screw
Bottom plate Carpet
The purpose of the bottom plate is to reduce noise level from
the washing machine while operation in progress.
Steps:
1. Lay the machine on a flat and clean floor.
2. Place the plate onto the bottom of the machine.
3. Use a screwdriver to tighten the screw (in accessory bag)
securing the panel to bottom of the washer.
4. Once the screw is tight and the panel is secure, put the
appliance back in an upright position.

Installation & Adjustment
Position the drain hose
Inlet pipe connection
1.Do not let the drain hose run over
doorsills that protrude 10cm from the
floor.
2.Do not trample on the drain hose.
3.Cut the excessive part if needed.
4.If extra drain hose is needed, please
make separate purchase.The inner
diameter of the extra hose shall not
less than 30mm,and the length shall
not exceed 1.5m.
5.If the extra hose is too long, cut it either
at A or at B point.
Note: The new water inlet hose supplied with the appliance is to be used and the old
water inlet hose should not be reused.
AB
The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
Connect the water faucet
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid
leakage.
The exit end face of the faucet
water faucet,suitable water faucet, not suitable
6
≤1.5m

Installation & Adjustment

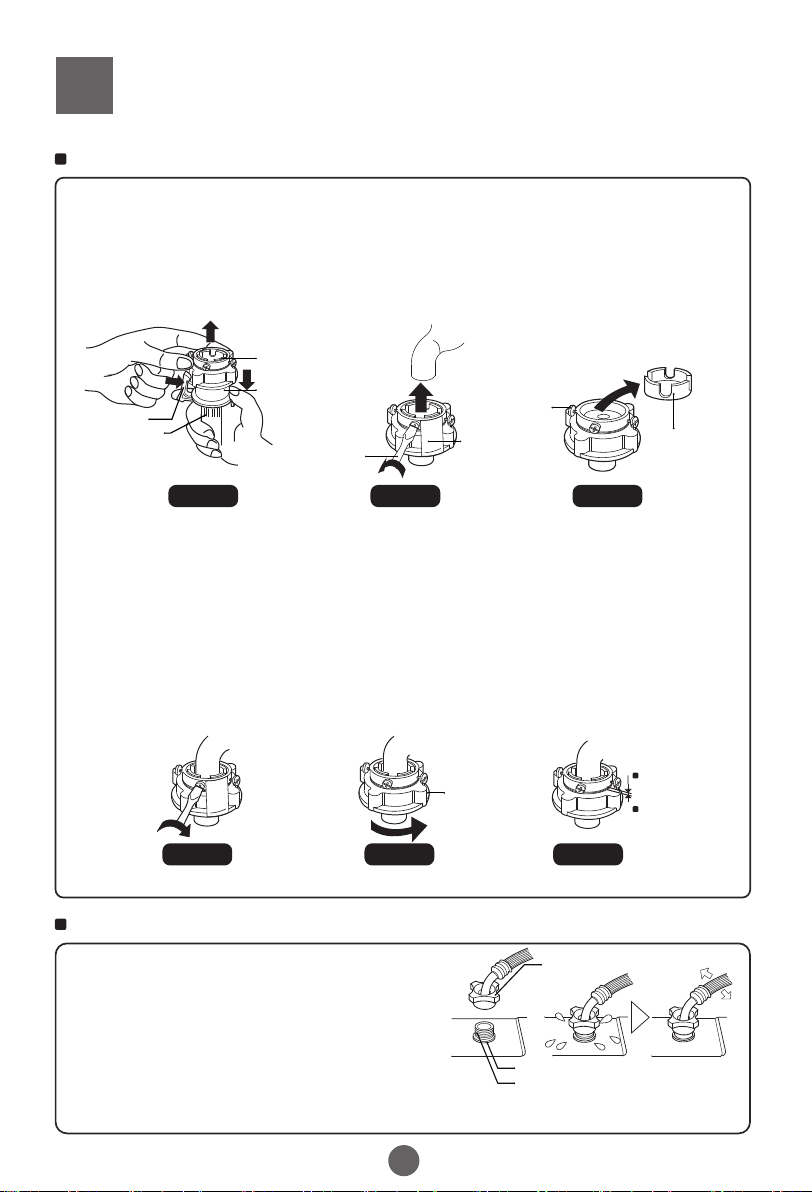

Connection between the water inlet hose jointer and the water faucet
1.Press the lower end of the locking lever and push down the slider. Remove the
water inlet hose jointer from the water inlet hose component. See Figure 1.
2.Remove the nameplate. Make sure the * is 4mm above the screw nut. See
Figure 6. If the * is less than 4mm above the screw nut. Loosen the screws.
3.Insert the jointer of the water inlet hose on the faucet. See Figure 2.If the faucet
is too large and the jointer cannot be inserted on the water faucet, please loosen the
four screws and remove the bushing in the jointer. The front end of the faucet must
be smooth, otherwise it may leak water. See Figure 3.
4.Tighten the four screws evenly. See Figure 4.
5.Turn the screw nut in the arrow direction, see Figure 5. After installation, the * is
less than 2mm above the screw nut. See Figure 6.
About 4mm
before twisting
About less than
2mm after
twisting
Locking Lever
Water inlet hose
Slider
Water inlet hose jointer
Philips screw driver
Nameplate
Screw
Bushing
Screw nut
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5 Figure 6
Connection between the water inlet hose and the washer
1.Do not remove the water absorption cushion.
Please check if the cushion is dropped or
damaged before use. If it happens please
contact our after-sale department immediately.
2.Put the nut of the water inlet hose on the
valve jointer.
3.Tighten the nut. Swing the hose gently to ensure its
firmly connected.
nut of the water inlet hose
jointer of the water inlet valve
water absorption cushion
7
*

Installation & Adjustment

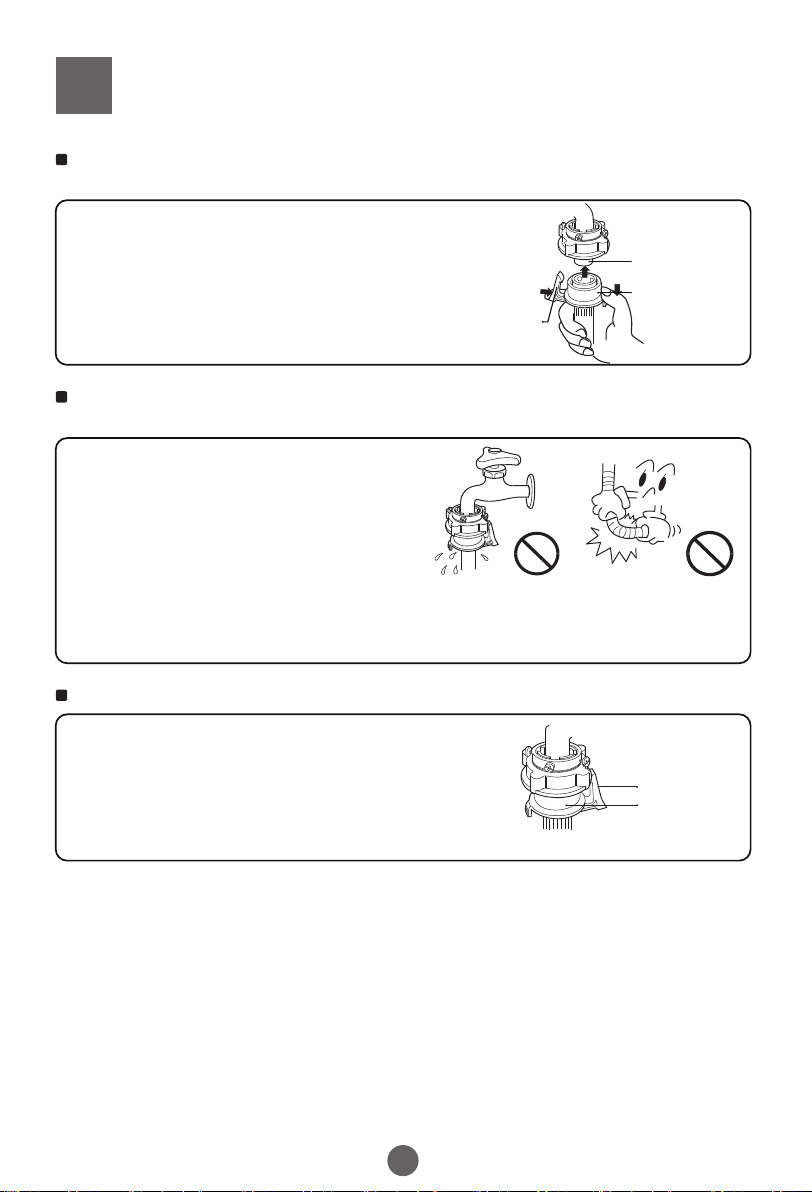

Connection between the jointer of the water inlet hose
and the water inlet hose
1.Push down the slider. Insert the water inlet hose
into the jointer.
2.Connect the locking lever to the jointer. Release
the slider with a clicking sound.
Check the connection between the jointer of the water inlet hose and the
water faucet
1.Swing the hose gently to ensure its firmly
connected.
2.Turn on the water faucet and check if there
are any leaks around the connection areas.
3.Do not stretch the water hose by force.
4.After connecting the jointer to the water
faucet, check if it is connected properly by pulling the water inlet hose
downwards.
Disassemble the water inlet hose
1.Close the water faucet.
2.Press the locking lever. Push down the slider,
remove the water inlet hose.
Locking Lever
Slider
8
Locking Lever
Slider
the jointer of the
water inlet hose
