Haier HWM75-111S User manual

HWM75-111S
Twin-tub Washing Machine
User's manual
Names of the parts.............the 2nd cover
Safety precautions ...............................1
Installation and adjustment ..................3
Introduction of the major functions .......5
Preparation before washing ................6
The musts in washing .........................7
Usage of the detergent .......................8
Washing sequence ..............................9
Disposal after washing .......................13
Contents
Before using
Using process
Trouble-shooting*
Answers to question.....................15
Specification..............the back cover
Packing list ......................................17
Please read this manual carefully before using.
Retain it for future reference
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.

Before Using
Before Using

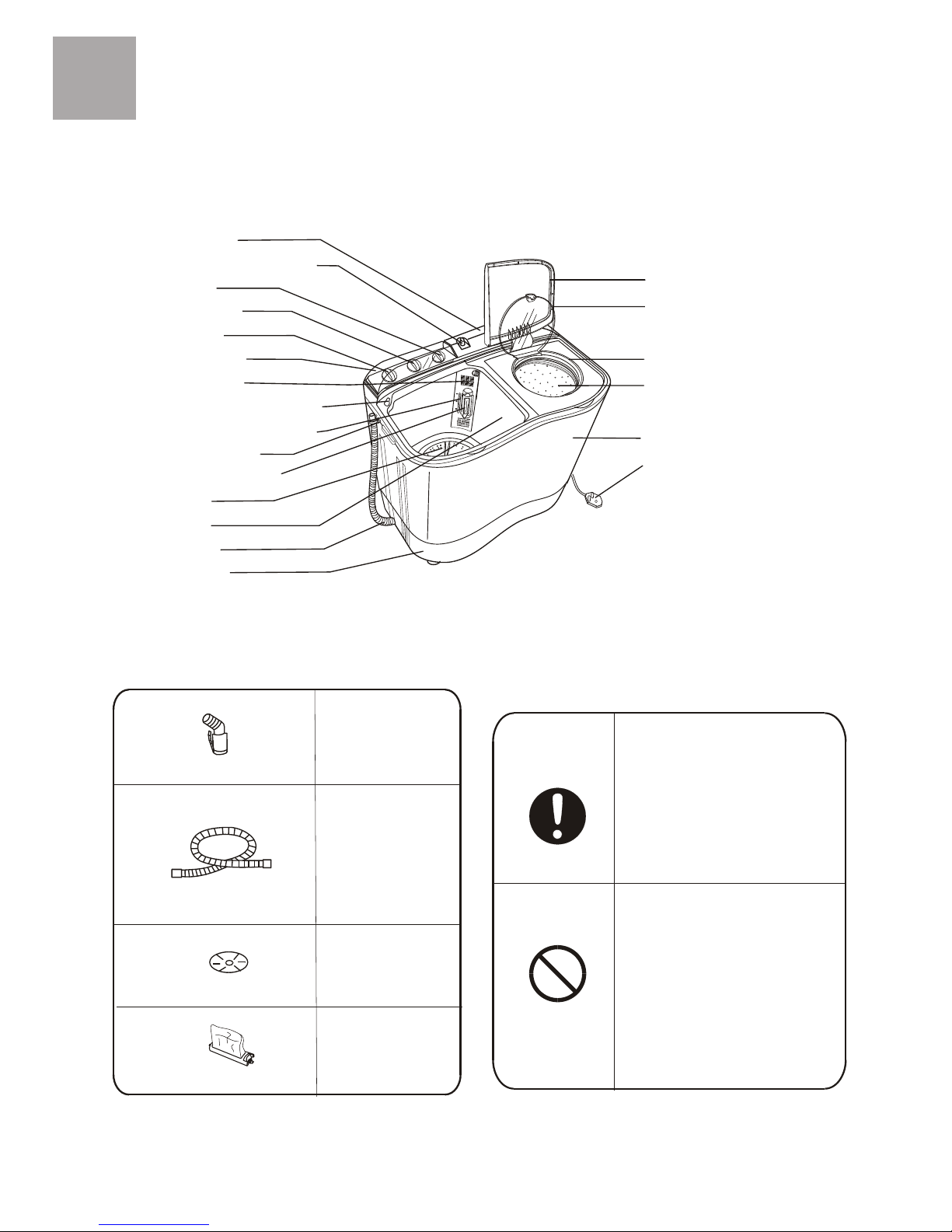

Names of the parts
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
Water-filling jointer
(one piece)
Water inlet hose
(one piece)
Gland
(one piece)

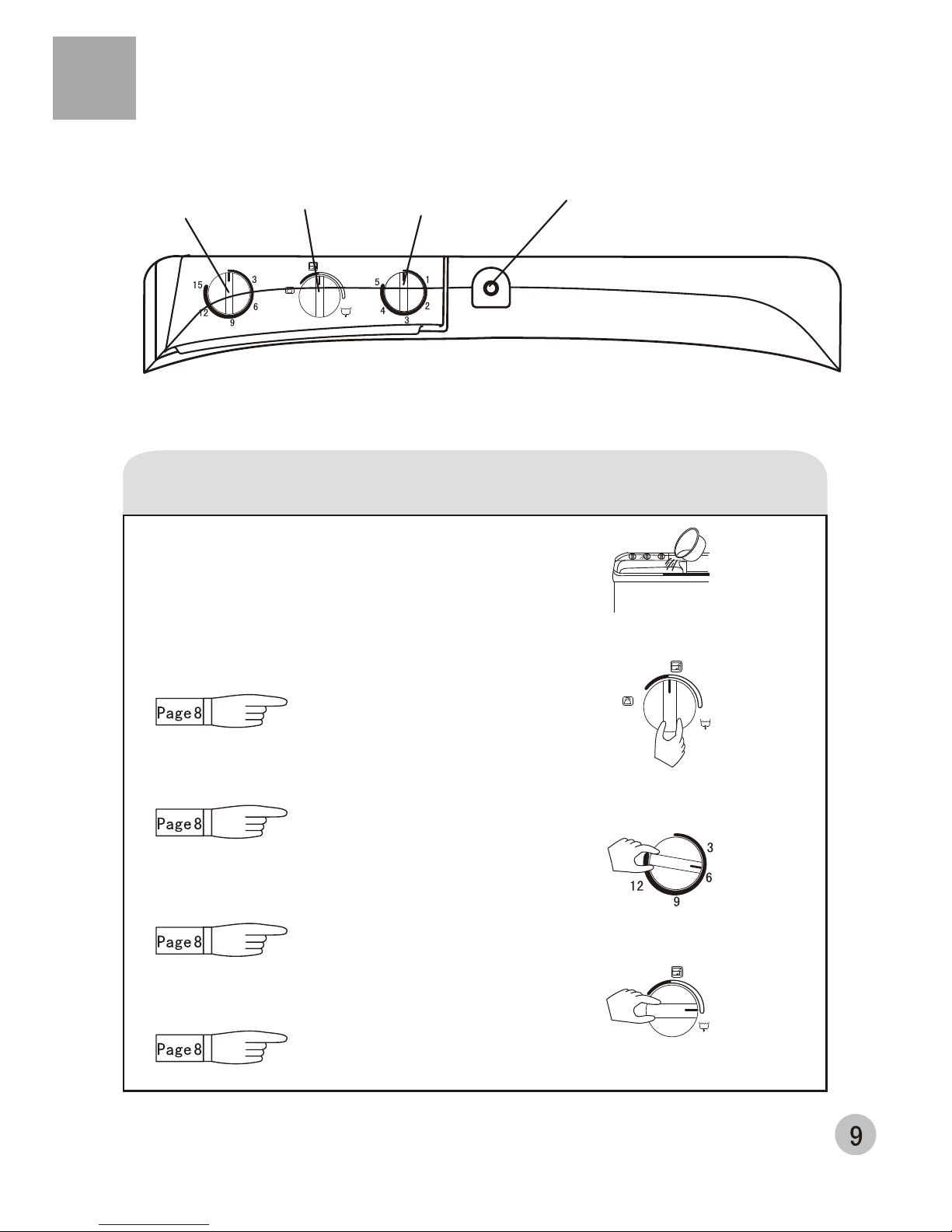

Control panel
Spin water-filling entrance
Spin timer
Wash selector
Wash timer
Transparent lid
Overflow filter
Wash water-filling entrance
Water level adjusting lever
Drain hose hook
Lint filter(Installed by user)
Pulsator
Wash tub
Drain hose
Base frame
Outer cover of the spin tub
Inner cover of the spin tub
Spin tub frame
Spin tub
Cabinet
Power cord
Lint filter
(One plece)

If the power cord is bad, to avoid risk it is required to replace it by the technicians of
our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase two pins receptacle.
The earthing terminal must be earthed
reliably.If possible,please adopt electric
leakage protector.
When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when there'spower failure,
or the machine is being moved, cleaned or
when it is idle.
Before Using
Before Using

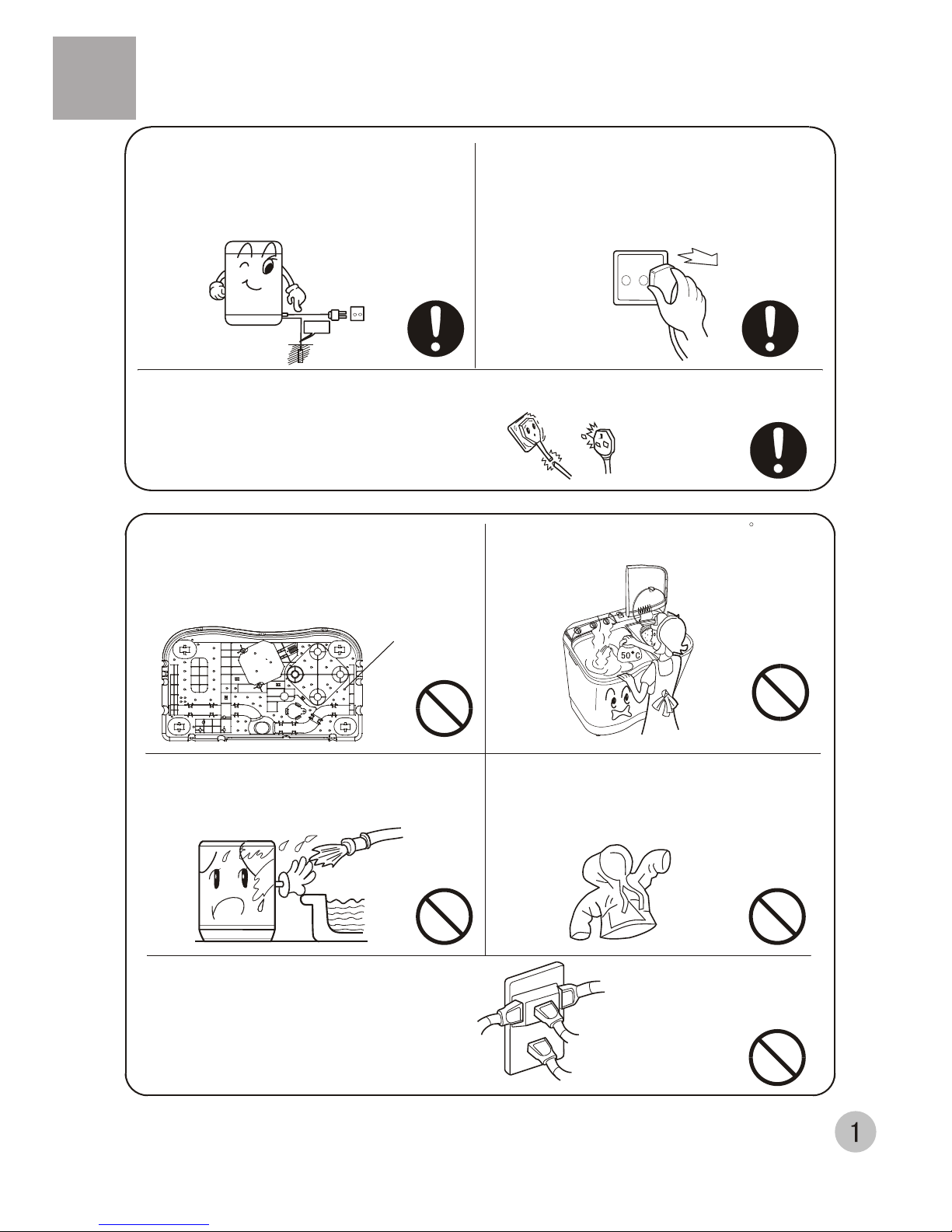

Safety precautions
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
Do not put the machine at damp place
like the bathroom . Never wash it with
water. Do not place wet laundries on the
control panel.
Earth

Before Using
Before Using

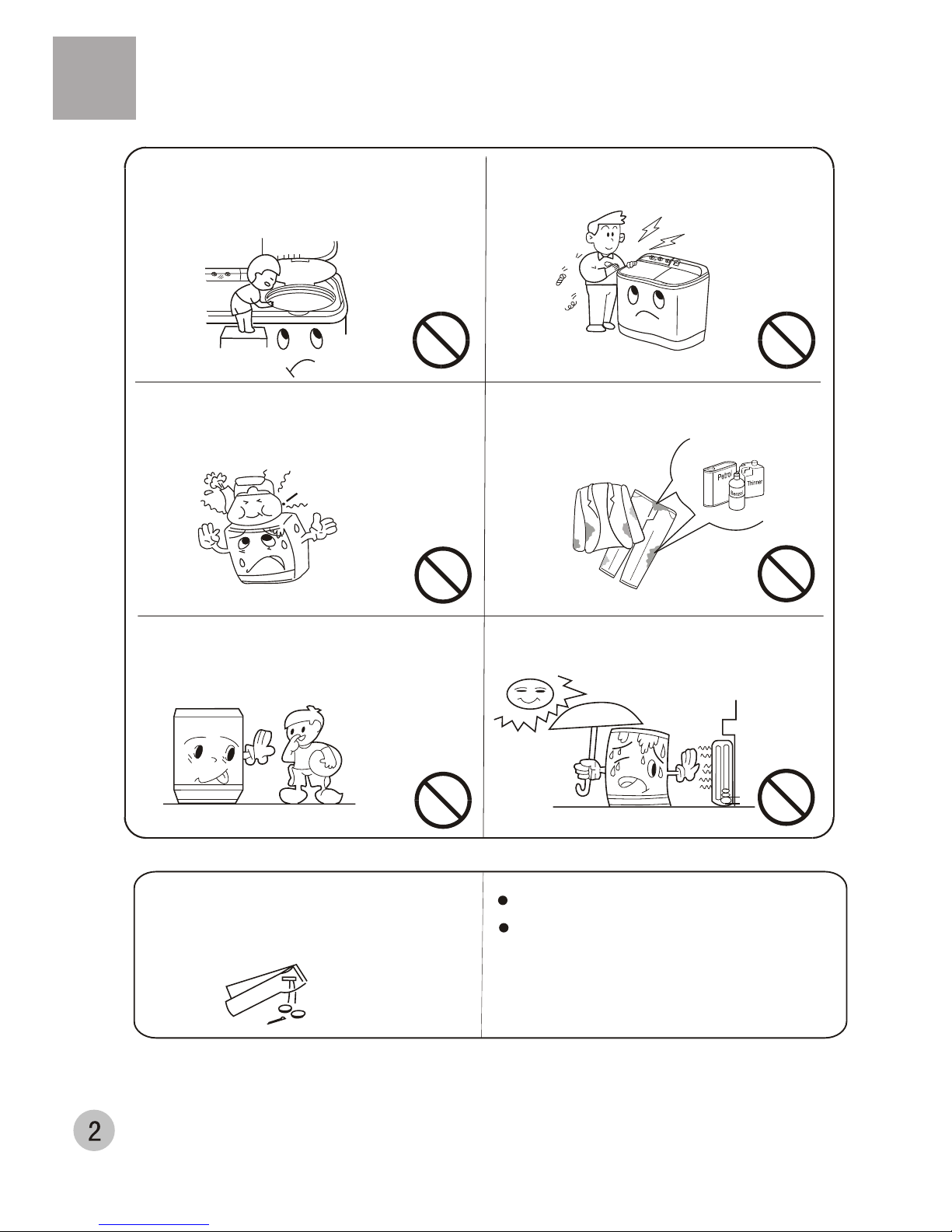

Safety precautions
Do not put hand into the rotating tub. It is
dangerous even if the rotation speedis slow.
Take special care of the children. Keep
children away from the washing machine
to avoid them climbing on it.
Do not decompose, repair or alter
the machine by yourself.
Do not put any hot or heavy items
(such as the kettle with hotwater) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Keep the machine away from direct
sunlight and heat source like the heater.
The handicapped or children shall not
use the machine without care.
Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.
Toprotect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Before Using
Before Using
Installation and adjustment
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
5.If the extra hose is too long, cut it either
at point A or B.
3 If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
<10cm
BA
> 30mm
<1.5m
Install the lint filter
After opening the package,please take out the
lint filter from the document bag,install it
to the overflow filter of the cabinet.
See to the figure
Overflow filter
Lint filter

Select the water level
Before Using
Before Using

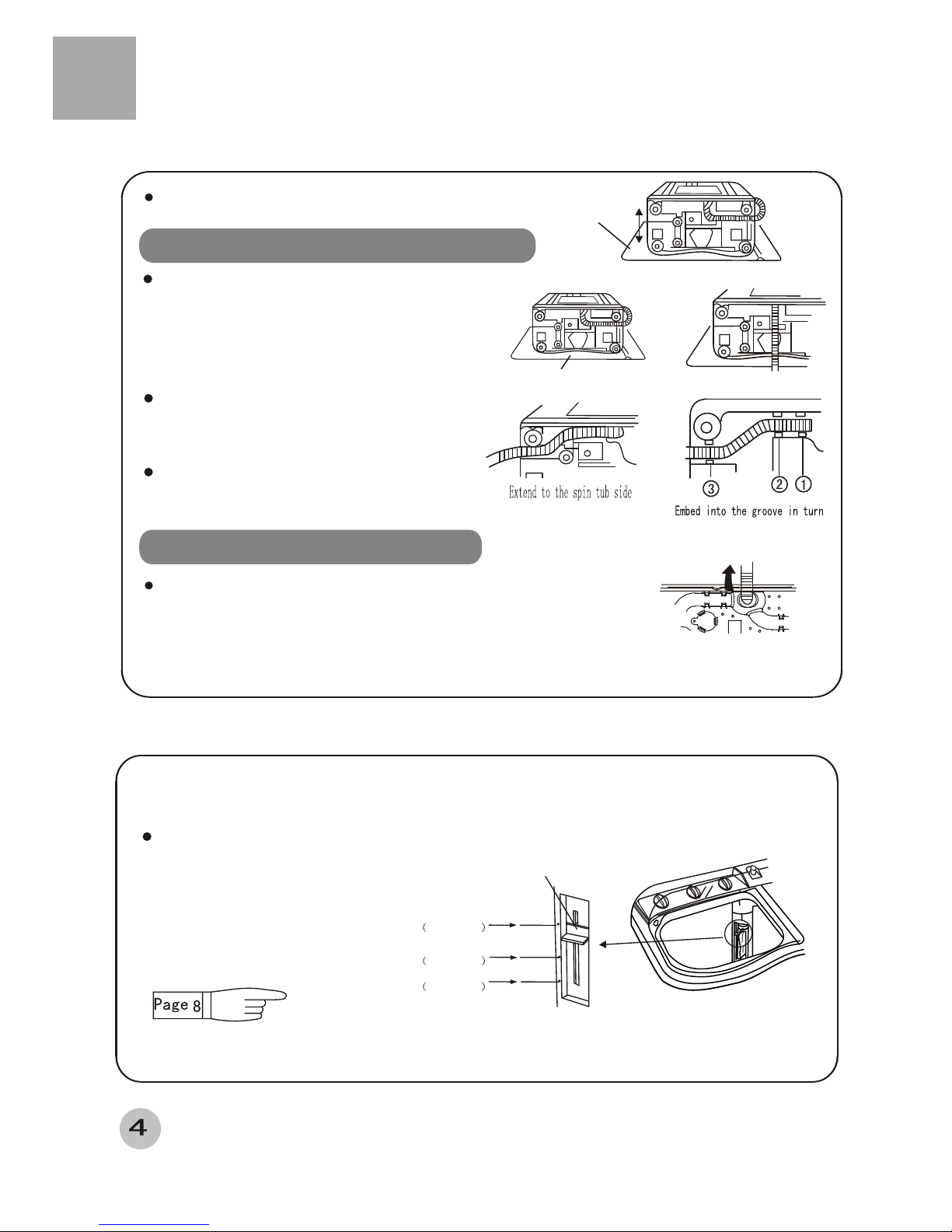

Extend the drain hose from the rear side
How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of thewash tub in the order of (1)~(2), heading for the
side of the wash tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 4
Extend the drain hose from the side of wash tub
Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Figure 2
Figure 3
Figure 1
Front
Back
Soft item
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line. Water level
indicator
Maximum
about 43L
about 36L
about 30L
Minimum
Medium
Max.
Med.
Min.
Soft item

Using process
Using process

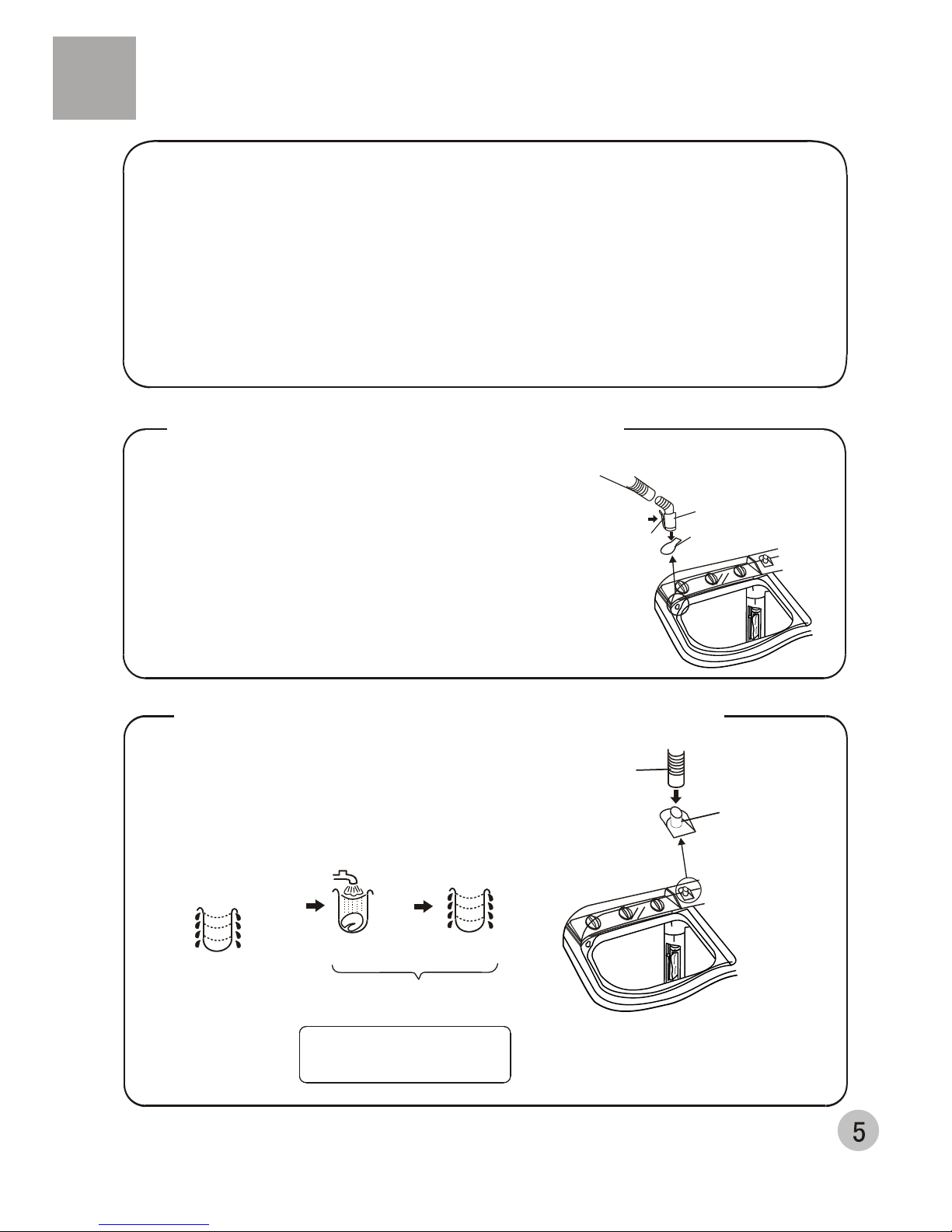

Introduction of the major function
The machine has good comprehensive performance, and nice appearance.
It adopts streamline appearance and full plastic shell, which will never get rust.
For the design on safety and reliability, it adopts the wash shelf, spin shelf and water
inlet groove design, and reduces the unfavorable influence on the electrical component
by the vapor. Therefore it guarantees more safe and reliable washing.
It adopts complete enclosed base frame and low-noise motor, and thus reduces the
working noise significantly. We can guarantee that the purchase of this machine will bring
you a clean world without disturbing your quiet life.
Foam-removing
spinning
Remove most of
the foam extra
detergent liquid.
Remove the detergent
liquid remained
The effect is best when the
laundries quantity is below
80% of the rated value.
Spin
Fill water for
about 1 minutes Spin for about 1~2 minutes
Filling water from wash water-filling entrance
When foam-removing spinning during
high-efficiency rinsing, please fill water
from the spin water-filling entrance.
Spin water-filling
entrance
Foam-removing spinning during high-efficiency rinsing
Use the foam-removing spinning to
remove the extra detergent liquid. It
can both shorten the washing time
and save the water consumption.
Water inlet hose
Water inlet hose
Water-filling
entrance
Push
Control handle
Wash water inlet
Insert the water inlet hose into the water-filling
entrance, then push the water-filling jointer into
the entrance on the control panel. (To dismantle
the water inlet pipe, just push the control handle
as indicated in the figure and pull it out)
Use the new water inlet hose provided with the
machine to connect to the water faucet.Old hose
sets should not be reused.

Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Using process
Using process
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.

Reference weight of the laundries
Working suit up,down
Jeans about 800g
The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " Maximum " water level
for laundries less than 2.4kg, so as to
avoid splashing of water.
Blending coat
about 800g
Shirt Jacket
Single bed sheet
Socking
Underpants
Undershirt
Pajamas
Blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
The musts in washing
cotton,about 1120g

Selection of the quantity of the washing powder list 1
Selection of the current , water level and washing time list 2
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.
Laundries
quantity
Laundries
quantity
Water level
Water level
Current
Standard dosage
Concentrated washing
powder
Laundries
Common washing
powder
Washing time
(minutes)
Water quantity
Water quantity
About About
About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10
About About
About About
3.6kg~7.5kg
2.4kg~7.5kg
2.0kg~3.6kg
Below2.0kg
Below2.4kg
Maximum(about55L)
Maximum (about43L)
Minimum (about36L)
Minimum (about30L)
~
Strong
Medium (about46L)
Medium (about36L)
~
Medium (about36L)
36g
30g
25g
43g
36g
30g
Usage of the detergent Using process
Using process
Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen
Soft

OFF
OFF
DRAIN
STRONG
Washing sequence
Figure 1
Figure 2
Figure 3
Figure 4
WOOL WOOL
WOOL
SPIN TIMER
WASH TIMER
WASH TIMER
WASH SELECTOR
LINEN
LINEN
Using process
Using process
Wash
SILK SILK
SILK
COTTON
COTTON
DRAIN
STRONG
WASH SELECTOR
WASH SELECTOR
1. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 1)
Run washing program for some time to stir and
dissolve the powder completely.
2.Put in the laundries. If the water quantity is
insufficient, please add water.
3.Select the current.
Select the strength of the current according to
the laundries. (Figure 2)
4.Select the washing time
Select the washing time according to the laundries.
(Figure 2)
5.After washing, set the "WASH SELECTOR" at
"DRAIN". (Figure 4).
SOFT
SOFT
STANDARD
STRONG
Wash timer
(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).
Wash selector
(Soft current,
strong current)
Spin timer
(To set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
Spin water-filling entrance
OFF
DRAIN
Spin water-filling entrance

Midway spinning
1.
2.
3.
Put the laundries into the spin tub evenly and smoothly.
Spin
Run the foam-removing spinning.
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
Using process
Using process
(1) Put the gland in properly.
Please put in the gland properly even if the laundries quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
(1) Open the outer cover of the spin tub.
(2) Insert the water inlet hose into the spin
water-fillingentrance on the control panel.
Fill water for about 1 minute.
(3) Close the outer cover of the spin tub.
Spin for 1-2 minutes.
Water inlet hose
Spin water inlet

Rinse with stored water
Rinse with water-filing
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is below 2.4kg, please use " SOF" current.
If you use "STRONG" current, it may splash.
Rinsing
Using process
Using process
(Repeat the midway spinning and
rinsing with stored water for 2-3 times)
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.

Selection of the spin time list 3
Laundries Spin time
(minutes)
About 4~5
Bed sheet or
blanket
About 2~4
Underwear
(knitwear)
Swear
(chemical fiber) About 1~2
Within 1 minute
Blending thin
laundries
Using process
Using process
1. Put the laundries into the spin tub
evenly and smoothly.
2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.
3. Spin
Select suitable spin time according
to the laundries, and do spinning.
During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.
In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.
Spinning
To do spinning and draining or rinsing
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinsing with water-filling.
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

After using, please clean the lint and foreign materials of the lint filter and overflow filter
in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
1 Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Cleaning the overflow filter
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
Elastic fixing
claw
Figure 2
Figure 3
Figure 1
1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. ( See to
Figure 1)
2. Clean the lint
Put it in water and clean while it is
still wet.(See to Figure 2)
3. Install the lint filter
After cleaning, insert the bottom
of the lint filter ( marked with
"DOWN SIDE") into the overflow filter ,
then push the upper part of the
filter in ( marked with " UP SIDE ").
(See to Figure 3)
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Using process
Using process
Disposal after washing

Wipe the complete unit with soft cloth
twisted dry.
Wipe with neutral detergent if too dirty
Do not wash it directly by water
Using process
Using process

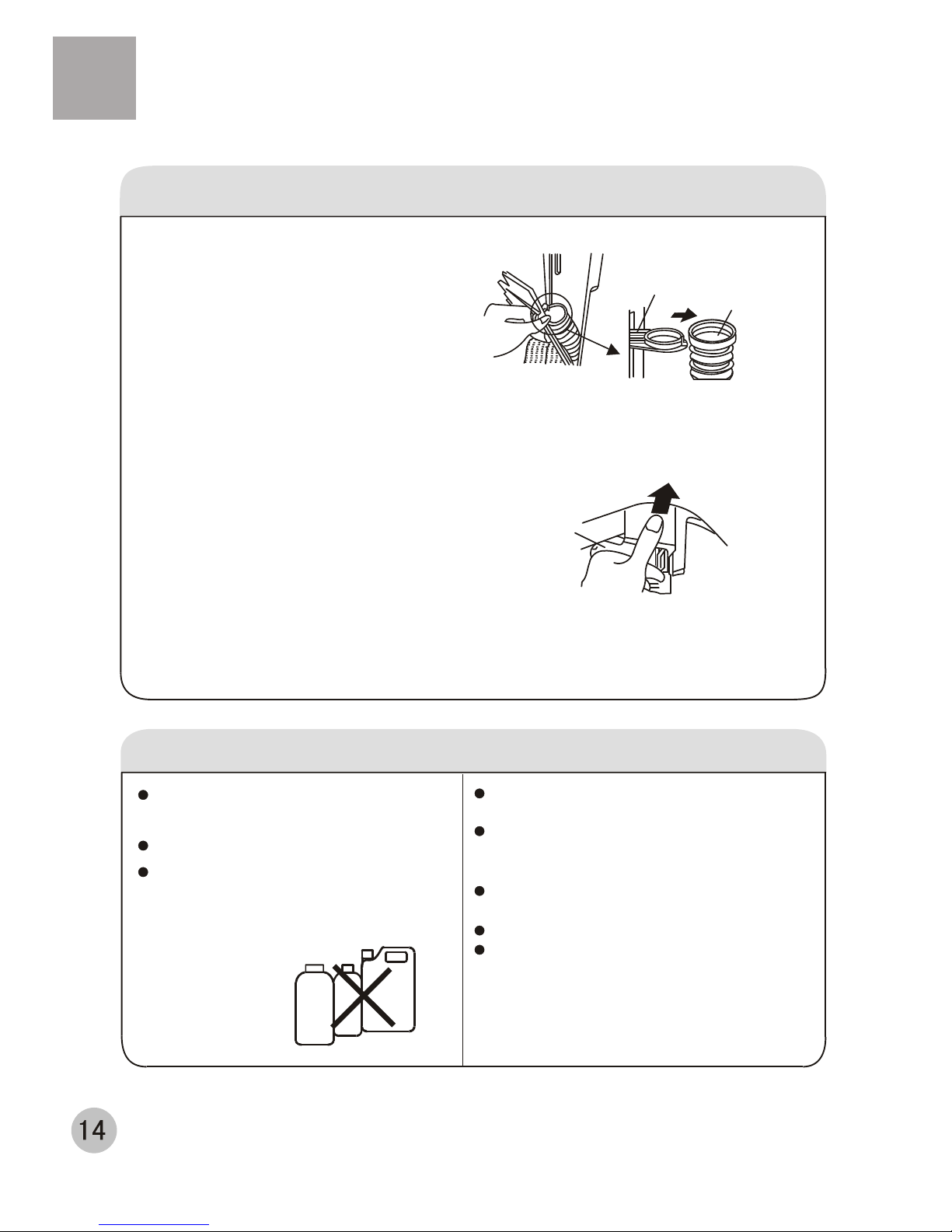

Cleaning the overflow filter
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 1).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
original position.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
indicated in Figure 2.
Corrugation
Pipe
Hook
Figure 1
Figure 2
Water level
adjusting lever
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
Disposal of the complete unit
Thinner
Alcohol
Petrol

2~3L
Trouble-shooting Answers to question
Below 50
When the remained water is frozen
Prevent the freezing (be sure to discharge the water completely after using)
After complete draining, set the "WASH SELECTOR" at "STRONG” or "STANDARD".
If it is set at "DRAIN", it will be rather difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.
If the laundries fall to the outer side of the spin tub,
please take them out immediately.
1.Dismantle
As indicated in the figure, push the point marked
with " " to pull the spin tub frame to oblique
upwards to dismantle it.
2.Install
After install the back edge of the spin tub frame to
proper position, push the four points marked with
" " by force to reset it.
Please check carefully. The laundries may fall to the lower part
of the outer side of the spin tub (as indicated in the figure).
If the laundries fall to the outer side of the spin tub, during
spinning the draining will get blocked and the rotation speed
of the spin tub is reduced.
Spin tub
Laundries
Spin tub frame
If the laundries fall to the outer side of the spin tub

Trouble-shooting Answers to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
The draining does not work
There's abnormal sound
during washing Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some water
flowing out of the drain
hose in the first use of
the machine.
There's abnormal sound
and violent vibration
during spinning
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
Is the drain hose put down?

User's manual One
One
One
One
One
Water inlet hose
Water-filling jointer
Gland
Twin-tub washing machine
Packing list
Lint filter One

Type
Model
Power source
Water level Water quantity about
Rated washing capacity kg
Rated input power W
Dimension(mm)
Wash pattern
Weight kg
Injection pressure
Rated spinning capacity kg
Twin-tub washing machine with Pump
HWM75-111S
Maximum/43L Medium/36L Minimum/30L
7.5
7.5
Wash 320 Spin 210
L760 W440 H900
New current
23.5
0.02MPa~0.2MPa
Specification
Rated voltage 220V~, Rated frequency 50Hz
