Warning – Important Safety information
General information and tips
Environmental information
Disposal
Protect the environment and human health by recycle
the appliance’s packaging to the designated recycling
bin. Do not dispose appliance marked with this symbol
together with the household waste. Send the appliance
to the local recycling center or contact the municipal
office.
Thank you for purchasing a Haier Product.
Please read this manual thoroughly before operate the appliance. This manual contains
important information on the installation, use and maintenance of the appliance.
Keep this manual in a safe and convenient place for future reference.
Please ensure this manual is along with the appliance if you plan to transfer this applia-
nce to other. This is to allow the next user understand and familiar the features and fun-
ctions of the appliance and safely operate this appliance.
o
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
f it. Removethe door catch to prevent childrenand pets to get closed in the appliance.
Risk of injury or suffocation!
WARNING!
2

Content
1-Safety information................................................................................................ 4
2-Product description.............................................................................................. 7
3-Control panel........................................................................................................8
4-Programmes.......................................................................................................11
5-Daily use.............................................................................................................12
6-Eco-friendly washing..........................................................................................17
7-Care and cleaning..............................................................................................18
8-Troubleshooting..................................................................................................21
9-Installation..........................................................................................................24
10-Technical data................................................................................................. 28
3

1-Safety information
WARNING!
Check the appliance is free from any transport damage.
Remove all the transport bolts
.
Remove and dispose all packaging materials (plastic bags, polystyrene,
etc) and keep out of children’s reach.
Handle the appliance with at least two persons.
Daily use
Before first use
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of e-
xperience and konwledge if they have been given supervision or instructi-
on concerning use of the appliance in a safe way and understand the haz-
ards involved.
Before switching on the appliance for the first time read the following safety
instructions!
Keep children under 3 years of age away from the appliance unless they
are constantly supervised.
Children shall not play with the appliance.
Pull up zips, fix loose threads and take care for small items to prevent lau-
ndry from being entangled. If necessary, use laundry bag or net.
Do not let children or pets come close to the appliance when the door is
open. Store washing agents out of reach of children.
Do not press or use the appliance when barefoot or with wet or damp han-
ds or feet.
Do not cover or encase the appliance during operation or afterwards to all-
ow moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp on top of the appli-
ance.
Do not use or store flammable detergent or dry cleaning agent in close vic-
inity to the appliance.
Do not use any flammable sprays in close vicinity to appliance.
Do not wash any garments treated with solvents in the appliance without
having dried them previously in the air.
4

1-Safety information
WARNING!
Daily use
Do not remove or insert the plug in the presence of flammable gas.
Do not hot wash foam rubber or sponge-like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any wash cycle.
Do not press the door during the washing precess, it gets hot.
Do not open the door if the water level is visibly over the port hole.
Do not force the door to open. The door is fitted with a self-lock device and
will open shortly after the washing procedure is ended.
Switch off the appliance after each wash programme and before under tak-
ing any routine maintenance and disconnect the appliance from the electri-
cal supply to save electricity and for safety.
Hold the plug, not the cable, when unplugging the appliance.
Maintenance/cleaning
Make sure children are supervised if they carry out cleaning and maintena-
nce.
Disconnect the appliance from the electrical supply before undertaking any
routine maintenance.
Keep the lower part of the porthole clean and open door and detergent dr-
awer if appliance is not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only be the manufacturer, its service age-
nt or similarly qualified persons in order to avoid a hazard.
Do not try to repair the appliance by yourself. In case of repair please cont-
act our customer service.
Installation
The appliance should be placed in a well-ventilated place. Ensure a locati-
on which allows opening the door fully.
Never install the appliance outdoor, in a damp place, or in an area which
may be prone to water leaks such as under or near a sink unit, In the event
of a water leak, cut power supply and allow the machine to dry naturally.
5

1-Safety information
Intended use
This appliance is intended for washing machine-washable laundry only. Any-
time follow the instructions given on the label of each garment label. It is not
intended for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use may
cause hazards and loss of all warranty and liability claims.
WARNING!
Installation
Installor use the appliance only where the temperature is above 5 °C.
Do not place the appliance directly on a carpet, or close to a wall or furn-
iture.
Do not install the appliance in direct sunlight or in the near of heat sourc-
es (e.g. stoves, heaters).
Make sure the electrical information on the rating plate agrees with the
power supply. If it does not, contact an electrician.
Do not use multi-plug adapters and extension cables.
Make sure only the new electric cable and hose sets supplied with the a-
ppliance are to be used.
Make sure not to damage the electric cable and the plug. If damaged ha-
ve it replaced by an electrician.
Use an easy accessible and earthed socket for the power supply.
The appliance must be earthed.
Make sure the hose joints and connections are firm and there is no leak-
age.
6

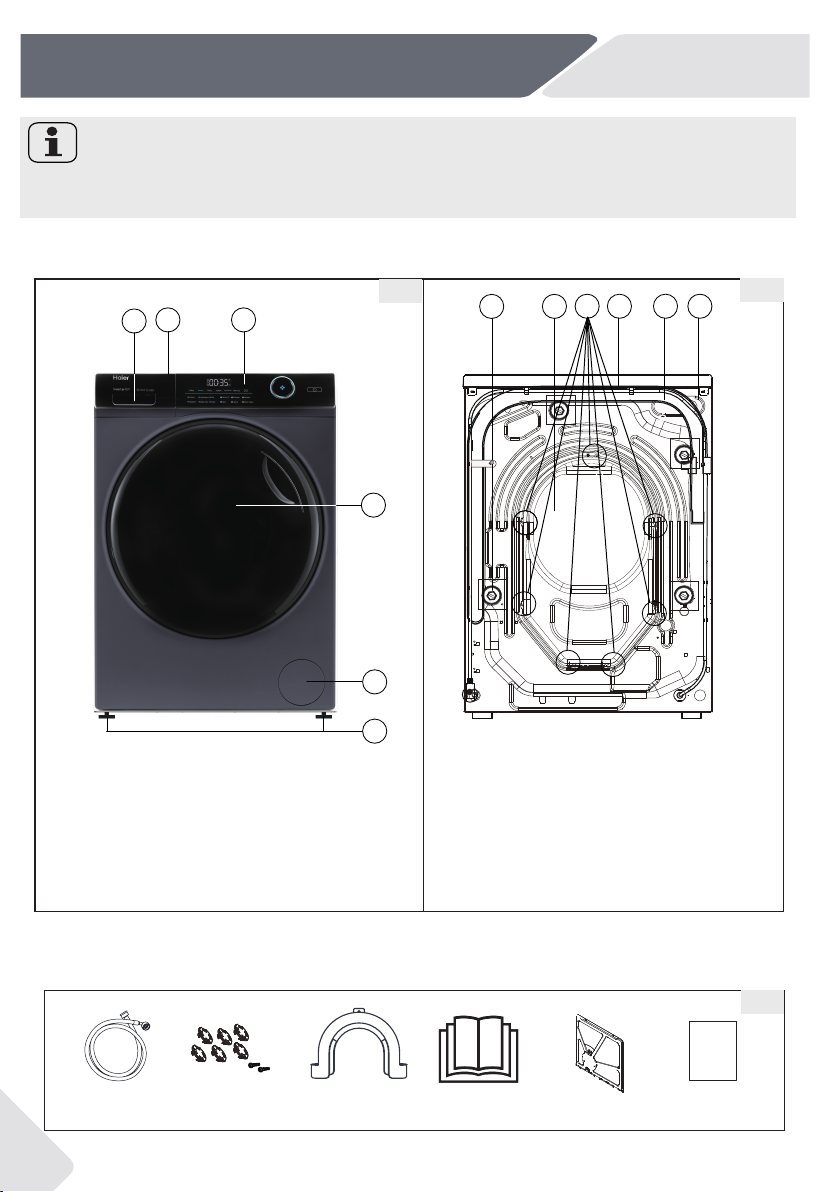

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig. 2-3):
Note:
1 Detergent/Softener drawer
2
Control panel
3
Worktop
4 Door
5 Filter cover
6 Adjustable feet
1 Transportation bolts (T1-T4)
2 Backcover
Backcover screws（7 EA）
3
4 Power cord
5 Drain hose
6
2-1 2-2
2-3
2-Product description
Inlet Hose
Assembly
6 Blanking
Plugs+2 Screws Drain Hose
Bracket User Manual Bottom Plate
Due to technical changes and different models, the illustrations in the following chapt-
ers may differ from your model.
7
13
2
6
4
5
123 4 5 6
T1
T2
T3
T4
Warranty Card
Warranty Card
Water inlet valve

3-Control panel
Note : Acoustic signal
Infollowing cases an acoustic signal sounds:
▶when pressing a button
▶at the end of programme
▶
▶when selecting the programme
in case of failures
The acoustic signal can be deselected if necessary; see DAILY USE.
8
2
1
Programme selector
3 Display
4 Detergent / Softener drawer
5 Function buttons
6
“Start/Pause” button
“Power” button
3.2 Programme selector
By turning the knob (Fig. 3-3), you may choose one
from 12 programmes and the corresponding progr-
3.3 Display
The display (Fig. 3-4) shows following information:
▶
▶Washing time
▶
End time delay
▶
Favorites
Locking the door
Child lock
Steam washing
▶
▶
3.1 “Power” button
Touch this button (Fig. 3-2) gently to swicth on the
appliance, the display is shining, press it again for
about 2 seconds to swicth off. If no panel element
or programme is activated after a while machine
will shut down automatically.
3-1
3-2
3-3
3-4
4 2
6
5
3
1
amme LED icon will light up.

3-Control panel
9
3.5 Function buttons
Choose the extra function from the (Fig. 3-6) before the
3.5.1-Function button “Delay”
Note: Factory settings
To get best results in each programme, Haier has well defined specific default settings.
Default settings are recommended if there is no specific requirement.
3.4 Detergent drawer
Open the drawer, two compartments can be seen
The recommendation on the type of detergents is suit-
able for the various washing temperatures, please refer
to the manual of detergent.
This model does not have a disinfection washing prog-
ramme, and disinfectant can not be added to the disin-
fection washing inlet.
3.5.2-Function button “Temp.”
2 Compartment 2: Softener, Conditioning agent etc.
1 Compartment 1: Powder or Liquid detergent.
Press this button (Fig. 3-7) to start the programme with a delay.
End time delay could be increase in interval of 30 minutes from
0.5-24h. After you select the delay function, the total washing
time will longer than the default programme washing time. For
example, display off 6:30 means end of programme cycle will
be in 6 hours and 30 minutes. Press Start / Pause” button to
activate the time delay.
1
2
Press this button (Fig. 3-9) to change the washing temperature
of the programme. If the display showing “0”, the temperature
function will not be activated and the water will not be heated.
(Fig. 3-5):
3-6
3-5
3-8
3-7
washing cycle start. The related indicators are light up
once selected. You may choose more than one function
by pressing the buttons sequentially.

3-Control panel
10
3.5.3 Function button “Speed”
Touch this button (Fig. 3-9) to change or deselect the spin
of the programme. If the display showing “0” the spinning
3.6 “Start / Pause” button
3.5.4 “Extra Rinse” button
ctions for the extra rinse count. The display show “P – 0 /
Note:Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.7 Child lock
3.5.5 “Steam” button
Touch this button (Fig. 3-10) to rinse the laundry more int-
ense with fresh water. This is recommended for people w-
ith sensitive skin. By touching the button, there are 3 sele-
Touch this button (Fig. 3-11) to select the steam program,
Touch this button (Fig. 3-12) gently to start or pause the
then the current program temperature value will be chang-
ed to the maximum allowed value. The maximum temper-
ature value can be viewed on the page of the parameters
table in the manual. You can select if you require this fun-
tion when programmers “Cotton, Synthetics, Mix, Baby c-
are, Daily” are used. The icon will light up when using the
steam wash function.
3-14
3-9
3-10
3-12
3-13
3-11
function is not activated and spinning will not be started.
P – 1 / P – 2 ”. Different extra rinsing count can be select-
ed for different programme.
wash cycle.
Touch button “Delay” and “Steam” (Fig. 3-13) for 3 secon-
ds simultaneously to activate the child lock function.The
child lock indicator on the display will light up when it is a-
activated. Press this two buttons simultaneously again to
deactivate the feature. The feature is an optional when the
machine is running. The display showing “clol-” (Fig. 3-14)
if the child lock is activated. This feature is to disable con-
trols and prevent child from changing programme or ope-
rating the appliance.

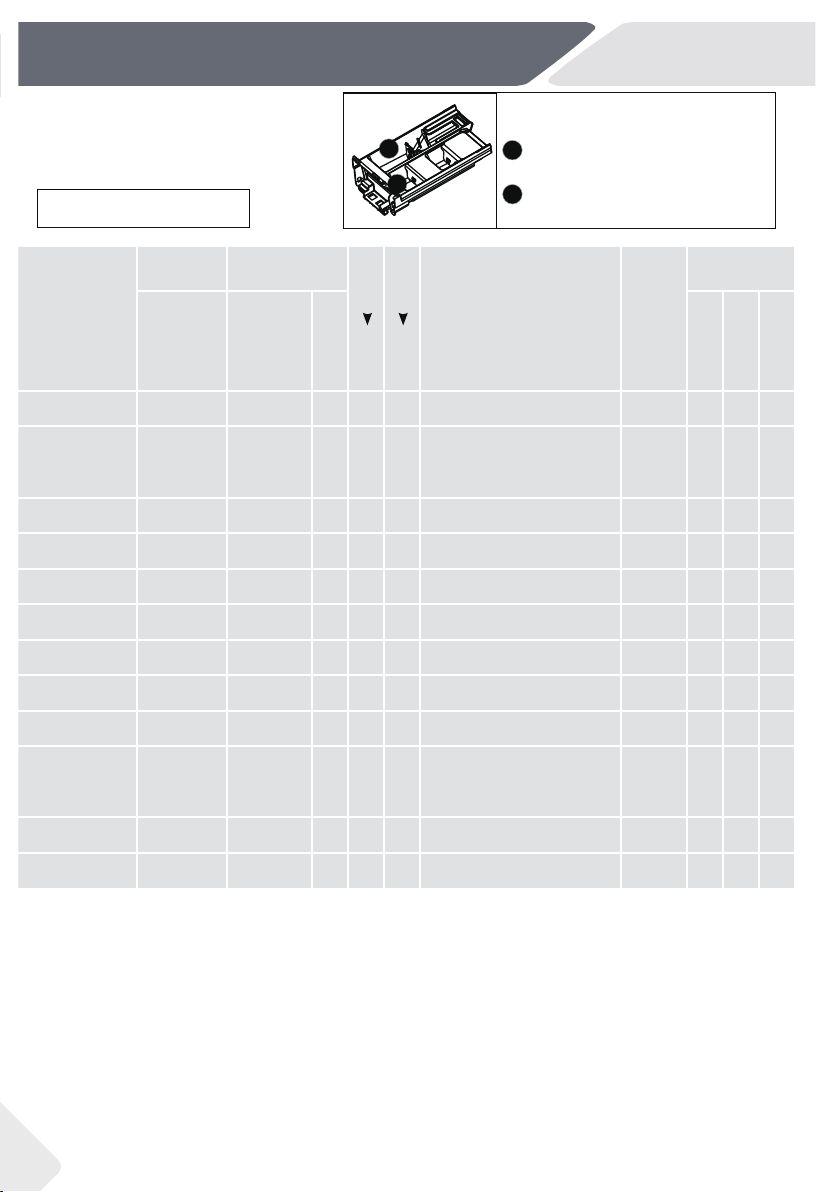

4-Programmes
11
1) *: Water is not heated up.
2) Only one piece of adult or bulky clothing can be washed, and up to three pieces of children’s clothing,
only care for dry clothes.
Choose 90°C wash temperature only for special hygienic requirements.
Max. load
Preset
spin
speed
in rpm
Function
in kg in °C
Temperature 1)
Preset
Programme selectable
Detergent compartment for:
1
2
Detergent
Softener or care product
º
Optional, / No
1 2
º
º
º
º
º
º
º
/
/
/
º
º
º
º
º
º
º
º
º
/
/
/
º
º
º
º
º
º
º
º
º
/
/
/
/
/
º
º
º
º
º
º
º
º
/
/
/
/
º
º
º
º
º
º
º
º
º
/
/
/
Steam
Extra Rinse
Delay
30
30
30
40
30
30
30
/
/
/
90
*
Cotton
Synthetics
Mix
Baby Care
Jeans
Daily
Hygiene
4)
Drum Clean
Delicate
Quick 15 ’ 3)
Refresh 2)
Spin
10
10
5
5
5
5
5
2
2
1
1
/
Fabric type
Cotton
Synthetic or mixed fabric
Mixed laundry of cotton
and
synthetics
Cotton / Synthetics
Cotton / Synthetics
Cotton / Synthetics
Lightly soiled laundry of
Cotton
Jeans
/
Delicate laundry and silk
Non-fragile fabric
cotton or synthetics
1
2
range
3) Reduce detergent amount because programme duration is short.
4) Do not use detergent instead of use a special machine cleaner.
* to 60
* to 40
* to 30
* to 60
* to 60
* to 60
* to 90
* to 90
* 90
/
/
/
1000
1000
1000
1000
1000
1000
1000
1000
1000
600
/
/

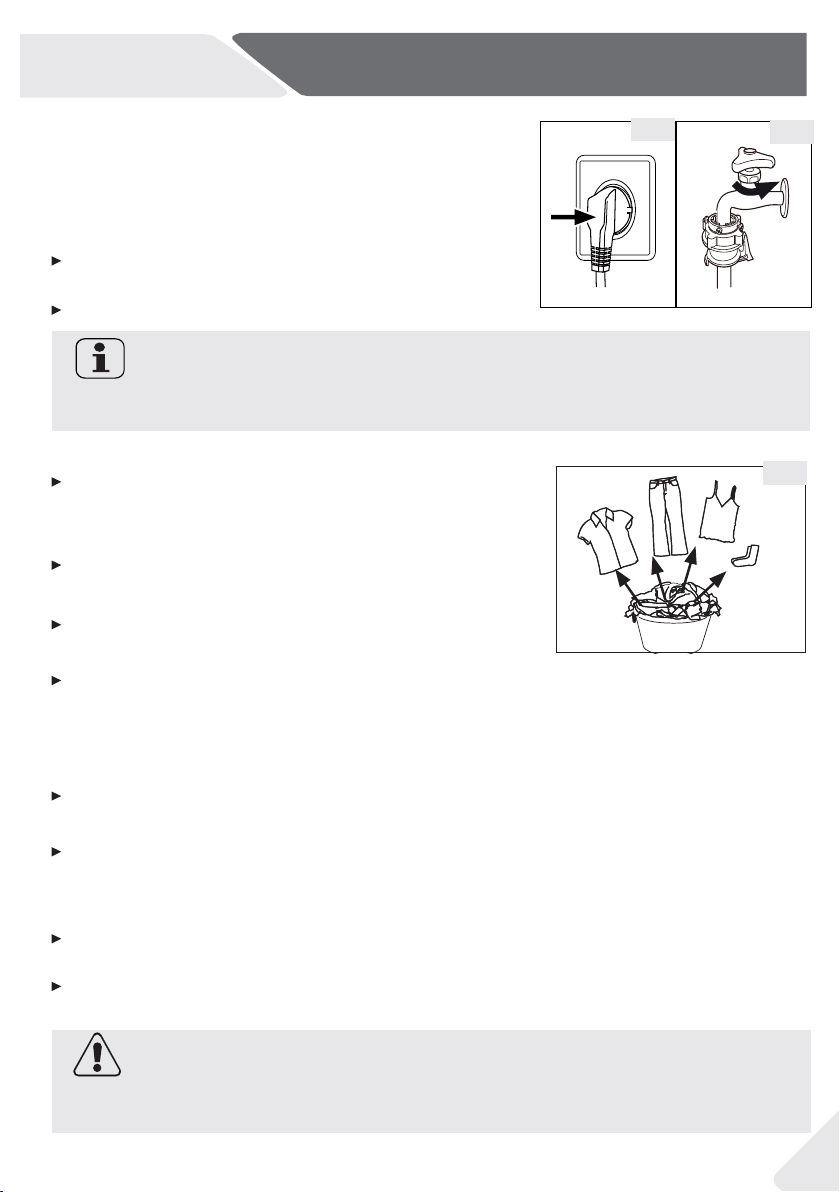

5-Daily use
5.3 Preparing laundry
5-3
5.1 Power supply
(Malaysia: 220-240V / 50Hz; Philippines: 230V / 60Hz)
5.2 Water connection
Check the condition of the water inlet hose before
Turn on the tap (Fig. 5-2) .
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by
turning on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions
and damage of clothes and appliance.
12
5-1 5-2
connecting it to the water tap.
Please refer also to section INSTALLATION.
Connect washing machine to a power supply (Fig. 5-1).
bag to care for this delicate laundry (hand or dry cle-
Check the care label on the clothing. Sort out
clothes
Separate white clothes from coloured. Wash coloured
textiles first by hand to check if they fade or not.
Empty pockets (keys, coins etc.) and remove harder
decorative objects (e.g. brooches).
textile such as fine curtains are to be put into a wash
Close zippers, velco fastenerand hooks, make sure
the buttons are sewn on tightly.
Garments without hems, delicates and finely woven
Place sensitive items like laundry without firm hem,
delicate underwearand small items such as socks,
Unfold large pieces of fabric such as bed sheets, be-
Turn jeans and printed, decorated or color-intensive
textiles inside out; possibly wash seprately.
according to types of fabric (cotton, synthetics, wool
or etc.) and soil level (Fig. 5-3).
aning would be better)
belts, bras, etc. in a wash bag.
dspreads etc.

5-Daily use
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non-chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dryer
Line drying Flat drying
Ironing
I ron at a maximum
temperature up to
200°C
I
Don’t overload. Note the different maximum load according to programme! Rule
ron at a medial tem-
perature up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
5.4 Loading the appliance
Put in the laundry piece by piece.
of thumb for maximum load: Check if you can put a hand upright on top of load.
Close the door carefully. Make sure that no pieces of laundry are pinched.
13

5-Daily use
5.5 Selecting detergent
Use only machine wash approved detergent.
Mind always detergent manufacturer recommendations.
D
If needed use specific detergents, e.g. synthetic and woolen fabric.
Washing efficiency and performance is determined by detergent quality.
o not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton √√√ - -
√√√
√
√
√√
√
√
√
√
√
- -
Hygiene
Baby Care - -
Drum Clean
- -
√√√
- -
Synthetics
Delicate
-
- -
- -
-
√
√L
√L
Mix - -
Quick 15’ -
-
Refresh
Spin
Daily
-
L
√ = Recommended
= gel-/liquid detergent P =powder detergent O = optional _ =no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder:
Color detergent:
Wool / delicate detergent: 0°C to 30°C (best use: 20-30°C)
20°C to 90°C*(best use: 40-60°C)
20°C to 60°C (best use: 30-60°C)
* Choose 90°C wash temperature only for special hygienic requirements.
-
-
-
-
-- - -
- -
It is better to use low or free suds detergent powder.
14
√L
√√

5-Daily use
5.7 Switch on the appliance
5.8 Select a programme
5-5
5.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 5-4).
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Pl
Always fill the detergent just before the beginning of the wash cycle.
ease follow the instruction on the detergent package.
Concentrated liquid detergent should be diluted before adding into compartment 2.
The best useof liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
Do not use liquid detergent if “end time delay” is selected.
Carefully choose the programme settings according to the care symbols on all laundry
labels and according to the programme table.
Touch the “Power” button to switch on the appliance
To get the best washing results, select a programme
which fits the degree of soiling and sort of laundry
type.
Turn the programme knob (Fig. 5-6) to select the right
(Fig. 5-5).
5-6
5.9 Add individual selections
Select required options and settings (Fig. 5-7); refer to
CONTROL PANEL.
5-7
Note: Odour removal
5-4
Before first use we recommended to run programme Drum Clean with no load and small
amount of detergent in washing agent compartment (2) or special machine cleaner to re-
move possibly corruptive residues.
15
1
3
2
programme.

se
5-Daily use
Note: Door lock
For safety reasons the door is locked partially during the washing cycle. It is only
Note: Standby mode / energy - saving mode
The switched on appliance will go into standby mode if it will not be activated within 2
5.10 Start wash programme
5.11 Interrupt / cancel wash programme
5.12 After washing
Press “Start / Pause” button (Fig. 5-8) to start. Appliance
operates according to present settings. Changes are only
possible by cancelling the programme.
5-8
5.13 Act
minutes before starting the programme or at the end of programme. The display swit-
ivate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the Drum Clean programme.
3. Press the “Extra rinse” button “Temp.” button and “Steam” button at the same time
for about 3 seconds. “ ” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these three buttons at the same time again, then
“ ” will be displayed.
ches off.
2. The appliance switches off automatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn off the water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Keep open while not used.
1. At programme cycle end is displayed.
16
2. Turn the knob to select a new programme and start it.
possible to open the door at the end of the programme or after the programme
was cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not
possible to open the door; is displayed.
To interrupt a running programme press gently “ Start / Pause”. The LED in the button
is flashing. Press it again to resume operation.
To cancel a running programme and all its individual settings:
1. Press “Start / Pause” button to interrupt the running programme.

6-Eco-friendly washing
Environmentally responsible use
Do not overload (hand width clearance above laundry).
To achieve best use of energy, water detergent and time you should use the re-
commended maximum load size.
For slightly soiled laundry select the Quick 15’ programme.
Apply exact dosages of each washing agent.
ficiently cleaning below 60 °C.
Choose the lowest adequate washing temperature - low suds detergents are ef-
17
Change to different function only if the laundries soil level is high, otherwise use
the default setting.

7-Care and cleaning
7.1 Cleaning the detergent drawer
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and insert
the drawer back in the appliance.
7.2 Cleaning the machine
▶Unplug the machine during cleaning and maintenance.
▶Use a soft cloth with soap liquid to clean the machine
case (Fig. 7-2) and rubber components.
Do not use organic chemicals or corrosive solvents.
▶
7-1
7-2
Note: Hygiene
For regular maintenance we recommend to run programme Drum Clean with no load
in order to remove possible corruptive residues quarterly. Add a small amount of det-
ergent in washing agent compartment (2) - or use a special machine cleaner.
7.4 Cleaning the drum
▶Remove accidentally washed metal parts such as pins,
coins, etc. from the drum (Fig. 7-4) because they cau-
se rust stains and damage.
▶
▶
Use a non-chloride cleaner for removing rust stains.
Observe the warning hints of the cleaning agent man-
ufacturer.
▶Do not use any hard objects or steel wool for cleaning.
7-4
To prevent blockage of water supply by solid substances
▶
▶Unscrew the water inlet hose at the back of the applia-
nce as well as on the tap (Fig. 7-3.1).
▶
▶
7.3 Water inlet valve and inlet valve filter
like lime clean regularly the inlet valve filter.
Unplug the power cord and turn off the water supply.
Remove the filters and flush them with water and a br-
ush (Fig. 7-3.2).
Insert the filter and install the inlet hose.
18
1
3
2
7-3.1 7-3.2
Clean the drawer regularly to ensure there are no deter-
gent residues. (Fig. 7-1):

7-Care and cleaning
1. Turn off and unplug the machine (Fig. 7-6.1).
2. Open filter cover. You can push the filter cover to
3. Provide a flat container to catch leach water (Fig.
4. Pull the drain hose out and hold its end above the
container (Fig. 7-6.3).
5. Take the sealing plug out of the drain hose (Fig.
6. After complete drainage close drain hose (Fig.
7. Unscrew and remove counter clock wise the pump
8. Remove contaminants and dirt (Fig. 7-6.6).
7-6.3 7-6.4
7-6.5 7-6.6
7.6 Pump filter
7.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig 7-5.1).
2. Turn off water supply (Fig 7-5.2).
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
installed and without leakage.
inlet and drain hose. Make sure everything is properly
7-5.1 7-5.2
WARNING!
Scalding Risk! Water in the pump filter can be very
hot! Before any action please ensure water has co-
oled down.
Note: Hygiene
After long periods of disuse we recommended to run programme Drum Clean with no
load and small amount of detergent in washing agent compartment (2) or special ma-
chine cleaner to remove possibly corruptive residues.
Clean the filter once a month and check the pump fil-
Doesn´t drain the water.
Doesn´t spin.
Cause unusual noise while running.
7-6.1
ter for instance if the appliance:
19
7-6.2
open it (Fig. 7-6.2).
7-6.3). There could be bigger amounts!
7-6.3).
7-6.4), and push it back into the machine.
filter (Fig. 7-6.5).
