Haier HWM80-35 User manual

Single-Tub Washing Machine
HWM 80-35/50/60
HWM 120-35 FF
Please read this manual
carefully before use.
Retain it for future reference.
Warranty Card inside.
OPERATING MANUAL
Inspir ed living
QA Passed
QA
Passed
[e-mail] www.haier.com.pk
HNR Company (Pvt) Ltd.
Head Office : 63/B, Mega Tower Main Buleward, Gulberg-III, Lahore.
UAN: 11 11 HAIER (42437) Tel: 042 - 35879105 - 7

UAN: 11 11 HAIER (42437)
[e-mail]
www.haier.com.pk
SIALKOT
Al-Hadi Town, Defence Road,
Pakka Peyya Stop,
Opp. Mehar CNG,
Tel: [phone]
GUJRANWALA
GMS Area Bismillah
Market, G.T Road
Opp. Gold Marriage Hall
Tel: [phone]
GUJRAT
Tariq Plaza Nr. Bandan
Marriage Hall,
Rahman Shaheed Road
Tel: [phone]
HYDERABAD
Banglow No.342/A
Block # 6,
Latif abad # 6,
Tel: [phone]
JHELUM
Major Nawaz Shaheed
Colony, Mehdi
Shaheed Road
Tel: [phone],627231
D.G KHAN
House # 4, Block No. 17,
Street No. 4,
Laghari Colony
Tel: [phone]
BAHAWALPUR
H.No.44/278 Central
Jail Road, Arif Town
Tel: [phone]
SAHIWAL
66/E Scheme # 2 Near
Cakes & Bakes, College
Chowk, Farid Town.
Tel: [phone]
SUKKUR
Banglow No.C473/2
Queens Road
Tel: [phone]
RAWALPINDI
951 - B, near kali tanki,
Opp. MC girls high
school, Satellite town,
Tel: [phone]
KARACHI
C-16 Block#.5
Rashid Minhas Road
Nr. NIPA Chorangi
Tel: [phone]
KARACHI (2)
C-21,Sector 31 E
Lakhnow Co operative
Housing Society Korangi
Road, Near Nasir Jump
Tel: [phone]
SARGODHA
67 A Shahzad Park
P.A.F Road
Tel: [phone]
QUETTA
Banglow # 4-29/1
Mir Ahmed Khan Road
Tel: [phone]
LAHORE (2)
62-2-C-2
Town Ship
Tel: [phone]
LAHORE
92-B, Sharif Colony,
Iftikhar Ahmed
Malik Road
Tel: [phone]
FAISALABAD
36 / 8 New Civil Lines
Behind State bank of
Pakistan
Tel: [phone]
MULTAN
178-A Shamsabad,
Eidgah Road,
Tel: [phone]
PESHAWAR
Haier Plaza
G.T Road
Nr. Haji Camp
Tel: [phone]
Service Centres

Contents marked with that symbol are related to the safety of the
product and the personal safety of the users. Please operate in strict
conformity to the contents. otherwise it may cause damage of the
machine or injure the personal safety of the user.
Contents marked with that symbol are action forbidden to perform.
Performing of those action may reslt in damage of the machine or
influence the personal safety of the users.
Forbidding sign
Warning sign
If the power cord is bad, to avoid risk it
is required to replace it by the
technicians of our special shop or the
after-sale service department. Keep
the pin of the Power Plug clean.
When the machine is normally
using, please put the power plug at
the location easily to be inserted
and extracted by hand. Be sure to
pull the plug off when there's power
failure, or the machine is being
moved, cleaned or when it is idle.
Do not use water hotter than 50 C
O
Ventilation hole at the bottom of the
washing machine
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not place wet laundries on the control
panel.
Do not share one receptacle with other
electric appliances. Do no use it in case
that the power plug is damaged or the
inserting into the receptacle is loos.
Meaning and Description
of the Symbols

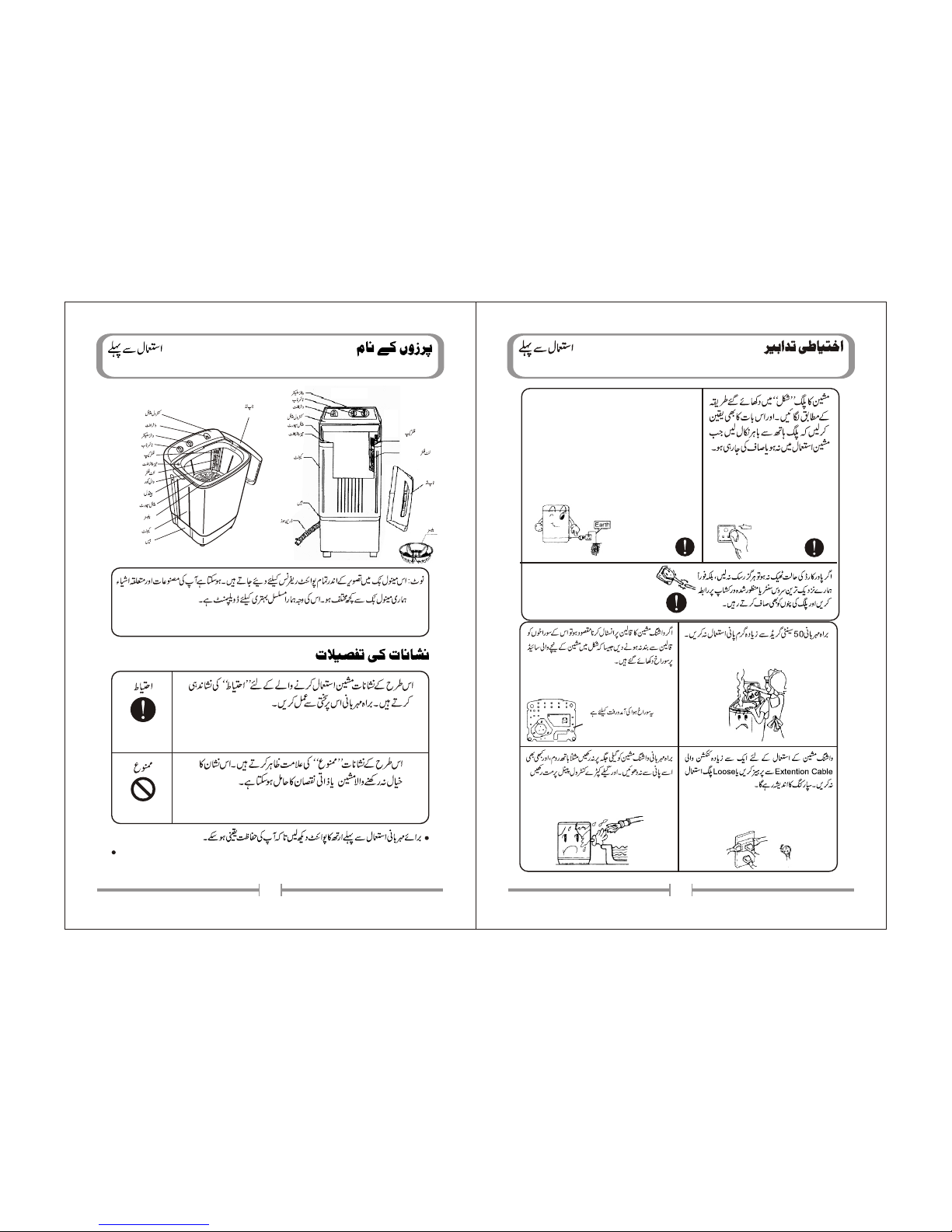

Time Knob
Water
Selector
Water Inlet
Control
Panel
Panel
Support
Quick
water Inlet
Cabinet
Base
Drain Hose
Lint Filter
(Installed by user)
Filter Cap
Top Lid
Pulsator
Please check if the power receptacle has good earthing condition before using to
guarantee your safety.
Before Using Name of Parts Before Using Safety Precautions
21
Base
Cabinet
Valve cover
Handle
Panel support
Pulsator
Lint filter
Filter cap
Top lid
Control panel
Water inlet
Quick water inlet
Timer knob
Water selector
AMX
MED
MIN
Note: All illustrations in this manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
á`äЬå¢BT~á
`ã°z;VåZgB»ñ@*Z¼u
áu»Z0+6:gìXZgBÆa0*U$c*0*ã»
0*U$CÙ¦/ZEw:,X

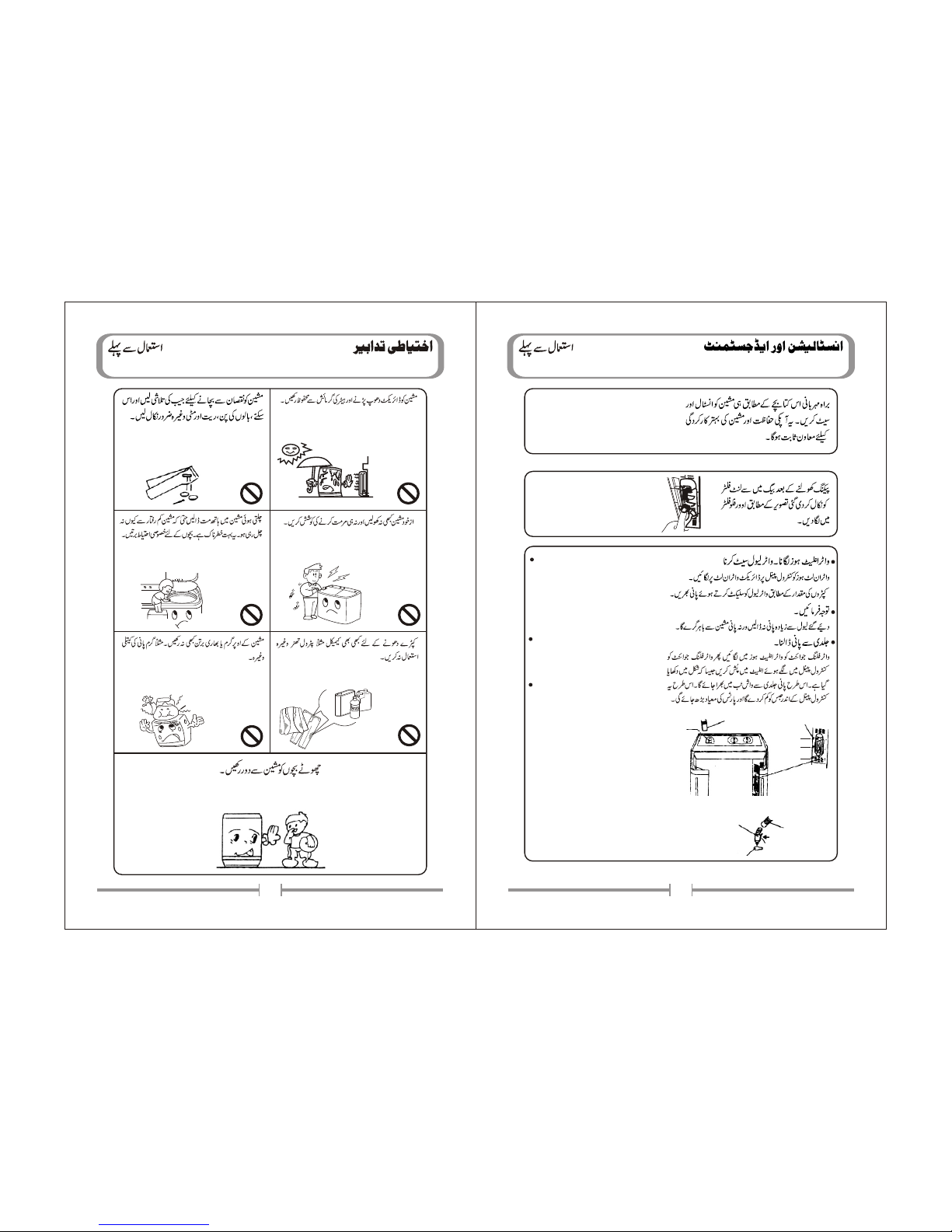

Be sure to earth the earthing wire reliably. Do
not connect the earth terminal to the gas pipe
and tap water pipe.











4
3
Handicapped or children without care shall
not use the machine.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of the
children.
Do not decompose, repair or alter the
machine by your self.
Do not put any hot or heavy items (such
as the kettle with hot water) on the
washing machine.
Do not wash laundries with volatile
material (such as thinner, petrol etc.)
Pt
erol
Thnerin
Keep the machine away from direct
sunlight and heat source like the heater.
To prevent your laundries and washing
machine from damage, be sure to take
out all of the foreign materials from your
pocket, such as coins, button, sand or
hair pins etc.
Please install and adjust the machine
according to the requirement of the
manual. It is very important to your
security and correct operating the
machine.
After opening the package, please
take out the lint filter from the
document bag, install it to the
overflow filter of the wash tub. See
to the figure.
Install the lint filter
Before Using Safety Precautions Before Using Installation and adjustment
Install the water inlet hose;
Select the water level
Insert the water inlet hose into the
water-inlet on the control panel
directly. (Pull it out to dismantle it).
Fill the water to the water level
selected according to the quantity
of the laundries.
Attention:
Do not exceed the "Maximum"
water level, otherwise the
water may overflow out of the
machine.
Use the quick water Inlet:
Insert the water filling jointer
into water inlet hose, then push
the water filling jointer into the
water inlet on the control panel.
(To dismantle water inlet hose,
just push the control panel
handle as indicated in the
figure and pull it out.
Fill water into the wash tub
directly through quick water
inlet. It can reduce the humidity
inside the contro l pan el
significantly and prolong the
o p e r a t i n g l i f e o f t h e
components.
Water-filling jointer
Water inlet hose
Push
Control handle
Quick water inlet
Maximum
Medium
Minimum
Water inlet hose
Water inlet
Water level
indicator

Preparation before washing
Using Process
Connect the water inlet
hose.
Confirm that the washing
machine is earthed reliably.
Than insert the power plug
into the receptacle. Do not
connect the earth terminal to
the gas pipe and tap water
pipe.
Put down the drain hose.
Slanting or uneven ground
may result in unsatiable
working or abnormal noise.
Please make the machine
stand horizontally.
1.
2.
3.
4.
Preparation before washing
-1
-2
-3
-4
6

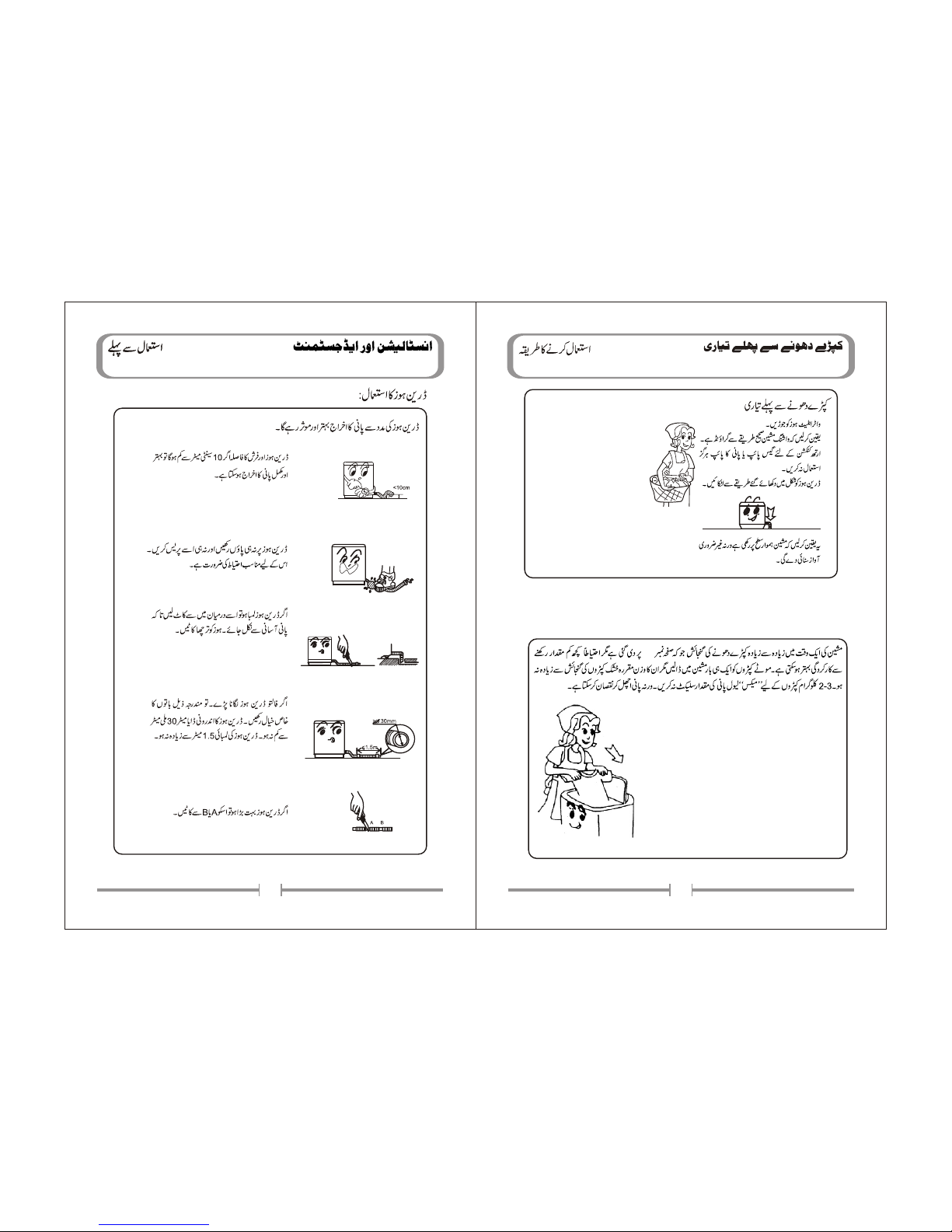

Usage of the drain hose
4.
If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not less
than 30mm, and the length shall not
exceed 1.5m.
-4
If extra drain hose is too long, cut it either
at point A or B.
5.
-5
The drainage shall be smooth with
the drain hose.
1.
The height of the drain hose shall be less
than 10cm, or the drainage will not be
smooth enough and cause incomplete
drainage.
2.
Do not tramp on or press the drain house.
-1
-2
3.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
-3
Before Using Installation and adjustment
5
12

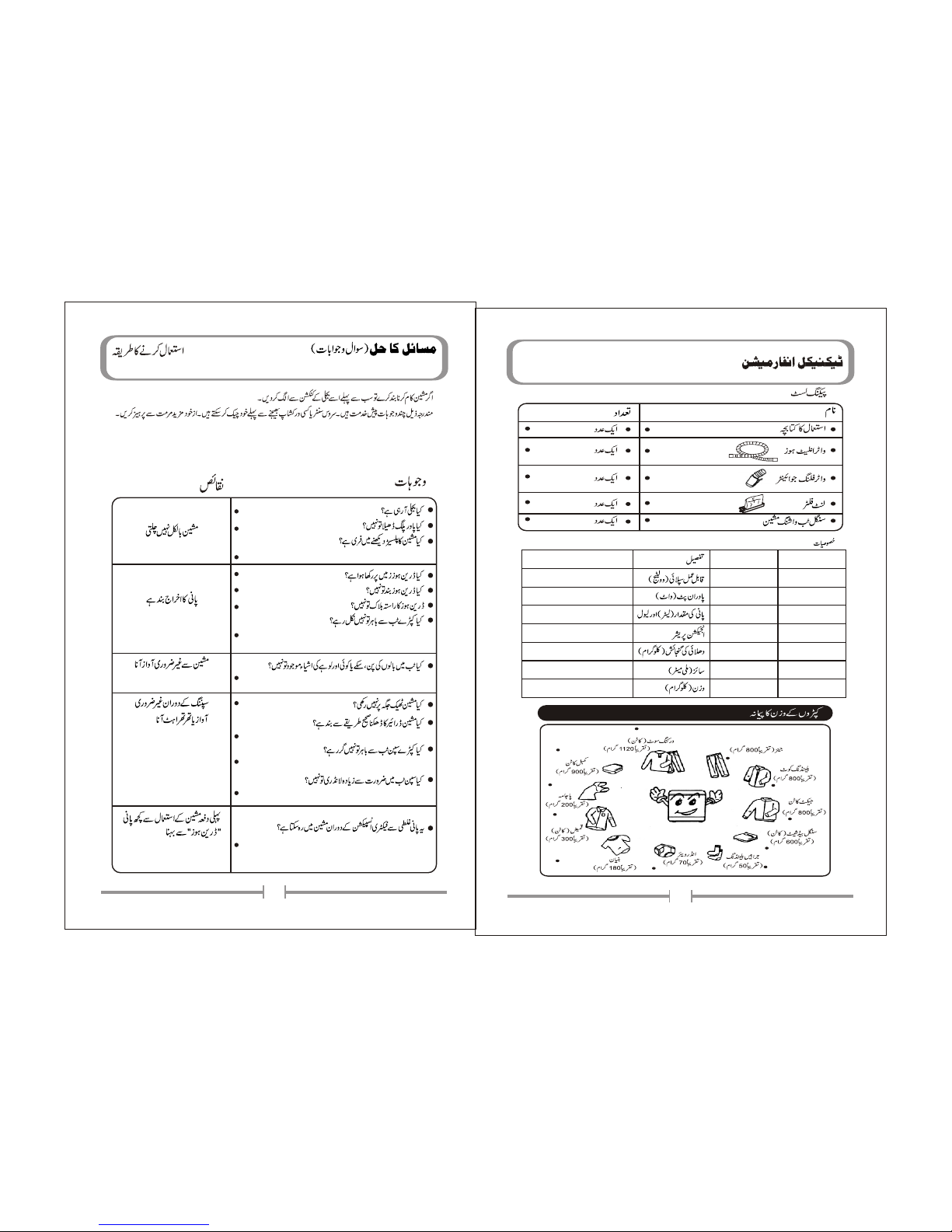

The capacity of washing and spinning of the machine
refer to the largest weight of the standard laundries
under dry condition that can be washed or spinned in
one time. Laundries quantity in one washing cycle
shall be lower than the rated capacity. The largest
capacity of this machine is given page #.
The thickness, size, type of the cloth will influence the
actual washing capacity. It is suitable to put in
reasonable amount of laundries and the laundries can
be turned round in washing for on time washing.
Do not select "Maximum" water level for laundries less
than 2-3kg, so as to avoid splashing of water.
