Haier WM6602AJ User manual

Names of the parts.............the 2nd cover
Safety precautions .......................1
Introduction of the special functions.........3
Installation and adjustment ..................3
Install the water inlet hose............5
Preparation before washing .............7
Put in the laundries .........................8
Usage of the detergent .......................9

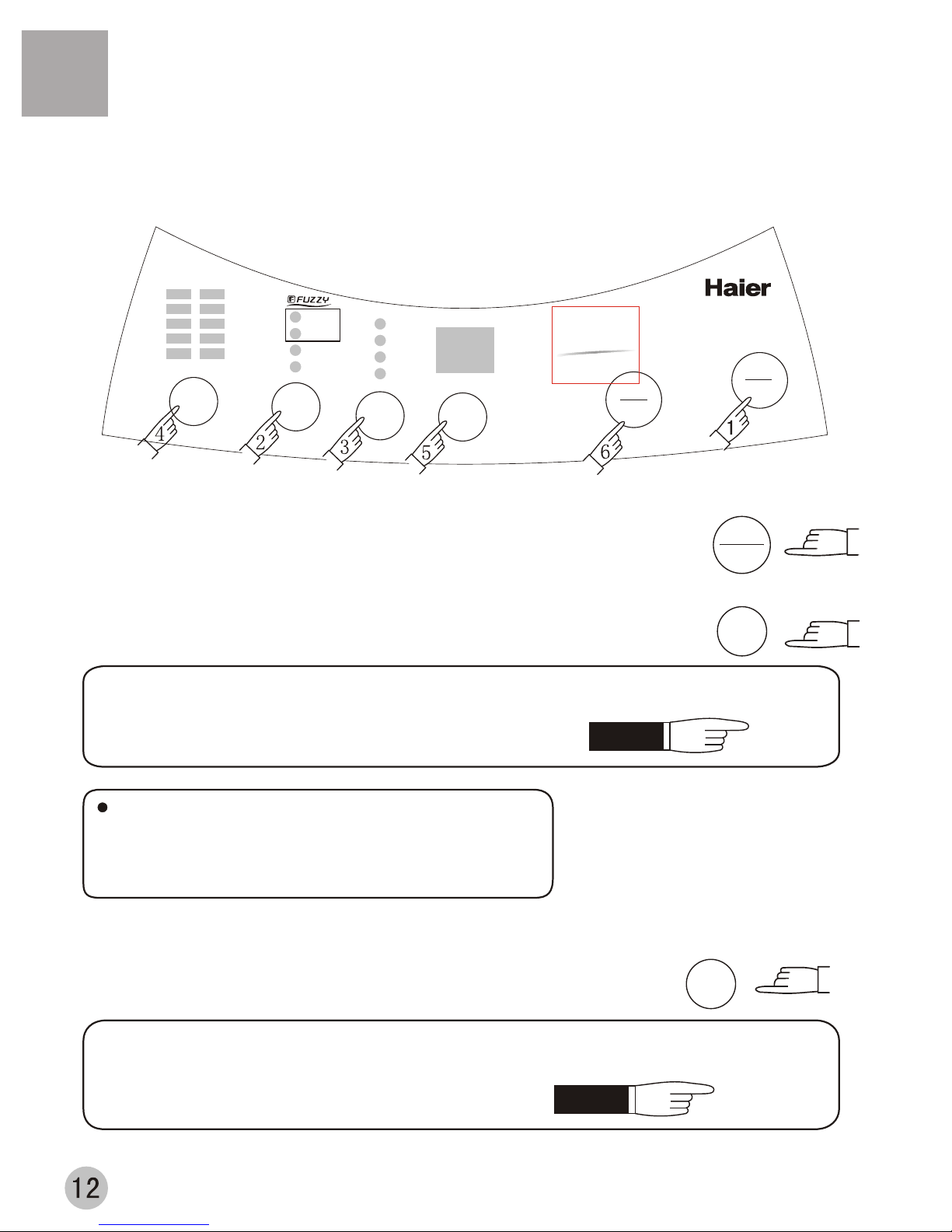

Use the operation buttons ................10
Close the top lid ........................14
Finish washing ............................14

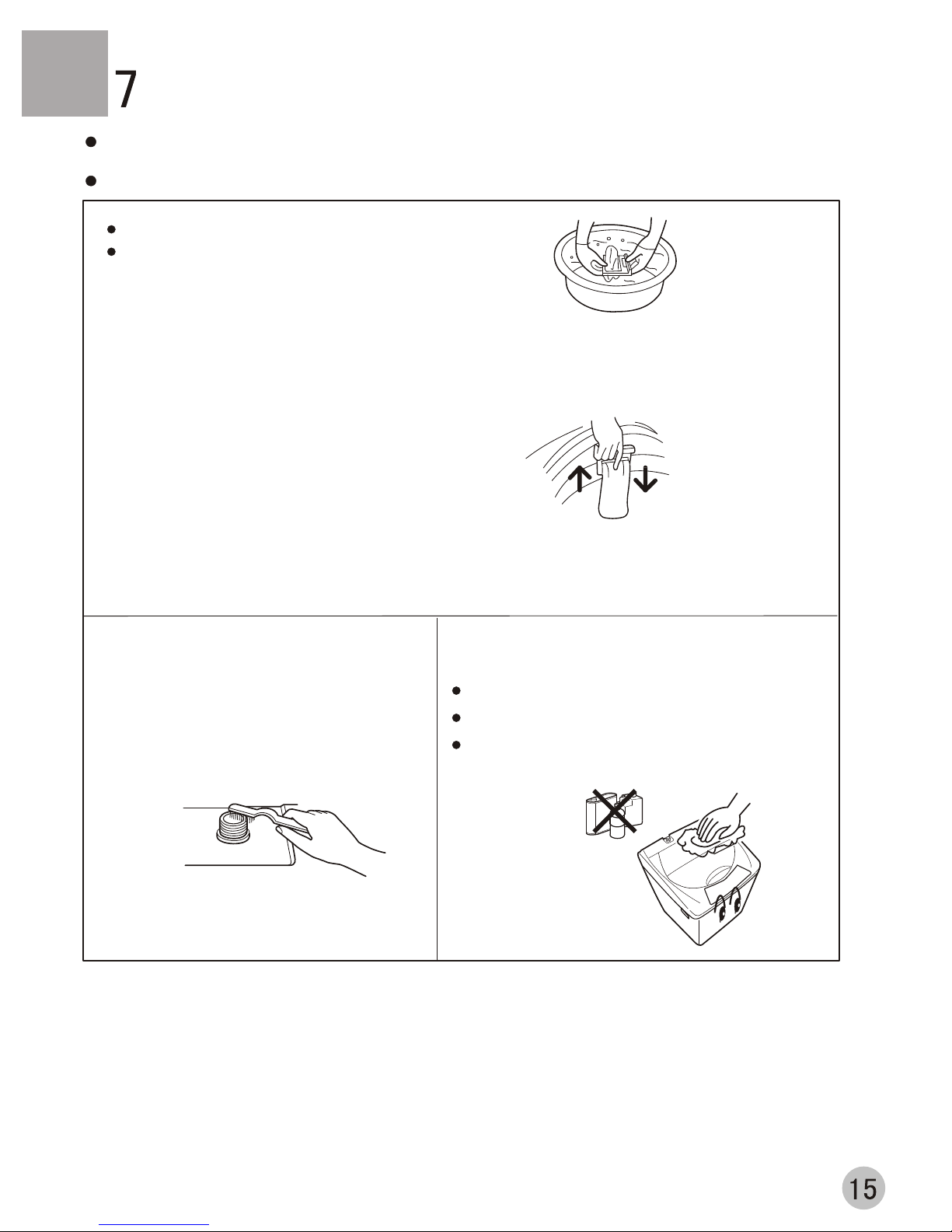

Disposal after washing ....................15
Trouble shooting Answer to questions.....16
Packing list ...................................17
Specifications.........................the back cover
Contents
Before using
Using process
Please read this manual carefully before using.
Please retain it attentively for future reference.
User's manual
Full Automatic Washing Machine
WM6602AJ
Please check if the power receptacle is earthed
reliably before usage to guarantee your safety.
The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.

Meaning and description of the symbols
Honourable users,
Thank you for choosing our products.
Our products integrate high-tech, precision,frontier science.To facilitate
using it, please read this manual carefully and operate this machine
according to it.
ʹÓÃ֮ǰʹÓÃ֮ǰ
ʹÓÃ֮ǰʹÓÃ֮ǰ
Before Using
Before Using

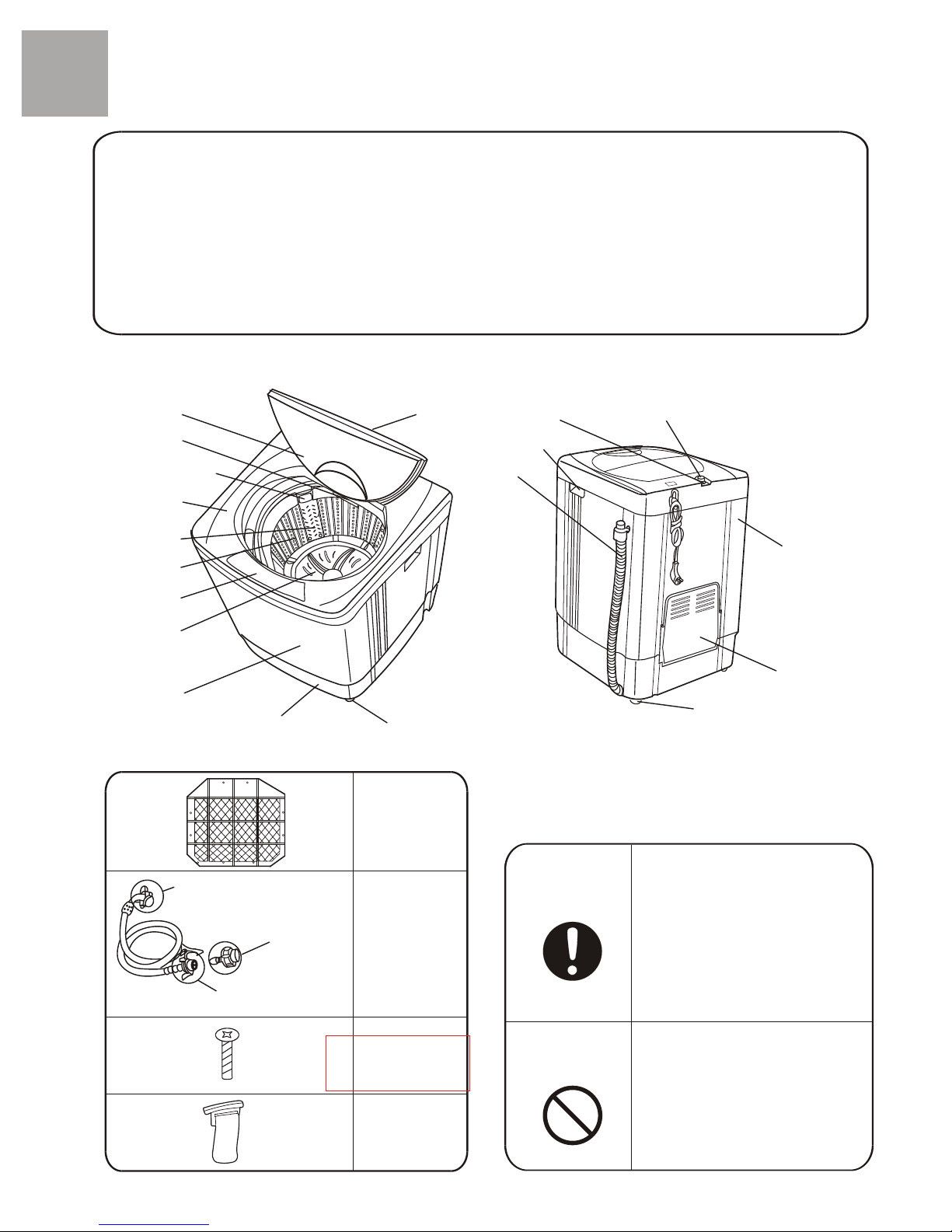

Names of the parts
the end connecting to
the water inlet hose jointer
the end connecting to
the washing machine
jointer connecting the
water inlet hose and
the water faucet
Warning sign
Forbidden sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
bottom plate
(one)
water inlet hose
(one)
Water inlet
hose jointer
(one)
tapping screws
(eight)
Adjustable foot
fixed foot (3)
back cover
Cabinet
base frame
Drain hose
Control panel
film
Control panel
Filter cover
Power line
Pulsator
Inner tub
Detergent box
Lint filter
Top lid B
Cabinet handle
water valve
Top lid A Sop mat
Lint filter
(one)
(Installed by user)

Before Using
Before Using
Safety precautions
Do not damage the power cord,bend ,extend,twist,bind or alter it by force.Do not press or
nip it with weight.If the power cord or the power plug is bad, or the power plug becomes
flexible,to avoid risk it is required to have it replaced by the technicians of our special
shop or the after-sale service department. Keep the pin of the power plug clean,if the
power plug is polluted with dust,please wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
soft items
The ventilation holes
at the bottom
Please plug the plug on special 220V-240V
AC receptacle.Be sure to use single- phase
tow pins receptacle.Ensurethe earthing
prong of the power receptacle is earthed
reliably.Use leakage protector if possible.

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.
Petrol
Thinner
.
To prevent your laundries and washing
machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hairpins etc.
Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming was-
hing powder
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department of
our company.

The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Adjust the adjustable foot:
Install the bottom plate
After you open the package,
please lean the washing
machine gently down on soft
items ( like the towel cloth,
blanket, etc. ). Install the
bottom plate to the bottom of
the machine with the eight
screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:
Adjust the installation position
Before Using
Before Using
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.Press downward to
assmble.
2.Pull upward to detach.
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
"Hand scrub" wash:
The drum and pulsator rotate in opposite directions to form a washing
water flow similar to hand scrubbing movement, and meanwhile the
drum inner wall also take a share in washing, which obviously increase
the washing intensity.
Open-cover alarm function
During washing cycle except the processes of water filling and draining,
the washing machine will stop operation and automatically alarm if the
top cover is opened.
Special functions
Back
Front
Bottom plate
Screw
Soft items
Pull down Put up

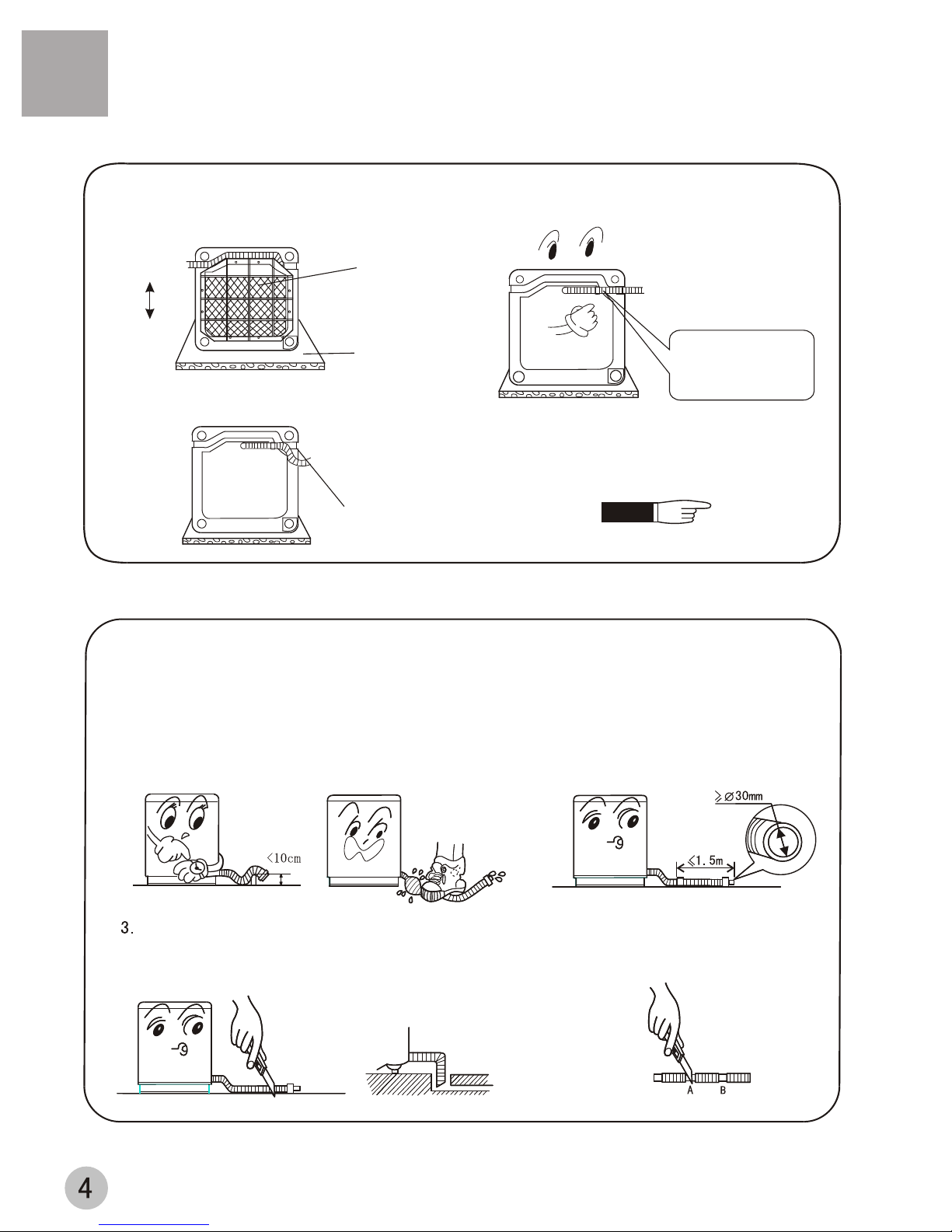

Install the lint filter

1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
If the extra hose is too long, cut it
either at Aor at B point.
1.Lean the machine down gently with the front
surface facing the ground. Loosen the eight
screws by a cross screwdriver.
3.Extend the drain hose from the left side. Push the
drain hose into the groove with hands.
4.Install the bottom plate (as per indicated before),
then lift the machine up gently.
2.Pull out the drain hose from the groove at the
right side.
Back
Front
Bottom plate
Soft item
Use groove at
this side after
direction changing
Page 3
Push the drain hose
into the groove with
hands at this point
Before Using
Before Using
How to change the direction of the drain hose
Usage of the drain hose
The drain hose shall drain smoothly

Water tap,suitable Water tap,not suitable
It is required that the front end shall be longer than 10mm.
The outlet end surface of the tap shall be flat and smooth. If not please file it to
avoid leakage.
3.Loosen the screw till the water tap can be accessed. Put the jointer of the water
inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer
can not be set on the water tap, please loosen the four screws and take out the
bushing in the jointer. See to the figure3.)
2.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before twisting the fastening nut, the thread is 4mm above the
upper surface of the nut. After twisting the fastening nut, the thread is 2mm
above the upper surface of the nut. See to Figure 6.
5.Take off the nameplate. Twist the fastening nut as per the indication of the figure.
See to Figure 5.
4.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label
bushing
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Before Using
Before Using
Install the water inlet hose
Confirm the water tap
Connection between the water inlet hose jointer and
the water tap
1.Use the new water inlet hose provided with the machine to connect to the water
faucet.Old hose sets should not be reused.

1.Do not take off the water absorption
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swaying it gently to
confirm if it's suitable.
1.Close the water tap.
2.Press the locking lever. Push down the slider. Then
pull off the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the tap to prevent
damaging the fixing screw.
1.Push down the slider. Insert the
water inlet hose into the jointer.
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
Slider
Jointer of the
water inlet hose
Locking lever
Before Using
Before Using
Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water tap
Take down the water inlet hose
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
tap, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper

Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose and open
the water tap .
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Put down the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries
a.Please check if the laundries are applicable for washing.
b.Separate those not colorfast from other laundries.
c.For laundries not waterabsorbing,please put them into water with hands.
d.For laundries with much soil,please remove the soil first.You can add detergent on the
part with serious soil directly.It is much easier to remove the soil by that mean.
e.For laundries likely to get lint ball or with long fiber,please first turn the inside out before
putting them into the water.
f.Do not put the laundries polluted with chemicals directly into the washing machine.
g.For those small laundries ,laundries likely to be twisted or worn,and woolen laundries,
please put them into mesh bag before wasing.

Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing and spinning of the
machine refer to the largest weight of the standard
laundries under dry condition that can be washed
or spinned in one time. One time washing quantity
shall be lower than the rated capacity. The largest
capacity of this machine is 6.0kg.
The thickness, size, type of the cloth will influence
the actual washing capacity. It is suitable for one
time washing to put in reasonable amount of
laundries and the laundries can be turned round in
washing.
Do not select "High" water level for laundries less
than 1.0kg, so as to avoid splashing of water.
To wash thin laundries like the stocking, silk etc.,
please first put them into washing mesh bag (which
can be purchased separately) before wash.
shirt jacket
single bed sheet
Socks
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g
blending coat
(about 800g)
