Haier HWM21 User manual

Mini Washing Machine User's manual
This manual is for
HWM21
Please read this manual
carefully before using.
Retain it for future reference. 0030805760D

Names of the parts................................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Preparation before washing .................................................................................5
Put in the laundries ..............................................................................................6
Usage of the detergent.........................................................................................6
Process washing...................................................................................................7
Disposal after washing .......................................................................................8
Trouble shooting .............................................................9
Packing list *Specification.....................................................................................10
Contents

Meaning and description of the symbols
Names of the parts
Warning sign
Forbidden sign
Contents marked with that symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the contents, otherwise it may
cause damage of the machine or injure the personal safety
of the user.
Contents marked with that symbol are actions forbidden to
perform. Performing of those actions may result in damage
of the machine or injure the personal safety of the user.
Cabinet
Base frame
Knob
Control panel
Filter cover
Pulsator
Button
1
2
3
MAX
Top lid
fixed foot
Drain hose
Power line Handle
Water-filling
entrance
1

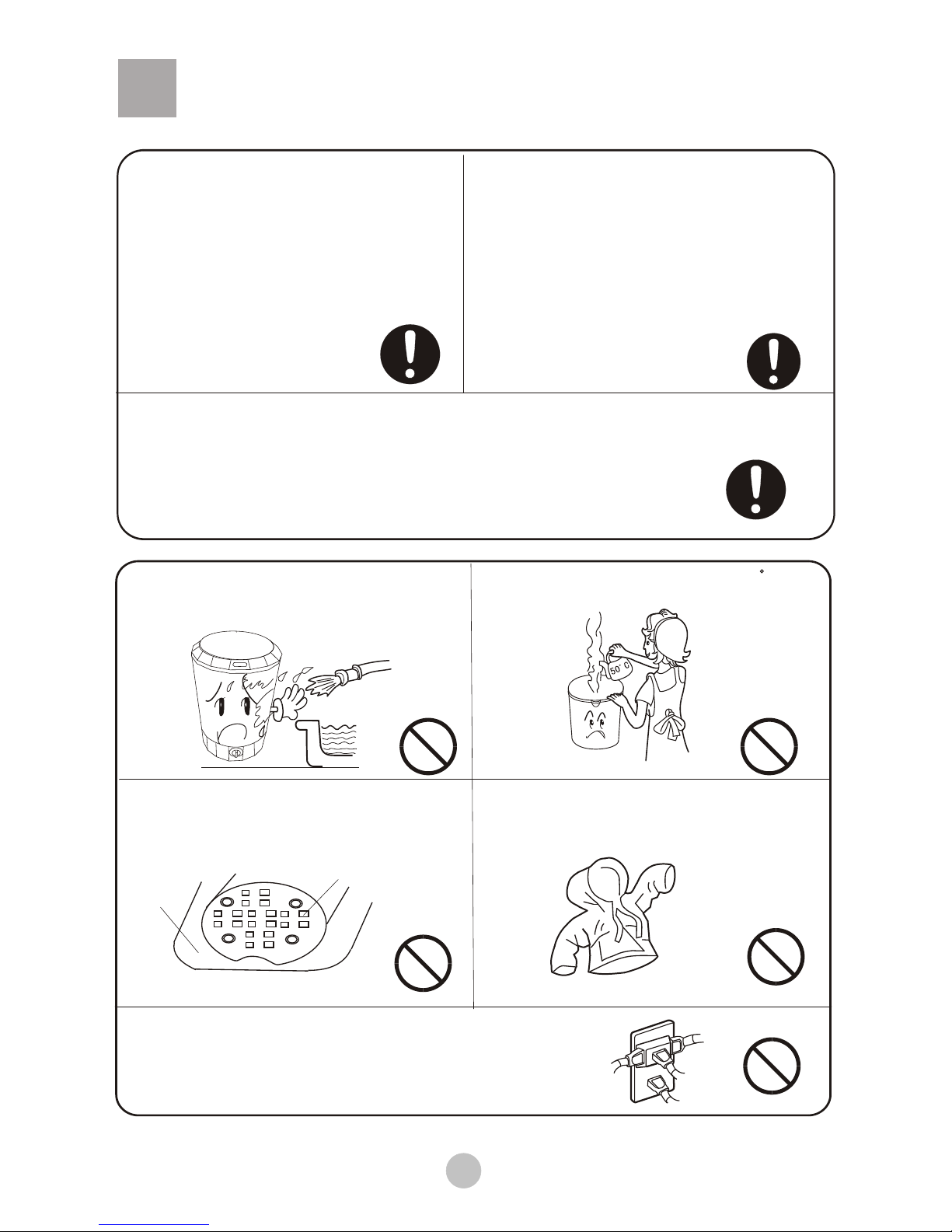

Safety precautions
Do not damage the power cord, bend , extend, twist, bind or alter it by force. Do not
press or nip it with weight. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard. Keep the pin of the
power plug clean, if the power plug is polluted with
dust, please wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle, when
moving the machine, or when cleaning
the machine. Do not use wet hand to ins-
ert or pull out the power plug.
For washing machinewith ventilation
openings in thebase, that acarpet
must not obstructthe openings.
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or
the plugging into the receptacle is loose,
do not use the plug any more.
Do not wash water-proof laundries like
the raincoat, bike covers etc.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
soft items
The ventilation holes
at the bottom
Please insert the power cord into
special receptacle with rated vol-
tage. Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably. If possible, please
adopt electric leakage protector.
2

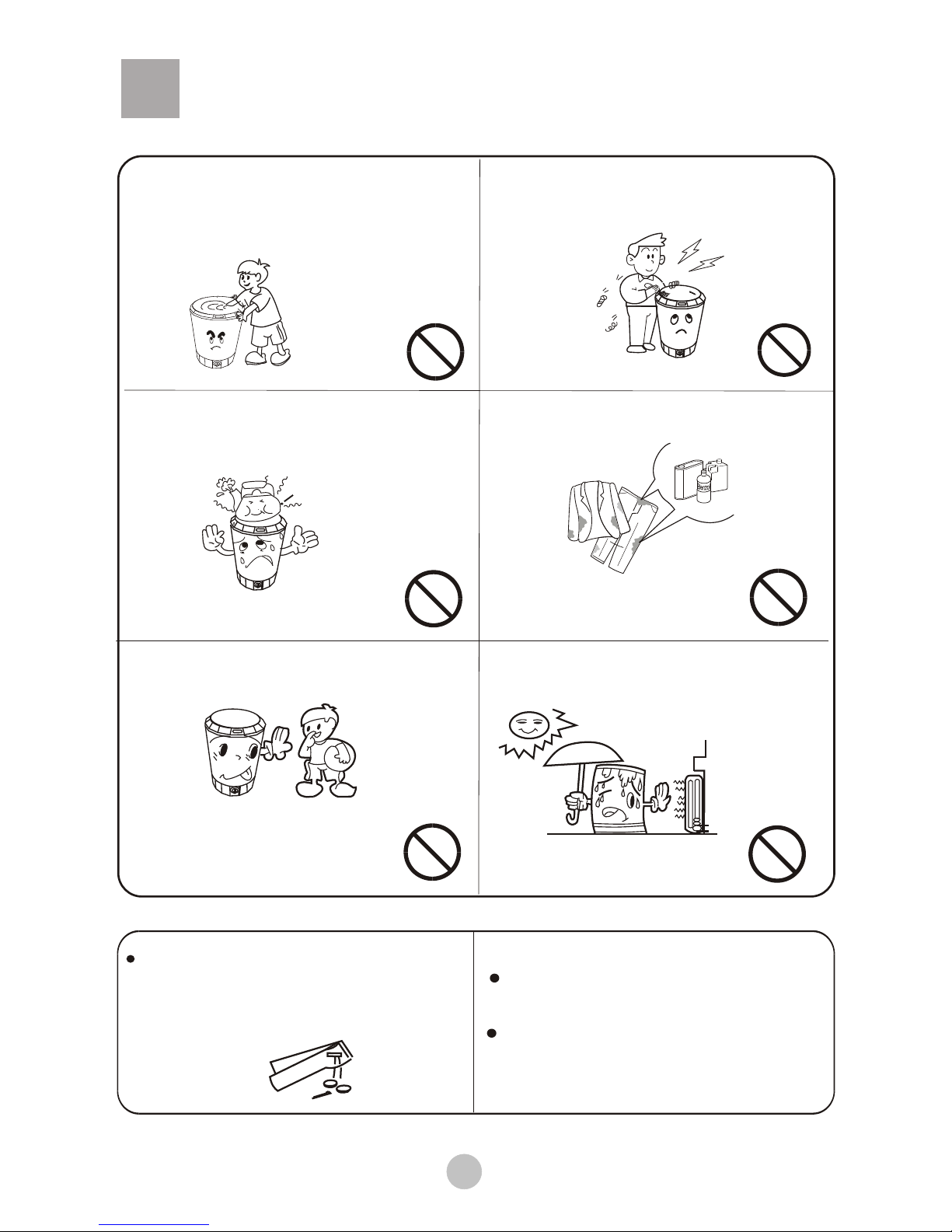

Safety precautions
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children. Do not let the children
climb the washing machine.
Petrol
Thinner
3

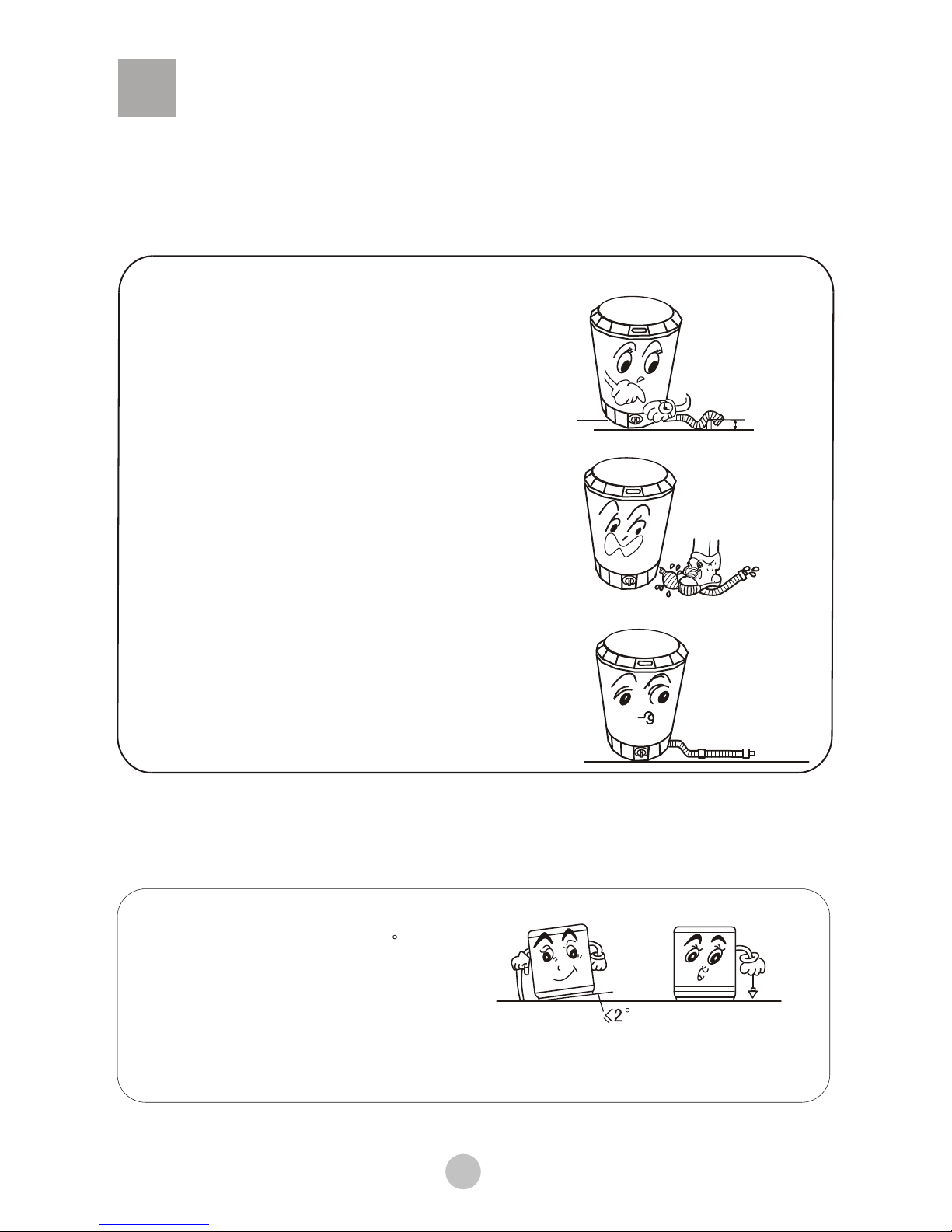

Installation and adjustment
The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine, Please
adjust it .
Adjust the installation position
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
Usage of the drain hose
The drain hose shall drain smoothly
<10cm
3. Do not lengthen or cut down the drain hose.
4

Preparation before washing
Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Pay attention to followings before washing the laundries
a.Please check if the laundries are applicable for washing.
b.Separate those not colorfast from other laundries.
c.For laundries not water absorbing, please put them into water with hands.
d.For laundries with much soil, lease remove the soil first. You can add detergent on the
part with serious soil directly. It is much easier to remove the soil by that mean.
e.For laundries likely to get lint ball or with long fiber, please first turn the inside out before
putting them into the water.
f.Do not put the laundries polluted with chemicals directly into the washing machine.
g.For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,
please put them into mesh bag before washing.
Reference weight of the laundries:
shirt Socks
underpants undershirt
pajamas
cotton, about
300g
blending, about
50g
cotton, about
70g cotton, about
180g
about 200g
5

The capacity ofwashing of themachine refer to
the largest weightof the standard laundries under
dry condition that can be washedin one time. One
time washing quantityshall be lower than the rated
capacity.
The thickness, size,type of the cloth will influence
the actual washingcapacity. It is suitable forone
time washing toput in reasonable amount of
laundries and thelaundries can be turned round in
washing.
Put in the laundries
How to usethe whitener
Fill water todecided level. Dilute the whitener with container. Pour it slowly into
the washing tub.
Avoid using whitener on laundrieswith color or pattern as they are prone to
lose color.
The whitener shallnot touch thelaundries directly.
Refer to theuser's manual forthe usage and quantity of the whitener.
For powder whitener, please dissolve it before use.
How to use the washing powder
Direct dissolved in the machine
1.Fill water to "1" water level.
2.Add the power. Runfor 30 seconds to dissolve it completely.
3.Put in the laundries. Select suitable water level.
The instant dissolvingof the washingpowder:
1.Prepare warm water of 30 and a container.
2.Add the powderwhile stirring tofully dissolve it.
Put in the proper quantities detergent according to the water level and the
laundries quantities .
It is suggestednot to usehigh sudsing detergent.
Washing powder with poor quality or long time storage maybe caked.
Usage of the detergent
6

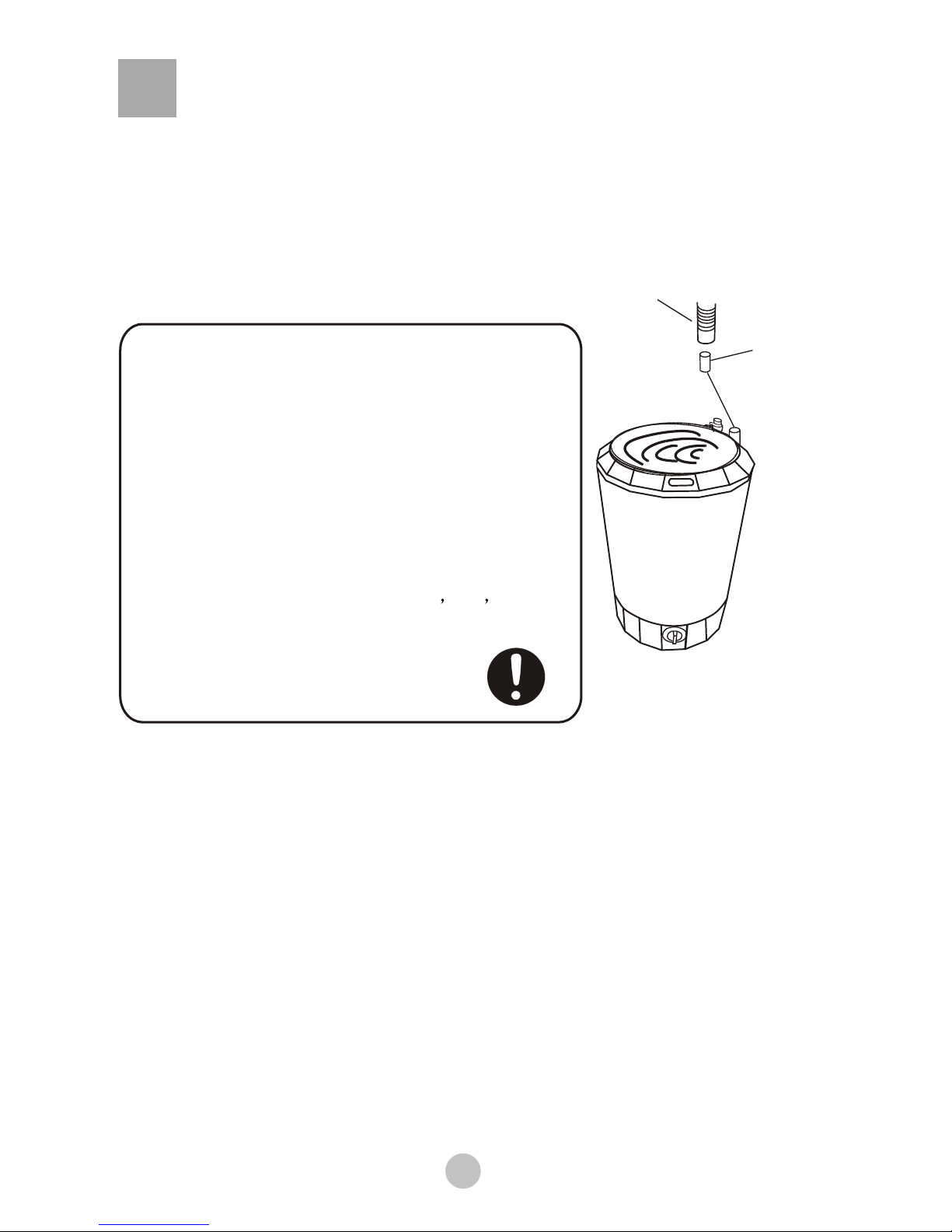

Process washing
1.Put into thelaundry and detergent, then fill the
water needed.
Install the water inlet hose
Insert the water inlet hose into the water-filling
entrance on the control panel.
The appliance is to be connected to the water
mains using new hose-set and old hose-set
should not be reused.
Water inlet hose
Water-filling
entrance
2.Close the toplid
3.Connect the power line
Confirm that the washing machine is
earthed reliably. Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
1.Confirm that the drain hose is properly
hanged before fill water, or the water will
flow through the drain hose.
2.Inside the washing machine tubbiness, It be
marker reference water line"1" "2" "3"and
the top water line"MAX".Not to a certainty
over the mark"MAX".
NOTE
7

About ~36
About7~8
About8~10
About2 4~
Washing Timer
9
12
15
3
6
4.Washing duration reference
Select washing duration depending on the laundry
Laundry Washing Duration(min)
Silk fabric(thin laundry)
Knitted fabric/chemical fabric
Bed sheet
Cotton, blending or linen fabrics
Very dirty or heavy laundry About10~15
5.Finish washing
The tumbler stops revolving. Level the draining hose
down to let the waste water out.
If the cabinetis dirty, wipe itwith
wet cloth
Do not flushit directly withwater.
Wipe it withneutral detergent.
Do not wipeit with thinner, petrol,
alcohol etc.
Disposal after washing
After washing, close the water faucet. ( If needed,
you can dismantle the water inlet hose).
Hang up the power cord and drain hose.
Be sure to pull off the power plug before maintenance.
Do not store water in the washing machine for a long
period. Drain the water completely after each using.
Wipe off the water drops on the surface of the
machine and inside the tub. Open the top lid for
some time (about 1 hour), then close the top lid.
Thinner
Alcohol
Petrol
(To set to below 2 minute,
first set to 6 minute then
turn it back. it can increase
the service life of the timer).
8

Trouble shooting
(If there's breakdown, please pull off the power plug before checking) The
following phenomena are not breakdowns sometimes. Please confirm again
before sending itto repair. If there are real breakdowns, please come to the
special maintenance department or after-sale service department of our
company. Do not repair it by yourself.
Phenomena How to check
Is the power plug inserted tightly?
Is there power failure?
Is the machine slanting?
Is there metal item inside the tub?
Is the drain hose put down?
Is the front end of the drain hose blocked?
The washing machine
does not act
The drainage does not work.
There's abnormal sound
inside the machine.
9

User's manual
Name
One piece
One piece
One set
Quantity
Packing list
Water inlet hose
Mini washing machine
Specification
Water level/ Water
quantity (L)
Water inlet pressure MPa
3: 17
2: 12
1: 7
10
