Haier XQSB60-JN User manual

This manual is for
Please read this manual
carefully before using.
Retain it for future reference.
XQSB60-JN
User's manual
Environment-friendly double-driver
automatic washing machine
Special number:0030806318

Names of the parts..........................................1
Safety precautions ................................................2
Installation and adjustment ..............................4
Install the water inlet hose............6
Preparation before washing........................8
The musts in washing ...........................................8
Usage of the detergent ....................................9
Put in laundries..............................................9
Close the top lid..................................9
Use the operation buttons .................................10
Finish washing ...................................16
Disposal after washing .........................17
Trouble shooting *Answer to question..............................18
Packing list ...............................................19
Specification..............................................................19
Contents

Names of the parts
Top lid handle
Adjustable leg film
Water absorption
cushion
Drain hose
Back cover
Water inlet valve
Inner cover component
Detergent box
Control panel
Outer tub cover
Balance ring
Inner tub
Lint filter(2 pieces)
Front control board
Cabinet
Cabinet base
Fixed leg (3 pieces)
Adjustable leg
Softener inlet
Front door
Pulsator
Handle(2 pieces)
Top lid component
Decorative board
Attachment block
(2 pieces)
Liquid bleacher
inlet
1
Meaning and description of the symbols
Warning sign
Forbidden sign
Contents marked with that symbol are related to the
safety of the product and the personal safety of the
users. Please operate in strict conformity to the contents,
otherwise it may cause damage of the machine or
injure the personal safety of the user.
Contents marked with that symbol are actions forbidden
to perform. Performing of those actions may result
in damage of the machine or injure the personal
safety of the user.

2
Do not wash water-proof laundry like the raincoat,
bike covers etc. To avoid abnormal vibrations in
spinning and damages to the laundries.
In normal usage of the washing machine, the power
plug shall be ready to be pulled or plugged with hand.
Be sure to pull the plug off and close the water faucet
when occurring power failure, delivering the machine,
setting the machine idle or cleaning the machine. Do
not plug or pull the power plug with wet hand.
Do not use water with temperature higher than 50
Safety precautions
In case the washing machine is installed on ground
with carpet, be careful not to block the ventilation hole
with carpet.
Do not put the machine at damp place like the
bathroom. Never wash it with water. Do not
put wet laundries on the control panel coating.
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or
the plugging into the receptacle is loose, do not use
the plug any more.
Do not bend,stretch, twist, bind the power cord by force, or reform it.
Do not pressor clamp it with heavy items. If the power cord and power
plug are bad,or the receptacle is loose, be sure to have it replaced by
the technicians ofour special shopor our agent,or the after-salesservice
department to avoid any risk. Keep the prong of the power plugclean. If
dust is foundon the powerplug, please wipeit off withdry cloth.
Please insert the power cord into special receptacle
with rated voltage. Be sure to use single-phase three
pins receptacle. Ensure the earthing prong of the
power receptacle is earthed reliably. Use leakage
protector if possible.

3
Safety precautions
Do not put hand into the rotating tub. It is dangerous
even if the rotation speed is slow. Take special care of
the children. Keep children away from the washing
machine to avoid them climbing on.
Do not decompose, repair or alter the machine by
yourself.
Do not put any hot or heavy items (such as the
kettle with hot water) on the washing machine.
Do not wash laundry with volatile materials
(such as thinner, petrol etc.).
Keep the machine away from direct sunlight and
heat source like the heater.
The handicapped or Childrenwithout care shall not
use the machine.
Please keep the lint filter in good
condition, and install it to proper
position during washing. If
the lint filter is lost or damaged,
please contact the local after-sales
service department of our company.
Benzene
To protect your laundries and washing machine,
please take out all of the coins, buttons, sand, hairpin
and other foreign materials before washing.
Please check if the water faucet is open, and if the connection of the water inlet pipe is proper before washing.
Please put down the drain hose before washing.
It is suggested to use foamless washing powder.
Please don't use the washer in the environment below 0 if the washer has been stored below 0 please
be sure to ensure the washer is placed under the room temperature for 24 hours and then use otherwise the
washing effects may be lowered or the washer may be damaged.
Dismantle
Install

4
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Installation and adjustment
Section Ienlarging
Push
After opening the package, please lean the washing
machine gently down on soft items (like towel cloth,
blanket, etc.). Install the bottom plate to the bottom
of the machine with four screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:
Install the inner cover component
Install the bottom plate
Inner cover
Inner cover shaft
Outer tub cover
Outer tub cover
shaft groove
1.Open the top lid of the washing machine.
2.Put the inner cover component on the outer tub cover,
aiming the inner cover shaft to the installation hole of the
corresponding outer tub cover shaft groove.
3.Firstly insert the inner cover shaft of one side into the
corresponding outer tub cover shaft groove, then push
the another inner cover shaft into the corresponding
outer tub cover shaft groove. Please install to designated
position to guarantee there are no dropping or abnormal
sound in opening and closing of the inner cover, and the
operation shall be smooth. Do not dismount the inner
cover component after washing.
Soft object
Bottom plate
Back
Screw
Front

6
Install the water inlet hose
The exit end face of the faucet
Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.
2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.
See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen
the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,
otherwise it may leak water. See to Figure 3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
3.Fasten the four screws evenly. See to Figure 4.
remark: Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut..
water inlet hose jointer
Screw knife
water inlet hose
Figure 1
Figure 4 Figure 5
Slider
Lock lever
4 Take off the nameplate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
About 4mm before twisting
About less than 2mm after twisting
Screw
Bushing
Sign plate
Screw nut
Figure 2 Figure 3
Figure 6

7
Connection between the water inlet hose and the washer
Dismantle the water inlet hose
Connection between the jointer of the water inlet hose
and the water inlet hose
Check the connection between the jointer of the water inlet hose
and the water faucet
1.Do not take off the water absorption cushion. Please check if the
cushion is dropped or damaged before each usage. If it happens
please contact our after-sale department immediately.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
1.Push down the slider. Insert the water inlet hose into the jointer.
2 Hang the lock lever to the jointer. Release the slider till a click
sound is heard.
Locking lever
Slider
water absorption
cushion.
nut of the water
inlet hose
jointer of the
water inlet valve
the jointer of the
water inlet hose
Slider
Locking lever
1. Close the water faucet.
2. Press the locking lever. Push down the slider. Then pull of the water inlet
hose.
If the machine is used frequently, the jointer of the water inlet hose can be
kept
on the faucet to prevent damaging the fixing screw.
2 Put the nut of the water inlet hose on the valve jointer.
3 Fasten the nut. Swing it gently to confirm if it's suitable.
4.Before each usage please check if the connection
between the jointer of the water inlet hose and the
water faucet, and the installation of the water inlet
hose are firm, so as to prevent dropping from
improper installation position.

8
1 Preparation before washing
Confirm if there's
special requirement
for the laundries.
Clear the pocket.
Take out the coins ,
sand, hairpins etc.
Fasten the buttons
and zippers.
When the pulsator is
running ,the buttons of
the laundries may cause
noise. For the sake of
discretion ,please put
the laundries with
buttons into other
laundries.
Preparation before washing
The quantity of the
laundries shall not
exceed the rated
value. The big
laundries like the
jeans shall be put
in loosely.
Pay attention to followings before washing the laundries
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
a. Check if the laundries are applicable for washing with machine.
B. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,
please apply detergent in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.
f. Do not put those laundries polluted by chemicals directly into the washing machine.
The capacity of washing of the machine refer to the largest weight of the standard laundries under dry
condition that can be washed in one time.
The thickness ,size , type of the cloth will influence the actual washing capacity. It is suitable to put in
reasonable amount of laundries and the laundries can be turned round in washing for one time washing.
Do not select high water level for small quantity of laundries ,so as to avoid splashing of water.
2 The musts in washing
4.The ground inclination or unevenness may cause
the washer operating not steadily or cause noise,
please set level the washer.
It is suggested to use foamless washing powder.

9
How to use the bleacher
The usage and dose of the softener as per the specifications of
softener.
Before washing put the softener into the filling entrance(can be found on
the balancing ring by rotating the inner tub, as illustrated in the left
drawing, please refer to P1 graphics) The softener will put into the
washer when rinsing.
After the softener is put in, please don't place for a long time otherwise
softener may solidify and cause flowing not smooth.
When the washer in spin process please don't push "START/ PAUSE "
button for fear that the softener is put in earlier, which affect the effects.
Please do not use softener in the following cases
Selected rinsing times greater than two
Choosing rinse/spin two-in-one program.
How to use the washing powder
Fill water to decided level .Dilute the bleacher with container.
Pour it slowly into the washing tub.
3 Usage of the detergent
Avoid using bleacher on laundries with color or pattern as
they are prone to lose color.
The bleacher shall not touch the laundries directly.
Refer to the user's manual for the usage and quantity of the
bleacher.
For powder bleacher, please dissolve it before use.
When selecting reserve wash or fuzzy program, put the detergent into
filling entrance.
Directly dissolved in the machine (not applicable for fuzzy program and
reserve wash)
1.Fill small quantity of water select the smallest water level .
2.Add the wash powder. Run for 30 seconds to dissolve it completely.
3.Put in the laundry. Select suitable water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 and a container.
2.Add the wash powder while stirring to fully dissolve it.
In selecting the posthaste program, it is suggested to adopt liquid
detergent instead of washing powder to guarantee the washing effect.
Put in the proper quantities detergent according to the water level and the
laundries quantities.
Washing powder with poor quality or long time storage maybe caked.
Please pay attention to cleaning the detergent box in time.
When choosing the No washing powder
program the usage of softener or bleacher
is same as using detergent.

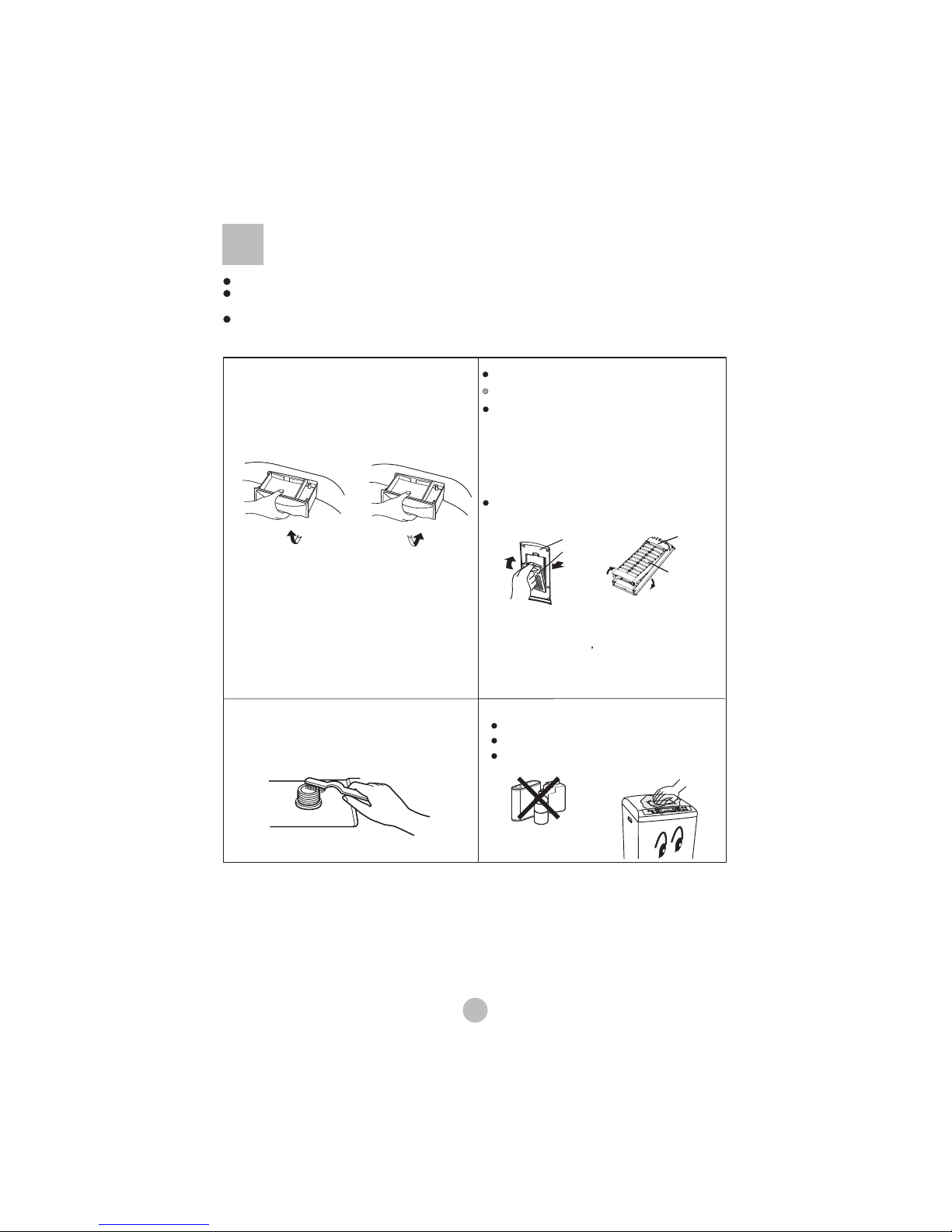

Softener
inlet
Washing powder inlet
Detergent box
When " FUNCTION " button not selected for
using washing powder program please
determine the consumption of washing powder
as per the operating instruction of washing
powder, clothes load and dirtiness.
When selecting "No washing powder” function
if add a small quantity of detergent the clothes
will be washed cleaner.
4 Put in the laundries
5 Close the top lid
Besides drainage if opening the top lid the washer will stop and givean alarm.
SOFTNER
How to use the softner

6 Use the operation buttons
a. Description of the function of buttons
Mode and meaning of the indicators
On: indicate the program about to run, or indicate the
selected mode
Digital tube
During sensing, it displays
During operation of programs, it displays there mained time
(minute) or remained times of the corresponding procedure
Push the soak button to set the
soak procedure.
During normal ,jean , push the
soak button to set different
soak time (10, 20, 30, 40
minutes)
During fibre and cotton
programs, push the soak
button to select soak
procedure, but the soak time
can not change.
During quick , posthaste, dry-
clean, silk and dry-clean
programs, push the soak
button, the machine have no
reaction.
Soak button Wash button
With detergent:
0-25min Without detergent: 11-
35min
If the "no detergent" function is
activated, the wash time will
increase for 10 more minutes.
Push the wash button to set the
wash procedure.
During normal, jean programs,
push the wash button to set
different wash time :
During cotton ,fibre and silk
programs, push the wash button
to select wash procedure, but the
wash time cannot change.
During quick, , posthaste, dry-
clean programs, push the wash
button the machine have no
reaction.
Rinse button
Push the rinse button to set the rinse procedure
During jean and normal programs, push the rinse
button to set different rinse times ( 0, 1, 2, 3, 4 times)
During cotton , fibre and silk programs, push the rinse
button to select rinse procedure, but the rinse times
cannot change.
During quick , posthaste, dry-clean programs, push
the rinse button , the spin procedure have no reaction.
During normal program, the machine is set to save
water program. If you push the rinse button before
starting operation, it will change to water storage rinse
program.
"Function" button
Push it to set the wash function.
If "no detergent" function
is activated, the "no detergent" indicator is on.
You can then do washing without adding
detergent into the inner tub. The max laundry
volume is 5.0kg. The max water level is 8.
If "disinfect" function is activated, the "disinfect"
indicator is on to execute disinfecting function.
If "no detergent" function is not activated, the
"no detergent" indicator is off.
The programs will require detergent.
In "dry-clean" program, the "function" button
will not respond. Special detergent is required.
Remarks: For those large laundries
with high water absorption capability
such as pillow, bedspread, coat etc.,
Please select water-storage rinse
program to avoid splashing.
Off
No Washing Powder
Disinfect
FUNCTION SOAK WASH RINSE
10

Program
Normal
Quick
Posthaste
Jean
Fibre
Cotton
Dry-clean
Silk
Program selection button
Following automatic programs are available for selection
Applicable situation
Common washing
Washing the relatively big and thick laundries
Washing the fibre laundries
Washing the cotton textiles
Washing the silk textiles
Washing for laundries requiring dry-clean
(see to dry-clean description and P12 of
the points of attention for details)
Fast efficient washing for common laundries
Super quick wash of the laundry under 1
kg with light soil
11
Push the spin button to
set the spin procedure.
During normal, jean
programs, push the spin
button to set different spin
time (from 0 to 9 minutes)
During cotton , fibre and
silk programs, push the
spin button to select spin
procedure, but the spin
time cannot change.
During quick ,posthaste
dry-clean programs, push
the spin button, the
machine have no reaction.
Spin button
Power On/Off button
Push the POWER button to switch
on the power.
When the power is on, push it
again to switch off the power.
Push the POWER button to switch
on the power.
If the start/pause button is not
pushed, the washing machine will
automatically switch off the power
after 5 minutes.
During sensing, it displays --
During reserve procedure, it displays the remained reserve time (in
hours)
During operation of programs, it displays the remained time (minutes).
If the remained time exceeds99 minutes, it adopts A at tens place to
represent 100 minutes, b to represent 110 minutes. For instance, A3
represents103 minutes.
In case of abnormal phenomenon, it displays
the abnormal symbol (see to Page 18)
Page18
Reserve/remain time indicator digitron
Water level button
The washing machine can detect the laundries
automatically. After detection, it will set the water
level to suitable value among 4, 6, 8,and A
automatically.
You can also set water level by yourself. After the
machine is started, it will not set water level
automatically. You shall push the start/pause
button to make new setting.
If there's water inside the tub, the machine cannot
detect the laundries and will display water level 6 .
If wet laundries are put in, it may display water level
10 . You must set suitable water level by yourself.
If posthaste program is selected, it will display
water level 3 . When water level 2 is reached in
water filling, it will perform washing while filling
water. When water level 3 is reached, it
will change to normal washing.
During operation of wash and rinse program, you
can push down the water level button to add water.
When you release the button, or it reaches the
overflow water level, the machine will stop adding
water.
The water level decided may be different from actual
value because of the different moisture level of the
laundries.
Reserve button
Start/Pause button
After the power is switched on, push it to
start the machine
During working, push it to pause working.
During pause, push it to resume working.
SPIN WATER LEVEL RESERVE PROGRAM
START/PAUSE POWER
Time remained
(minutes)
Reserve
(hours later)
FIBRE
COTTON
SILK
DRY-CLEAN
NORMAL
QUICK
POSTHASTE
JEAN
Push this button can select washing closing time
range of choice for 2 ~24 hours.
After reservation starts up after hold "RESERVE "
button by hand can display reserving status.

12
Description and Attention of Dry-clean
Dry-clean: used to wash laundries with dry-clean mark or requiring gentle washing(laundries volume
below 1.2kg)
Laundries with dry-clean mark: woolen sweater,
linen textiles, silk textiles etc.
Laundries suitable for dry-clean
Woolen sweater
Silk or linen one-piece,
smock, shirt,etc.
School uniform, sailor suit, trousers, skirt,
office suit, curtain etc.
Laundries with neutral dry-clean mark
Usage of the detergent
Please use special neutral detergent
with dry-clean mark.
If the detergent is hard
to resolve, please first
dissolve it complete before adding.
Laundries with dry-clean mark only
Besides the special neutral detergent with
dry-clean mark, the neutral detergent is also
applicable.
In use of powder neutral detergent, first dissolve
with warm water (about 30 ) before adding.
Please refer to the user's manual of the detergent
for the dosage.
Laundries deformable against water: necktie,
blazer, jacket, suit, coat etc.
Laundries that can obviously shrink and be
discolored by water and cause surface changing:
rayon (viscose fiber), cuprene fiber, high wet
modulus viscose fiber and other blending textiles
(as well as those used as sarcenet).
Fluffy laundries such as velvet, velveteen etc.
Leather clothes, leather garnish, clothes with
garnish,
laundries that are not colorfast.
Laundries not suitable for dry-clean
Turn inside out for laundries with buttons or needlework.
Fold the laundries before putting it into inner tub.
Make sure that the hook of curtain is removed
before washing.
Laundries with plait like woolen textiles
shall be stitched at the plait to avoid
loosening. Remove the stitch after drying.
Trousers Office suit Skirt
Do not set to other water level to avoid
damaging the cloth
Attention:
Extra detergent can hardly improve the
washing effect. By contraries it may hurt
the laundries if remained after rinsing.
Essential of washing:

If laundries are soiled, put towel at the inside. Add
detergent, and wipe off the soil gently with gauze
and brush. In washing soiled sleeves, collar, trousers
leg, pocket, Dip the brush in detergent and wipe off
the soil gently.
Please check if the laundries is colorfast
in the first washing. (Dip white towel in
detergent, and wipe the unseen part with it).
Preparations before washing
1.Open the water faucet.
2.Push "power" button.
3.Push "program" button to select "dry-clean".
The washing and water level are set automatically.
The other water levels can not be set to avoid
hurting the cloth.
4.Push "start/pause" button.
It starts water-filling.
5.Push "start/pause" button when the pulsator starts
rotating. Add the detergent and stir gently by hand.
The powder synthetic detergent shall be dissolved
completely with warm water (about 30 ).
In washing laundries with dry-clean mark, the
temperature of water shall be below 30 inside
the inner tub.
6.Fold the laundries and push into water.
Push the start/pause" button.
If the top lid is opened, it will stop operating.
Do not put in waterproof laundries.
7.When washing is finished, the buzzer will remind you
with alarm rings.
8.Close the water faucet. Clear the lint filter.
Close the top
lid. "
Steps:
If some parts of laundries emerge out of water,
pause the operating and push them into the
washing liquor.
Please take out the laundries immediately after
washing. Long-time soaking may cause shrinkage.
To shorten the washing time and help the
laundries to fast absorb water, start washing
at water quantity less than setting.
Different cloth may prevent laundries from
using the "dry-clean" washing. Please see to
left column.
Do not wash laundries without usage indication
and cloth expression.
Attention:
Drying method - dry in the shade with good ventilation
Put steam iron upon the laundries
(without touching). Shape
with steam.
Treatment
Woolen, cashmere, mohair
sweater etc.
Silk or linen one-piece,
smock or shirts etc.
Skirt Trousers
Shape the seam and
dry with rack
Dry with rack
Shape, turn
over to dry
in flat
Shape and dry with rack
Pin
Description and Attention of Dry-clean
If shrinkage happened--
Extend to the original size
(the same as before washing).
Stick with pins. Put steam
iron upon laundries to
shape with steam to dry.
13

b.Steps of using the operation buttons and description
of the steps
1.Push the "POWER " button to switch
on the power. POWER
PROGRAM
After switching on the power, the machine will set normal program automatically. To select other
automatic program, push the "program" button till the relative indicator is on. Refer to the "program
button" on Page 11 for the selection.
For instance: select "posthaste"program for laundries with small
quantity and light soil. Page 11
4.Push the "SOAK" , "WASH", "RINSE", "SPIN"
button to select suitable procedure.
2.Push the "PROGRAM" button to select
suitable automatic program
In selecting the normal program, the machine
will execute fuzzy program to select water
and wash time according to the cloth and weight
of the laundries. The full procedure is controlled
automatically.
No Washing Powder
Disinfect
FUNCTION SOAK WASH RINSE SPIN WATER LEVEL RESERVE PROGRAM
START/PAUSE POWER
Time remained
(minutes)
Reserve
(hours later)
FIBRE
COTTON
SILK
DRY-CLEAN
NORMAL
QUICK
POSTHASTE
JEAN
FIBRE
COTTON
SILK
DRY-CLEAN
NORMAL
QUICK
POSTHASTE
JEAN
3.Push the "FUNCTION" button to select suitable function.
Push the "FUNCTION" button till the relative indicator is on. Refer to the "program button" on page
10 for the selection.
When"No washing powder" indicator lamp is not on it is the
program for using the washing powder. SOAK WASH RINSE SPIN
14

After switching on the power, the washing machine will set to common program including"wash, rinse,
spin "automatically. To select other procedures, push the "soak", " wash", " rinse" or "spin" button
to select the time of soak, wash and spin, and the times of rinse. After switching on the power, if you
push one of the button among "wash", "rinse"and"spin", the digitron of the former procedures will
turn off automatically. The former procedures will not run. For instance: after switching on the power. If
you push the "spin" button first, it will execute spin singly after starting.
Attention
Even there's no water in the tub, a certain period is
required before spin starting.
Do not use the soak program for the woolen textiles.
Separate the laundries that are not colorfast from
other laundries in washing.
When high water level is selected, the pulsator will rotate
discontinuously when the water level reaches 1.
The soak procedure can work in cooperation with automatic programs like normal, jeans, chemical fiber and
cotton. There is intermittent pulsator stirring during soak.
After the machine starts operation, you can only set the program and procedure during washing, and can not
make setting in other cases.
WATER
LEVEL
5.Press " WATER LEVEL "button,
select suitable water level
After switching on the power, the washing machine will execute fuzzy program automatically to detect the
cloth. After defection, it can set the water level automatically. To select other water level, first push the
"start/pause" button, then push the "water level" button to set the water level. Refer to "water level button"
in page 11 for selection.
Page 11
When soaking, first soak for about 10- 40 minutes after water filling and then wash, rinse, and spin.
When selecting quick, posthaste, and dry-clean program the washer will automatically run the overall process of
setting the water level, washing, rinsing, spin (when selecting quick program water level can be manually
selected.).
15

7.Push the "start/Pause" button
7 Finish washing
START/PAUSE
6.Push the "reserve" button to select suitable reserve wash program
RESERVE
After switching on the power, the reserve program is set to off mode automatically. If you need to set the
washing procedure to be finished at reserved time, please push the " reserve " button to set the reserve
wash program. Refer to reserve button in Page 11 for selection.
When the "reserve" function is activated, the indicator light of the program you have set
will be off. The "reserve (hour)" and "time remain" indicator lights will be on. During
reserve procedure, push the "reserve" button to display the reserve mode.
To change the running program or cancel the reserve setting, you
need to switch off the power and make new selection.
Confirm the operation of reserve program
Page
After finishing wash it'll be off automatically.
the washing will be finished after 18 hours.
16

The filter screen of the water inlet valve is likely to be
blocked by foreign materials and influence the water
inlet.
Please clean it with brush every two months.
8 Disposal after washing
The lint filter must be used during washing.
It must be cleaned in time after each using
The installing and dismantling method of lint
filter as follows:
Press down elastic trip at upper end of lint filter to
make the claw of elastic trip relieving from the filter
cover and pull lint filter outward. Insert lower end of
lint filter into the filter cover and push upper end into
filter cover and secure to fit onlint filter.
1.The method of dismantle: Push it up aslant and gently.
2.The method of install : install it upwards and aslant and
push it in .
Dismantle Install
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol, alcohol etc.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
Thinner
Petrol
Alcohol
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time
(about 1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
Please first pull off the power plug from the receptacle before cleaning.
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
If the tapwater quality is bad, it cangenerate scale attachedonto the water injection box andfilling entrance
of outer tubcover. Whenusing, please scouroff the scalewith wiping ragsdipping with an amount of
detergent or abstergentto prevent theclothes from contamination.
The detergent boxshould be dismantled and washed
by water.
After washing, dismantlethe lint filter and take
down back coverof filter to clean off thelint.
Install and dismantle the lint filter
Install Dismantle
Filter cover
Lint filter
Lint filter cover
Note: after installation check whether theedges
on both sidesof filter is in flush withthe filter cover
or the filterfalls out by shaking slightly toavoid the
fallout due tofilter not installed in place.
Install and dismantle the lint
filter cover
Lint filter
Dismantle
Install
17

18
The digitron displays E0.
The safety switch acts, and the
spinning cannot work. The
digitron displays E3.
The water filling does not work, or is
slow. After about 15 minutes later 30
minutes when using no washing powder
function, the digital displays E4.
The drainage cannot work, or is too slow.
The digitron displays E1.
It stops running in midway. The digitron
displays E2.
Is the water tap opened, or is there water
supply failure?
Is the water inlet valve blocked?
The top lid is not closed.
The top lid is opened during reserve
procedure.
Close the top lid.
Close the top lid.
Is the drain hose put down?
Is the drain hose blocked?
Put down the drain hose. Open and close the
top lid once.
Clean the foreign material. Open and close
The top Lid Once.
Are the laundries put slantingly?
Is the machine slanting?
Reorder the laundries. Close the top lid.
Place the machine horizontally. Open
and close the top lid once.
Is the water tap opened, or is there water
supply failure?
Is the water inlet valve blocked?
Is the water pressure too low?
Open the water tap. Push the start/pause
button once.
Clean the water inlet valve then push
the start/pause button once.
Open and close the top lid once..
The water level sensor is bad. Please contact the after-sales
service department.
Is the machine slanting?
Are the laundries put slantingly in spinning?
Are there any foreign materials?
Is the screw of the jointer of water
inlet hose loose or awry?
Adjust the machine to be even
Reorder the laundries and close the top lid.
Remove the foreign materials.
Fasten the screw of the jointer properly.
The water tap leaks
The digitron displays EE.
The digitron displays E6.
There's abnormal sound
inside the machine
Phenomenan The reason How to settle
Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns
sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special
maintenance department or after-sale service department of our company. Do not repair it by yourself.
The machine does
not act
Not wash
Not spin
Is there power failure?
Is the power plug inserted tightly?
Is the water level reached preset position?
Please use it when there's power supply.
Insert the power plug tightly.
Fill water to the preset position.
Is the power plug inserted tightly?
Is the top lid closed reliably?
Are the laundries set flat?
Insert the power plug tightly.
Close the top lid.
Set the laundries flat.
Open the water tap. Push the start/pause
button once.
Clean the water inlet valve then push
the start/pause button once.
* The spinning is intermittent when it starts * Balance the laundries to avoid slanting.
* The wash procedure pauses.
Phenomena Explanation
* The cloth sensor is detecting the cloth. It will start adding water
after about 48 seconds.
* Select Spin program, but it doesn t work. * The program is setting the drain time. A certain period is needed
before it starts spinning.
* The pulsator pauses during washing, rinsing or adding water. * It is to avoid splashing during water filling.
* There may be some water flowing out of the drain hose in the first
use of the machine.
* It is the water remained in the performance inspection by the factory.
* When selecting " No washing powder " or " Disinfect " function,
there is a small quantity of water flowing out of the drainpipe
during water filling.
* When selecting " No washing powder " function, what is expelled
from the drainpipe is disinfector
during water filling , which can
sterilized the gully and wiping rags, etc.
* When selecting
" Disinfect " function, what is expelled from the
drainpipe is decontaminating water
during water filling , which
clean the gully and wiping rags, etc.
Common phenomena
