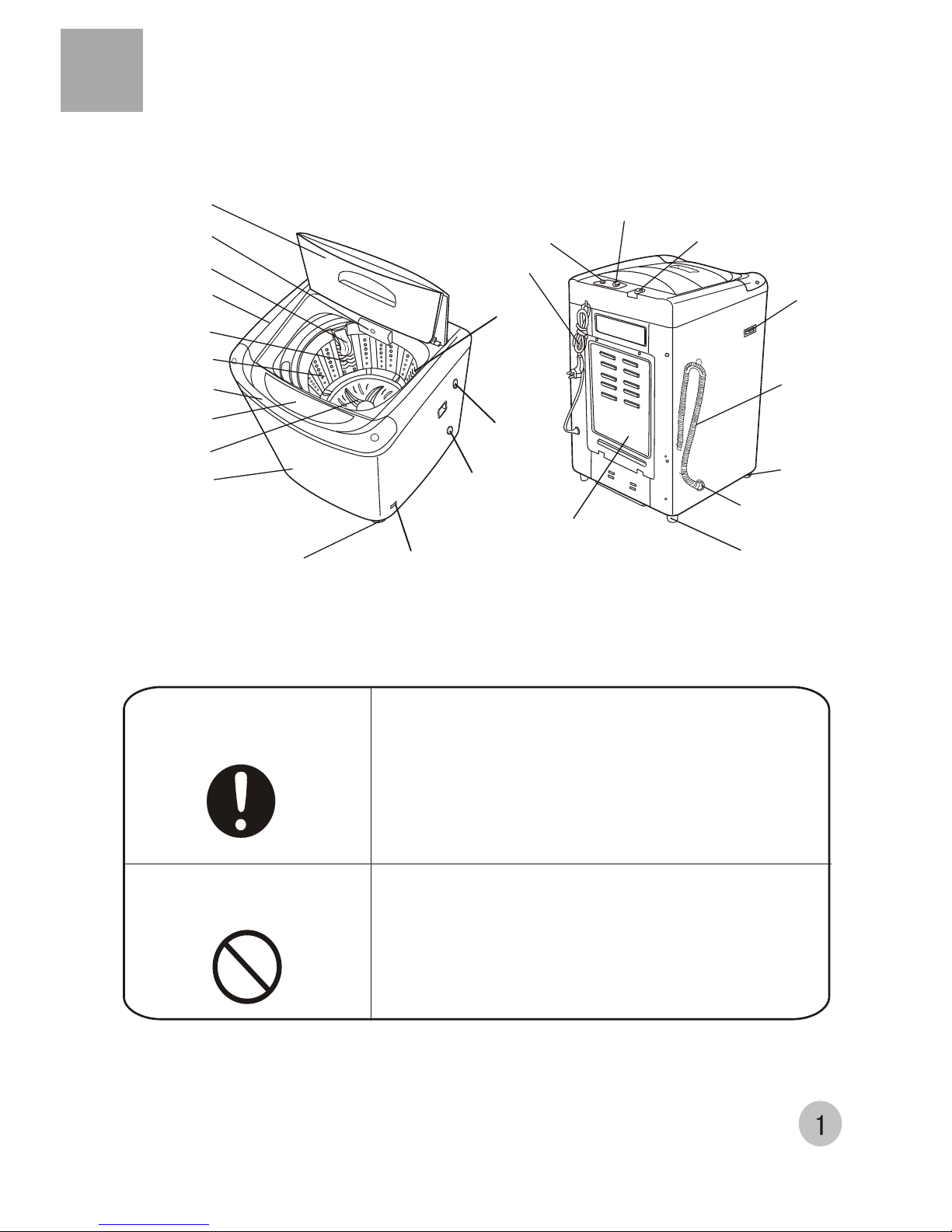

Names of the parts
Safety precautions
Contents
Disposal after washing
Trouble shooting
*Answers to question
Packing list Specification
Installation and adjustment
Installation the water inlet hose
Preparation before washing
Put in the laundries
Put in the detergent
Use the operation knobs
Close the top lid
Finish washing

Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
Warning sign
Adjustable foot
Adjustable foot seam
Back cover
Cabinet
Control panel seat
Control panel sheet
Front control board
Lint filter(Installed by user)
Pulsator
Inner tub
Filter cover
Detergent box
Top lid
Power switch
Water level knob
Power wire
Drain hose
hanging hole
Water
channel
Drain outlet
protecting cover
Front fixed foot
Rear fixed foot
Drain hose bushing
Drain hose
Cabinet handle
Water inlet valve
Names of the parts
Meaning and description of the symbols
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damageof the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.

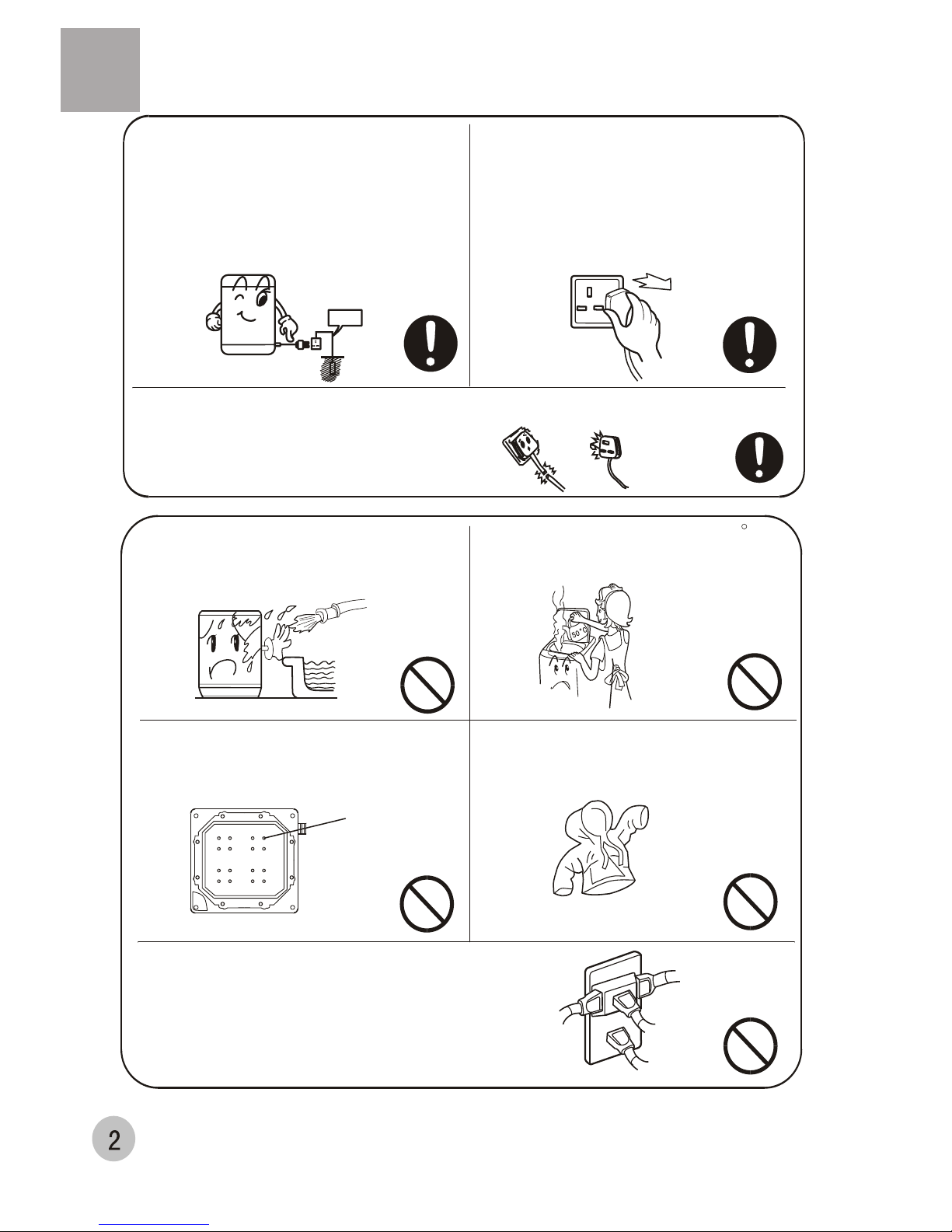

Safety precautions
Earth
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned orwhen it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians ofour special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is in-
stalled on ground with carpet, do not
block the ventilation hole with carpet.
The ventilation holes
at the bottom
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.

Do not decompose, repair or alter the
machine by yourself.

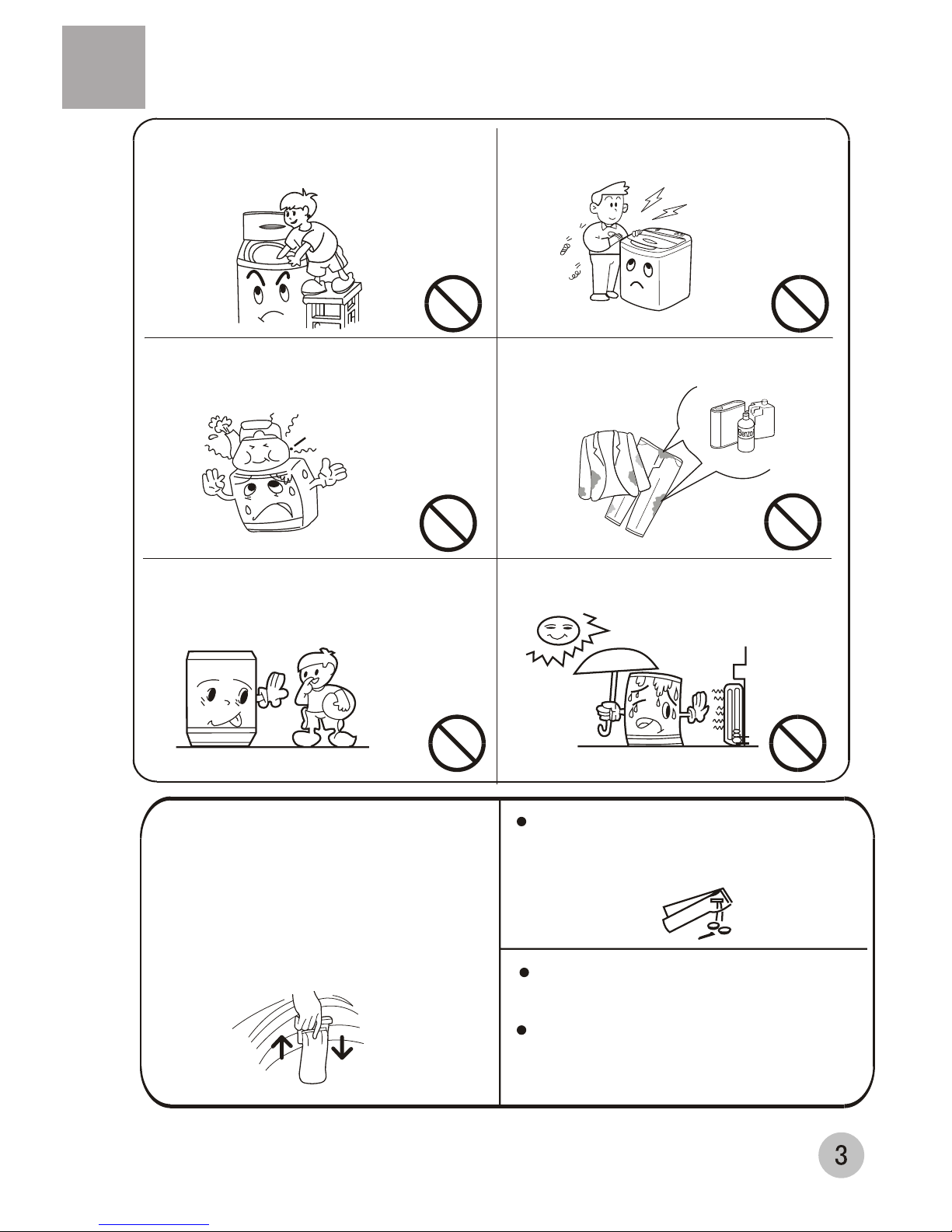

Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
To prevent the lint inside the tub from
blockingthe cascade outlet during
washing, please keep the lint filter in
good condition, and install it to proper
position. If the lint filter is lost or da-
maged, please contact the local after-
sales service department of our company.
Dismantle Install
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.

The largest allowed slope of the base of the machine is 2 . The slanting or rough
ground will result in unstable running or stoppage of the machine. Please adjust
it with following methods:
Confirm it's horizontal:
Adjust the adjustable foot:
Hang the lead line to confirm if it is horizontal.
Install the bottom plate
After you open the package, please lean
the washing machine gently down on soft
items ( like the towel cloth, blanket, etc. ).
Install the bottom plate to the bottom of
the machine with the eight screws by
a cross screwdriver, then lift the machine
up gently. See to the figure:
Adjust the installation position
Soft items
Bottom plate Screw
Loosen Fasten
High Low
Adjustable nut
Adjustable foot
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Back
Front
1.To twist the adjustable foot, please first lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.
2.Fasten the nut after adjustment.
Install the lint filter
After opening the package, please take out the lint
filter from the document bag, install it to the
inner tub. See to the figure.
Install

<1.2m
How to change the direction of the drain hose
Usage of the drain hose
1.Dismantle the back cover of the washing
machine.
3.Dismantle the protecting cover of the
drain outletat the other side (method
the same as the bushing). Install the
bushing as per indicated in Figure 4.
4.Extend the drain hose from the other
side. Fix thedrain hose onto the base
frame with the drain hoseframe. (As
indicated in Figure 5)
5.Install the protecting cover of the drain
outlet at the other side as per indicated
in Figure 6.
Drain outlet
protecting cover
Drain hose bushing Drain hose bushing
Figure 1 Figure 4 Figure 5
Figure 6
Drain hose
bushing
Take off
Drain hose
bushing claw
Cabinet
Figure 2
Figure 3
Inner
Press
Press
Outer
2.Put down the drain hose. Take off the
drainhose frame. As indicated in Figure
1, put thedrain hose into the cabinet.
Then stretch onehand into the cabinet
to nip the claw of the drain hose bush-
ing to remove the claw fromoriginal
position. Take off the drain hose bush-
ing with the other hand. (As indicated in
Figure 2 and 3).
Drain hose frame
Outer
drain
hose
Before using , hang up the drain hose on suitable location.
Do not put down the drain hose on the ground.
Confirm the end of drain hose is higher than
the level of tub . If not the siphon will being .

Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
Water faucet, suitable
Water faucet, not suitable
It is required that the front end shall be longer than 10cm.
The outlet end surface of the faucet shall be flat and smooth. If not please file it to
avoid leakage.
3.Fasten the four screws evenly. See to Figure 4.
4.Take off the nameplate. Twist the fastening nut as per the indication of the
figure to seal up the outlet end surface of the faucet. See to Figure 5.
Remarks:
Before installation, the threading is 4mm above the upper surface of the
nut. After installation, the threading is 2mm above the upper surface of the nut.
See to Figure 6.
Nut
About 4mm
before twisting;
about below 2mm
after twisting
Figure 5)Figure 4 Figure 6
Screw
Screwdriver Nameplate
Bushing
Figure 2
Figure 1 Figure 3
Slider
Water inlet hose jointer
Water inlet hose
Lock lever

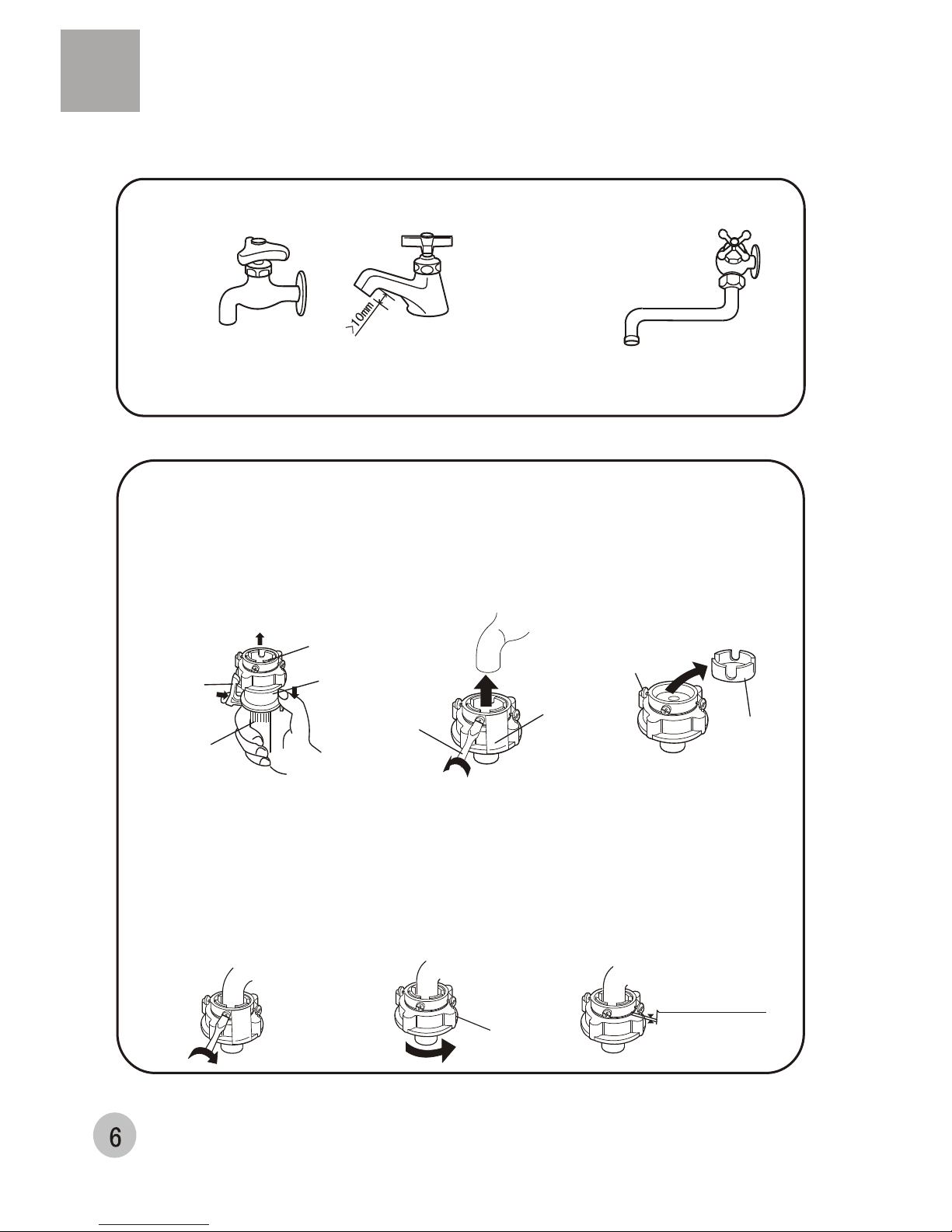

Install the water inlet hose
1.Press the lower end of the lock lever and push down the slider. Take off the
water inlet hose jointer from the water inlet hose component. See to Figure 1.
2.Loosen the screw till the water faucet can be accessed. Put the jointer of the
water inlet hose on the faucet. See to Figure 2. (If the faucet is too large and
the jointer can not be set on the water faucet, please loosen the four screws
and take out the bushing in the jointer. The front end of the faucet must be
smooth, otherwise it may leak water. See to Figure 3.)

Connection between the water inlet hose and the washing machine
Dismantle the water inlet hose
Connection between the jointer of the water inlet hose and the water inlet hose
Check the connection between the jointer of the water inlet hose and the water faucet
1.Do not take off the water absorption cushion.
Please check if the cushion is dropped or
damaged before each usage. If it happens
please contact our after-sale department
immediately.
2.Put the nut of the water inlet hose on the
valve jointer.
3.Fasten the nut. Swing it gently to confirm
if it's suitable.
1.Close the water faucet.
2.Press the locking lever. Push down the slider.
Then pull off the water inlet hose. If the machine
is used more than once every week, the jointer
of the water inlet hose can be kept on the faucet
to prevent damaging the fixing screw.
1.Push down the slider. Insert the water inlet
hose into the jointer.
2.Hang the lock lever to the jointer. Release
the slider till a click sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water I
nlet hose
Jointer of the
water inlet valve
Slider
Jointer of the
water inlet hose
Locking lever
1.Swing the hose gently to confirm if it is fastened
stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
4.Each time before use please check if the
connection between the jointer of the water inlet
hose and the water faucet, and the installation
of the water inlet hose are firm, so as to prevent
dropping from improper installation position.

<1.2m
1Preparation before washing
Preparation before washing
1.Connect the water inlet hose. Open
the water faucet.
2.Confirm that the washing machine is
earthed reliably. Then insert the
power plug into the receptacle. The
earth terminal shall not link to gas
pipeline and faucet water pipeline.
3.Hang up the drain hose.
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
