User Manual
Haier Solar Water Heater
Models
GV110RNMB (*)
GV150REMB
GV200REMB
GV270REMB
*: Model without electric auxiliary heating function.
Please read through the manual before use.
Please keep the manual for future reference.
Table of Contents
Safety cautions
Product features
Technical parameters
Installation instructions
Operation instructions
Troubleshooting
Packing list
1
2
2
2-6
7
7
7

Safety cautions (please read the cautions before use)
Description of
symbols
Behaviors that are
prohibited
Prohibit
Directions that must
be followed.
Warning
Directions that must
be noted.
Caution
Personnel other than professional
maintenance staff are prohibited from
repairing, maintenance, dismantling or
altering the water heater without
authorization.
Prohibit
Warning
Warning! Improper operation of the following may lead to personal
in
j
ur
y
or even death!
Caution! Improper operation of the following may lead to personal injury or even death or property loss!
Prohibit
Prohibit
Caution
Please do not use the hot water in the
heater for drinking or similar purposes.
To guarantee effectiveness, do not feed
water to the heater several times within
one day in case of insufficient sunlight
exposure.
The source of the energy for the water
heater is solar energy, so it may be
incapable of being used normally under
cloudy, rainy and snowy weather
conditions due to the failure to reach
desired water temperature because of
insufficient sunlight exposure.
Caution
Warning
Warning
Warning
The glass vacuum tube shall not be
exposed for a long period without water
inside after installation to avoid the
shortening of the service life. If it cannot be
used immediately, it shall be covered.
Make sure of the smooth ventilation of the
air pipe. It is strictly prohibited to block the
outlet of the air pipe to avoid the collapse of
the water tank under suction.
Water shall be fed in early morning or at
night when the sunlight is insufficient. The
water feeding after sunlight exposure of the
glass vacuum tube will cause an explosion
of the pipe.
-Suggestions-
The water heater is non-pressurized, gravity-fed water heater relying on the height
difference of the water tank and point of use to supply hot water with the outgoing wate
r
pressure in direct proportion to the height. An additional pressurizer may be required.
Do not touch glass vacuum tube, pipes and
valves for supplying hot water during use to
avoid being burned.
Please feel the water temperature by hand
before use to make sure of proper water
temperature while in use
1

Product features
1. Inner cylinder made of SUS304 stainless steel
The inner cylinder of the water tank adopts sanitary SUS304 stainless steel, featuring strong
corrosive resistance and durability.
2. High efficiency & energy-saving thermal insulation
With integrated polyurethane foam insulation for solar water heaters, realize good heat
preservation and minimize heat loss.
3. Aluminium-Zinc-coated outer shell of water tank
Aluminium-Zinc-coated sheet boasting outstanding corrosion resistance, oxidation resistance
and weatherability is the first choice for outdoor protective materials.
4. Tower type frame
The tower type frame, made of carbon steel by means of spray processing, has the advantages
of a stable structure, attractive appearance and corrosion resistance.
Technical parameters
Note:The deviation of the aperture area is ≤3%; the deviation of the capacity is ±5%; the
permitted error limit of other parameters is ±10%.

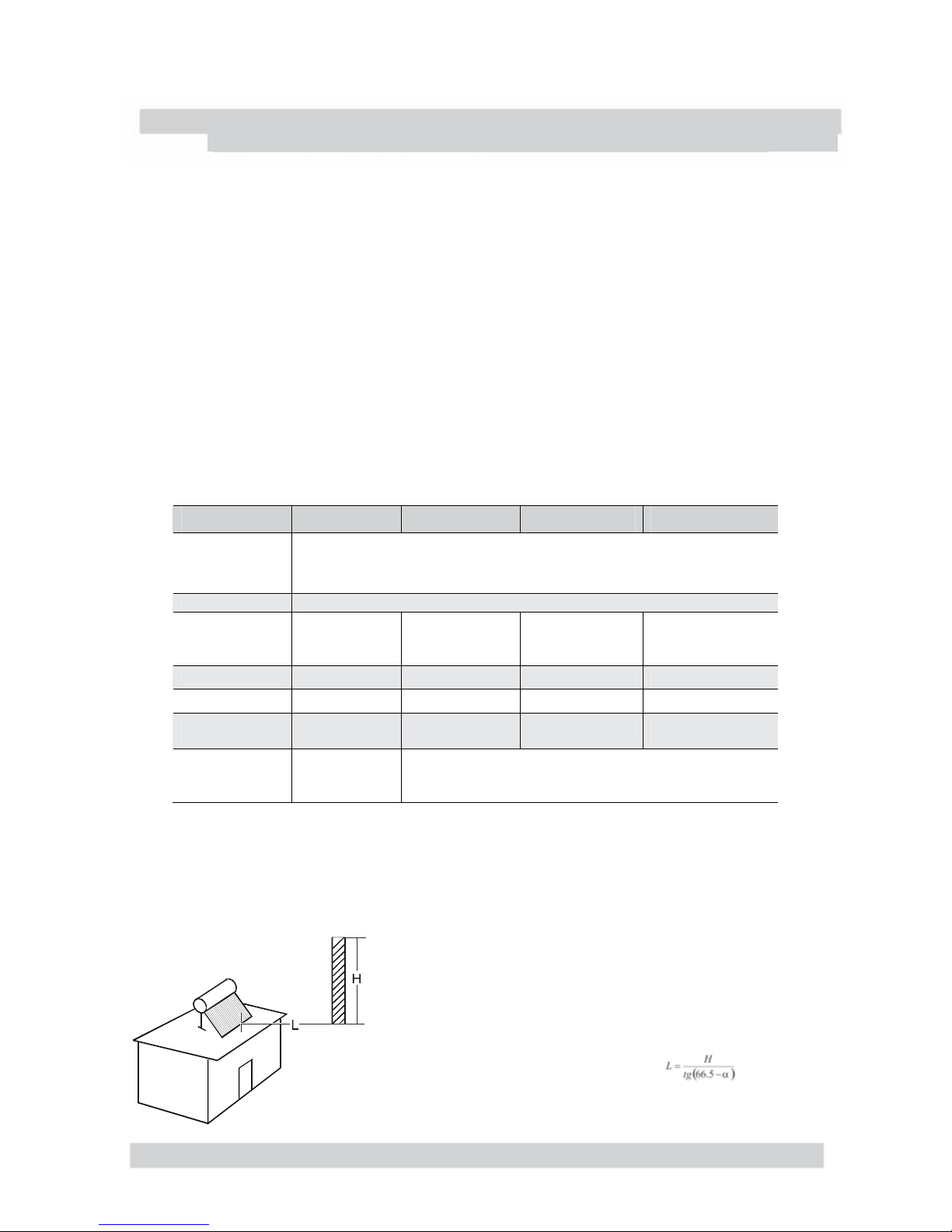

Installation instructions
Selection of installation location
1.The water heater shall be installed within the
lightening protected area of a building in locations
prone to lightning strikes.
2.The orientation of the water heater to be installed:
10° south by east and 15° south by west.
3.There must be no shielding object in front of the
installation location of the water heater. If an object
exists, the space between the heater and the
objective shall be more than L,
(wherein: H-height of the shielding objective; α-local
latitude)
Models GV110RNMB GV150REMB GV200REMB GV270REMB
Specifications
of the glass
vacuum tubes Φ58mm X 1800mm, all-glass vacuum tube solar heat collector
Frame form Horizontal 45°
Number of the
glass vacuum
tubes
12 16 22 30
Aperture area 1.58m22.07 m22.90 m24.03 m2
Usable water 110L 150 L 200 L 270 L
Total water
volume 141 L 195 L 253 L 342 L
Electric
auxiliary
heating
None Power of electric auxiliary heating: 1650W/230V
Product features • Technical parameters • Installation instructions
2

Exterior and installation dimensions of horizontal water heater
Note: The permitted error limit of the parameters above is ±10%.
Exterior dimensions
(unit: mm)
Installation dimensions (unit:
mm)Models
A H D B
GV110RNMB 1190 1000
GV150REMB 1600 1320
GV200REMB 1990 1800
GV270REMB 2630
1725
2440
1490
Installation instructions
Diagram of appearance structure
Water outlet
Electric heating tube
Tank support
Scissors-truss support
Front post
Back post
Scissors-truss support
Cross member
Foot
Tail joist
3

Frame assembly
Please see the related paper in the frame package for the diagram of the frame and
packing list.
Frame fastness
1. For horizontal water heaters, it is recommended to fix the feet of the heater onto the
foot foundation with embedded iron parts or make a concrete brick with expansion
bolts and then fix the feet of the heater to the expansion bolts.
2. Adjust the height of the frame by the hard waterproof cushion to keep the horizontal
tank and each foot evenly weighted.
Notice:
1. Make sure that the feet all closely contact the supporting floor without foot suspension to
avoid damage of the product due to frame deformation.
2. Please use the steel wire to firmly fasten the tank and frame if in a location where typhoons
frequently occur.
3. The water heater shall be stably and firmly installed to avoid severe damage or accident
due to harsh weather conditions.
Tank installation
1. Unpack the tank, remove the nuts and cushions fixed on the bolts on both ends of the tank.
2. Insert the bolts at the bottom of the tank into the long hole in the tank support of the frame,
apply the cushions and nuts.
3. Remove the sensor wound around the tank and install it onto the sensor hole on the tank.

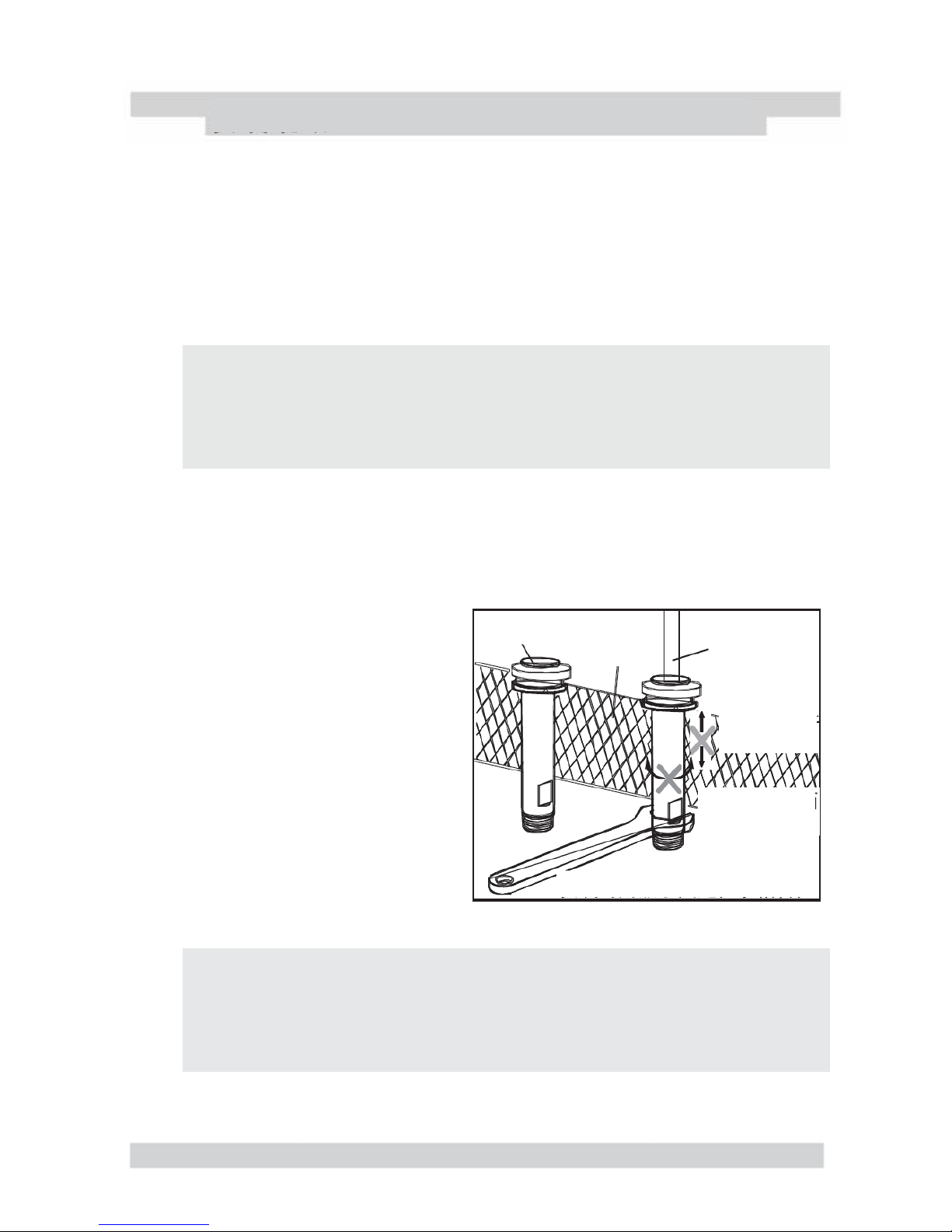

Non-welding pipe ends
1. Pipe fittings are connected with the
pipe by a non-welding method.
2. During installation, use a wrench to
fasten the tank pipe end. Do not rotate
the tank pipe ends and do not apply
any force along the axial direction of
the fittings to avoid damage of the seal
ring.
3. When installing the overflow pipe, use
a wrench to fasten the overflow pipe
end of the tank, screw off the plastic
cap and connect the PEX pipe by
means of internal threads. Check
whether the seal ring of the overflow
pipe is in good condition before
installation.
Notice:
1. Rip off the protection film after installation. by Do not use a sharp tool.
2. The heater is assembled by means of bolt connections and nut fasteners. Tighten the nuts
after the unit assembly is finished.
3. When assembling the water tank, keep the center line of the vacuum tube connection
holes parallel with the diagonal post of the frame.
4. The inlet and outlet of the water tank can be also used as the drain.
Water incoming/outgoing pipe
Water tank wall
Sensor
Do not apply any
force along the axial
direction of the
fittings
Do not rotate the
tank pipe ends
During installation, use a wrench to fasten the tank
pipe end
Installation instructions
4

Installation of vacuum tubes
1. Keep the tubes out of the sunlight before assembling the tubes to avoid being burned.
2. Place the air seal ring around the vacuum tubes (Figure A);
3. Insert the tubes into the seal ring with even pressure and a twisting motion. The resultant
force direction shall be consistent with the axial direction of the vacuum tubes;
4. Place the tubes into the tail support of the frame (Figure B) and then fix the tube onto the
tail base (Figure C);
5. Insert the tube into the seal ring at the depth of around 1cm, push the air seal ring to the
water tank hole for sealing (Figure D);
6. While assembling, install one tube on each end of the heater tank respectively first, so that
the heater tank and frame are positioned as a whole.
A
B
C
D
Notice:
1. Check whether the seal rings in tank holes are sufficiently installed and whether the
sealing location is clean and free from foreign matters and damage.
2. Place the bevel of the air seal ring downwards, and then put it onto the open end of the
tube with a clearance of around 10cm from pipe end. Make the pipe end wet before
insertion for easy assembly.
Installation of electric heater and Operation instructions
Wiring of electric heater
1. Unscrew the four screws on the terminal box cap, take out the cap and remove the
bonding clamps.
2. Put the power cables of 3X1.0mm2 across the seal ring of the bushing. Connect wires
according to the wiring map of the electric heater. Link the brown or red power cable onto
the “L” location identified as a live wire, yellow or green wire onto the identified as the
grounding wire, and the blue wire onto the “N” location identified as a neutral wire.
Afterwards, fix the power cables by bonding clamps and fastening the cap by screws.
Instructions for usage
1. Use proper sockets compatible with the plugs. Do not plug in or unplug the electric heater
frequently to avoid danger due to poor contact and burnt plugs or sockets caused by
damage of plugs and sockets
2. Please unplug the water heater before use to avoid electric shock.
Installation instructions
Seal ring
Vacuum
tube
A
ir seal
ring
Tail
support
Tail base
Vacuum
tube
Tail base
Tail
support
A
ir seal ring
Sealing
location
5

Diagram of pipeline installation
Precautions on pipeline installation
1. Any alteration to the structure of the solar water heater may cause problems in use.
2. There are five ways to connect the water pipe to the room: flue, vent hole, through-hole in
the wall, pipe well for solar pipes and embedded sleeves, wherein the former three types
are commonly used. Before installation, the installation staff will consult the entry form and
installation location of the pipe in a comprehensive way and in consideration of your
convenience. A slope in the through-wall must be ensured during pipeline layout, and
sealing shall be guaranteed to prevent the entry of rain or odors.
3. Keep the smoothness of the air pipe to prevent the blockage of impurities, which may lead
to collapse and deformation of the water tank under suction when using water.
4. To avoid the return of water in the tank, a non-return valve shall be installed at the joint of
the water upward/downward pipes and the tap water.
5. The installation project should be confirmed by our professional service personnel when
installing several sets of the series of the products.

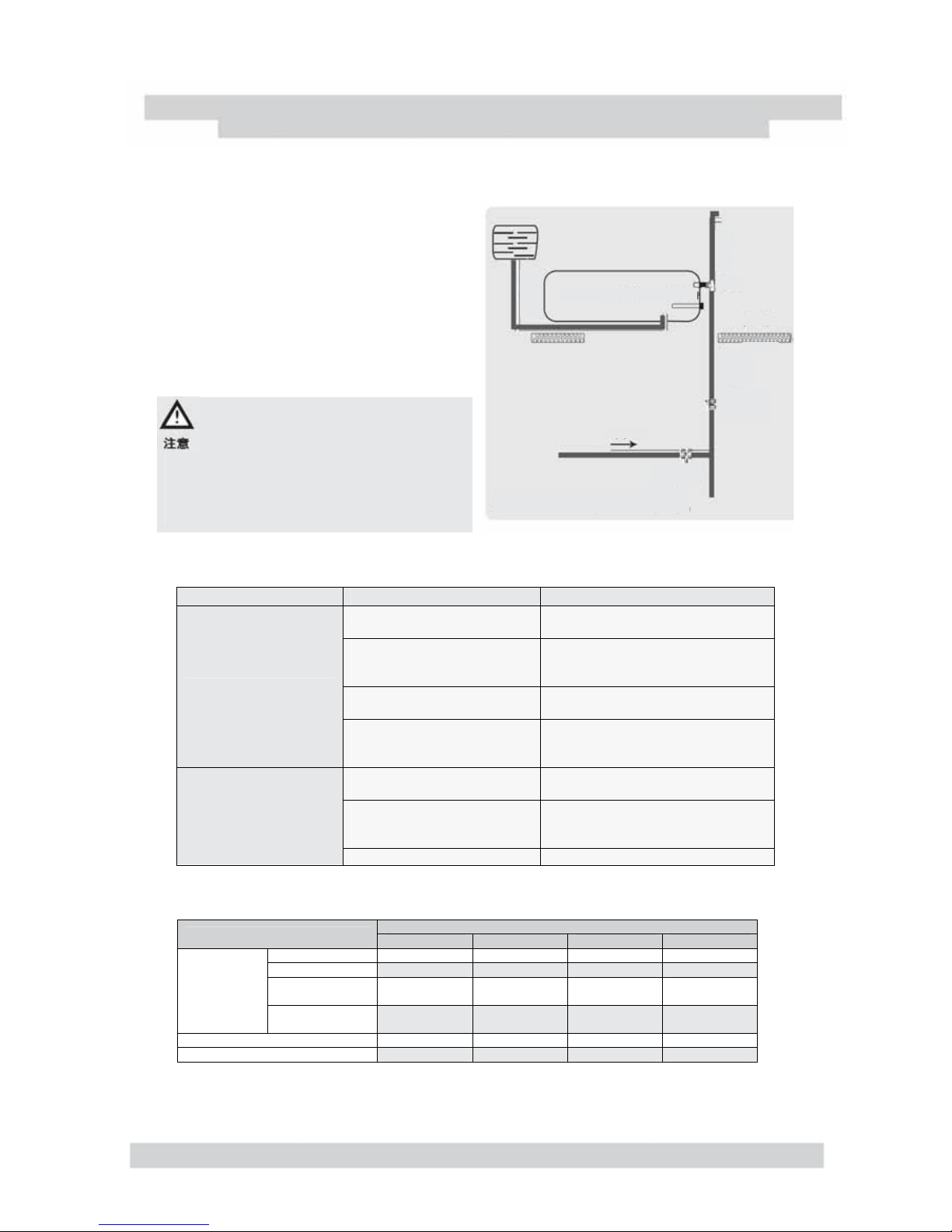

Connection of water supply pipes when the solar water heater coexists with other water
heaters
Installation instructions
A
ir pipe
Water
feedin
g pipe Electric
heatin
g
tube
water tank
T-joint
Outdoo
r
Indoor
Electric
heating
wire Water outgoing
pipe
Mixing valve
(Hot water)
Power plug Cold water
Mixing valve
(Cold water) The diagram subject to
GV150REMB is for reference only.
Mixing valve
To solar water tank
Other water
heater
Cold water pipe
Hot water
pipe
Non-return
valve
Mixing valve
Manual valve
Tap water
Non-return valve Solar energy hot
t
Non-return valve
Please install another non-return valve on the cold and hot water pipes
respectively if the solar heater coexists with other water heaters so as to
avoid accidents caused by water returned to the solar water tank through
hot water
p
i
p
e due to hi
g
h
p
ressure in the tanks.
Caution
6

Operation instructions
1) Keep the mixing valve (for hot water)
and the mixing valve (for cold water)
closed before using water.
2) Open the mixing valve (for hot water) to
let water spray from the nozzle while
using water, and open the mixing valve
(for cold water) to regulate the water
temperature if the water is too hot.
3) Confirm that the manual valve and
mixing valves are all off after using
water.
Improper operation of the water
heater may lead to serious burns.
When using the heater, do not make
the water outlet of the nozzle aim at
the body, mix the cold and hot water
before use.
Troubleshooting
Symptoms Possible causes Solutions
The tank is empty Add water according to time
required by the manual
The pipeline or the
connector falls off or is
blocked
Maintain the pipeline or remove
the blockage
The vacuum tube is
damaged Replace the tube
No water supply
Suspended tap water
supply or low water
pressure
Wait for normal water supply
The valve for water supply
is loose or damaged Tighten or replace the valve
The vacuum tube cannot
effectively collect heat due
to a blockage in front of it
Remove the blockage or
change the location for
installation
The temperature is
not high enough
Dust on the tube Clean the tube surface
Packing list
Please check the water heater product according to the packing list after unpacking.
Quantity
Main parts GV110RNMB GV150REMB GV200REMB GV270REMB
Water tank (PC) 1 1 1 1
Manual (Copy) 1 1 1 1
Left tank
support (PC) 1 1 1 1
Water tank
package
Right tank
support (PC) 1 1 2 2
Glass vacuum tube (PC) 12 16 22 30
Frame (set) 1 1 1 1
0040503310
A
ir
pipe
Water
feedin
g pipe water tank Electric heating tube
T-joint
Outdoor
Indoor
Water
outgoing
pipe
Mixing valve
(Hot water)
Cold water
Mixing valve
(Cold water)
The diagram subject to GV150REMB
is for reference onl
y
.
7
Operation instructions • Troubleshooting• Packing list
