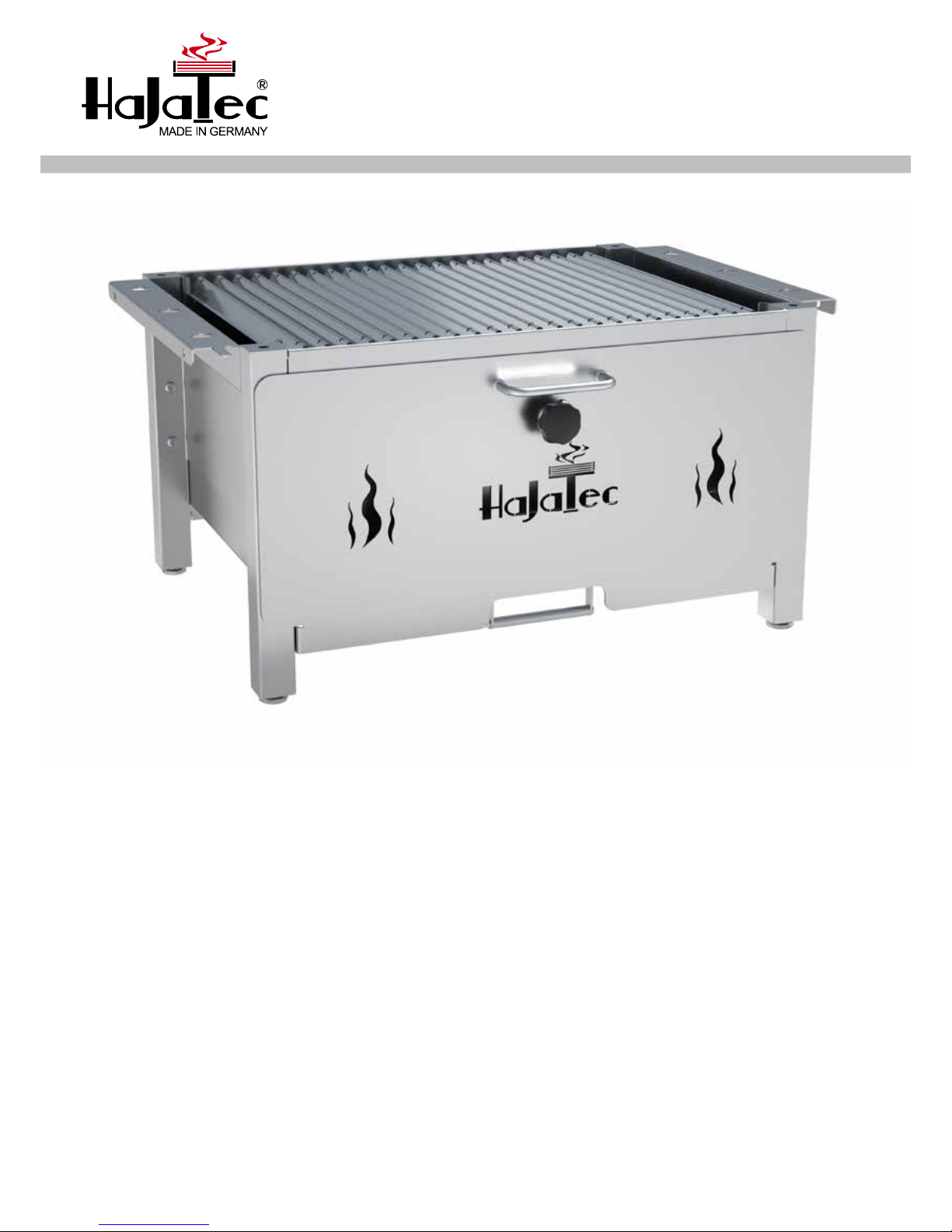

HaJaTec P-800 User manual

P-800 Operang Manual
Preface
The HaJaTec P-800, which you will have received already completely assembled, is a top quality table grill. In
order to avoid injuries and mistakes when operang this grill, please read the operang instrucons carefully
before using the HaJaTec P-800. Please keep the instrucons for general references and pass these on to any
subsequent user.
Correct use according to instrucon of HaJaTec P-800
The HaJaTec P-800 should only use charcoal, grillets, or dried wood to grill food.
This charcoal table grill must not be used in closed in spaces (without sucient venlaon and exhaust fans).
For the correct use all instrucons in this manual must be adhered to.
The HaJaTec P-800 is only meant for private use.
Guarantee
The purchase of the HaJaTec P-800 is entlement to the statutory guarantee. This operang manual constutes
proof of guarantee providing it carries on the back page the dealer’s stamp or receipt of purchase with details of
date of purchase. Possible wear and tear, rust deformaon, decolouring of parts directly exposed to the re are
normal and due to use and constute no case of guarantee.
1

P-800 Operang Manual
General Safety Instrucons
! Beware of burns
! CAREFUL this grill gets very hot!
The grill must be stand on a stable and non-inammable surface when operated!
Do not move the grill while operang!
Watch out that the grill is in a wind protected area!
Wear grill gloves and use a long grill tongue during grilling in order to avoid burns!
Use the supplied re lighter if possible when lighng the coal.
Alternavely use commercially available re lighter!
No ethyl alcohol, petrol or other re accelerants! Danger to life!
Never pour water over glowing charcoal!
Before cleaning let grill cool o completely!
! Beware of choking
! BEWARE While burning charcoal life threatening oxides of nitrogen develop!
Never use grill in closed spaces, tents or under a tarpauling!
! Danger for children and pets
Never leave the hot grill unaended! Keep children and pets away from hot grill!
Direcons for save operaon of grill
Der HaJaTec P-800 has to stand on a stable and non-inammable surface during operang the grill.
The grill must not be used in closed spaces or in covered areas like tents.
When lighng the grill use if at all possible exclusively the supplied re lighter or other commercially
re lighter according to DIN EN 1860-3.
2

P-800 Operang Manual

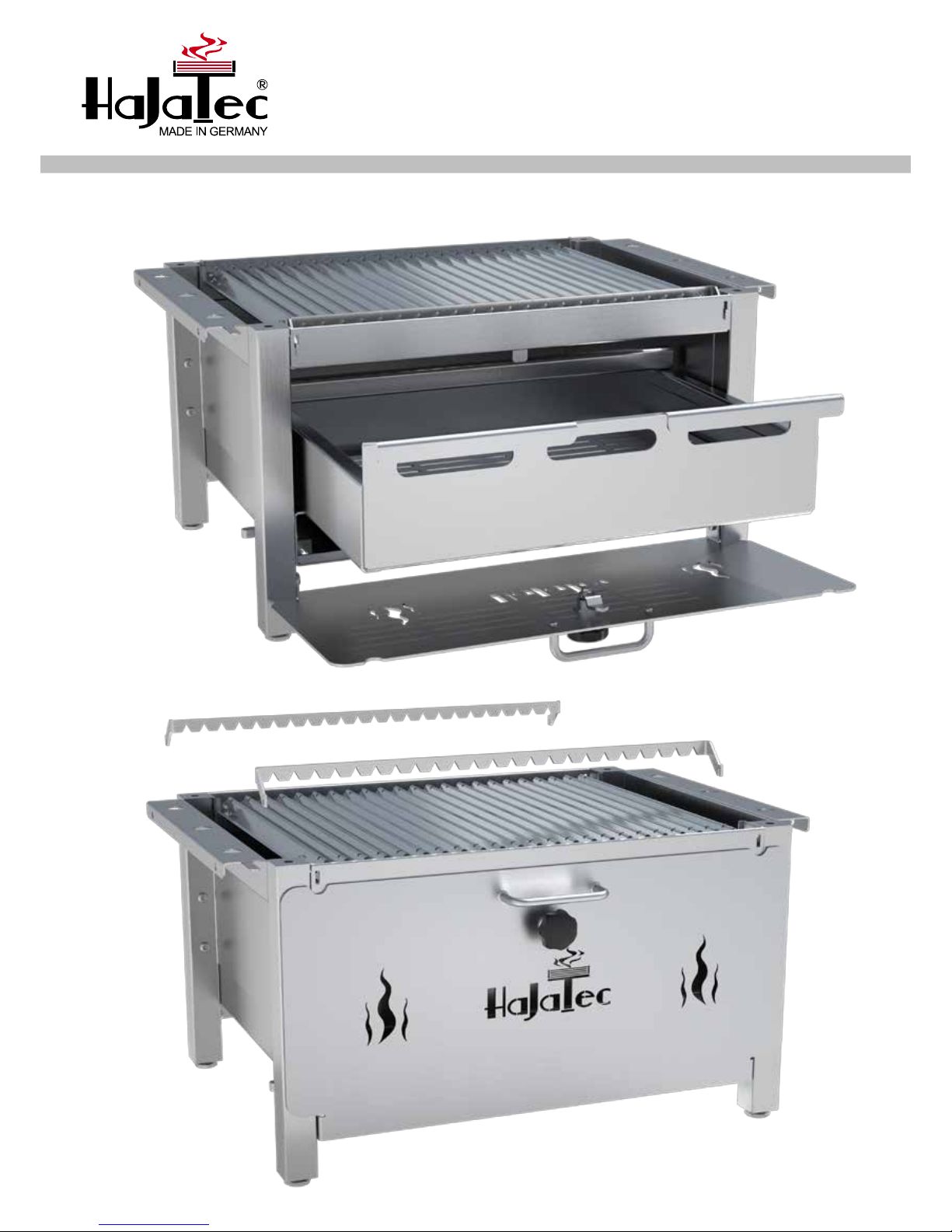

Components of HaJaTec P-800 table grill
• Individual removable upper grate
• Individual removable grease drip collecon system
(lower grate)
• Air supply regulaon le
• Air supply regulaon right
• Frontal hatch
• Turning knob for locking frontal hatch
• Removable coal drawer
• Grill grate for coal
• Removable ash pan
• Resng zone
• Electrical ignion device
Technical Data
Weight: 38 kg
Measurements: L = 762mm, W = 550 mm, H = 390 mm
Material: Stainless steel, feet made of high strength
plasc material

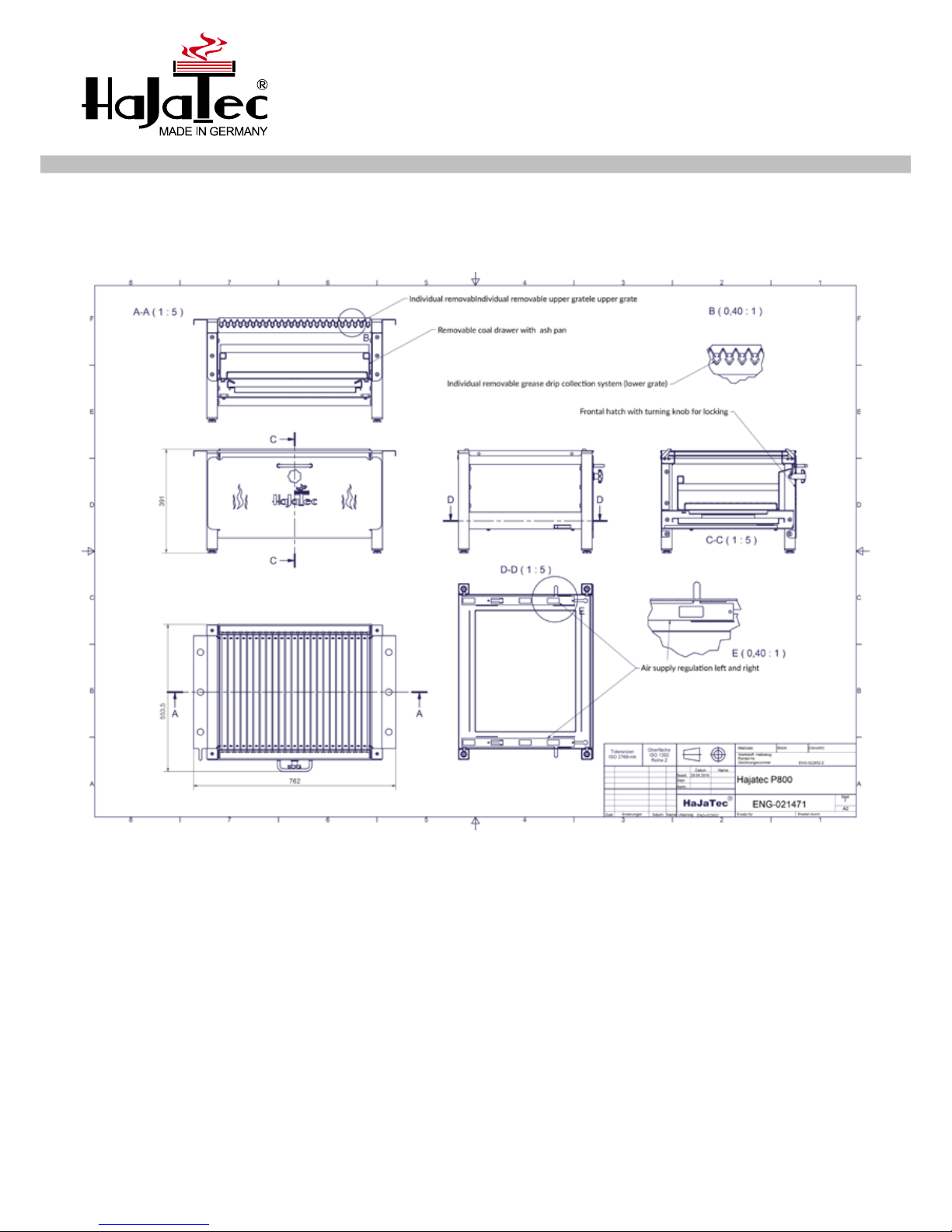

HaJaTec P-800 System
3

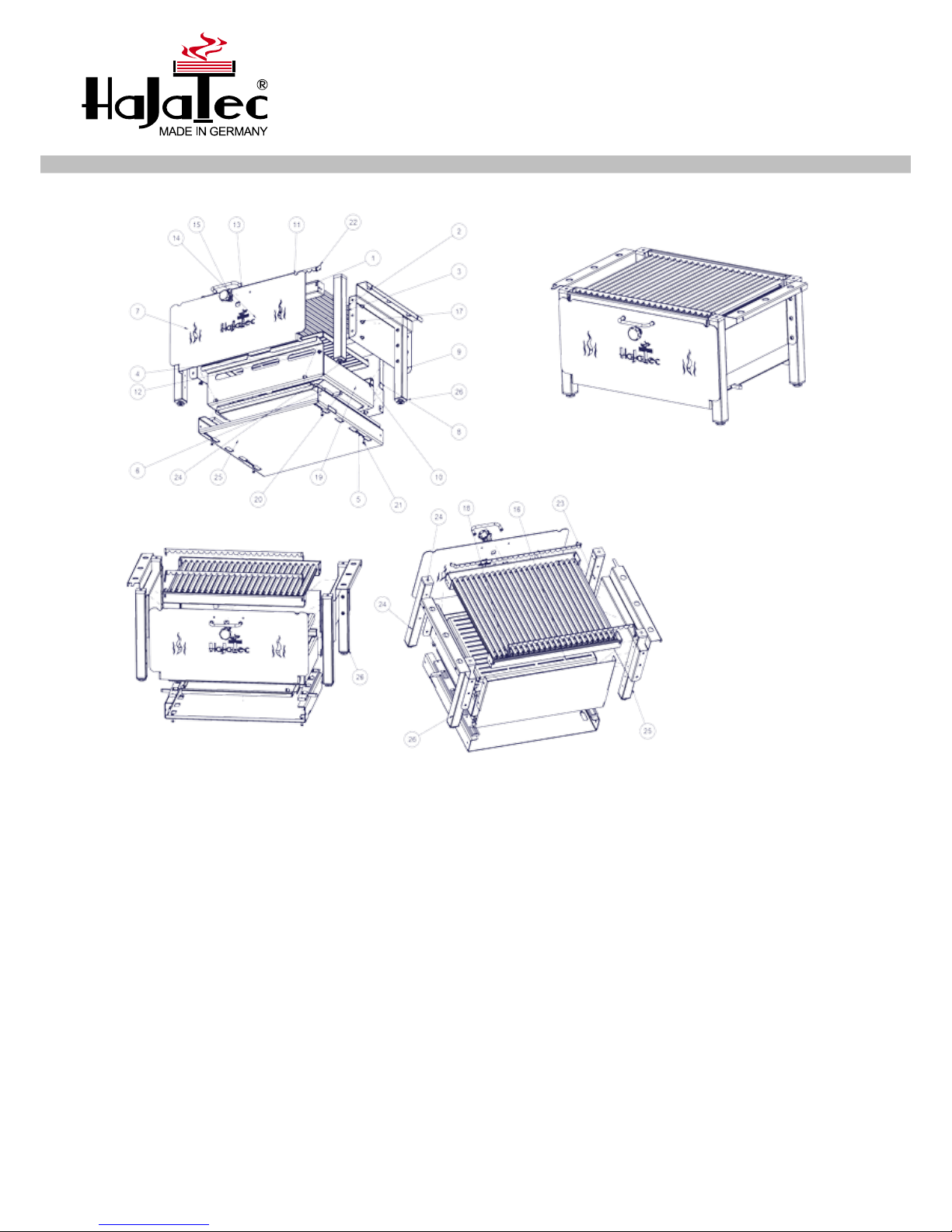

Pos Men Descripon
1 2 Drip pan Rev A
2 23 Grill bars
3 24 Grease drip pan
4 1 Coal pan Rev B
5 1 Inner tray coal Rev A
6 1 Ash pan Rev B
7 1 Side panel le
8 1 Rear panel
9 1 Side panel right
10 2 Locking pin Rev B
11 1 Hatch
12 2 Pivot pin
13 1 Nirosta bow shaped handle Art. Nr 463309
14 2 Inner hexagon roundhead screw ISO 7380 M5x16
15 1 Locking GN 115-SG-10-NI
16 1 Grate tray Rev A
17 22 Inner hexagon roundhead screw ISO 7380 M8x12
18 8 Inner hexagon roundhead screw ISO 7380 M6x10
19 2 Connecng tray cinder pan
20 2 Air strip
21 4 Inner hexagon roundhead screw ISO 7380 M6x12
22 2 Retaining panel grill bar
23 1 Foot 1 complete Rev A
24 1 Foot 2 complete Rev A
25 1 Foot 3 complete Rev A
26 1 Foot 4 complete Rev A

P-800 Operang Manual
HaJaTec P-800 System
4

P-800 Operang Manual
5

P-800 Operang Manual
Start up
! BEWARE Before starng up remove protecve cover!
Before inial use the HaJaTec P-800 should be heated up with fuel (charcoal or briquee) for 30 minutes.
During use the HaJaTec P-800 has to stand on a stable and non-inammable surface.
The grill must not be used in closed spaces, tents or in covered areas.
If at all possible ignite the charcoal with the supplied re lighter or another commercially available re lighter
according to DIN EN 1860-3.
Filling of coal drawer
! BEWARE The grill can overheat!
The level to which charcoal can be loaded must not be exceeded.
The edges on the side of the drawer pan correspond to the maximum height of the charcoal load. The maximum
volume corresponds to 0,013 cubic meters.
To open the front hatch, turn knob 90 degrees to the le, pull out coal drawer up to the anchor point.
The charcoal drawer is linked to the ash pan so that the ash pan is pulled out at the same me as the charcoal
drawer. The charcoal drawer can be relled while grilling.
! CAREFUL The grill body is hot!
Wear gloves to avoid burns!
Ignite charcoal with re lighter
! BEWARE Touching the acve re lighter can cause burns!
Aer use place re lighter into the supplied bracket!
! BEWARE The re lighter must be removed before starng the grill procedure otherwise
the handle will scorch.
In order to acvate the grill put the electric lighter into the socket (when using a cable drum watch that it is
completely unwound, re hazard). Place the re lighter in the middle of the charcoal drawer, spread the
charcoal over it and push the charcoal drawer back into the grill body, the hatch stays open unl the re
lighter is removed.
When igning the charcoal the air supply regulaon le and right has to be completely open.
When the charcoal has burnt down, the air supply can be regulated through a slide control at the sides.
The electric re lighng takes about 15 to 20 minutes. (Depending on fuel in use). Remove the re lighter
and place into the supplied bracket before starng to grill! We recommend the use of HaJaTec coal.
This coal is characterized by its long burning duraon and does hardly create any smoke like other coal.
6

P-800 Operang Manual
Grill Procedure
! BEWARE The whole grill will get very hot! Wear gloves when working with the grill
and use long tongues!
When the charcoal has completely burnt through the food can be placed on the grill grate.
With the slide regulator on the le and right side of the grill the air supply to the charcoal
drawer can be regulated.
The further the slide regulator has been opened the stronger will be the burning of the charcoal.
Underneath the grill is a resng zone. On a suitable surface the already grilled food can be placed
to rest and to cook on a bit more.
Disposing of Ash
Open front hatch and pull out the charcoal drawer together with the ash pan. (Wear gloves when doing this).
Slightly li the ash pan and pull to the front. Dispose the hot ash into designated containers or bins according
to regulaons.
Cleaning and Maintenance
! Important Let grill cool down completely before cleaning!
! BEWARE Aer use do not use water to cool the hot grill down!
Cooling down with water can lead to burns.
Aer each use the grill grate and the inner bowl as well as other dirty parts have to be cleaned
Clean only aer the grill has completely cooled down, otherwise there is risk of burns.
The individual bars of the grill grate and the grate beneath can be cleaned with all commercially available
grease cleaning material.
Never use acid, petrol soluon or other inammable material for cleaning.
For instance the charcoal container should only be cleaned with dry brushes but never with anything wet.
While grilling the grill grate may be cleaned with a dry grill brush.
Tips for cleaning!
Before you grill cover the near and far grease pans with aluminium foil, aer grilling only this then has
to be removed and it saves on unnecessary cleaning.
Put the individual grill bars and the V-prole of the underneath grate into an acid resistant pan, spray
with a grease cleaning material, and let this work for 30 minutes (Follow manufacturer’s guidelines).
With very resistant crusng repeat the process if necessary.
Aerwards pour hot water over all bars unl covered and leave to soak for 1 hour.
Once the crusng has dissolved all can be cleaned with the help of sponges, stainless steel wool
(like pot cleaners). Aerwards rinse all with cool water.
7

P-800 Operang Manual
Disposal of waste
Secure disposal of charcoal
Dispose of the used charcoal only in designated containers made from metal or other non-inammable
materials. Do not use plasc materials or any other containers made of inammable material.
Environmentally friendly disposal of the old device
Return guarantee. We will dispose of all HaJaTec Grills free of charge.
Contact
HaJaTec Group AG
Baarerstr. 53
6302 Zug
Switzerland
Phone: [phone]
Fax: [phone]
[e-mail]
www.HaJaTec.eu
Version 1.3
