Nom. 870
710
Nom. 870
Nom. 870
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
This Technical Document must always be
used in conjunction with
HAKI's
General Qualifications
-See below
Always
plan your work and installation
1.
Always
select the right equipment
2.
Always
regularly inspect your system
3.

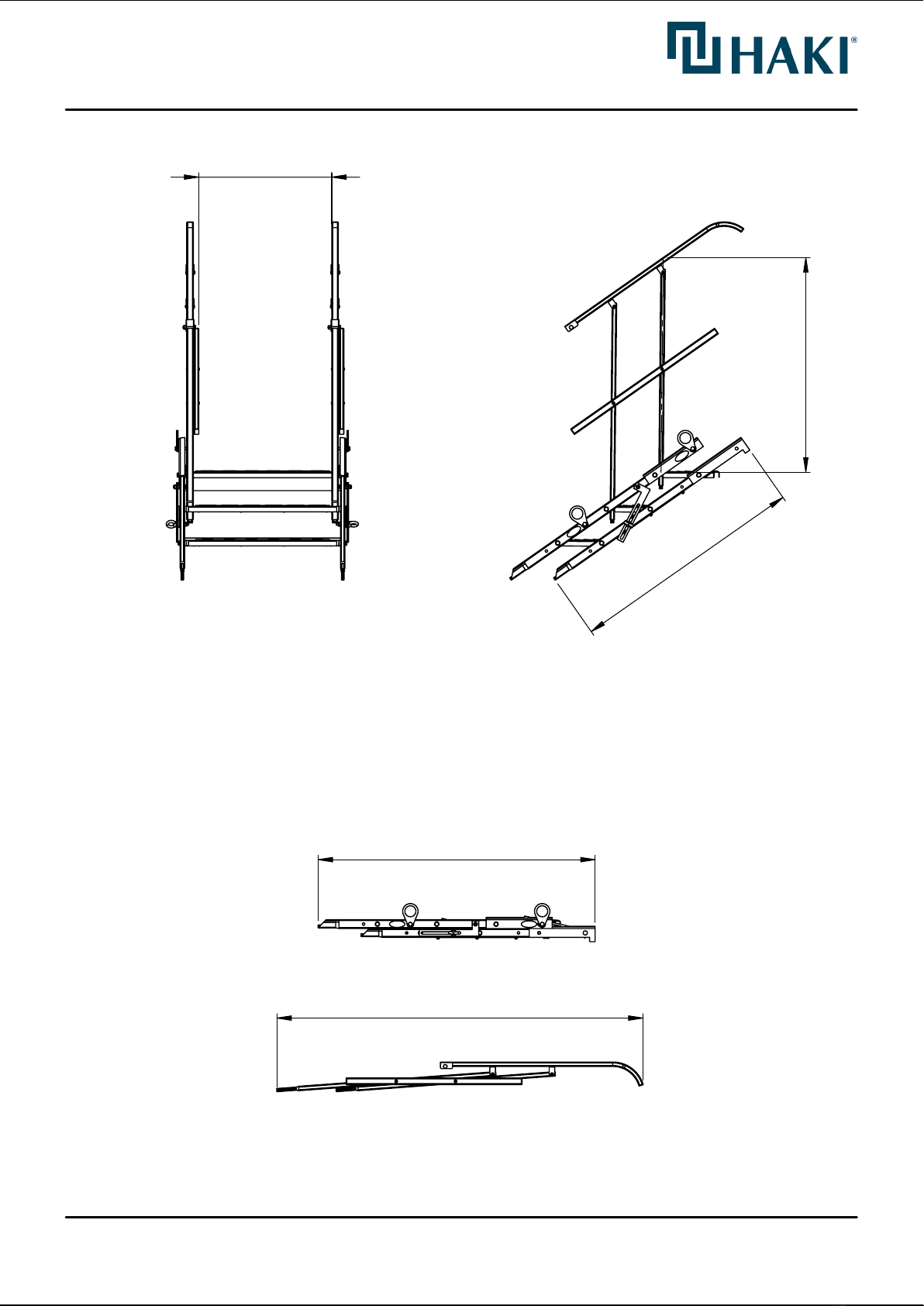

Part No.: V211-001
Name: Steel 3 Step Stairway (700 wide)
Weight: 45 kg
Standard: EN 12811-1
Material: Galvanised Steel
Dimensions: mm
1065
Nom. 978
Nom. 605
1261
1667
Transport Lengths
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
Y
X
a°
Y
a°
X
* Complies to EN 12811-1 between 41° - 49°
* Complies to EN 12811-1 between 41° - 49°
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
2.
3.
5.
1. Loosen eye nuts
2. Erect to desired angle
3. Tighten eye nuts
1.
4. Mount guard rails
5. Fit retaining pin
4.
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
<100 kg/m
2
V212-024
Stairway Scaffold Fix HD (Pair)
V212-015
Steel Stairway Slab Fix
<150 kg
max. 2
6b.
7a.
7b.
min. 2
6b.
≤ 9
≥12
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
Remove nut & bolt
and use to join
handrails

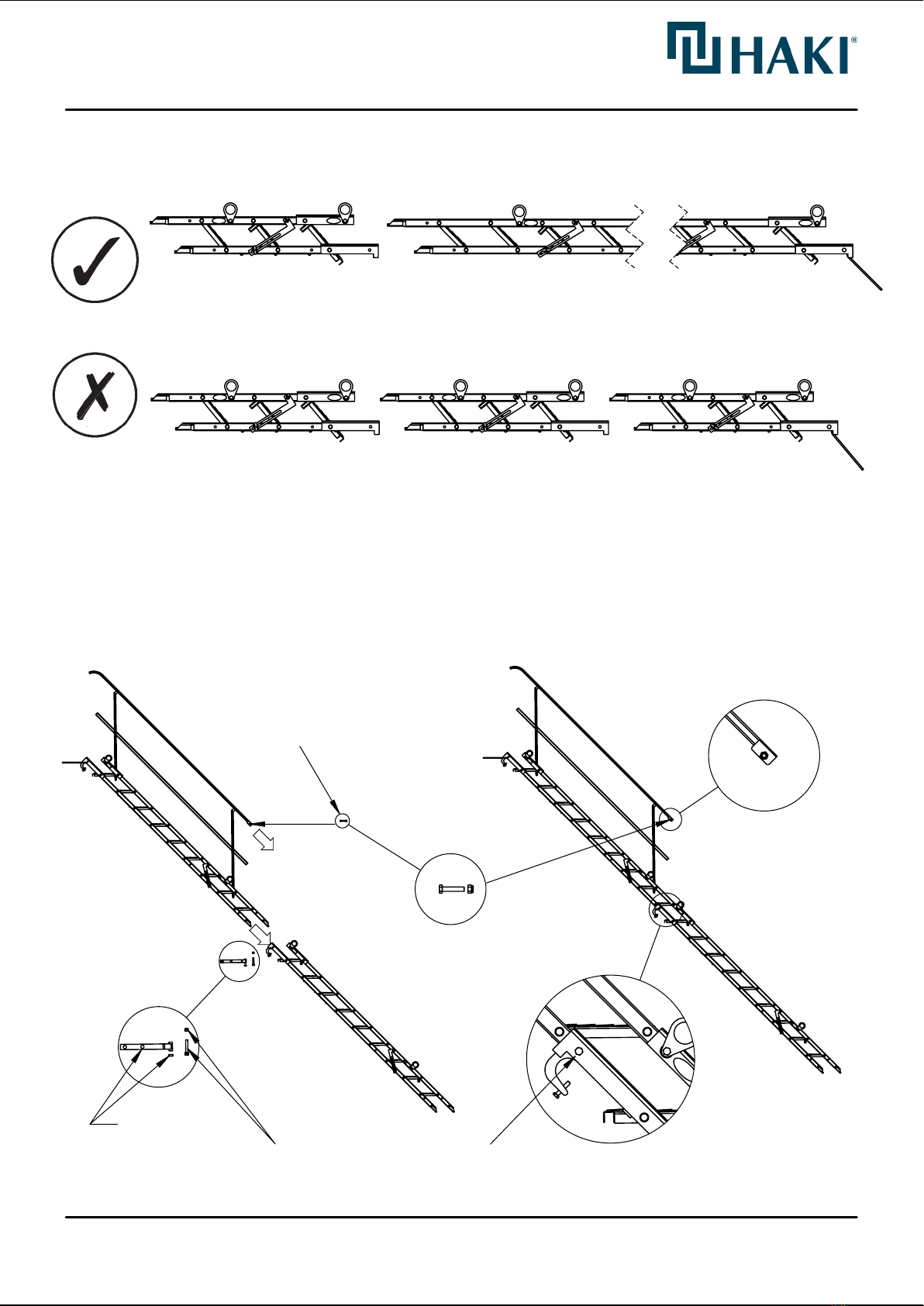

Joining Stairways - Max. 21 Steps
3/6/9/12/15/18 Steps + 3/6/9/12/15/18 Steps
3/6 Steps + 3/6 Steps + 3/6 Steps
Reuse to join stairways
Save for
re-assembly
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
90°
AD
AE
Stairways support - 18 & 21 steps
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
V212-014
Stairway - Standard step handrail
For other parts and more information, please contact vertemax.

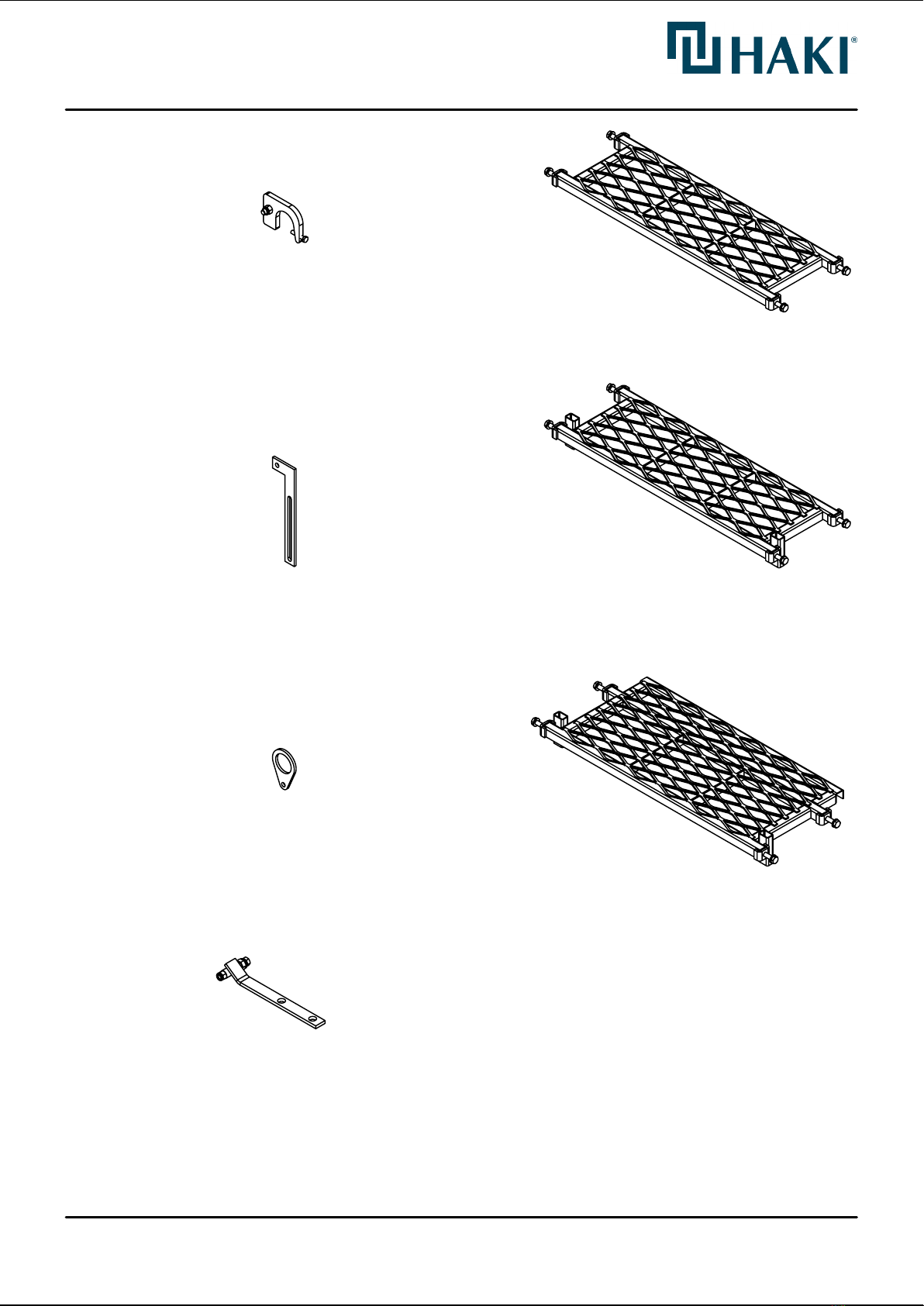

Spare parts
V212-024
Stairway Scaffold Fix HD (Pair)
V212-022
Stairway lock Pair
V214-018
Stairway Lifting Rings Set of 4
V212-015
Steel Stairway Slab Fix
V212-013
Stairway - Standard step
V212-021
Stairway - Big Step
2246 - Subject to changes
©HAKI
TD V211-001 (en)
www.HAKI.com
