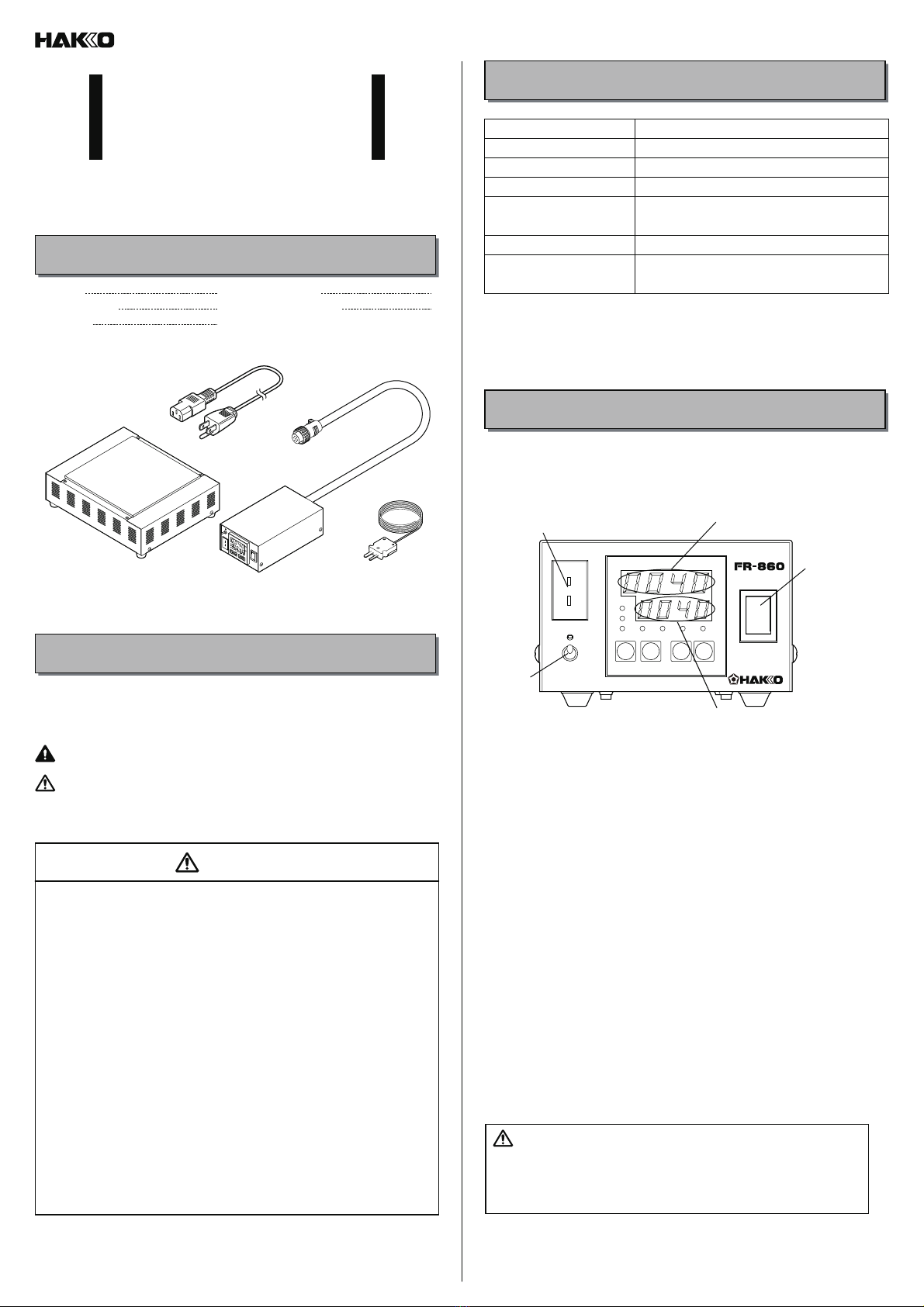

Hakko Electronics FR-860 User manual

OUT1
OUT2
AL1 AL2 COM RDY DI
MODE FUNC
▼▲
PV
SV
Controller
Preheat plate (L)
Power cord
1
1
1
PACKING LIST AND PART NAMES
1
1
Thermocouple
Instruction manual
WARNINGS AND CAUTIONS
Warnings and cautions are placed at critical points in this manual to
direct the operator's attention to significant items. They are definedas
follows.
WARNING :
CAUTION :
Failure to comply with a WARNING may result
inserious injury or death.
Failure to comply with a CAUTION may result in injury
to the operator, or damage to the items involved.
CAUTION
When power is ON, the plate surface may be as hot as 500℉. To avoid
injury or damage to personnel and items in the work area, observe the
following :
●
●
●
●
●
●
●
●
●
●
Do not touch the plate or place metal parts near the plate.
Do not allow the plate to come close to, or touch, flammable materials.
Inform others in the area that the unit is hot and should not be
touched.
Turn the power off when not in use, or left unattended.
This product is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the product by a person responsible
or their safety.
Children should be supervised to ensure that they do not play with the
product.
Do not use the product for applications other than Preheat plate.
Do not allow the product to become wet, or use it with wet hands.
Remove power and controller cords by holding the plug - not the cord.
While using the product, don't do anything which may cause bodily
harm or physical damage.
SPECIFICATIONS
Output
Power Consumption
Temperature Range
Temperature Stability
Dimensions (Large plate)
(Controller)
Size of plate
Weight (Without cord)
AC120V 60Hz
600W (Large plate)
0-500℉
±10℉
250(W)×79(H)×204(D)mm (9.8×3.1×8.0 in)
100(W)×66(H)×169(D)mm (3.9×2.6×6.7 in)
178×178mm (Large plate) (7.0×7.0 in)
2.5kg (Large plate) (5.5 lbs.)
1.0kg (Controller)
(2.2 lbs.)
Controller
To use the controller to configure the preheat plate for use as follow.
Themocouple connector
Setting temperature
Toggle
switch
Plate temperature
Power switch
1. Turn the power switch ON.
2. Setting temperature is displayed as Set Variable (SV).
Plate temperature is displayed as Process Variable (PV).
The plate temperature rises to the setting temperature.
3. When changing the setting temperature, press the “▼”button
or “▲”button to set the temperature.
4. Turn the power switch OFF after using.
*Toggle Switch
The controller has toggle switch to select between plate temperature
control or T/C temperature control.
For T/C temperature control:
1. Insert thermocouple into thermocouple connector. Place the
thermocouple end on a desired temprature measuring point or
the item to be heated by the plate.
2. Switch toggle switch to T/C mode.
3. Temperature reading of the thermocouple is displayed as Process
Variable. Change the setting temperature as needed.
CAUTION
When the thermocouple is attached, the temperature of the plate
will rise until the T/C reaches to the setting temperature.
Ensure the T/C is properly attached and not left in open air or
damage may result.
ControllerPreheat plate
Power cord
Thermocouple
OPERATION
Instruction Manual
Thank you for purchasing the HAKKO FR-860 preheat plate.
Please read this manual before operating the Preheat plate.
Keep this manual readily accessible for reference.
PREHEAT PLATE
FR-860

Type L
①
②
②
①
②
②
③
④
⑤
⑥
PARTS LIST
⑦
⑧
●
Preheat plate
Item No.
FR8602-01
Part Name
Preheat plate (L type)
Specifications
Item No.
①
②
③
④
⑤
⑥
⑦
⑧
Part No.
A1564
A1565
B3527
B2384
B3084
B2852
B2419
B3516
Part Name
Heating element A
Heating element B
Fuse
Power receptacle
SSR
Switch
Power cord
Thermocouple
Specifications
100-120V
100-120V
●
Optional Parts
2019.6
MA01773XZ190627
