Haldex EB+ Soft Docking User manual

Innovative Vehicle Solutions
INSTALLATION GUIDE
Soft Docking

EB+ Soft Docking Installation guide
2Innovative Vehicle Solutions 2020
Notes on the use of this manual
This manual has been designed to assist personnel in
satisfactory installation of Haldex EB+ Soft Docking
onto trailers. The intention has been to illustrate various
aspects of the installation. It is expected that this
manual will be in possession of the appropriate person
throughout their ‘training’ and ‘experience’ and that
the manual will be used as:
a) A teaching aid following supervision of a Haldex
engineer.
b) A reminder of the correct procedure of Haldex
EB+ Soft Docking installation.
›Use appropriate spare-parts documentation when
obtaining spare parts
›Use only genuine Haldex parts in repairs
›Due to continuous development the right is reserved
to alter the specification without notice
›No legal rights can be derived from the contents of
the manual
›Duplication, translation and reprinting are prohibited
without permission from Haldex Brake Products
For any other deviation consult
Haldex Brake Products Ltd.
MIRA Technology Park
Lindley
Warwickshire
CV13 6DE
Tel: [phone]
Fax: [phone]
E-Mail: [e-mail]

EB+ Soft DockingInstallation guide
3
2020 Innovative Vehicle Solutions
Contents
Introduction............................................................... 4
Chassis components .................................................. 5
Sensor cables........................................................... 12
Installation of EB+ Soft Docking ECU ....................... 14
Installation of LED outline marker light..................... 15
Installation of audio beeper...................................... 16
Installation of power supply adapter cable ............... 17
Installation of ultrasonic sensor ................................ 18
Configuring EB+ Soft Docking using DIAG+............. 25
Functional test ......................................................... 44
Operating instructions.............................................. 45
Conditions of no detection ...................................... 46
Error repair .............................................................. 48
Liability exclusion ..................................................... 49
Excess cable............................................................. 50
Painting ................................................................... 51
Part reference .......................................................... 52

EB+ Soft Docking Installation guide
4Innovative Vehicle Solutions 2020
Introduction
EB+ Soft Docking is a system for detecting the presence of a dock (‘ramp’ or ‘loading bay’) within 2.5 m, warning
the driver of the distance via flashing side marker lights and audio beeper at a rate dependent on distance and
automatically applying the brakes to halt the vehicle (or reduce the impact speed) at 1 m from the dock.
The system consists of an ECU and from 2 to 5 ultrasonic sensors, additional software for the EB+ ECU, side
marker lights, audio beeper and cables to link the components together. The EB+ Soft Docking ECU is controlled
from the Haldex CAN B+ / B- and communicates with the EBS via Haldex CAN.
Before using the EB+ Soft Docking system please read the description and the operation instructions carefully. The
system cannot replace the driver’s responsibility to ensure a clear passage when manoeuvring. Haldex cannot be
held responsible for any accidents encountered when using the system.

EB+ Soft DockingInstallation guide
5
2020 Innovative Vehicle Solutions
Chassis components
2 sensors (1 plane, 1 offset)

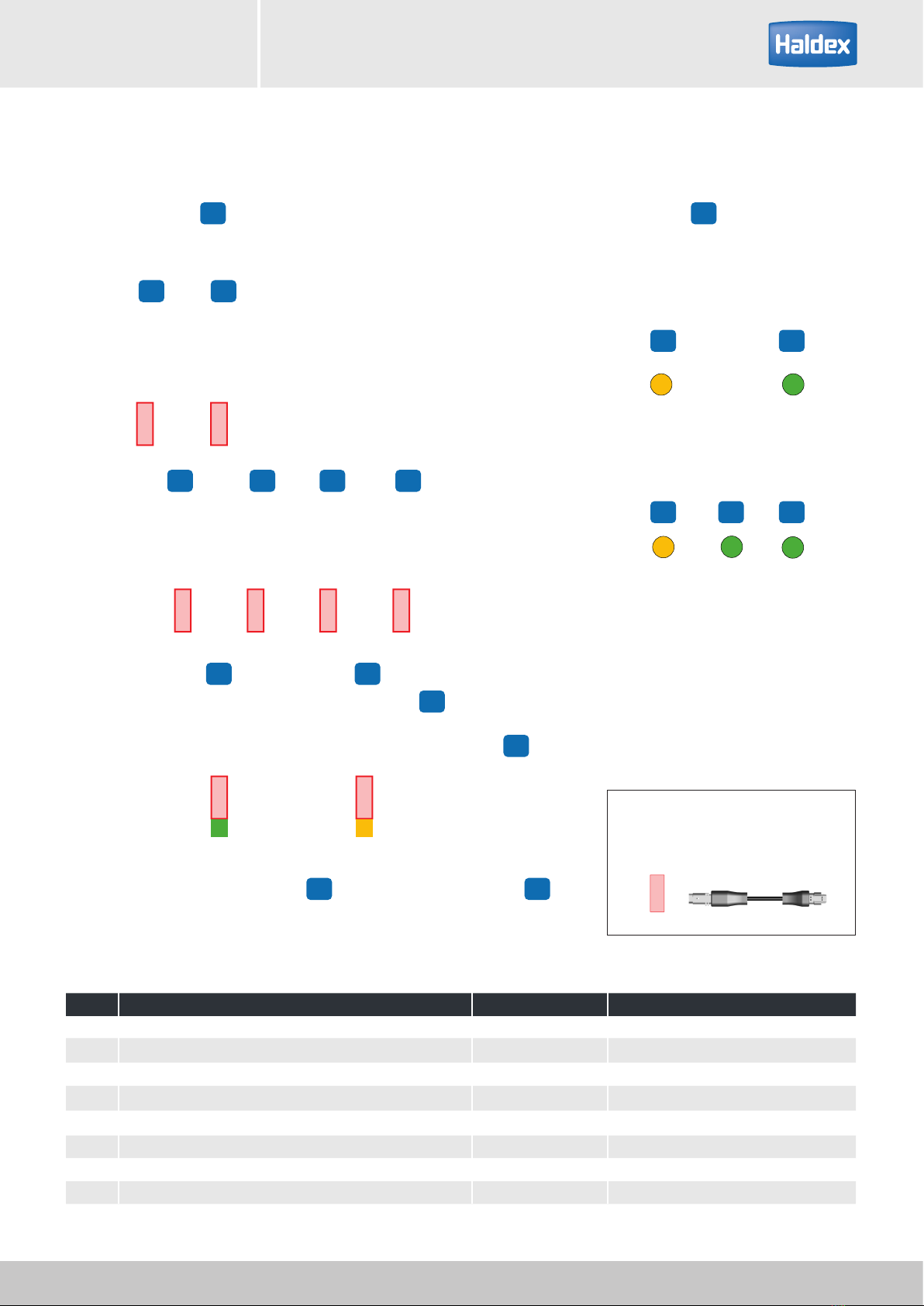

Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
3 4
51
2
6
7-2 7-1
Yellow sensor
channel
Green sensor
channel
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=
7-1 7-2
Cables colour Function
Grey Reverse light
White Earth / common
Black Left tail light
Brown Right tail light
Cable connections for item no.2

EB+ Soft Docking Installation guide
6Innovative Vehicle Solutions 2020
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
7-1 7-2 7-3
2
7-1
5 1
6
7-3
8
7-2
43
Yellow sensor
channel
Green sensor
channel
3 sensors (1 plane, 1 offset)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft DockingInstallation guide
7
2020 Innovative Vehicle Solutions
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
7-37-27-1
2
7-1
5 1
6
7-2
8
7-3
43
Yellow sensor
channel
Green sensor
channel
3 sensors (1 plane, 2 offsets)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft Docking Installation guide
8Innovative Vehicle Solutions 2020
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
3 4
7-37-4
7-1
7-1
6
2
7-2
8
7-3
5 1
7-4
8
7-2
Yellow sensor
channel
Green sensor
channel
4 sensors (2 planes, 2 offsets)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft DockingInstallation guide
9
2020 Innovative Vehicle Solutions
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
3 4
7-37-4
7-1
7-1
6
2
7-4
8
7-2
5 1
7-3
8
7-2
Yellow sensor
channel
Green sensor
channel
4 sensors (2 planes, 1 offset)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft Docking Installation guide
10 Innovative Vehicle Solutions 2020
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
7-5
7-1 7-2 7-3
7-4
3
7-27-1
8 7-3
8 8
5
6
2
1
7-4 7-5
4
Yellow sensor
channel
Green sensor
channel
5 sensors (2 planes, 2 offsets)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft DockingInstallation guide
11
2020 Innovative Vehicle Solutions
Item Description Part number Notes
1 EB+ Soft Docking ECU 364 608 001
2 Outline marker and brake cable (open wires) 364 606 xxx Green connector on ECU
3 LED outline marker lamp (left) 364 617 xxx
4 LED outline marker lamp (right) 364 617 xxx
5 Sensor and audio beeper cable 364 605 0xx Brown connector on ECU
6Audio beeper 364 616 001
7-x Ultrasonic sensor 364 614 001
8Sensor splitter cable 364 607 001 0.5 m / 0.5 m / 0.5 m
7-5
7-1
8
1
2
5
6
8
8 7-57-2
7-4 7-3
7-1 7-2 7-3
7-4
3 4
Yellow sensor
channel
Green sensor
channel
5 sensors (2 planes, 1 offset)
Where indicated, if necessary use the
appropriate length of sensor extension cable
(364 622 xxx, see page 12) to reach the
sensor location.
=

EB+ Soft Docking Installation guide
12 Innovative Vehicle Solutions 2020
Sensor splitter cable A B C
364 607 001 0.5 m 0.5 m 0.5 m
Sensor splitter cable A
364 622 001 1.0 m
364 622 011 3.0 m
364 622 021 6.0 m
A
BC
Sensor splitter cable
Y cable to add additional sensors
Sensor extension cable
Cable to increase the sensor distance from the ECU
A
Sensor cables
The EB+ Soft Docking ultrasonic sensor cables can be extended by using a combination of extension and splitter
cables.
Top marking

EB+ Soft DockingInstallation guide
13
2020 Innovative Vehicle Solutions
Extension cable location
The sensor extension cable is used to increase the length of the cable from the EB+ Soft Docking ECU to the
ultrasonic sensor.
The sensor extension cable can be used anywhere and in any combination within the sensor loom to ensure the
cable is long enough to reach the mounted sensor on the trailer.
Where indicated, if necessary use the appropriate length of sensor extension cable (364 622 xxx) to reach the
sensor location.
=
Sensor extension cable
position

EB+ Soft Docking Installation guide
14 Innovative Vehicle Solutions 2020
Installation of EB+ Soft Docking ECU
Preparation
Ensure that you have all the components necessary to
complete the installation.
Remove existing outline markers.
Determine a suitable mounting point for:
›EB+ Soft Docking ECU box
›Audio beeper
Minimum space required is approximately 200 mm
(width) x 300 mm (height).
All cables must be installed where suitably protected
by the trailer chassis. Fix all cables every 10-15 cm with
a cable tie. Do not fit the cables onto surfaces that can
become hot. Hydraulic fluid pipe lines are not allowed.
Unnecessary cables should be fixed coiled up. Ensure
that any junction box gland nuts are closed correctly.
During all the installation, protect connectors from dirt
and humidity.
Temperature range :
Don’t expose the product below -40 °C and above
80 °C. For example, do not place the product in a paint
oven (temperature > 80 °C). Fit the EB+ Soft Docking
after painting.
The position of the ECU box should be in a suitably
protected position in the rear part of the trailer. The
box should be fixed onto the chassis. Position in a rigid
location which is not susceptible to large vibration
and ensure cables run upwards to the ECU box and
are safely installed. Respect the "Top" indicated on
the box. The cables must be plugged without any
constraints (which could cause a loss of tightness or
product deterioration). Any product opening or any
product change cancels the product warranty.
Note: Ensure that the ECU connectors are plugged
into the correct colour coded cable connectors, and
the polarity of these connectors is also correct. Any
deviations from correct connection will void any
warranty claims.
Mounting dimensions
102.21 mm
120 mm
75.5 mm
134 mm
Use M6 screw
Screwing torque = 8 Nm max for M6
screws
Fit the box onto a flat surface
Top
Bottom
Green connector Brown connector

EB+ Soft DockingInstallation guide
15
2020 Innovative Vehicle Solutions
Right marker light
Installation of LED outline marker light
The LED outline marker lights should be mounted to
the trialer so that the lights can be clearly seen from
the truck mirrors. The outline marker connectors should
be plugged into the EB+ Soft Docking cable (part
number 364 606 xxx).
It is essential that you only use LED outline markers, not
incandescent bulbs.
Note: The EB+ Soft Docking system will go in a failure
mode if incandescent bulbs are used.
The breakage of one or more optical part may cause a
short circuit which causes the temporary extinction of
both of the end outline marker lamps.
Any product opening or any product change cancels
the product warranty.
Do not leave any cable connection or any cable end in
an open situation. Each cable connection or cable end
must be tightly closed.
The EB+ Soft Docking is designed for two 1,5 W end
outline marker lamps.
If the EB+ Soft Docking is plugged into a 12 V supply,
choose two 12 V end outline marker lamps.
If the EB+ Soft Docking is plugged into a 24 V supply,
choose two 24 V end outline marker lamps.
Mounting dimensions
Use 2 x M5 screws
Screwing torque = 2.4 Nm max.
Fit on a flat surface
78 mm
Ø 6 mm

EB+ Soft Docking Installation guide
16 Innovative Vehicle Solutions 2020
Ø 5 mm Fixing hole
Do not cover or block
Top
Bottom
Fit the audio beeper in a protected position which
is not susceptible to vibration. Normally on the rear
light panel or near the rear axle. Put the sound exit
downward with sufficient area around it not to block
the sound downward and backward. The use of a
sound screen near the sound exit is not allowed. When
assembling, pay attention to the location of the alarm,
the cable entry must be at the top and the drain hole
at the bottom (to let water flow).
The audio beeper connector should be plugged into
the EB+ Soft Docking cable part number 364 605 0xx.
In case of accidental liquid projection inside the beeper,
the beeper sound could be reduced momentarily. It
will return to normal after liquid removal, without any
beeper degradation.
Any product opening or any product change cancels
the product warranty.
Use M3.5 screw.
Screwing torque = 1.3 Nm max.
Fit the alarm on a flat surface.
Sound level (24 V): 108 +/- 5 dB (A) at 30 cm
Sound level (12V): 93 +/- 5 dB (A) at 30cm
Installation of audio beeper

EB+ Soft DockingInstallation guide
17
2020 Innovative Vehicle Solutions
EB+ CAN cable connection
The EB+ Soft Docking system only works with
EB+ Gen3 systems.
Plug the auxiliary CAN cable into one of the CAN
auxiliary ports on the EB+ Gen3 unit, ensure correct
polarity is maintained.
The EB+ Gen3 ECU needs to be updated to the latest
E-level of software if manufactured prior to January
2014.
Insert cable through spare entry of existing junction
box. Connect wires as appropriate. Ensure waterproof
installation.
Cable connections
Note: only four out of the eight cable cores are used.
Cut unused wires.
Close the junction box.
Ensure that the junction box gasket is seated correctly.
Installation of power supply into an existing junction box:
Cable colour Function
Grey Reverse light
White Earth / common
Black Left tail light
Brown Right tail light
Installation of power supply adapter cable
Connection to Haldex EB+ Gen3 unit

EB+ Soft Docking Installation guide
18 Innovative Vehicle Solutions 2020
Ultrasonic
sensor
Ultrasonic
concentrator
The sensors must be correctly fitted for the device to
work properly.
If the sensors point to the ground, irregularities and
bumps on the surface may be interpreted as obstacles.
If they point too far up, obstacles will not be detected
at all.
For the sensors to function optimally, the angle
between sensor surface and the road should be 90°
Minimum height
65 cm without use of settings. If a lower value is used,
the sensor angular settings must be adjusted.
Sensor offset
If there is a gap between the rear of the trailer and
the sensor mounting position, independent yellow and
green channel offset settings can be included in the
system using the DIAG+ software.
Maximum offset is 60 cm.
Installation of ultrasonic sensor

EB+ Soft DockingInstallation guide
19
2020 Innovative Vehicle Solutions

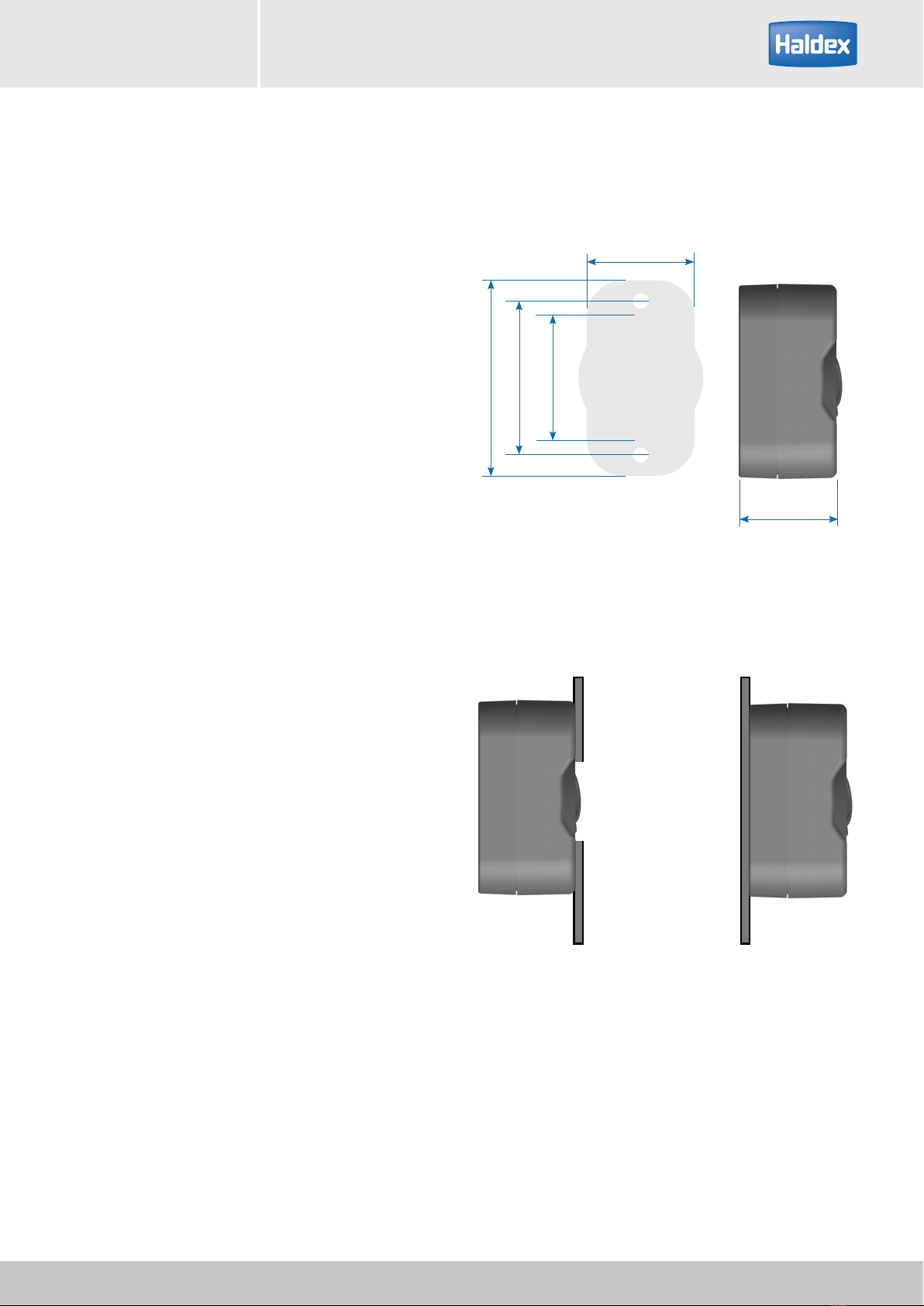

80 mm
40 mm
44 mm
63 mm +/- 0.1 mm
51 mm
Behind trailer plate mounted In front trailer plate mounted
Mounting dimensionsMounting of sensor
Maximum torque : 7.0 N.m
Fixing: M6 stainless steel screw
Obstacle: No obstacle shall be found in a 45° cone.
Mounting Rules :
›Minimum 1 sensor per line (yellow channel and green
channel)
›No connector without any sensor (due to risk of
water ingress)
›Maximum 3 sensors per channel
›Balance the number of sensors between all the
channels : maximum difference of 1 sensor between
each channel
›Maximum of 5 sensors per system
Mounting in front of the trailer plate
Contact between chassis and sensor must be flat.
Ultrasonic concentrator is not required.
Mounting behind the trailer plate
Contact between the chassis and sensor must be flat.
Ultrasonic concentrator is required, if there is a gap
between the sensor and the end of the trailer. A
software offset can be set for these sensors using
DIAG+
Refer to customer drawings for sensor mounting dimensions

EB+ Soft Docking Installation guide
20 Innovative Vehicle Solutions 2020

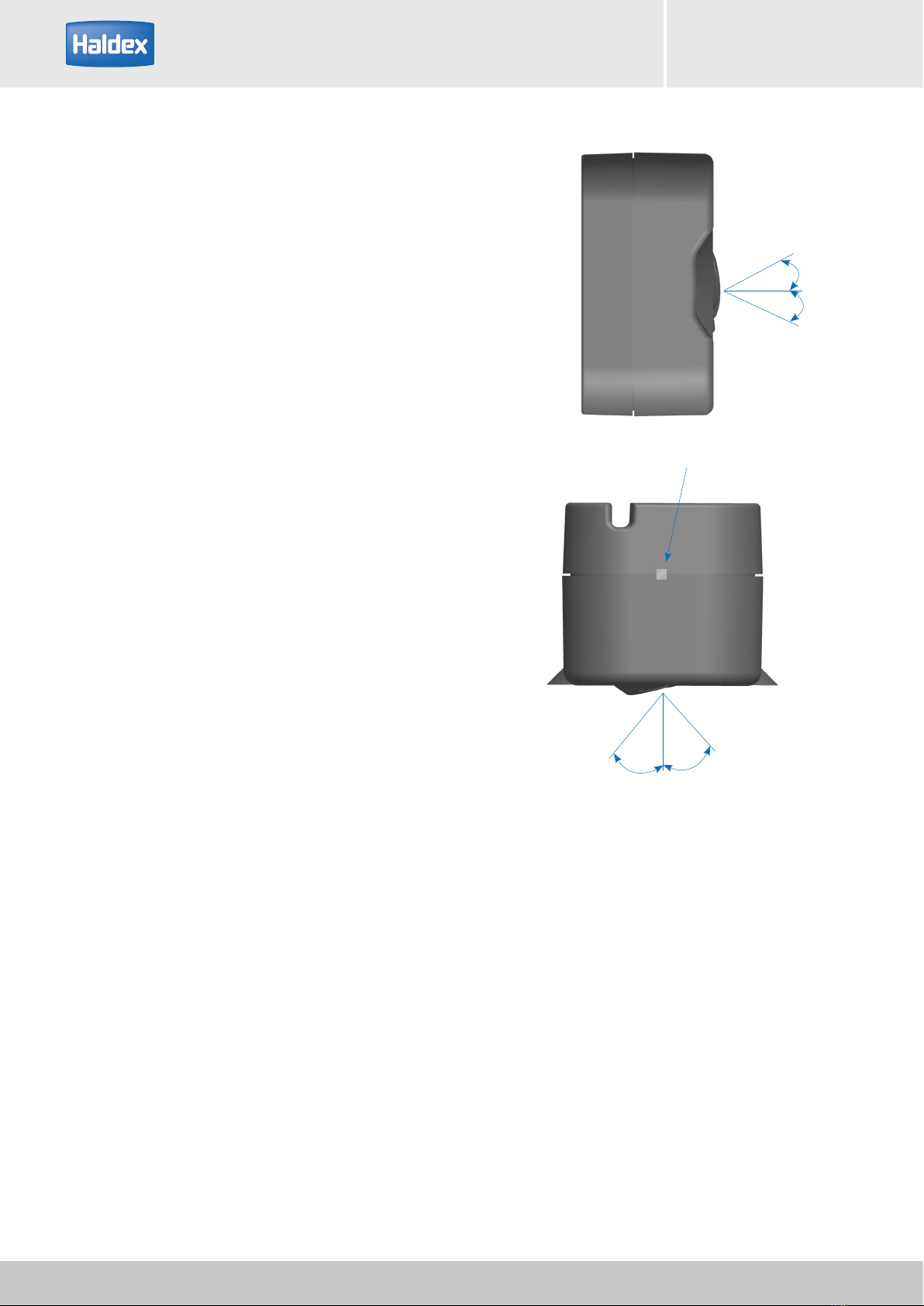

Sensor adjustment
If you cannot position the sensor assembly on the
outermost area of the rear panel, you can adjust the
angular detection of the sensors by using the sensor
notches.
To adjust sensor, press firmly on the centre of the
sensor and click onto the next notch, hence changing
the angle of the sensor
Available settings :
›Vertical : ± 12°
›Horizontal : ± 36°
The sensor angle can be adjusted by 6° increments by
pressing in directions as shown until the sensor clicks
into position.
1 x 6°
1 x 6°
3 x 6°3 x 6°
Drain hole
Refer to customer drawing for sensor adjustment and bandwidth
