Halfords Essentials Nyala R129 User manual

Item Code: 819222
Universal belted / 76-105cm ≤18kg
i-Size booster seat / 100-150cm
Nyala
R129
Child Car Seat
User Instructions

01
02
05
06
10
12
14
1. Safety warnings
2. Structure name
4. Seat assembly
5. Installation with adult safety belt (76-105cm)
6. Instructions for storing the 5-point safety harness
7. Installation with adult safety belt (100-150cm)
8. Remove/install the cover
15
9. Maintenance
04
3. Installation position
CONTENTS

WARNING
IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE
EXCEEDS 15 MONTHS (refer to instructions).
For height range 76-105cm
This is a universal belted enhanced child restraint system. It is approved
according to UN Regulation No.129/03, for use primarily in “universal seating
positions” as indicated by vehicle manufacturers in the vehicle user’s manual.
If in doubt, consult either the enhanced child restraint system manufacturer or
the retailer.
For height range 100-150cm
This is an i-Size booster seat enhanced child restraint system. It is
approved according to UN Regulation No.129/03, for use primarily in
“i-Size seating positions” as indicated by vehicle manufacturers in the
vehicle user’s manual. If in doubt, consult either the enhanced child
restraint system manufacturer or the retailer.

1
1. SAFETY WARNINGS
Thank you for purchasing our child seat. Please ensure you
fully read and follow the instructions provided. Please retain
instructions for future use. If you have any further questions
please contact your local store.
• Before using, please read the instruction manual carefully. The product is a
safety product and is only safe when used in accordance with the instruction
manual.
• This car seat is compliant with ECE R129/03.
• Do not use a child seat if the vehicle seat is equipped with an active front air
bag. This can be dangerous. This does not apply to side airbags.
• It is most important that the seat belt is correctly routed.
• Never make unauthorised modifications or changes to the product.
• Never use the child car seat if it has been in an accident, or if it has become
badly worn.
• Do not leave your children in the seat unattended at any time.
• In hot weather the plastic and metal parts of the product may become hot.
You should cover the seat when not in use, especially when your car is parked
in the sun.
• Ensure that all luggage and objects likely to cause injury in the event of an
accident are properly secured.
• Never use the child car seat without the cover. Only covers approved by the
manufacturer can be used.
• The child car seat must be secured when not in use.
• Store this child car seat in a safe place when it is not being used. Avoid placing
heavy objects on it.
• Most accidents occur on short trips. Therefore, do not be tempted to avoid
using the seat simply because you are not travelling very far.
• Keep the plastic bag away from your child as it could cause suffocation.
• Do not expose the child seat to any corrosive substances. Use a wet towel
to clean the plastic body of the child seat.
• Make sure the child car seat belt is adjusted to a suitable position and ensure
the belt is not twisted.
• Please ensure the lap belt is worn low down across the pelvis.
• Do not use this product second hand as you may never know its history.
• The rigid items and plastic parts of a child restraint must be located and
installed so that they are not liable, during everyday use of the vehicle, to
become trapped by a movable seat or in a door of the vehicle.
• Ensure that the seat is not damaged by heavy luggage, movable seats or
slamming the car door etc.
• This product is only suitable if the vehicle is fitted with 3-point retractor safety
belts, approved to UN/ECE Regulation N0.16 or other equivalent standards.

2
2. STRUCTURE NAME
Important: The inner cushion is suitable use for a child with a height
range of 76-105cm
Buckle pad
Seat base
Harness adjustment
strap
Shoulder pads
Shoulder strap
adjustment button
Harness buckle
Inner cushion
Belt guiding
hook (1)
Belt guiding
hook (2)
Headrest
Manual Storage

3
Take care of all parts. If any parts are missing please contact the retailer or
manufacturer. The seat should not be used if any parts are damaged.
Rotate bar
Shoulder
strap hole
Metal yoke
Backrest
Headrest
adjusting handle
Shoulder straps

4
This car seat is suitable for conventional use in cars equipped with
3-point seat belts that are fitted in accordance with European Standard
(ECE - 16 or equivalent standard). It Is not suitable for cars only equipped
with 2-point seat belts.
Car Safety Belt: Diagonal Belt
Car Safety Belt: Lap Belt
ISOFIX Attachments
Do not install a child
car seat.
Safe to install child car seat.
Only suitable for use fitted
with 3-point safety belts
approved to ECE Regulation
No.16 or other equivalent
standards.
Do not use this child seat in
a passenger seat equipped
with active airbags.
The suitable location for
installation in the car is
shown on the left:
3. INSTALLATION POSITION

5
4. SEAT ASSEMBLY
Backrest removal: To disconnect the backrest from the base, push down on
the seat base with one hand and push back on the headrest of the seat. Note
you will need to push quite hard on the headrest to get it to unclip. Once the
seat is flat, the base and backrest can be unclipped.
Seat assembly: Lay the seat flat as shown. Hook the backrest into the base
and pull it forward until it is secured in an upright position. Secure the buckle
on the 5-point safety harness, do this by combining the two buckle pieces
together. Insert the buckle ends into the 5-point harness buckle.

6
5. INSTALLATION WITH ADULT SAFETY BELT
(76-105CM).
Forward Facing:
Child height 76cm-105cm
Child weight ≤18kg

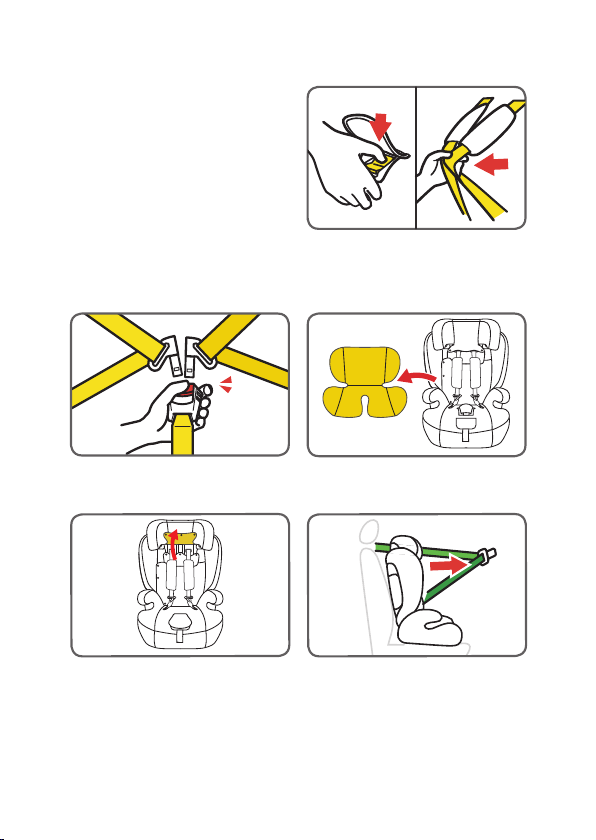

Press the red button to
disengage the buckle.
Whilst pressing the harness
adjustment button, pull forwards
on the 2 shoulder pads of the
5-point harness.
Remove the inner cushion.
Place the child safety seat in
the car seat. Extend the car
seat belt fully.
There are 3 snap fasteners on the
flap section of the headrest cover,
you will need to open these.

7
Remove any slack from the seat belt,
to do this hold the child seat down
with one hand and pull the belt tight
with the other hand. Always ensure
the seat belt is not twisted.
Place the child in the child seat and
pass both arms through the
harnesses.
Replace all cushions and
padding to the seat, including
the inner cushion.
The adult seat belt must be routed as
shown above. Note the diagonal belt will
sit behind the headrest cover flap. Ensure
the diagonal belt is routed through the
shoulders strap guide. Both the diagonal
and lap belt will need to be pulled and
placed under the child seat armrest.
Once the adult seatbelt is routed
correctly, ensure the headrest
cover flap is over the top of the
seat belt, then refasten the 3 snap
fasteners.
Insert the belt end into the buckle
until you hear an audible click.
click
Tips: check
and make
sure there is
no twisting of
the belt.

8
Click

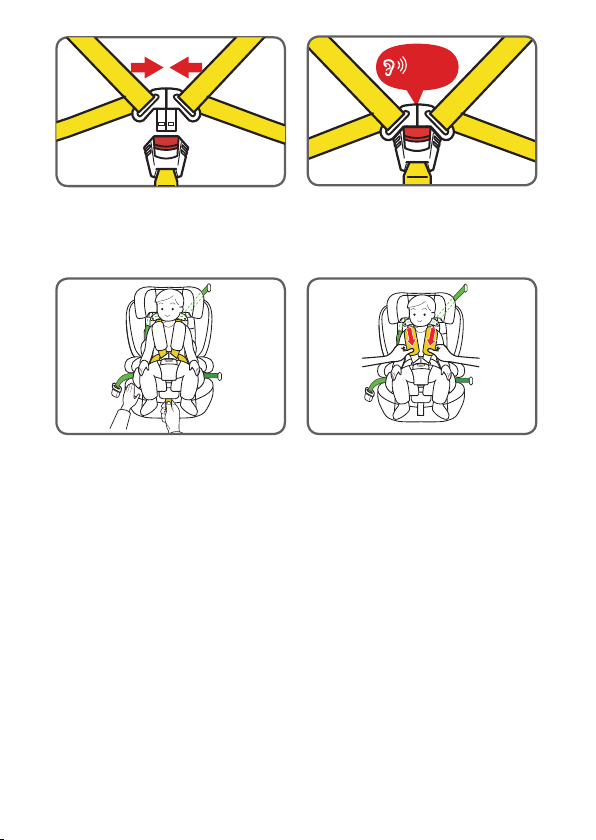

To tighten the harness straps, pull
the harness adjustment strap at
the base of the seat.
A "click" sound is heard to indicate
the buckle is correctly engaged.
Combine the two buckle pieces
together as shown above. Insert
the buckle ends into the 5-point
harness buckle as shown above.
When tightening the harness
tighten until the straps are sitting
close to your child's chest. Ensure
you do not over tighten the straps.
The style of the buckle may vary.
Pull the shoulder pads as far down
as possible on your child shoulders.

9

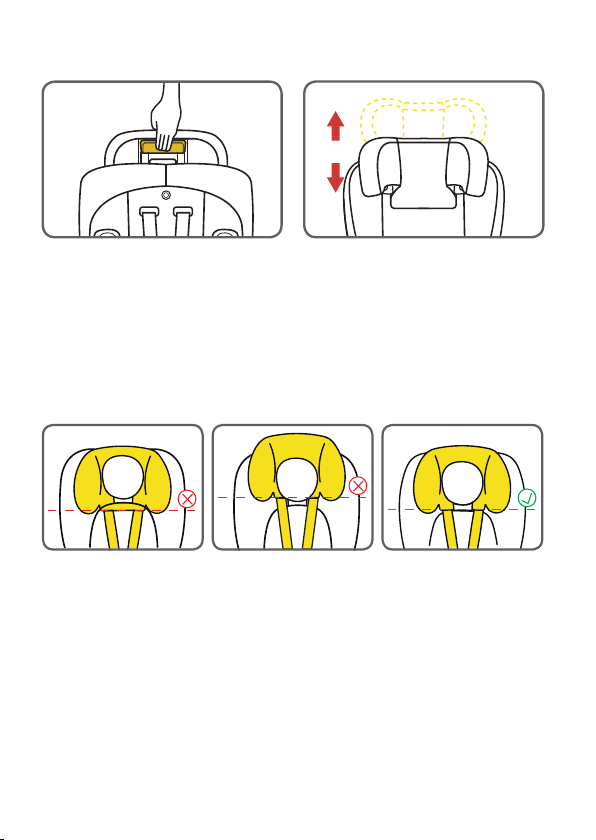

Checking the shouder strap height
Make sure that the harness is at the same height on both your child’s
shoulders. Otherwise, move the shoulder strap up or down to the correct slot.
Headrest Adjustment
In order to adjust the headrest height
there is an adjustment handle on the
back of the headrest.
Squeeze and pull the handle up to lift
the headrest up, or squeeze and push
the handle down to lower the headrest.
When adjusting the headrest ensure it
is locked in position after adjustment,
you will hear it click.
No - Too low No - Too high Yes - Correct

10

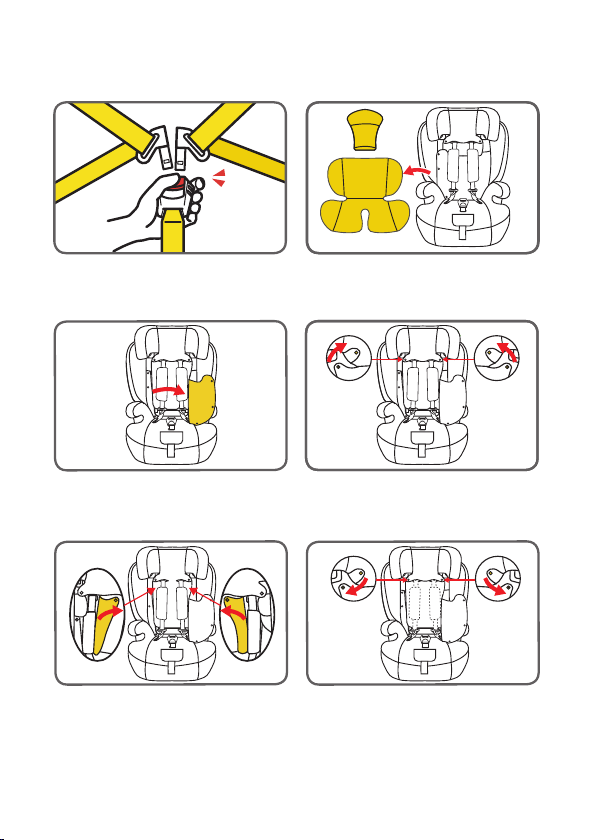

Open the 3 snap fasteners, these are
on the left-hand side of the backrest
cover. Once opened, flap the cover to
the right.
Open the 2 side snap fasteners on
the flap section of the headrest cover.
You do not need to open the middle
snap fastener.
Once the shoulder straps are
securely behind the cover, refasten
the 2 side snap fasteners on the
headrest cover.
Flap back the cover of the lower part of
the headrest cover. Place the shoulder
straps including padded covers behind
this part of the cover. Ensure the small
side flaps on the backrest cover are
also in front of the straps, these have
green tags sewn into them.
6. INSTRUCTIONS FOR STORING THE 5-POINT
SAFETY HARNESS WHEN NOT REQUIRED.
(SUITABLE FOR CHILD HEIGHT 100CM-150CM)
Press the red button to disengage
the buckle.
Remove the inner cushion as well as
the padding around the 5-point
harness buckle. Store these safely
for any future use.

11

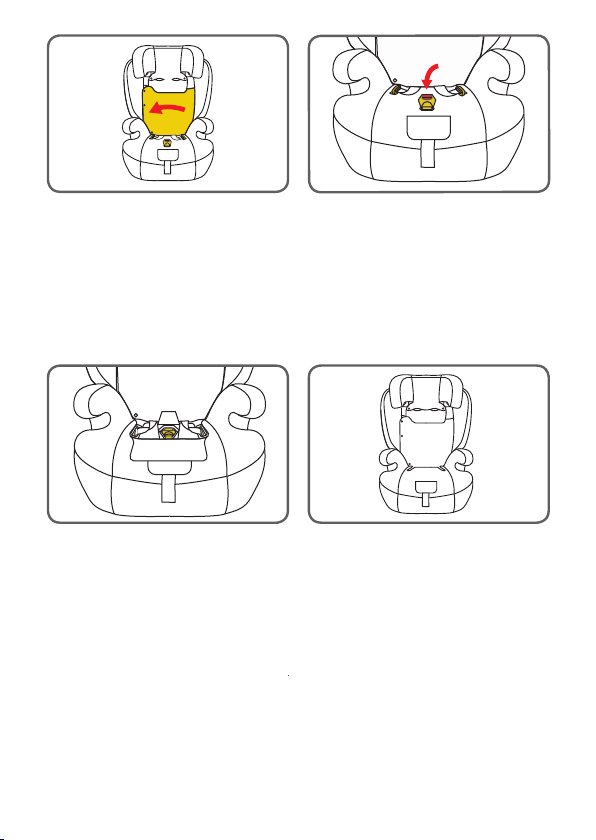

Flap back the cover on the backrest
cover, refasten the 3 snap fasteners
on the left hand side of this cover.
The metal buckle part of the 5-point
harness will also be stored in the base
of the seat. On the left and right hand
side of the seat base, there are 2 slots
under the cover. The buckle will slot
into these, ensure you insert the metal
part of the buckle in the slot first.
The buckle itself will be stored in the seat
base. In the centre of the seat base cover
there is a slot, lift this slot as well as the
foam padding underneath the cover.
This will reveal a gap in the base where
the buckle will slot in. Place the buckle
part into this slot and ensure the foam is
pushed back down over the top of the
buckle.
Fully tighten the harness by pulling the
harness adjustment strap, the strap can
be rolled up and placed in the slot
under the cover on the seat base.

12
5
7. INSTALLATION WITH ADULT SAFETY BELT
(100-150CM).
Place the child safety seat in the car
seat. Extend the car seat belt fully.
Forward Facing:
Child height 100cm-150cm
i-Size Booster seat
In order to adjust the headrest
height there is an adjustment
handle on the back of the
headrest.
Squeeze and pull the handle up to lift
the headrest up, or squeeze and push
the handle down to lower the headrest.
When adjusting the headrest, ensure it
is locked in position after adjustment,
you will hear it click.
WARNING:
√××
headrest
Shoulder
Please make sure the child’s head is positioned in the middle of the headrest.
Please make sure the headrest is locked when using this car seat.

13
Place your child in the seat. Adjust
the headrest to a suitable height.
Take the adult seat belt, feed the
diagonal belt through the shoulder belt
guide as shown above. Pull the belt
across the child as shown and then
take both the diagonal and lap belts and
pull under the armrest. The belt should
not be touching your child’s neck.
Insert the belt end into the buckle
until you hear an audible click.
Remove any slack from the seat
belt, always ensure it is not twisted.
click

14
Open the 3 snap fasteners, these
are on the left-hand side of the back
rest cover. Once opened, flap the
cover to the right.
8. REMOVE/INSTALL THE COVER
Remove the buckle pad and inner cushion. (see page 8)
On the backrest where the shoulder strap is connected to the backrest,
there is a loop, pull the loop down to create a bigger gap. Once the gap is
big enough, slide the shoulder pad through this gap.
Remove the headrest cover. To remove the backrest cover,
pull the cover off the seat,
starting from the bottom and
lifting upwards.
Open the 2 snap fasteners on
each shoulder strap pad.

15
9. MAINTENANCE
To reattach the cover, follow reverse instructions for removing the cover.

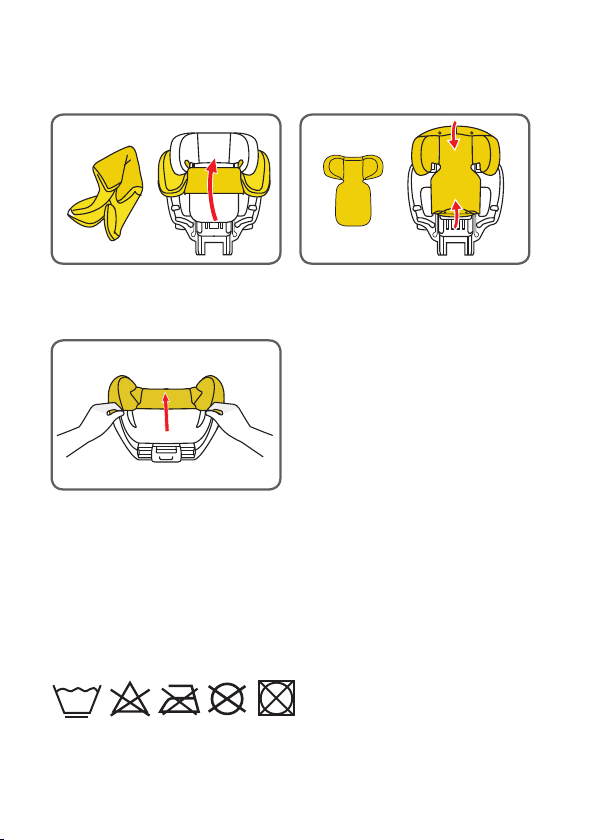

How to remove the seat cover for cleaning
To remove the cover from the
booster cushion, starting at the rear
of the seat, grip the fabric cover
and pull it off the seat.
To remove the backrest cover, pull
the cover off the seat, starting from
the bottom and lifting upwards.
First please disassemble the seat.
To remove the headrest cover,
unfasten the snap fasteners and pull
the cover over and off the headrest,
start at the base and lift upwards.
Cleaning cloth cover
The cover and plastic parts of the child seat can be cleaned with a wet cloth
using a mild detergent and warm water. Ensure no soap gets into the buckle
or adjusters. Do not use chemical cleaners or bleach on any part of the car
seat. Dry thoroughly before use.
30


CONTACT US
UK: Halfords Ltd, B98 0DE
www.halfords.com
ROI: Halfords c/o DWF, Dublin 1
www.halfords.ie
Item Code: 819222
This manual suits for next models
1
Table of contents
Popular Car Seat manuals by other brands

Jumbo
Jumbo honeybaby ECE R44/04 user manual

Chicco
Chicco KEYFIT Instructions for use

RECARO
RECARO Young Profi Plus Assembly and usage instructions

Thomashilfen
Thomashilfen RECARO Sport HERO Reha Instructions for assembly and use

Diono
Diono Everett NXT instruction manual

Chicco
Chicco BI-SEAT i-Size instruction manual
