DSCV1-70-TX
1-gang 4K Wall-plate Transmitter
User Manual
Version: V1.0.0

Hall Technologies June 3, 2022 Page 2 of 12
Important Safety Instructions
1. Do not expose this apparatus to rain, moisture, dripping or splashing and that
no objects filled with liquids, such as vases, shall be placed on the
apparatus.
2. Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Ensure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard due to overheating, do not
obstruct the unit’s ventilation openings with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
5. Do not place sources of naked flames, such as lighted candles, on the unit.
6. Clean this apparatus only with dry cloth.
7. Unplug this apparatus during lightning storms or when unused for long
periods of time.
8. Protect the power cord from being walked on or pinched particularly at
plugs.
9. Only use attachments / accessories specified by the manufacturer.
10. Refer all servicing to qualified service personnel.

Hall Technologies June 3, 2022 Page 3 of 12
Table of Contents
Introduction ............................................................................................................................... 4
Overview ............................................................................................................................. 4
Features .............................................................................................................................. 4
Package Contents .............................................................................................................. 5
Specifications .................................................................................................................... 6
Panel Description ............................................................................................................... 8
Wiring ......................................................................................................................................... 9
RS232 Pass-Through .............................................................................................................. 11

Hall Technologies June 3, 2022 Page 4 of 12
Introduction
Overview
This product is a 1–gang wall-plate transmitter. It supports resolutions up to 4K@60 4:2:0 8bit,
and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable
and up to 40m/131ft via a single Cat 6a/7 cable. With one-way PoH function, the transmitter can
be powered by the receiver with PSE module. The transmitter also features USB pass-through
and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232
port.
Features
! HDMI 1.4 with 4K@60Hz 4:2:0 8bit and HDCP 2.2 compatibility.
! Supports signal transmission up to 35m/115ft for 4K and 60m/197ft for 1080P via a single
Cat 5e/6 cable.
! Supports signal transmission up to 40m/131ft for 4K and 70m/230ft for 1080P via a single
Cat 6a/7 cable.
! Supports one-way PoH, the transmitter can be powered by the receiver with PSE module.
! Supports USB pass-through and RS232 pass- through via HDBT port.
! Supports firmware upgrade through RS232 port and can be set through the DIP switch.

Hall Technologies June 3, 2022 Page 5 of 12
Package Contents
! 1 x Transmitter
! 1 x Phoenix Connector (3.5mm, 2 Pins)
! 1 x Phoenix Connector (3.5mm, 3 Pins)
! 1 x 1–Gang US Socket Cover, White (with Screws)
! 1 x User Manual

Hall Technologies June 3, 2022 Page 6 of 12
Specifications
Technical
Input/Output Port
1 x HDMI IN, 1 x HDBT OUT, 1 x RS232, 1 x USB HOST, 1 x DIP
Switch, 1 x DC 12V IN (2-Pin Phoenix Connector)
Input/Output
Resolution Supported
VESA:
800x6008, 1024x7688, 1024x7688, 1280x7688, 1280x8008,
1280x9608, 1280x10248, 1360x7688, 1366x7688,
1400x10508, 1440x9008, 1600x9008, 1600x12008,
1680x10508, 1920x12008
SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,
3840x21602,3,5,6,8, 4096x21602,3,5,6,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 =
at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
NOTE:
4096x2160/3840x2160@50Hz/60Hz is based on chroma sub-
sampling 4:2:0 8-bit only
Input/Output Audio formats
Supported
HDMI: Supports multi-channel audio formats, including PCM
2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
and DTS:X
AUDIO OUT: Stereo
Maximum Data Rate
10.2Gbps
Maximum Pixel Clock
340MHz
General
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing

Hall Technologies June 3, 2022 Page 7 of 12
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply
DC 12V 2A, with PoH function, the transmitter can be
powered by the receiver with PSE module
Power Consumption (Max)
13.44W
Device Dimension
(W x H x D)
45mm x 45.3mm x 105.6mm/ 1.77” x 1.78” x 4.16”
Product Weight
0.16kg/0.35lb
Transmission Distance
Note: T568B straight-through Category cable is recommended.
Cable Type
Range
Supported Video
Cat 5e/6
60m/197ft
1080P@60 36bpp
Cat 6a/7
70m/230ft
Cat 5e/6
35m/115ft
4K@30Hz 4:4:4 24bpp
4K@60 4:2:0 24bpp
Cat 6a/7
40m/131ft

Hall Technologies June 3, 2022 Page 8 of 12

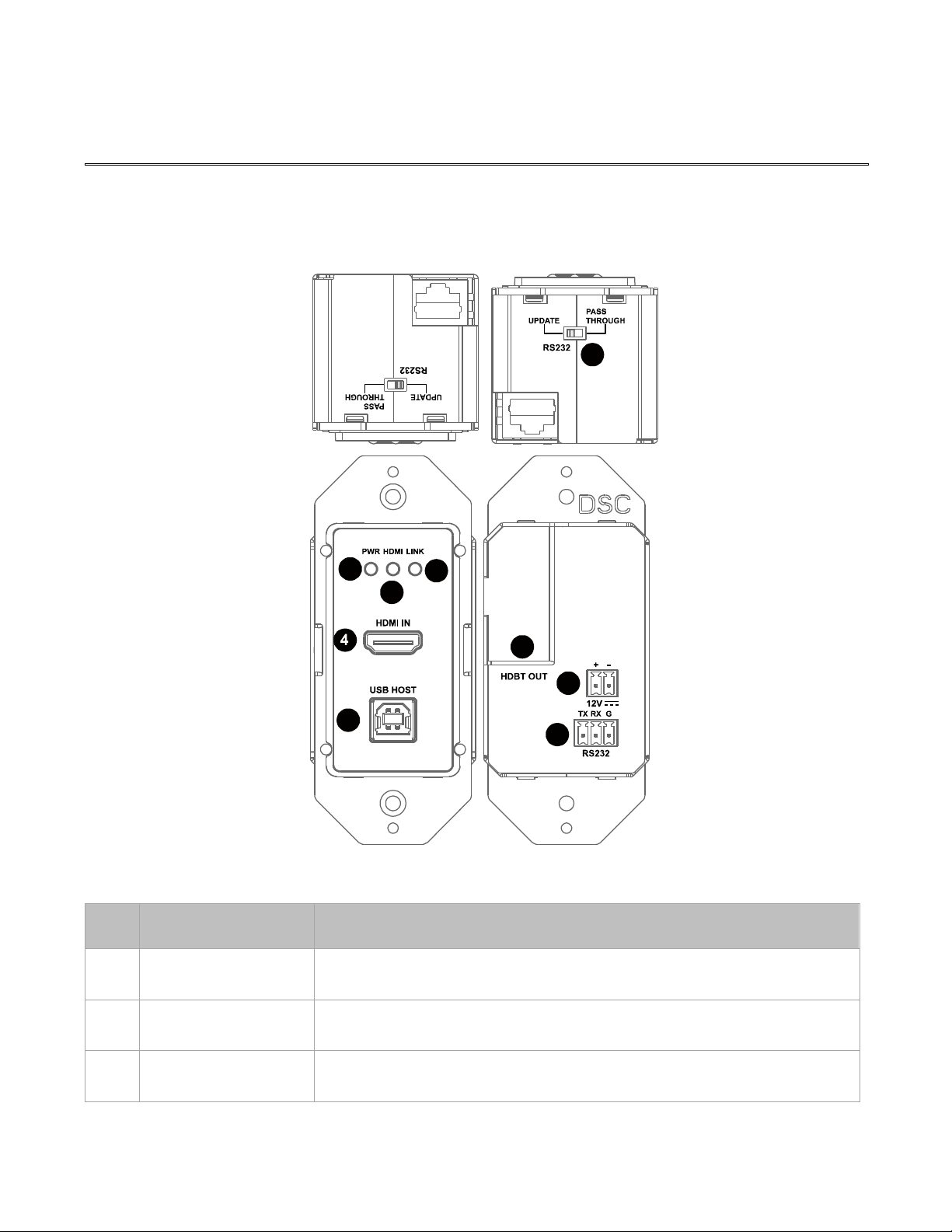

Panel Description
Transmitter
ID
Name
Description
1
POWER LED
!
On: The device is powered on.
! Off: The device is powered off.
2
HDMI LED
! On: HDMI input signal is active.
! Off: No HDMI signal input.
3
LINK LED:
! On: HDBT link is normal.
! Blinking/Off: No HDBT link or link error.
13
5
6
2
7
8
9

Hall Technologies June 3, 2022 Page 9 of 12
ID
Name
Description
4
HDMI IN
Connect to an HDMI source device.
5
USB HOST
Connect USB host PC.
6
HDBT OUT
Connect to the HDBT receiver.
7
DC 12V
12V reserved power supply. Connect to a DC 12V power
adapter. With one-way PoH function supported, the transmitter
can be powered by the receiver with PSE module.
8
RS232
Connect to a RS232 enabled device for RS232 pass-through or
firmware upgrade.
9
RS232 DIP Switch
Set the function of RS232 port.
PASS-THROUGH: The RS232 port is used to commands pass-
through via HDBT. Users can use API command to upgrade its
MCU firmware in this mode.
UPDATE: The RS232 port is used to upgrade Valens firmware.
Wiring
Wiring
Warnings:
! Before wiring, disconnect the power from all devices.
! During wiring, connect and disconnect the cables gently.
Steps for device wiring:!
1. Connect HDBT OUT port of the transmitter to HDBT IN port of the receiver (such as DSCV-
70-RX) via a single Cat 5e/6/6a/7 cable.
Note: Ensure that the Cat x cable length doesn’t exceed the maximum transmission distance
(please refer to “Specification” section to get the maximum transmission distance).
2. Connect an HDMI source to HDMI IN port of transmitter.
3. Connect an HDMI display to HDMI OUT port of receiver.
4. Connect additional functions options.
• USB pass-through: Connect USB host PC to HOST port of the transmitter and connect
USB devices such as keyboard and mouse to USB DEVICE ports of the receiver. The

Hall Technologies June 3, 2022 Page 10 of 12
connected USB devices can be connected to the host PC.
• RS232 pass-through: Set the DIP switch of the transmitter to PASS-THROUGH
position, connect a RS232 enabled device such as a PC to RS232 port of the
transmitter and receiver respectively.
5. Connect the provided DC 12V power adapter to the receiver.
Note: With one-way PoH function supported, the transmitter can be powered by the receiver
with PSE module, no additional power adapter is needed to be connected to the transmitter.
6. Power on all attached devices.
TV Keyboard&Mouse
HDMI IN
HDMI OUT
Transmitter
Receiver
PC
USB
USB
USB
Cat x
Interactive Whiteboard

Hall Technologies June 3, 2022 Page 11 of 12
RS232 Pass-Through
RS232 ports can be used for bi-directional RS232 signal pass-through between the transmitter
and receiver. Set the DIP switch of the transmitter to the position of PASS-THROUGH. Connect
RS232 enabled devices (such as PC) to RS232 ports of the transmitter and receiver. Before
executing the API commands through RS232, please ensure RS232 interface of the device and
the connected PC are configured correctly. RS232 default settings are as follows:
Parameters
Value
Baud Rate
115200 bps
Data bits
8 bits
Parity
None
Stop bits
1 bit
Flow control
None
Note: In Pass-through mode, API commands also can be sent to the transmitter from transmitter
side or receiver side to change baud rate, get its firmware version or upgrade its MCU, etc.
(please refer to the separate document “API Command Set DSCV1-70-TX” to get detail
commands information).
Pins and wiring figures are as follows:
Cat x
RS232 Device
RS232Cable
RS232Cable
Receiver
Transmitter
RS232 Device
GRXTX
GNDTXRX
RS232 Port
Connected RS232
Device Pins
GRXTX
GNDTXRX
RS232 Port
Connected RS232
Device Pins
GRXTX
GNDTXRX
RS232 Port
Connected RS232
Device Pins
