HALSEY TAYLOR OWNERS MANUAL
CONTOURTM Series Electronic Eye Barrier-Free Water Coolers
Refrigerated Fountains with Back Panel

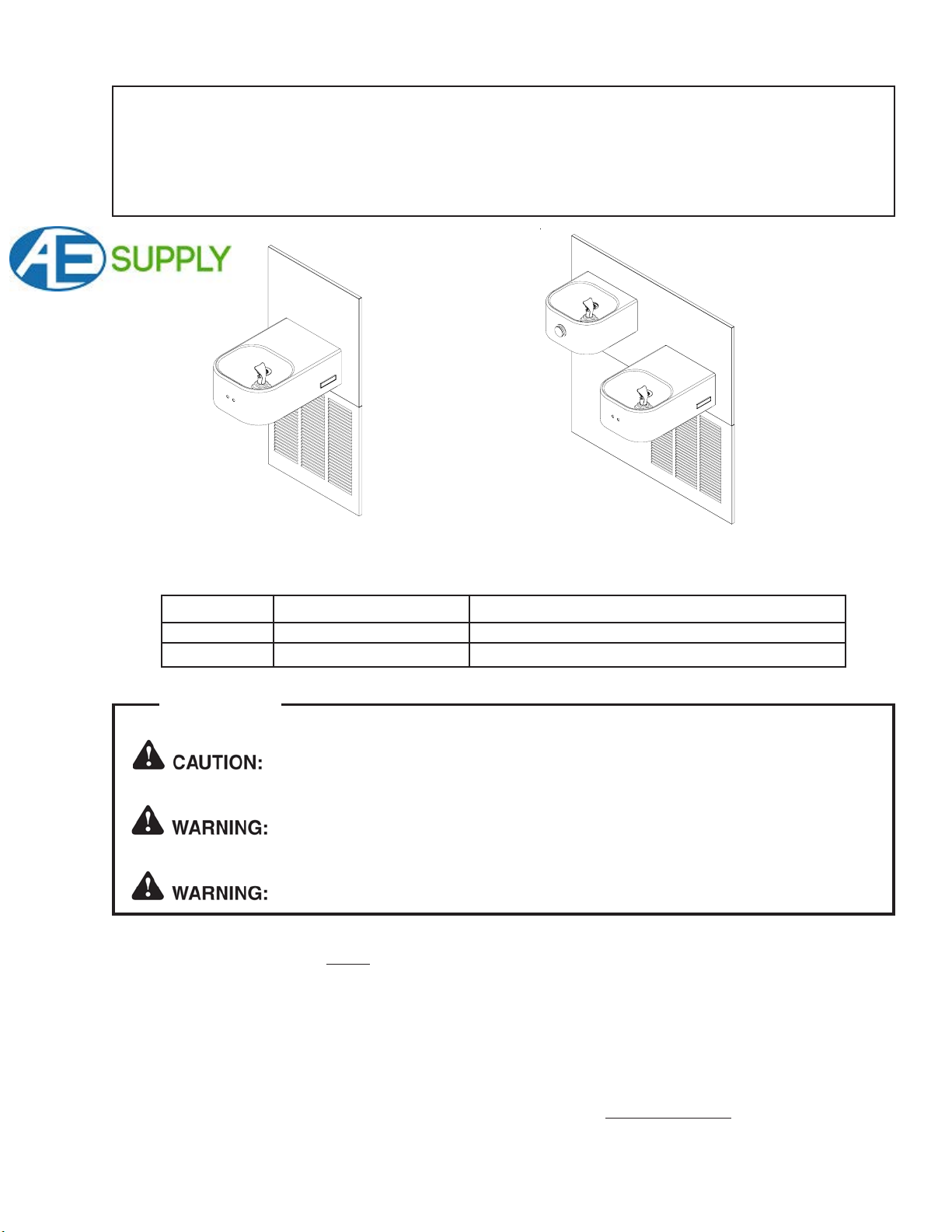

Fig.1 – HRFER-EE-Q
Figure
1
2
Model
HRFER-EE-Q
HRFSER-EE-Q
Description
Contour Series - Extended Reach
Contour Series - Dual Installation
Reviewtheseinstructionsbeforebeginninginstallation.Besurethatinstallation
conformsto all plumbing, electrical andother applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
providedinsidetheinstalledunitforfuturereference.
Serviceto be performed by authorizedservicepersonnelonly.
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices to
available water lines. This can, however, cause electrical feedback in the plumbing circuit, which results in an
“electrolysis” effect occurring in the fountain. This may result in water which has a metallic taste to it or has a
noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the installation,
and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation. Any drain
fittings provided by the installer should be made of plastic which will electronically isolate the fountain from the
remainder of the building’s plumbing circuits.
Fig. 2 – HRFSER-EE-Q

2
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
97880C - 2/05
Figure 3 – Water Supply Connections
Installation Package
The components for installation are packed in three
separate boxes, regardless of the type of unit being
installed. The boxes contain the following:
Box No. 1: Wall Frame(s)
Box No. 2: Remote Chiller, SJ8-Q
Box No. 3: Fountain(s), Arm(s) and Panels
Additional materials, as noted in the Parts List, are also
shipped in these boxes.
Number Required
26837C
26839C
26833C
27026C
55001035
27624C
55000661
55000665
100322740560
111008343890
111577243890
111577343890
112627543890
15005C
22525C
27057C
27240C
31375C
31376C
31384C
38417001
40045C
45662C
45663C
50203C
50986C
51409C
51544C
55905C
56082C
56092C
56159C
61313C
70016C
70208C
70682C
70683C
70817C
70989C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
PartsList
UpperPanel(HRFER-EE)
UpperPanel(HRFSER-EE)
LowerPanel (HRFER-EE)
LowerPanel (HRFSER-EE)
Standard Reach Arm
Extended ReachArm (EE)
Bottom Cover - Standard Reach
Bottom Cover - Extended Reach (EE)
Bubbler Gasket
Screw #10-24 x .62 HHMS
Screw 5/16-18 x .75
Hex Nut 5/16-18
Screw #10-24 x .50 PHTC
RegulatorRetaining Nut
Regulator Mounting Bracket
Regulator Mounting Bracket
Support Bracket
Solenoid Valve Assy.
Power Cord
Sensor Assy.
Screw #8-18 x .37 HHSM
Hex Nut
Push Button
Push Button Sleeve
Strain Relief Bushing
Regulator Holder
Spacer
Bubbler
Bubbler - EasyFlex (Option)
RegulatorNut
Poly Tubing 1/4” (Cut To Length)
BubblerNipple
Regulator - W/Red Spring
Nut
Screw
Fitting - Tee 1/4”
Fitting - Union 1/4”
Fitting - Elbow 1/4”
Ground Screw #8-36 x .37
Item Part No. Description HRFER-EE-Q See
Fig.
1
-
1
-
-
1
-
1
2
4
4
4
7
-
1
-
1
1
1
1
2
1
-
-
1
1
2
1
1
1
1
1
1
2
2
-
1
1
1
11, 22
11, 22
13, 22
13, 22
22
22
22
22
19
5, 8
5, 8
5, 8
22
20
21
20
21
18
18
21
5, 8
20, 21
20
20
21
20, 21
21
19
19
26
15, 16
19
20, 21
21
21
16
15
18
18
-
1
-
1
1
1
1
1
4
5
8
8
12
1
1
1
1
1
1
1
2
4
1
1
1
2
2
2
2
1
1
2
2
2
2
1
-
1
1
HRFSER-EE-Q
NOTE:WATERFLOW
DIRECTION
BUILDINGWATER
INLET
SERVICESTOP
(NOTFURNISHED)
1/4"O.D.TUBE
WATERINLET
TOCOOLER
3/8"O.D.UNPLATED
COPPERTUBECONNECT
COLDWATER SUPPLY

397880C - 2/05
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
Parts List Continued
75507C
75672C
LK464
45336C
45784C
45796C
50074C
72001527
55996C
75674C
36
37
38
39
40
41
42
43
44
N-S
Fitting- 1/4”NPTF
Cap Screw #6-32 x .25
Drain Assy. (Includes items 39 thru 43)
Strainer & Ferrule Assy.
Drain Trap
Fitting - Elbow 1/4”
Tailpipe Gasket
Rubber Washer
Strainer (Supplied with Chiller)
Allen Wrench 7/64
Item Part No. Description See
Fig.
2
-
1
1
1
1
1
1
1
1
18
20
22
22
22
22
22
22
15, 16
-
2
1
2
2
2
2
2
2
1
1
HRFER-EE-Q HRFSER-EE-Q
N-S means not shown

4
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
97880C - 2/05
5/16" SCREWS OR BOLTS
(12 REQ'D - NOT FURNISHED)
FRAME
5/16" HEX NUT
(4 REQ'D - PROVIDED)
P/N 111577343890
BOLT FRAMES TOGETHER
WITH 5/16" x 3/4" (19mm) BOLTS
(4 REQ'D - PROVIDED)
P/N 111577243890
INSTALL (3) SCREWS
(P/N 111008342890) IN FRAME
BEFORE INSTALLING IN OPENING
SCREWS OR BOLTS
(NOT PROVIDED)
HOOK RODS (2)
P/N 101567442730
CHILLER SHELF
P/N 27638C
Figure 4 – HRFSER-EE-Q Rough-In
Figure 5 – Rough-In Assembly
Dual-Station Mounting Frame
Models
HRFSER-EE-Q
1. Cut a rectangular wall opening 37-1/2” (953 mm) W x
37-3/4” H (959 mm) and 4-1/2” (114 mm) above the floor line
(see Figure 5). The dimensions are required to obtain proper
rim and bubbler heights for compliance with ANSI standard
A117.1.
2. Reinforce the wall opening on all sides to adequately
support the water fountain. This reinforcement must support
up to 150 lbs. static load and provide a means for securing
the frame assembly in place.
NOTE: Building construction must allow for adequate air
flow on both sides and top of remote chiller unit a
minimum of 4” (102 mm) is required.
3. Install plumbing and electrical rough-ins. A junction box
for a (3) wire, 10 amp branch circuit is provided on the
inside of the chiller. (Standard 120 Volts, 60 Hz, and single
phase.)
4. Remove frames and related hardware from packaging.
Release the two shelf rods by cutting cable ties. Attach the
two frames together through the upright supports with (4)
5/16” x 3/4” (19 mm) long bolts and nuts (provided). Tighten
securely.
15
18

597880C - 2/05
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
5. Install the frame assembly squarely in wall opening
with frame upright support edges flush with the finished wall
face. Secure the frame to the wall through holes with (12)
5/16” bolts or screws (not provided). Tighten securely.
NOTE: Be sure that frame is squared in location. Do not
use less than required screw quantity and size.
6. Attach the chiller shelf support rods to the right side of
the frame uprights at the second set of holes counting from
the bottom and to the shelf at the (2) side holes. Line up the
other shelf holes with the frame bottom holes and fasten the
assembly to the wall opening using appropriately sized
screws or bolts and nuts (not provided).
MODEL HRFSER-EE-Q
FINISHED FLOOR
18"
457mm
5/8"
16mm
12 1/4"
311mm
12"
305mm
1"
25mm
11"
279mm
18 3/4"
476mm
9 3/8"
238mm
1 1/8"
29mm
3 1/8"
80mm
MINIMUM DEPTH BACK WALL LINE
WALL LINE
5 5/8"
143mm
D
C
A
B
FLEXIBLE CONDUIT
(BY OTHERS)
E
4 1/2"
114mm
8"
203mm
31 1/4"
793mm
37 1/4"
945mm
27"
685mm
ADA
REQUIREMENT
33"
838mm
HRF-SR
33 1/2"
850mm
HRF-EE
1 1/2"
38mm
39 1/2"
1003mm
HRF-SR
1 1/2"
38mm
Legend
Item Description
A 1/4” O.D. Tube - Water Outlet Connection
B 3/8” O.D. Tube - Water Inlet Connection
C 1-1/4” O.D. Waste Tube
D Electrical Inlet on Chiller
E Electrical Outlet Location. Additional UL/CSA listed grounded outlet (By others)
required for 115 Volt, 60Hz.

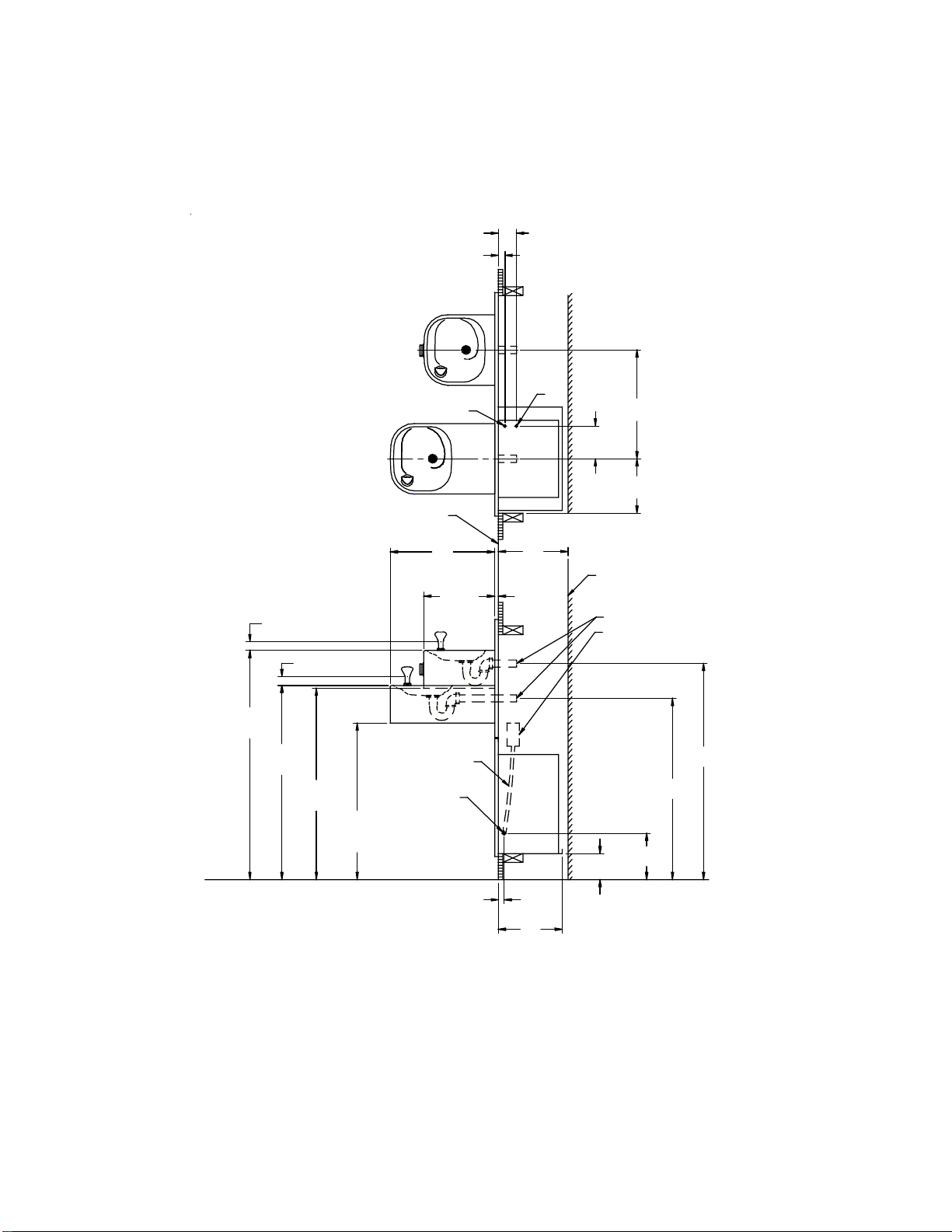

Figure 6 – HRFSER-EE-Q Rough-In Dimensions

6
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
97880C - 2/05
CHILLER SHELF
P/N 27638C
HOOK RODS (2)
P/N 101567443730
INSTALL (2) SCREWS
(P/N 101008343890) IN FRAME
BEFORE INSTALLING IN OPENING
5/16" SCREWS OR BOLTS
(10 REQ'D - NOT PROVIDED)
FRAME
SCREWS OR BOLTS
(NOT PROVIDED)
Figure 7 – HRFER-EE-Q Rough-In
Figure 8 – Rough-In Assembly
Single-Station Mounting Frame
Models
HRFER-EE-Q
1. Cut a rectangular wall opening 18-3/4” (475 mm) W x
37-3/4” H (959 mm) and 4-1/2” (114 mm) above the floor line
(see Figure 8). The dimensions are required to obtain proper
rim and bubbler heights for compliance with ANSI standard
A117.1.
2. Reinforce the wall opening on all sides to adequately
support the water fountain. This reinforcement must support
up to 150 lbs. static load and provide a means for securing
the frame assembly in place.
NOTE: Building construction must allow for adequate air flow
on both sides and top of remote chiller unit.
Minimum of 4” (102 mm) is required.
3. Install plumbing and electrical rough-ins. A junction box
for a (3) wire, 10 amp branch circuit is provided on the
inside of the chiller. (Standard 120 Volts, 60 Hz, and single
phase.)
4. Remove frame and related hardware from packaging.
Release the two shelf rods by cutting cable ties.
15
18

797880C - 2/05
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
FINISHED FLOOR
18"
457mm
HRF-EE
5/8"
16mm
12"
305mm
1 1/8"
29mm
3 1/8"
80mm
5 5/8"
143mm
9 3/8"
238mm
1"
25mm
11"
279mm
D
C
MINIMUM DEPTH
WALL LINE
BACK WALL LINE
A
B
FLEXIBLE CONDUIT
(BY OTHERS)
E
4 1/2"
115mm
8"
204mm
31 1/4"
794mm
27"
686mm
ADA
REQUIREMENT
33 1/2"
851mm
1 1/2"
38mm
5. Install the frame squarely in wall opening with frame
upright edges flush with the finished wall surface. Place
shelf inside frame and line up the (2) holes on each. Insert
loose ends of rods into holes on sides of shelf panel. Using
appropriately sized screws or bolts (not provided), fasten
the shelf and frame to the bottom of wall opening.
Secure the frame sides and top to the wall opening using
(10) 5/16” bolts or screws (not provided).
NOTE: Be sure that frame is squared in location. Do not
use less than the required screw quantity and
size.
MODEL HRFER-EE-Q
Legend
Item Description
A 1/4” O.D. Tube - Water Outlet Connection
B 3/8” O.D. Tube - Water Inlet Connection
C 1-1/4” O.D. Waste Tube
D Electrical Inlet on Chiller
E Electrical Outlet Location. Additional UL/CSA listed grounded outlet (By others)
required for 115 Volt, 60Hz.
Figure 9 – HRFER-EE-Q Rough-In Dimensions

8
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
97880C - 2/05
7. Install fountain. Remove bottom access panel on
underside of fountains and SAVE the screws. Mount
the fountains to the upper panel and frame with
(4) 5/16” x 3/4” (19mm) long bolts and nuts provided.
Tighten securely.

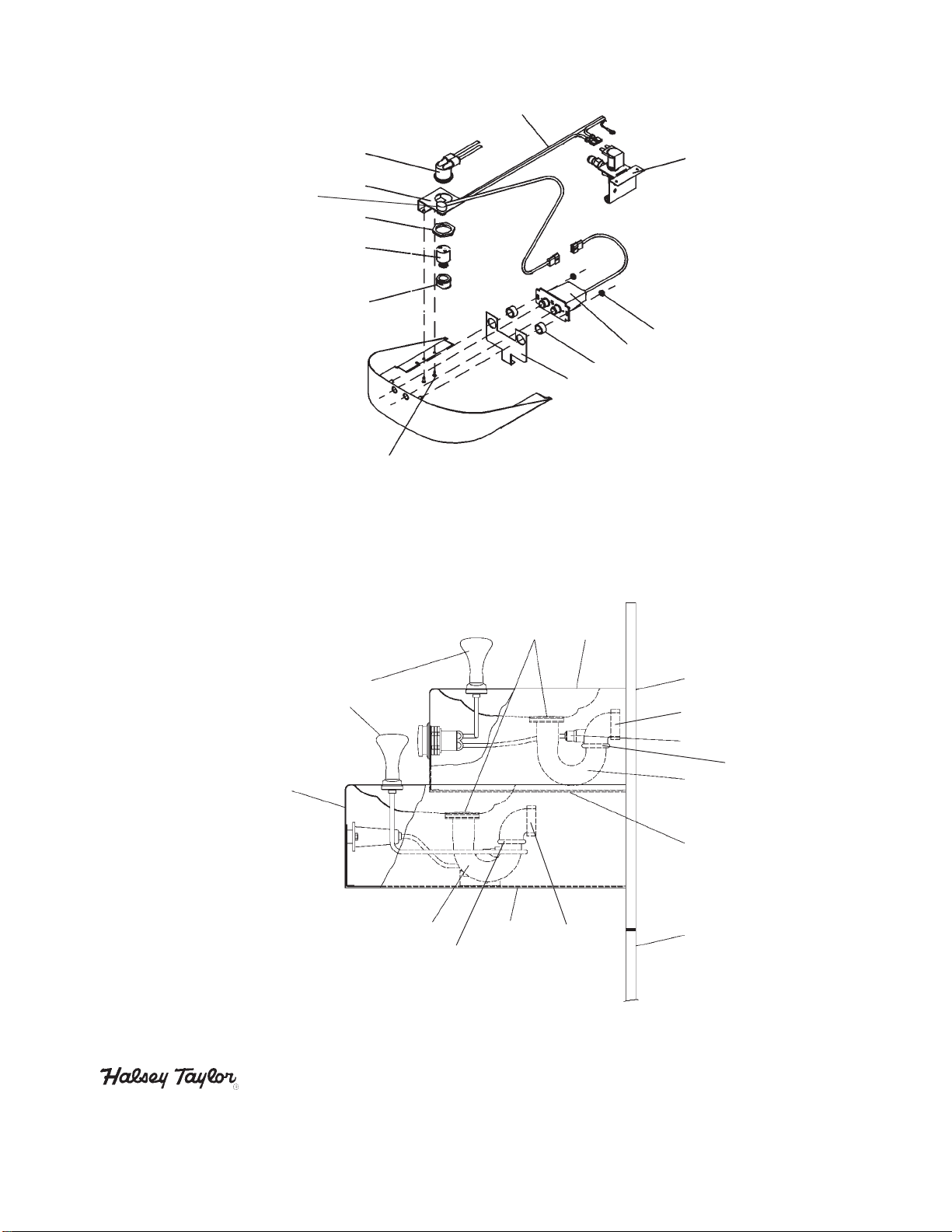

Figure 12 – Fountain Installation
Figure 11 – Upper Panel Installation
8. Connect the fountain drain waste tube to the building
sanitary sewer system. Connection should be made in
compliance with local plumbing code requirements. (Note:
Plumbing trap is not included with the fountain).
9. Make connection between solenoid valve assembly
and fountain(s). Insert the 1/4” poly tubing coming from the
fountain with sensor into the solenoid valve. Insert the 1/4”
poly tubing coming from the fountain with push button into
the tee (See Figs. 15 & 16).
10. Connect power cord of sensor to solenoid valve by
running it through the back panel and connecting it
as shown in Fig. 18. Connectors may be connected to
either terminal on solenoid valve. Attach ground wire to
solenoid valve bracket with green ground screw.
3. Attach solenoid valve assembly to the underside of
cross member of mounting frame on electronic
sensor unit. (See Figs. 5 and 8).
4. Make water supply connections. Inlet port is marked on
the chiller (1/4” O.D. copper tube). Bend the copper tube
(provided) at an appropriate length from the chiller to opening
in frame. Install the in-line strainer (provided with chiller) by
pushing it in until it reaches a positive stop, approximately
3/4” (19mm) on the marked chiller inlet port (See Figs. 15 &
16). Attach an unplated and deburred copper water inlet line
and a service stop (not provided) to the chiller. Turn on the
water supply and flush the line thoroughly.
5. Make connection between remote chiller outlet tube
and solenoid valve assembly. Outlet port is marked on
the chiller (1/4” O.D. copper tube). Install a 1/4” union/tee
(provided) on the marked chiller outlet port. Insert one end of
1/4” poly tubing into the union/tee and the other end into the
straight fitting on the solenoid valve assy (See Figs. 15 & 16)
6. Hang the upper panel on the mounting frame hanger.
Align holes in the panel with the holes in the mounting frame.
Be sure that panel is engaged with hanger at top of frame
before releasing it.
Special Tools
Item Description Quantity
None
Item Description Quantity
Additional Materials
1 Unplated copper inlet pipe
REQUIREDTOOLSAND MATERIALS
These tables show special tools and/or additional materials (not
provided) which are necessary to complete installation of these
units:
HRFER-EE-Q/SER-EE-QINSTALLATION
1. Assemble and place frame in wall as shown on preceding
pages.
2. Install chiller: Remove front panel of chiller. Remove and
discard cardboard inner pack from between
compressor and side panel. Slide chiller onto the shelf
and position it to the left on the shelf.
NOTE: Building construction must allow for adequate air
flow on both sides, top and back of chiller. A
minimum of 4” (102mm) on both sides and top is
required. See chiller installation for additional
instructions.
2 Service Stop
Figure 10 – Chiller Installation
Note: With the HRFSER-EE-Q model, the standard reach
fountain must be mounted at the upper position on
panel.

997880C - 2/05
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
DO NOT SOLDER tubeswhile
inserted into the strainer as
damage to o-rings may result.
12. These products are designed to operate on 20-105
PSIG supply line pressure. If inlet pressure is above 105
PSIG, a pressure regulator must be installed in the supply
line.
Any damage caused by connecting
these products to a supply line with
pressure lower than 20 PSIG or
higher than 105 PSIG IS NOT
covered under warranty.
13. Make electrical connections to the chiller. See chiller
instructions.
14. Check stream height from bubbler. Stream height is
factory set at 35-40 PSI. If supply pressure varies greatly
from this, please do the following. For Pushbutton units
only, adjust the screw on regulator (Item 29) by using a
small screwdriver through the small hole in the push button
(Item 20). See Figure 20. Clockwise adjustment will raise
stream height and counterclockwise movement will lower
stream height. For Electronic sensor units only, remove
bottom access panel and turn adjustment screw on the
regulator (Item 29 - Fig. 21). Clockwise adjustment will raise
stream height and counterclockwise movement will lower
stream height. For best adjustment, stream height should be
approximately 1-1/2” (38mm) above the bubbler guard. (See
Figure 14).
15. Mount lower panel. Loosen the two (2) #10-24 x 5/8”
(16mm) screws at frame bottom lip. Slide upper tongue of
lower panel under lower edge of already installed upper
panel. Tighten previously loosened screws securely.
16. Replace bottom access panel to fountain basin using
screws provided. Tighten securely.
Figure 13 – Lower Panel Installation
Figure 15 – HRFER-EE-Q Tube Routing
Figure 14 – Stream Height
Figure 16 – HRFSER-EE-Q Tube Routing
CHILLER
INLET
44
27
CHILLER
OUTLET
33
27 - TO
BUBBLER
CHILLER
INLET
44
27
CHILLER
OUTLET
32
27 - TO
BUBBLER
27
27
11. Turn on water supply and check for leaks. Release air
from tank by interrupting infrared beam; a steady stream of
water assures all air is removed. The sensor has a 30
second maximum ON time. It may be necessary to step away
from beam a few times to allow chiller tank to fill.
27

10
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
97880C - 2/05
TROUBLESHOOTING&MAINTENANCE
Orifice Assembly: Mineral deposits on orifice can cause water
flow to spurt or not regulate. Mineral deposits may be removed
from the orifice by poking with a small round file not over 1/8”
diameter, or using a small diameter wire.
DO NOT file or cut orifice material.
Stream Regulator: If orifice is clean, regulate flow as in Step 14
of the installation instructions. If replacement is necessary, see
parts list for correct regulator part number.
Actuation of Quick Connect Water Fittings: Cooler is
provided with lead-free connectors which utilize an o-ring
water seal. To remove tubing from the fitting, relieve water
pressure, push in on the gray collar while pulling on the tubing
(See Figure 17). To insert tubing, push tube straight into fitting
until it reaches a positive stop (approximately 3/4”).
Cleaning of Aztec Gold Models
requires special care. Outer
surfaces must be cleaned with mild
detergent or a mixture of vinegar
and water only, rinsed and wiped
dry. Abrasive and acidic cleaners
may eventually damage the Aztec
Gold finish.
Figure 20 – Push Button/Regulator Assembly
Sensor Control: The sensor has a 2 second delay time. If
sensor fails to operate valve mechanism or operates
erratically, check the following:
a) Ensure there are no obstructions within a 40 inch radius from
the front of fountain.
b) Check wire connections at the solenoid valve and at the
sensor. CAUTION: Make sure unit is unplugged before
checking any wiring.
c) Ensure proper operation of solenoid valve. If there is an
audible clicking sound yet no water flows, look for a
obstruction in the valve itself or elsewhere in the water
supply line. WARNING: Do not expose sensor to direct
sunlight.
Sensor Range Adjustment: The electronic sensor used in
this fountain is factory pre-set for a “visual” range of 36 inches. If
actual range varies greatly from this, or a different setting is
desired, follow the range adjustment procedure below:
a) Remove bottom cover of fountain.
b) Remove sensor by removing washers and nuts that secure
sensor on studs.
c) Locate range adjustment screw between the red lenses of
the sensor, then with a small tip screwdriver, rotate the range
adjusting screw clockwise to increase range or counter-
clockwise to decrease range. 1/4 turn of screw is equal to
approximately 12 - 18 inches of range. CAUTION: Complete
range of sensor (24 - 46 inches) is only one turn of the
adjusting screw.
d) Remount sensor on studs and replace bottom cover.

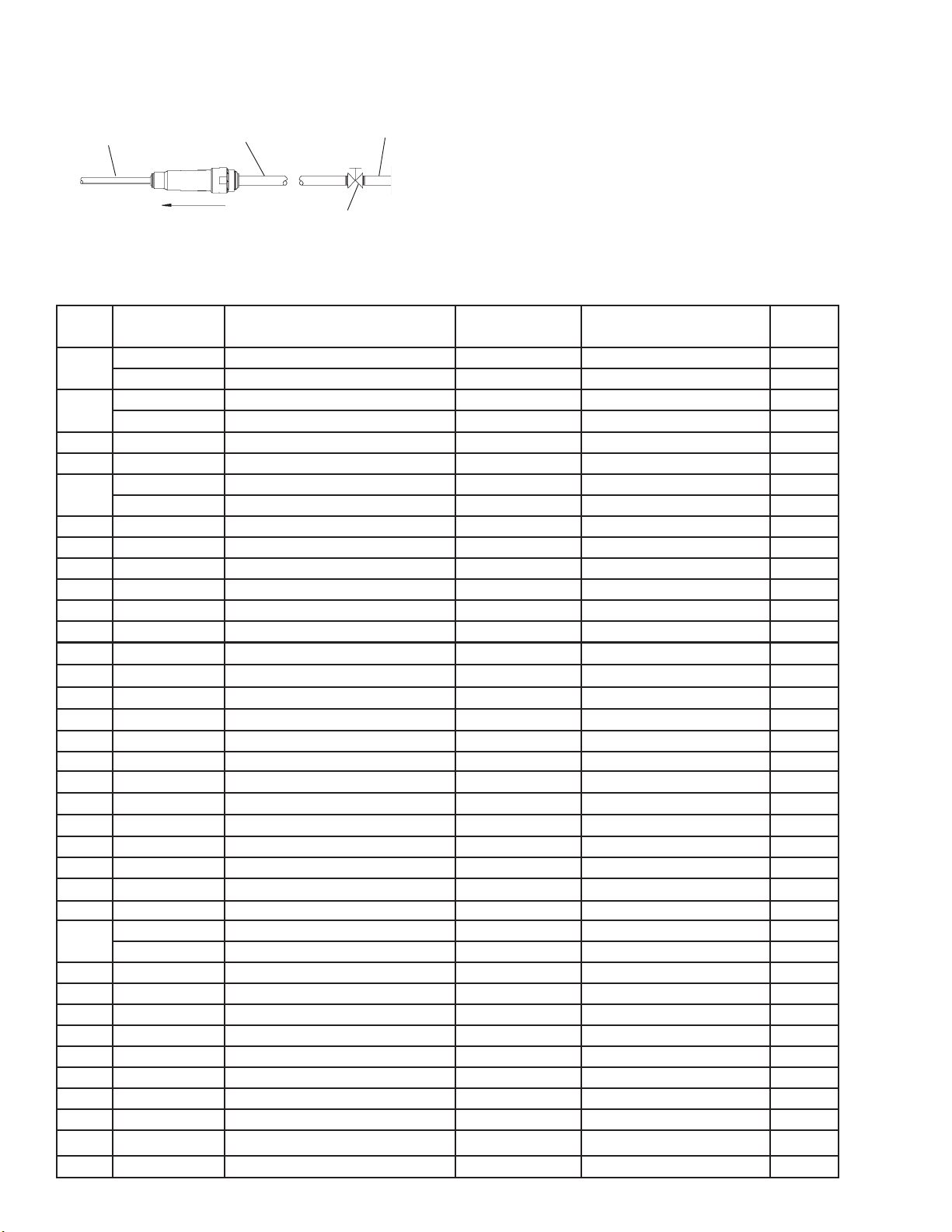

Figure 17 – Quick Connect Fittings
11
19 29 23
37 13
20 21
Figure 18 – View of Solenoid Valve
15
16
34
35
Connect To
Sensor Assy.
Figure 19 – View of Bubbler Assembly
36
25
6
6
28

11 97880C - 2/05
HRFEREEQ*C HRFEREEQ*2C HRFSEREEQ*C
Figure 22 – Fountain Assembly - Side View
Figure 21 – Electronic Sensor Fountain Assembly
2222CAMDEN COURT
OAKBROOK,IL60523
630.574.3500
PRINTEDINU.S.A.
40
25 - See Fig. 19
30
15
16
23
12
19
29
26
31
5, 10
40
44
1
3
39, 42
4
17
24
14
2
5, 10
22
41
43
43 41
