Haltian Thingsee LEAKAGE RUGGED Manual

User and Installation Guide
LEAKAGE RUGGED
v.21.01

Welcome to use Thingsee IoT Solution Suite
Congratulations on choosing Haltian Thingsee as your IoT solution.
We at Haltian want to make IoT easy and accessible for everyone, so
we have created a solution platform that is easy to use, scalable and
secure. I hope our solution will help you achieve your business goals!
Pasi Leipälä
CEO, Haltian Oy

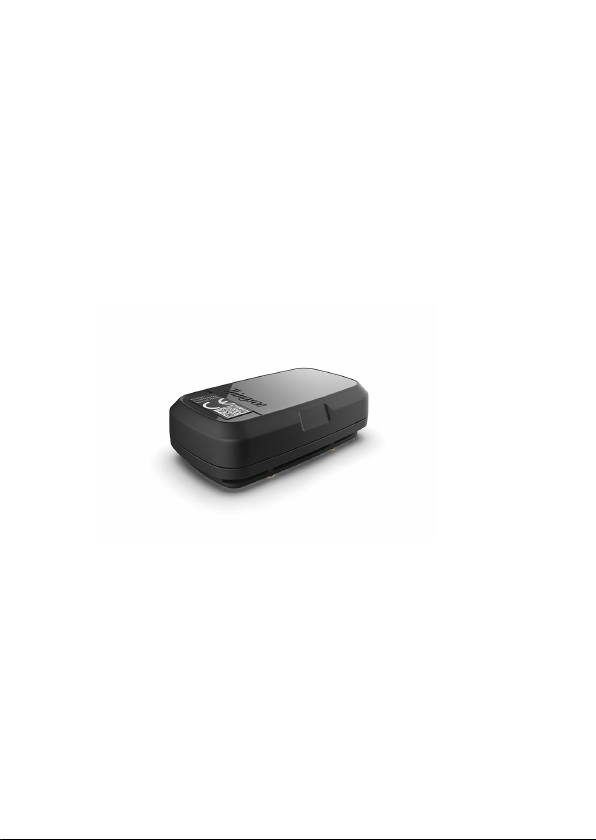

Thingsee LEAKAGE RUGGED
Thingsee LEAKAGE RUGGED is a wireless IoT sensor for harsh
environments that can detect even the smallest of leakages. As IP67
approved product, it can be used to identify water leakages and
measure other environmental factors in extreme conditions such as
factories, industries and even outdoors.
Thingsee LEAKAGE RUGGED is part of Haltian Thingsee IoT solution and
product family.

Thingsee LEAKAGE RUGGED detects liquid underneath the device. The
sensor detects a solid water layer between the two detection pins at
the bottom of the device. The product is placed on the floor or place of
potential leakage risk pins down.
The sensor can be used for leakage detection on floors, flat surfaces
and pipes where flooding, leakage or even condensed water may take
place.
Sales package content
• Thingsee LEAKAGE RUGGED sensor
• Magnetic switch
• User guide
Using Thingsee LEAKAGE RUGGED sensor
Thingsee LEAKAGE RUGGED uses event based messaging where
measurement is done every 30 seconds. In case there is a change to the
previous measurement, the measured value will be reported
immediately. In case the measurement value remains the same, it’s
reported once in every 1 hour.
Please note that the measurement values highly depend on the liquid
in question: for example, clean tab water and salty sea water give
dierent values. We recommend the location to be checked for
leakages every time a high decrease of the measurements value is
observed.

General installation instructions
Install the sensor on the floor or surface where leakages, moisture or
flooding is a concern.

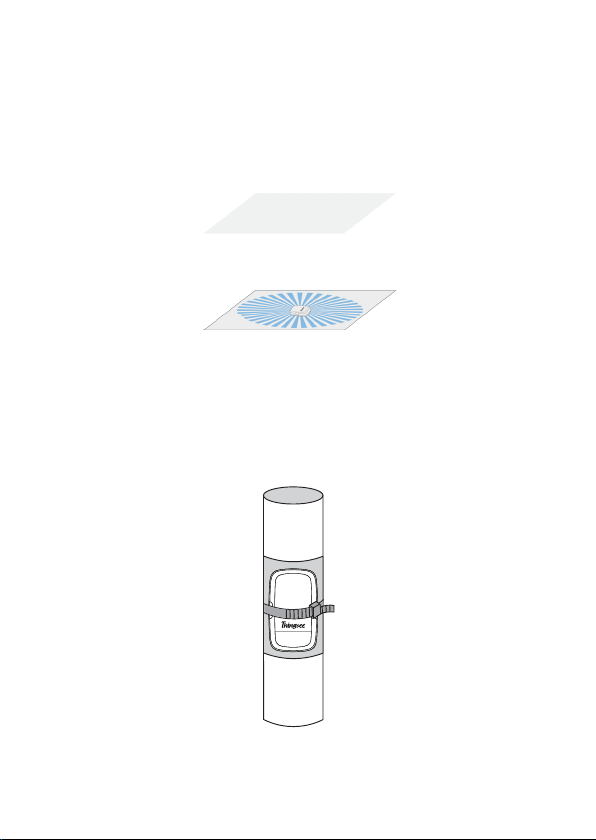

Install on a pipe with sponge/foam in between the pipe and the device.
Attach with a cable tie.
Pipe leak detection

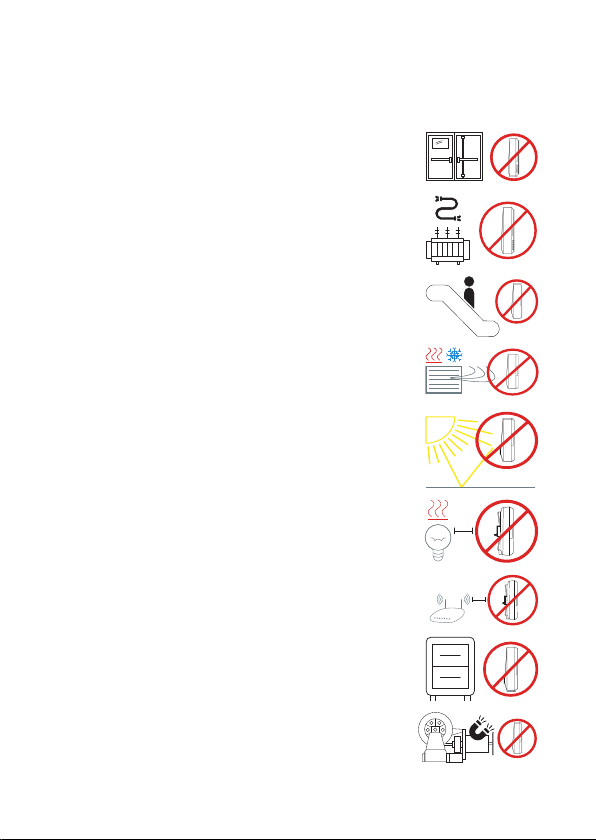

Things to avoid in installation
Avoid installing Thingsee products near the following:
Inside or underneath a metal cabinet or box
Direct sun light
Nearby heating or cooling devices and/or vents
Escalators
Near elevator motors or similar targets causing a
strong magnetic field
Nearby halogen lamps, fluorescent lamps or
similar lamps with hot surface
Nearby radio equipment like WiFi routers or any
other similar high power RF transmitters
Thick concrete structures or thick fire doors
Electrical transformers or thick electrical wires

Please make sure the Thingsee gateway device is installed before you
install the sensors.
To identify the sensor, read the QR code on the front of the device
with a QR code reader or Thingsee installation application on your
mobile device.
Identifying the device is not necessary, but it will help you keep track of
your IoT installation and help Haltian support to solve possible issues.
Installation
Before installation, the sensor is in low power mode and the LED
indicator on the sensor blinks dimly every second. Note that with white
device casing, the LED blinking is diicult to see.
The sensor is switched on with the magnet switch tool by holding it
against the sensor’s magnetic switch.
DEVICE
DEVICE EVENTS TOPOLOGY
DEVICE
DEVICE EVENTS TOPOLOGY
LEAKAGE RUGGED
BIN VERSION:
3.4.37.0
SW VERSION:
2018.07.02.2_ts_pinsp34
BATT LEVEL: 100%
DESCRIPTION: Room1
TUID: TSPR042O02500875
INFO
LEAKAGE RUGGED
16/11/2018 09:15:57
16/11/2018 09:14:57
16/11/2018 09:13:57
16/11/2018 09:12:57
16/11/2018 09:11:57
QR code

Hold the magnet switch tool against the sensor until the LED
indicator starts to blink brightly for one minute. When the LED goes o,
the sensor is switched on.

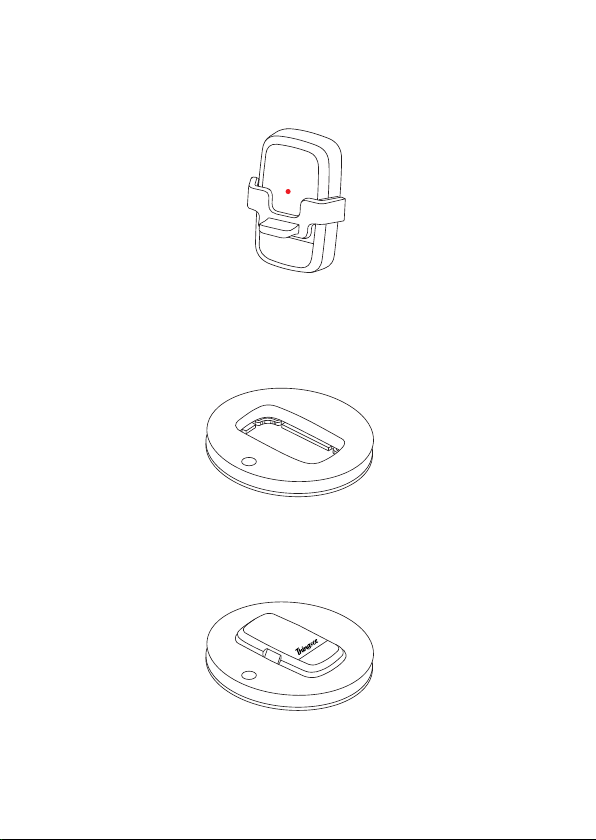

Use the Pontoon accessory to float the device in the case of a flood.
This will also support the device to sit firmly on the floor and not to turn
over accidentally.
Now you are ready to place the sensor where needed.
Accessories
• Pontoon

Default measurement and reporting
• Event based reporting
• Measure the following values every 30 seconds:
• Resistance
• Temperature
• 3-axis acceleration
• Ambient light
• Reports values when either
• Resistance decreases or increases by 10000 units
• Temperature has changed more than 0,5 Celscius degrees
• Ambient light change more than 10000 nW/cm², approx. 70 lux
• Accelometer when orientation changes more than 5 degrees
• Event based messaging is always triggered by comparison to
the previous reported value
• Time based reporting
• Reports all the measured values every 1 hour
Other Default Settings
• Battery reporting interval 6 hours
• Sensor is in routing mode
• Electrical resistance values between 10 000 – 5 000 000 units
Example values:
• Dry floor: 5 000 000 units
• Tap water: 1 000 000 – 2 500 000 units
• Salt water: 250 000 – 330 000 units
• Temperature -40 ºC to +85 ºC. Please note recommended
operation temperature range -20 ºC to +50 ºC . Accuracy ±0,3 ºC.
• Accelerometer reports orientation or vibrations count in machine
usage monitoring mode from 128 mG - 16 G.
• Magneto-resistive sensor. Detects magnetic field from magnet or
high DC current.
Detection Capability

Operating temperature -20 °C … +50 °C
Operating humidity 0 % … 100 % RH non-condensing
Storage temperature +5 °C … +25 °C
Storage humidity 45 % … 85 % RH non-condensing
IP rating grade: IP67
Certifications: CE, FCC, ISED and RoHS compliant
Battery type: 2 x AAA, fixed
Expected battery life:
• Up to 3 years with default functionality (30sec measurement inter-
val)
Radio sensitivity: -95 dBm (BTLE)
Size: width 34 mm, height 17,5 mm, length 58 mm
Weight: 35 g (including batteries)
Device info
17,5 mm
58 mm
34 mm
Weight:
35 g (including batteries)
Device measurements
More device info can be found at support.haltian.com
Settings’ impact to battery-life
• 5 min measurement interval up to 4 years
• 15 min measurement interval up to 5 years

CERTIFICATION IN CERTIFICATION INFORMATION
EU DECLARATION OF CONFORMITY
Hereby, Haltian Products Oy declares that the radio equipment Thingsee LEAKAGE RUGGED is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.haltian.com
Haltian Products Oy vakuuttaa, etta radiolaitetyyppi Thingsee LEAKAGE RUGGED on direktiivin 2014/53/EU mukainen. EU-
vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: www.haltian.com
Thingsee LEAKAGE RUGGED operates at Bluetooth® 2.4 GHz frequency band. Maximum radio-frequency power transmitted
is +4.0 dBm.
Manufacturer name and address:
Haltian Products Oy
Yrttipellontie 1 D
90230 Oulu
Finland
FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES
FCC Information for the User
This product does not contain any user serviceable components and is to be used with approved, internal antennas only.
Any product changes of modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following methods:
Increase the separation between the equipment and the receiver.
Connect the equipment into an electrical outlet on a circuit dierent from that which the radio receiver is connected
Consult the dealer or and experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
FCC compliance statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Innovation, Science and Economic Development Canada (ISED) regulatory information
This device complies with RSS-247 of the Innovation, Science and Economic Development Canada (ISED) Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la nor me CNR-247 d’Innovation, Sciences et Développent économique Canada applicable
aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne
doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable
Radiation Exposure Statement :
This device complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment must be
installed and used with a minimum distance of 20 cm between the radiator and your body.

NOTE IMPORTANTE: Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 220 cm entre le radiateur et votre corps.
FCC ID: 2AEU3TSLEAK
IC ID: 20236-TSLEAK
SAFETY GUIDE
Read these simple guidelines. Not following them may be dangerous or against local laws and regulations. For further
information, read the user guide and visit www.haltian.com
Usage
Do not cover the device as it prevents the device from operating properly.
- This product is intended for for both in- and outdoor use.
- Do not modify the device. Unauthorized modifications may damage the device and violate regulations governing radio
devices.
- Do not store the device in wet or humid conditions.
- The device should be stored in a dry place and at room temperature. Avoid large temperature changes and direct sunlight.
At higher temperature the electrical performance of the batteries may be reduced.
Care and maintenance
Handle your device with care. The following suggestions help you keep your device operational.
- Do not open the device.
- Unauthorized modifications may damage the device and violate regulations governing radio devices.
- Do not drop, knock, or shake the device. Rough handling can break it.
- Only use a so, clean, dry cloth to clean the surface of the device. Do not clean the device with solvents, toxic chemicals
or strong detergents as they may damage your device and void the warranty.
- Do not paint the device. Paint can prevent proper operation.
Damage
If the device is damaged contact [email protected]. Only qualified personnel may repair this device.
Small children
Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
RECYCLING
Check the local regulations for proper disposal of electronic products. The Directive on Waste Electrical and Electronic
Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE,
and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
The crossed-out wheelie-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and
electronic products and batteries must be taken to separate collection at the end of their working life. Do not dispose of
these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with
your local waste authority.

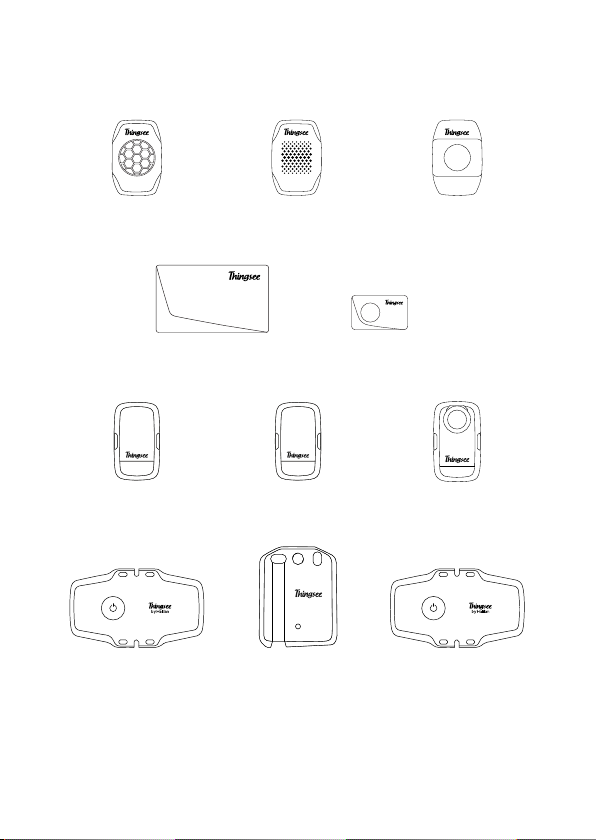

Get to know other Thingsee devices
Thingsee ENVIRONMENT Thingsee DISTANCE
Thingsee GATEWAY
LAN
Thingsee ANGLE
RUGGED
Thingsee ENVIRONMENT
RUGGED
Thingsee GATEWAY
GLOBAL
Thingsee GATEWAY
Thingsee LEAKAGE
RUGGED
For all devices and more information, visit our website
www.haltian.com or contact [email protected]om
Thingsee PRESENCE
Thingsee AIR Thingsee BEAM
