Haltian Thingsee TAG User manual

Thingsee TAG User Guide
1. Indented use of Thingsee TAG
Thingsee TAG is used for various activity and environmental measurements. Thingsee
TAG hardware has capabilities of measuring:
•Movement (acceleration) and steps counting
•Temperature and humidity
•Magnetic sensing i.e. detecting open/close 
Depending on Firmware Thingsee TAG can be set to operate in various use cases e.g.
streaming of sensors raw data, streaming internally processed data, logging and storing
raw data and logging and storing processed data.
Thingsee TAG is robust and can withstand quite raw conditions and rough handling.
Operating temperature range is typically limited by CR2032 battery specifications (refer
 , these batteries will operate from -20°C to
+60°C (batteries are not delivered with the device). Do not exceed battery
manufacturer specifications regarding operating temperatures to avoid damage.
Thingsee TAG materials and components can operate from -40°C to +85°C. Thingsee
TAG meets at least IP67 requirements.
Operating voltage is from 1.7V to 3.6V.
Thingsee TAG typically needs some application e.g. mobile or PC application that is
supporting data transfer of the BLE (Bluetooth low energy) radio. Application can then
store sensor data locally for internal analysis and/or relay data for further analysis e.g.
to a specific Cloud service.
2. Caution regarding coin cell battery
This product contains a lithium CR2032 coin cell battery. Do not ingest battery. There is
a risk for chemical burn hazard. Swallowed battery can cause severe internal burns in
just 2 hours and may even cause death.
Keep new and used batteries away from reach of children. If battery compartment is not
properly and tightly closing stop using of the product and keep it away from children. If
you suspect that battery or even the complete product may have been swallowed or
placed inside any part of body, seek immediate medical attention. There is a risk of
explosion if incorrect or damaged battery is used. Use only good quality and unbroken
CR2032 battery.
User Guide
Thingsee TAG

2(8)
3. Activating/deactivating Thingsee TAG
Thingsee TAG operates with one CR2032 (LR44) coin cell battery. When battery is
attached device is operational and active and when battery is not attached device is not
active. Operation time depends on the use case but is typically several months with the
new battery.
Activating:
negative pole is facing
upwards and positive pole facing towards battery lid. Close battery lid by twisting it
clockwise from marked starting position to marked close position. Battery lid can be
attached only from this one position. Ensure battery lid is tightly closed to maintain
waterproofness.

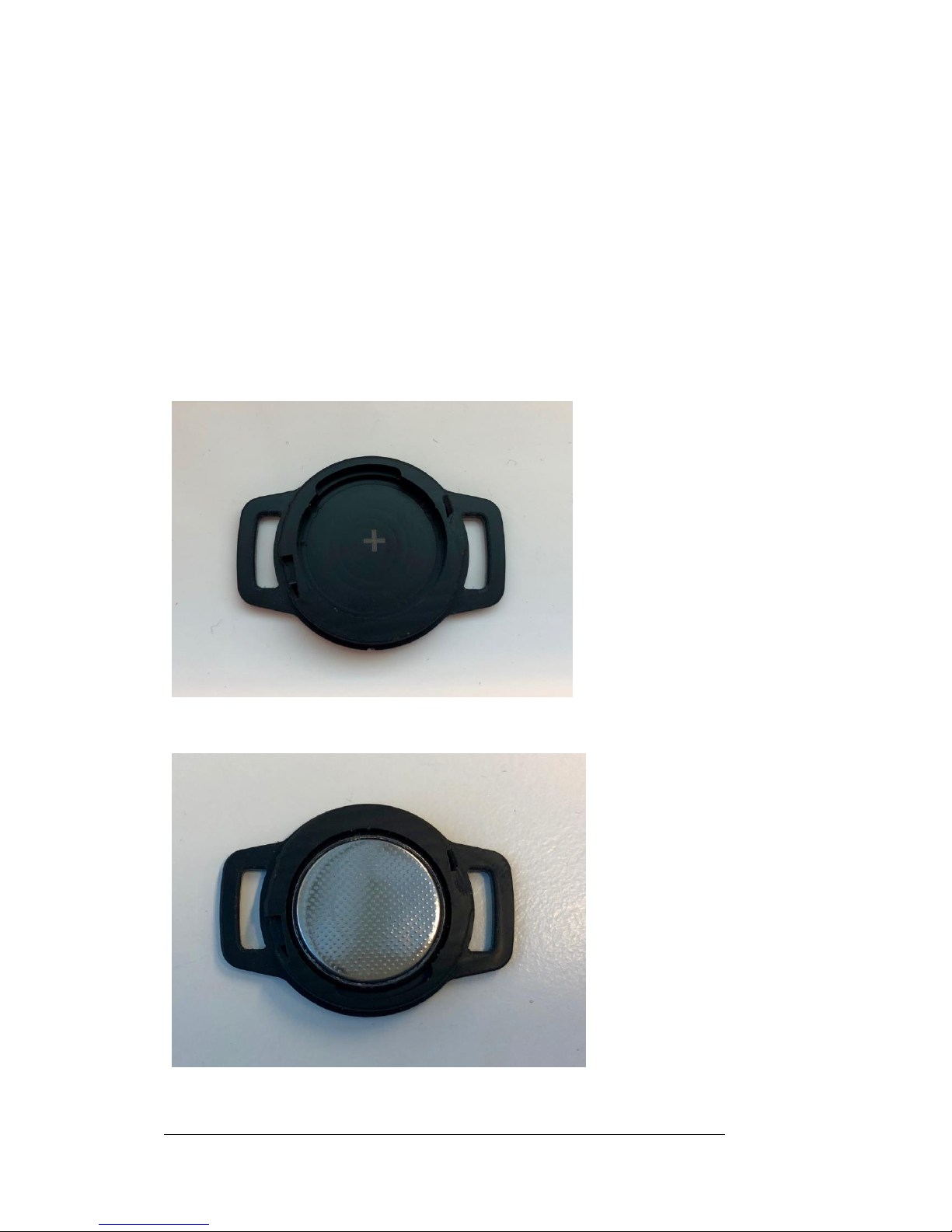

Set battery positive pole towards the positive mark
Battery correctly in place

3(8)
-position
Deactivating:
Open battery lid by twisting it counter clockwise from closed position towards open
position and detach battery lid and remove battery from the lid. You may set the battery
lid back to device without the battery.
It is recommended to check if there is any wear or damage in insulating O-ring and if
there is then change the O-ring insulator to the new one. This O-ring is essential for
waterproofness.

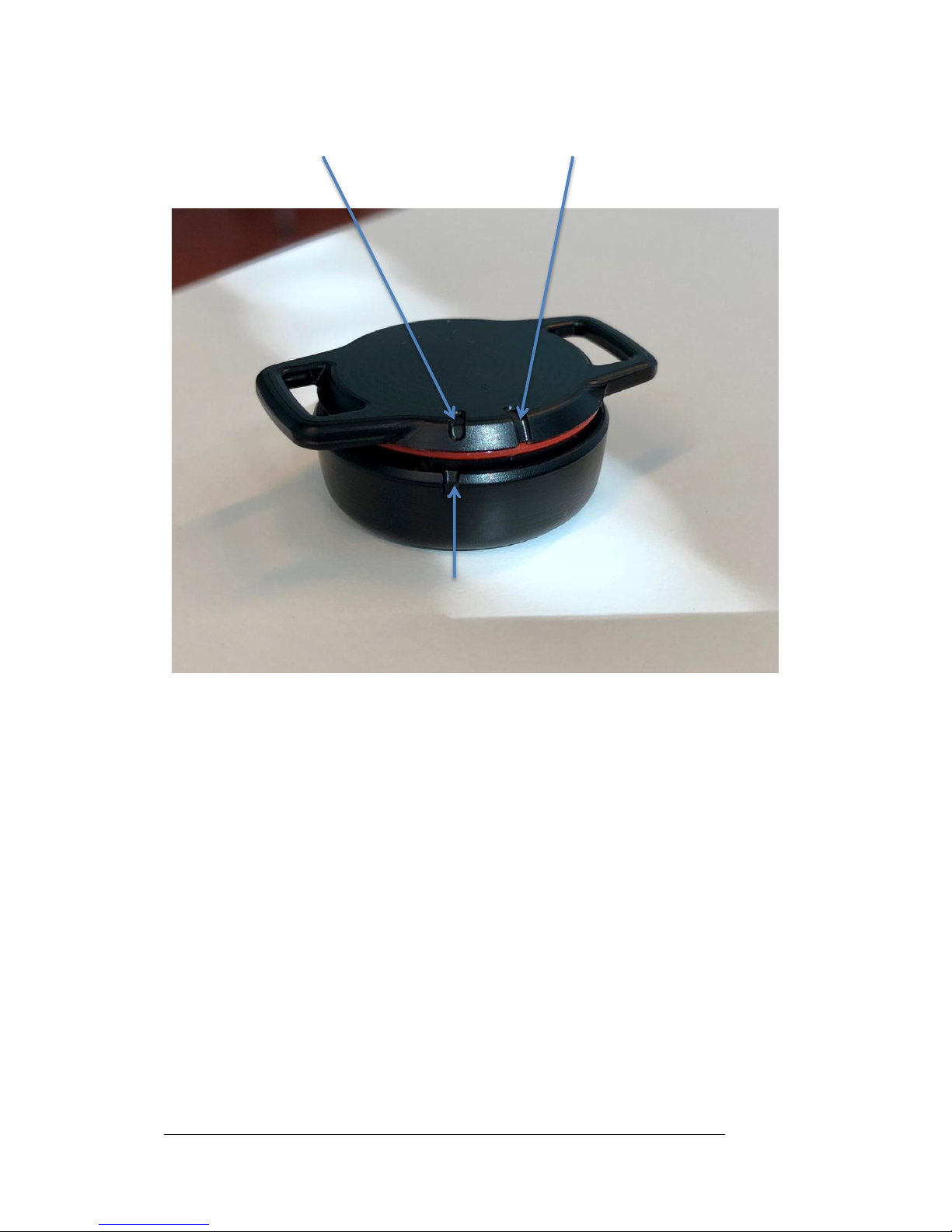

Start closing-position indicator
Closed- position indicator

4(8)
4. Installation
Thingsee TAG can be attached its battery
lid lugs using preferred methods that do not break the lugs or impact the form of the
device. Device can be also carried or used as isi.e. without firm attaching.
5. Legal notices
Hereby, Haltian Products Oy Haltian Products Oy declares that the radio equipment type
Thingsee TAG is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following Internet
address: thingsee.com
Suomi:Haltian Products Oy vakuuttaa, että radiolaitetyyppi Thingsee TAG on
direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen
täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: thingsee.com
Nederlands:Hierbij verklaar ik, Haltian Products Oy. dat het type radioapparatuur
Thingsee TAG conform is met Richtlijn 2014/53/EU.De volledige tekst van de EU-
conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres:
thingsee.com
Francais:Le soussigne, Haltian Products Oy
du type Thingsee TAG est conforme a la directive 2014/53/UE.Le texte complet de la
thingsee.com
Svenska:Harmed forsakrar Haltian Products Oy. att denna typ av radioutrustning
Thingsee TAG överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till
EU-försäkran om överensstämmelse finns på följande webbadress: thingsee.com
Dansk:Hermed erklarer Haltian Products Oy. at radioudstyrstypen Thingsee TAG er i
overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens
fulde tekst kan findes på følgende internetadresse: thingsee.com
Deutsch:Hiermit erklart Haltian Products Oy. dass der Funkanlagentyp Thingsee TAG
der Richtlinie 2014/53/EU entspricht.Der vollständige Text der EU-
Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: thingsee.com
 :     Haltian Products Oy.       
Thingsee TAG           
  thingsee.com
Italiano:Il fabbricante, OMATAapparecchiatura radiodirettiva 2014/53/UE.Il testo
completo della dichiarazione di conformita UE e disponibile al seguente indirizzo
Internet: thingsee.com
Espanol:Por la presente, Haltian Products Oy. declara que el tipo de equipo
radioeléctrico Thingsee TAG es conforme con la Directiva 2014/53/UE.El texto
completo de la declaración UE de conformidad está disponible en la dirección Internet

5(8)
siguiente: thingsee.com
Portugues:O(a) abaixo assinado(a) Haltian Products Oy. declara que o presente tipo de
equipamento de radio Thingsee TAG esta em conformidade com a Diretiva
2014/53/UE.O texto integral da declaracao de conformidade esta disponivel no
seguinte endereco de Internet: thingsee.com
 Timto Haltian Products Oyizeni Thingsee TAG
je v souladu se sm rnici 2014/53/EU. Uplne zn ni EU proh je k dispozici
na teto internetove adrese: thingsee.com
Eesti:Kaesolevaga deklareerib Haltian Products Oy. et kaesolev raadioseadme tuup
Thingsee TAG vastab direktiivi 2014/53/EL nouetele.ELi vastavusdeklaratsiooni
taielik tekst on kattesaadav jargmisel internetiaadressil: thingsee.com
Magyar:Haltian Products Oy. igazolja, hogy a Thingsee TAG tipusu radioberendezes
megfelel a 2014/53/EU iranyelvnek. Az EU-megfelel segi nyilatkozat teljes szovege
elerhet a kovetkez internetes cimen: thingsee.com
   Haltian Products Oy. deklar , ka radioiek rta Thingsee TAG
atbilst Direktvai 2014/53/ES. Pilns ES atbilstbas deklar  d
interneta vietn :thingsee.com
Lietuvikalba:Haltian Products Oy. patvirtinu, kad radijo renginitipas Thingsee
TAG atitinka Direktyv2014/53/ES.Visas ES atitikties deklaracijos tekstas prieinamas
thingsee.com
Malti:Haltian Products Oy. niddikjara li dan it--radju Thingsee
TAG huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta
konformita tal-UE huwa disponibbli fdan l-indirizz tal-Internet li  ej: thingsee.com
Slovenina:Haltian Products OyThingsee
TAG je v súlade so smernicou 2014/53/EÚ.Úplné EÚ vyhlásenie o zhode je k dispozícii
na tejto internetovej adrese: thingsee.com
ina:Haltian Products Oy. potrjuje, da je tip radijske opreme Thingsee TAG
skladen z Direktivo 2014/53/EU.Celotno besedilo izjave EU o skladnosti je na voljo na
naslednjem spletnem naslovu: thingsee.com
Roman :Prin prezenta, Haltian Products Oy. declar c tipul de echipamente radio
Thingsee TAG este in conformitate cu Directiva 2014/53/UE. Textul integral al
declaraiei UE de conformitate este disponibil la urm toarea adres internet:
thingsee.com
  Haltian Products Oy    
 Thingsee TAG     
         
thingsee.com
Polski:Haltian Products Oy. niniejszym owiadcza,  e typ urzdzenia radiowego

6(8)
Thingsee TAG jest zgodny z dyrektyw2014/53/UE. ci
UE jest dostpny pod nastpujcym adresem internetowym: thingsee.com
Norsk:Herved Haltian Products Oy. erklærer at radioutstyr type Thingsee TAG er i
samsvar med direktiv 2014/53/EU.Den fullstendige teksten i EU-samsvarserklæringen
er tilgjengelig på følgende internettadresse: thingsee.com
Islenska:Hér með Haltian Products Oy. lýsir yfir að tegund þráðlausan búnað Thingsee
TAG er í samræmi við tilskipun 2014/53/ESB.The fullur texti af ESB-
samræmisyfirlýsingu er í boði á eftirfarandi veffangi: thingsee.com
Hrvatski:Haltian Products Oy. ovime izjavljuje da je radijska oprema tipa Thingsee TAG
u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je
na sljedeoj internetskoj adresi: thingsee.com
Turk:Burada, Haltian Products Oy. rThingsee TAG 2014/53/EU
direktiflerine uyumlu oldugunu beyan eder.    
internet sitesinde mevcuttur:thingsee.com
FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES
FCC Information to User
This product does not contain any user serviceable components and is to be used with
approved, internal antennas only. Any product changes or modifications will invalidate
all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Federal Communications Commission Statement
This device complies with Part 15 Rules. Operation is subject to the following two
conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This

7(8)
equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
methods:
•Increase the separation between the equipment and the receiver.
•Connectthe equipment into an electrical outlet on a circuit different from that
which the radio receiver is connected
•Consult the dealer or and experienced radio/TV technician forhelp
FCC Caution
•Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
•This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.Canadian Department of Communications
Radio Interference Regulations
EQUIPMENT SPECIFICATION
RF Interface:
•Frequency range: 2402 –2483 MHz
•Max RF output power: +4 dBm
•Type of antenna: PWB strip line (IFA)
•Ant. frequency band: 2402 –2483 MHz
•Antenna gain: -1.0 dBi
PRODUCT AND SAFETY INFORMATION
•Thingsee TAG is indented for capturing specified motion and environment data.
Use the device for its indented use only.
•For optimal performance do not operate the device below -20°C and above
+60°C
•Failure to comply with the instructions may cause damage to the device.
•The socket-outlet for the power source shall be installed near the equipment and
shall be easily accessible.

8(8)
Manufacturer name and address:
•Haltian Products Oy Yrttipellontie 1 D90230 Oulu FINLAND
Separate collection of electrical and
electronic equipment and separate
packaging materials.
Do not dispose. Return to dedicated
collection points.
