Hamamatsu Photonics C9266-03 User manual

CCD Data Acquisition Module
C9266-03/C9266-04
INSTRUCTION MANUAL
* Read this instruction manual carefully before using this product.
* Improper handling and operation that does not comply with the
instructions in this manual may result in serious accident
including injury or death.
* Keep this instruction manual handy so that you can easily refer
to it when needed.
HAMAMATSU PHOTONICS K. K.
Solid State Division
Document Number : K46-B6041
Document Revision: 1.00 07.Aug.2009

CCD Data Acquisition Module C9266-03/C9266-04
Handling Precautions
1) Avoid using or storing this product in the following locations:
a) where ambient temperature drops below 0°C or rises above 50°C
b) subject to large changes in temperature
c) exposed to direct sunlight or near heaters
d) where humidity exceeds 70% or product is exposed to moisture
e) near strong magnetic sources or radio frequency generators
f) subject to vibration
g) where corrosive gases are present (such as chlorine or fluorine)
h) exposed to excessive dust
2) This product is a high precision device. Handle it with extreme care.
a) Do not disassemble or modify any part of this product. Malfunctions might otherwise
occur.
b) Be careful not to drop, bump or apply excessive impacts to this product. Drop impacts
or bumps may damage the product.
c) Never connect or disconnect the cables while the power is supplied to this product.
The internal circuits might otherwise be damaged.
d) Securely connect this product to the power supply with the correct polarity and voltage.
Wrong connections may damage the internal circuit or sensor when power is turned
on.
e) Make sure that the product is used within the maximum ratings.
f) When connecting to other devices, be sure to observe the electrical potential such as
ground potential.
3) To extract the fullest performance from this product, follow the instructions below.
a) Use a power supply with minimum ripple and noise.

CCD Data Acquisition Module C9266-03/C9266-04
Software License Terms
Please carefully review the following terms and conditions.
Hamamatsu Photonics permits the use of this software only to those companies which accepts
the License Terms for using “MCD Head Products” as well as “Amprefer Board Products” (“our
products”). By copying these files, or installing driver software, user agrees to be bound by the
License Terms. In case, the user disagrees with the complete or a part of the License Terms, he
will not be able to install or use this software.
1. The purpose of this software
Considering the convenience of the users who wants to use our product easily, the software is
licensed free of charge with no warranty. Please use this software at your own discretion and
responsibility.
2. License
Only the user who agrees with the License Terms has the right to install and use our software
application solely for purposes of implementing the measurement and control of our products.
3. Ownership of copyrights and other rights
Proprietary software and related documentation, and all other intellectual property rights will
belong to us. International treaties and laws on intellectual property rights and copyright law
protect this software. The user is not allowed to change or modify the attached Software or
documentations.
Except for matters that are explicitly licensed under License Terms, we will not transfer or
grant any rights to users. All rights on this software and documentation are reserved to us.
4. Reproduction
Users can reproduce this software for backup purposes in compliance with the terms of any
provision of this license.
5. Prohibition clause
The user can not do the following things. However, in case user rents or leases or transfers
our products to a third party user and the third party agrees to the License Terms of the
product of our company, our company continues to permit the use of this software to a third
party under this License Terms.
i) Sublicense, distribute or otherwise transfer the Product or any component
thereof to any third party.
ii) Re-license or transfer the rights to use this software to the third party.
iii) Lease, rent or loan the Product to any unlicensed third party.
iv) Modify or remove part or all of this software including this License Terms
and other attached annexes. The change in the file name is included in the
modification.
v) Reverse engineer, decompile, disassemble, or otherwise attempt to derive the
source code of this Software.
6. Limitation of Liability
Hamamatsu Photonics will guarantee neither this software nor the attached annex including
adaptability to the quality, the performance or the particular purpose at all. In any case,
computer failure or damage arising from use of or inability to use this software and
documentation, loss of information, all other direct and indirect damages, we will not be
responsible. Moreover, not only maintenance and support but also in the event of any defect
or failure, etc., we do not bear responsibility including repair and restoration of this software.
Hamamatsu Photonics can do changes without notice for improvement of this software.

CCD Data Acquisition Module C9266-03/C9266-04
Table of Contents
1. Overview.............................................................................................................. 1
2. Setup.................................................................................................................... 2
2.1 Parts description............................................................................................................2
2.2 Hardware setup.............................................................................................................4
2.3 Installing the driver ........................................................................................................5
3. Operation........................................................................................................... 21
4. Functions .......................................................................................................... 22
5. Specifications ................................................................................................... 24
5.1 Specifications...............................................................................................................24
5.2 Data acquisition timing charts......................................................................................25
5.3 Pin arrangement..........................................................................................................28
5.4 Dimensional outlines ...................................................................................................29
6. Warranty............................................................................................................ 31
7. Document History............................................................................................. 32
CCD DataAcquisition Module C9266-03 CCD DataAcquisition Module C9266-04

CCD Data Acquisition Module C9266-03/C9266-04
1
1. Overview
The C9266-03/C9266-04 CCD Data Acquisition Module was designed for use with
Hamamatsu CCD area image sensors (S10810, S10811) specifically developed for X-ray
detection. Combining the C9266-03/C9266-04 with any one of those CCD area image sensors
creates the ideal tool for X-imaging and non-destructive inspection applications.
The C9266-03/C9266-04 CCD Data Acquisition Module consists of a CCD driver, analog
video processor (12 bit ADC), timing pulse generator, control circuit and power supply circuit.
When an analog signal is input from the CCD area image sensor, the C9266-03/C9266-04
converts that analog signal to a digital signal and outputs it to an external device such as a PC
(personal computer). The C9266-03/C9266-04 easily connects to the PC through a USB
connector (conforming to USB 2.0) provided on the rear panel of the C9266-03/C9266-04,
allowing control and data acquisition by the PC. Power to the C9266-03/C9266-04 is supplied
through the USB connector, eliminating the need for an external power supply. The
C9266-03/C9266-04 has a 36-pin MDR connector for easy connection to a CCD area image
sensor and only the C9266-03 has a BNC connector for input of external trigger signals. Even
with all these functions, the C9266-03/C9266-04 still offers compact size, light weight, and
easy use.
The C9266-03/C9266-04 has five data acquisition modes. One is an internal sync mode
(Internal mode) that acquires data with a trigger signal generated by the application software.
The other four are external sync modes (External Trigger modes) in which data is acquired
while synchronized with a trigger signal generated from an external device. Select the data
acquisition mode that best suits your application.
Besides external trigger modes, the C9266-03/C9266-04 has versatile functions like gain and
offset adjustment as well as subarray binning (2x2) to reduce the amount of image data and
therefore boost the data transfer speed.
The C9266-03/C9266-04 has 4 operating modes ("Suspend", "Idle/Sleep", "Standby", "Data
Transfer") to make the C9266-03/C9266-04 easier to use. In "Idle/Sleep" mode, the CCD area
image sensor can be replaced with different types of CCD image sensors with the
C9266-03/C9266-04 still connected to the PC. The LED display on the C9266-03/C9266-04
lets you know which operating mode is currently selected.
The C9266-03/C9266-04 comes with application software (C9266DCamAPL) that runs on
Windows 2000 or XP and is specifically programmed to operate the C9266-03/C9266-04 from
the PC. The application software also includes a function library (DCamLIB.DLL) exclusively
for the C9266-03/C9266-04, allowing you to develop your own software more efficiently.

CCD Data Acquisition Module C9266-03/C9266-04
2
2. Setup
2.1 Parts description
C9266-03/C9266-04 Front Panel
C9266-03 Rear Panel
C9266-04 Rear Panel
(1) CCD connector
This is a high-density 35-pin MDR connector for the Hamamatsu CCD area image sensor
(S10810, S10811). A bias voltage and clock signal are fed to the CCD through this
connector. Analog video signals from the CCD proportional to X-ray intensity levels and
synchronized timing signals (H-CMOS logic level signals) are input to this connector.
(2) USB connector
This is an industrial standard USB connector for connecting to a PC. This connector
interface conforms to USB 2.0. Various C9266-03/C9266-04 settings can be made from
the PC through this interface. X-ray image data converted to digital signals are sent to the
PC.
(6)
(2) (4) (5)
(3)
(1)
(2) (3)

CCD Data Acquisition Module C9266-03/C9266-04
3
(3) LED display
Indicates the current operation status of the C9266-03/C9266-04 Data Acquisition Module.
The LED display indicates the following operating modes. These are all displayed by
green.
LED display Mode
Lights out Suspend mode
Fast frequency blinking Idle/Sleep mode
Lights on Standby mode
Low frequency blinking Data Transfer mode
(4) EXT.TRIG connector
An industrial standard BNC connector used to input external trigger signals when the
C9266-03 is operated in the External Trigger mode. The input signal should be an
H-CMOS level pulse. The internal circuits are optically isolated.
There is not the BNC connector in the C9266-04.
(5) Power switch
The power switch used to turn the C9266-03 on or off. Select how power is supplied by
using the switch position as shown in the table below.
Switch position Description
Left Power ON
(Power is supplied through USB connector.)
Middle Power OFF
Right Power ON
(Power is supplied from external power supply.)
Please take note of the maximum current when power is supplied through the USB
connector.
There is not the power switch in the C9266-04.
(6) DC +5V
A power input connector when using an external power supply. This is an industrial
standard DC power jack (compatible with EIAJ RC5320A, voltage class 2). The center
contact of this jack is positive (+) and the outside is negative (-). Use an AC adapter of
+4.5V/(1A or more) when supplying power through this jack. And if use another power
source, set the voltage at +5V.
There is not the power input connector in the C9266-04.

CCD Data Acquisition Module C9266-03/C9266-04
4
2.2 Hardware setup
Use theses drawings to connecting the hardware for use with the C9266-03/C9266-04 CCD
Data Acquisition Unit.
C9266-03/C9266-04 Front Panel
C9266-03/C9266-04 Rear Panel
DC +5.0 V
CCD (S10810, S10811)
USB 2.0
DC Power Supply
or
AC Adapter
Pulse Generator
or
X-Ray Unit
PC
There is not the BNC
connector, the power switch
and the power input
connector in C9266-04.

CCD Data Acquisition Module C9266-03/C9266-04
5

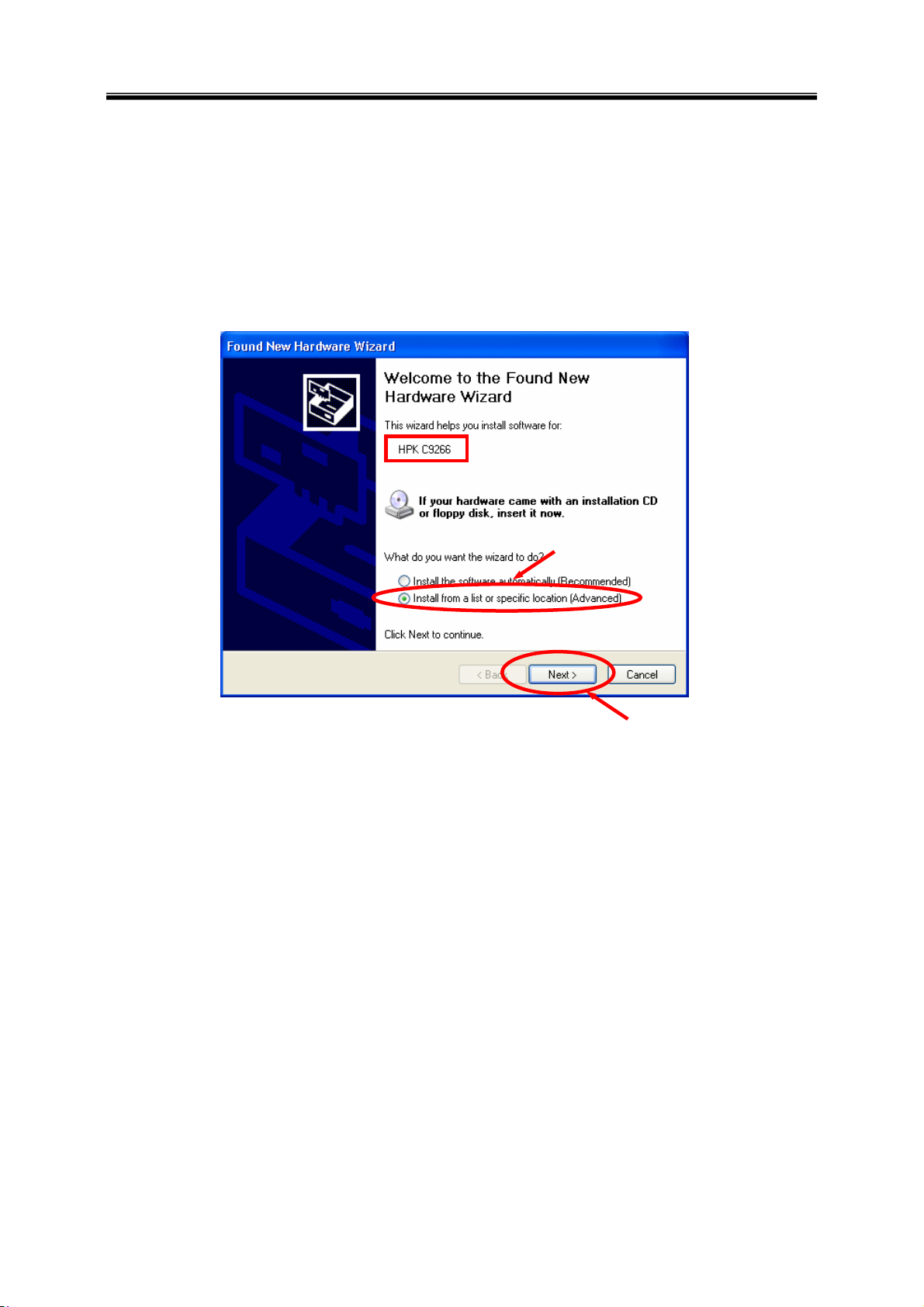

2.3 Installing the driver
Follow these steps to install/upgrade the driver.
Please note that in the following installation method the PC is to be switched on before:
i) Connecting the module or the Camera module to the USB connector of the PC, and
ii) Connecting the module or the Camera module to an external power source (if any).
2.3.1 Compliant operating systems
This driver is compliant with the following operating systems.
i) Microsoft Windows 2000 (Service Pack 4 or higher)
ii) Microsoft Windows XP (Service Pack 1 or higher)
2.3.2 Driver software
The CD-ROM provided contains the following driver software.
i) UsbCamIF.sys
ii) UsbCamIF.inf

CCD Data Acquisition Module C9266-03/C9266-04
6
2.3.3 Installing the driver (for Windows 2000)
The installation procedure is explained under the assumption that the Windows 2000 Service
Pack 4 (Hereafter abbreviated as "SP4") OS has been updated.
In case SP4 or higher has not been updated, download and install the Service Pack (Program
for updating) from Microsoft’s home page (Hereafter abbreviated as "HP”).After the Service
Pack is installed carry out “Windows Update”.
Regarding the procedure and details for Service Pack, please refer to Microsoft's HP.
1. Connect the USB camera module to the PC with the USB cable.
2. Switch on the PC. (When the USB camera module is connected to an external power source,
switch it on after the PC has been turned on.)
3. First the “Found New Hardware” window is displayed followed by “Found New Hardware
Wizard” window. Click the “Next >” in the second window.
Click

CCD Data Acquisition Module C9266-03/C9266-04
7
4. Next, in the “What do you want the wizard to do?“ window confirm that “HAMAMATSU
xxxxx” or “HPK xxxxx”(xxxxx : Product number) is displayed, click the “Search for a suitable
driver for my device [recommend]” radio button to select it and then click the “Next >” button.
5. In the following window, click the “CD-ROM drives” check box to select it and then click the
“Next >” button.
Click
Check
Click
Check

CCD Data Acquisition Module C9266-03/C9266-04
8
6. In the “The wizard found a driver for the following device:” window, after the “HAMAMATSU
xxxxx” or “HPK xxxxx”(xxxxx : Product number) driver has been identified and
“UsbCamIF.inf ” has been confirmed in the driver location, click the “Next >” button.
7. After the required files are copied, confirm that the following window is displayed and click
the “Finish” button. The driver is now installed.
Click
Click

CCD Data Acquisition Module C9266-03/C9266-04
9
8. After the driver is installed right click on “My Computer” and select “Properties”. The “System
Properties” window will be displayed. In this window, click the “Hardware” tab and then click
the “Device Manager” button. Check whether “HAMAMATSU USB Camera Module” is
displayed in the device manager window.

CCD Data Acquisition Module C9266-03/C9266-04
10
2.3.4 Installing the driver (for Windows XP)
1. Connect the USB camera module to the PC with the USB cable.
2. Switch on the PC. (When the USB camera module is connected to an external power
source, switch it on after the PC has been turned on.)
3. Check that “HAMAMATSU xxxxx” or “HPK xxxxx”(xxxxx : Product number) is displayed in
the following window, click the “Install from a list or specific location [Advanced]” radio
button to select it and click the “Next >” button.
Click
Check

CCD Data Acquisition Module C9266-03/C9266-04
11
4. In the following window, click the “Search for the best driver in these locations.” radio
button and the “Search removable media [floppy, CD-ROM…]” check box to select it and
click the “Next >” button.
5. After the required files are copied, confirm that the following window is displayed and click
the “Finish” button. The driver is now installed.
Click
Check
Click

CCD Data Acquisition Module C9266-03/C9266-04
12
6. After the driver is installed right click on “My Computer” and select “Properties”. The
“System Properties” window will be displayed. In this window, click the “Hardware” tab and
then click the “Device Manager” button. Check whether “HAMAMATSU USB Camera
Module” is displayed in the device manager window.

CCD Data Acquisition Module C9266-03/C9266-04
13
2.3.5 Upgrading the driver (Windows 2000)
1. Connect the USB camera module to the PC with the USB cable and switch on the PC.
(When the USB camera module is connected to an external power source, switch it on after
the PC has been turned on.)
2. Insert the CD-ROM that is provided. Right click on “My Computer” and select “Properties”.
The “System Properties” window will be displayed. In this window, click the “Hardware” tab
and then click the “Device Manager” button to display the device manager window.

CCD Data Acquisition Module C9266-03/C9266-04
14
Right click on “HAMAMATSU USB Camera Module” and select “Properties”.
Click the “Driver” tab and select “Update Driver…”.
3. Click the “Next >” button in the following window.
Click
Click

CCD Data Acquisition Module C9266-03/C9266-04
15
4. Confirm that the following window is displayed. Click the “Display a list of the known drivers
for this device so that I can choose a specific driver” radio button to select it and then click
the “Next >” button.
5. In the following window, select “HAMAMATSU USB Camera Module” from the “Models:” list
box, click the “Show compatible hardware” radio button to select it and then click the “Next
>” button.
Click
Check
Click
Check

CCD Data Acquisition Module C9266-03/C9266-04
16
6. Confirm that the following window is displayed and then click the “Next >” button.
7. After the following window is displayed, click “Browse…” and specify the path as shown
below and click “OK”.
Click
Click
Specify the path
