Hamilton Beach Professional B96 User manual

Type: B96
Visit https://hamiltonbeach.global for
our complete line of products and Use and
Care Guides – as well as delicious recipes,
tips, and to register your product online!
      
-  -    
-,     
      

https://hamiltonbeach.global!
GB
HI
MS
Lawati https://hamiltonbeach.global untuk
barisan produk kami yang lengkap dan Panduan
Penggunaan dan Penjagaan – begitu juga dengan
resipi yang sedap, tip dan untuk daftar barang
anda secara dalam talian!
AR
!
GB Juicer Mixer Grinder
Operation Manual – Original Instructions (2)
HI   
  (16)
(28)
MS Pengisar Pencampur Jus
Manual Pengendalian (42)

32
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
1.Read all instructions.
2.
This appliance is not intended for use by persons with
reduced physical, sensory, or mental capabilities, or lack
of experience and knowledge, unless they are closely
supervised and instructed concerning use of the appliance by
a person responsible for their safety.
3.
This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
4.
Close supervision is necessary when any appliance is used
near children. Children should be supervised to ensure that
they do not play with the appliance.
5.To protect against risk of electrical shock, do not put cord,
plug, base, or motor in water or other liquid.
6.Turn the appliance OFF ( ), then unplug from outlet when
not in use, before putting on or taking off parts, and before
cleaning. To unplug, grasp the plug and pull from the outlet.
Never pull from the power cord.
7.
Normal operating cycle of appliance cycle is 2 minutes of
on time. Allow 1 minute off period between each maximum
cycle.
8.Avoid contact with moving parts.
9.
Do not operate any appliance with a damaged supply cord or
plug, or after the appliance malfunctions or has been dropped
or damaged in any manner. Supply cord replacement and
repairs must be conducted by the manufacturer, its service
agent, or similarly qualified persons in order to avoid a
hazard. Call the provided customer service number for
information on examination, repair, or adjustment.
10. The use of attachments, including canning jars, not
recommended or sold by the appliance manufacturer may
cause a risk of injury to persons.
11. Do not use outdoors.
13. Do not place on or near a hot gas or electric burner, or in a
heated oven.
14. Keep hands and utensils out of the jar and away from the
cutting blade, while blending or chopping food, to reduce
the risk of severe personal injury and/or damage to the
appliance or available attachments (attachments may not
be provided with appliance). Arubber spatula may be
used but must be used only when appliance is not running.
GB
15. Blades are sharp; handle carefully— especially when
cleaning inside jar.
16. Do not use a broken, chipped, or cracked jar.
17. Do not use broken, cracked, or loose cutting blade
assembly.
18. Always operate appliance with lid in place. Remove filler
cap only for adding ingredients.
19. Do not run a soup cycle unless appliance has fully cooled
to room temperature.
20. When blending hot liquids in the open top blender jar,
remove center filler cap and close any edge lid opening
intended for pouring. To prevent possible burns: Do not
exceed the 2-cup (473-ml) level. Hot liquids may push
off lid during blending; therefore, with the protection of an
oven mitt or thick towel, place one hand on top of the lid,
keep exposed skin away from the lid, and start blending
at lowest speed.
21. Be careful if hot liquid is poured into the jar as it can be
ejected out of the appliance due to sudden steaming.
22. Do not leave appliance unattended while it is operating.
23. Check that the appliance is OFF ( ) before plugging
cord into wall outlet. To disconnect, turn the control to
OFF ( ); then remove plug from wall outlet. To unplug,
grasp the plug and pull from the outlet. Never pull from
the power cord.
24. Do not use appliance for other than intended purpose.
25. Keep hands and utensils, other than the tamper provided,
out of container while blending to reduce the risk of
severe injury to persons or damage to the blender. The
cover must remain in place when using the tamper
through the cover opening. Ascraper may be used but
must be used only when the blender is not running.
26. CAUTION! In order to avoid a hazard due to
inadvertent resetting of the thermal cut-off, this appliance
must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
27. Your plug is provided with a 13-amp fuse approved
by ASTA to B.S. 1362. If you need a replacement fuse
carrier, it must be replaced with the same colour-coded
carrier with the same markings. Fuse covers and carriers
can be obtained from approved service agents.
SAVE THESE INSTRUCTIONS

54
Other Consumer Safety Information
This appliance is intended for household use only.
wWARNING Electrical Shock Hazard: The length of the cord used on this
appliance was selected to reduce the hazards of becoming tangled in or tripping
over a longer cord. If a longer cord is necessary, an approved extension cord
may be used. The electrical rating of the extension cord must be equal to or
greater than the rating of the appliance. Care must be taken to arrange the
extension cord so that it will not drape over the countertop or tabletop where it
can be pulled on by children or accidentally tripped over.
If the cutting blade assembly locks and will not move, it will damage the motor.
Do not use. Visit https://hamiltonbeach.global for service center locations or
kindly take the product to the place of purchase.
Do not place blender jar in the freezer filled with food or liquid. This can result
in damage to the cutting blade assembly, jar, blender, and possibly result in
personal injury
NOTE: This machine is equipped with motor overload protection. If the
motor stops during operation due to overheating, unplug and allow it to cool
down for approximately 15 minutes. Plug machine back in to resume normal
operation.
wWARNING
Electrical Shock Hazard
Disconnect power before
cleaning blender base.
Do not immerse cord, plug,
or base in water or any other
liquid.
Failure to follow these
instructions can result in
death or electrical shock.
Electrical Shock Hazard
Plug into a grounded outlet.
Do not remove ground.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
wWARNING
Cut Hazard
The blending blade is sharp.
Always place lid on container when
blending.
Do not put hands, spoons, or other
utensils in container when blending.
Failure to follow these instructions can
result in broken bones, cuts, or other
injuries.
Burn Hazard
Always use caution when blending
hot contents.
Failure to follow these instructions can
result in burns.
Recycling the Product at the End of Its Service Life
The wheeled bin symbol marked on this appliance signifies that it must be taken over by a selective
collection system conforming to the WEEE Directive so that it can be either recycled or dismantled in
order to reduce any impact to the environment. The user is responsible for returning the product to
the appropriate collection facility, as specified by your local code. For additional information regarding
applicable local laws, please contact the municipal facility and/or local distributor.
Other Consumer Safety Information - Continued

76
Parts and Features
NOTE: All Jars have fixed multi-purpose blades.
Before first use: After unpacking appliance, wash everything except
Base in hot, soapy water. Dry thoroughly. Wipe Base with a damp cloth
or sponge. DO NOT IMMERSE BASE IN WATER. Care should be taken
when cleaning inside of Jar as the cutting blade assembly is very sharp.
1.5 Litre
Multi-Purpose
Jar
1.0 Litre
Multi-Purpose
Jar
Tamper
(1.0 L Jar
only) 0.5 Litre Dry Jar
Scraper
Base
RESET
Button
Bottom Rear
of Base
PULSE Button
Speed Selection Dial START/STOP Button
Control Panel
(detailed view on
next page)
ON/OFF (I/ )
Power Switch
Square
Gasket
Filler Cap
Round
Gasket
Model: 58770-SAU
Type: B96
Ratings:
220–240 V~ 50–60 Hz 1400 W
Control Panel
Timer Display
MANUAL
Selection
Button
PRESET
Selection
Button
Process
Selection
Button
Motor Brush
Replacement
Indicator
Jar Interlock
Status
Indicator
Grind
Selection
Button
Motor Temperature Status Indicator
Red – Motor will shut off. Let cool
before continuing.
Yellow – Motor temperature is
getting hot.
Green – Motor temperature is
normal.
Parts and Features (cont.)
Note: If yellow (or red) light comes on during
a cycle, continue cycle, but wait until unit
cools down to room temperature before
starting another cycle.

98
Using Your Juicer-Mixer-Grinder:
Reference Table
Food Examples Recommended Jar Size Recommended Process Selection Recommended Max Volume (mL)
Cereal grains
0.5L (pre-cut large pieces to
2.5cm or less) Dry AnyRoasted red chilis
Jeera
Idli batter
1.0L / 1.5L Wet Hard
900
Dal (lentils, beans, peas) 900
Coconut chutney 900
Peanut butter
1.0L / 1.5L Wet Soft
600
Tomato and onion chutney 900
Curry paste 600
Soups: Mulligatawny, very
thin such as carrot pieces and
water by scale 1:4 (longer
cycle provides heating)
1.0L Soup Any
Purees such as carrot pieces
and water by scale 2:3
1.0L/1.5L Blend Any
Blending
Juicing
Sample Recipes
Idli Batter
Preparation:
1. Pre-soak Idli Rice for 4 – 12 hours with twice volume of water.
2. Drain excess water after soaking.
Recipe:
1. Combine 2 parts water to 3 parts Idli Rice (by weight).
Dal (Chickpea Hummus recipe)
Recipe:
1. Pre-soak dry chickpeas for 12 hours with twice volume of cold water.
2. Drain chickpeas, put them in a pot and fill with new water, 2 tsp salt and 1 tsp baking soda.
3. Boil chickpeas, reduce heat to a low boil for 1 hour to soften them.
4. Drain chickpeas and let cool to room temperature.
5. Combine ingredients using ratio of 2 cups chickpeas, ½ cup cold water, juice from ½ a lemon, 2 garlic cloves, 3 tbsp tahini and 2 tbsp olive oil.
6. Press and release pulse function button multiple times until desired consistency is reached.
Coconut Chutney
Preparation:
1. Remove the meat of fresh Coconuts from outer shell and cut into 1” chunks.
Recipe:
1. Add Fresh Coconut chunks to jar for batch test size, Add 5 mint Leaves.
Peanut Butter
Recipe:
1. Add Roasted peanuts to volume desired.
Onion & Tomato Chutney
Preparation:
1. Cut fresh Tomatoes and fresh Onions into 1” chunks.
Recipe:
1. Add Tomato and Onion chunks to jar in 1: 1 ratio by volume.
Curry Paste
Recipe (Makes approx. 1.5 cups of curry paste):
1. Chopped Onion - 1 cup, Ginger 1 inch piece, Garlic 3-4 cloves.
2. Chili pepper 2-3, Diced Tomato 1 cup.

1110
Assembly
1
2
1
2 2
1
2
1234
765
Operation – MANUAL
1 32 4
765
MAX
OR

1312

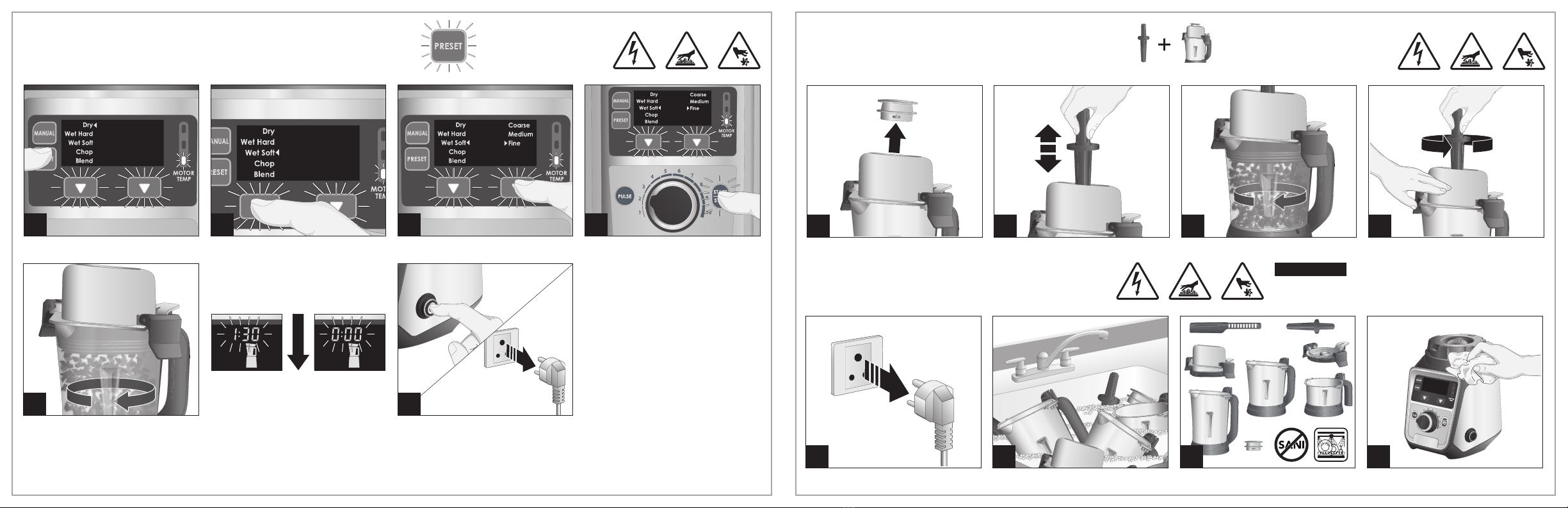

Operation – PRESET
1 2 3 4
5 7
Cleaning
wWARNING Electrical Shock Hazard.
Disconnect power before cleaning. Do not immerse
cord, plug, or base in water or any other liquid.
Using the Tamper
1
1
2
2
3
3
4
4
1.0 L ONLY

1514
Troubleshooting Notes
Display shows Error Codes E01.
• Blade is jammed with food. Remove jar and lid. Use Scraper to
stir food. Repeat blending.
Appliance fails to start or stops while it is running.
• Make sure that the Power Switch Button is ON (I) and that it is
illuminated blue.
• Check to see if unit is securely plugged into an electrical outlet
of the proper voltage and frequency.
• Check to see if the fuse for the electrical outlet has blown or if
the Reset Button on the bottom rear of Base has switched to
OFF ( ).
• This appliance is equipped with an interlock feature — the
appliance will fail to start or will stop when either Lid or Jar are
not locked properly in place.
• Press Reset Button on bottom of Base.
Red light on Motor Temperature Status Indicator starts to flash
and appliance stops running.
• Motor overload protection has engaged. Unplug and let cool
for 15 minutes. Press Reset button on bottom of Base and plug
back in to restart blending.
Unit does not respond to button commands.
• Turn unit power off and back on using the Power Switch to
reset the controls.
• If problem persists, the unit will need to be serviced.
Ingredients will not mix properly.
• Check to see if enough liquid has been added to the
ingredients. Mixture should be fluid and free-flowing at all
times.
• Solid pieces are too large.
• Container is too full. Do not fill past MAX marking.
• Cutter assembly blades are not sharp or are damaged.
• Select speed to create a fluid blend.
If problem persists or if experiencing any other problem, please visit https://hamiltonbeach.global for service
center locations or kindly take the product to the place of purchase.
