HAMPTON BAY SUMMERFIELD User manual

Item #1005 311 188
1005 173 846
Model # 2102FP
SUMMERFIELD 44”, 50K BTU GAS FIRE PIT
USE AND CARE GUIDE
THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Figure 81, Page 1 of 12
CSA GROUP
Project 267946-80034049

2
Table of Contents
Table of Contents .................................. . 2
Important Safety Instructions ....................... . . 2
SPECIFICATIONS ..................... . . . . . . . . . . . . . .5
ABOUT PROPANE (LP) GAS ...........................
4
PLANNING ASSEMBLY ..............................
5
TOOLS AND HARDWARE REQUIRED ....................
5
Pre-assembly ...................................... 5
HARDWARE INCLUDED ..............................
5
PACKAGE CONTENTS ...............................
6
FLAME CHARACTERISTIC ............................
10
LIGHTING .................................. . . . . . .
10
BEFORE LIGHTING .................................
10
SHUTDOWN ............................. . . . . . . . . .
10
Care and maintenance ............................... 10
Pre-assembly (continued) ............................ 6 LIMITED WARRANTY................................ 11
Assembly......................................... . 6
LP-GAS SUPPLY SYSTEMS ........................... . 6
LEAK CHECK ..................................... .11
Important Safety Instructions
DANGER
If you smell gas:
FIRE OR EXPLOSION HAZARD
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately.
4. After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
Improper installation, adjustment alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING: For Outdoor Use Only
Installation and service must be performed by a qualified installer, service agency, or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
STOP! PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY.
MAKE SURE YOU HAVE ALL THE PARTS AND HARDWARE AS IDENTIFIED ON THE PARTS LIST.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Figure 81, Page 2 of 12
CSA GROUP
Project 267946-80034049

Figure 81, Page 3 of 12
CSA GROUP
Project 267946-80034049
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING:
USE FACTORY APPROVED REPLACEMENT PARTS AND ACCESSORIES ONLY. USE OF
UNAPPROVED PART OR ACCESSORIES CAN VOID THE WARRANTY ON THIS PRODUCT
AND RESULT IN A HAZARDOUS CONDITION. PLEASE CONTACT US FOR INFORMATION
REGARDING REPLACEMENT HOSES, ELECTRODES, IGNITIONMODULES,LAVA ROCKS,
LOGS, ETC.
WARNING: If the information in this manual isnot followed exactly, a fire or explosion
may result causing property damage, personal injury, orloss oflife.
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an en closed space such as a camper, tent,
car or home.
DANGER CARBON MONOXIDE HAZARD
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code; Propane Installation Code, CSA B149.1; or
Propane Storage and Handling Code, B149.2, as applicable.
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during
any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at a safe
distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or near
the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating
the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be
required as necessary. It is imperative that the control compartments, burners and circulating air
passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner bef renrubehtotni)lava rock(aidemrenrubehtfoll
agniruopero
The media must be evenly distributed over the burner.
During initial firing of firepit, please stay away from the firepit for 20 minutes as fire media (lava rock)
may pop and hit someone on the face or eyes.
The maximum inlet gas supply pressure is 250psi. The minimum inlet gas supply pressure is 25psi.
pan.

Figure 81, Page 4 of 12
CSA GROUP
Project 267946-80034049
4

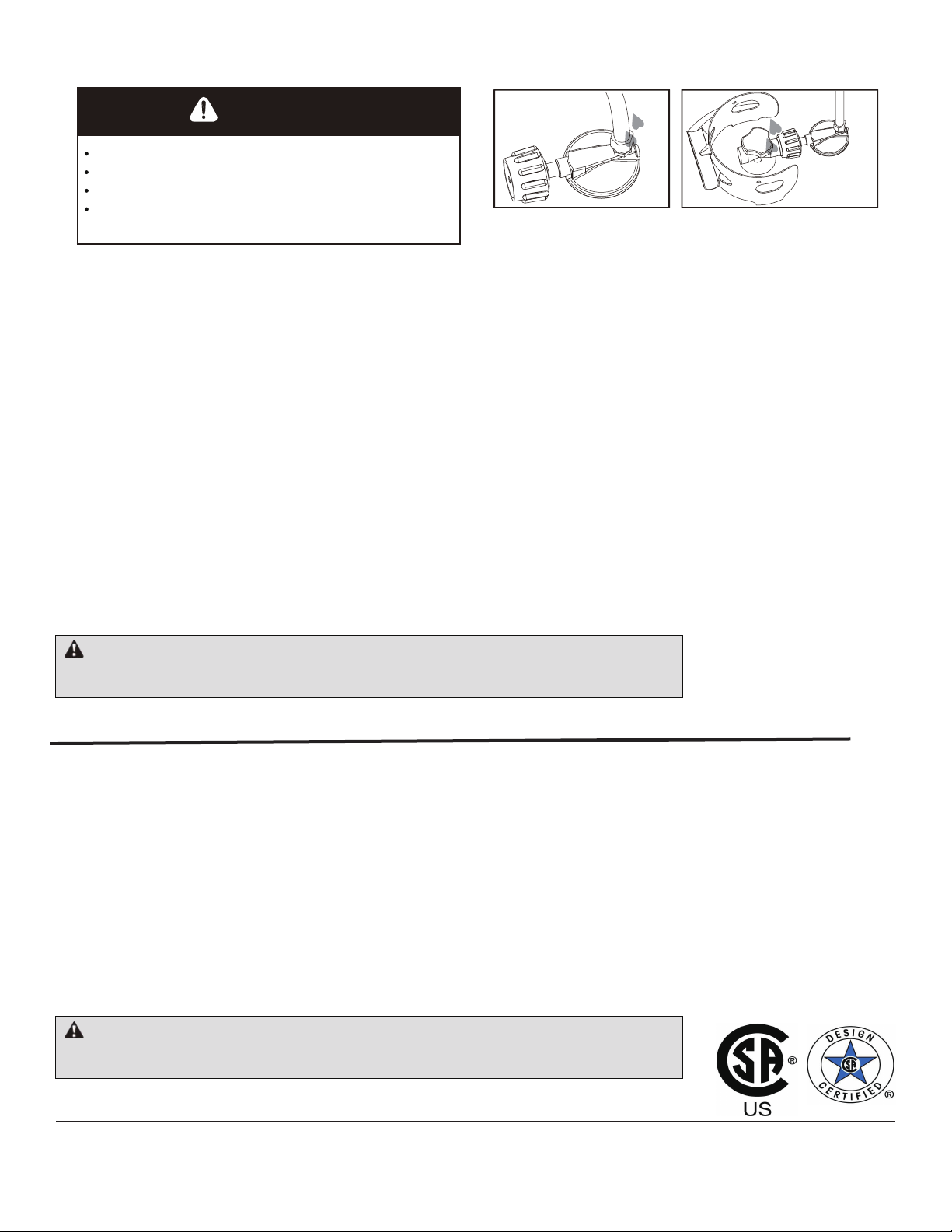

ABOUT PROPANE (LP) GAS

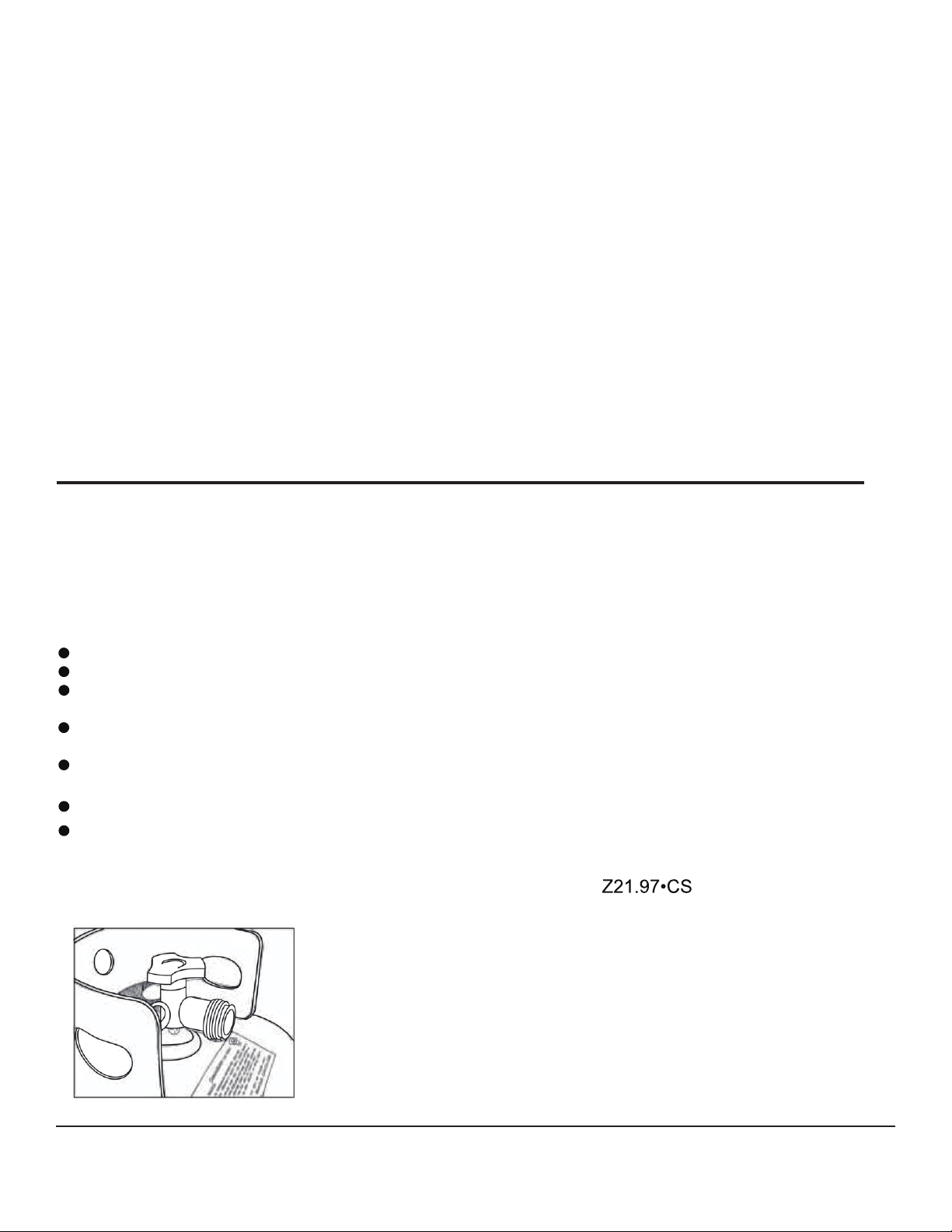

A self contained LP-gas cylinder for use with this appliance must have a capacity of 20
lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection
device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance
with the specification for LP-gas cylinders of the U.S. Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and
Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall
Propane head should maintain clean.
not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of
children. Disconnected cylinders must have threaded valve plugs tightly installed
and must not be stored in a building, garage or any other enclosed areas.
CSA (Canadian Standards Association) certified to ANSI A 2.41-2017
“Outdoor Decorative Gas Appliances”.
eraaidemrenrubehterusnE.tewera)lava rock(aidemrenrubehtfitiperifehtesuroetingiTONoD
completely dry before igniting as intense heat could cause the media to crack and pop.
Do not use this appliance for cooking.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This regulator is set
for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP Hose. If
there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas
appliance being put into operation. Use only the replacement hose assembly specified in this manual. Inspect
the burner before each use of the appliance. The burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces.
Very hot while in operation! Never lean over the appliance while it is in use.
In order to protect the burner system, when the fire is not in use and on rainy days, the cover should be used.
Do not use cover immediately after use, wait until the appliance has cooled down.
Do not sit or stand on this table.
Retain these assembly instructions for future reference.
1erugiF

SPECIFICATIONS
INPUT 0,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator
Pressure 11 inches water column
Clearances to
combustible surfaces Sides: 24in./61cm Top: 60 in. / 152 cm
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

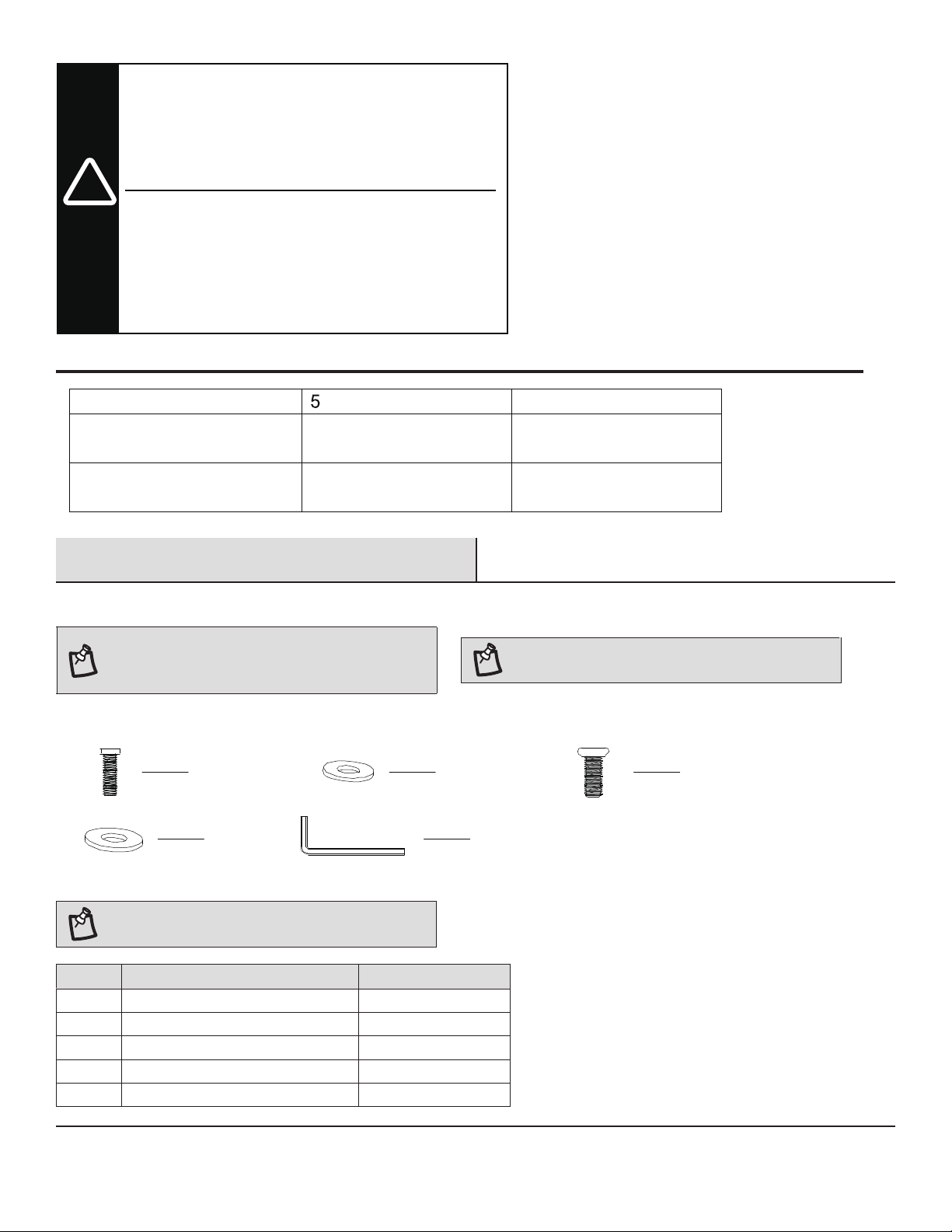

Pre-assembly
PLANNING ASSEMBLY
TOOLS AND HARDWARE REQUIRED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
NOTE: More than one person may be required
to assemble this product.
PartDescriptionQuantity
AA Bolt 10
BB Gasket 10
CC Bolt 4
DD Gasket 4
EE Allen key 1
NOTE: Read all instructions before assembly. To avoid
damaging this product, assemble it on a soft,
non-abrasive surface such as carpet or cardboard.
AA
DD EE
BB CC
!
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF CUCH
FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. For more information go to: www.P65Warnings.ca.gov.
ADVERTENCIA: LOS COMBUSTIBLES USADOS EN EQUIPOS
PARA LICUAR GAS PROPANO, ASI COMO LOS PRODUCTOS DE SU
COMBUSTIÓN, PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS,
ENTRE ELLAS EL BENCENO, QUE EL ESTADO DE CALIFORNIA
RECONOCE COMO CAUSA DE CÁNCER Y DE MALFORMACIONES
CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información, visite www.P65Warnings.ca.gov
Figure 81, Page 5 of 12
CSA GROUP
Project 267946-80034049

6
Pre-assembly (continued)

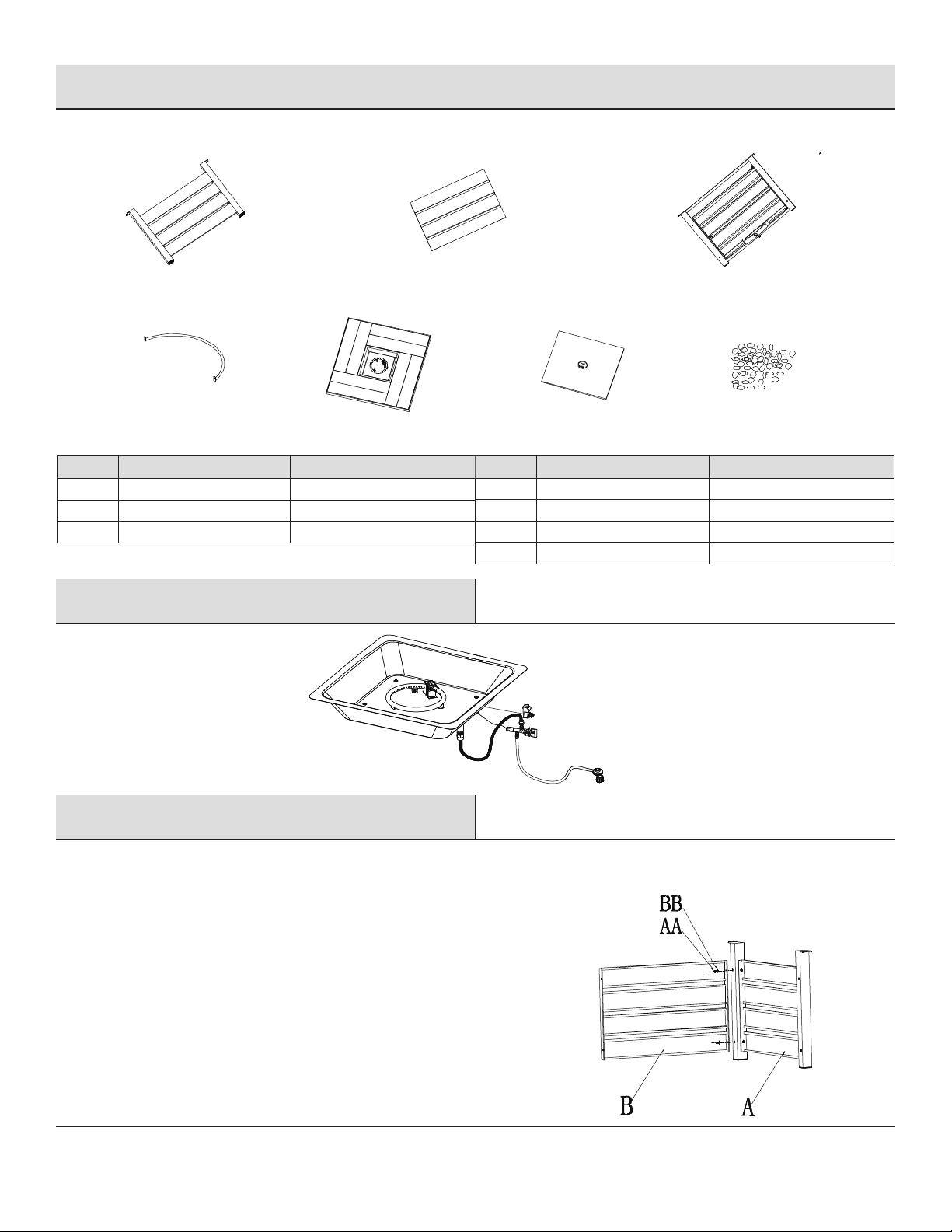

PACKAGE CONTENTS
PartDescriptionQuantity PartDescriptionQuantity
A Front panel 1
B Side panel 2
C Back panel 1
D U shape ring 1
E Table top 1
F
G
Lid
Lava Rock
1
~
Assembly
LP-GAS SUPPLY SYSTEMS
□Attach the front panel(A) to the side panel(B) with bolt(AA) & gasket(BB).
Don't tighten fully at this step.
A B C
D E GF
Figure 81, Page 6 of 12
CSA GROUP
Project 267946-80034049

□Attach the last side panel(B) with panel(A) and panel(C)
with bolt(AA) & gasket(BB).
attach the back panel (C) to the other side of the side panel (B)
with bolt(AA) & gasket(BB).
□
Attach U shape ring(D) to the middle of back panel(C)
with bolt(AA) and gasket(BB) in both sides.
□
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
Figure 81, Page 7 of 12
CSA GROUP
Project 267946-80034049

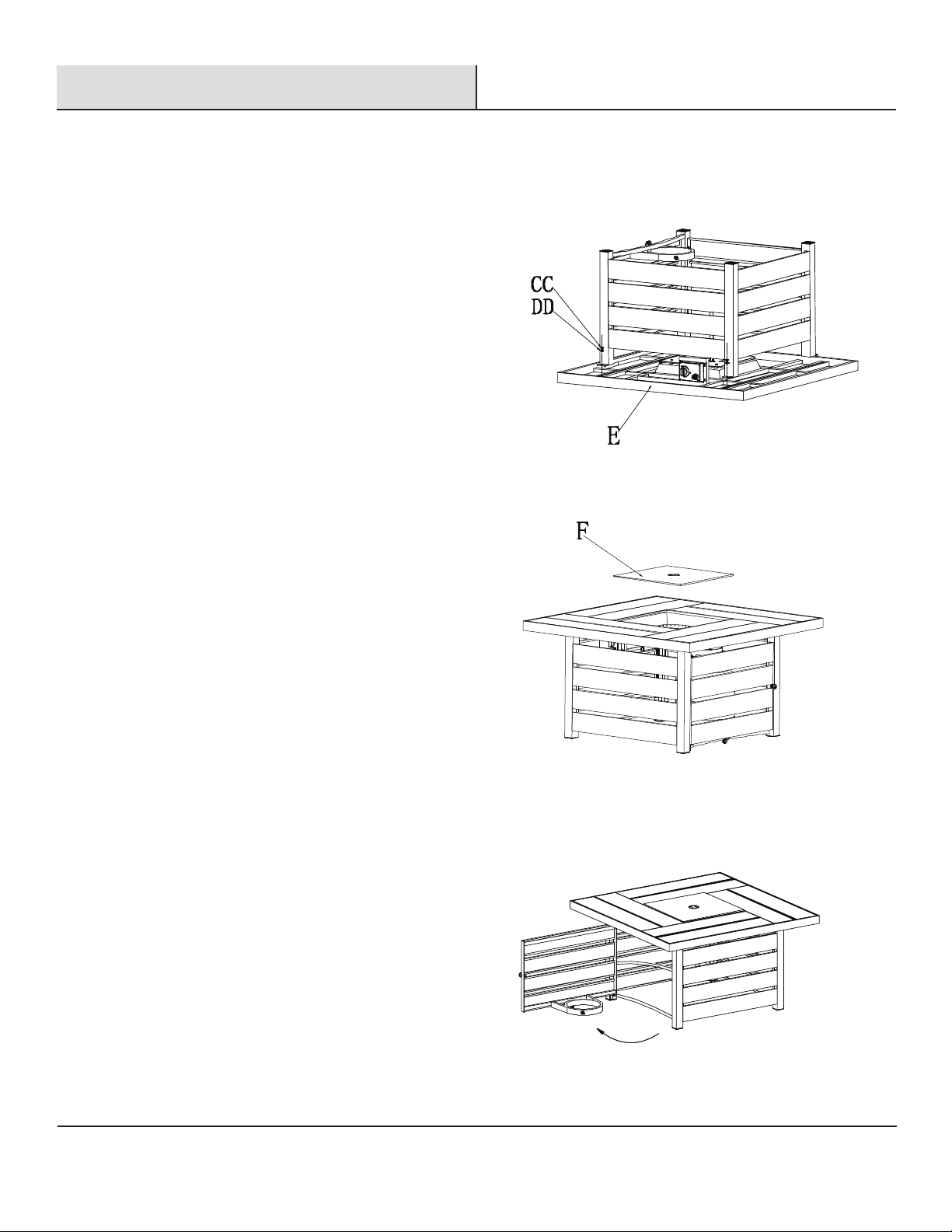

□Place the table top(E) face down on a non-abrasive surface.
Attach the table top(E) with the frame with bolt(CC) & gasket (DD).
Tighten fully with allen key(EE).
□Carefully turn the entire unit to stand straight up.
Cover the lid(F).
□Gently open the back panel(C).
8
Assembly (continued)
Figure 81, Page 8 of 12
CSA GROUP
Project 267946-80034049

Figure 81, Page 9 of 12
CSA GROUP
Project 267946-80034049
□
□
In order to lock the back panel (C), set the knob
pin on the back of back panel upright
(as picture shown), close the panel and turn
90 degree to lock it. Please make sure the
panel was security locked before use.
Lava rock(G) usage on bowl suggest keep
2.5~3 kgs maximum.
□Connect the gas pipe to the LP-gas cylinder. Hand tighten clockwise only.
To disconnect the gas pipe from LP gas cylinder,
loosen the connector by turning
counterclockwise by hand.
□
□
Install the LP-gas cylinder (Not included) into
the fixing ring in the door and fasten with
Adjusting screw.
The gas pipe must travel underneath the
U shape ring to connect to the cylinder
hand tighten only.
□Open battery cap on control panel and install with
LR03 AAA batteries (not included).
Assembly (continued)
9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
open lock

SHUTDOWN
1. Push in and turn control knob clockwise to “OFF” position.
2. Turn LP cylinder gas valve clockwise to OFF position when
appliance is not in use.
CAUTION: The gas supply must be turned off at the LP-gas supply cylinder when this
appliance is not in use.
• Immediately remove any spot or stain.
• To clean, wash with a mild soap, rinse with water and let air dry.
• Do not use strong solvents or bleach as they may damage the surface.
• Use an outdoor cover to extend the life of the item.
Before Lighting:
1.Firepit should be thoroughly inspected before each use, and by a qualified service person at
least annually. If relighting a hot fire pit, always wait at least 5 minutes.
2.Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected
areas should be leak tested. If the hose leaks, it must be replaced prior to operation.
Only use the replacement hose assembly specified by manufacturer. The burner must be
replaced prior to the appliance being put into operations if it is evident that the burner is
damaged. The replacement burner should be specified by manufacturer.
LIGHTING:
1.Remove the cover before lighting.
2.Control knob must be in the “OFF” position.
3.Connect and open propane cylinder(see manual).
4.Push and turn control knob counter clockwise to “LOW”.
5.Press the igniter button repeatedly to light burner.
6.Press and hold control knob for 45 seconds after flame lighted.
7.If ignition does NOT immediately take place in seconds, push and turn the control knob
clockwise to “OFF”. Fan with newspaper or magazine to ensure there is no propane gas in
the fire bowl and inside of body. Wait 5 minutes, then repeat the lighting procedure as above.
8.Adjust flame to desired flame with the control knob.
Lighting operations should comply with Lighting Instruction section.
Improper lighting operations will cause serious injury and explosion.

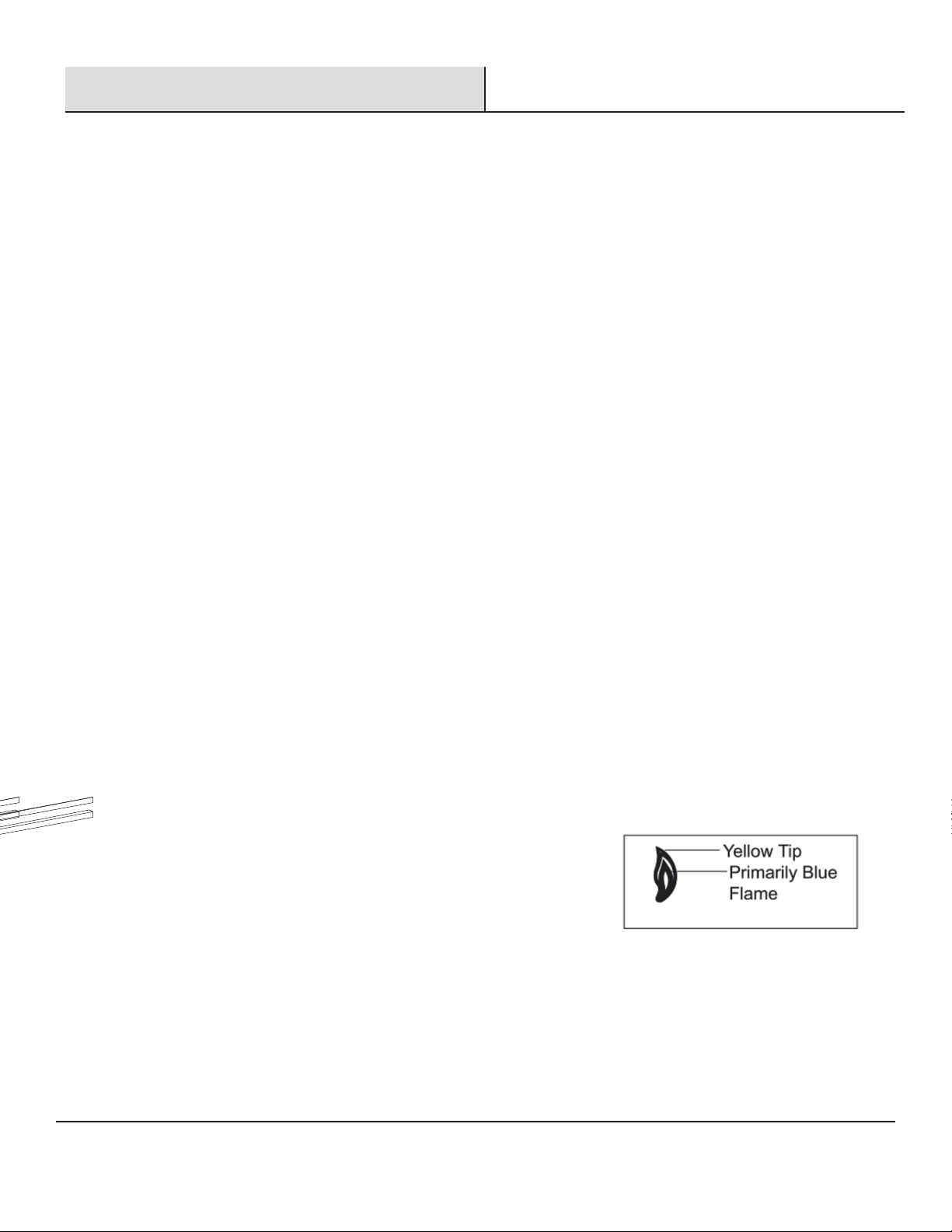

FLAME CHARACTERISTIC
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the gas
cylinder, as it may be low gas pressure or empty. If there is enough
gas in the cylinder, please contact customer service to change the
burner of the gas fire pit.
If flames lift away from burner or backfire happens, or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
Care and maintenance
10
Figure 81, Page 10 of 12
CSA GROUP
Project 267946-80034049

LIMITED WARRANTY
This warranty is for the original purchaser and applies to defects in materials and workmanship of
your patio furniture, provided your unit is maintained with care and used only for personal,
residential purposes.
Frames are warranted to be free from defects in material or workmanship for one(1)year.
Exclusions: Items used for commercial, contract or other non-residential purposes, display
models, items purchased “as is,” or items damaged due to acts of nature, vandalism, misuse or
improper assembly are not covered. Discoloration or fading of the finish or fabrics as a result of
exposure to the elements, chemicals or spills is not covered. Table top breakage, corrosion or
rusting of hardware and damages to frames or welds caused by improper assembly, misuse or
natural causes are not covered.
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all fire pit and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Complete installation.
Regulator / Cylinder
connection
Hose / Regulator
connection
WARNING
Perform all leak tests outdoors.
Extinguish all open flames.
NEVER leak test when smoking.
Do not use the fire pit until all connections have been
leak tested and do not leak.
WARNING:
Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
FOR YOUR SAFETY：
Surfaces of fire pit can remain extremely hot for a period after use. Allow 45 minutes to cool
down before touching or moving the fire pit.
11
Please contact 1-855-HD-HAMPTON for further assistance.
Figure 81, Page 11 of 12
CSA GROUP
Project 267946-80034049

Figure 81, Page 12 of 12
CSA GROUP
Project 267946-80034049
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
