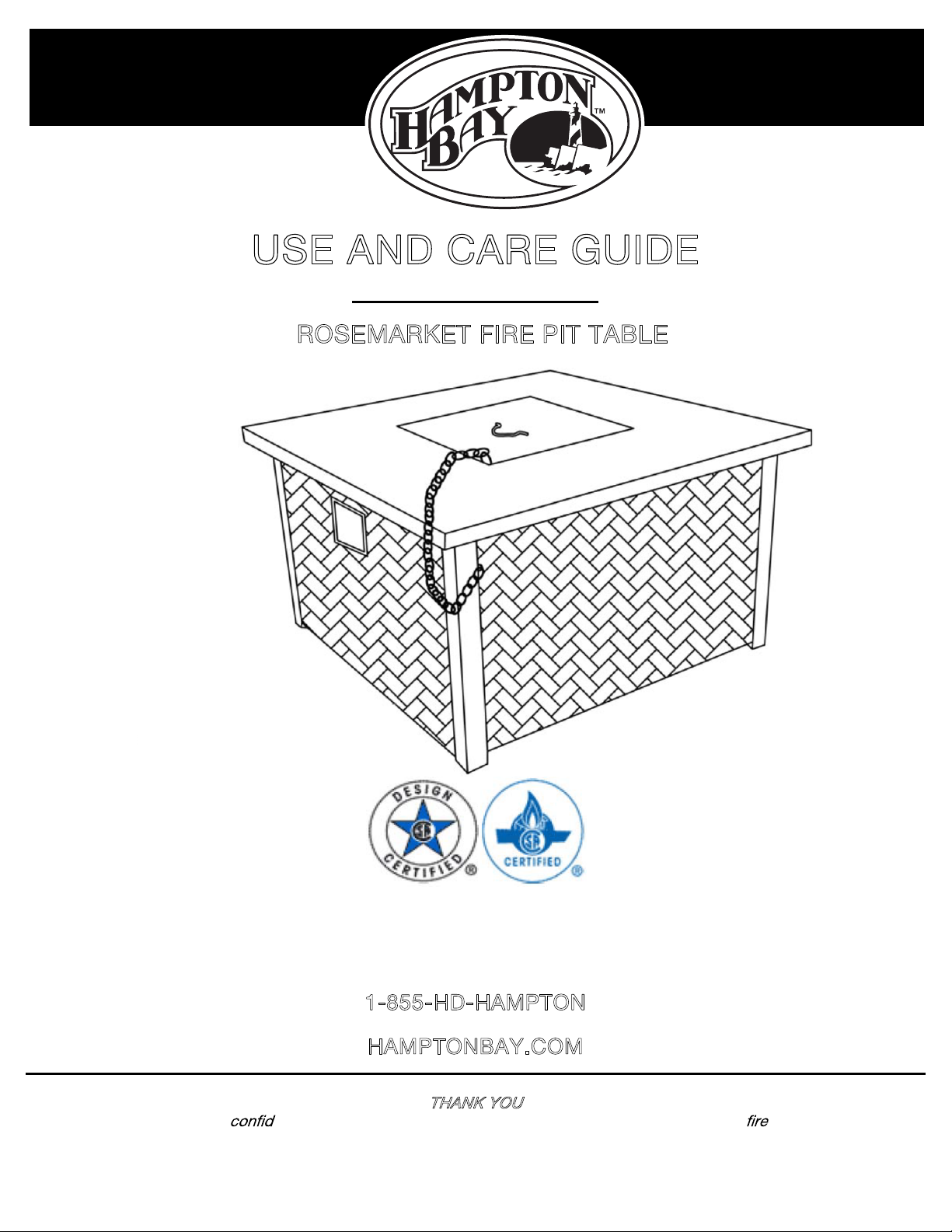

HAMPTON BAY ROSEMARKET XSC-1786-FP User manual

THANK YOU
We appreciate the trust and ence you have placed in Hampton Bay through the purchase of this pit table. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
637 300/637 302
USE AND CARE GUIDE
ROSEMARKET FIRE PIT TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
1472788Item #
YOW SKU # XSC-1786-FPModel #

2
Table of Contents
Table of Contents ....................................................2
Safety Information ...................................................2
Safety Information ...................................................3
Safety Information ...................................................4
Warranty..................................................................5
2 YEAR LIMITED WARRANTY .........................................5
What Is Covered..................................................................5
What is Not Covered ..........................................................5
Pre-assembly...........................................................6
Planning Assembly .............................................................6
Hardware Included..............................................................6
Pre-assembly (continued) ........................................7
Package Contents...............................................................7
Assembly................................................................. 8
Assembly (continued)...............................................9
Assembly (continued)............................................. 10
Assembly (continued)............................................. 11
Assembly (continued)............................................. 12
Operation .............................................................. 13
Operation (continued) ............................................ 14
Maintenance.......................................................... 15
Care and Cleaning ................................................. 15
Troubleshooting..................................................... 16
Safety Information
DANGER: If the information in this manual is not
followed exactly, a fire or explosion may result,
causing property damage, personal injury, or loss of
life. Save this manual for future reference.
DANGER: If you smell gas, immediately:
1. Shut off gas to the fire pit.
2. Extinguish any active, open flames.
3. Open the lid of the fire pit.
4. If the gas odor persists, keep away from
the fire pit, and immediately call your gas
supplier or your fire department.
DANGER: Improper installation, adjustment,
alteration, service, or maintenance can cause
serious injury or property damage. Read and
understand the installation, operation, and
maintenance information thoroughly before
installing or servicing equipment.
DANGER: This appliance has been tested to and
complies with the ANSI Z 21.97-2012, CSA 2.41-
2012 Outdoor decorative gas appliances. The
installation must conform to local codes, or the
absence of local codes to the National Fuel Gas
Code. ANS Z223.1. Safety precautions are essential
when any mechanical or propane fueled equipment
is involved. Follow all precautions in this manual
carefully.
DANGER: Carbon monoxide hazard. This
appliance can produce carbon monoxide, which
has no odor. Using the fire pit in an enclosed space
can kill you. Never use this appliance in an
enclosed space such as a building, garage,
camper, tent, car, or home.
DANGER: California Proposition 65 (1986)
Proposition 65 is a California law protecting
drinking water from toxic substances that cause
cancer and birth defects. Combustion by-products
produced when using this product contain
chemicals known to the State of California to cause
cancer, birth defects, and other reproductive harm.
WARNING: Do not use for cooking.
WARNING: Do not operate, light or use this
appliance within 10 feet of walls or structures.
WARNING: Never store your LP gas tank where
temperatures can exceed 125 degrees F. Never
keep a filled LP gas tank in a hot car or car tank.
Heat will cause the gas pressure to increase, which
may open the relief valve and allow gas to escape.
Do not store a spare gas tank under or near this fire
pit.
WARNING: Do not attempt to move the outdoor
fire pit table when in use. Allow the outdoor fire pit
table to cool before moving or storing.
WARNING: This outdoor fire pit table is not to be
used in or on boats or recreational vehicles.
WARNING: This outdoor fire pit table is not to be
operated by children. Carefully supervise children
when they are in the area of the appliance. Do not
leave a lit outdoor fire pit table unattended,
especially around children and pets.

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Safety Information
WARNING: This outdoor fire pit table should be
thoroughly cleaned and inspected on a regular
basis. Clean and inspect the hose before
each use of the appliance. If there is evidence of an
abrasion, wear, cuts, or leaks, replace with a
manufacturer specified hose before using the fire
pit.
WARNING: The burner should be inspected at
least annually by a qualified service professional.
Depending on amount of use, more frequent
cleaning may be required. Do not operate until any
worn or damaged parts have been repaired or
replaced.
WARNING: Clearances to Combustible
Construction:
Sidewalls: 60” (1.5 m) from edge of table top.
Ceiling: free of obstruction.
Flooring: 0” – Can be installed on deck, slab,
floor, etc.
CAUTION: To avoid personal injury or damage to
the fire pit table, at least two people are needed to
carefully place the fire pit table in the upright
position.
CAUTION: The maximum inlet gas supply pressure
is 250 psi.
CAUTION: Do not use this appliance if any part has
been under water. Immediately call a gas appliance
serviceman or your local LP gas company to
inspect the appliance and to replace any part of the
control system and any gas control that has been
under water.
WARNING: LP gas tank needed to operate. Only
tanks marked "Propane" may be used.
The LP gas tank must be constructed and
marked in accordance with the Specification
for LP gas tanks of the U.S. Department of
Transportation (DOT) or the Standard for
Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and
Commission, CAN/CSA -B339.
The LP gas tank must have a listed Overfilling
Prevention Device (OPD).
The LP gas tank must have a cylinder
connection device compatible with the
connection for the appliance.
LP tank must be arranged for vapor
withdrawal.
Never use an LP tank with a damaged body,
valve, collar or footing.
The LP tank should not be dropped or handled
roughly.
Tanks must be stored outdoors, out of the
reach of children and must not be stored in a
building, garage or any other enclosed area.
WARNING: For outdoor use only.
WARNING: Solid fuels should not be burned in this
fire pit.
WARNING: What to do if you smell gas:
Do not try lighting any appliance.
Do not touch any electrical switch;.
Do not call any phone in your building.
Immediately call your gas supplier from a
neighbor's phone.
Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the
fire department.
WARNING:
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING: Properly locate the gas hose out of
pathways where people may trip over it or in areas
where the hose may be subject to accidental
damage.
WARNING: Follow all leak-checking procedures
before operating. To prevent fire or explosion
hazard when testing for a leak:
Always perform a leak test before lighting the
outdoor fire pit table and each time the tank is
connected for use.
No smoking. Do not use or permit any possible
sources of ignition in the area while conducting
a leak test.
Conduct the leak test outdoors in a well-
ventilated area.
Do not use matches, lighters, or a flame to
check for leaks.
Do not use the outdoor fire pit table until any
and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP
gas supply. Call a gas appliance serviceman or
your local LP gas company.

4
Safety Information
WARNING:
High Surface temperatures: Children and
adults should stay away to avoid burns or
clothing ignition.
Young children should be carefully
supervised when they are in the area of the
appliance.
Clothing or other flammable materials
should not be hung from the appliance, or
placed on or near the appliance.
Any guard or other protective device
removed during servicing the appliance shall
be replaced prior to operating the appliance.
Installation and repair should be done by a
qualified service person. The appliance
should be inspected before use and at least
annually by a qualified service person. More
frequent cleaning may be required as
necessary. It is imperative that the control
compartment, burners and circulating air
passageways of the appliance are kept
clean.
NOTE: Heat output: 38,000 BTU’s

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Warranty
2 YEAR LIMITED WARRANTY
WHAT IS COVERED
This product is covered under the manufacturer’s 2-Year Limited Warranty against defects in materials and
workmanship. If your furniture frame fails structurally due to inferior metals or welds during normal use within two years
of purchase, the manufacturer will repair or replace the defective piece at no charge. Replacement of missing or initially
defective parts will be sent at no charge for a period of 10 days from date of purchase. Warranty is to the original
purchaser and is non-transferable. Proof of purchase (dated register receipt) and in some cases, photos of product are
required for warranty claims. Lack of original receipt will void the warranty. We reserve the right to make substitutions
with similar merchandise, if the model in question is no longer in production.
This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment.
The manufacturer’s obligation under the warranty is to replace or repair defective parts at our discretion. Any expenses
or damage resulting from the installation, removal or transportation of the product will the responsibility of the owner and
are not covered by this warranty. The owner assumes all other risks arising out from the use or misuse of the product.
The warranty will be void if the product damage or failure is deemed by the manufacturer to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect power source by the owner. The
manufacturer neither assumes, nor authorizes any person or entity to assume for it any obligation or liability associated
with its products.
WHAT IS NOT COVERED
This warranty excludes: furniture used for commercial use, contract or other non-residential purposes, freight damage,
furniture damaged by acts of nature, abuse or lack of proper care, vandalism or improper assembly. Discoloration or
fading of straps or fabric or finish as a result of chemicals or spills is not covered. Glass, tile, and stone are not covered
against breakage; frames and hardware are not covered against corrosion or rusting. Light bulbs, batteries and fuses are
not covered. Furniture sold "as is", display models and/or clearance items are not covered. In addition, purchased parts
are not covered under this warranty. We reserve the right to make substitutions with similar merchandise, if the model in
question is no longer in production. Exclusion also includes time for loss of use, inconvenience, travel, packaging or any
other incidental or consequential damages. It remains the customer’s responsibility for freight and packaging charges to
and from our service center.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.Hamptonbay.com.

6
Pre-assembly
PLANNING ASSEMBLY
Please read this entire instruction manual before beginning assembly.
Identify all parts packed in carton using the parts lists. Remove all protective materials. If any parts are missing or
damaged, do not attempt to assemble.
NOTE: Place parts on a nonabrasive surface to
avoid scratching.

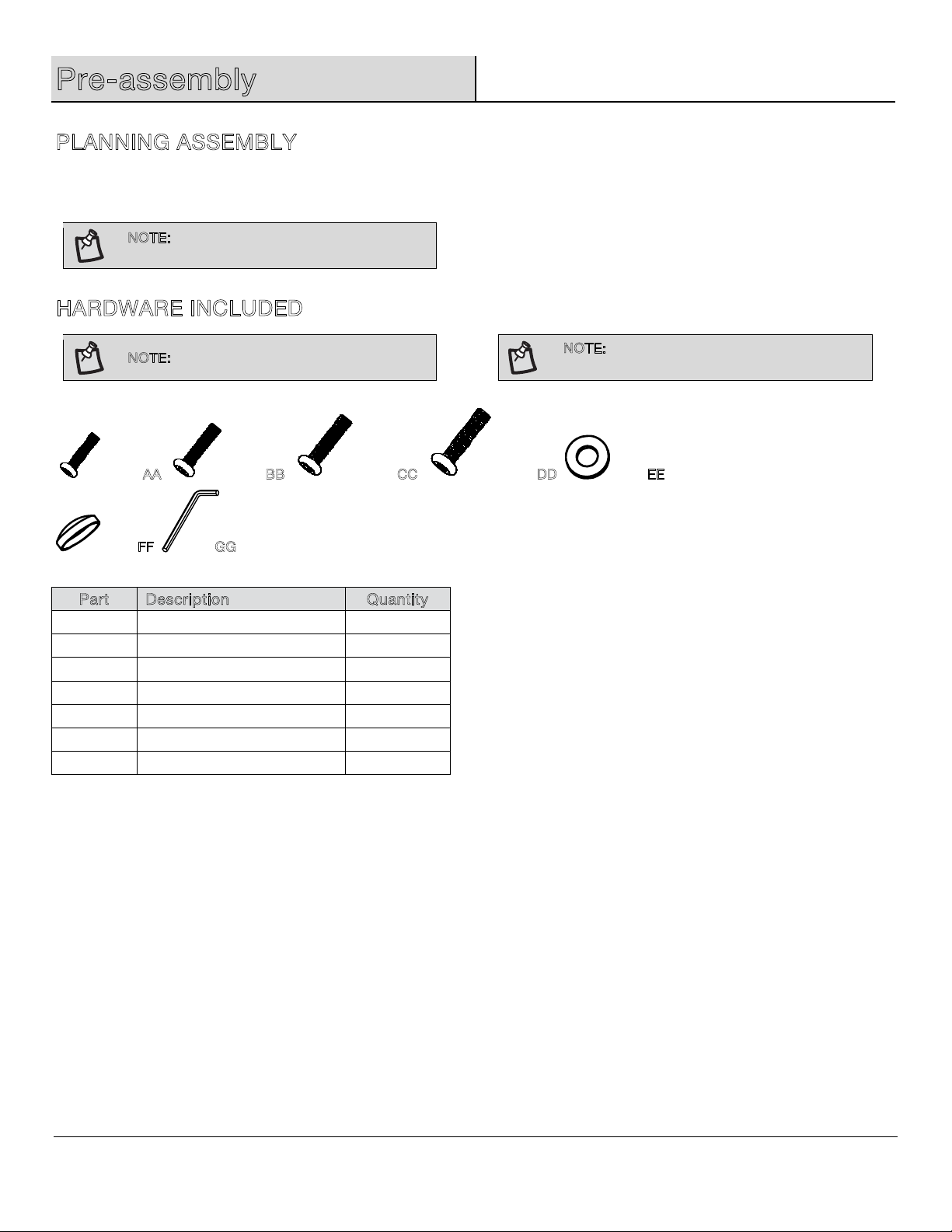

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
_____AA _____BB _____CC _____DD _____EE
_____FF _____GG
Part Description Quantity
A
A Hex bolt M6
x
15 22
BB Hex bolt M6
x
25 4
CC Hex bolt M6
x
35 4
DD Hex bolt M6
x
38 4
EE Metal washe
r
34
FF Plastic bolt cap 34
2hcnerwxeHGG
NOTE: Hardwar
e kit includes one extra piece of
each hardware item.

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-assembly (continued)

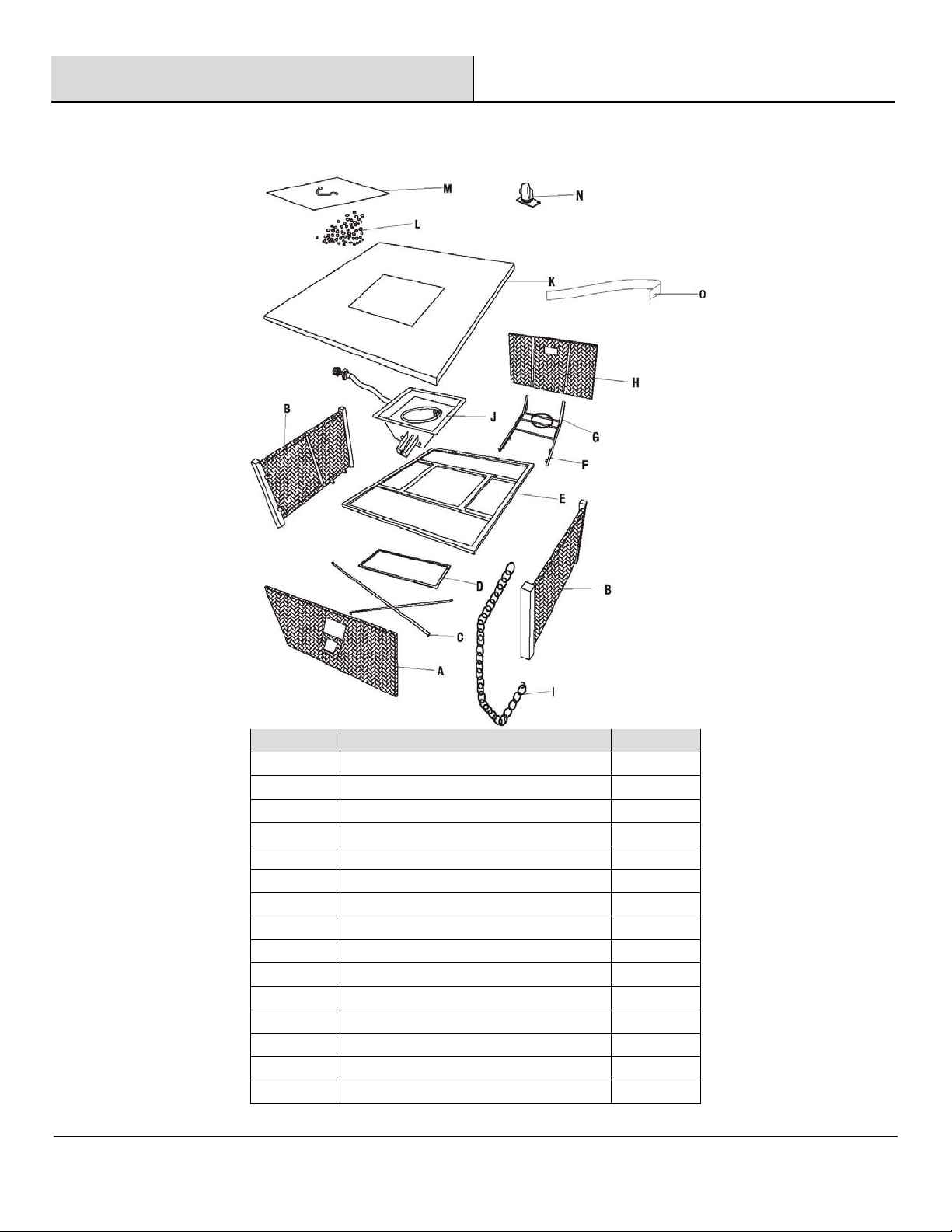

PACKAGE CONTENTS
Part Description Quantity
A
Front panel 1
B Side panel 2
C Support bracket 1
D Base support 1
E Table frame 1
F Drawer rail 1
G Tank support 1
H Back panel 1
I Chain 1
J Fire bowl 1
K Table top 1
L Lava rock 6.5 lb
M Cover 1
N Wheel 1
O Tank Strap 1

8
Assembly

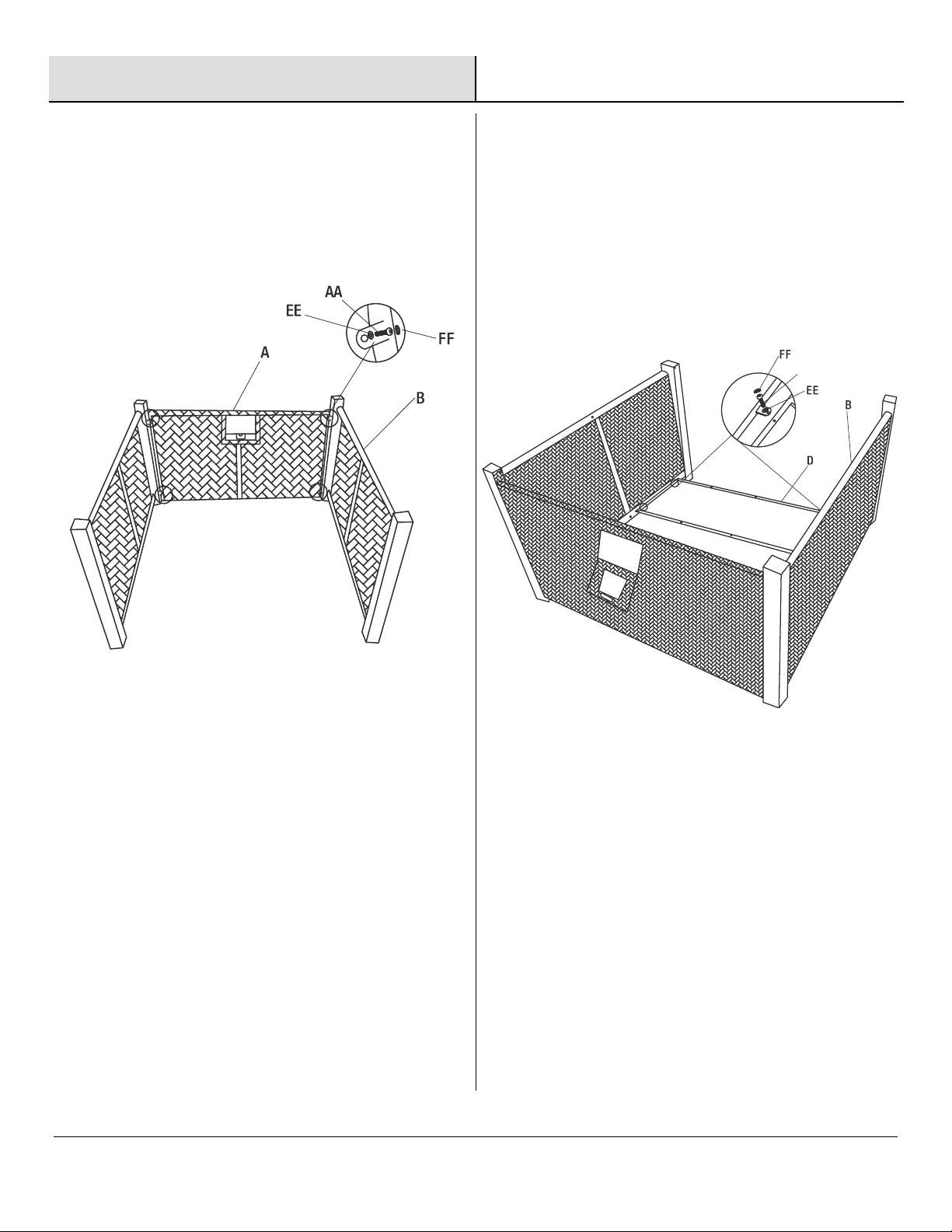

1Attaching the side and front
panels 2Attaching the base support and side panels
□
A
ttach the side panel (B) and front panel (A) using
four hex bolts (AA) and metal washers (EE).
□Do not tighten completely.
□
A
ttach the base support (D) to the side panels (B)
using four hex bolts (AA) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
AA

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)

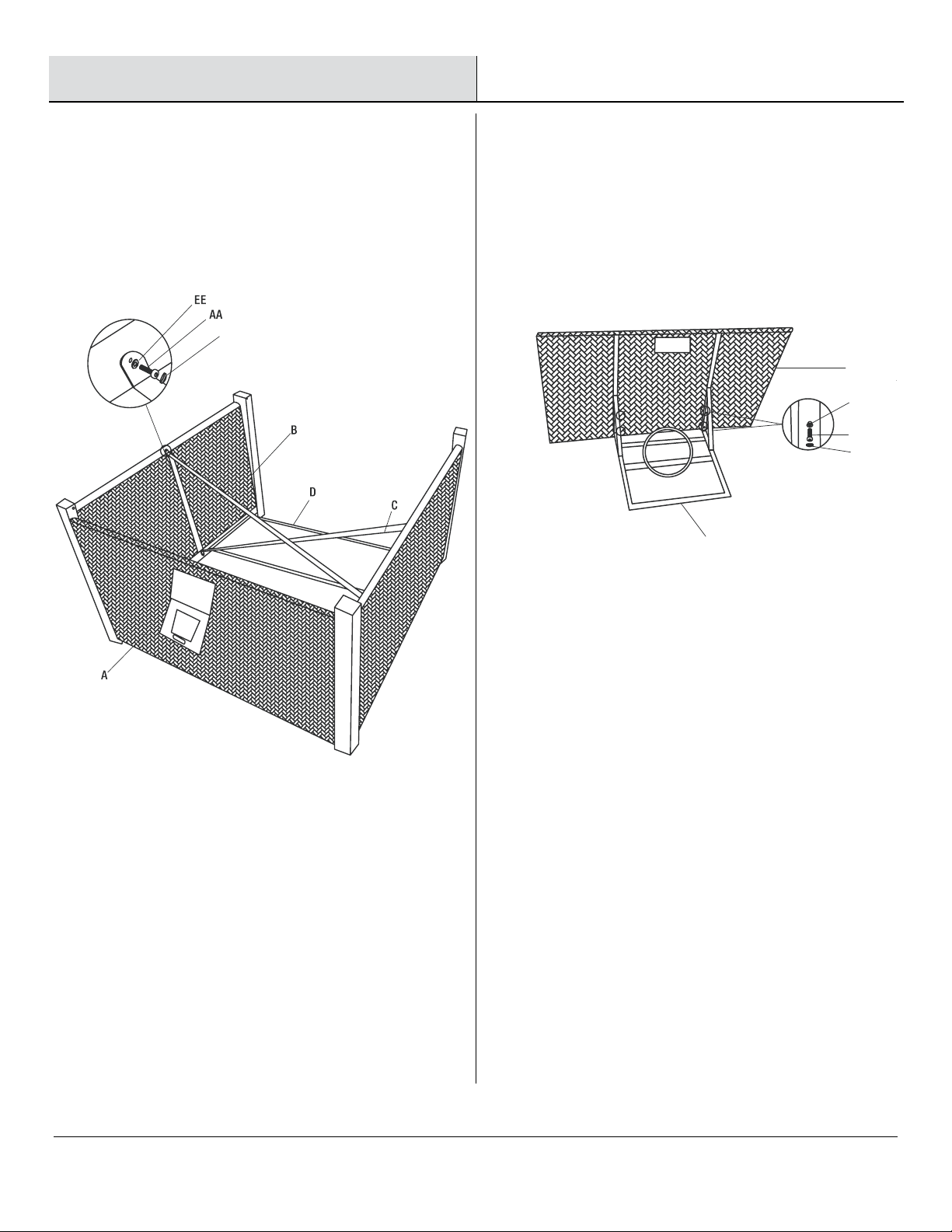

3Attaching the support bracket 4Attaching the tank support
and back panel
□
A
ttach the support bracket (C) and side panels (B)
using four hex bolts (AA) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
□
A
ttach the tank support (G) and back panel (H) using
the four hex bolts (BB) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
FF
H
EE
BB
FF
G

10
Assembly (continued)

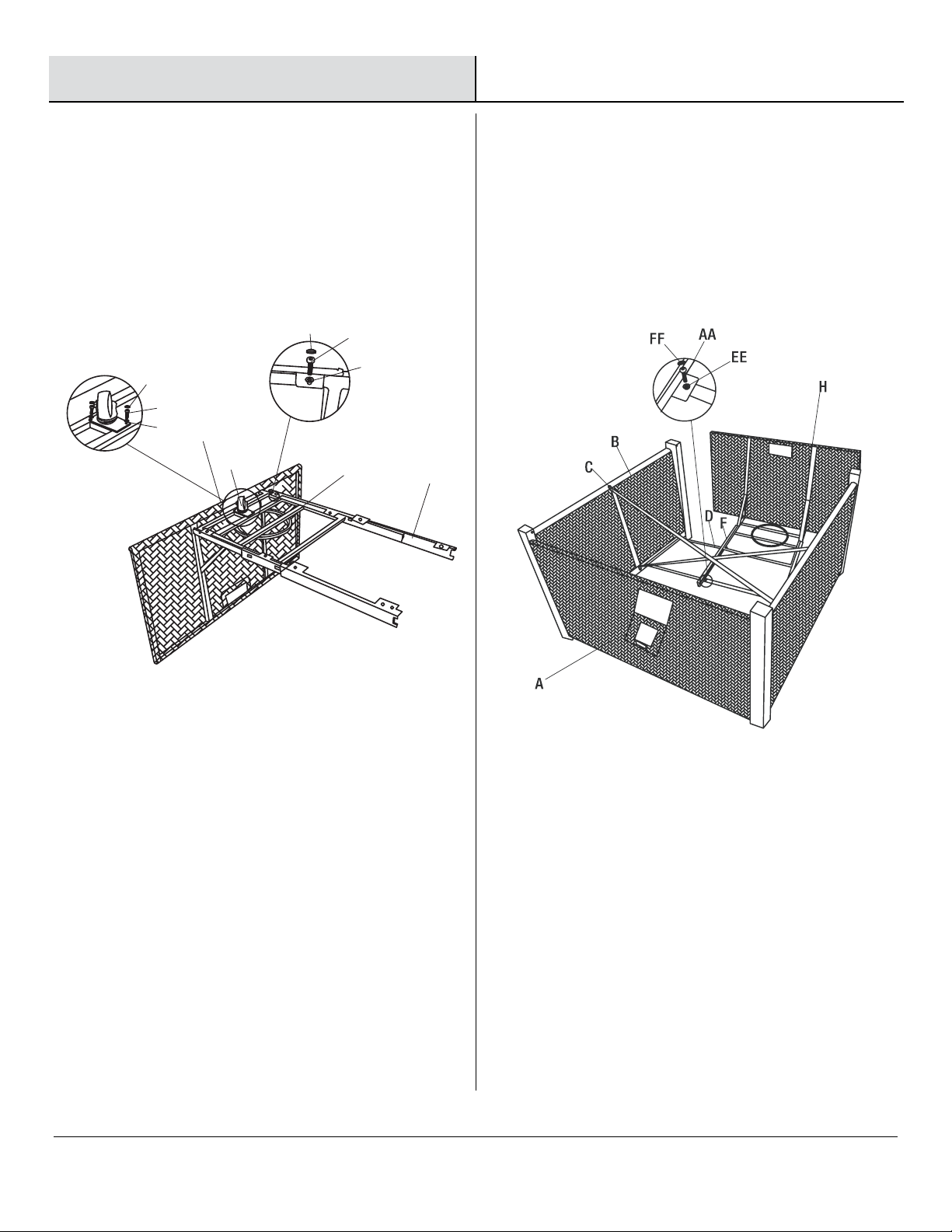

5Attaching the drawer rail 6Connecting the base support
and drawer rail
□
A
ttach the tank support (G), drawer rail (F), and wheel
(N) using six hex bolts (AA) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
□
A
ttach the base support (D) and drawer rail (F) using
four hex bolts (AA) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
H
GF
EE
AA
FF EE
AA
FF
N

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
7Connecting the panels and
frame 8Attaching the frame to the top
□Attach the side panel (B), front panel (A), and table
frame (E) using the four hex bolts (CC) and metal
washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).
□Turn the table top (K) face down on a soft, flat
surface.
□Place the fire bowl (J) face down on the table top.
□Turn over the table base, and position it on top of the
table top and fire bowl.
□Attach the table frame to the table top using the four
hex bolts (DD) and metal washers (EE).
□Tighten all bolts with the hex wrench (GG).
□Cover each bolt with a plastic bolt cap (FF).

12
Assembly (continued)

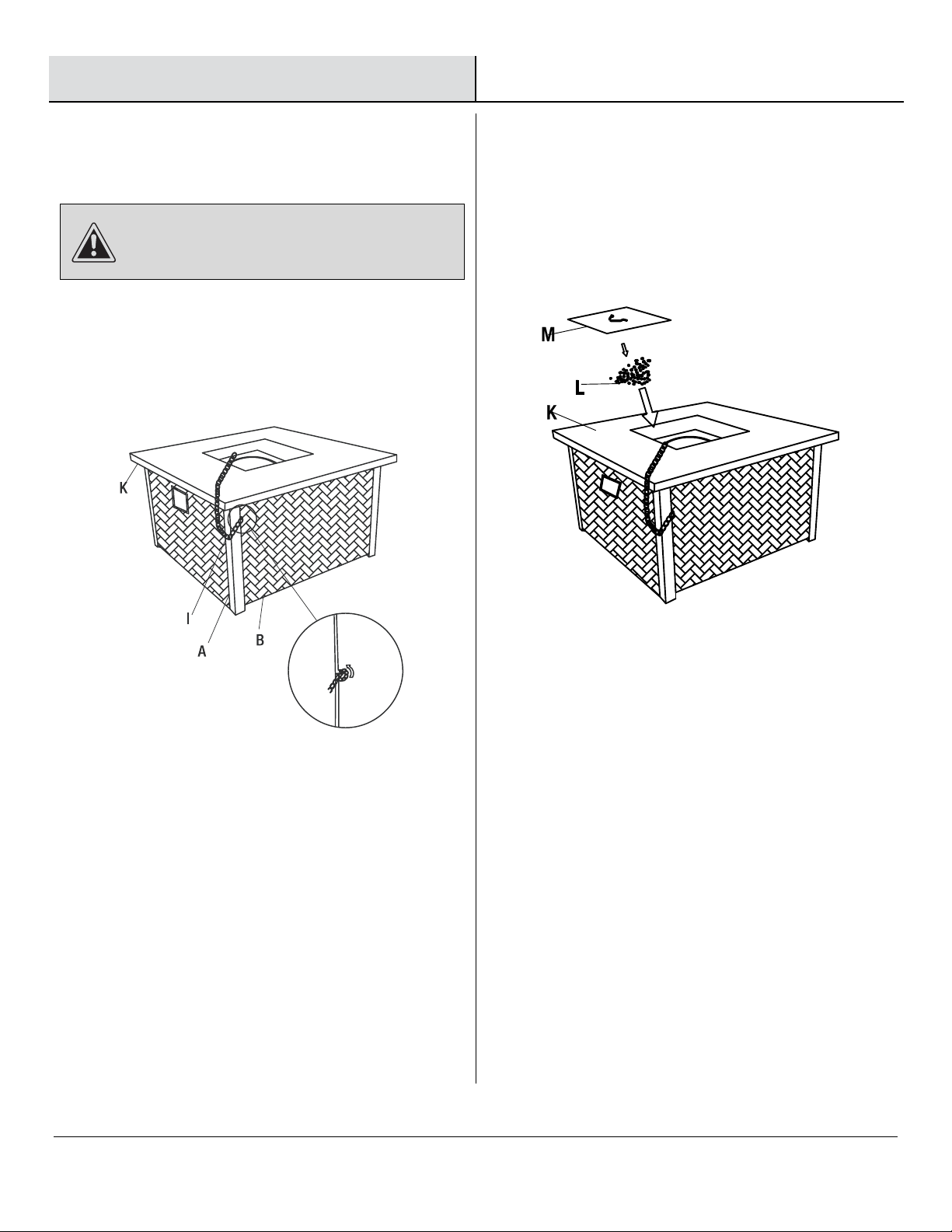

9Turning the table 10 Placing the lava rock and
cover
CAUTION: To avoid personal injury or damage to
the fire pit table, at least two people are needed to
carefully place the fire pit table in the upright
position.
□With two people, carefully turn the fire pit table right
side up.
□Attach the chain (I) to the front panel (A).
□Place 6.5 lb of the lava rock (L) into the fire bowl (J).
□Place the cover (M) on top of the fire bowl when fire
is not in use.

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Operation

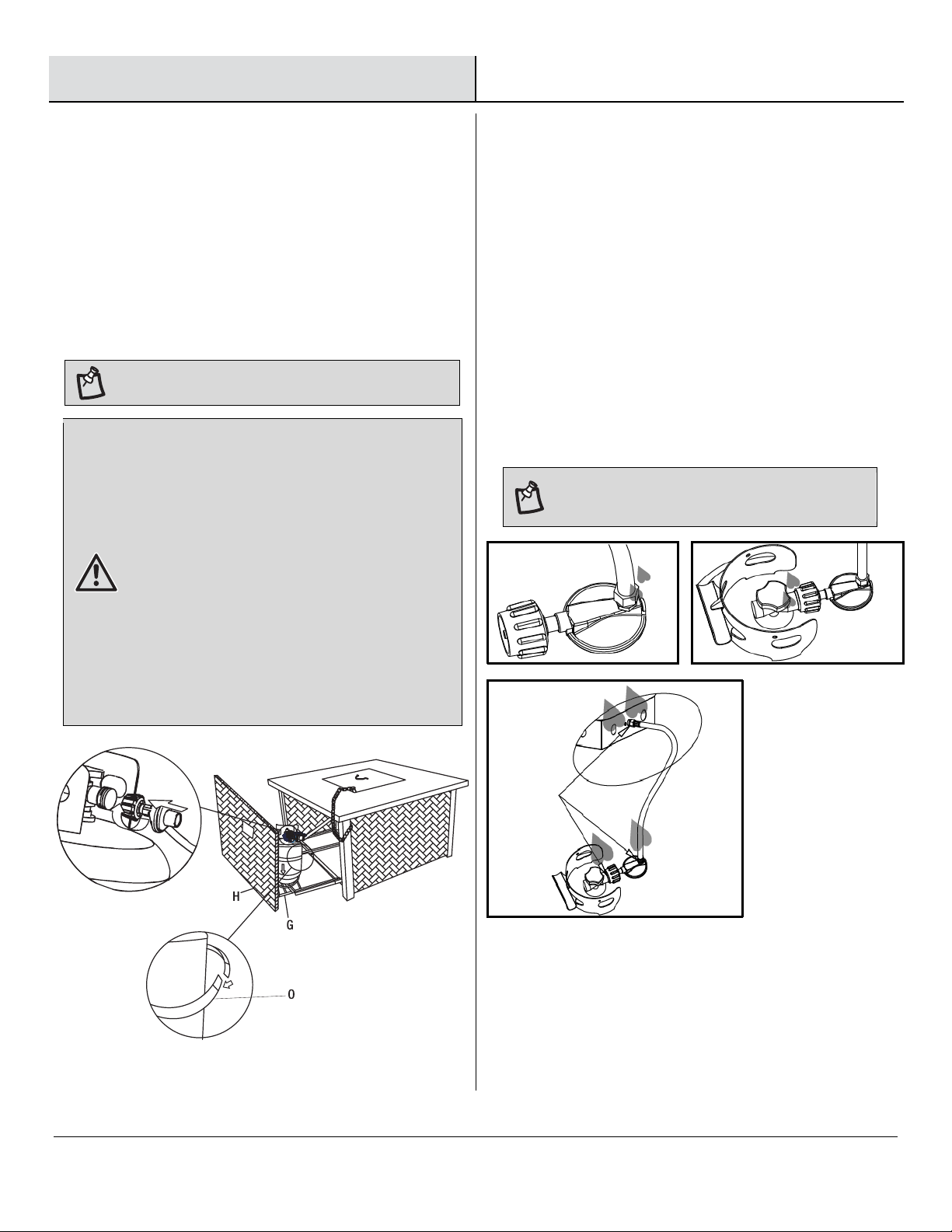

1 Installing a gas tank 2Checking for leaks
□Open the drawer and place the 20 pound gas tank
on the tank support (G).
□Secure the tank on the base by using the tank strap
(O). Attach the tank strap to the hook on the drawer
panel (H).
□Attach the fire bowl to the gas tank with the hose
from the fire bowl.
□Close the drawer (H).
NOTE: To operate, you will need a standard 20
pound propane tank.
WARNING: Follow all leak-checking procedures
before operating. To prevent fire or explosion
hazard when testing for a leak:
Always perform a leak test before lighting the
outdoor fire pit table and each time the tank is
connected for use.
No smoking. Do not use or permit any possible
sources of ignition in the area while conducting
a leak test.
Conduct the leak test outdoors in a well-
ventilated area.
Do not use matches, lighters, or a flame to
check for leaks.
Do not use the outdoor fire pit table until any
and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP
gas supply. Call a gas appliance serviceman or
your local LP gas company.
□Mix two to three ounces of a soapy solution to check
for leaks. Use one part liquid dishwashing detergent
and three parts water.
□Apply several drops of solution where the hose
attaches to the regulator.
□Apply several drops of solution where the regulator
connects to the cylinder.
□Make sure all fire pit and ignition valves are off.
□Turn the cylinder valve on.
□If any soap bubbles are visible where the solution has
been applied, the connections must be tightened
another turn and the leak check must be performed
again.
NOTE: If burner fails to remain lit, close all
valves and wait 5 minutes before attempting to
light the fire pit again.

14
Operation (continued)

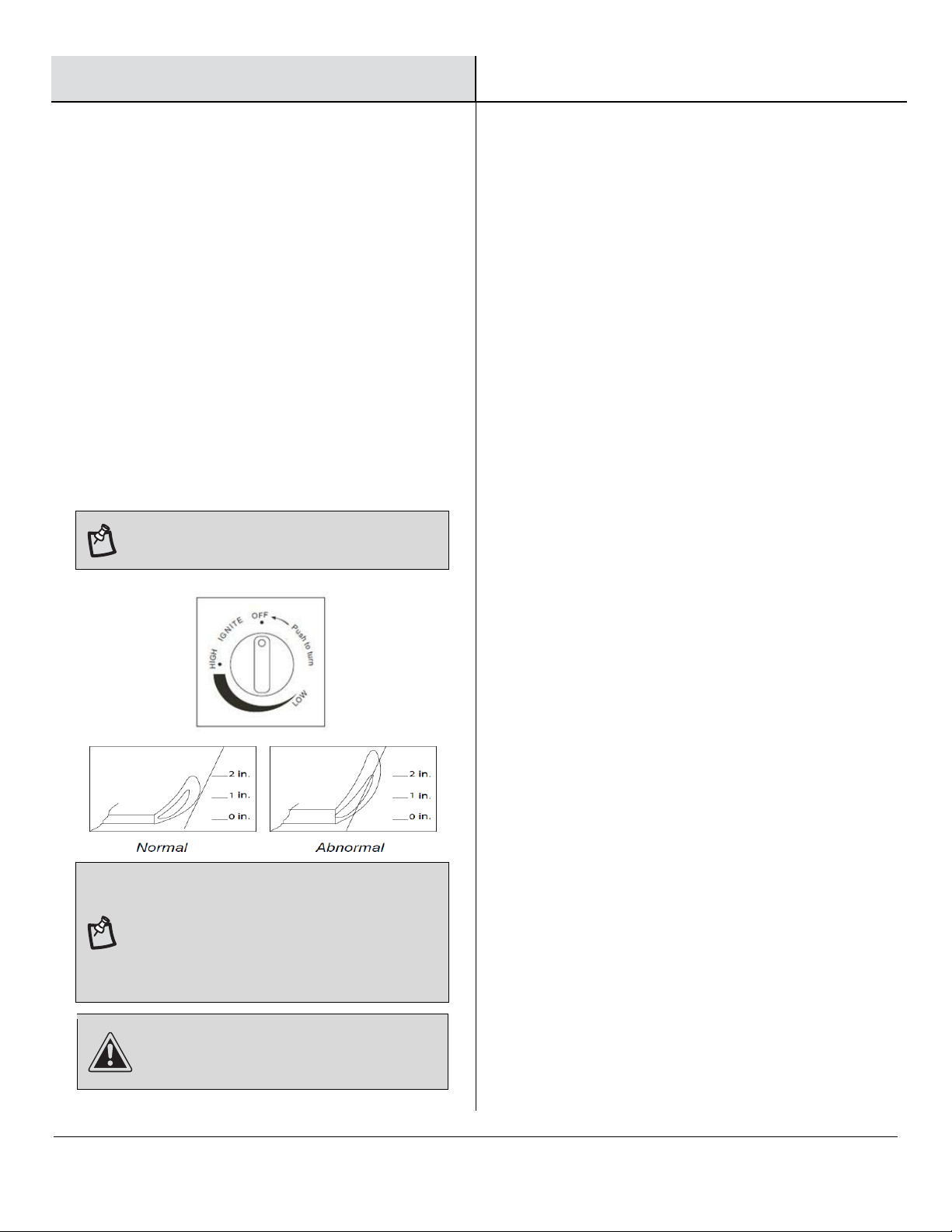

3 Lighting the fire pit
□To access the control knob, push to open the door
on the front panel.
□Turn the control knob to the “OFF” position.
□Fully open the LP cylinder valve.
□For the initial start or after any cylinder change, push
in and hold the control knob in for 2 minutes to purge
air from the gas lines before proceeding.
□Push in the gas control knob and turn
counterclockwise to ignite the fire pit. If needed,
keep depressing and turning the control knob
counterclockwise until the burner lights. You should
hear a clicking sound.
□Once the fire pit is ignited, push in the control knob
and turn clockwise to increase the flame, and turn
counterclockwise without pushing in to decrease the
flame.
NOTE: If burner fails to remain lit, close all
valves and wait 5 minutes before attempting to
light the fire pit again.
NOTE: When fire pit is on: The burner will
display blue and yellow flames. These flames
should not be yellow or produce thick black
smoke. This would indicate an obstruction of
airflow through the burners. The flames should
be blue with straight yellow tops. If excessive
yellow flames are detected, turn off the burner
and consult “Troubleshooting” on page 16.
WARNING: Be careful when attempting to
manually ignite this fire pit. Improper igniting
procedure may cause injury or property
damage.

15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Maintenance
□Air flow through the fire pit must remain unobstructed. Keep ventilation openings, controls, burner, and air
passages clean and clear of debris. Signs of possible blockage include the following:
oGas odor with extreme yellow tipping of flame.
oFire pit does not reach the desired temperature.
oFire pit glow is excessively uneven.
oFire pit makes popping noises.
□Spiders and insects can nest in the burner or other openings. This dangerous condition can damage the fire pit
and render it unsafe for use. Clean burner holes using a heavy-duty pipe cleaner. Compressed air may help clear
away smaller particles.
□Carbon deposits may create a fire hazard. Clean the dome and burner screen with warm soapy water if
any carbon deposits develop.
Care and Cleaning
To enjoy years of outstanding performance from your fire pit, make sure you perform the following maintenance activities
on a regular basis:
Keep exterior surfaces clean.
oUse warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
oWhile cleaning your unit, be sure to keep the area around the burner dry at all times.
oDo not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it
again. It must be replaced.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and
liquids.
Do not obstruct the flow of combustion and ventilation air.
Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away smaller particles.
Storage BETWEEN USES
Turn the control knob OFF.
Disconnect the LP source.
Store the fire pit upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust, and debris).
If desired, cover the fire pit to protect the exterior surfaces and to help prevent build-up in air passages.
NOTE: Wait until the fire pit is cool before
covering.
During periods of extended inactivity or when transporting
Turn the control knob OFF.
Disconnect the LP source, and move it to a secure, well-ventilated location outdoors.
Store the fire pit upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover fire pit to protect exterior surfaces and to help prevent build-up in air passages.
WARNING: Never leave LP cylinder exposed
to direct sunlight or excessive heat. Wait until
the fire pit is cool before covering.
CAUTION: Always the allow fire pit to cool
before attempting service.
Service
Only a qualified service person should repair gas passages and associated components.

16
Troubleshooting
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The burner will not light. □The propane cylinder is
frosted over.
□An opening is blocked.
□The control knob is not in the
ON position.
□There may be too much lava
rock covering the burner bowl
or small pieces may be
blocking the burner holes.
□Wait until the propane cylinder
warms up and becomes
unfrosted.
□Clear the blockage.
□Turn the control knob to ON.
□Remove a portion of the lava
rock.
The burner flame is too low. □The gas pressure is low.
□The outdoor temperature is
less than 40°F, and the tank is
less than ¼ full.
□Turn the cylinder valve off and
replace the cylinder.
□Use a full propane cylinder.
□Check the burner and
openings for blockage.
Carbon build-up and/or thick black
smoke is present.
□There is dirt or film on the
reflector and burner screen.
□The burner is blocked.
□Clean the reflector and burner
screen.
□Remove any blockage, and
clean the burner inside and
outside.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
