HAMPTON BAY G-FTB-51057B User manual

THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Cross Ridge Gas Fire Pit Table
1-855-HD-HAMPTON
HAMPTONBAY.COM
CUS
R
DANGER ·FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING ·FOR OUTDOOR USE ONlY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
from the cylinder and call the Fire Department.
Do not attempt repairs.
,
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior
r.
LP-gas is heavier than air and may settle in low places
when dissipating.
Contact with the liquid contents of cylinder will cause
freeze burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve turned
off. Self contained appliances shall be limited to a
cylinder of 30 lb capacity or less.
Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may open
When transporting, keep cylinder secured in an upright
position which cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER.Do not store a spare LP cylinder under or near a barbecue grill, or other
serious injury may occour.
WHEN CONNECTING FOR USE:
Use only in compliance with applicable codes.
Read and follow manufacturer’s instructions.
Consult manufacturer’s instructions
concerning the cylinder connection provided
with your appliance.
Be sure regulator vent is not pointing up.
Turn off all valves on the appliance.
Do not check for gas leaks with a match or
Apply soapy water at areas marked
”X”. Open cylinder valve. If bubble appears,
close valve and have LP-gas service person
make needed repairs. Also, check appliance
valves and connections to make sure they
do not leak before lighting appliance.
Light appliance(s) following manufacturer’s
instructions.
When appliance is not in use, keep the
cylinder valve closed.
X
X
X
X
X
Cylinder
Pressure relief valve
Cylinder valve hand wheel
Point of connection
Liquid level indicator
(optional)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Item #1002 938 103
Model #G-FTB-51057B
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

2
Table of Contents
Read the instruction before use. This appliance must be installed in accordance with such regulations as are enforced.
Table of Contents ..........................................
..........................2
Safety Information......
.........................................................2
Warranty............................................................................5
What is Covered..............................................................5
What is Not Covered......................................................... 5
Pre-Assembly........……………………...……………………. 5
Planning Assembly......
..................................................... 5
Tools Required......
........................................................... 5
Hardware Included......
..................................................... 5
Package Contents........................................................... 6
Assembly......………………………………………………….7
Operating Instructions ......................................................... 11
Maintenance.......................................................................14
Care and Cleaning...............................................................14
Troubleshooting.................................................................. 15
Service Parts..................................................................... 16

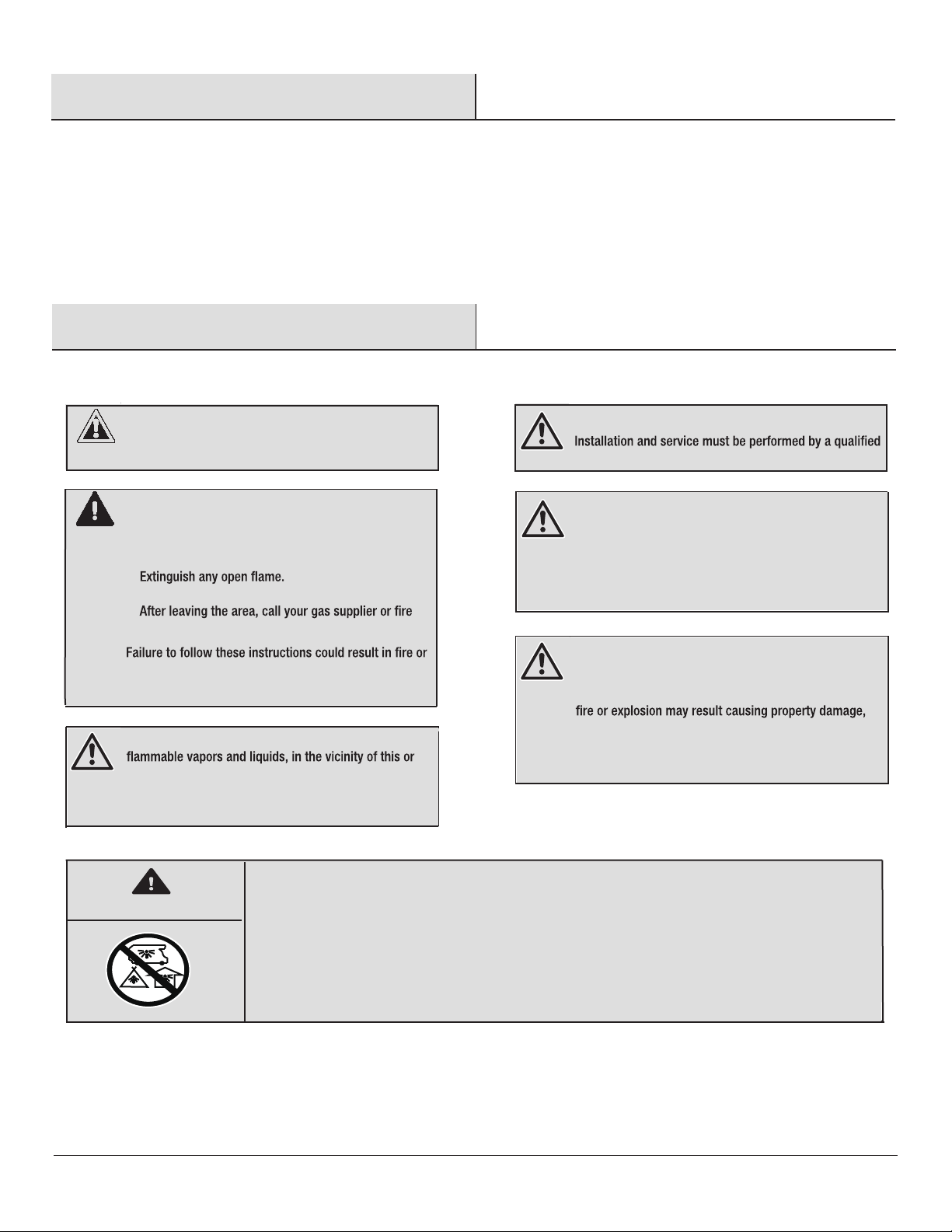

Safety Information
CAUTION:
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
DANGER:
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
If odor continues, leave the area immediately.
department.
explosion, which could cause property damage, personal
injury, or death.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
WARNING:
FOR YOUR SAFETY:
If the information in this manual is not followed exactly, a
personal injury or loss of life.
Do not try to light this appliance without reading the
“LIGHTING” instructions section of this manual.
WARNING: FOR OUTDOOR USE ONLY!
installer, service agency, or the gas supplier.
WARNING:
Improper installation, adjustment alteration, service or
maintenance can cause property damage, personal
injury, or loss of life. Read the installation, operating, and
maintenance instructions thoroughly before installing or
servicing this gas appliance.
WARNING: Do not store or use gasoline, or other
any other appliance. An LP-cylinder not connected for
use shall not be stored in the vicinity of this or any other
appliance.
DANGER
□
□
□
□

3
Safety Information (continued)
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling of L
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never
use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation (D.O.T)
Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve.
Do not store a spare LP gas cylinder under or near this appliance.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN
EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND
CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.
ADVERTENCIA: LOS COMBUSTIBLES USADOS EN EQUIPOS PARA LICUAR GAS PROPANO, ASÍ COMO LOS PRODUCTOS DE SU
COMBUSTIÓN, PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS, ENTRE ELLAS EL BENCENO, QUE EL ESTADO DE CALIFORNIA
RECONOCE COMO CAUSA DE CÁNCER Y DE MALFORMACIONES CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información, visite www.P65Warnings.ca.gov
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

4
Safety Information (continued)
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Max. gas supply 6791.3in wc (1725kPa). Manifold pressure 11 in wc (2.74 kPa).
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the appliance.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the appliance to avoid
burns or clothing ignition. This appliance comes with a heat shield which is an important safety component preventing contact with
Young children should be carefully supervised when they are in the area of the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
ually by
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and circulating air
passageways of the heater be kept clean.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway, or at right angles
to each other.

5
Warranty
1 YEAR LIMITED WARRANTY
WHAT IS COVERED
We warrant the metal frame to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charge to and from our service center. This warranty does not cover
commercial use, hardware, acts of nature, re, freezing and abusive use. In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Pre-Assembly
PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer the hardware and package contents list). If you are
missing parts, please contact 1-855-HD-HAMPTON for further assistance.
NOTE: Please read and understand the entire manual
before you assemble, operate, or install the re pit.
TOOLS REQUIRED
Phillips
screwdriver M6 Wrench
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part
Description
Quantity
AA M6 x 10 mm Bolt 20
AA
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

6
Pre-Assembly (continued)

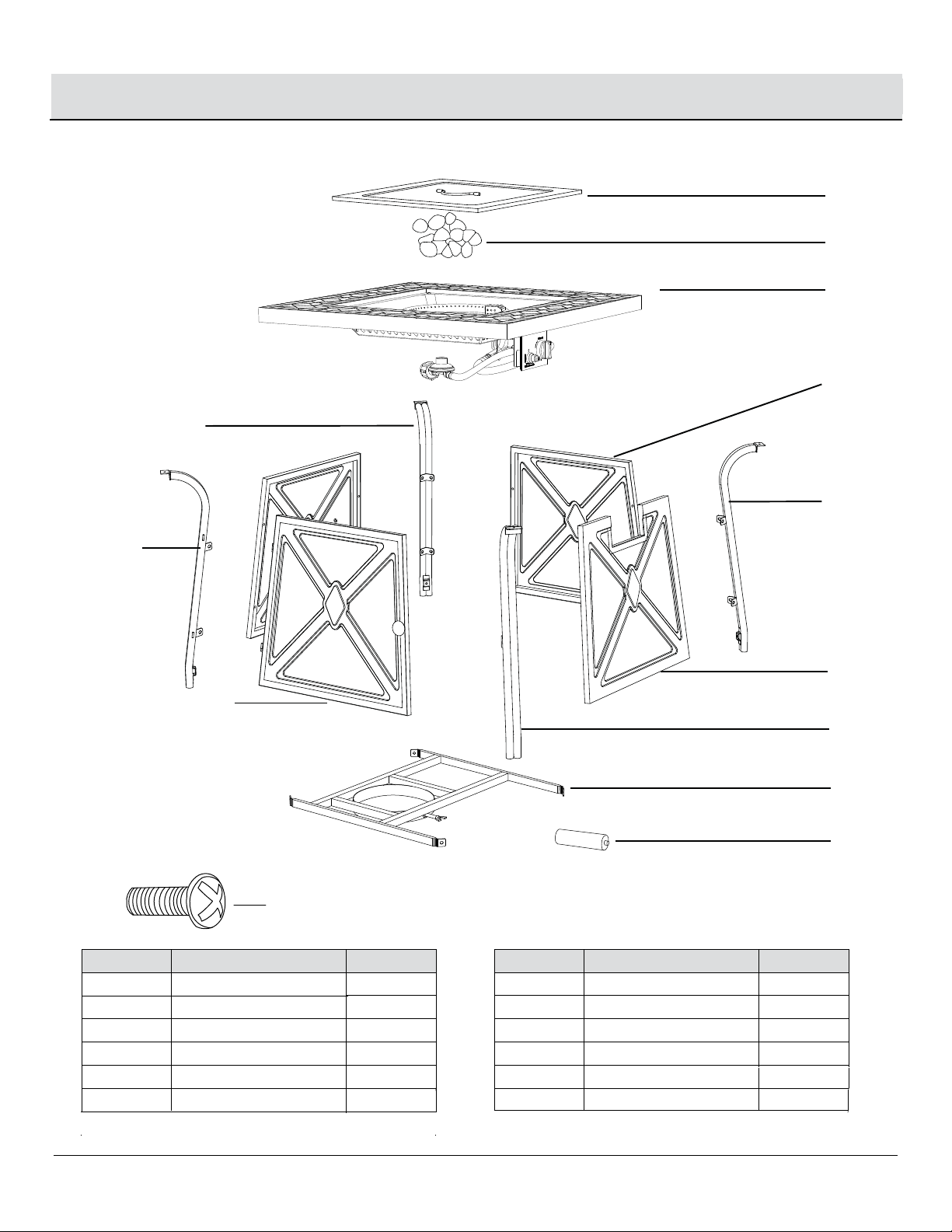

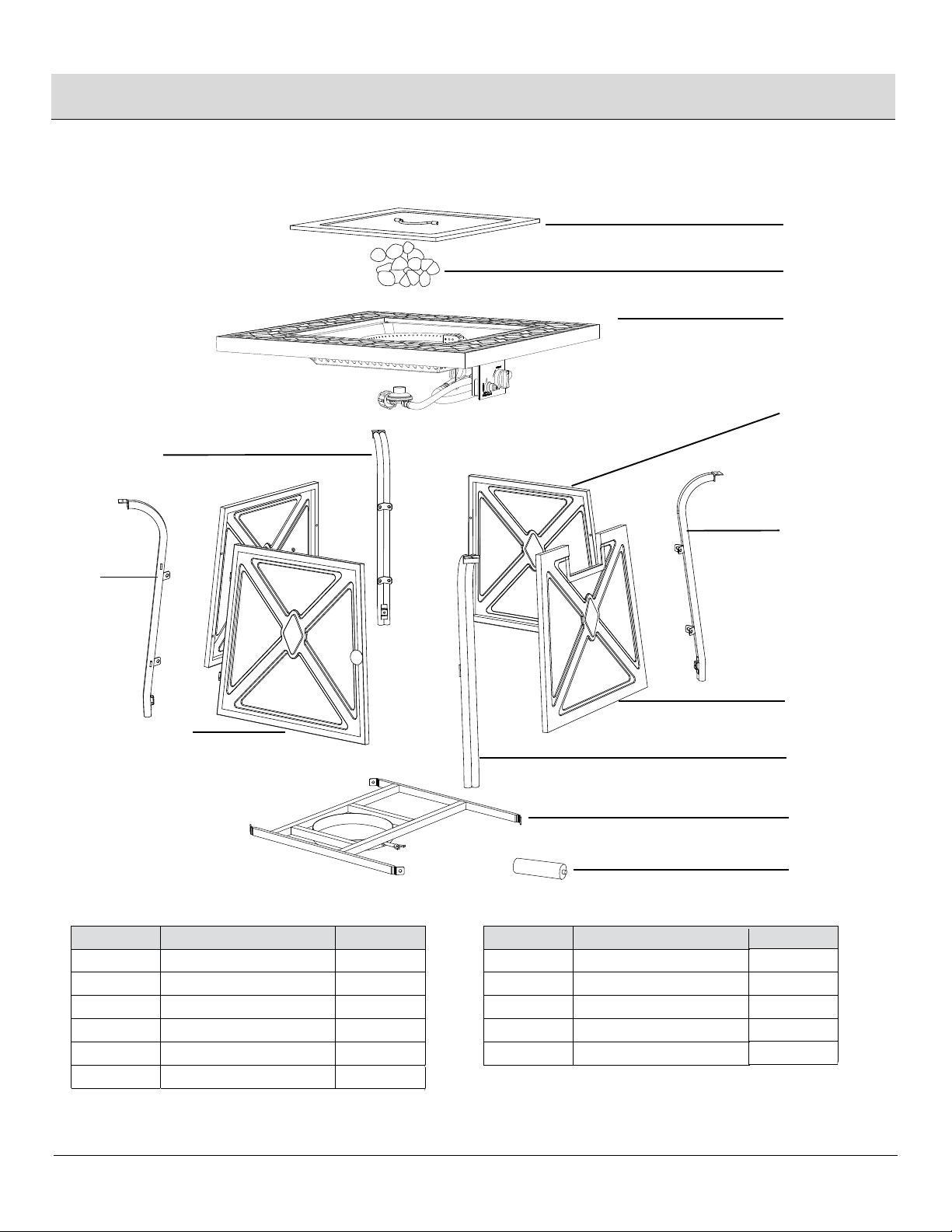

PACKAGE CONTENTS
Part
Quantity
A
1
B
1
C
1
D2
E2
Description
lid
lava rock (11 lbs)
table top with burner
side panel
leg E
G
1
H
1
I
1
J1
K1
Description
leg G
door
leg I
gas tank support
AAA battery
F1
side panel with window
A
B
C
D
E
F
I
J
H
G
E
K
Part Quantity

7
1

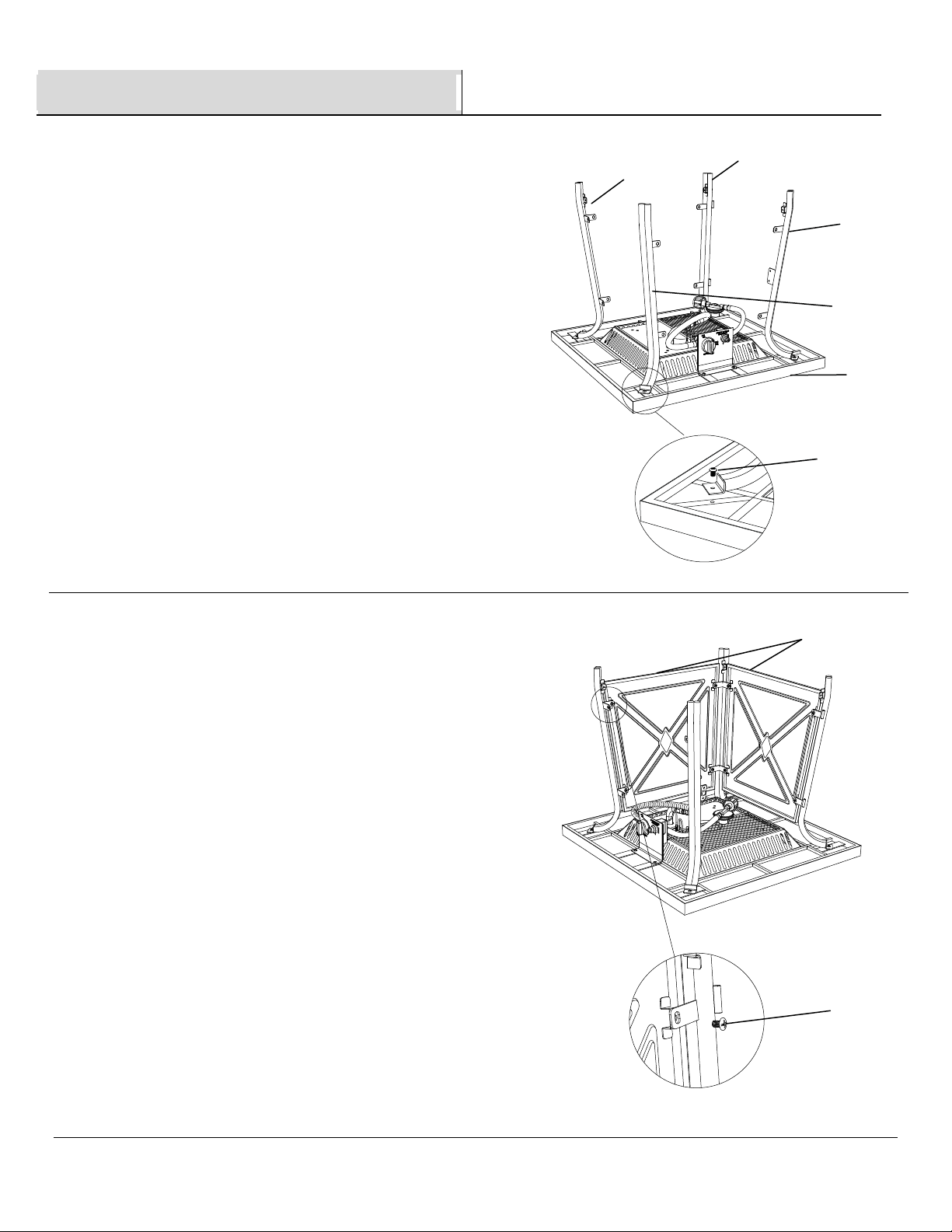

Assembling the legs
□Attach the leg (G), the leg (I) and the leg (E) to the table top with
burner (C) using four (4) M6 x10 mm bolts (AA).
□Do not tighten the bolts at this step.
2
Assembling the side panels
□Attach each side panel (D) to the legs using four (4) M6 x 10 mm
bolts (AA).
□Do not tighten the bolts at this step.
Assembly
I
AA
C
E
G
E
AA
D
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

8
3
Assembling the side panel with window
□Attach the side panel with window (F) to the legs using four (4)
M6 x10 mm bolts (AA).
□Do not tighten the bolts at this step.
4
Assembling the gas tank support
□Attach the gas tank support (J) to the legs using four (4) M6 x 10 mm
bolts (AA).
□Tighten all bolts (AA) with a Phillips screwdriver (not included).
Assembly (continued)
J
F
AA
J
AA

9

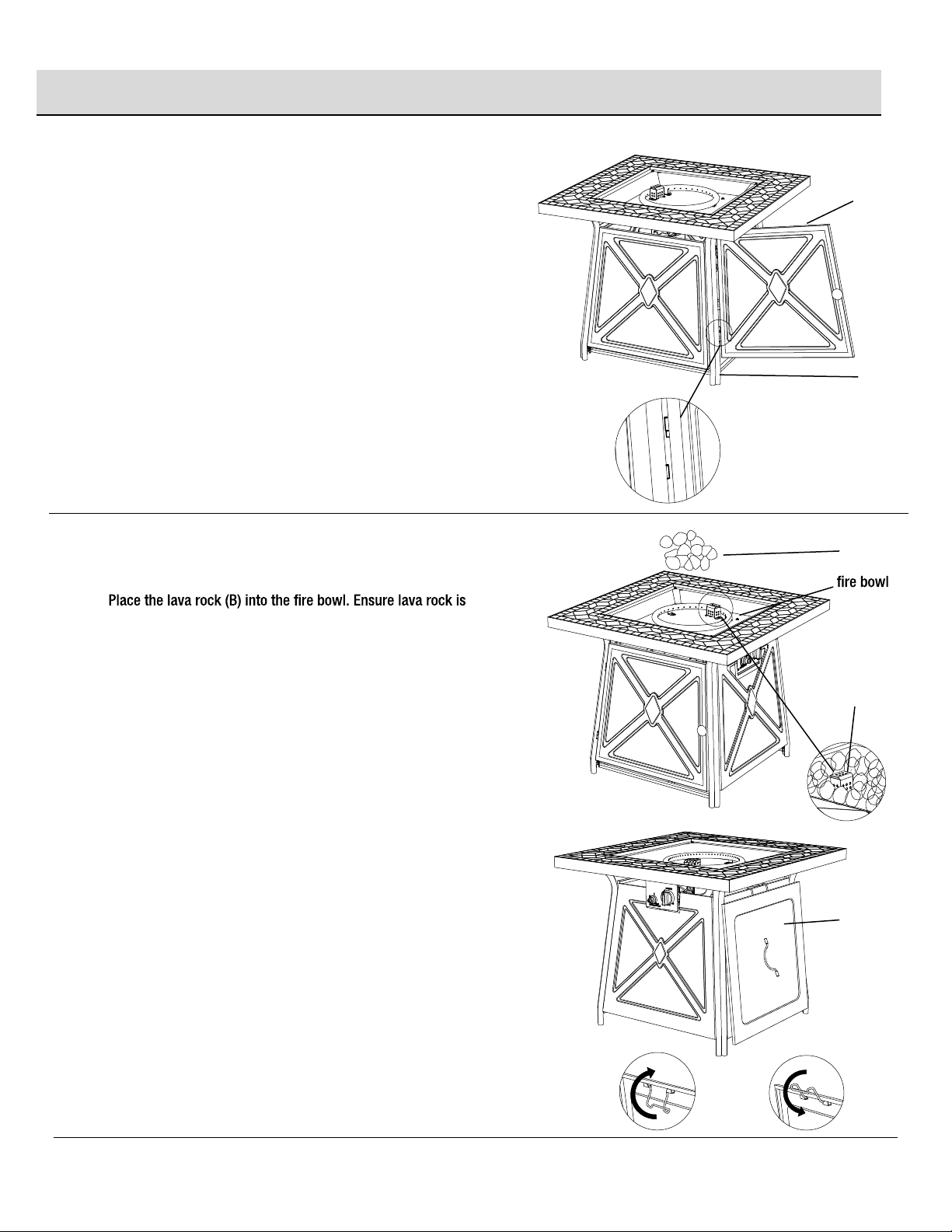

5
Assembling the door
□Orient the unit so that table top with burner is facing up.
6
Place the lava rock
Assembly (continued)
H
G
Ignition
B
□
not placed on the ignition portion of the burner.
Place the lid (A) over the top.
□The lid must be removed when the burner is in operation.
The lid can be hung on the side panel.
Wait until the unit cools before replacing the cover.
□Slide the hinge of door (H) on to the leg (G).
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
A

10
7
8

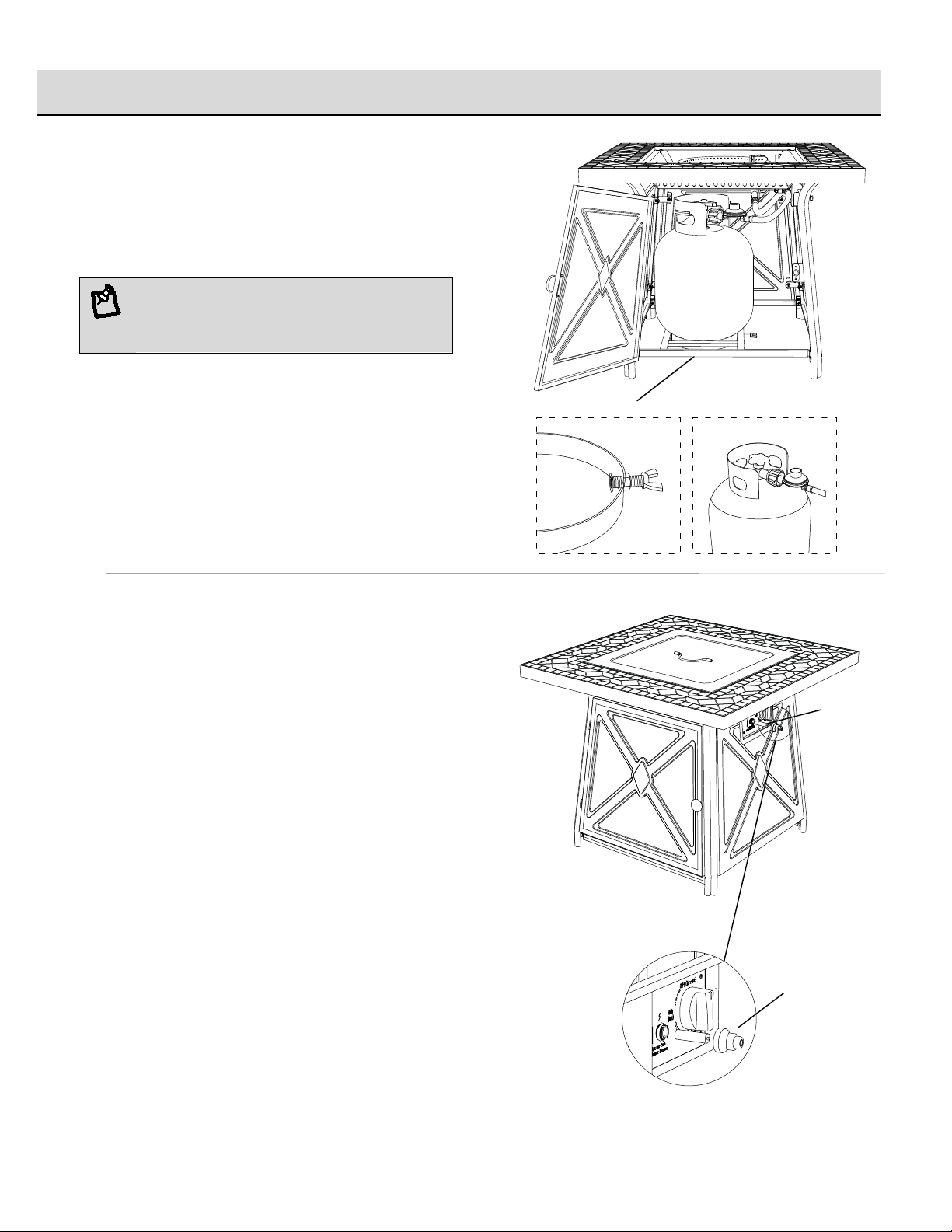

Assembling the cylinder
Assembly (continued)
Installing the AAA battery
□Open the igniter and place the AAA battery (K) into the igniter.
Then tighten clockwise.
J
□Put the cylinder into the gas tank support (J), and secure the cyliner
by tightening the screw in the gas tank support. Connect the hose
and regulator to the cylinder.
NOTE: The propane cylinder is sold separately.
Use a standard 20 lb. propane cylinder only.
Put the hose away from the bowl base during connect
the propane cylinder.
Igniter
K

Operation
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare food.
WARNING:
Initial Lighting:
of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run the main burner on high for
approximately one-half hour.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the appliance to avoid burns
or clothing ignition. The appliance comes with a heat shield which is an important safety component preventing contact with the
when adjusting the propane valve.
Children should be carefully supervised when they are in the area of the appliance.
Clothing or other ammable materials should not be hung from the appliance, or placed on or near the appliance. The area above the re
pit may be extremely hot. Direct contact with these surfaces should be avoided in order to prevent burns or clothing ignition.
Any guard or protective device removed for servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualied service person.
The appliance should be inspected before each use and at least annually by a qualied service person. More frequent cleaning may be
required necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance be kept clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use. Ensure that no debris such as leaves; grass or
other objects have entered or are on the appliance. If the burner is damaged it must be replaced prior to using this appliance with a
replacement burner specied by your dealer.
Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the hose is damaged it must be
replaced prior to using the appliance with a replacement hose assembly specied by your dealer.
WARNING: Any modication to the appliance may compromise the safety of this appliance.
Special concern is as follows:
Do not bypass the thermocouple safety.
Do not operate the appliance if any parts have been under water. Immediately call a qualied service technician to inspect the appliance
and replace any part of the control system, and any gas control, which has been under water.
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

12
Operation (continued)
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
LEAK TESTING OPERATION
WARNING: Never use an open ame to check for gas leaks. Be certain no sparks or open ames are in the area while you
check for leaks. Sparks or open ames will result in a re or explosion, damage to property, serious bodily injury, or death.
WARNING: DO NOT USE AN OPEN FLAME.
LEAK TESTING: This must be done before initial use, annually, and whenever any gas components are replaced or serviced. Do not
smoke while performing this test, and remove all sources of ignition. See leak testing diagram for areas to check. Turn all burner controls to
the off position. Turn gas supply valve on. Brush a half-and-half solution of liquid soap and water onto all joints and connections of the
regulator, hose, manifolds and valves. Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one
recommended by your dealer and have the appliance inspected by a certied gas installer.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the appliance inspected by a certied gas
installer or dealer. Do not use the appliance until the leaks have been corrected.

Operation (continued)
WARNING
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY:
Keep face and body away from burner area
when lighting.
Ensure burner controls are in the off position.
Slowly turn on the gas supply valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped with an excess
ow device. Unless burners are turned off prior
to turning the cylinder on, only small ames and
low heat will be achievable.
WARNING
FOR YOUR SAFETY:
If the burner does not light within 10 seconds,
turn the valve off and wait 5 minutes for any gas
to dissipate before repeating the procedure.
1. Press and hold electronic igniter button.
2. Turn the burner control to the high position, press and hold. When the burner
lights, release the electronic igniter button.
3. Continue to depress the burner control knob for 30 seonds and then release.
If the ame goes out, repeat the procedue.
4. Adjust the ame to the desired height with the burner control knob. Visually
check the burner ames as pictured be low.
5. If the burner will not light with the electronic igniter, hold a lit long match or
lit long butane lighter to the ignition area of the burner and continue with
step 2.
6. To shut down the burner turn the burner control knob clockwise to the off
position. Then turn the gas off at the source (propane cylinder valve).
Normal
WARNING
FOR YOUR SAFETY:
Surface of the re pit can remain extremely hot
for a period after use.
Allow 45 minutes to cool down before touching
or moving the re pit.
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

14
Maintenance
Storage between uses:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Storage during periods of extended inactivity or when transporting:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source and move to a secure, well ventilated location outdoors. DO NOT store in a location that will exceed 125℉.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Care and Cleaning
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
□ Keep exterior surface clean.
□ Use warm soapy water for cleaning. Never use ammable or corrosive cleaning agents.
□ While washing your unit, be sure to keep the area around the burner dry at all times. If the gas control is exposed to water, do NOT try to
use it. It must be replaced.
□ Keep the appliance area free and clean from combustible materials, gasoline or other ammable vapors and liquids.
□ At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
□ Air ow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible blockage include:
Gas odor with extreme yellow tipping of ame.
Heater does NOT reach the desired temperature.
Heat glow is excessively uneven.
Heat makes popping noises.
□Spider and insects can nest in burner or orices. This dangerous condition can damage heater and render it unsafe for use. Clean burner
holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
□Carbon deposits may create a re hazard. Clean reector, thermocouple, and emitter screen with a dry cloth if any carbon deposits
develop.
□The burner is made from stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to occur. This can be
removed with a brass wire brush. Inspect the burner at least annually for cracks, insect nests, excessive corrosion or any other damage.
If the burner is damaged, it must be replaced with a burner specied by the manufacturer before the appliance is put into operation.
NOTE: Wait until heater is cool before covering.
NOTE: Wait until heater is cool before covering.

Troubleshooting
PROBLEM PROBLEM CAUSE SOLUTION
The ame and heat are low
when the valve is turned to
high.
The propane lighting procedure
was not followed correctly. Ensure lighting procedure is followed carefully. The valve must be in
the off position when the tank valve is turned on. Turn the tank on
slowly to allow pressure to equalize. See Lighting Instructions in the
Operating section.
Burners burn with yellow
ame, accompanied by the
smell of gas.
There is possibly a spider web or
other debris. Thoroughly clean the burner venturi. See the Maintenance section.
The burner will not light with
the igniter, but will light with
a match.
The battery is either dead or
installed incorrectly.
There is a loose electrode wire or
switch terminal wires.
Check the installation or replace with a new battery.
Check that the electrode wire is rmly pushed onto the terminal on
the back of the igniter. Check that the lead wires from the module to
the ignition switch (if equipped) are rmly pushed onto their
respective terminals.
The burner will not stay lit
when control knob is
released.
The knob is not being held in long
enough.
It is too windy outside.
Lava rock or debris are in the
ignition area of the burner
preventing the thermocouple from
being fully engulfed in ame.
Either the thermocouple or
thermocouple connection is dirty.
Either the thermocouple or valve
is faulty.
The thermocouple must have time to heat up. Hold the knob in for
30 seconds after the burner lights, then release.
The unit will shut down if winds are greater than 10 mph (16 km/h).
Either locate the re pit to a different area or use when it is less
windy.
Ensure there is no lava rock or other debris in the ignition area, and
that the small hole below the thermocouple is unobstructed.
Clean the thermocouple and clean the connection between the valve
and thermocouple. Ensure the connection is properly tightened.
Replace thermocouple and/or valve.
The regulator is humming. This is a normal occurrence on hot
days.
This is not a defect. It is caused by internal vibrations in the regulator
and does not affect the performance or safety of the gas heater.
Humming regulator will not be replaced.
The valve is set to high but
there is low heat output.
There is also a rumbling noise
and a uttering blue ame at
the burner surface.
There is not enough gas.
The supply hose is pinched.
The burner orice is either dirty or
clogged.
There are spider webs or other
matter in venturi tube.
The propane regulator is in a “low
ow” state.
Check the gas level in the propane cylinder.
Reposition the supply hose as necessary.
Clean the burner orice.
Clean out the venturi tube.
Ensure the lighting procedure is followed carefully. All valves must
be in the off position when the tank valve is turned on. Turn tank on
slowly to allow pressure to equalize. See the Lighting Instructions in
the Operating section.
15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

16
Service Parts
Part
Quantity
A
1
B
1
C
1
D2
E2
Description
lid
lava rock (11 lbs)
table top with burner
side panel
leg E
G
1
H
1
I
1
J1
K1
Description
leg G
door
leg I
gas tank support
AAA battery
Fside panel with window 1AA 20
M6 x 10 mm Bolt
AA
A
B
C
D
E
F
I
J
H
G
E
K
Part Quantity

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
