HAMPTON BAY H200 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4918-427a
MODEL: H200
Freestanding Woodstove
04/04/08
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
Tested by:
www.hampton-fire.com

Hampton H200 Cast Freestanding Woodstove
2
Thank-you for purchasing a
HAMPTON FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you
have any questions about your product that are not covered in this manual, please contact the HAMPTON DEALER
in your area.
Keep those HAMPTON FIRES burning.
SAFETY NOTE: If this woodstove is not properly installed, a house fire may result. For your safety, follow the instal-
lation instructions, contact local building, fire officials, or authority having jurisdiction about restrictions and installation
inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to obtain a permit.

Hampton H200 Cast Freestanding Woodstove 3
SAFETY LABEL
Safety Label...................................................................4
UNIT DIMENSIONS
Unit Dimensions with Standard Legs.............................5
Unit Dimensions with Optional Short Legs ....................6
INSTALLATION

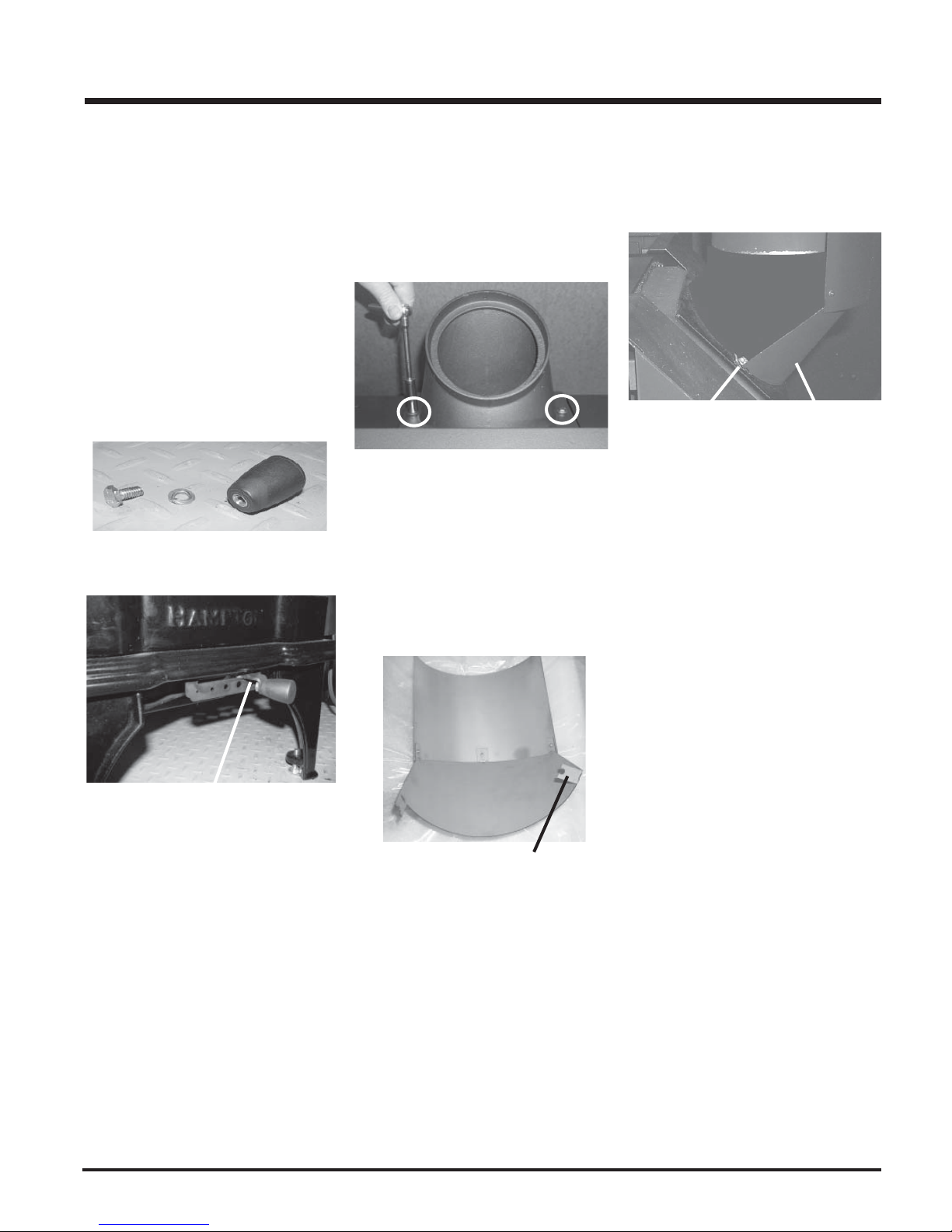

Pre-installation Assembly ..............................................7
Residential Installation...................................................8
Modular Installation Options..........................................8

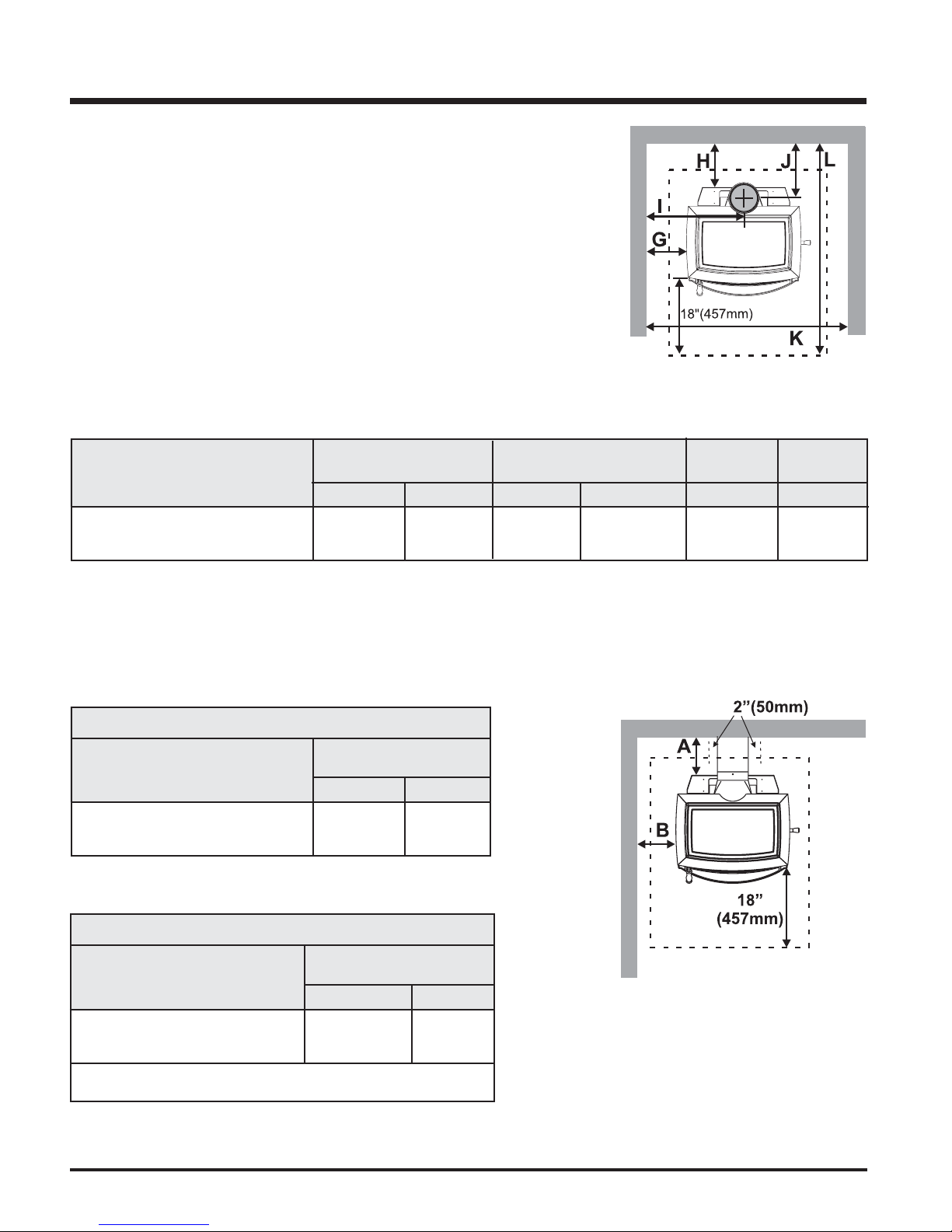

Minimum Clearance To Combustible Materials .............9
Minimum Alcove Clearance
To Combustible Materials ............................................10
Additional Clearances For Backwall Exit.....................10
Floor Protection ........................................................... 11
Step-by-Step Chimney and Connector Installation......12

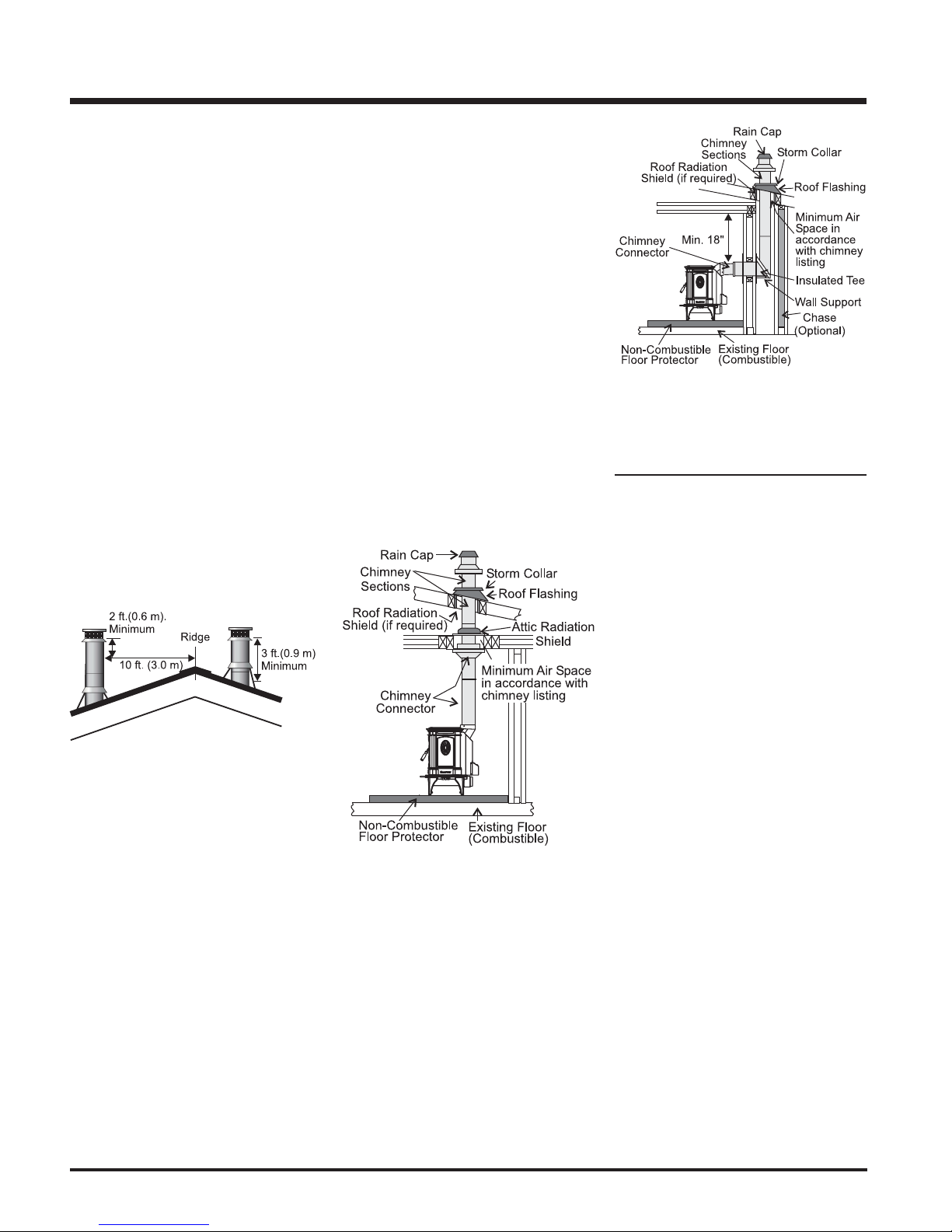

Factory Built Chimney .................................................12

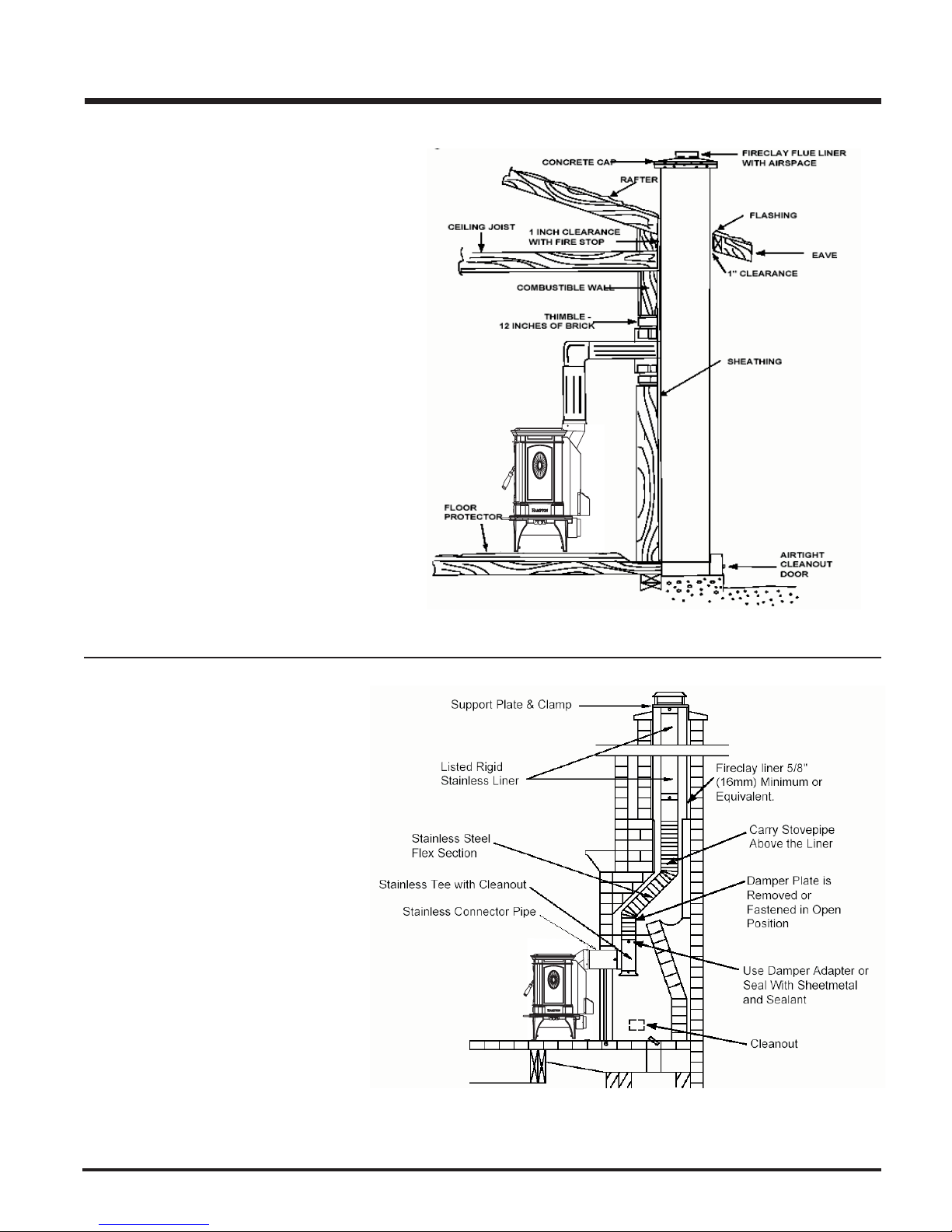

Masonry Chimney........................................................13
Masonry Fireplace.......................................................13
Combustible Wall Chimney
Connector Pass-Throughs...........................................14
Recommended Heights For Woodstove Flue..............15
Mobile Home Installation .............................................16
Listed Components For Mobile Home Installation.......17
Brick Installation ..........................................................18
Door Removal..............................................................18
Optional Short Leg Installation ....................................18

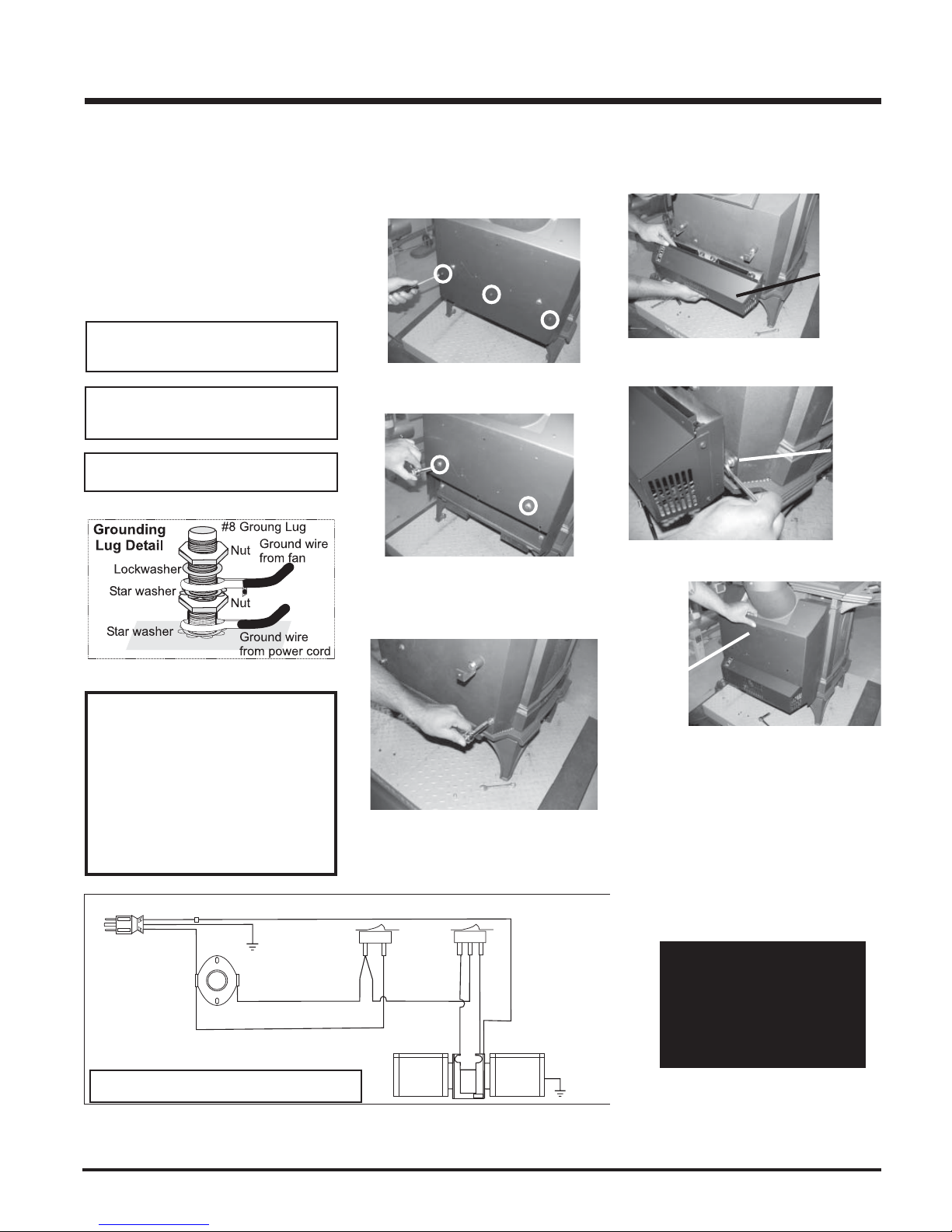

Optional Blower/Fan Installation..................................19
Optional Side Shelf Installation....................................20
Optional Ash Drawer Kit Installation ............................21
OPERATING INSTRUCTIONS
Operating Instructions .................................................22
Fan Operation..............................................................22
First Fire ......................................................................22
Safety Guidelines And Warnings .................................23
Draft Control ................................................................23
Ash Disposal................................................................24
Glass Maintenance......................................................25
MAINTENANCE
Maintenance................................................................25
Glass Installation/Replacement...................................25
Creosote......................................................................25
Wood Storage..............................................................25
Front Door Gasket.......................................................26
Handle Replacement...................................................26
Latch Adjustment Method............................................26
Top Baffle Replacement ..............................................27
PARTS LIST
H200 Main Assembly...................................................28
H200 Door Assembly...................................................30
H200 Ash Drawer Assembly........................................31
H200 Fan Assembly ....................................................32
WARRANTY
H200 Fan Assembly ....................................................35
TABLE OF CONTENTS

Hampton H200 Cast Freestanding Woodstove
4

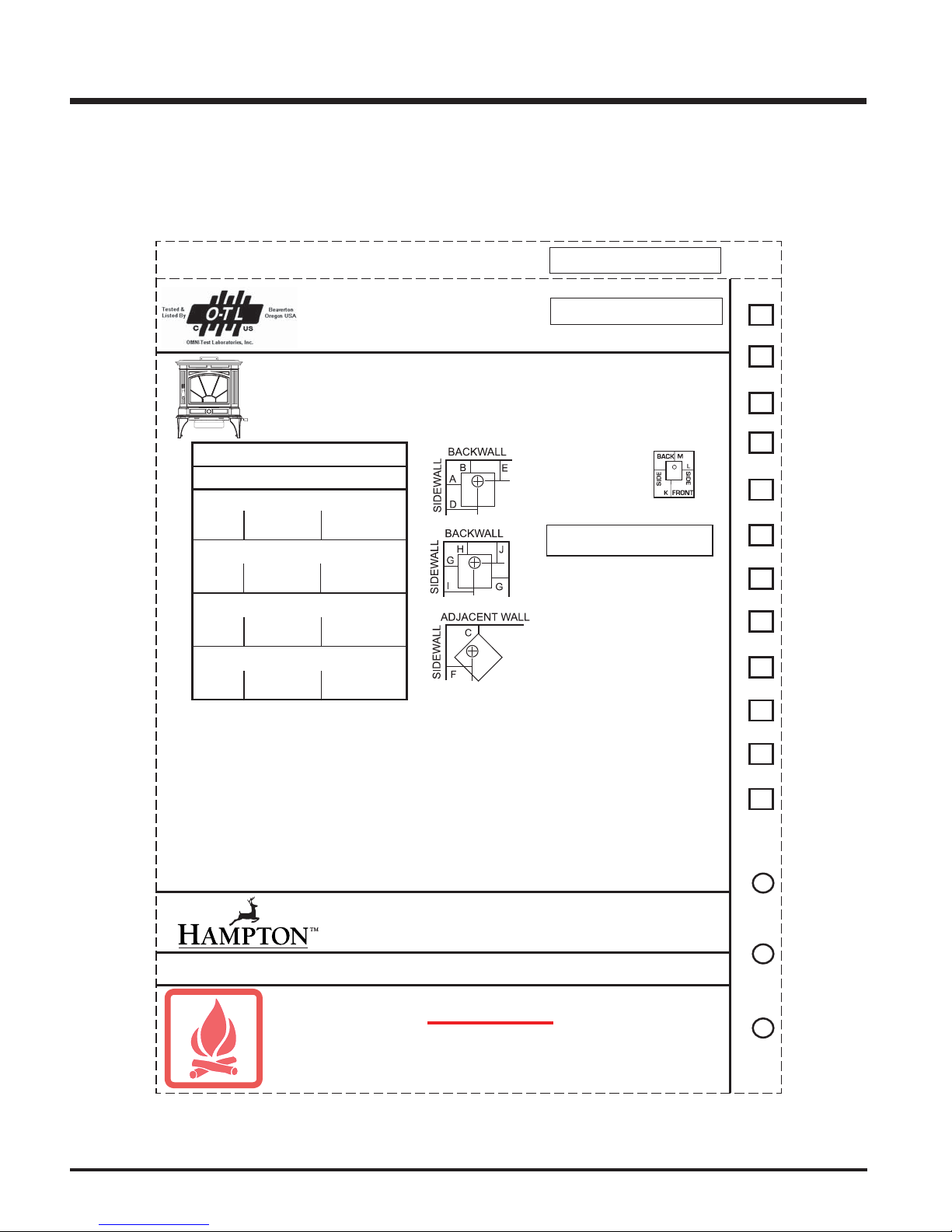

This is a copy of the label that accompanies
each Hampton H200 Freestanding Woodstove.
We have printed a copy of the contents here
for your review.
SAFETY LABEL
NOTE: Hampton units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL
290
CERTIFIED TO COMPLY WITH JULY 1990
PARTICULATE EMISSION STANDARDS.
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
MADE IN CANADA
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
CAUTION
DATE OF MANUFACTURE
918-428a
LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION
MODEL: HAMPTON CAST FREESTANDING WOOD STOVE - H200
TESTED TO: UL-1482 / ULC-S627-00 REPORT NO:219-S-09-2
MINIMUM CLEARANCES TO
COMBUSTIBLE MATERIALS
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
SIDEWALL A 431 mm / 17 in D 737 mm / 29 in
BACKWALL B 381 mm / 15 in E 435 mm / 17-1/8 in
CORNER C 330 mm / 13 in F 505 mm / 19-7/8 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - ALCOVE
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL A 381 mm / 15 in D 686 mm / 27 in
BACKWALL B 254 mm / 10 in E 308 mm / 12-1/8 in
CORNER C 228 mm / 9 in F 403 mm / 15-7/8 in
SIDEWALL A 381 mm / 15 in D 686 mm / 27 in
BACKWALL B 254 mm / 10 in E 308 mm / 12-1/8 in
CORNER C 228 mm / 9 in F 403 mm / 15-7/8 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
MINIMUM ALCOVE CEILING HEIGHT: 1.5 M / 5 FT MAXIMUM ALCOVE DEPTH 1220 MM / 48 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 457 MM / 18"
THE SPACE BENEATH THE HEATER MUST NOT BE OBSTRUCTED. OPERATE ONLY WITH FIREBRICKS IN PLACE.
FLOOR
PROTECTION*
INSTALLANDUSEONLYINACCORDANCE WITHTHE MANUFACTURER'SINSTALLATIONAND OPERATINGINSTRUCTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR
AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR 26 MSG BLUED STEEL CONNECTOR WITH LISTED
UL103 HT FACTORY-BUILT CHIMNEY SUITABLE FOR USE WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED FOR PASSING
A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY CONNECTOR THROUGH
COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE
ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR
GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE
BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH
NEOCERAM GLASS. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE
FRONT AND SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN (846-515), ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF
APPLIANCE.
COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100, SUPER VENT 2100, SUPERPRO 2100, CF SENTINAL.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITYMODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA VENT MODEL
DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS SECURITY MODEL
S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL-FAB TEMP/GUARD,
AMERI-TECHS, ICC EXCEL 2100, SIMPSON DURA PLUS HTC . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.
MEASURE FLUE
FROM HEATER CENTER-LINE
MANUFACTURED BY:
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
SIDEWALL G 381 mm / 15 in I 686 mm / 27 in
BACKWALL H 330 mm / 13 in J 384 mm / 15-1/8 in
2008 20102009
290
* In Canada, floor protection must extend 18"
(457mm) to the front and 8" (200mm) to each
side and back of the stove.
K 457 mm / 18 in
L 150 mm / 6 in
M 150 mm / 6 in

Hampton H200 Cast Freestanding Woodstove 5
INSTALLATION

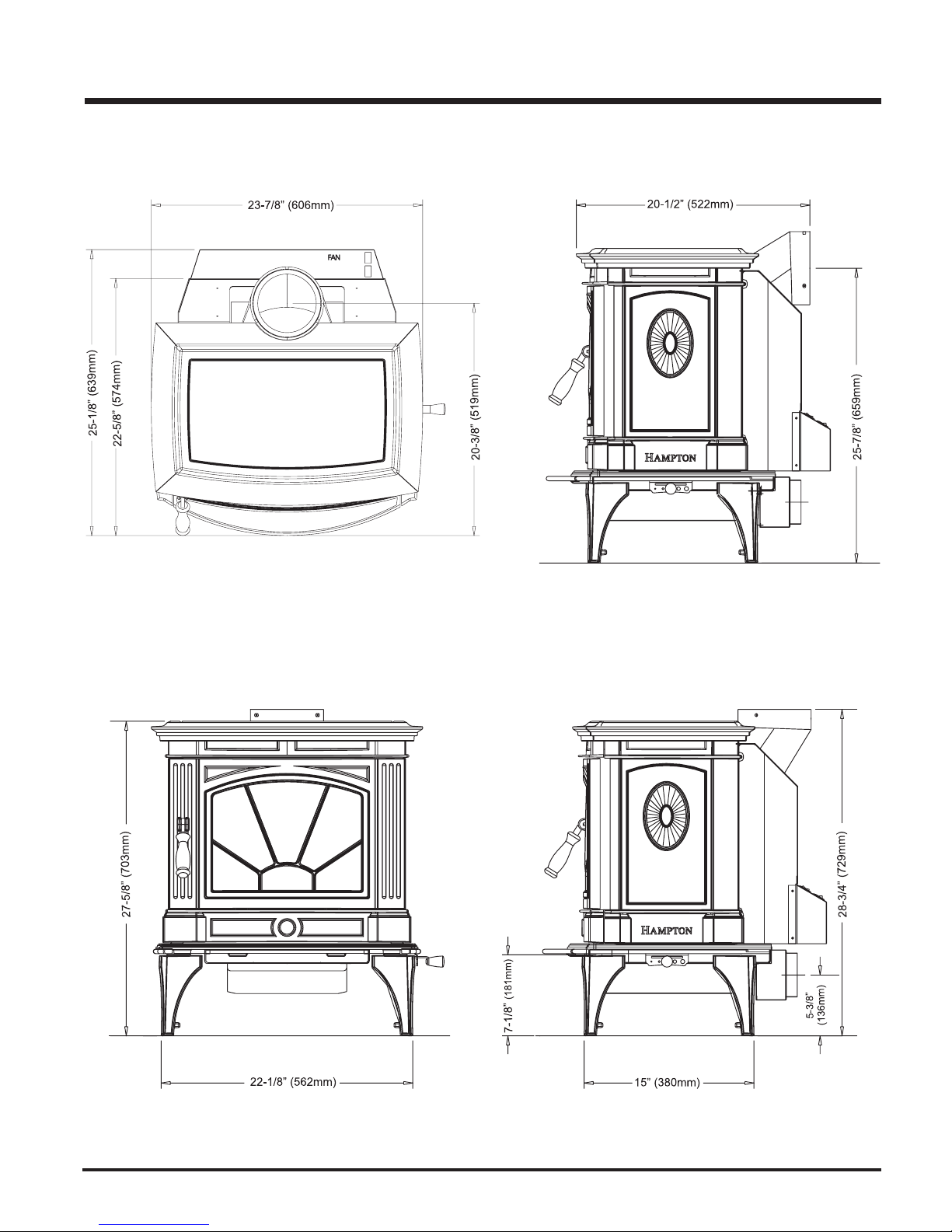

UNIT DIMENSIONS WITH STANDARD LEGS
