AI-008 Hot Air Sealing Machine
Operation Manual
is powered by
H&H Asia Group Limited

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 1 of 40
Table of Content
Precautions Regarding to Safety
Name Plate
Introduction
Specifications
Features
Identification of Components
Front View
Rear View
Cutter Assembly
Heater Positioning Assembly
Main Air Filter Assembly & Compressed Air ON/OFF Switch
Pressure Adjustment Panel & Power ON/OFF Switch
Pressure Adjustment Panel & Power ON/OFF Switch
Principle of Seam Sealing
Preparation for Installation
Control Method
Touch Screen Control Panel
Foot Pedal Switch & Knee Switch
Control Menu Navigation
Pressure Adjustment
Start Up And Shut Down Procedures
Start Up Procedures
Shut Down Procedures
Basic Operation
Temperature, Sealing Speed & Pressure Adjustment
Heater Position Adjustment
Procedures of Seam Sealing
Tape Cutting
Tape Loading

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 2 of 40
Table of Content (cont.)
Advance Operation
Differential Speed
Parameter Setting
Digital Tensioner
Maintenance
Preventative
Procedures for Replacing Parts
Trouble Shooting
Appendix A Nozzle Air Flow Cross Reference Table
Appendix B Electrical Scheme
Appendix C Wiring Scheme
Appendix D Pneumatic Scheme

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 3 of 40
> Precautions Regarding to Safety
Please observe these safety tips for a safe, efficient, and injury free operation of your equipment. By
strictly following all instructions contained in this manual you will certainly obtain an excellent
performance from the use of this equipment for years.

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 4 of 40
> Precautions Regarding to Safety (cont.)

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 5 of 40

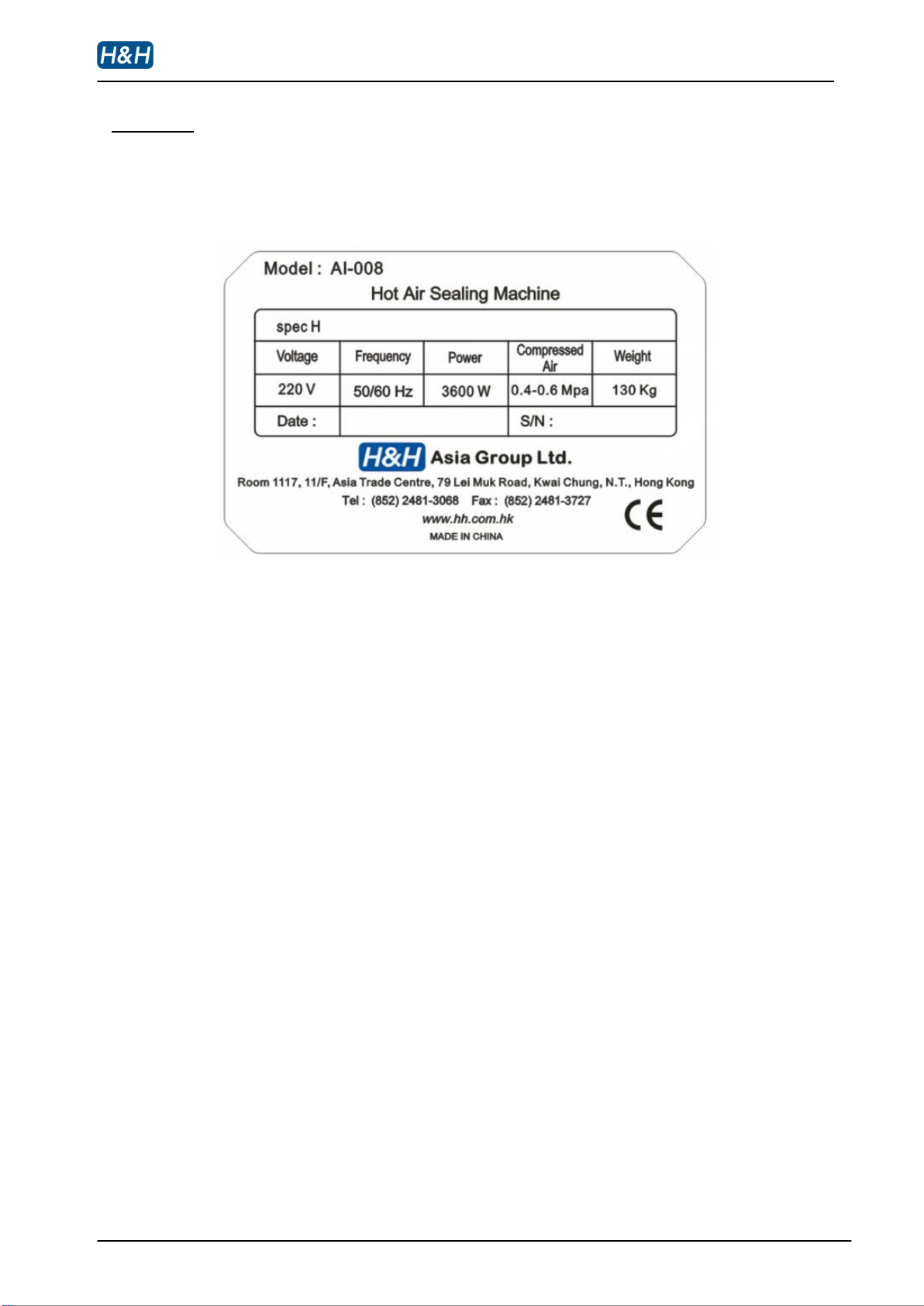

> Name Plate

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 6 of 40
> Introduction
Thank you for choosing AI-008 hot air sealing machine by H&H.
The hot air sealing machine described in this manual is one of the most sophisticated machines in the
market today. Built on pure digital platform and designed for the professional users, AI-007
incorporated many new features that makes seam sealing much easier than before. Operators are
recommended to have basic knowledge and skill in seam sealing operation before using this machine.
In order to fully understand how to use this machine properly, and avoid damage to both the machine
and operating personnel, please read this manual carefully and keep it safe for future reference.

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 7 of 40
> Specifications
Model : AI-008
Voltage : AC 220 V
Frequency : 50/ 60 Hz
Power Consumption : 3600 W max, 1500 W typical
Compressed Air : 0.4 - 0.6Mpa
Air Consumption : 100 L/min max
Sealing Speed : 1 - 60 ft/min
Nozzle Temperature : 50 –800C
Nozzle Unit : 22.0 mm standard, other optional
Upper Roller Width : 25.4 mm
Lower Roller Width : 31.0 mm
Overall Dimensions : 1200 mm (L) x 750 mm (W) x 1700 mm (H)
Overall Weight : 130 kg
Note : due to continuous improvement, specifications are subjected to change without prior notification

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 8 of 40
> Features
Differential speed for top and bottom rollers, ideal for reducing stretch fabric puckering.
Digital tape releaser for stable operation.
Large size color operator interface.
Twin foot pedals plus knee control combination for easy foot comprehensive control operation.
Multi-lingual support for touch screen display interface

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 9 of 40
> Identification of Components

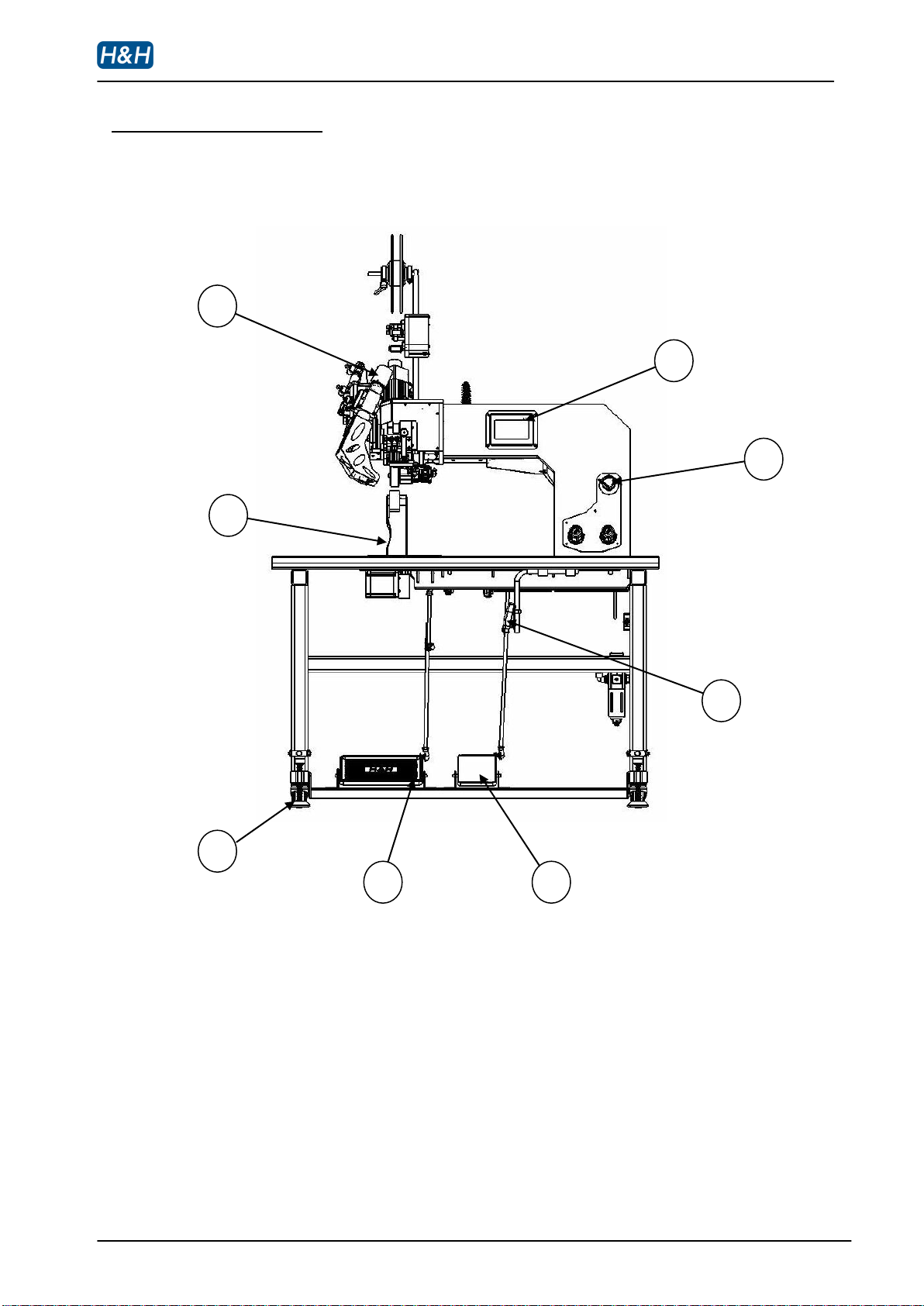

>> Front View
1. heater body
2. lower pedestal
3. adjustable floor stand
4. left foot pedal
5. right foot pedal
6. main control box
7. combined power ON/OFF switch & emergency push button
8. touch screen control panel
5
6
3
7
4
1
8
2

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 10 of 40
> Identification of Components (cont.)

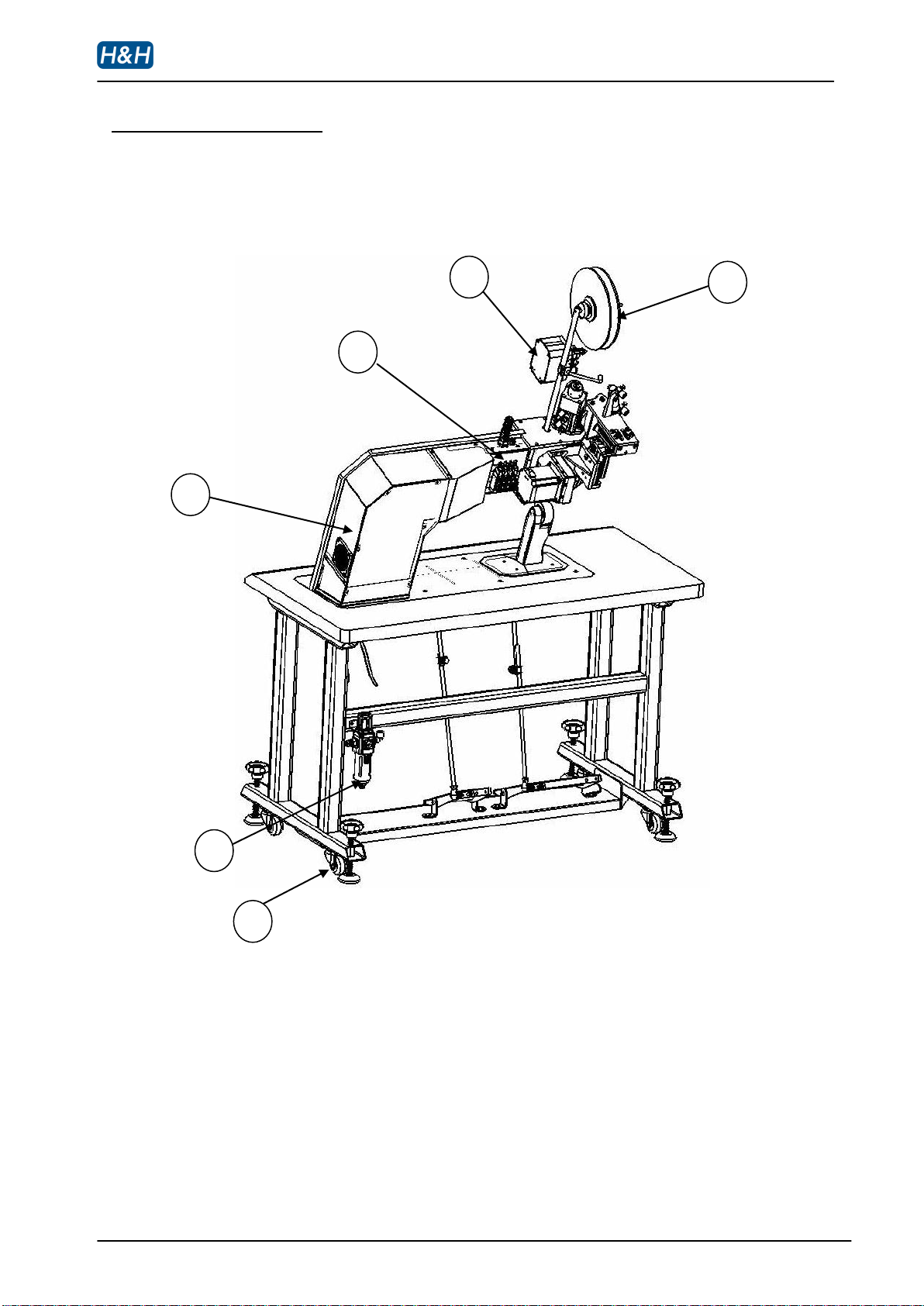

>> Rear View
1. transport caster
2. compress air filter assembly
3. distribution box
4. pneumatic solenoid cluster
5. tape tensioner
6. tape spool
1
3
6
4
5
2

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 11 of 40
> Identification of Components (cont.)
>> Cutter Assembly
1. small tape clamping cylinder
2. upper nip roller
3. lower nip roller
4. cutter blade
5. presser roller
6. tape stabilizer
1
5
6
2
4
3

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 12 of 40
> Identification of Components (cont.)
>> Heater Positioning Assembly
1heater swing cylinder
2heater swing arm
3nozzle bit
4nozzle pipe
5temperature senso
6hydraulic absorber
7heater body
2
5
1
6
4
3
7

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 13 of 40
> Identification of Components (cont.)

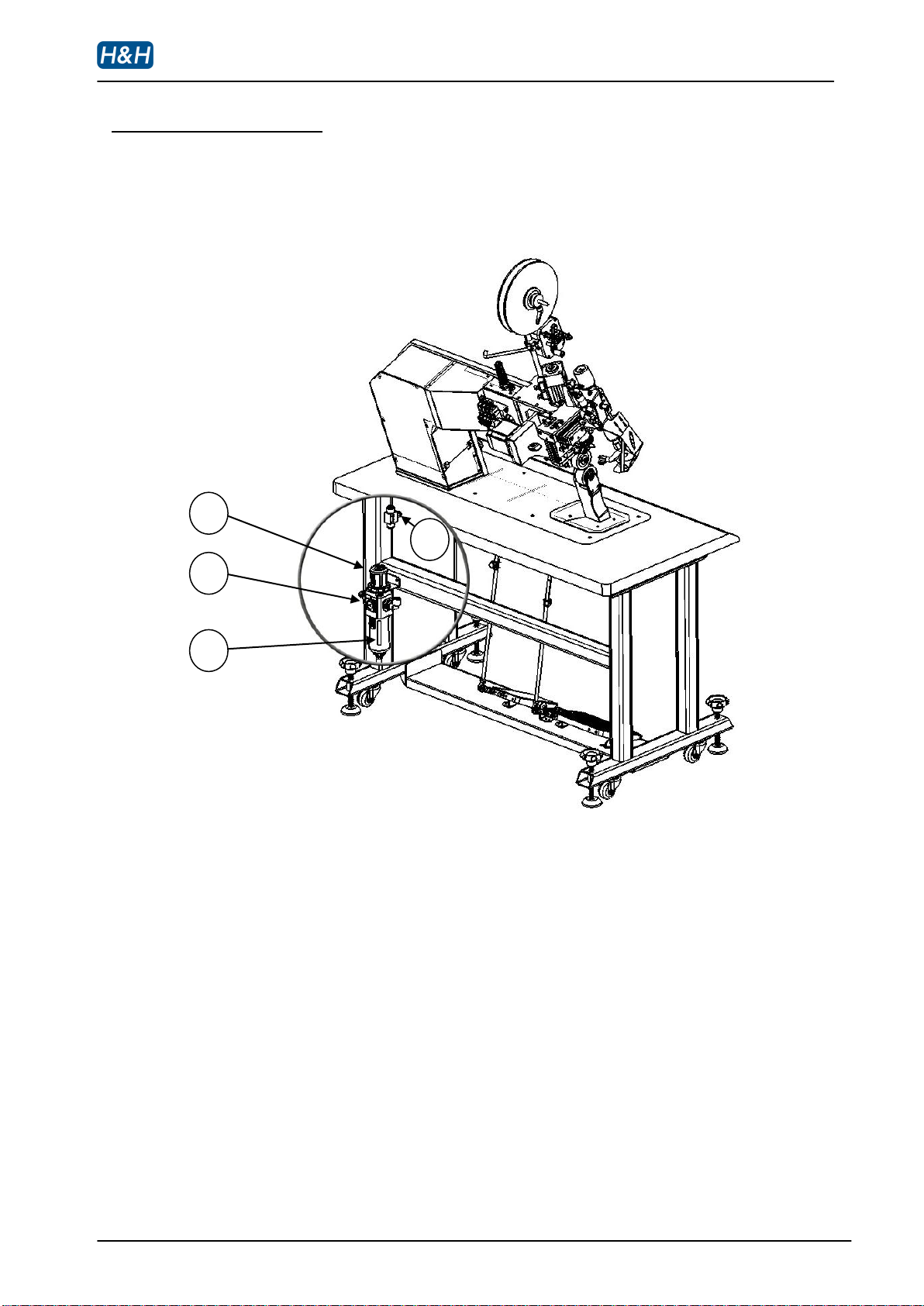

>> Main Air Filter Assembly & Compressed Air ON/OFF Switch
1compressed air ON/OFF switch
2main compressed air pressure regulator
3main compressed air pressure gauge
4compress air water filter
1
2
3
4

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 14 of 40
> Identification of Components (cont.)
>> Pressure Adjustment Panel & Power ON/OFF Switch
1combined power ON/OFF switch & emergency push button
2nip roller pressure regulator
3nozzle air pressure regulator
1
3
2

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 15 of 40
> Principle of Seam Sealing
When seam tape is heated up, the adhesive on the tape is activated. This activated tape is applied on
the water proof coating or lamination of the fabric seam under pressure. When cooled, a strong bond
is formed between the tape and the seam. This bond is so strong that it will prevent pressurized water
from penetrating the sewn seam. As a result, a water proof seam is produced.
A hot air machine, like AI-008, produces hot air with precisely controlled temperature to directly heat
up the adhesive of seam tape. The heated tape and the fabric are feeding into two oppositely rotating
rollers under pressure called nip rollers. The linear speed of the nip rollers is called sealing speed.
During sealing, hot air is being blown out from the nozzle. The hot air that actually reaches the surface
of the tape is a mixture of hot air from the nozzle and surrounding air, hence the actual temperature
that appeared on the tape is somewhat lower than the nozzle temperature. The farther the distance
between the nozzle and the tape, the higher the percentage of surrounding air becomes. On the other
hand, a higher hot air flow rate will reduce the percentage of surrounding air causing the hot air
temperature appeared on the tape to be higher. So both the nozzle position and hot air flow rate are
very important factors.
So, the major factors that can affect the seam sealing are as follows:
Hot air temperature
Sealing speed
Nozzle air pressure
Air flow rate
Nozzle position
When a consistent product is required, the combination of the above factors have to be set precisely
since their effects towards a proper sealing are all interconnecting.

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 16 of 40
> Preparation for Installation
Installation must be carried out by authorized personnel. Follow the steps below:
1. Position the machine on a flat surface and allow at least 50cm clearance on both sides as well as
the back side, this is essential for the hot air deflector to work properly and also to allow enough
room for carrying out necessary service and maintenance
2. Adjust the foot stand so that the machine is level and stable.
3. Cut loose all packing cable ties and materials in order to free up all machine movements.
4. Connect the power plug to a suitable outlet with at lease 15A capacity.
5. Locate the air hose supplied with the machine. Connect one end to the inlet of the water filter at
the back side of the machine; connect the other end to a compressed air supply such as air
compressor or central air supply. Make sure the compressed air supply has at least 0.6 Mpa (6 bar)
of pressure and a flow rate of no less than 100L/min.
6. Install the tape dispenser assembly at the top of the machine and align the tape spool at right
angle to the width of the machine. (see diagram below)
7. Install a roll of seam tape with the adhesive side facing the operator (refer to the section on tape
loading).
8. The machine is now ready for operation.
Install tape dispenser assembly

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 17 of 40
> Control Method
>> Touch Screen Control Panel
Almost all settings and timing control of the machines can be input from the touch screen control
panel. Use you finger tip to touch the parameter to be modified. Switch to different pages to
modify other parameters (refer to section on control menu navigation). The screen has a protective
cover to prevent the surface from damage and scratch, however, avoid using excessive force when
touching the panel.
>> Foot Pedal Switch & Knee Switch
There are 2 foot pedals for the machine. The design of these pedals is such that they can be
operated either individually or in combination to achieve a number of preset tasks by the operator’s
feet alone. As a result, the operator’s hands are free to manipulate the processing fabric.
Left & right foot pedal
Left foot pedal
The left pedal is use for moving the heater towards the sealing point and starts sealing with the
upper and lower rollers in motion simultaneously.
Right foot pedal
The right pedal performs different function according to the timing of activation
During idle (with left foot pedal without steps in)
–step in the right foot pedal will performs jog function that makes the rollers rotate forward
without the nozzle coming in.
During sealing (with left foot pedal with steps in)
–step in the right foot pedal will performs cut function that cuts the tape.
Knee Switch
The knee switch can makes the upper roller moves up when there is a need to check the workpiece
condition during sealing process interval.

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 18 of 40
> Control Method (cont.)
>> Control Menu Navigation
The AI-007 has many parameters that can be adjusted according to the operational situations.
These parameters are arranged in different menu pages on the touch screen control panel according
to their functionality. The structure of the menu page arrangement is represented in the following
diagram.
main
操作功能组
供应商信息
息
主页
带头
带中
带尾
个性
AI-008 菜单页面
结构
支援功能组
language
操作功能组
供应商信息
息
主页
带头
带中
带尾
个性
AI-008 菜单页面
结构
支援功能组
parameter
alarm
monitor
version
AI-008 Menu Structure

AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 19 of 40
> Control Method (cont.)
>> Control Menu Navigation (cont.)
The followings are typical menu pages, all of them have names at the top left corner for easy
identification. Right arrow buttons are for navigating in the operation menu group. Down arrow
buttons are for navigating in the support menu group. Please note that page ‘main’is the hub of the
menu network so only this page has navigation buttons for both operation and support menu groups.
1page name
2next page in the operation menu group
3hot key to return to page ‘main’
3
2
1
