Central Machinery 35570 User manual

MORTISING MACHINE
MODEL
35570
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©1996 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight
Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for assembly and service may not
be included.
For technical questions or replacement parts, please call 1-800-444-3353.

SPECIFICATIONS
Motor
Speed
Vertical Capacity
Throat
Table
Base
Overall Weight
1/2 HP, 2.3 Amps @ 110 V, 60Hz
3580 RPM
5"
5"
13-3/8" x 6"
10" x 7-3/4"
54 lbs.
SAVE THIS MANUAL
You will need this manual for the safety instructions, assembly instructions, operating
procedures, parts list, and diagram. Put them in a safe, dry place for future reference.
IMPORTANT SAFETY PRECAUTIONS
WARNING: When using electric tools, machines or equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and personal injury.
READ ALL INSTRUCTIONS BEFORE USING THIS TOOL.
1 KEEP WORK AREA CLEAN. Cluttered areas invite injuries.
2. CONSIDER WORK AREA CONDITIONS. Don't use machines or power tools in damp, wet,
or poorIy lit locations. Don't expose to rain. Keep work area well lit. Don't use tools in the
presence of flammable gases or liquids.
3. KEEP CHILDREN AWAY. All children should be kept away from the work area. Don't let
them handle machines, tools or extension cords.
4. STORE IDLE EQUIPMENT. When not in use, tools should be locked up in a dry location to
inhibit rust. If possible, store in an area out of reach of children.
5. DON'T FORCE THE MACHINE OR TOOL. It will do the job better and more safely at the
rate for which it was intended.
6. USE THE RIGHT TOOL. Don't force a small tool or attachment to do the work of a larger
industrial tool. Don't use a tool for a purpose for which it was not intended.
7. DRESS PROPERLY. Don't wear loose clothing or jewelry. They can be caught in moving
parts. Protective, electrically non-conductive gloves and non-skid footwear are recommended
when working, Wear protective hair covering to contain long hair, preventing it from getting
caught in machinery.
8. USE EYE AND EAR PROTECTION. Use a full face mask as the mortising machine will
produce wood chips. Wear a clean dust mask due to fine or coarse dust. When operating for
extended periods of time, use approved ear protection. Face masks, dust masks, anti ear
protectors are available from Harbor Freight Tools.
9. DON'T ABUSE THE POWER CORD. Do not yank it to disconnect it from receptacle. Do not
move bench-mounted or floor-standing machines with the power cord in the outlet. Keep cord
away from heat, oil, and sharp edges.
10. SECURE WORK. Use the included clamps or a vice to hold the work. It's safer than using
your hands and it frees both hands to operate the tool.
SKU 35570 Page 2

11. KEEP PROPER FOOTING AND BALANCE AT ALL TIMES. Do not reach over or across
machines that are running.
12. MAINTAIN TOOLS WITH CARE. Keep tool clean and bits and chisels sharp to provide better
and safer performance, Follow instructions for lubricating and changing accessories. Inspect tool
cords periodically and if damaged, have them repaired by an authorizer1 service facility. Keep
handles dry, clean, and free from oil and grease.
13. DISCONNECT POWER. Unplug when not in use, before servicing, and when changing
accessories such as blades, bits, and cutters.
14. REMOVE ADJUSTING KEYS AND WRENCHES. Make it a habit to heck that keys and
adjusting wrenches are removed from the tool or machine work surface before plugging it in.
15. AVOID UNINTENTIONAL STARTING. Be sure the switch is in the OFF position when not in
use and before plugging in.
16. OUTDOOR EXTENSION CORDS. When the equipment is operated outdoors, use only
extension cords intended for outside use. See chart under "Extension Cords" for the proper AWG
rating depending upon length of the cord.
17. STAY ALERT. Watch what you are doing, use common sense. Don't operate any tool when
you are tired.
18. CHECK DAMAGED PARTS. Before using any tool, any part that appears damaged should be
carefully checked to determine that it will operate properly and perform in its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and
other conditions that may affect its operation. Any part that is damaged should be properly
repaired or replaced by an authorized service center unless otherwise indicated elsewhere in the
instruction manual. Have defective switches replaced by an authorized service center. Don't use
the tool if switch does not turn on and off properly.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces: pipes,
radiators, ranges, and refrigerator enclosures.
20. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical
replacement parts. Only use accessories intended for use with this tool. Approved accessories
are available from Harbor Freight Tools.
21. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. Read
warning labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate machine.
22. KEEP GUARDS IN PLACE. All guards and fences need to be in proper working order and
alignment. Check before every use.
23. NEVER STAND ON TOOL. If tool is tipped over or if blades or cutters are accidentally
contacted, serious injury could result.
24. NEVER LEAVE TOOL RUNNING UNATTENDED. Always turn off power. Do not leave tool
until it comes to a complete stop.
This machine has a three-prong plug, the third (round) prong being the ground. Plug the
machine's cord only into a three-prong receptacle. Do not cut off the round prong.
If a three prong receptacle is not available, you may use an adapter, but you must then
connect the green ear on the adapter to the outlet. Unscrew the center screw of the outlet cover
GROUNDING INSTRUCTIONS
Page 3 SKU 35570

and put the screw through the green ear. Plug the adapter's two prongs into the outlet, and
replace the center screw. Now plug the machine into the adapter.
Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the
voltage supplied is about the same as that specified on the nameplate of the tool. If one says
120V and the other says 110V then there will be no complications. Never try to plug a 110V
into a 220V outlet, or the other way around. The plug and outlet have completely different
shapes. This is because a power source with a voltage greater than that specified on the tool
can result in a SERIOUS INJURY to the user- as well as damage to the tool. If in doubt, DO
NOT PLUG IN THE TOOL. Using a power source with voltage (110V) less than the nameplate
rating (220V) is harmful to the motor.
Since your tool has a grounded, three-prong plug, you must use a three-prong
extension cord with three prong receptacles. Only use rounded jacket extension cords,
preferable listed by the Underwriters Laboratories (UL). Make sure the cord is rated for
outdoor use if you plan on using the tool outside; if you plan on indoor use, you may also use
an outdoor rated cord. Extension cords rated for outdoor use have the letters "WA" on the
cord jacket.
The extension cord must have a minimum wire size depending on the amperage of the
tool and the length of the extension cord. This size is signified by its AWG (American Wire
Gauge) rating; the smaller the gauge, the greater the cable's capacity. If you are using two or
more cords, the total length of the combined cords must be used to determine the minimum
AWG rating. Each of the cords used must meet this rating.
The chart below is used to determine the rating required according to the length of the
cord(s). The amps of your tool are found either in this manual, or on the nameplate of the tool.
CORD(S) LENGTH (FEET) 25 50 75 100 125 150 175 200
WIRE GAUGE REQUIRED 18 18 16 16 14 14 12 12
Always inspect extension cords for any damage. If there are any loose, frayed or
exposed wires, damaged insulation, or defective connections, replace the cord.
Harbor Freight Tools can supply UL listed and outdoor rated cords in multiple AWG
ratings if needed.
Make sure your tool includes all accessories and pieces required for operation. Check
off according to the list below. If any pieces are missing, contact Harbor Freight Tools at the
number on the front cover.
1. Mortising Machine
2. Handle (24)
VOLTAGE WARNING
EXTENSION CORDS
UNPACKING
SKU 35570 Page 4

3. Bracket A (4)
4. Two Hex Key Screws (5) (for bracket A)
5. Wood Base (6)
6. Two Screws (7, for wood base)
7. Fence (9)
8. Bracket B (11)
9. Four Screws (40, for fence assembly)
10. Clamp (8)
11. Knob (12 ) and Handle (12A)
12. Two Washers (10)
13. Three chisels and mortising bits (1/4", 3/8", & 1/2")
14. Chuck Key (47)
1. Slide handle (24) into the receiver hole on the right side of the gear shaft (20). The
handle's end should protrude about a 1/2". Tighten the set screw (19).
2. Using the handle, lower the head of the machine slightly. This will permit removal of the
retaining half-washer located on the gear column (15). Gently allow the head assembly to
move to the uppermost position.
3. Using a non-toxic & non-flammable solvent, clean the rust inhibitor from the base (3),
guide column (16), gear column, gear casing(23), and all other required parts.
4. Attach bracket A (4) to base using the two supplied hex key screws (5).
5. Attach wood base (6) to base using two screws (7). NOTE: If you are not mortising
through holes and require extra capacity, the wood base can be removed.
6. Attach fence (9) to bracket B (11) using the four screws (40, not shown).
7. Attach clamp (8) to bracket B using one knob (12) and washer (10).
8. Attach bracket B to bracket A using the Handle (12A) and washer (10).
9. For best performance, your Mortising Machine should be permanently mounted to your
workbench. Two holes near the rear of the base are provided for this purpose (see figure 1,
below). If you do not wish permanent mounting, you must clamp the machine down prior to
use.
Attaching Chisels and Bits (see figure 2, below):
1. Remove left and right covers (39).
2. Loosen the chuck (35) with the chuck key(47).
3. Loosen the chisel bushing screw (37).
ASSEMBLY INSTRUCTIONS
OPERATING PROCEDURES
Page 5 SKU 35570

4. Slide the bit into the chisel.
5. Insert the chisel into the bushing (38) and the bit into the chuck. Make sure the chisel's
slot is facing either the right or left to provide for proper chip ejection.
6. Make sure there is at least 3/32"-7/32"o f bit protruding from the end of the chisel, then
tighten the chuck. Make sure to tighten at all three spots.
7. Tighten the busing screw, and replace the left and right covers.
Mortising:
1. Set the fence (9) so that the chisel will mortise your stock in the desired position.
2. Set the hold down clamp (8) so that it securely holds your stock.
3. Set the depth stop (18) at the position required according to the desired depth of the mortise.
4. Turn machine on. It should reach full speed in a few seconds.
5. Slowly lower handle until mortise is complete.
6. Do not mortise holes deeper than 1" at a time. If you wish to mortise to a depth greater
than 1", do so in a couple of passes. This will allow the chips to be properly ejected.
Slots and mortises longer or wider than 1/2" can be accomplished simply by moving the
wood after the initial cut is accomplished. When doing so, make sure the slot in the chisel is
facing the direction you are moving the wood for proper chip ejection. Other than that, the
procedure is identical to regular mortising. (See figure 3 below.)
Slots:
SKU 35570 Page 6

Bit and Chisel Sharpening:
If the bit is dull, it can break the chisel, resulting in operator injury. It is sharpenable,
however, if there is any sign of wear along the twist (such as irregular grooves or
hollows) the bit must be replaced. Chisels cannot be sharpened if the walls become
noticeably thin Typically, you will replace a bit three times as often as a chisel.
Replacement bits and chisels are available from Harbor Freight Tools.

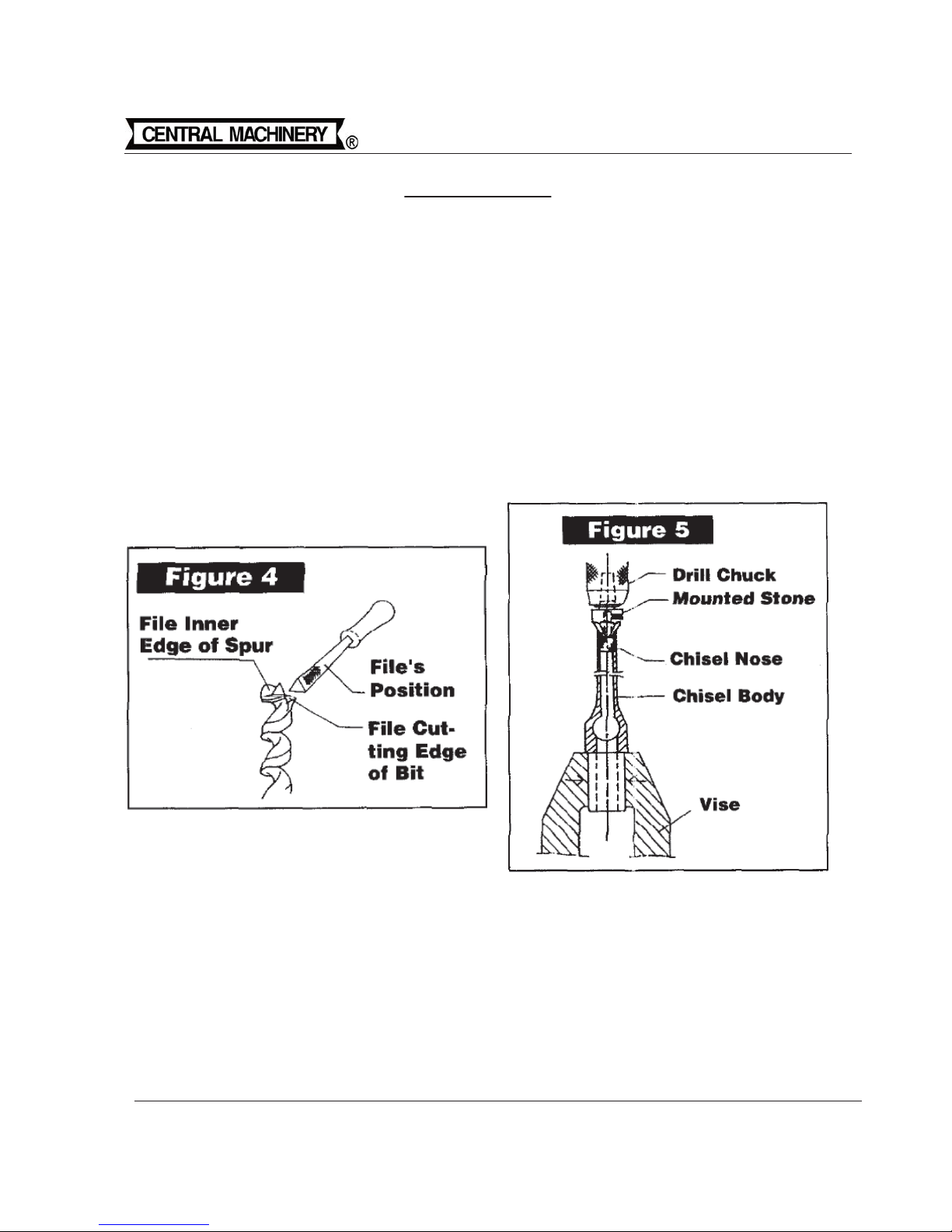

1. To sharpen the bit, use a three cornered file and sharpen the inner edge of the spur
and the cutting edge of the twist.
2. To sharpen the chisel, first fix it in a vise. Use a tapered stone or rotary, file in a drill.
Set the RPM's very low or the temper of the chisel will be affected. Use a file to remove
any burrs on the outside face of the chisel.
Lubrication:
1. Before every use, lubricate the both columns with a light machine oil. Clean them after
every use to prevent accumulation of foreign matter.
2. After every 30 days of use, grease the gears inside the head. They are accessible
through the panel on the underside of the head.
MAINTENANCE
Page 7 SKU 35570

TROUBLE SHOOTING
Problem
:LOOQRWVWDUW
0DFKLQHVWDUWV
EXWELWGRHV
QRWPRYH
2SHUDWLRQ
LQWHUUXSWHG
%URNHQ&KLVHOV
&KLSVFORJJHGLQ
&KLVHO
TRUQRUURXJK
PRUWLVHV
&DXVH
1RWSOXJJHGLQ
)XVHRUFLUFXLWEORZQ
6RFNHWGRHVQRWIXQFWLRQ
'DPDJHGFRUGRUSOXJ
6ZLWFKQRWIXQFWLRQLQJ
0RWRUQRWZRUNLQJ
:RUQRUEURNHQJHDUV
)RUFLQJXQLW
2YHUORDGHGFLUFXLW
:RUQELW
&KLVHOVVORWIDFLQJIRUZDUG
RUEDFNZDUG
'XOOFKLVHO
6ROXWLRQ
3OXJLQ
5HSODFHIXVHRUUHVHWFLUFXLW
THVWVRFNHWZLWKFXUUHQWWHVWHU
RUWU\LQJDQRWKHUWRROLQVRFNHW
,IVRFNHWGRHVQWZRUNKDYHLW
UHSODFHGE\DTXDOLILHGHOHFWULFLDQ
+DYHUHSODFHGE\DTXDOLILHG
WHFKQLFLDQ
+DYHVZLWFKUHSODFHGE\D
TXDOLILHGWHFKQLFLDQ
&RQWDFW+DUERU)UHLJKWTRROVIRU
VHUYLFLQJ
5HSODFHJHDUV
$SSO\OHVVSUHVVXUH
8VHRQLVRODWHGFLUFXLW
&KHFNIRUDGHTXDWHDPSUDWLQJ
,QVWDOOSURSHUIXVHVEUHDNHUV
IRUFLUFXLW
6KDUSHQRUUHSODFHELW
)DFHVORWWRULJKWRUOHIW
5HSODFHRUUHVKDUSHQ
6.8 3DJH

PARTS LIST
Description
1Bolt
2 Lock Washer
3 Base
4 Bracket A
5 Hex Key Screw
6 Wood Base
7 Screw
8 Hold Down Clamp
9 Fence
10 Washer
11 Bracket B
12
12A
Knob
Handle
13 Spring
15 Gear Column
16 Guide Column
17 Knob
18 Depth Set Guide
19 Set Screw
20 Gear Shaft
21 Gear
22 Gear Access Plate
23 Gear Casing
24 Handle
25 Guide Sleeve
Part No. 26 Stop Plate
27 Washer
28 Bolt
29 Motor
30 Power Cord
31 Switch
33 Nut
34 Inner Spring
35 Chuck
36 Screw
37 Chisel Bushing Screw
38 Chisel Bushing
39 Guard Cover
40 Screw M5X12
42
43
44
45
Drill Chuck
1/4’’ Chisel & Bit
3/8’’ Chisel & Bit
1/2’’ Chisel & Bit
46 Drill Shaft
47
48
49
Chuck Key
Wrench 6mm
Wrench 5mm
29-01
29-02
29-03
29-04
Capacitor
Motor Fan
Switch Box
Rear Motor Housing Bearing Cover
Page 9 SKU 35570

PARTS DIAGRAM
12A
40
42
43
44
45
46
48
47
49
29-01
29-02
29-03
29-04
SKU 35570 Page 10

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for
the period of ninety days from the date of purchase. This warranty does not apply to damage due directly or
indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, or to lack of
maintenance.We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.
Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection
verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of
our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
LIMITED 90 DAY WARRANTY
