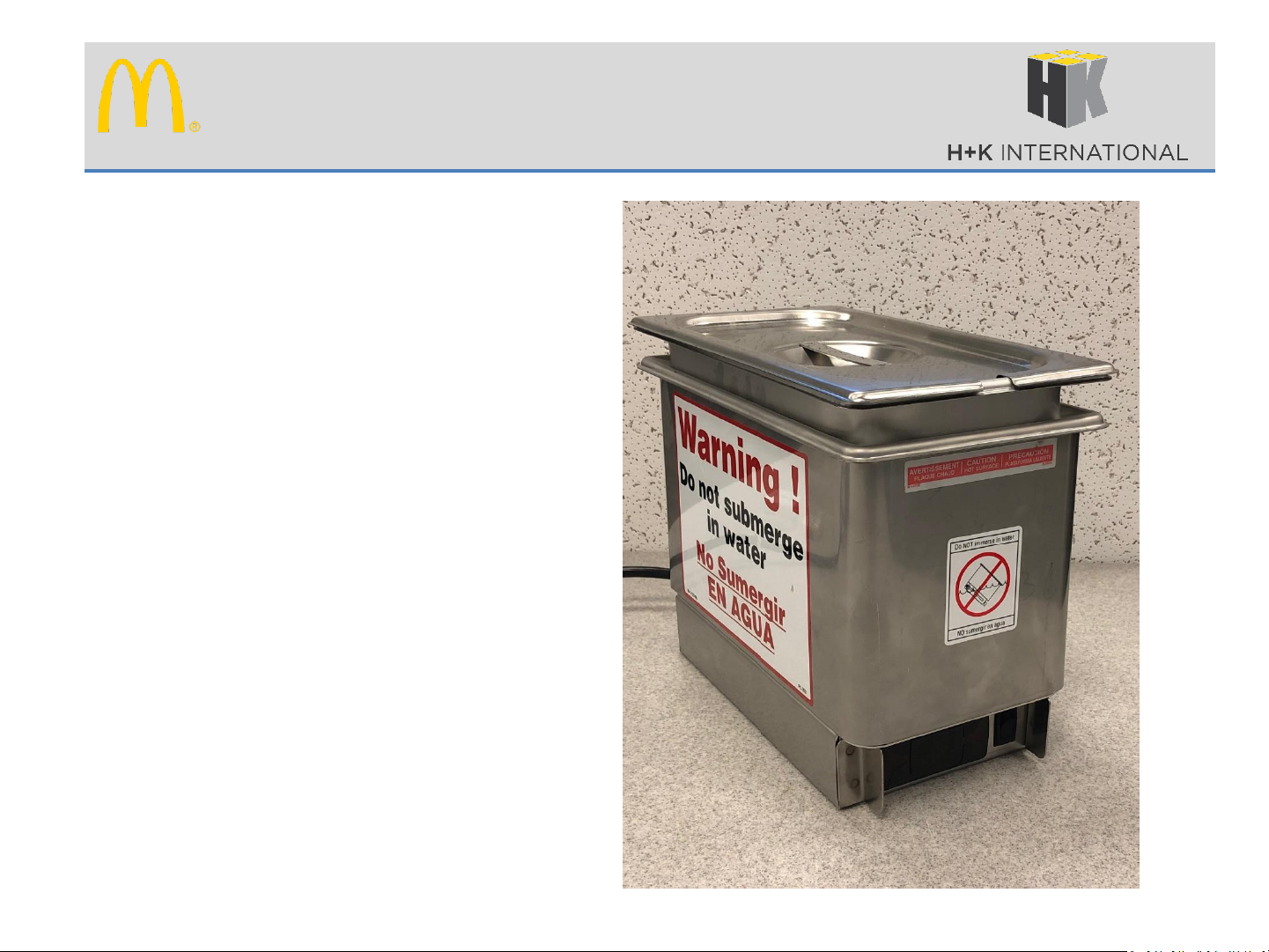

H&K MCR011 Technical Document

Marinator
Equipment Manual
H&K Model P/N MCR011
This manual is for the exclusive use of
licensees and employees of McDonald’s
Systems Inc.
Manufactured by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
U.S.A.
Telephone: [phone]
Fax: [phone]
Distributed by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
U.S.A.
Telephone: [phone]
Fax: [phone]
For a full list of worldwide locations,
visit www.hki.com

Marinator MCR011
Table of Contents
Section
Page
Warnings
3
Introduction
3
Warranty
4
Service Information
4
Power Requirements
5
Initial
Setup
5
Calibration Check
5
Operation Procedures
5
Parts
Description
6
Wiring diagram
7
Troubleshooting
8
Parts Ordering
& Service
9
Revision (B)

Marinator MCR011 Warnings
Introduction
The MCR011 Marinator is designed to hold food at the point of service in the prep/packing table at the
desired serving temperature. The MCR011 Marinator is to be placed offline as close the UHC as possible.
The intention is to have the Marinator at the point of service near the UHC table to expedite assembly of
such items as the McRib sandwich.
The MCR011 Marinator is to be filled to water level line and turned ON to preheat for 60 minutes prior to
loading with product.
Revision (B)
STORE MANAGERS-
DO NOT SUBMERGE MARINATOR IN WATER.
IF UNIT IS SUBMERGED IN WATER, YOUR WARRANTY WILL BE VOIDED!!
DO NOT OPERATE OR SERVICE THE MARINATOR WITHOUT FIRST READING THIS MANUAL.
USE CAUTION WHEN SETTING UP, OPERATING OR CLEANING THE MARINATOR TO AVOID CONTACT WITH HEATED
SURFACES.
DO NOT OPERATE THE MARINATOR WITHOUT ALL GUARDS AND COVERS IN PLACE.
DISCONNECT ALL POWER SOURCES BEFORE ATTEMPTING ANY SERVICE OR REPAIR WORK.
KEEP CLEAR OF OBSTRUCTION ALL VENTILATION OPENINGS IN THE APPLIANCE ENCLOSURE OR IN THE STRUCTURE
FOR BUILDING-IN.

Marinator MCR011 Product Warranty
Revision (B)
H&K International makes the following limited warranties to the original
purchaser only for this equipment and replacement parts:
H&K warrants all components to be free of defects in material and
workmanship, if properly installed, operated and maintained, for period of (2)
years from the date of the delivery.
The company’s obligation under this warranty is limited to repairing or
replacing any part or parts of the refrigerator determined to be defective by
an authorized representative of H&K.
The company reserves the privilege of determining if such repairs are to be
made in the field or at the H&K factory.
The company assumes no liability for expenses or repairs made by other
parties except by written consent.
Corrections of such defects by repair or replacement shall constitute
fulfillment of all company obligations to the purchaser.
H&K shall not be liable for loss, damages or expenses arising from misuse,
abuse, alteration, accident or improper installation of the refrigerator such as:
Improper or unauthorized repair;
•Failure to follow proper installation instruction;
•Improper maintenance;
•Damage in shipment;
•Abnormal use;
•Improper power supply;
•Natural disaster;
Service
Contact H&K Service Dept for the following:
•Service
•Maintenance
•Ordering Replacement Parts
Be prepared to give the following information:
•Serial #
•Equipment I.D. #
•National Store #
This information can be found on a nameplate
on the right side of the unit (opposite end
from the power cord).
Special Conditions
This warranty also does not cover:
•Overtime or holiday charges;
•Consequential damages (the cost of repairing or
replacing other property which is damaged),
loss of time, profits, use of any other incidental
damages of any kind.
Expected life of this equipment is 7 to 10 years
provided that it is maintained properly through
H&K approved suppliers using only approved
component parts and that the unit is cleaned
regularly and not abused.

Marinator MCR011
Power Requirements
Insert the Plug of the MCR011 into a standard 120VAC, 60 Hz, 15A
or 20A outlet
All electrically operated appliances must be electrically
grounded in accordance with local codes, or in the
absence of local codes, with National Electric Code,
ANSI/NFPA No. 70-1990.
Initial Setup
1. Remove all paper from the equipment
2. Wipe clean with a damp cloth
3. Place Marinator as close to the UHC as possible
4. Plug unit into 120VAC, 60 Hz, 15A or 20A outlet
Calibration Check
1. Plug Marinator into an appropriate power source
2. Fill Marinator with fresh water up to the level mark
3. Place the empty stainless steel pan and lid into the
Marinator
4. Set power switch to the ON position
5. Preheat Marinator for one hour
6. Use a digital thermometer to measure the temperature of
the water. Insert the digital thermometer probe into the water.
If the water temperature is between 155°F and 165°F, no
adjustment is necessary. If the water temperature is under
155°F, or over 165°F, then the thermostat will need to be
adjusted.
CAUTION! Equipment and water contents are hot. Use breakfast
cart to transport the Marinator to the sink area
NOTE! Use necessary precautions such as gloves to handle the Marinator
when hot or let it cool before handling.
Operation Procedures
Setup:
1. Plug power cord into the appropriate power source
2. Fill the water pan with warm water up to the water level mark on
the ends of the pan
3. Install a 1/3 size stainless steel pan 6” deep
4. Cover the pan with the lid. Place the power switch in the ON
position. The switch will light up.
5. Allow the Marinator to warm up for 60 minutes before placing food
product inside.
Close:
1. Place the power switch in the OFF position
2. Unplug the Marinator
3. Remove the lid and the 1/3 size pan
4. Empty the water from the pan
5. Using a clean damp cloth towel, wipe down the water pan
6. Using a hot solution of MCD All Purpose Concrete (APC) from the
sink proportioner and a warm solution of MCD sanitizer, wash and
sanitize the lid and pan and set aside to air dry overnight
7. Store the Marinator in the designated area
CAUTION! Do not immerse Marinator in water. This will damage the
Marinator and void the warranty
Revision (B)

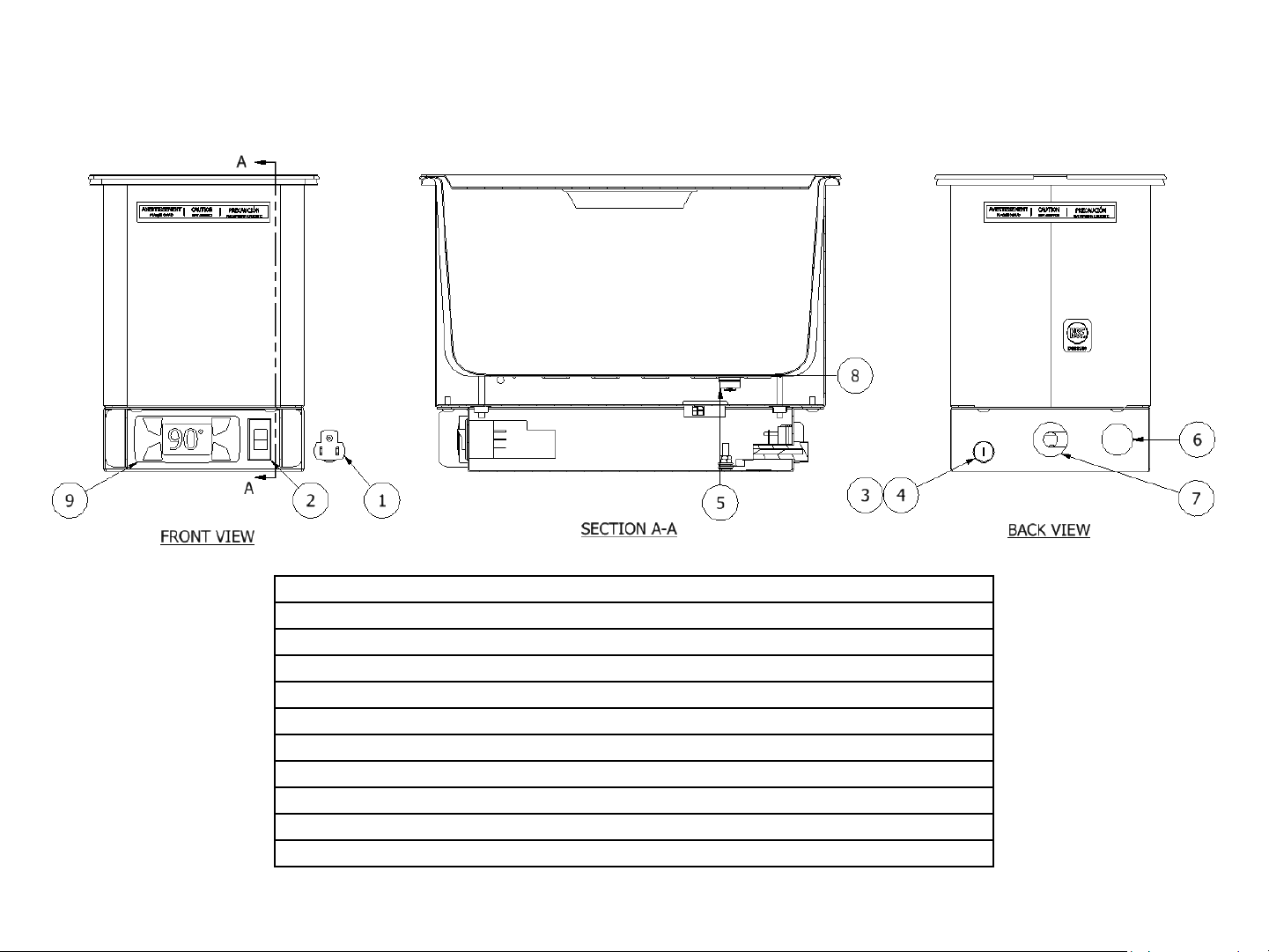

Marinator MCR011 Parts Description
Revision (B)
ITEM NO. DESCRIPTION PART NUMBER
1
CORD 14/3 SJTO 96"
E-
10-12-8
2
LIGHTED
ROCKER SWITCH
E-
1-19-1
3
+FUSE, LITTLEFUSE #326002P 2AMP
E-
3-21-7
4
FUSEHOLDER
E-
3-23-2CS
5
SWITCH, HI
-LIMIT (PB) #3L11220
E-
5-117
6
HEYCO 1311,CLEAR WINDOW PLUG
E-
8-32-2
7
STRAIN RELIEF
E-
8-44-1
8
FOIL HTR,8
-1/2X11-1/4" 120V150W
E-
5-0145
9
NEW 971,SPADE+RAST,REAR CLIPS,NO SENSOR
P-
1-18-13
10
1.5M NTC SENSOR W/RAST CONNECTOR
P-
1-18-14

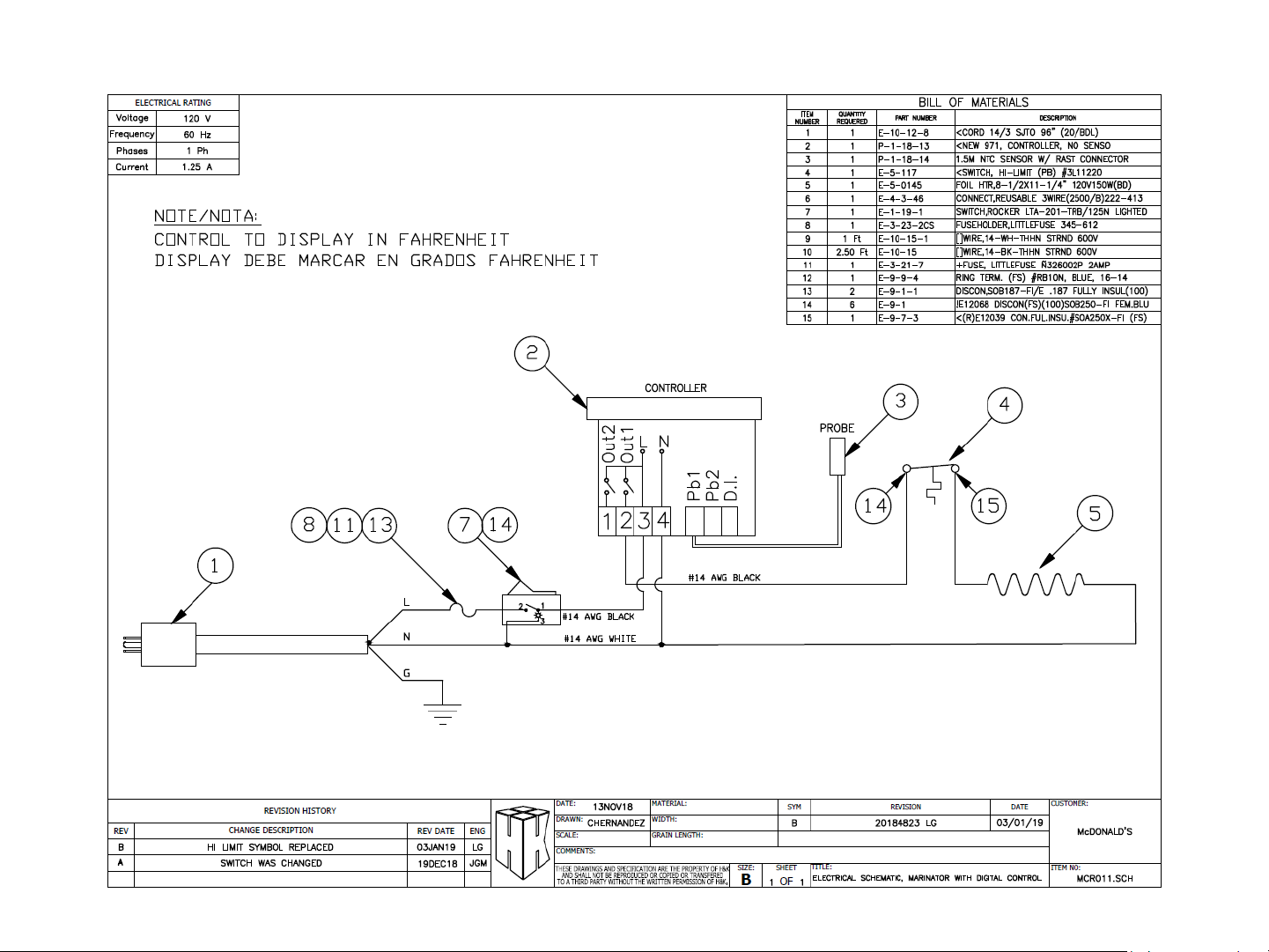

Marinator MCR011 Schematic
Revision (B)

Marinator MCR011 Troubleshooting
Problem Possible Cause Possible Solution
Marinator does not heat 1. No power at receptacle
2. Power switch not ON
3. Marinator not fully plugged into receptacle
1.
Check receptacle power
2.
Turn power on
3.
Plug the Marinator cord into 120V 15A
receptacle
Control display on (no heat) 1. Control not set high enough 1. Set the control temperature higher
Power switch ON and
control display on (no heat)
1. Defective heater
2. Defective control
1. Call H&K Customer Service at 1800-788-
2445
Control cycle on and off 1. No water in Marinator
2. High limit switch turning unit on and off
1. Carefully add water to fill line
Pan floating in water 1. Too much water in the Marinator 1. Carefully scoop water out with a coffee cup
until water level comes down to water fill line
stamped in each end of the Marinator
Revision (B)

Marinator MCR011 Parts and Ordering Service
Revision (B)
Returns
Contact: H&K Dallas, Inc.
2200 Skyline Drive
Mesquite, TX 75149
[phone]
Damages and Shortages
Upon receipt, examine the equipment carefully for any damage. If damage has
occurred, notify the carrier and H&K Dallas, Inc. immediately.
Service and Parts
Contact: H&K Dallas, Inc.
2200 Skyline Drive
Mesquite, TX 75149
[phone]
Disconnect all power sources before attempting any service or repair work.
Caution! A qualified licensed technician should perform all service and repair.
WARNING: If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified person in order to
avoid a hazard.
WARNING: Where applicable, this appliance can be used by children aged
from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved
WARNING: Children shall not play with the appliance.
WARNING: Cleaning and user maintenance shall not be made by children
with supervision.
