Hanics HIB-707WH User manual

Bone Conduction Headset
User Manual
(Model No. HIB-707WH)
Hanics hi-Bone limited product warranty. hi-Bone (Model No. HIB-
707WH) warrants to purchaser that for a period of one (1) year after
the date of purchase (the "Warranty period") of hi-Bone product
("product") by purchaser, the product will substantially conform to
Hanics's published specifications for the product on the date of
purchaser's purchase of the product, subject to the terms herein.
Purchaser shall notify Hanics of any non-conformance during the
Warranty period.
-The warranty period is one (1) year after the date of purchase.
(However, incase of customer's heedlessness, Hanics maybe request
the repair charge)
- Please submit this warranty card when you ask to repair or
replacement.
- This warranty available only to purchaser and does not extend to
any distributor's, retailer or other resellers of the product.
WARRANTY
Thank you for purchasing Hanics bone conduction headset.
We hope you enjoy it with your headset.
Please read the entire manual before using your headset.
Once again, Thank you and good listening.
Hanics Technology Co.,Ltd.
ITEM Bone Conduction Headset
Model No. hi-Bone (HIB-707WH)
Date of Purchase Serial No.
Warranty Period
Reseller Name
Tel
customer Name
Address
Tel
Hanics Technology Co., Ltd.
#772-5 Hanho B/D, Gansuk-3Dong, Namdong-Gu, Incheon, KORE
Tel : [phone] Fax : [phone] E-mail : [e-mail]
※ This form must be filled when you purchase the product.

③
①
②
④
Headset Overview
④
IMPORTANT!
When driving, always keep your attention focused on
safety first. Please limit your cell phone calls when
driving to insure your safe arrival.
Remember. Driving comes first, not the call !!
⑥
① Head band
② Speaker
③ Ear hook
④ Cable
⑤ Control box
⑥ Conversion s/w
⑦ Hearing aid function s/w
⑧ Power LED
⑨ Microphone
⑩ Electrical input jack
⑪ On/off switch box
⑫ Recharge jack
⑬ Round volume control
Hanics Technology Co.,Ltd.
Package Contents
This package includes the following:
- Hanics bone conduction headset hi-Bone (HIB-707WH)
- User Manual
- Power adapter
- 2 cables for connecting music device and cell phone ⑩
⑪
⑫
⑬
⑨
⑧
⑦
⑤
- 2 - - 3 -

How To Wear
To wear, place hi-Bone behind your head (cord and
control box are on your left). And place the speakers
on your temples.
Be sure to move the adjustable ear-hook speaker,
you can enjoy the quality sound by getting the
comfortable fit with your temple bones for using
adjustable ear-hook for the sound to reach your audio
nerves.
Before Using hi-Bone
hi-Bone provide most popular connection cable to connect
with your cell phone, but not for the all kind of cell phone
models. If you need a different connection cable, please
contact your cell phone provider for a specific cell phone
cable.
Charging Your hi-Bone
Be sure to fully charge your hi-Bone before using to ensure
maximum battery life.
maximum battery life.
1. Place the headset in a safe place and connect the charging
cable into the control box "Recharge jack".
2. Then plug the power cord into a wall outlet.
3. Charge until the blue LED light turns on.
Now your headset is ready to use.
Note : A full charge takes
approximately 3 hours.
(Front and Rear) (Right and Left)
Hanics Technology Co.,Ltd.
- 4 - - 5 -

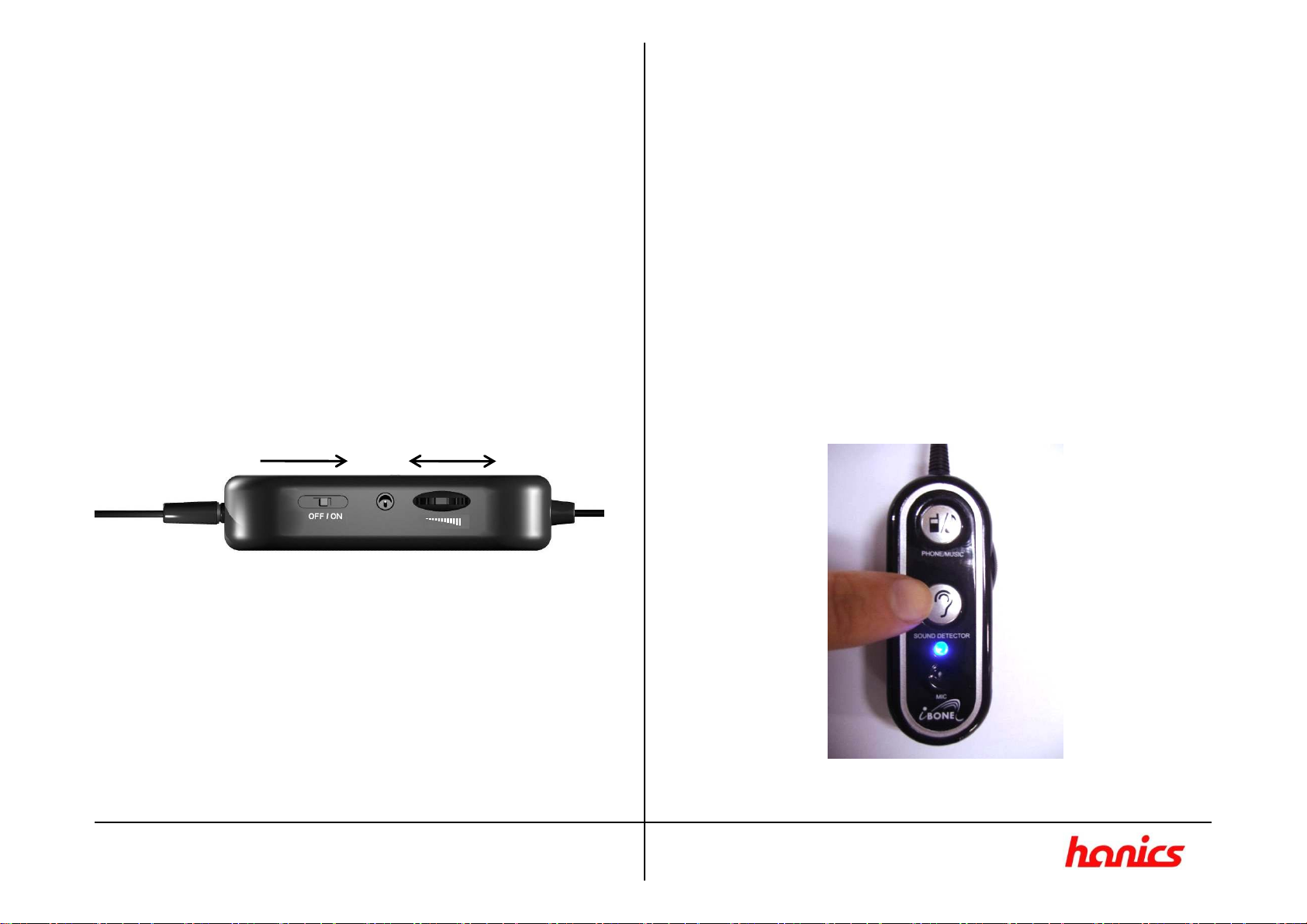

Turning On/Off
hi-Bone will start on the hearing aid mode when
turned on. Be sure to start with low volume
control and then turn up as desired. After turn on,
your hi-Bone will be in the hearing aid mode.
Power on Volume control
Hearing Aid Function
Your hi-Bone will be in hearing aid mode automatically
when turned on. To listen to the music or cell phone
communication, you should connect the proper cable
between the desired units and your headset control box
and press “Conversion s/w” button. To switch back to
hearing aid function, just press the "Hearing aid function
s/w" button.
Note : If the control box LED light is red color
when headset is turned on, you need to recharge
until the blue LED light turns on.
Hanics Technology Co.,Ltd.
- 6 - - 7 -

Using hi-Bone
Making a Call
To make a call, connect your cell phone to the
control box "Electrical input jack" with the proper
cable.
Dial the number on the key pad and press "Send“
button on the cell phone key pad. To re-dial the
previous number just push the music switch on the
control box.
1. When you use a key pad on the cell phone,
a. Dial on your cell phone
Listening to the Music
If having a conversation with cell phone or using your
hi-Bone in hearing aid function, press "Conversion s/w“
button to switch the music.
1. Connect the proper cable between your audio device
or cell phone if it has music files.
2. Make sure the volume is low.
3. Turn on your audio device.
4. Press "Conversion s/w"
5. Keep a suitable volume using “Round volume control”
and enjoy the music.
a. Dial on your cell phone
b. Press the sending button on your cell phone.
2. Re-dial previous phone call,
a. Push the “Conversion s/w” button of control box.

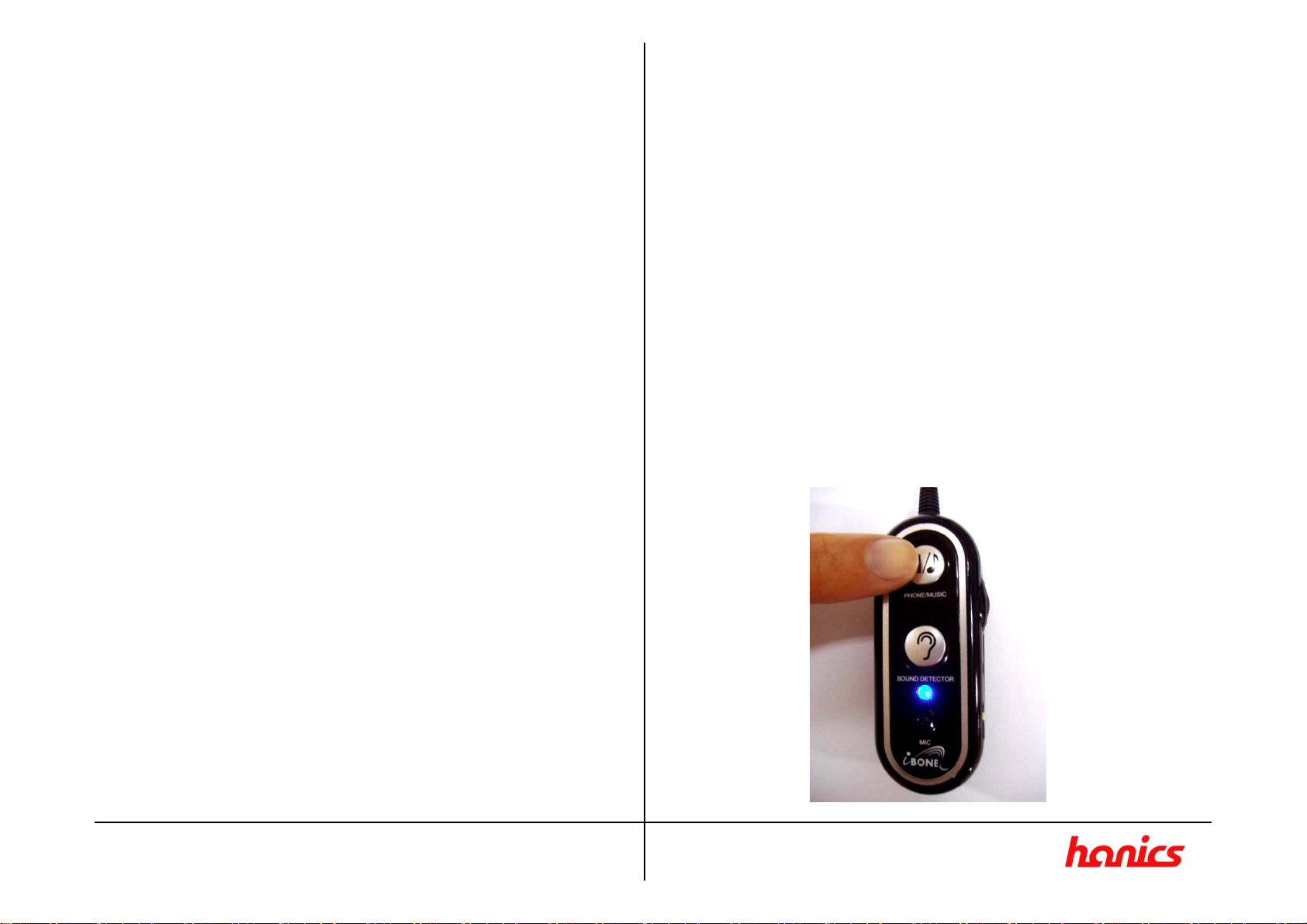

Answering a call
To answer your cell phone just press the "Conversion
s/w" button on the control box, or answer the call
with pressing "Send" button on the key pad of your
cell phone.
and enjoy the music.
Hanics Technology Co.,Ltd.
- 8 - - 9 -

Precautions
- Power off the switch when your headset will not be
in use for prolonged periods of time.
- Do not throw or drop your headset.
- Do not immerse your headset in any liquid or water.
- Do not wear during bathing, showering or
swimming.
- Do not expose your headset to excessive heat, such
as a stove top, microwave, dash board of hot car, or
hair dryer.
-
Do not expose your headset to chemicals, such as
Troubleshooting
1. Whistling or howling
- Try moving away from control box or from
electronic devices that maybe causing interference.
- Wear the headset properly
2. No sound
- Increase the volume to adjust round volume control.
- Recharge battery
- Wear the headset properly
3. Intermittent sound
-
Do not expose your headset to chemicals, such as
hair spry, insect repellent, perfume, or cosmetics.
- Do not attempt to extend the headband more than
130 °C .
- Recharge battery
Hanics Technology Co.,Ltd.
- 10 - - 11 -
