Hanover MON5PCSP4DFP User manual


HanoverOutdoorFurniture




IMPORTANT
Ifyouhaveanyproblemswiththisproduct(missingordamagedparts,assemblyissues,etc.),
PLEASEDONOTRETURNTOTHERETAILER/STORE
fromwhereyoupurchasedtheproduct.
PleasecallourToll‐FreeCustomerServiceHotlineat:1‐800‐416‐3511
Between9:00AMand5:00PMEasternTime,MondaythroughFriday
Orvisitourwebsiteat:www.hanover‐products.com


Toexpediteanyfuturewarrantyclaims,pleaseretaintheInstructionSheet,Warranty
Cardandreceiptforfutureuse.
For additionalon‐linesupportonassembly,troubleshootingandcare&maintenanceofyouroutdoor
furniture,pleasevisitourwebsiteat:www.hanover‐products.com.
6/1/2015(a)

1
ASSEMBLY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCT AND RESULT IN A
HAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMNT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVAROCKS,
LOGS, FIRE ICE, ETC.
WARNING:
Improper installation, adjustment alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR USE WITH 20LB (9KG) PROPANE
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST
BE SUPPLIED BY THE MANUFACTURER.
Aug-28-2013
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.
– 5 p.m. Eastern Time.
Thi
s app
li
ance can pro
d
uce car
b
on
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
DANGER CARBON MONOXIDE HAZARD
WARNING: For Outdoor Use Only
CSA Model 98900
Printed in China DRC02200

TABLE OF CONTENTS
Important Safety Information 3
Information about Propane 4
Specifications 4
Installation 5
Natural Gas Conversion 6
Lighting Instructions 8
Maintenance 8
Batteries 9
Parts List 9
Warranty 10
2

IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane
Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve during any pressure testing of the gas supply system at test pressure equal to or less than 1/2
psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at
a safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or
near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating
the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartments, burners
and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed
in these instructions.
Keep the fuel supply hose away from any heated surfaces.
3

IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must
be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specification for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for the Transportation of
Dangerous Goods.
zThe cylinder supply system must be arranged for vapor withdrawal.
zThe cylinder used must include a collar to protect the cylinder valve.
zThis appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed space.
zWhen this appliance is not is use, the gas must be turned off at the supply cylinder.
zStorage of this appliance indoors is permissible only if the cylinder is disconnected and
removed from the appliance.
zCylinders must be stored outdoors in a well-ventilated area out of the reach of
children .Disconnected cylinders must have threaded valve plugs tightly installed and must not
be stored in a building, garage or any other enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2012 “ Outdoor
Decorative Gas Appliances”. The gas hose is routed through a “U” bolt to prevent the hose from
coming in contact with the burner. DO NOT remove the hose from the “U” bolt. See Figure 2.
Figure 1 Figure 2
SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator Pressure 11 inches water column
Natural Gas Minimum Inlet
Pressure 7 inches water column
Clearances to combustible surfaces Sides 24in./61cm Top: 72 in. / 183 cm
THE UNIT HAS BEEN PRE-ASSEMBLED BY MANUFACTURER AND DOES NOT
REQUIRE ASSEMBLY BY CUSTOMER.
4

INSTALLATION
1. Carefully unpack all items from the box. Place the table in its final position. There must be a
minimum of 24 inches of clearance from the side of the table top to any combustible walls.
2. With the help of another person, carefully place the natural stone table top onto the table base.
After making any necessary adjustments to the alignment of the natural stone table top and the
table base, use four bolts and washers as shown in Fig.3. Guide the bolts through hole in the
table base into the pre-drilled hole on the underside of the natural stone table top. Do not
tighten completely.
Figure3
3. Pour all of the lava rock into the burner pan. Completely cover the burner tube with lava rocks
asshowninFig.4.
Remove any lava rock from the ignition well Figure 4
5

4. Lift off the tank door, place the tank in the holder and use the chain to hold the tank. Connect
the regulator as shown in Fig. 5. Screw the black handle clock-wise to tighten. Turn the handle
counterclock-wise to remove. The hose must point down. Open the control door and check that
the valve is turned all the way clockwise to the “OFF” position. Open the tank valve. Apply a
solution of soapy water to the tank-regulator connection and to the valve-hose connection to
check for leaks. If soap bubbles continue to form, the connection has a leak. If a leak is found,
close the tank valve and tighten all connections. NEVER USE A FLAME TO CHECK FOR
LEAKS.
Figure 5
NATURAL GAS CONVERSION
Natural gas conversion must be performed only by natural gas provider or service company.
1. Disconnect the gas hose from the gas valve. See Fig. 6.
Figure 6
6

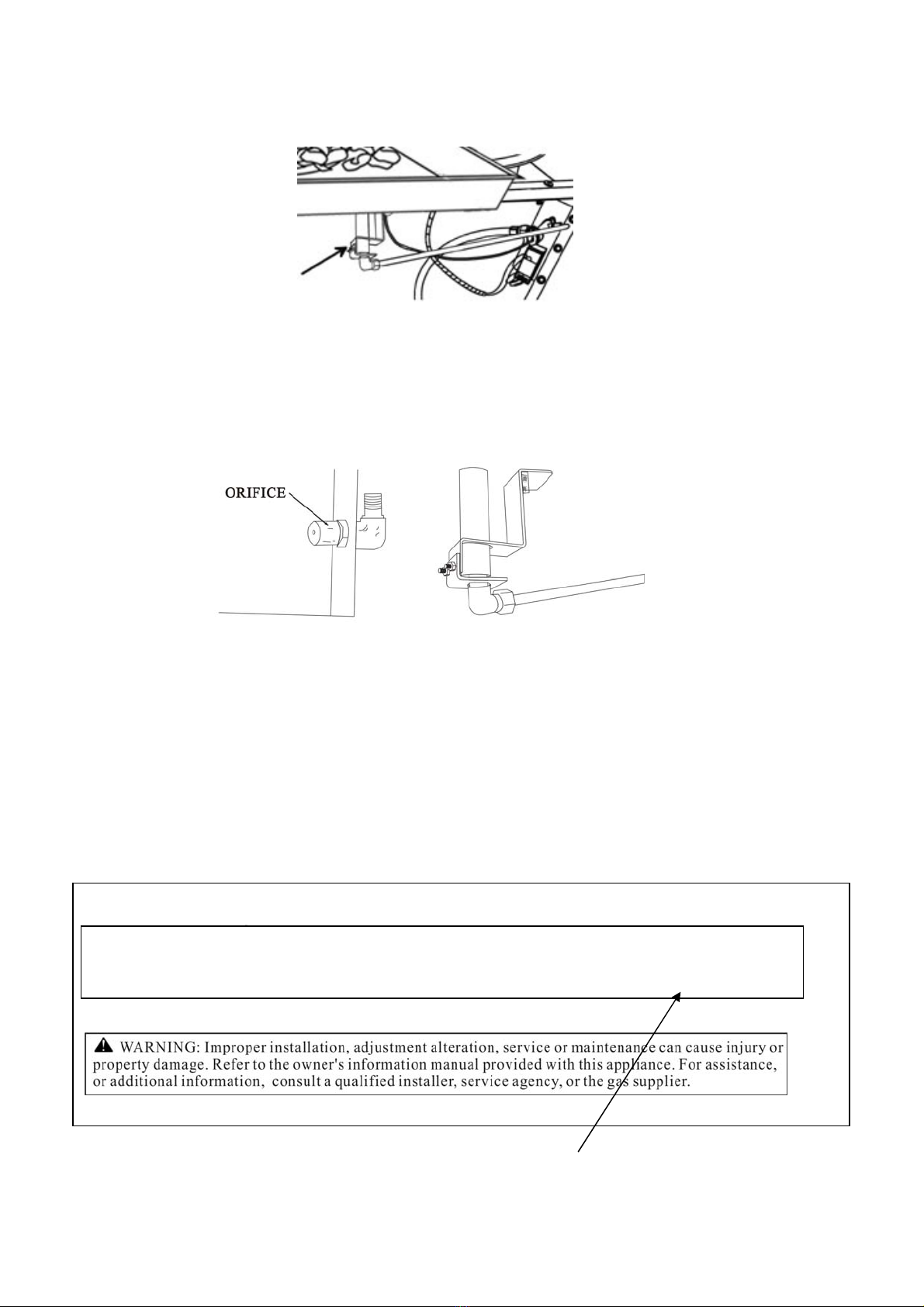

2. Disconnect the gas tube from the orifice and remove the orifice holder as shown in Fig .7.
Figure 7
3. Replace the propane orifice (See Fig.8) with the natural gas orifice from the kit and reinstall the
orifice holder by tightening the nuts as shown in Fig. 9. Reconnect and tighten the gas tube to the
orifice.
Figure 8 Figure 9
Apply a solution of soapy water to all connections to check for leaks. If soap bubbles continue to
form, the connection has a leak. If a leak is found, close the tank valve and tighten all connections.
NEVER USE A FLAME TO CHECK FOR LEAKS.
4. Stick the conversion label on the rating plate as shown in Fig. 10.
Metal Rating Plate
ConversionLabel
Figure 10ConversionLabel
7
Serial Number _________________ Model Number: 98910
CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of
11 inches water column. (2.7 kPa).The gas supply must be turned off at the LP-gas supply cylinder when this appliance is not in use.
Gas: Propane Input: 40,000Btu/hr
Minimum clearance from combustible constructions: Sides: 24 in.609 mm. Top 72 in. 1828 mm.
FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.
This appliance has been converted to use Natural Gas. Input 40,000 Btu/hr.
Max Gas Supply Pressure 7 inch w.c. (12.2 kPa) Min. Gas Supply Pressure 5 inch w.c. (1.24 kPa)

LIGHTING INSTRUCTIONS
1. Locate the control and igniter panel. Make sure the control knob is in the “OFF” position. See Fig.
11. Open the tank door and open the tank valve all the way.
2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button pushed in,
push and turn the control knob to the “ON” position. The fire should light within
a few seconds. Once the flame is lit, release the igniter button and continue to hold the control
knob in for 10 to 15 seconds. Release the control knob. The control knob should pop back out and
the fire should remain lit. Note: If the fire does not light, turn the knob to the “OFF” position and
wait five (5) minutes before trying again.
3. To turn down the flame, push the control knob in slightly and turn to the Medium (medium flame)
or Low (small flame).
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the tank valve
Figure11
MAINTENANCE
The flames should look like those in Fig. 12. To clean the burner, use a soft brush after the burner
and lava rocks have cooled completely. Never use a vacuum cleaner on the lava rocks. It is
recommended that the lava rocks be stored indoors during the winter if they will be subjected to
freezing temperatures. The propane cylinder must be disconnected and removed from the appliance
before the appliance can be stored indoors.
Figure 12
8

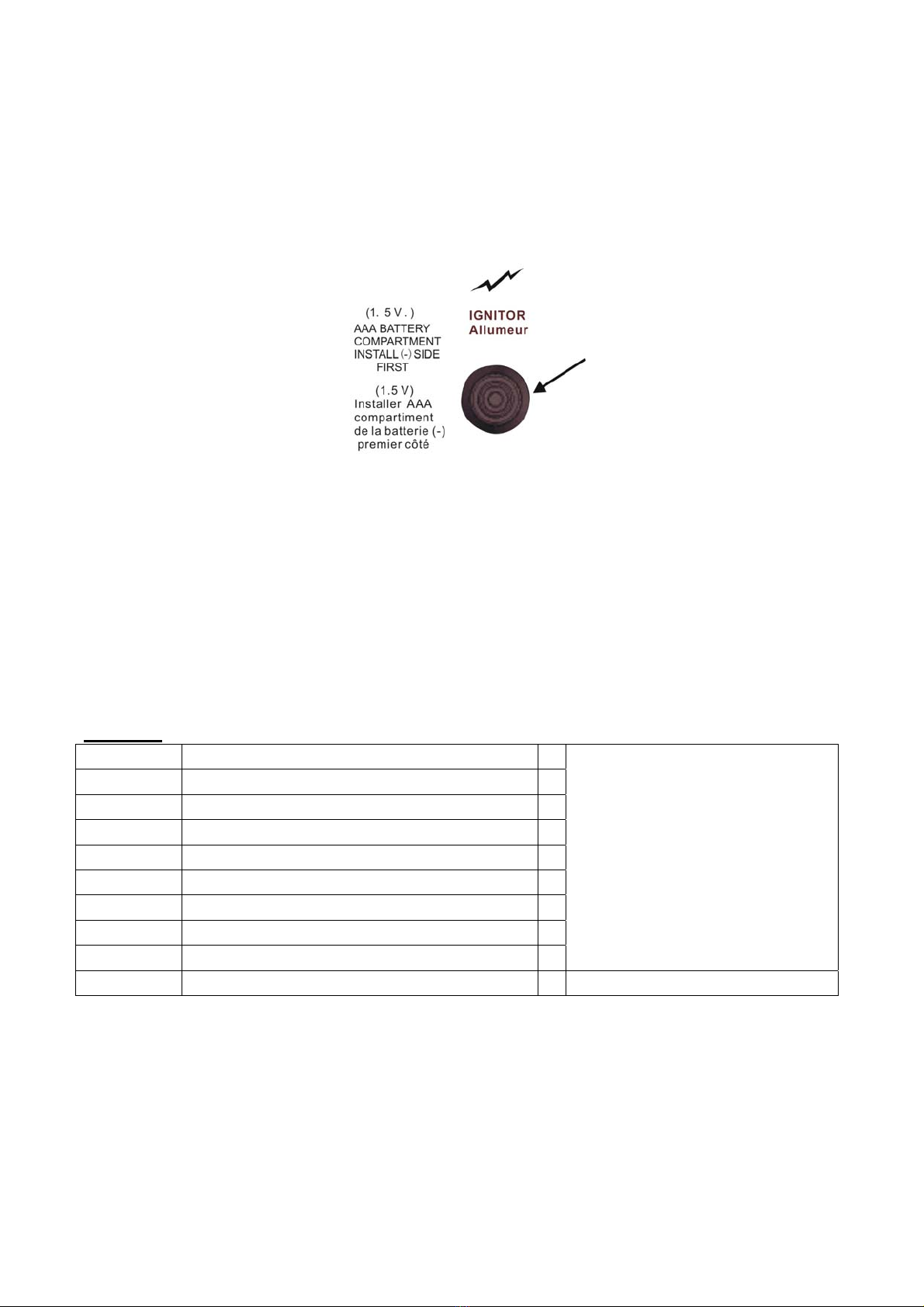

BATTERIES
Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignition
module located on the control panel to access the battery compartment. The ignition module requires
one AAA size battery. See Fig. 13.
Figure13
Parts List
Part Number Description
FP0002 LAVA ROCKS
FP0003 ELECTRODE
FP0004 THERMOCOUPLE
FP0006 IGNITION MODULE
FP0008 NATURAL GAS FLEXIBLE CONNECTION HOSE
FP0432 FIREPIT TABLETOP
FP0433 FIREPIT BASE
FC0069 FOOTCAP
Manufactured by: Agio-USA
1337 Taylor Farm Rd #100
Virginia Beach, VA 23453
Service Center: 1-800-416-3511
Made in China
FP0434 HARDWARE PACK
9

90-DAY LIMITED WARRANTY
What is Covered Under This Warranty?
The item you have purchased is warranted against defects in materials and workmanship for the following parts as
outlined below only when unit is installed and operated in accordance with the instructions in this Owner’s Manual and
in compliance with local building and fire codes:
•Burner Assembly
•Firepit Base
•Firepit Top
How Do I Obtain Warranty Service?
To obtain warranty service, you must contact our customer service center within the relevant warranty period and provide
us with a copy of your dated register receipt as proof of the purchase date. We reserve the right to request photographs
and/or return of the defective item(s) and/or such other evidence relating to any claim as we shall reasonably require.
Please call our customer service center at 1-800-416-3511 for additional warranty claim details and procedures.
What are the Limitations and Exclusions of this Warranty?
Warranty Limitations:
This warranty is subject to the limitation set forth above. In addition, this warranty is made to the original purchaser only
and is effective only if items are purchased from one of our authorized dealers. This warranty is not transferable. For
warranty replacements based on warranty claims submitted within ninety (90) days of purchase, we will not be
responsible for charges associated with shipments outside continental North America at any time or for any reason.
Warranty Exclusions:This warranty is subjected to the exclusions set forth above. In addition, the following are excluded
from coverage under this warranty: any item used for commercial, contract or any other non-residential purpose;
clearance items, display models or items purchased “as is”; freight damage; items subject to misuse, abuse, neglect or
lack of proper care or maintenance (including without limitation as provided in any “care and maintenance guide” or
similar information we provide); normal wear and tear; damage caused by acts of nature, acts of force majeure,
vandalism, fire or other causality, or improper assembly; hardware against corrosion or rusting; purchased or replacement
parts; and all plastic parts. Also excluded are loss of use or time; inconvenience; money; travel; packaging; or incidental,
special or consequential damages of any kind. Replacement of defective items or parts as provided herein shall constitute
your sole and exclusive remedy for items which are not as warranted. In no event shall our responsibility exceed the
purchase price of the item found to be other than as warranted. This warranty is the exclusive statement of your rights
with respect to items you have purchased and supersedes any other express warranty or statement, written or oral, made
in connection with the purchase and sale of such items. The term ”item” when used herein in the singular refers to the
specific piece found to be defective, and not to the entire set of which the item is a part.
Some states do not allow exclusion or limitation of incidental or consequential damage, so that limitation may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
10
