Hansaton sound 13 User manual

Receiver in canal (RIC) guide.
Fitting guide.
Receiver-in-Canal (RIC).

Table of Contents.
RIC product line � � � � � � � � � � � � � � � � � � � 3
Measuring for an accurate xReceiver unit � � � � � � � � � 5
How to measure for an accurate wire length � � � � � � � � 6
Modifying xReceiver wire to improve fit� � � � � � � � � � 7
Choosing the correct coupling � � � � � � � � � � � 8 – 10
Attaching the retention piece to the standard or
power xReceiver unit � � � � � � � � � � � � � � � � � � 11
Attaching the dome or sleeve mold to the
standard xReceiver unit � � � � � � � � � � � � � � � � 12
Attaching the power dome to the
power xReceiver unit� � � � � � � � � � � � � � � � � � 12
Attaching the standard, power or
super power xReceiver unit to sound 312 � � � � � � � � � 13
Attaching the standard, power or
super power plus xReceiver unit to sound 13� � � � � � � � 14
Configuring in HANSATON scout � � � � � � � � � � � � 15
Feedback optimization � � � � � � � � � � � � � � � � 16
sound 312 battery door replacement� � � � � � � � � � � 17
sound 13 battery door replacement� � � � � � � � � � � � 17
How to measure performance in a coupler � � � � � � � � 18
sound 312 programming cable � � � � � � � � � � � � � 19
sound 13 programming cable � � � � � � � � � � � � � 19
Wax guard replacement and cleaning domes � � � � � � � 20
2
Fitting guide.
Receiver-in-Canal (RIC).

RIC options Vmax./LAmax. (2cc) Battery
Standard RIC 45/112 dB 312
Power RIC 55/126 dB 312
Super Power RIC 61/129 dB 312
RIC options Vmax./LAmax. (2cc) Battery
Standard RIC 45/112 dB 13
Power RIC 55/126 dB 13
Super Power Plus RIC 65/133 dB 13
RIC Produktlinie.
Warning to hearing healthcare professional: Domes should never be tted on patients with perforated eardrums, exposed middle ear cavities, or surgically altered ear canals. In the case of such a condition, we recommend
to use a customized ear mold. In the unlikely case that any parts remain in the ear canal aer the removal of the hearing instrument, contact a physician immediately
sound 312. sound 13.
3
Fitting guide.
Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
Power Dome Power DomeSleeve Mold Sleeve mold
cShell cShell
Standard-xReceiver. Power-xReceiver. Super Power-xReceiver. Super Power Plus*-xReceiver.
Coupling options.
Open Dome Open DomeClosed Dome Closed Dome cShell cShell
250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
4
Fitting guide.
Receiver-in-Canal (RIC).

0
1
2
3
0
1
2
3
Measuring for an accurate xReceiverunit.
Choosing the correct xReceiver wire length will ensure a more accurate, com-
fortable fit� The measurement tool included in the kit allows for a quick and
simple measurement and has the following features:
Color Code Markings – blue (left ear) and red (right ear) color code markings
to indicate which of the patient’s ears to measure�
Horizontal Line Markings – measurements must be made horizontally with the
measurement tool touching the skin in the gap between the head and the
top of the pinna� Four Horizontal Sightlines – (0-1-2-3) – to indicate which wire
length you should use for an accurate fitting�
5
Fitting guide.
Receiver-in-Canal (RIC).

4Choose the sightline (0-1-2-3) on the measurement tool that is most
parallel with the top of the opening of the ear canal� In this example,
the sightline marked 1 would be the most accurate choice�
5Make a note of the sightline chosen and then repeat steps 1-4 on the
opposite ear for a binaural fitting�
To measure for an accurate wire length.
1
Place your head at the same horizontal level as the patient’s head so
you are looking straight into the patient’s ear that you wish to fit with
the hearing instrument�
2
Hold the measurement tool with the appropriate blue or red color
code marking (for the left or right ear) with your thumb placed on
the ear diagram�
3Place the measurement tool on the top of the ear and in contact with
the skin in the narrow gap between the head and the pinna� Keep the
horizontal line on the measurement tool horizontal and level�
0
1
2
3
0
1
2
3
0
1
2
3
Note: It is important to measure the opposite ear for a binaural tting since right and le ear sizes can vary and thus, require dierent wire lengths.
6
Fitting guide.
Receiver-in-Canal (RIC).

Poor t (tube does not lie close to the head)
Good t
Modifying xReceiver wire to improve t.
In some cases, you might find that the wire of the xReceiver unit does not lie
close to the side of the head or follow the shape of the ear�
First, ensure the selected dome and xReceiver unit sizes are appropriate (see
following pages)�
1
Remove the xReceiver unit from the hearing instrument�
2
Heat the tube carefully with a hairdryer at a low setting
for a few seconds�
3
Do not use excessive heat to avoid damage to the electrical components�
4
Bend the tubing into the desired shape and hold until it has cooled
off� Once completely cooled, the tube will maintain its new shape�
7
Fitting guide.
Receiver-in-Canal (RIC).

Schlechter Sitz
(Dome zu klein)
Guter Sitz
250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
Open Dome
Choose for:
Instant fit
Open fit
Considerations:
Occlusion free
Closed Dome
Choose for:
Instant fit
Open fit
Considerations:
Extended fitting range over
open dome
Some occlusion
Power Dome
Choose for:
Instant fit
Open fit
Considerations:
Extended
low-frequency response
Occlusion
Hohlotoplastik cShell
Choose for:
Custom fit
Considerations:
Comfort
possible occlusion
Impression required

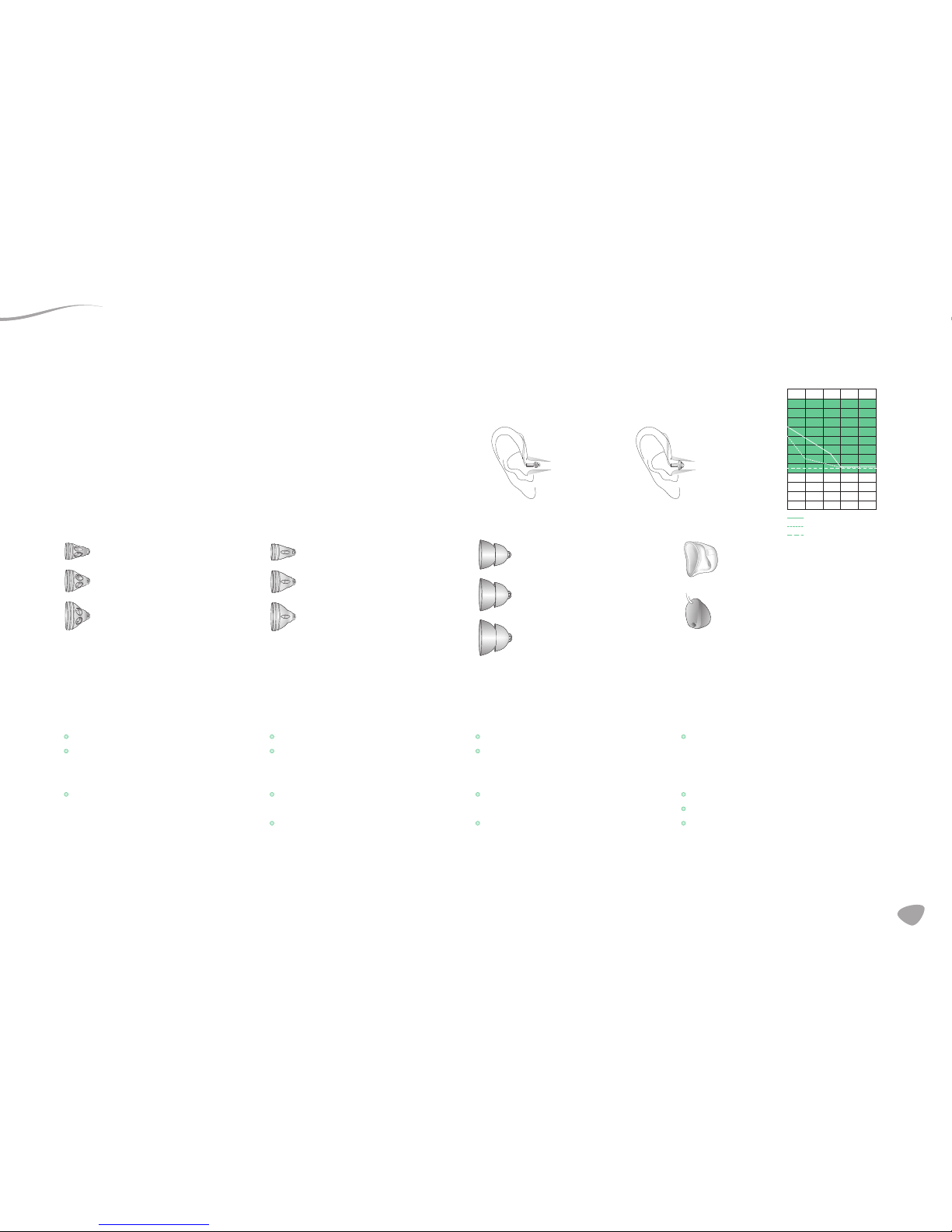

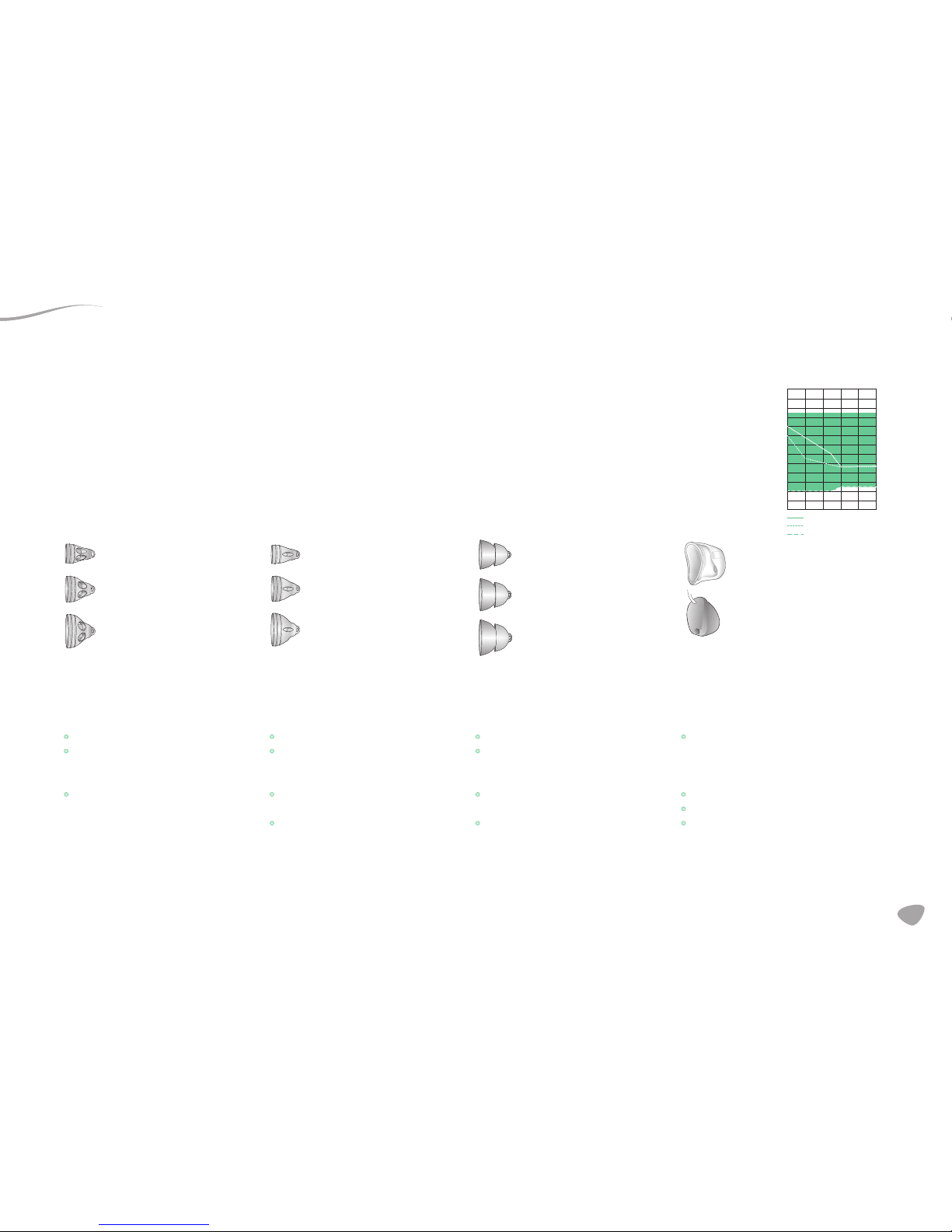

Choosing the correct coupling for standard
xReceivers.
Determine the correct dome size based on your otoscopic examination of the
ear canal� Select the dome type based on the audiometric requirements and
fitting ranges shown on this page� Allow the dome to fit comfortably in the
ear canal�
Open dome
Closed dome
Power dome/sleeve mold
8
Fitting guide.
Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
Choosing the correct coupling for
power xReceivers.
Determine the correct dome size based on your otoscopic examination of the
ear canal� Select the dome type based on the audiometric requirements and
fitting ranges shown on this page� Allow the dome to fit comfortably in the
ear canal�
Open Dome
Choose for:
Instant fit
Open fit
Considerations:
Occlusion free
Closed Dome
Choose for:
Instant fit
Semi-occluded fit
Considerations:
Extended fitting range
over open dome
Some occlusion
Power Dome
Choose for:
Instant fit
Occluded fit
Considerations:
Extended
low-frequency response
Occlusion
Sleeve mold cShell
Choose for:
Custom fit
Considerations:
Comfort
Possible occlusion
Impression required
Open dome
Closed dome
Power dome/sleeve mold
9
Fitting guide.
Receiver-in-Canal (RIC).

250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
250 500 1000 2000 4000 8000
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Hz
Super power** xReceiver
**R 312, Rm 312 only
Super power plus* xReceiver
*R 13 only

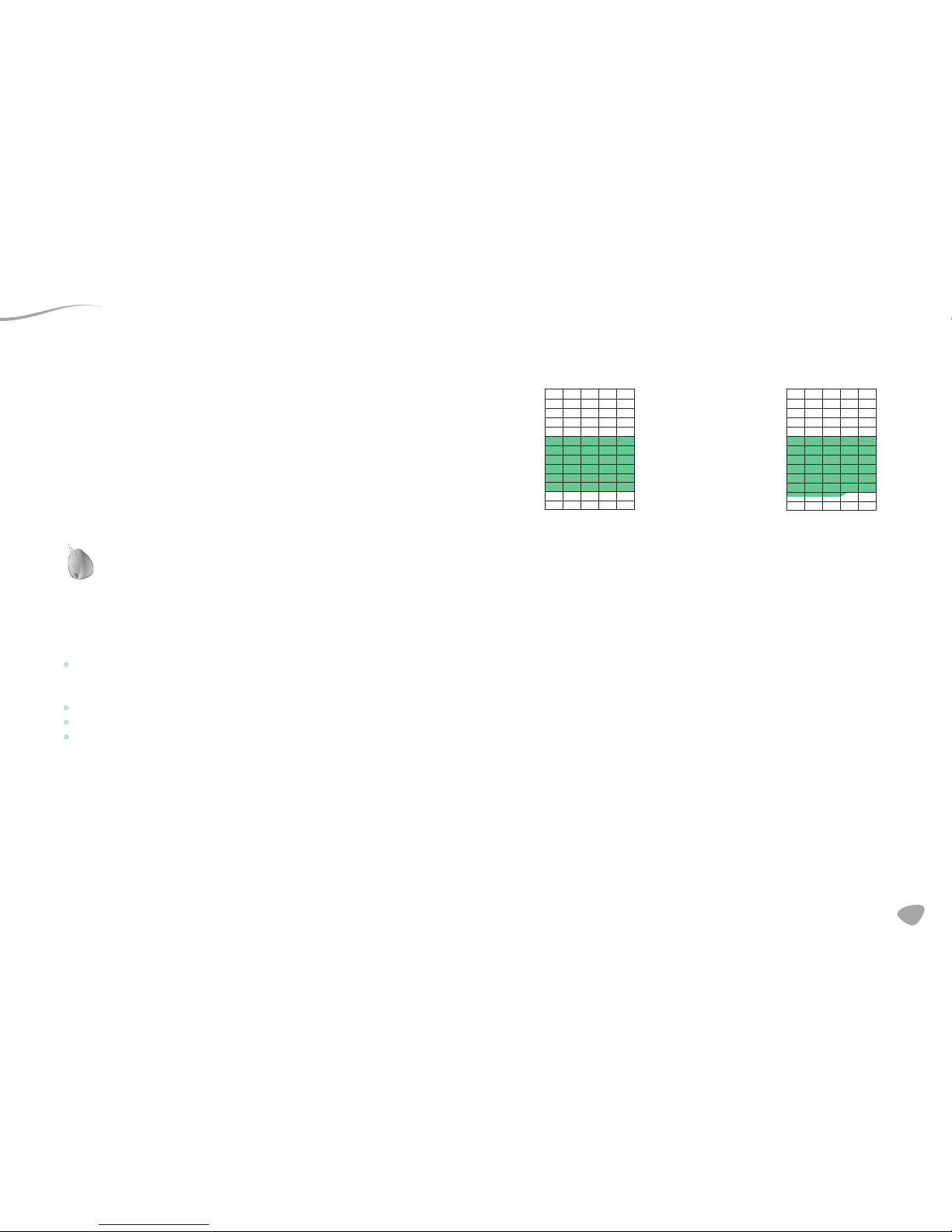

Choosing the correct coupling for super power
and super power plus xReceivers.
Select, based on the audiometric requirements and fitting ranges
shown on this page�
cShell
Choose for:
Custom fit
Verwendbar für:
Comfort
Possible occlusion
Impression required
10
Fitting guide.
Receiver-in-Canal (RIC).

To attach the retention piece.
1
Slide the retention piece over the receiver�
2
The retention piece should be secured over the receiver so it
appears as one piece�
Attaching the retention piece tothe standard or
power xReceiver unit.
The retention piece may be used for fittings with the open or closed dome
depending on the patient’s requirements� The retention piece is optional
and allows for extra security in the ear� The retention piece can easily be cut
shorter to comfortably fit into the patient’s concha bowl�
11
Fitting guide.
Receiver-in-Canal (RIC).

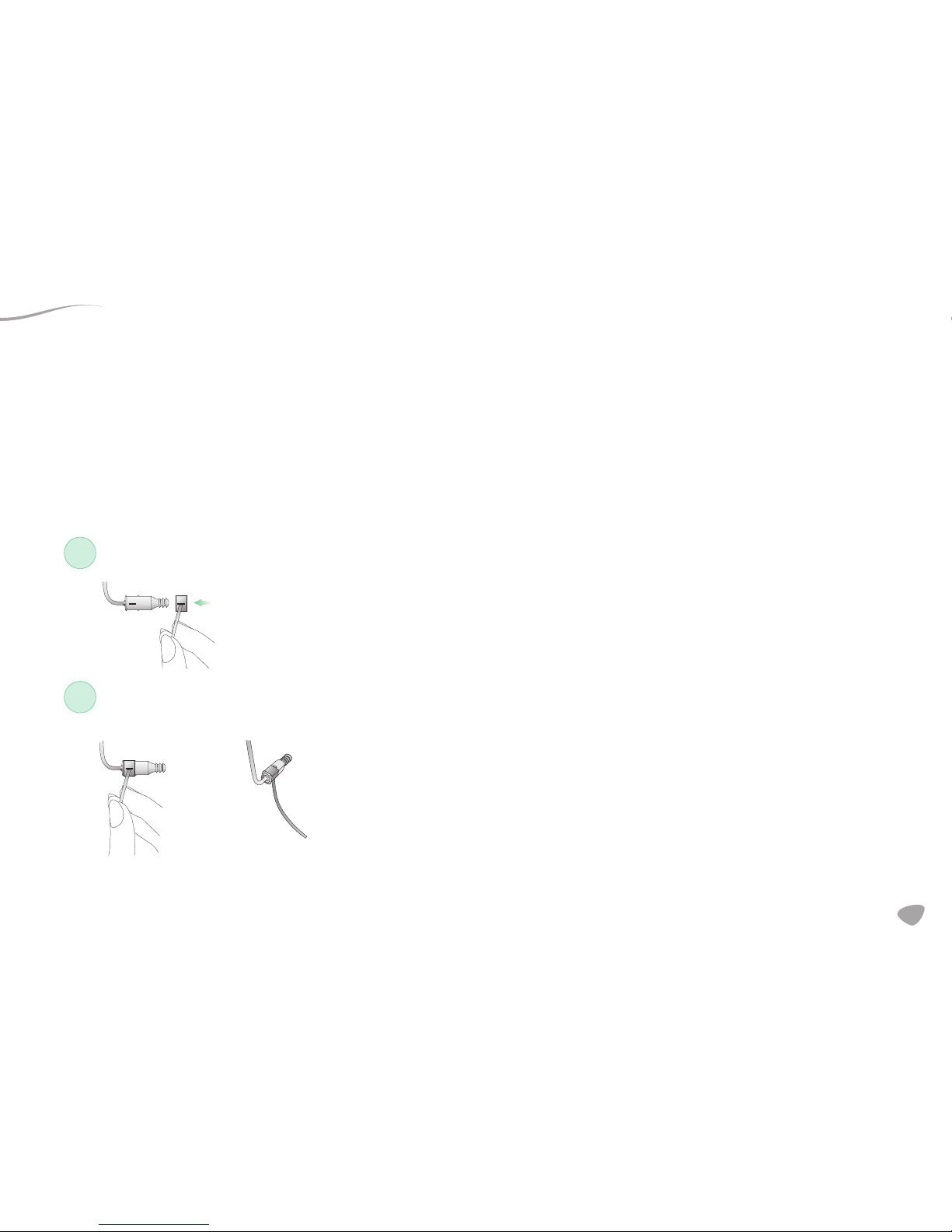

Attaching the power dome to the
power xReceiver unit.
1 Hold the xReceiver unit in one hand and the power dome
in the other hand�
2
Slide the power dome over the receiver�
3
The xReceiver unit and power dome should fit snugly together�
Attaching the dome or sleeve mold to the
standard xReceiver unit.
1 Hold the xReceiver unit in one hand and the coupling (i�e� dome or
sleeve mold) in the other hand�
2
Slide the appropriate coupling over the receiver�
3
The xReceiver unit and coupling should fit snugly together�
12
Fitting guide.
Receiver-in-Canal (RIC).

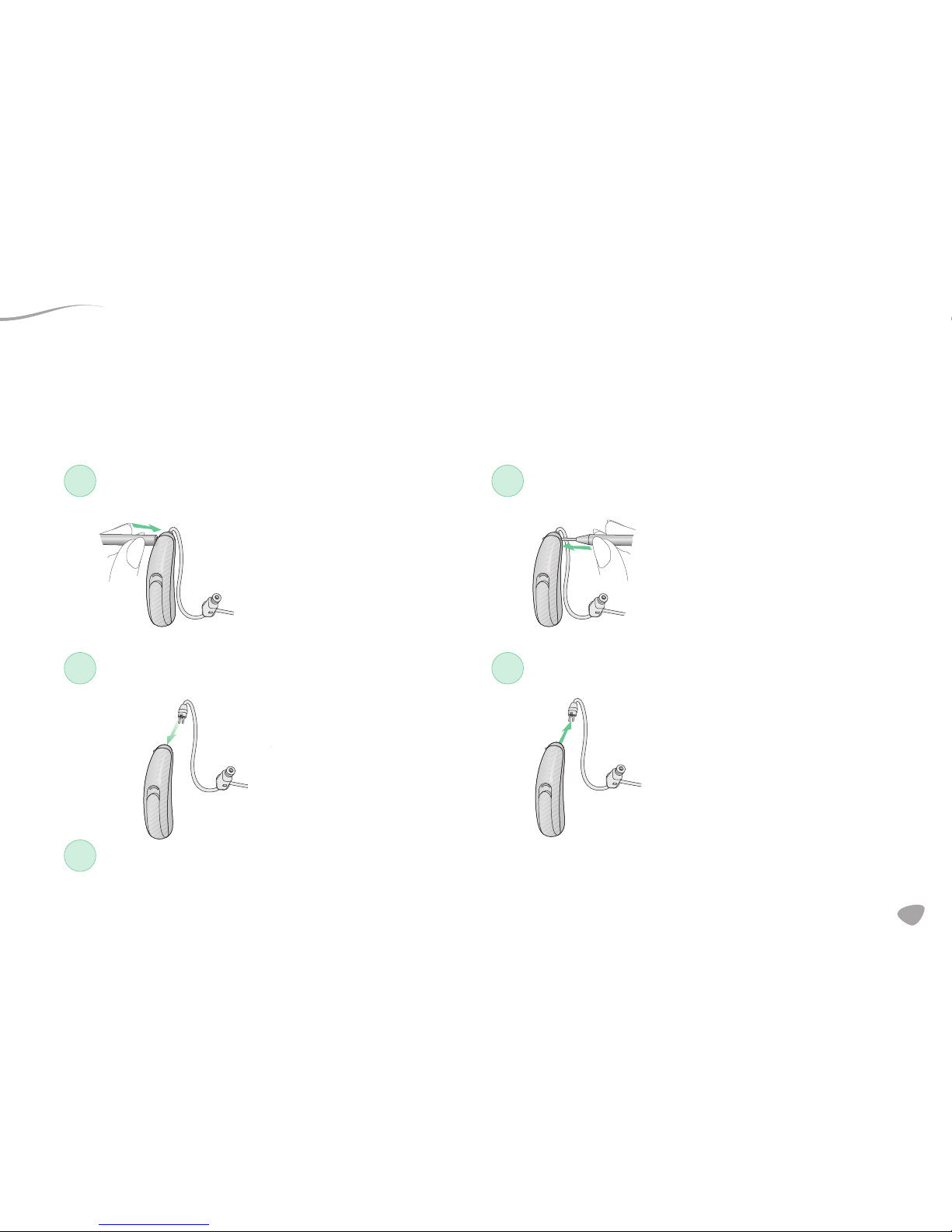

Removing the xReceiver unit from sound 312.
1
Use the small silver tool to push the slider pin slightly sideways�
2
Remove the xReceiver unit�
Attaching the standard, power or super power
xReceiver unit to sound312.
Attaching the xReceiver unit to sound 312.
1
Use the small silver tool to push the slider pin slightly sideways�
2
Place the xReceiver unit on sound 312�
3
Use the back of the small silver tool to push in the slider pin�
13
Fitting guide.
Receiver-in-Canal (RIC).

Attaching the standard, power or super
power plus xReceiver unit to sound13.
Attaching the xReceiver unit to sound 13.
1
Ensure the xReceiver lock is in the open position�
2
Place the xReceiver unit on the hearing aid�
Push the lock closed�
Replacing the xReceiver unit from sound 13.
1
Insert the tool into the slot to open the xReceiver lock�
2
Remove the xReceiver unit�
14
Fitting guide.
Receiver-in-Canal (RIC).

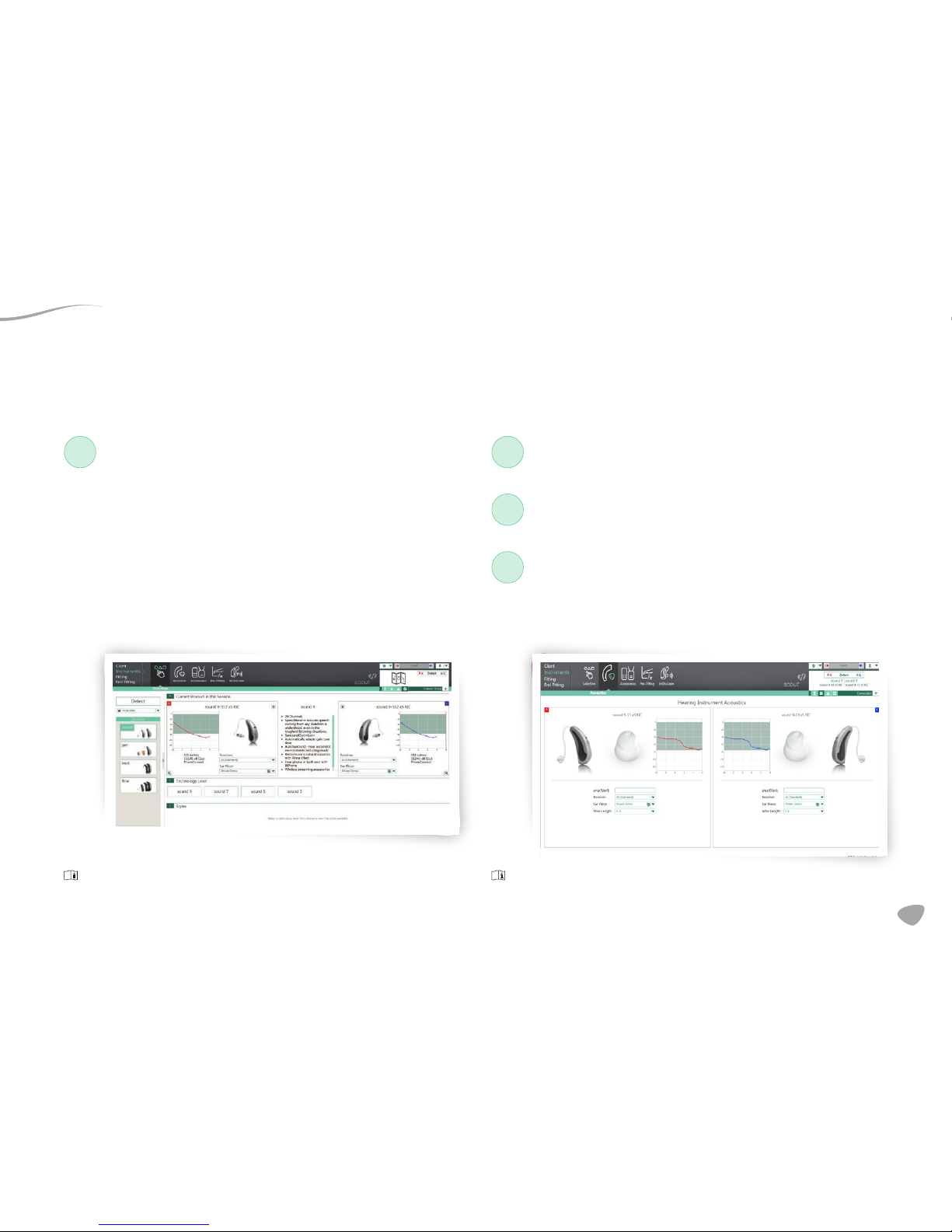

Conguring in HANSATON scout.
Detection screen.
1
Connect hearing instrument to the NOAHLink, HI-PRO, or iCube
and click the detect icon� HANSATON scout software will display the
connected devices and serial numbers�
Acoustics screen.
2
Go to the Acoustics screen in the Instruments menu�
3
Select the connected Receiver unit for each hearing instrument from
the drop-down lists�
4
Select the connected tip from the drop down list� If applicable,
choose the appropriate size of venting� Whenever a change to the
xReceiver unit or dome is made during the fitting, you need to revisit
the Acoustics screen and specify your choices to allow for correct
gain calculations�
Note: Aer connecting to the hearing devices, go to the Acoustics screen and select the correct receiver
and “tip” option.
Note: Please ensure that the connected xReceiver unit is selected and a QuickFit is performed before
inserting hearing instrument into your patient’s ear canal. Once your setup selection is complete, go to
Feedback Optimization under Fitting.
15
Fitting guide.
Receiver-in-Canal (RIC).

Feedback optimization.
Run Feedback Optimization�
16
Fitting guide.
Receiver-in-Canal (RIC).

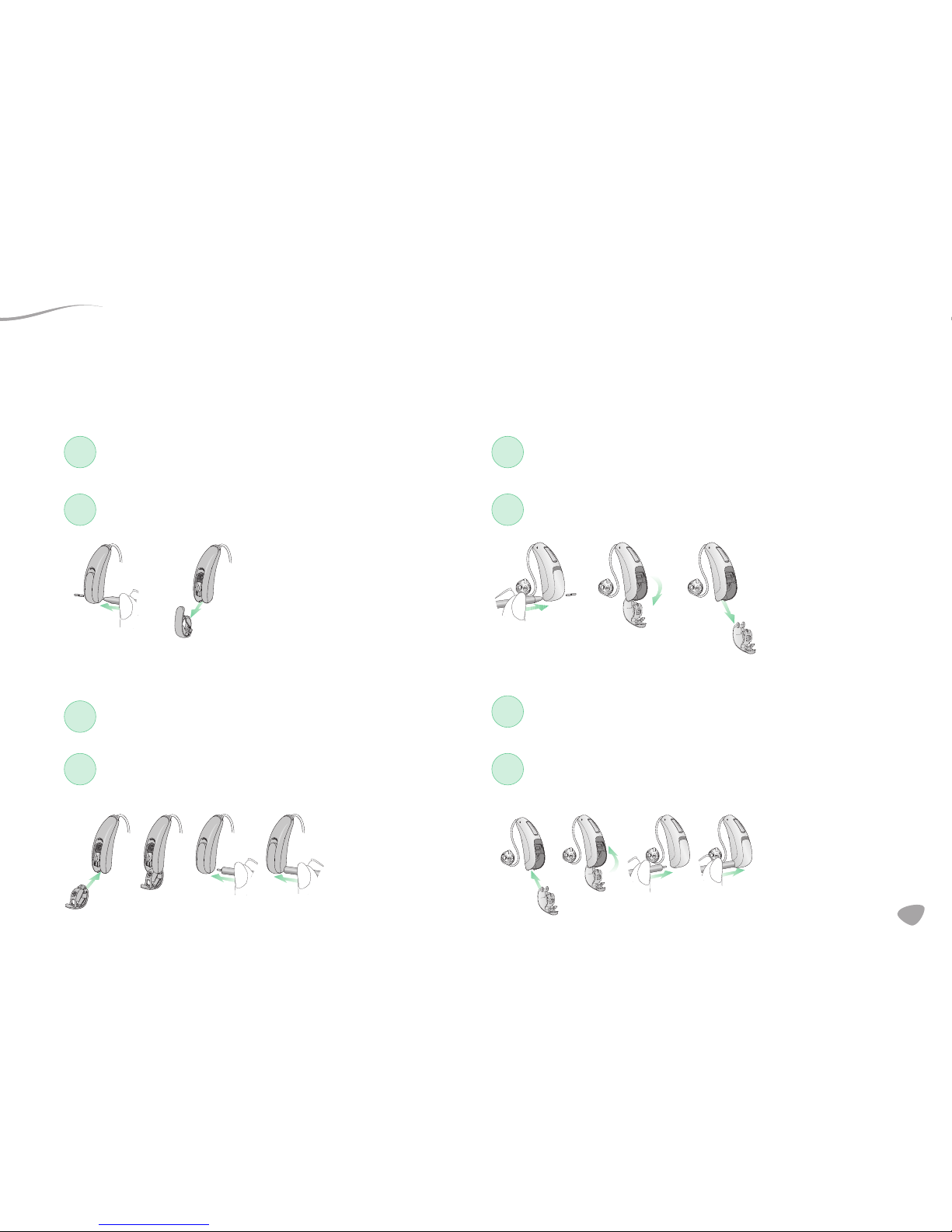

sound 312 battery door replacement.
Removal.
1
Use the small silver tool to push the pin out�
2
Remove the battery door�
sound 13 battery door replacement.
Removal.
1 Use the small silver tool to push the pin out�
2
Remove the battery door�
Installation.
1
Line up the battery door�
2
Insert the pin� Use the back of the small silver tool to push the pin in�
Installation.
1
Line up the battery door�
2
Insert the pin� Use the back of the small silver tool to push the pin in
�
17
Fitting guide.
Receiver-in-Canal (RIC).

Attach the standard xReceiver to the metal adapter plate�
How to measure performance in a coupler.
RIC devices should be measured with a HA1 coupler since it best reflects the
acoustical properties in the ear canal� The xReceiver kit includes a metal adapter
plate that fits on a HA1 coupler and allows for a good connection of the
xReceiver unit to the coupler�
Select Activate Test Box Measurement Mode in HANSATON scout software
from the menu on the top menu bar� Clicking on Activate Test Box Measure-
ment Mode disables the adaptive features and activates the omnidirectional
microphone mode to allow for correct measurements�
Click on Deactivate Test Box Measurement Mode to reestablish the
previous settings�
18
Fitting guide.
Receiver-in-Canal (RIC).

sound 312 programming cable.
Insertion.
1
Open the battery door to reveal the programming port�
2
Push the cable down onto the programming port�
sound 13 programming cable.
Insertion.
1
Open the battery door to reaveal the programming port�
2
Push the cable down onto the programming port�
Removal.
1
Pull up the programming cable and remove�
Removal.
1Pull up the programming cable and remove�
19
Fitting guide.
Receiver-in-Canal (RIC).

Wax guard replacement and cleaning domes.
All xReceiver units are equipped with a wax guard system to protect the
xReceiver from ear wax� The wax guard can be easily replaced� You will need
to counsel your patient on how to replace the wax protector, see instructions
included with the replacement packs�
If necessary, the domes and xReceiver units can be wiped with a damp cloth;
however, xReceiver units should never be submerged in water to avoid
damage to the electrical components�
20
Fitting guide.
Receiver-in-Canal (RIC).
