Sonova Phonak Bolero B User manual

User Guide
(B90/B70/B50/B30)
Phonak Bolero B

3
Wireless models
Phonak Bolero B90-M
Phonak Bolero B90-P
Phonak Bolero B90-SP
Phonak Bolero B70-M
Phonak Bolero B70-P
Phonak Bolero B70-SP
Phonak Bolero B50-M
Phonak Bolero B50-P
Phonak Bolero B50-SP
Phonak Bolero B30-M
Phonak Bolero B30-P
Phonak Bolero B30-SP
CE mark applied
2016
2016
2016
2016
2016
2016
2016
2016
2016
2016
2016
2016
This user guide is valid for:
Your hearing aid details
Model
cBolero B-M
cBolero B-P
cBolero B-SP
Earpiece
cDome or SlimTip
cClassic earmold
Battery size
312
13
13
If no box is checked and you do not know the
model of your hearing aid, please ask your hearing
care professional.
Your hearing care professional:

5
Contents
Your hearing aid
1. Quick guide
2. Parts of the hearing aid
Using the hearing aid
3. Left & right hearing aid markings
4. On/O
5. Batteries
6. Putting on the hearing aid
7. Removing the hearing aid
8. Push button
9. Volume control
Further Information
10. Care and maintenance
11. Wireless accessories
12. Service and warranty
13. Compliance information
14. Information and description of symbols
15. Troubleshooting
16. Important safety information
6
8
10
11
12
14
16
18
19
20
23
26
28
33
38
40
Your hearing aids have been developed by
Phonak – the world leader in hearing solutions based
in Zurich, Switzerland.
These premium products are the result of decades of
research and expertise and are designed to keep you
connected to the beauty of sound! We thank you for
making such a great choice and wish you many years of
listening pleasure.
Please read the user guide carefully to make sure that you
understand and get the best out of your hearing aids. For
more information about features and benets, simply
contact your hearing care professional.
Phonak – life is on
www.phonak.com

6 7
1. Quick guide
Left & right hearing aid markings On/O
Changing batteries
Push button
Volume control
1
Blue marking for left
hearing aid.
Red marking for right
hearing aid.
Remove the
sticker from the
new battery
and wait two
minutes.
Bolero B-M Bolero B-P, B-SP
3
Bolero B-M
Bolero B-P & B-SP
Open the
battery door.
Place battery in the
battery door with the
“+” symbol facing
upwards.
The push button on your hearing
aid can have various functions.
Bolero B-P and B-SP only:
To increase the volume, press the
volume control upwards. To decrease
the volume, press the volume control
downwards.
O
On
2

8 9
2. Parts of the hearing aid
The pictures below show the models described in this user
guide. You can identify your personal model by:
• Checking “Your hearing aid details” on page 3.
• Or comparing your hearing aid with the following
shown models. Pay attention to the shape of the
hearing aid and if a volume control is present.
Possible earpieces for all models
Battery door
AnchorEarpiece: Dome
(detachable)
Push button
Bolero B-M
Tube
Push button
Bolero B-P & B-SP
Hook / sound output
Classic earmold
(detachable)
Battery door
Volume control
Classic earmoldSlimTipDome

10 11
3. Left & right hearing aid markings 4. On/O
The battery door is also the on/o switch.
1
2
Closed battery door =
hearing aid is on
Open battery door =
hearing aid is o
When you switch on the hearing aid you may hear
a start-up melody.
There is a red or blue marking to tell you if it is a left
or a right hearing aid.
Blue marking
for left
hearing aid.
Red marking
for right
hearing aid.
Bolero B-M Bolero B-P, B-SP

12 13
Model
Phonak Bolero
B-M
B-P, B-SP
Zinc air
battery
size
312
13
Color
marking on
package
brown
orange
IEC
code
PR41
PR48
ANSI
code
7002ZD
7000ZD
Replacement battery
This hearing aid requires zinc-air batteries. Identify the
correct battery size (312 or 13) by:
• Checking “Your hearing aid details” on page 3.
• Checking the marking on the inner side of the
battery door.
• Checking the following table.
Please ensure you use the correct type of battery in
your hearing aids (zinc-air). Please also read chapter
16.2 for further information on product safety.
5. Batteries
Remove the
sticker from
the new
battery and
wait two
minutes.
Open the
battery door.
Place battery in the
battery door with the
“+” symbol facing
upwards.
Low power: You will hear two beeps when the battery
is low. You will have approximately 30 minutes to
change the battery (this can vary, depending on the
hearing aid settings and battery). We recommend that
you always have a new battery on hand.
If it is dicult to close the battery door: Check that
the battery is inserted correctly and the “+” symbol
is facing upwards. If the battery is not inserted
correctly, the hearing aid will not work and the
battery door can be damaged.
1 33
Bolero B-M
Bolero B-P & B-SP
2

14 15
6. Putting on the hearing aid
6.2 Putting on the hearing aid with dome or SlimTip6.1 Putting on the hearing aid with classic earmold
1
2
3
Place the hearing aid behind
your ear.
Insert the earpiece into your
ear canal.
If there is an anchor attached
to the earpiece, tuck it into the
bowl of your ear to secure your
hearing aid.
1
2
3
Take the earmold up to your ear
and place the ear canal part into
your ear canal.
Place the hearing aid behind
your ear.
Insert the upper part of the
earmold into the upper part of
the bowl of your ear.

16 17
7. Removing the hearing aid
1
Pull on the bend of the tube
and remove the hearing aid
from behind the ear.
In very rare cases, your earpiece can remain in your
ear canal when removing the hearing aid from the
ear. In the unlikely case that the earpiece does get
stuck in your ear canal, it is strongly recommended
to see a medical specialist for safe removal.
7.1 Removing the hearing aid with classic earmold 7.2 Removing the hearing aid with dome or SlimTip
1
2
Lift the hearing aid above the
upper part of your ear.
Grasp the earmold in your ear
and gently remove it.
Please try to avoid gripping the tube to remove the
hearing aid.

18 19
9. Volume control
Bolero B-P and B-SP only:
To increase the volume,
press the volume control
upwards. To decrease the
volume, press the volume
control downwards.
The volume control can
be disabled by the hearing
care professional.
8. Push button
The push button on your
hearing aid can have
various functions or is
not active. This depends
on the programming of
the hearing aid, which is
indicated in your
individual “Hearing aid
instructions”. Please ask
your hearing care
professional for this
printout.

20 21
10. Care and maintenance
Diligent and routine care of your hearing aid contributes
to outstanding performance and a long service life.
Please use the following specications as a guideline. For
further information regarding product safety, see
chapter 16.2.
General information
Before using hair spray or applying cosmetics, you should
remove your hearing aid from your ear, because these
products may damage it.
When you are not using your hearing aid, leave the
battery door open so that any moisture can evaporate.
Make sure that you always completely dry your hearing
aid after use. Store the hearing aid in a safe, dry and
clean place.
Your hearing aids are resistant to water, sweat and dust
under the following conditions:
• The battery door is fully closed. Ensure that no foreign
object such as hair is caught in the battery door when it
is closed.
• After exposure to water, sweat or dust, the hearing aid
is cleaned and dried.
• The hearing aid is used and maintained as described in
this user guide.
Hearing aids with the design-integrated Roger
receiver are also water resistant.
Hearing aids with an audio shoe and Roger X
receiver are not water resistant.
Use of your hearing aid around water can restrict
air ow to the batteries causing it to stop working.
Should your hearing aid stop working after coming
into contact with water, refer to the
troubleshooting steps in chapter 15.

22 23
Daily
Inspect the earpiece and tube for earwax and moisture
deposits. Clean the surfaces with a lint-free cloth. Never
use cleaning agents such as household detergents, soap,
etc. for cleaning your hearing aid. It is not recommended
to rinse these parts with water, risk for lodging in the
tube. If you need to clean your hearing aid intensively, ask
your hearing care professional for advice and information
on lters or drying capsules.
Weekly
Clean the earpiece with a soft, damp cloth or with a
special cleaning cloth for hearing aids. For further
maintenance or cleaning instructions, please see your
hearing care professional.
Monthly
Inspect your hearing tube for color changes, hardening, or
cracks. In the case of such changes, the hearing tube has
to be replaced. Please see your hearing care professional.

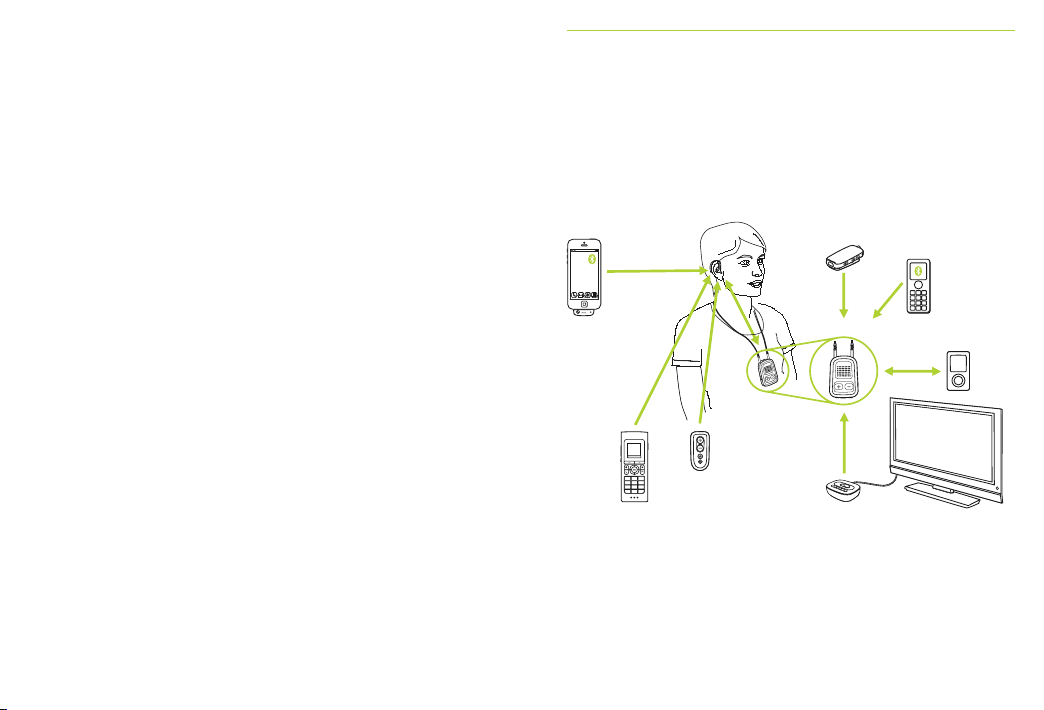

11. Wireless accessories
A range of Phonak accessories are available for you to use
with your hearing aid.
11.1 Connecting to audio sources and remote control
* The Phonak ComPilot II with neckloop or ComPilot Air II with clip to attach to clothing. They
also have basic remote control functionalities. For advanced control they can be used with the
Phonak RemoteControl App.
** Audio sources (e.g. MP3 Player, computer, laptop, tablet) can be connected to the streaming
device via Bluetooth or audio cable.
*** Clipped onto the speaker’s clothing for better understanding over distance.
Cell phone
Phonak streaming device*
Phonak EasyCall II
with cell phone
Phonak RemoteMic***
MP3 Player/
Audio source**
Phonak TVLink II connected to TV
Phonak PilotOne II
remote control
Phonak DECT II phone

24 25
The Roger portfolio provides an outstanding microphone
performance to help you better understand in noise and
over distance. With Roger you can benet from:
• understanding every word in a noisy situation e.g.
restaurants, public areas and over distance
• discreet design
• speech transmission directly to your hearing aids with
attached receiver or via your body-worn receiver Microphone*
Body-worn receiver option
* Some Roger microphones also support input from audio
sources via Bluetooth® or cable.
Bluetooth® is a registered trademark owned by the
Bluetooth SIG, Inc.
Behind-the-ear receiver option
11.2 Communication in noise and over distance

26 27
Warranty limitation
This warranty does not cover damage from improper
handling or care, exposure to chemicals or undue stress.
Damage caused by third parties or non-authorized service
centers renders the warranty null and void. This warranty
does not include any services performed by a hearing care
professional in their oce.
Serial number
(left side):
Serial number
(right side):
Date of purchase:
Authorized hearing care
professional (stamp/signature):
12. Service and warranty
Local warranty
Please ask the hearing care professional, where you
purchased your hearing aid, about the terms of the
local warranty.
International warranty
Sonova AG oers a one year limited international
warranty, valid starting from the date of purchase.
This limited warranty covers manufacturing and
material defects in the hearing aid itself, but not
accessories such as batteries, tubes, earmolds and
external receivers. The warranty only comes into
force if a proof of purchase is shown.
The international warranty does not aect any legal
rights that you might have under applicable national
legislation governing sale of consumer goods.

28 29
The wireless models listed on page 2 are
certied under:
Phonak Bolero B-M
USA FCC ID: KWC-WHSBTEM
Canada IC: 2262A-WHSBTEM
Phonak Bolero B-P
USA FCC ID: KWC-WHSBTEP
Canada IC: 2262A-WHSBTEP
Phonak Bolero B-SP
USA FCC ID: KWC-WHSBTESP
Canada IC: 2262A-WHSBTESP
Europe:
Declaration of Conformity
Hereby Sonova AG declares that this product meets the
requirements of the Medical Devices Directive 93/42/EEC
as well as the Radio Equipment Directive 2014/53/EU.
The full text of the EU Declaration of Conformity can be
obtained from the manufacturer or the local Phonak
representative whose address can be taken from the list
on www.phonak.com (Phonak worldwide locations).
13. Compliance information
Australia/New Zealand:
Indicates a device’s compliance with applicable
Radio Spectrum Management’s (RSM) and
Australian Communications and Media Authority
(ACMA) regulatory arrangements for the legal sale
in New Zealand and Australia.
The compliance label R-NZ is for radio products
supplied in the New Zealand market under
conformity level A1.

30 31
Notice 1:
This device complies with Part 15 of the FCC Rules and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice 2:
Changes or modications made to this device not
expressly approved by Sonova AG may void the FCC
authorization to operate this device.
Notice 3:
This device has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules and ICES-003 of Industry Canada.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This device generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this device does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device
and receiver.
• Connect the device into an outlet on a circuit
dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.

32 33
With the CE symbol, Sonova AG conrms that
this product – including accessories – meets the
requirements of the Medical Devices Directive
93/42/EEC as well as the Radio Equipment
Directive 2014/53/EU. The numbers after the
CE symbol correspond to the code of certied
institutions that were consulted under the
above-mentioned directives.
This symbol indicates that the products
described in these user instructions adhere to
the requirements for an applied part of Type B
of EN 60601-1. The surface of the hearing aid is
specied as an applied part of Type B.
Indicates the medical device manufacturer, as
dened in EU Directive 93/42/EEC.
14. Information and description
of symbols
Antenna type
Operation frequency
Occupied bandwidth
(99% BW)
Modulation
Channel
Operating range
Use case
Magnetic eld strength
@ 3 m
Integrated ferrite coil
antenna (inductive)
10.6 MHz
approx. 500 kHz
DQPSK
Single channel radio
18 cm (7”)
Streaming of audio or
command signal to
receiving hearing aid on
the other ear
-20.5 dBµA/m
Radio information of your wireless hearing aid

34 35
During transportation keep dry.
This symbol indicates that it is important for
the user to read and take into account the
relevant information in these user guides.
This symbol indicates that it is important for
the user to pay attention to the relevant
warning notices in these user guides.
Important information for handling and
product safety.
Operating
conditions
The product is designed such that it functions
without problems or restrictions if used as
intended, unless otherwise noted in these user
guides. The hearing aids are classied IP68 (depth
of 1 meter for 60 minutes) and designed to be
used in all daily life situations. Therefore you do
not have to worry about getting the hearing
aids exposed to a rain shower or sweat. However,
the hearing aid is not intended to be used in
water activities that includes chlorinated water,
soap, salt water or other liquids with a
chemical content.
Indicates the manufacturer’s serial number so that
a specic medical device can be identied.
Indicates the manufacturer’s catalogue number so
that the medical device can be identied.

36 37
Temperature during transportation
and storage: –20° to +60° Celsius
(–4° to +140° Fahrenheit).
Humidity during transportation: Up to 90%
(non condensing).
Humidity during storage: 0% to 70%, if not in
use. See instruction in chapter 16.2 regarding
drying the hearing aid after use.
Atmospheric pressure: 200 hPA to 1500 hPa
The symbol with the crossed-out garbage bin
is to make you aware that this hearing aid
may not be thrown away as normal
household waste. Please dispose of old or
unused hearing aids, at waste disposal sites
intended for electronic waste, or give your
hearing aid to your hearing care professional
for disposal. Proper disposal protects the
environment and health.

38 39
15. Troubleshooting
If the problem persists, contact you hearing care
professional for assistance
Causes
Dead battery
Blocked speaker/earpiece
Battery not inserted correctly
Hearing aid switched o
Hearing aid not inserted correctly
Earwax in ear canal
Volume too loud
Low battery
Speaker/earpiece blocked
Volume too low
Physical hearing condition
has changed
Indication for low battery
Moisture on battery or
hearing aid
Problem
Hearing aid not functioning
Hearing aid whistles
Hearing aid not loud enough
or distorted
Hearing aid plays two beeps
Hearing aid switches on & o
(intermittent)
What to do
Change battery (chapter 1 + 5)
Clean speaker opening/earpiece
Insert battery correctly (chapter 1 + 5)
Switch hearing aid on by completely closing the battery door
(chapter 4)
Insert hearing aid correctly (chapter 6)
Contact your ENT/GP or hearing care professional
Decrease volume (chapter 8 + 9)
Change battery (chapter 1 + 5)
Clean speaker opening/earpiece
Turn volume up if volume control available (chapter 8 + 9)
Contact you hearing care professional
Change battery within the next 30 minutes (chapter 1 + 5)
Wipe battery and hearing aid with dry cloth
