Hot tub performance specifications
1 Hot tub performance specifications
Performance specifications
rated voltage: three-phase connect. 230/400 V 50 Hz*
maximum working current: 3× 16 A
current surge: up to 3× 25 A
voltage resistance: 1 250 V/min. without breakdown
insulation resistance: >=1MΩ
water resistance (protection): IPX5
electrical shock protection: rstdegree
*The product does not use 400 V phase to phase voltage. It is possible to adjust it to
1× 230 V; however, this is not recommended due to limitation of the functions.
(For more information on this connection, please refer to the Supplements, p. 21)
Load capacity
heating: 1× 230 V/3 kW/13.6 A
ozone: 1× 230 V/50 Hz /80 mA
blower: 1× 230 V/0.66 kW/2.9 A
pump 1/1 + 1/1 + 0,4: 2.2 kW + 2.2 kW + 0.4 kW
total input power (depending on type of hot tub): 8.5 kW / h
protection class: I.
lighting: LED 12 V AC/10 W
maximum output power: 20 W
Preparation and electrical connection options – AC three-phase
current 3× 230/400 V/16 A/20 A
Ensure that the hot tub is always connected to a circuit protected by a Residual Current
protective Device with a rated tripping current of 0.03 A. It is necessary to use a Type C
or Type D circuit breaker with a rated current of 16 A (motor circuit breaker)
downstream of the Residual Current protective Device.
For your own safety and the safety of your product, please observe the following
instructions. Read the following information carefully and follow the user manual
exactly when using the hot tub to avoid damaging the product or the risk of injury.
This appliance is intended for use by children 8 years of age or older with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
provided they are under supervision or have been instructed on the use of the
product and understand the risks. Children must not play with the product.
Cleaning and maintenance must not be performed by children without supervision.

4
Preparation for the installation of the hot tub
2 Preparation for the installation of
the hot tub
Check the hot tub before use! If any part of it is damaged or missing, immediately
contact the retailer without delay! Ensure that all components are in line with your
order. Check the hot tub every time before use. In case of any damage, do not use
the hot tub!
2.1 Preparation of the place for installation and connection to
electricity
The hot tub must be installed on a at, suciently solid base plate, taking into
account the load-bearing capacity of the building. If the hot tub is installed outdoors,
we recommend constructing a concrete monolithic base slab with a minimum
strength (thickness) of 10 cm. It is important to also always select the load-bearing
capacity of the base slab with regard to the dimensions and the weight of the hot tub.
Consult your building supervisor. The weight is specied in the technical description
of the given hot tub. The tubs are prepared by us for an electrical connection of
3× 230 V/400 V~ alternating current. Therefore, use a circuit breaker 3× 16 A/C or D,
alternatively 3× 20 A/C or D and a Residual Current protective Device corresponding
to this connection. Furthermore, it is necessary to have a cable with parameters
corresponding to the rightful regulations for this type of connection. The cable must
also have 4 usable meters at the location of the hot tub, so that it can be pulled
through and connected to the control unit without complications. Do not route the
cable under the hot tub!

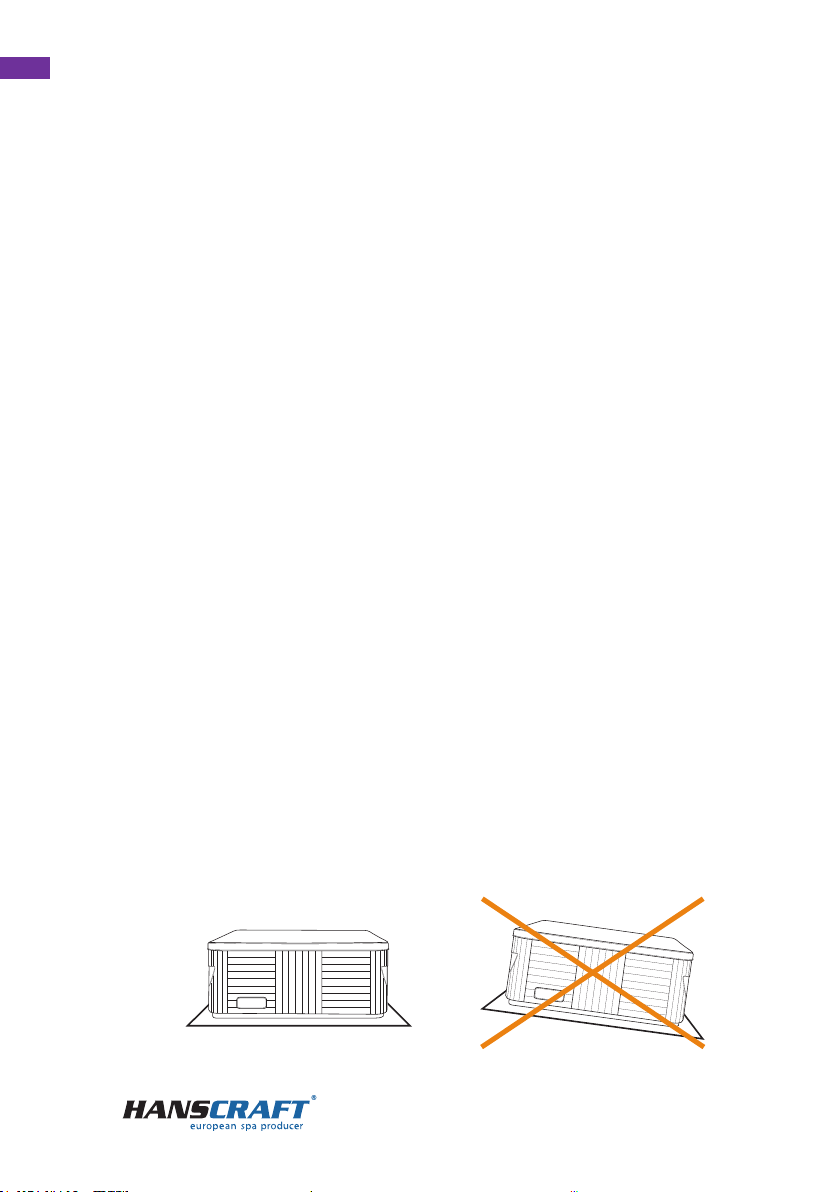

Recommended Type C circuit breaker
Hot tubs with two massage motors: 3× 16 A/C or D
Hot tubs with three massage motors: 3× 20 A/C or D
!!!THE HOT TUB MUST ONLY BE CONNECTED BY A PERSON WITH PROFESSIONAL
ELECTRICAL QUALIFICATION IN ACCORDANCE WITH DECREE NO. 50/1978 COLL.!!!
NO
YES

5
Preparation/Installation of the hot tub
2.2 Preparation for the interior hot tub installation
If the hot tub is installed in an interior space, it is necessary to comply with safety
instructions. The basic safety requirements are mainly non-skid oors and drainage
in the place of the installation in case of a water overow. It is also crucial to keep
in mind that the humidity around the hot tub will rise and can damage surrounding
electric appliances. Therefore we recommend customizing the place of the installation
according to these conditions. The hot tub should be accessible from all sides for
future repair services. If it is not suciently accessible during the guarantee period,
the owner has a duty to ensure the access.
2.3 Preparation for the exterior hot tub installation
If the hot tub is installed in an exterior space, it is necessary to comply with safety
instructions. The basic safety requirements are mainly non-skid oors and water
drainage in case of a rainfall or water overow from the hot tub. Therefore we
recommend customizing the place of the installation according to these conditions.
3 Installation of the hot tub
Warning: connection to electricity must be done according to norms valid in
CzechRepublicČSN332000-7-701
3.1 General information
We strongly recommend you to hire professionally trained and qualied technicians for
the process of installation. If you decide to install the hot tub by yourself, please abide
by the following instructions.
a) Carefully remove all the packaging material from the hot tub and position the hot
tub on a beforehand selected place of installation.
b) Demount the front panel on the side of the hot tub control panel. Demount the
upper cover of an electrical wiring under which you can nd a residual current
device, a ground fault circuit interruptor (if it is part of the hot tub equipment)
and a ground staple. The connection itself must be done by a person with an
expert qualication.
c) Every hot tub is tested in real life conditions during the production process,
therefore there is a possibility some technical parts of the hot tub have remained
slightly dirty. We recommend you to clean the surface of the hot tub using a
suitable method; lukewarm water works best for this purpose. Clean the surface
using a soft cloth only. Don't use any rough abrasive means and cloths which could
permanently damage the surface of the hot tub. If you decide to use a generic
cleaning detergent, it cannot be aggressive towards the hot tub surface.
